Gauss-Markov mobility model. More...

#include <gauss-markov-mobility-model.h>

Inheritance diagram for ns3::GaussMarkovMobilityModel:

Collaboration diagram for ns3::GaussMarkovMobilityModel:

Public Member Functions
	GaussMarkovMobilityModel ()

Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()

virtual	~MobilityModel ()=0

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector	GetPosition (void) const

double	GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector	GetVelocity (void) const

void	SetPosition (const Vector &position)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::MobilityModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t)
	The default implementation does nothing but return the passed-in parameter. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual Vector	DoGetPosition (void) const

virtual Vector	DoGetVelocity (void) const

virtual void	DoSetPosition (const Vector &position)

void	DoWalk (Time timeLeft)

void	Start (void)

Private Attributes
double	m_alpha

Box	m_bounds

double	m_Direction

EventId	m_event

ConstantVelocityHelper	m_helper

double	m_meanDirection

double	m_meanPitch

double	m_meanVelocity

Ptr< NormalRandomVariable >	m_normalDirection

Ptr< NormalRandomVariable >	m_normalPitch

Ptr< NormalRandomVariable >	m_normalVelocity

double	m_Pitch

Ptr< RandomVariableStream >	m_rndMeanDirection

Ptr< RandomVariableStream >	m_rndMeanPitch

Ptr< RandomVariableStream >	m_rndMeanVelocity

Time	m_timeStep

double	m_Velocity

Additional Inherited Members
Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const
	Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Gauss-Markov mobility model.

This is a 3D version of the Gauss-Markov mobility model described in [1]. Unlike the other mobility models in ns-3, which are memoryless, the Gauss Markov model has both memory and variability. The tunable alpha parameter determines the how much memory and randomness you want to model. Each object starts with a specific velocity, direction (radians), and pitch angle (radians) equivalent to the mean velocity, direction, and pitch. At each timestep, a new velocity, direction, and pitch angle are generated based upon the previous value, the mean value, and a gaussian random variable. This version is suited for simple airplane flight, where direction, velocity, and pitch are the key variables. The motion field is limited by a 3D bounding box (called "box") which is a 3D version of the "rectangle" field that is used in 2-dimensional ns-3 mobility models.

Here is an example of how to implement the model and set the initial node positions:

MobilityHelper mobility;
mobility.SetMobilityModel ("ns3::GaussMarkovMobilityModel",
  "Bounds", BoxValue (Box (0, 150000, 0, 150000, 0, 10000)),
  "TimeStep", TimeValue (Seconds (0.5)),
  "Alpha", DoubleValue (0.85),
  "MeanVelocity", StringValue ("ns3::UniformRandomVariable[Min=800|Max=1200]"),
  "MeanDirection", StringValue ("ns3::UniformRandomVariable[Min=0|Max=6.283185307]"),
  "MeanPitch", StringValue ("ns3::UniformRandomVariable[Min=0.05|Max=0.05]"),
  "NormalVelocity", StringValue ("ns3::NormalRandomVariable[Mean=0.0|Variance=0.0|Bound=0.0]"),
  "NormalDirection", StringValue ("ns3::NormalRandomVariable[Mean=0.0|Variance=0.2|Bound=0.4]"),
  "NormalPitch", StringValue ("ns3::NormalRandomVariable[Mean=0.0|Variance=0.02|Bound=0.04]"));
mobility.SetPositionAllocator ("ns3::RandomBoxPositionAllocator",
  "X", StringValue ("ns3::UniformRandomVariable[Min=0|Max=150000]"),
  "Y", StringValue ("ns3::UniformRandomVariable[Min=0|Max=150000]"),
  "Z", StringValue ("ns3::UniformRandomVariable[Min=0|Max=10000]"));
mobility.Install (wifiStaNodes);

[1] Tracy Camp, Jeff Boleng, Vanessa Davies, "A Survey of Mobility Models for Ad Hoc Network Research", Wireless Communications and Mobile Computing, Wiley, vol.2 iss.5, September 2002, pp.483-502

Config Paths

ns3::GaussMarkovMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel

Attributes

Bounds: Bounds of the area to cruise.
- Set with class: BoxValue
- Underlying type: Box
- Initial value: -100|100|-100|100|0|100
- Flags: construct write read
TimeStep: Change current direction and speed after moving for this time.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
Alpha: A constant representing the tunable parameter in the Gauss-Markov model.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
MeanVelocity: A random variable used to assign the average velocity.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=1.0]
- Flags: construct write read
MeanDirection: A random variable used to assign the average direction.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=0.0|Max=6.283185307]
- Flags: construct write read
MeanPitch: A random variable used to assign the average pitch.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::ConstantRandomVariable[Constant=0.0]
- Flags: construct write read
NormalVelocity: A gaussian random variable used to calculate the next velocity value.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::NormalRandomVariable >
- Initial value: ns3::NormalRandomVariable[Mean=0.0|Variance=1.0|Bound=10.0]
- Flags: construct write read
NormalDirection: A gaussian random variable used to calculate the next direction value.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::NormalRandomVariable >
- Initial value: ns3::NormalRandomVariable[Mean=0.0|Variance=1.0|Bound=10.0]
- Flags: construct write read
NormalPitch: A gaussian random variable used to calculate the next pitch value.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::NormalRandomVariable >
- Initial value: ns3::NormalRandomVariable[Mean=0.0|Variance=1.0|Bound=10.0]
- Flags: construct write read

Attributes defined in parent class ns3::MobilityModel

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::MobilityModel

CourseChange: The value of the position and/or velocity vector changed

Definition at line 80 of file gauss-markov-mobility-model.h.

Constructor & Destructor Documentation

ns3::GaussMarkovMobilityModel::GaussMarkovMobilityModel ( )

Definition at line 89 of file gauss-markov-mobility-model.cc.

References m_event, m_helper, m_meanDirection, m_meanPitch, m_meanVelocity, ns3::Simulator::ScheduleNow(), Start(), and ns3::ConstantVelocityHelper::Unpause().

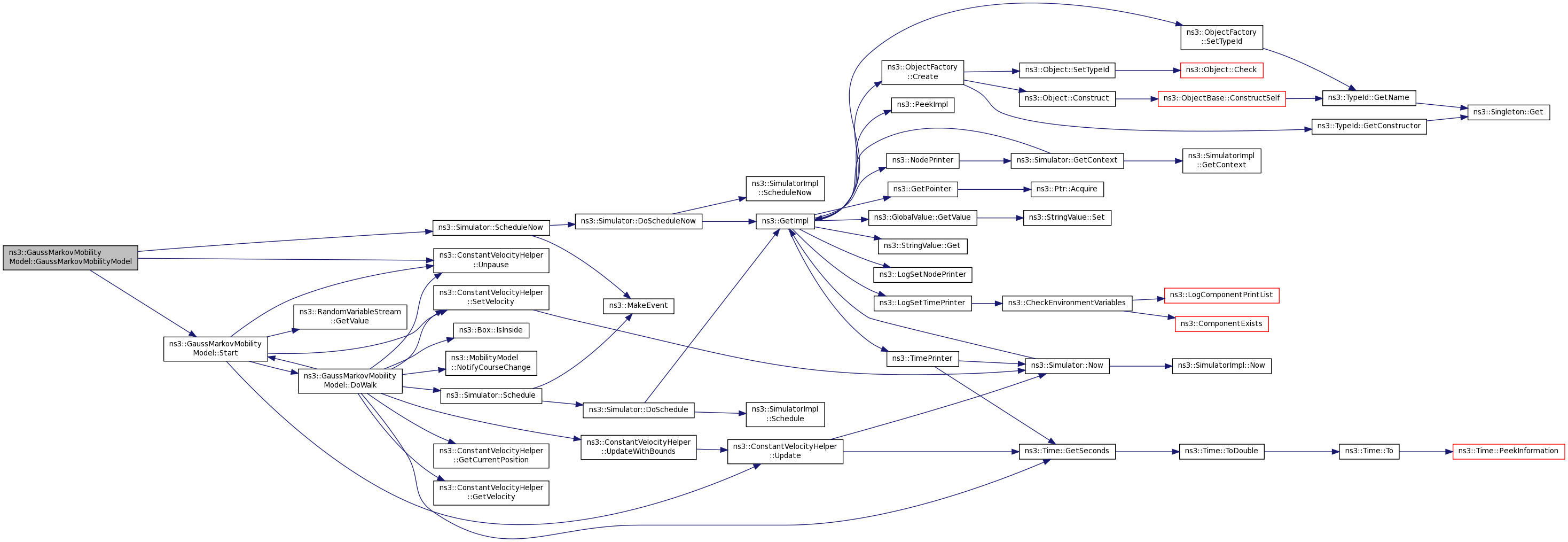

Here is the call graph for this function:

Member Function Documentation

int64_t ns3::GaussMarkovMobilityModel::DoAssignStreams ( int64_t start )

privatevirtual

The default implementation does nothing but return the passed-in parameter.

Subclasses using random variables are expected to override this.

Reimplemented from ns3::MobilityModel.

Definition at line 223 of file gauss-markov-mobility-model.cc.

References m_normalDirection, m_normalPitch, m_normalVelocity, m_rndMeanDirection, m_rndMeanPitch, m_rndMeanVelocity, and ns3::RandomVariableStream::SetStream().

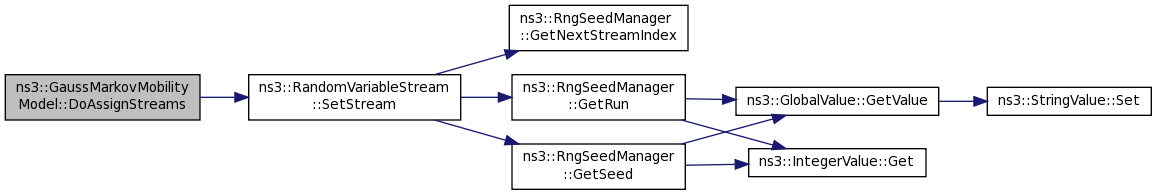

Here is the call graph for this function:

void ns3::GaussMarkovMobilityModel::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 197 of file gauss-markov-mobility-model.cc.

References ns3::Object::DoDispose().

Here is the call graph for this function:
