ns3::BasicEnergySource Class Reference

BasicEnergySource decreases/increases remaining energy stored in itself in linearly. More...

#include <basic-energy-source.h>

+ Inheritance diagram for ns3::BasicEnergySource:
+ Collaboration diagram for ns3::BasicEnergySource:

Public Member Functions

 BasicEnergySource ()

virtual ~BasicEnergySource ()

virtual double GetEnergyFraction (void)

Time GetEnergyUpdateInterval (void) const

virtual double GetInitialEnergy (void) const

virtual double GetRemainingEnergy (void)

virtual double GetSupplyVoltage (void) const

void SetEnergyUpdateInterval (Time interval)

void SetInitialEnergy (double initialEnergyJ)

void SetSupplyVoltage (double supplyVoltageV)

virtual void UpdateEnergySource (void)
 Implements UpdateEnergySource. More...

- Public Member Functions inherited from ns3::EnergySource
 EnergySource ()

virtual ~EnergySource ()

void AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)

void DisposeDeviceModels (void)
 Calls Dispose () method of the device energy models. More...

DeviceEnergyModelContainer FindDeviceEnergyModels (TypeId tid)

DeviceEnergyModelContainer FindDeviceEnergyModels (std::string name)

Ptr< NodeGetNode (void) const

void InitializeDeviceModels (void)
 Calls Start () method of the device energy models. More...

void SetNode (Ptr< Node > node)
 Sets pointer to node containing this EnergySource. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::EnergySource
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void CalculateRemainingEnergy (void)
 Calculates remaining energy. More...

void DoDispose (void)
 Defined in ns3::Object. More...

void DoInitialize (void)
 Defined in ns3::Object. More...

void HandleEnergyDrainedEvent (void)
 Handles the remaining energy going to zero event. More...


Private Attributes

EventId m_energyUpdateEvent

Time m_energyUpdateInterval

double m_initialEnergyJ

Time m_lastUpdateTime

TracedValue< double > m_remainingEnergyJ

double m_supplyVoltageV


Additional Inherited Members

- Protected Member Functions inherited from ns3::EnergySource
void BreakDeviceEnergyModelRefCycle (void)
 This function is called to break reference cycle between EnergySource and DeviceEnergyModel. More...

double CalculateTotalCurrent (void)

void NotifyEnergyDrained (void)
 This function notifies all DeviceEnergyModel of energy depletion event. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

BasicEnergySource decreases/increases remaining energy stored in itself in linearly.

Doxygen introspection did not find any typical Config paths.


Attributes

  • BasicEnergySourceInitialEnergyJ: Initial energy stored in basic energy source.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 10
    • Flags: construct write read
  • BasicEnergySupplyVoltageV: Initial supply voltage for basic energy source.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 3
    • Flags: construct write read
  • PeriodicEnergyUpdateInterval: Time between two consecutive periodic energy updates.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +1000000000.0ns
    • Flags: construct write read

TraceSources

Definition at line 37 of file basic-energy-source.h.

Constructor & Destructor Documentation

ns3::BasicEnergySource::BasicEnergySource ( )

Definition at line 66 of file basic-energy-source.cc.

References m_lastUpdateTime, and NS_LOG_FUNCTION.

ns3::BasicEnergySource::~BasicEnergySource ( )
virtual

Definition at line 72 of file basic-energy-source.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::BasicEnergySource::CalculateRemainingEnergy ( void  )
private

Calculates remaining energy.

This function uses the total current from all device models to calculate the amount of energy to decrease. The energy to decrease is given by: energy to decrease = total current * supply voltage * time duration This function subtracts the calculated energy to decrease from remaining energy.

Definition at line 196 of file basic-energy-source.cc.

References ns3::EnergySource::CalculateTotalCurrent(), ns3::Time::GetSeconds(), m_lastUpdateTime, m_remainingEnergyJ, m_supplyVoltageV, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

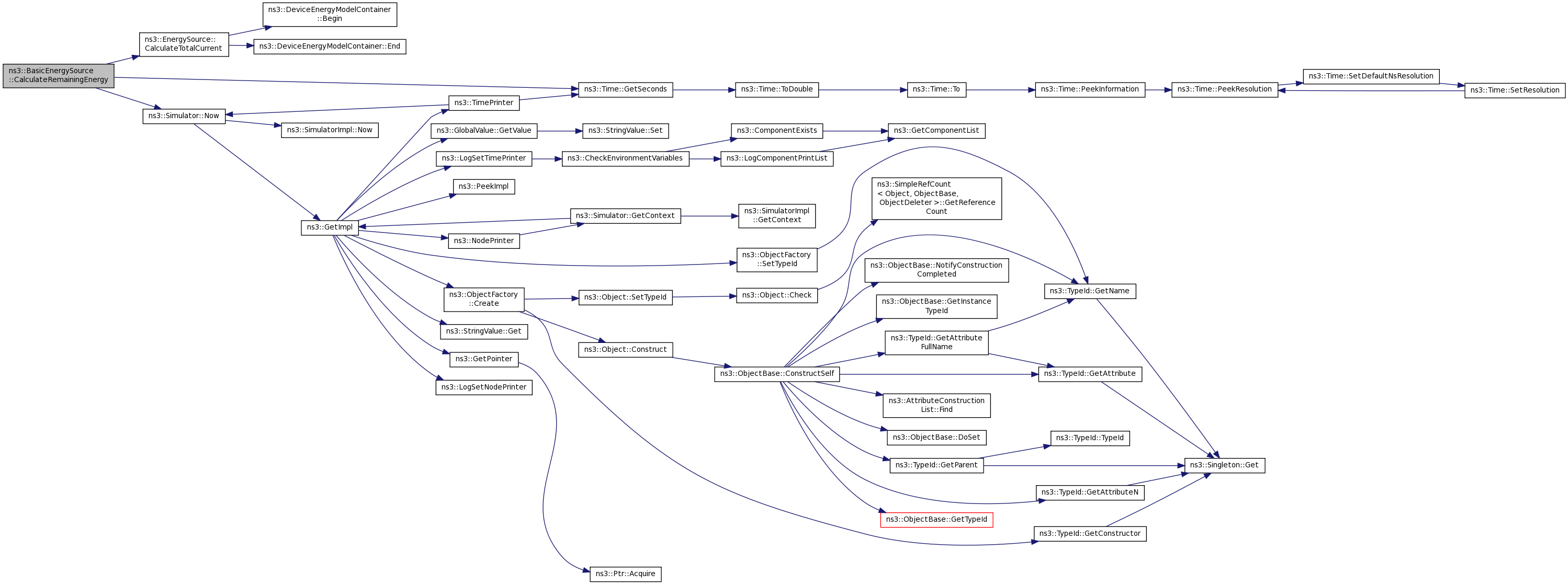

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::DoDispose ( void  )
privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::EnergySource.

Definition at line 180 of file basic-energy-source.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::BasicEnergySource::DoInitialize ( void  )
privatevirtual

Defined in ns3::Object.

Reimplemented from ns3::Object.

Definition at line 173 of file basic-energy-source.cc.

References NS_LOG_FUNCTION, and UpdateEnergySource().

+ Here is the call graph for this function:

double ns3::BasicEnergySource::GetEnergyFraction ( void  )
virtual
Returns
Energy fraction.

Implements GetEnergyFraction.

Implements ns3::EnergySource.

Definition at line 131 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

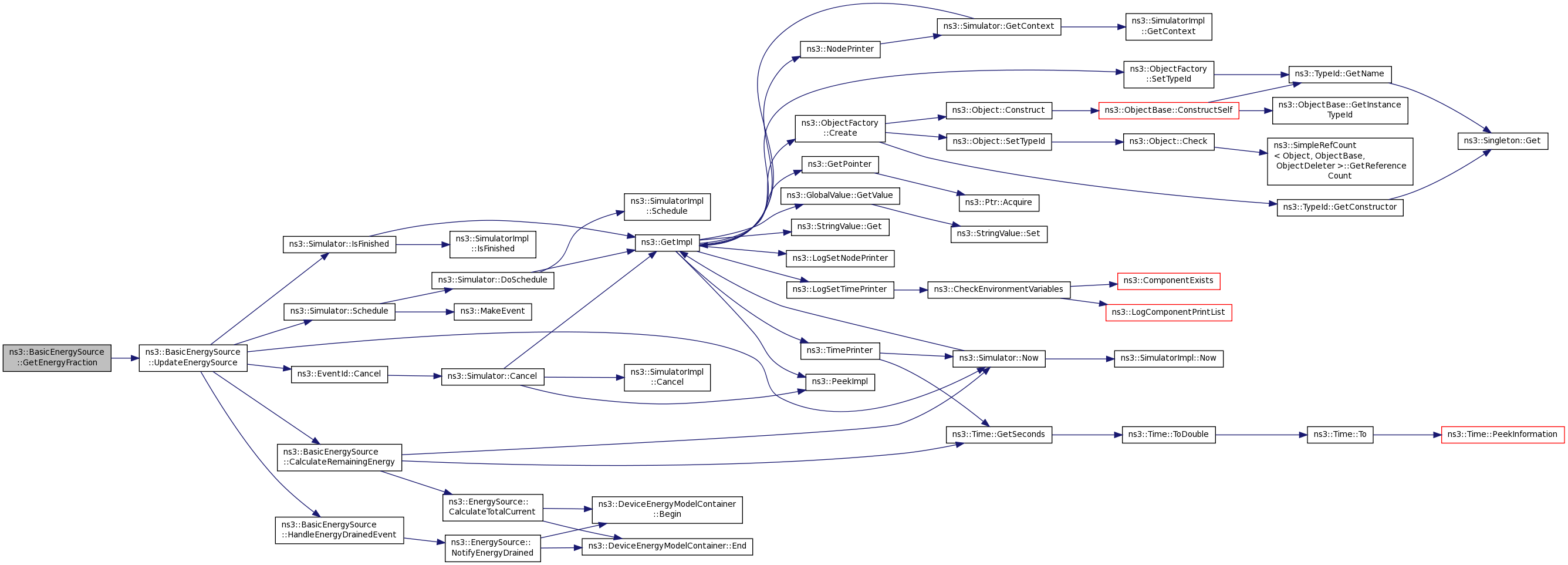

+ Here is the call graph for this function:

Time ns3::BasicEnergySource::GetEnergyUpdateInterval ( void  ) const
Returns
The interval between each energy update.

Definition at line 101 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::BasicEnergySource::GetInitialEnergy ( void  ) const
virtual
Returns
Initial energy stored in energy source, in Joules.

Implements GetInitialEnergy.

Implements ns3::EnergySource.

Definition at line 115 of file basic-energy-source.cc.

References m_initialEnergyJ, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

double ns3::BasicEnergySource::GetRemainingEnergy ( void  )
virtual
Returns
Remaining energy in energy source, in Joules

Implements GetRemainingEnergy.

Implements ns3::EnergySource.

Definition at line 122 of file basic-energy-source.cc.

References m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

+ Here is the call graph for this function:

double ns3::BasicEnergySource::GetSupplyVoltage ( void  ) const
virtual
Returns
Supply voltage at the energy source.

Implements GetSupplyVoltage.

Implements ns3::EnergySource.

Definition at line 108 of file basic-energy-source.cc.

References m_supplyVoltageV, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::HandleEnergyDrainedEvent ( void  )
private

Handles the remaining energy going to zero event.

This function notifies all the energy models aggregated to the node about the energy being depleted. Each energy model is then responsible for its own handler.

Definition at line 187 of file basic-energy-source.cc.

References m_remainingEnergyJ, ns3::EnergySource::NotifyEnergyDrained(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

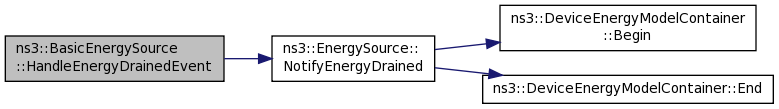

+ Here is the call graph for this function:

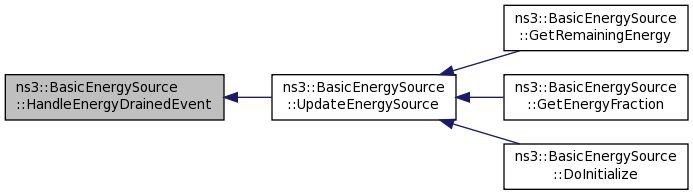

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::SetEnergyUpdateInterval ( Time  interval)
Parameters
intervalEnergy update interval.

This function sets the interval between each energy update.

Definition at line 94 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::SetInitialEnergy ( double  initialEnergyJ)
Parameters
initialEnergyJInitial energy, in Joules

Sets initial energy stored in the energy source. Note that initial energy is assumed to be set before simulation starts and is set only once per simulation.

Definition at line 78 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::SetSupplyVoltage ( double  supplyVoltageV)
Parameters
supplyVoltageVSupply voltage at the energy source, in Volts.

Sets supply voltage of the energy source.

Definition at line 87 of file basic-energy-source.cc.

References m_supplyVoltageV, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::BasicEnergySource::UpdateEnergySource ( void  )
virtual

Member Data Documentation

EventId ns3::BasicEnergySource::m_energyUpdateEvent
private

Definition at line 134 of file basic-energy-source.h.

Referenced by UpdateEnergySource().

Time ns3::BasicEnergySource::m_energyUpdateInterval
private
double ns3::BasicEnergySource::m_initialEnergyJ
private

Definition at line 131 of file basic-energy-source.h.

Referenced by GetEnergyFraction(), GetInitialEnergy(), and SetInitialEnergy().

Time ns3::BasicEnergySource::m_lastUpdateTime
private
TracedValue<double> ns3::BasicEnergySource::m_remainingEnergyJ
private
double ns3::BasicEnergySource::m_supplyVoltageV
private

The documentation for this class was generated from the following files:
