#include <ss-service-flow-manager.h>

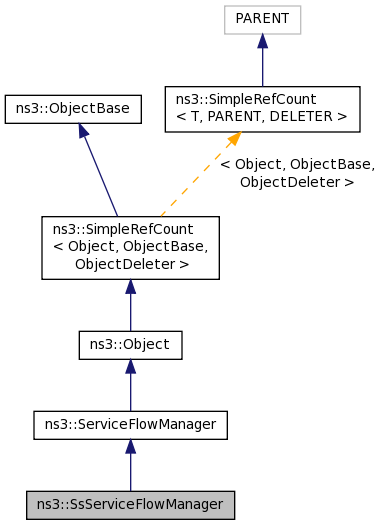

Inheritance diagram for ns3::SsServiceFlowManager:

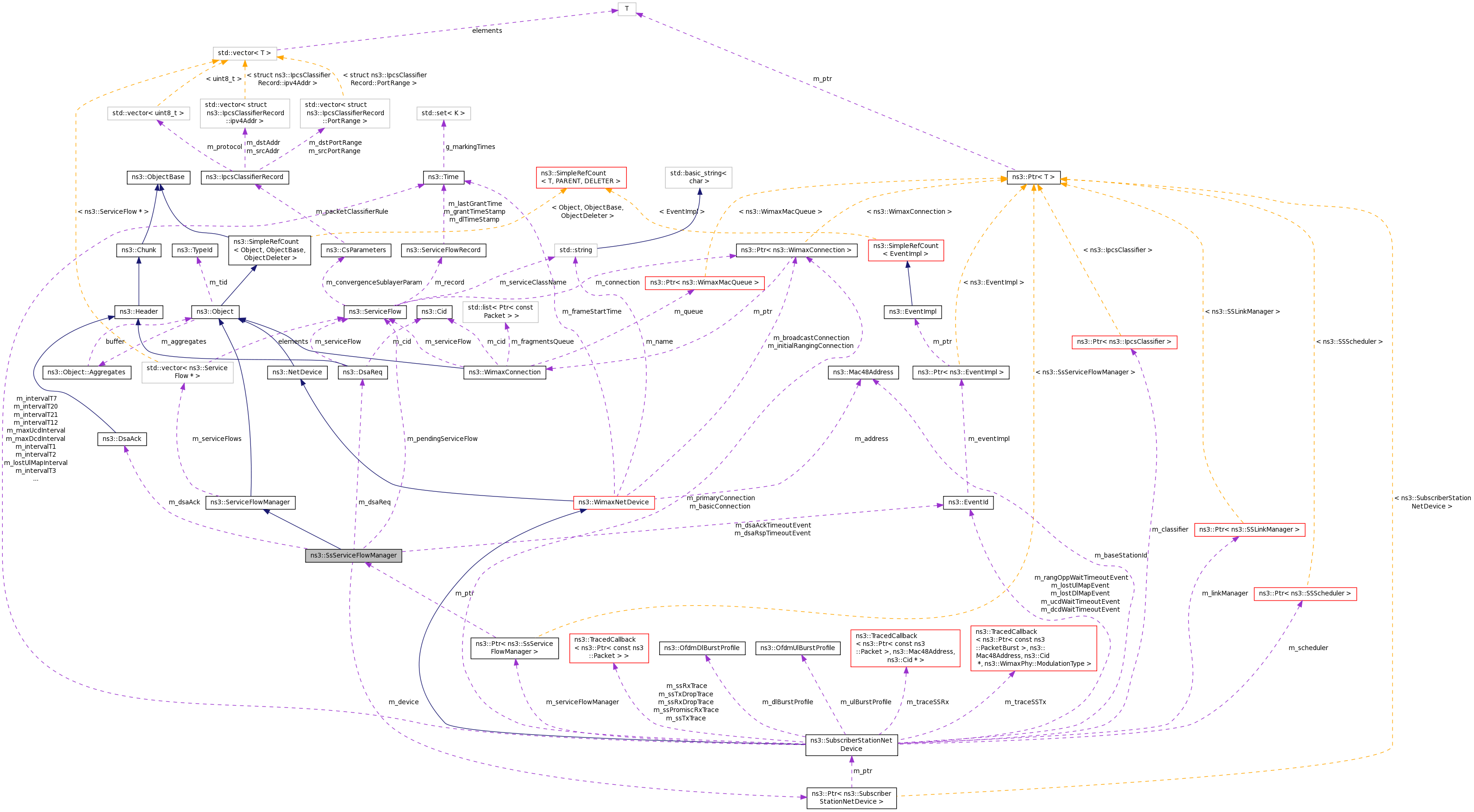

Collaboration diagram for ns3::SsServiceFlowManager:

Public Types
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Types inherited from ns3::ServiceFlowManager
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Member Functions
	SsServiceFlowManager (Ptr< SubscriberStationNetDevice > device)
	creates a service flow manager and attaches it to a device More...

	~SsServiceFlowManager (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)
	add a service flow to the list More...

void	AddServiceFlow (ServiceFlow serviceFlow)
	add a service flow to the list More...

Ptr< Packet >	CreateDsaAck (void)

DsaReq	CreateDsaReq (const ServiceFlow *serviceFlow)

void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

EventId	GetDsaAckTimeoutEvent (void) const

EventId	GetDsaRspTimeoutEvent (void) const

uint8_t	GetMaxDsaReqRetries (void) const

void	InitiateServiceFlows (void)

void	ProcessDsaRsp (const DsaRsp &dsaRsp)

void	ScheduleDsaReq (const ServiceFlow *serviceFlow)

void	SetMaxDsaReqRetries (uint8_t maxDsaReqRetries)
	sets the maximum retries on DSA request message More...

Public Member Functions inherited from ns3::ServiceFlowManager
	ServiceFlowManager ()

	~ServiceFlowManager (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)

bool	AreServiceFlowsAllocated ()

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > *serviceFlows)

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > serviceFlows)

ServiceFlow *	DoClassify (Ipv4Address SrcAddress, Ipv4Address DstAddress, uint16_t SrcPort, uint16_t DstPort, uint8_t Proto, ServiceFlow::Direction dir) const

ServiceFlow *	GetNextServiceFlowToAllocate ()

uint32_t	GetNrServiceFlows (void) const

ServiceFlow *	GetServiceFlow (uint32_t sfid) const

ServiceFlow *	GetServiceFlow (Cid cid) const

std::vector< ServiceFlow * >	GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Attributes
uint16_t	m_currentTransactionId

Ptr< SubscriberStationNetDevice >	m_device

DsaAck	m_dsaAck

EventId	m_dsaAckTimeoutEvent

DsaReq	m_dsaReq

uint8_t	m_dsaReqRetries

EventId	m_dsaRspTimeoutEvent

uint8_t	m_maxDsaReqRetries

ServiceFlow *	m_pendingServiceFlow

uint16_t	m_transactionIdIndex

Additional Inherited Members
Static Public Member Functions inherited from ns3::ServiceFlowManager
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 42 of file ss-service-flow-manager.h.

Member Enumeration Documentation

enum ns3::SsServiceFlowManager::ConfirmationCode

Enumerator
CONFIRMATION_CODE_SUCCESS
CONFIRMATION_CODE_REJECT

Definition at line 45 of file ss-service-flow-manager.h.

Constructor & Destructor Documentation

ns3::SsServiceFlowManager::SsServiceFlowManager ( Ptr< SubscriberStationNetDevice > device )

creates a service flow manager and attaches it to a device

Parameters

device the device to which the service flow manager will be attached

Definition at line 45 of file ss-service-flow-manager.cc.

ns3::SsServiceFlowManager::~SsServiceFlowManager ( void )

Definition at line 57 of file ss-service-flow-manager.cc.

Member Function Documentation

void ns3::SsServiceFlowManager::AddServiceFlow ( ServiceFlow * serviceFlow )

add a service flow to the list

Parameters

serviceFlow the service flow to add

Definition at line 100 of file ss-service-flow-manager.cc.

References ns3::ServiceFlowManager::AddServiceFlow().

Here is the call graph for this function:

void ns3::SsServiceFlowManager::AddServiceFlow ( ServiceFlow serviceFlow )

add a service flow to the list

Parameters

serviceFlow the service flow to add

Definition at line 92 of file ss-service-flow-manager.cc.

References ns3::ServiceFlowManager::AddServiceFlow(), and ns3::ServiceFlow::CopyParametersFrom().

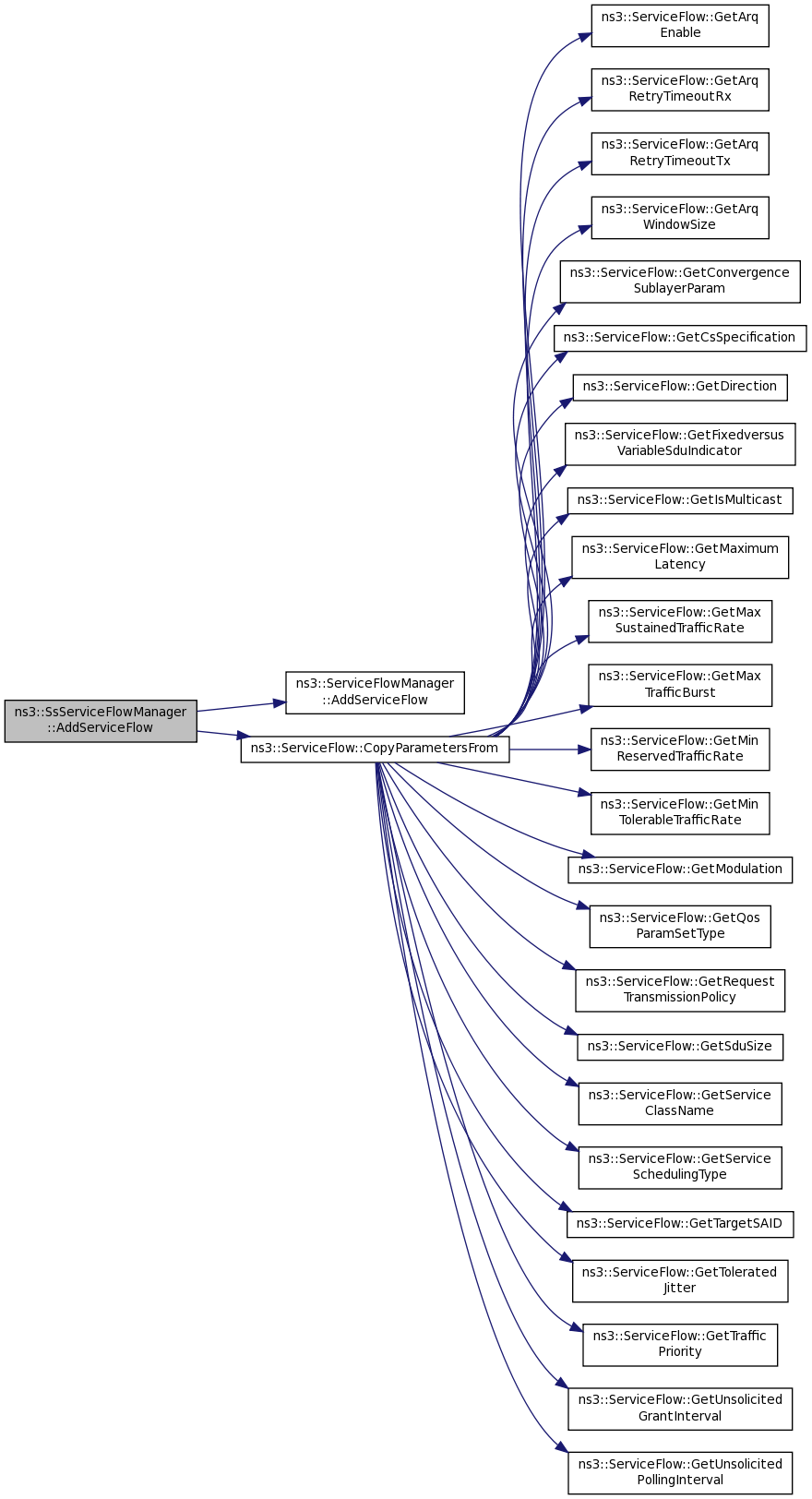

Here is the call graph for this function:

Ptr< Packet > ns3::SsServiceFlowManager::CreateDsaAck ( void )

Definition at line 130 of file ss-service-flow-manager.cc.

References ns3::Packet::AddHeader(), CONFIRMATION_CODE_SUCCESS, ns3::DsaReq::GetTransactionId(), m_dsaAck, m_dsaReq, ns3::ManagementMessageType::MESSAGE_TYPE_DSA_ACK, ns3::DsaAck::SetConfirmationCode(), and ns3::DsaAck::SetTransactionId().

Referenced by ProcessDsaRsp().

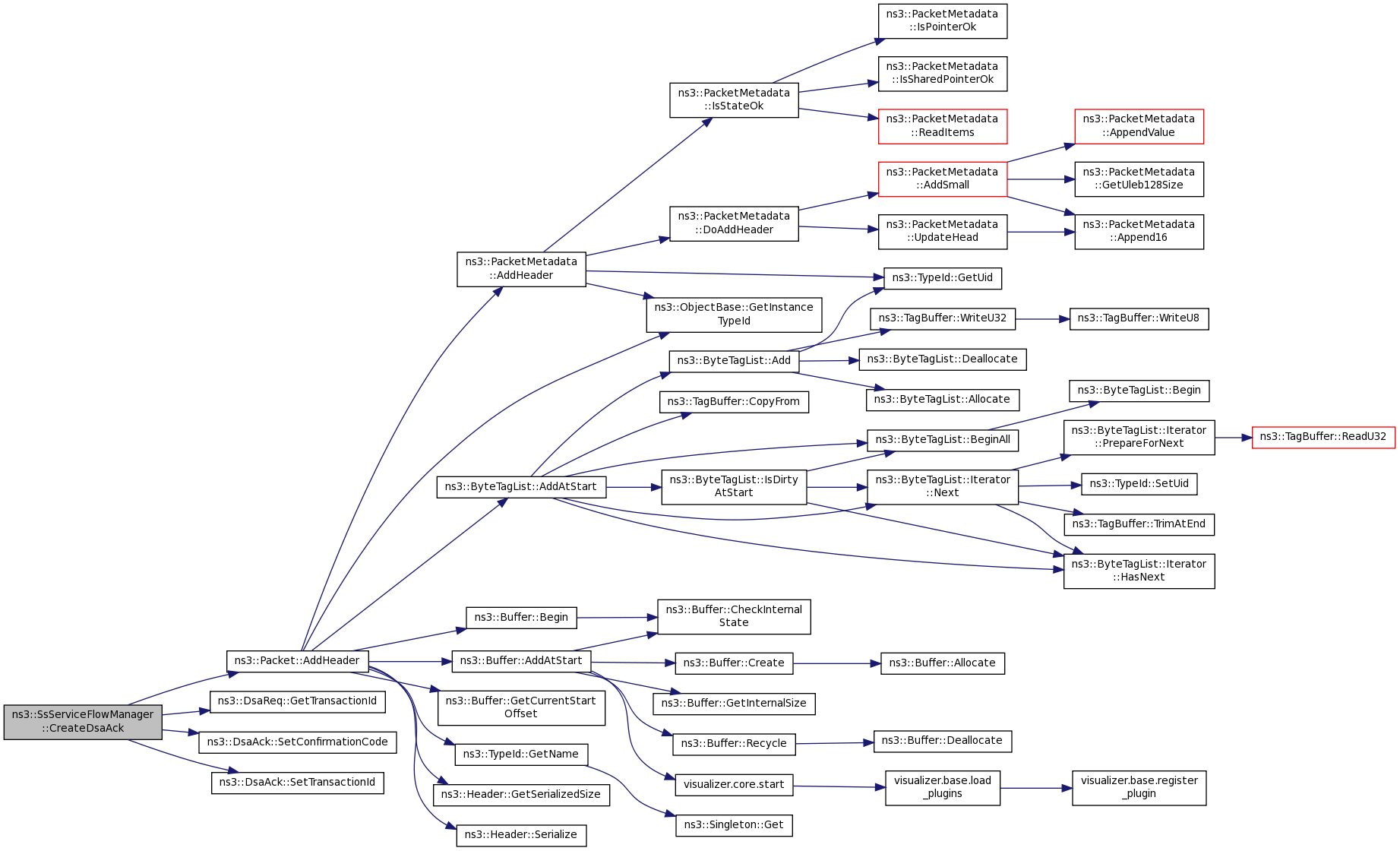

Here is the call graph for this function:

Here is the caller graph for this function:

DsaReq ns3::SsServiceFlowManager::CreateDsaReq ( const ServiceFlow * serviceFlow )

Definition at line 116 of file ss-service-flow-manager.cc.

References m_currentTransactionId, m_transactionIdIndex, ns3::DsaReq::SetServiceFlow(), and ns3::DsaReq::SetTransactionId().

Referenced by ScheduleDsaReq().

Here is the call graph for this function:

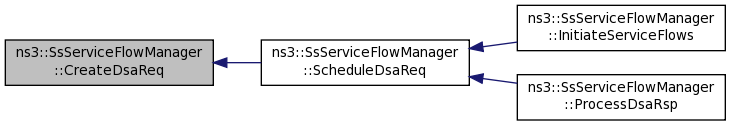

Here is the caller graph for this function:

void ns3::SsServiceFlowManager::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::ServiceFlowManager.

Definition at line 62 of file ss-service-flow-manager.cc.

References ns3::ServiceFlowManager::DoDispose().

Here is the call graph for this function:
