This class implements service flows as described by the IEEE-802.16 standard. More...

#include <service-flow.h>

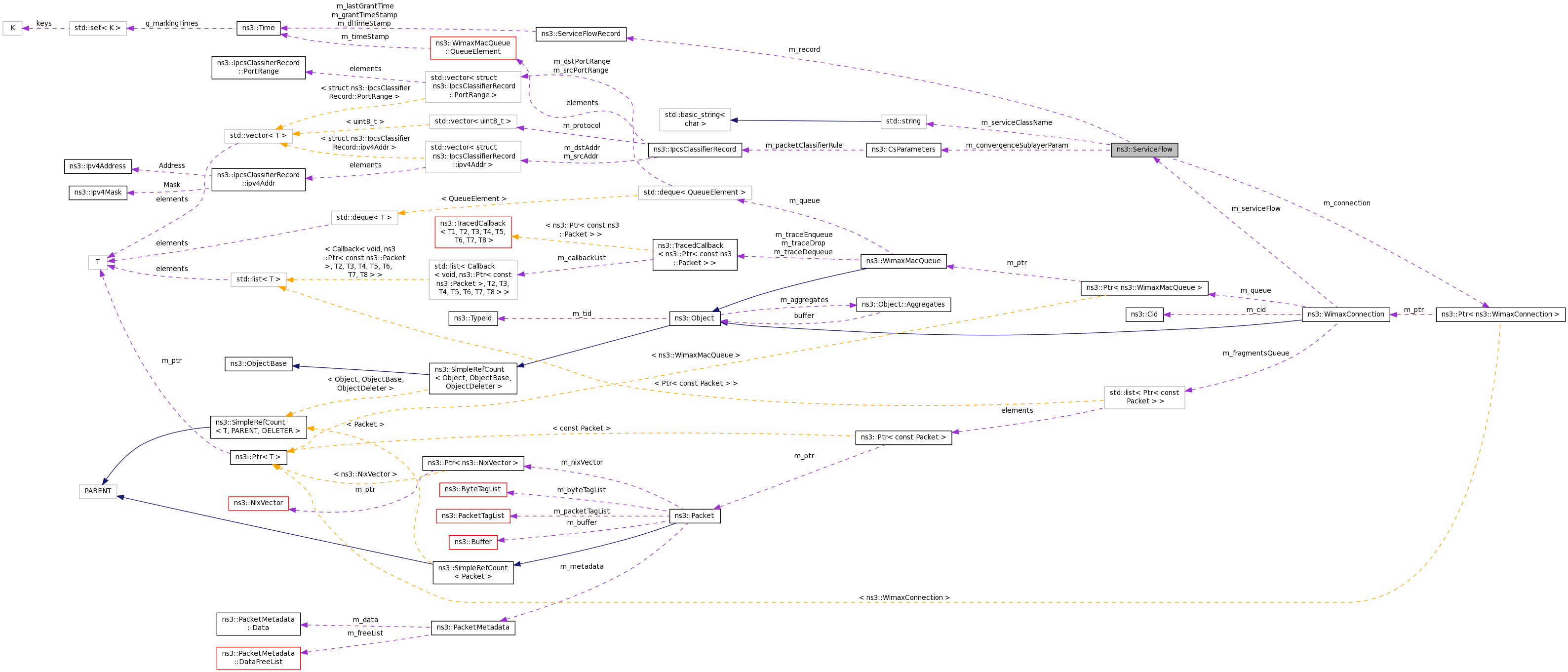

Collaboration diagram for ns3::ServiceFlow:

Public Types
enum	CsSpecification { ATM = 99, IPV4 = 100, IPV6 = 101, ETHERNET = 102, VLAN = 103, IPV4_OVER_ETHERNET = 104, IPV6_OVER_ETHERNET = 105, IPV4_OVER_VLAN = 106, IPV6_OVER_VLAN = 107 }

enum	Direction { SF_DIRECTION_DOWN, SF_DIRECTION_UP }

enum	ModulationType { MODULATION_TYPE_BPSK_12, MODULATION_TYPE_QPSK_12, MODULATION_TYPE_QPSK_34, MODULATION_TYPE_QAM16_12, MODULATION_TYPE_QAM16_34, MODULATION_TYPE_QAM64_23, MODULATION_TYPE_QAM64_34 }

enum	SchedulingType { SF_TYPE_NONE = 0, SF_TYPE_UNDEF = 1, SF_TYPE_BE = 2, SF_TYPE_NRTPS = 3, SF_TYPE_RTPS = 4, SF_TYPE_UGS = 6, SF_TYPE_ALL = 255 }

enum	Type { SF_TYPE_PROVISIONED, SF_TYPE_ADMITTED, SF_TYPE_ACTIVE }

Public Member Functions
	ServiceFlow (Tlv tlv)
	creates a service flow from a TLV More...

	ServiceFlow (enum Direction direction)

	ServiceFlow ()

	ServiceFlow (const ServiceFlow &sf)

	ServiceFlow (uint32_t sfid, enum Direction direction, Ptr< WimaxConnection > connection)

	~ServiceFlow (void)

bool	CheckClassifierMatch (Ipv4Address srcAddress, Ipv4Address dstAddress, uint16_t srcPort, uint16_t dstPort, uint8_t proto) const

void	CleanUpQueue (void)

void	CopyParametersFrom (ServiceFlow sf)

uint16_t	GetArqBlockLifeTime (void) const

uint16_t	GetArqBlockSize (void) const

uint8_t	GetArqDeliverInOrder (void) const

uint8_t	GetArqEnable (void) const

uint16_t	GetArqPurgeTimeout (void) const

uint16_t	GetArqRetryTimeoutRx (void) const

uint16_t	GetArqRetryTimeoutTx (void) const

uint16_t	GetArqSyncLoss (void) const

uint16_t	GetArqWindowSize (void) const

uint16_t	GetCid (void) const

Ptr< WimaxConnection >	GetConnection (void) const

CsParameters	GetConvergenceSublayerParam (void) const

enum CsSpecification	GetCsSpecification (void) const

enum Direction	GetDirection (void) const

uint8_t	GetFixedversusVariableSduIndicator (void) const

bool	GetIsEnabled (void) const

bool	GetIsMulticast (void) const

uint32_t	GetMaximumLatency (void) const

uint32_t	GetMaxSustainedTrafficRate (void) const

uint32_t	GetMaxTrafficBurst (void) const

uint32_t	GetMinReservedTrafficRate (void) const

uint32_t	GetMinTolerableTrafficRate (void) const

enum WimaxPhy::ModulationType	GetModulation (void) const

uint8_t	GetQosParamSetType (void) const

Ptr< WimaxMacQueue >	GetQueue (void) const

ServiceFlowRecord *	GetRecord (void) const

uint32_t	GetRequestTransmissionPolicy (void) const

enum ServiceFlow::SchedulingType	GetSchedulingType (void) const

char *	GetSchedulingTypeStr (void) const

uint8_t	GetSduSize (void) const

std::string	GetServiceClassName () const

enum ServiceFlow::SchedulingType	GetServiceSchedulingType (void) const

uint32_t	GetSfid (void) const

uint16_t	GetTargetSAID (void) const

uint32_t	GetToleratedJitter (void) const

uint8_t	GetTrafficPriority (void) const

enum Type	GetType (void) const

uint16_t	GetUnsolicitedGrantInterval (void) const

uint16_t	GetUnsolicitedPollingInterval (void) const

bool	HasPackets (void) const

bool	HasPackets (MacHeaderType::HeaderType packetType) const

void	InitValues (void)

ServiceFlow &	operator= (ServiceFlow const &o)

void	PrintQoSParameters (void) const

void	SetArqBlockLifeTime (uint16_t)

void	SetArqBlockSize (uint16_t)

void	SetArqDeliverInOrder (uint8_t)

void	SetArqEnable (uint8_t)

void	SetArqPurgeTimeout (uint16_t)

void	SetArqRetryTimeoutRx (uint16_t)

void	SetArqRetryTimeoutTx (uint16_t)

void	SetArqSyncLoss (uint16_t)

void	SetArqWindowSize (uint16_t)

void	SetConnection (Ptr< WimaxConnection > connection)

void	SetConvergenceSublayerParam (CsParameters)

void	SetCsSpecification (enum CsSpecification)

void	SetDirection (enum Direction direction)

void	SetFixedversusVariableSduIndicator (uint8_t)

void	SetIsEnabled (bool isEnabled)

void	SetIsMulticast (bool isMulticast)

void	SetMaximumLatency (uint32_t)

void	SetMaxSustainedTrafficRate (uint32_t)

void	SetMaxTrafficBurst (uint32_t)

void	SetMinReservedTrafficRate (uint32_t)

void	SetMinTolerableTrafficRate (uint32_t)

void	SetModulation (enum WimaxPhy::ModulationType modulationType)

void	SetQosParamSetType (uint8_t)

void	SetRecord (ServiceFlowRecord *record)

void	SetRequestTransmissionPolicy (uint32_t)

void	SetSduSize (uint8_t)

void	SetServiceClassName (std::string)

void	SetServiceSchedulingType (enum ServiceFlow::SchedulingType)

void	SetSfid (uint32_t)

void	SetTargetSAID (uint16_t)

void	SetToleratedJitter (uint32_t)

void	SetTrafficPriority (uint8_t)

void	SetType (enum Type type)

void	SetUnsolicitedGrantInterval (uint16_t)

void	SetUnsolicitedPollingInterval (uint16_t)

Tlv	ToTlv (void) const
	creates a TLV from this service flow More...

Private Attributes
uint16_t	m_arqBlockLifeTime

uint16_t	m_arqBlockSize

uint8_t	m_arqDeliverInOrder

uint8_t	m_arqEnable

uint16_t	m_arqPurgeTimeout

uint16_t	m_arqRetryTimeoutRx

uint16_t	m_arqRetryTimeoutTx

uint16_t	m_arqSyncLoss

uint16_t	m_arqWindowSize

Ptr< WimaxConnection >	m_connection

CsParameters	m_convergenceSublayerParam

enum CsSpecification	m_csSpecification

Direction	m_direction

uint8_t	m_fixedversusVariableSduIndicator

bool	m_isEnabled

bool	m_isMulticast

uint32_t	m_maximumLatency

uint32_t	m_maxSustainedTrafficRate

uint32_t	m_maxTrafficBurst

uint32_t	m_minReservedTrafficRate

uint32_t	m_minTolerableTrafficRate

enum WimaxPhy::ModulationType	m_modulationType

uint8_t	m_qosParamSetType

ServiceFlowRecord *	m_record

uint32_t	m_requestTransmissionPolicy

enum ServiceFlow::SchedulingType	m_schedulingType

uint8_t	m_sduSize

std::string	m_serviceClassName

uint32_t	m_sfid

uint16_t	m_targetSAID

uint32_t	m_toleratedJitter

uint8_t	m_trafficPriority

Type	m_type

uint16_t	m_unsolicitedGrantInterval

uint16_t	m_unsolicitedPollingInterval

Detailed Description

This class implements service flows as described by the IEEE-802.16 standard.

Definition at line 39 of file service-flow.h.

Member Enumeration Documentation

enum ns3::ServiceFlow::CsSpecification

Enumerator
ATM
IPV4
IPV6
ETHERNET
VLAN
IPV4_OVER_ETHERNET
IPV6_OVER_ETHERNET
IPV4_OVER_VLAN
IPV6_OVER_VLAN

Definition at line 59 of file service-flow.h.

enum ns3::ServiceFlow::Direction

Enumerator
SF_DIRECTION_DOWN
SF_DIRECTION_UP

Definition at line 42 of file service-flow.h.

enum ns3::ServiceFlow::ModulationType

Enumerator
MODULATION_TYPE_BPSK_12
MODULATION_TYPE_QPSK_12
MODULATION_TYPE_QPSK_34
MODULATION_TYPE_QAM16_12
MODULATION_TYPE_QAM16_34
MODULATION_TYPE_QAM64_23
MODULATION_TYPE_QAM64_34

Definition at line 65 of file service-flow.h.

enum ns3::ServiceFlow::SchedulingType

Enumerator
SF_TYPE_NONE
SF_TYPE_UNDEF
SF_TYPE_BE
SF_TYPE_NRTPS
SF_TYPE_RTPS
SF_TYPE_UGS
SF_TYPE_ALL

Definition at line 53 of file service-flow.h.

enum ns3::ServiceFlow::Type

Enumerator
SF_TYPE_PROVISIONED
SF_TYPE_ADMITTED
SF_TYPE_ACTIVE

Definition at line 47 of file service-flow.h.

Constructor & Destructor Documentation

ns3::ServiceFlow::ServiceFlow ( Tlv tlv )

creates a service flow from a TLV

Parameters

tlv	the tlv from which the service flow will be created

Definition at line 71 of file service-flow.cc.

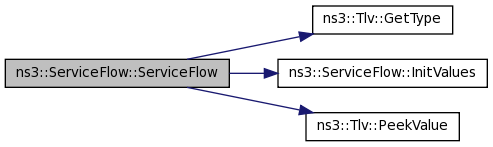

Here is the call graph for this function:

ns3::ServiceFlow::ServiceFlow ( enum Direction direction )

Definition at line 30 of file service-flow.cc.

References InitValues(), m_connection, m_direction, m_isEnabled, m_isMulticast, m_modulationType, m_record, m_sfid, m_type, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and SF_TYPE_PROVISIONED.

Here is the call graph for this function:

ns3::ServiceFlow::ServiceFlow ( )

Definition at line 43 of file service-flow.cc.

References InitValues(), m_isMulticast, m_modulationType, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_12.

Here is the call graph for this function:

ns3::ServiceFlow::ServiceFlow ( const ServiceFlow & sf )

Definition at line 701 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConnection(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsEnabled(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRecord(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetSfid(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetType(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_connection, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isEnabled, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_record, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

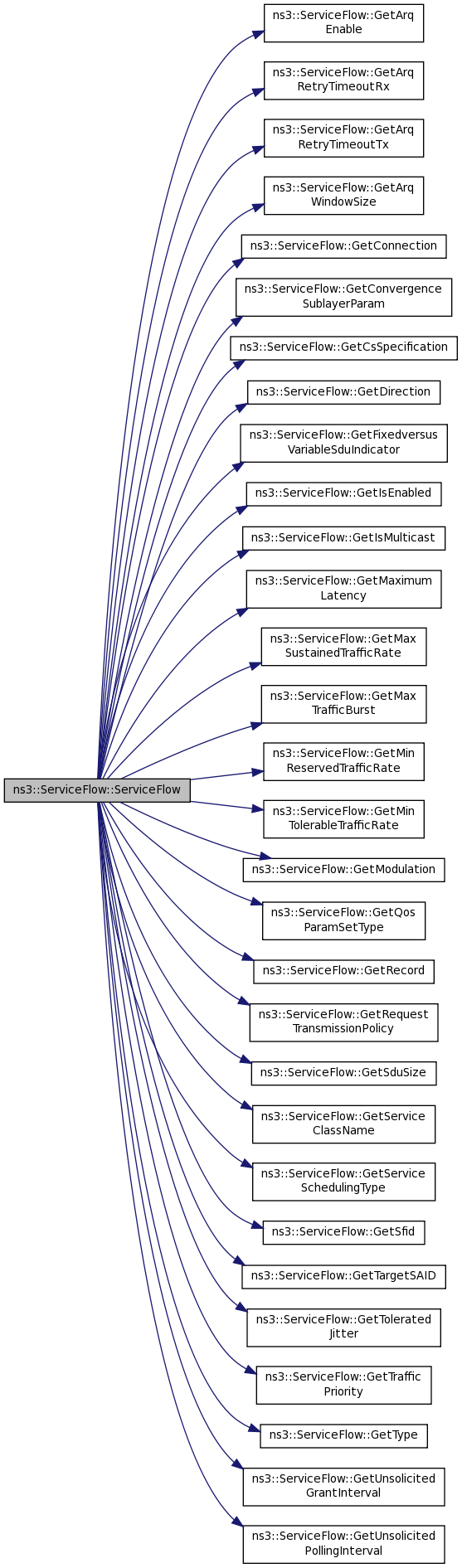

Here is the call graph for this function:

ns3::ServiceFlow::ServiceFlow	(	uint32_t	sfid,
		enum Direction	direction,
		Ptr< WimaxConnection >	connection
	)

Definition at line 57 of file service-flow.cc.

References InitValues(), m_connection, m_direction, m_isEnabled, m_isMulticast, m_modulationType, m_record, m_sfid, m_type, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and SF_TYPE_PROVISIONED.

Here is the call graph for this function:

ns3::ServiceFlow::~ServiceFlow ( void )

Definition at line 180 of file service-flow.cc.

References m_connection, and m_record.

Member Function Documentation

bool ns3::ServiceFlow::CheckClassifierMatch	(	Ipv4Address	srcAddress,
		Ipv4Address	dstAddress,
		uint16_t	srcPort,
		uint16_t	dstPort,
		uint8_t	proto
	)		const

Returns: true if the passed parameters match the classifier of the service flow, false otherwise

Parameters

srcAddress	the source ip address
dstAddress	the destination ip address
srcPort	the source port
dstPort	the destination port
proto	the layer 4 protocol

Definition at line 837 of file service-flow.cc.

References ns3::IpcsClassifierRecord::CheckMatch(), ns3::CsParameters::GetPacketClassifierRule(), and m_convergenceSublayerParam.

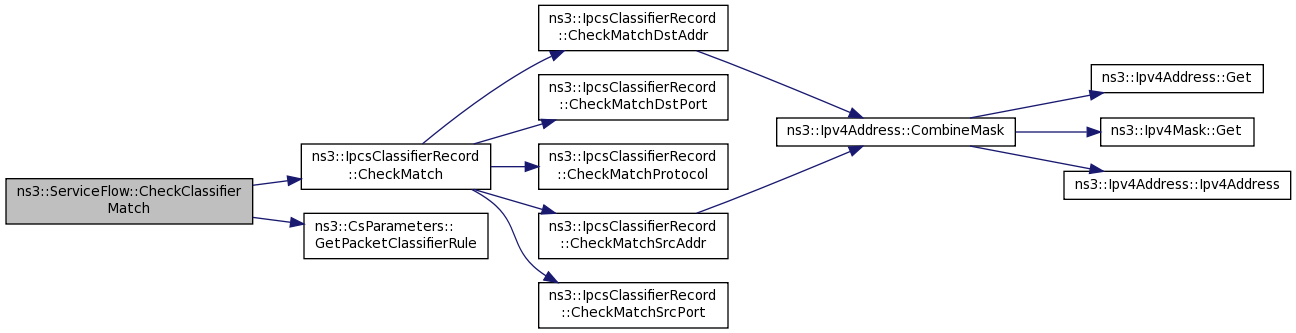

Here is the call graph for this function:

void ns3::ServiceFlow::CleanUpQueue ( void )

Definition at line 288 of file service-flow.cc.

References GetMaximumLatency(), m_connection, and ns3::Simulator::Now().

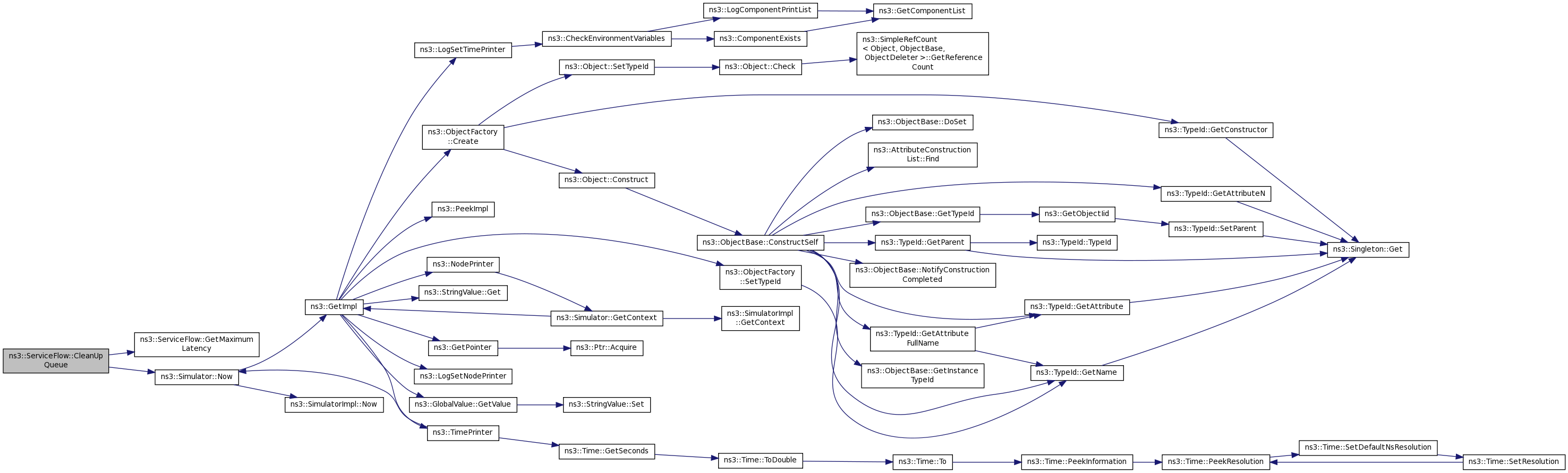

Here is the call graph for this function:

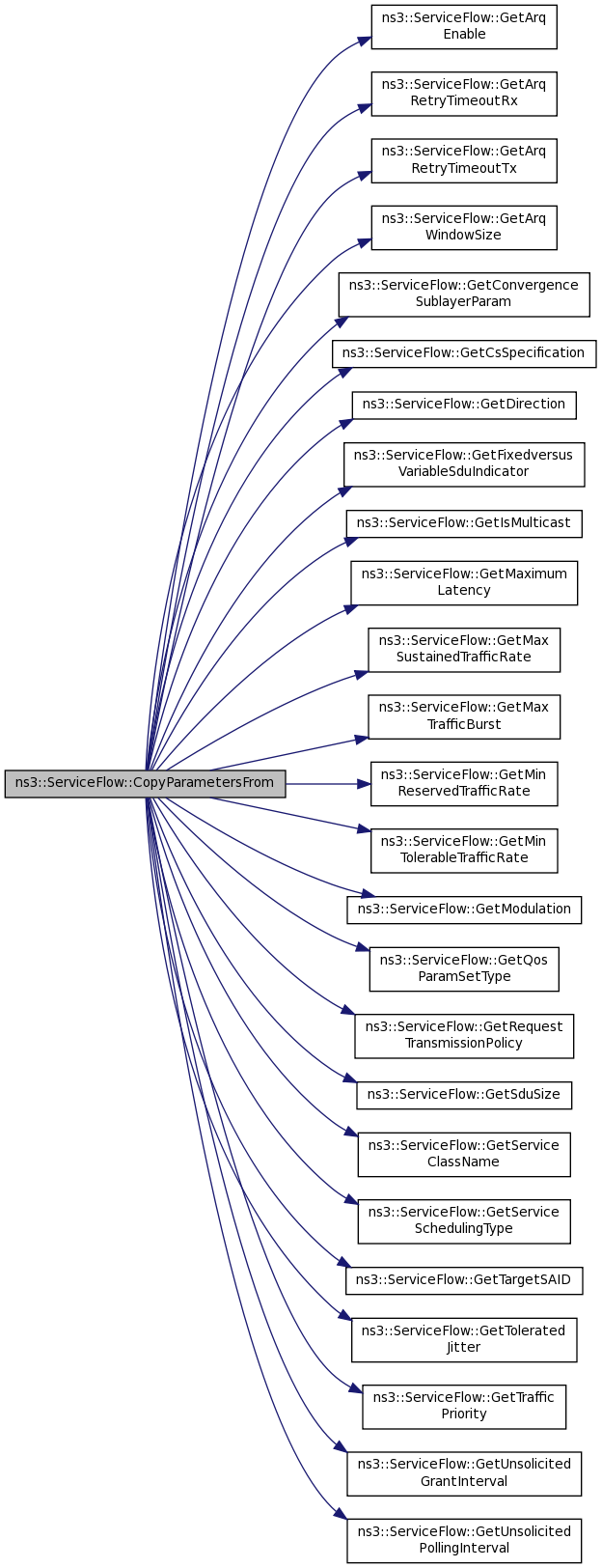

void ns3::ServiceFlow::CopyParametersFrom ( ServiceFlow sf )

Definition at line 672 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), ns3::SsServiceFlowManager::AddServiceFlow(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the call graph for this function:

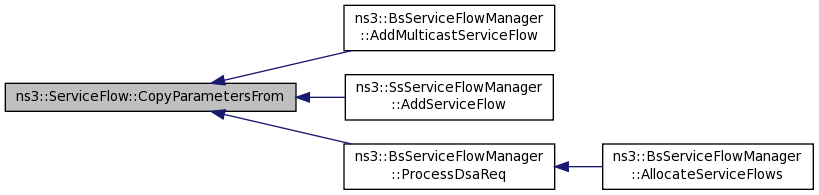

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetArqBlockLifeTime ( void ) const

Definition at line 425 of file service-flow.cc.

References m_arqBlockLifeTime.

uint16_t ns3::ServiceFlow::GetArqBlockSize ( void ) const

Definition at line 445 of file service-flow.cc.

References m_arqBlockSize.

uint8_t ns3::ServiceFlow::GetArqDeliverInOrder ( void ) const

Definition at line 435 of file service-flow.cc.

References m_arqDeliverInOrder.

uint8_t ns3::ServiceFlow::GetArqEnable ( void ) const

Definition at line 404 of file service-flow.cc.

References m_arqEnable.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

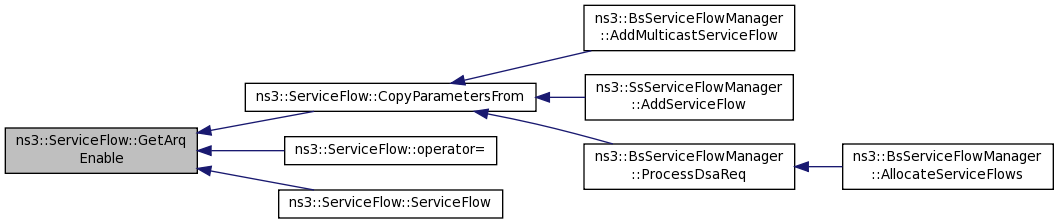

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetArqPurgeTimeout ( void ) const

Definition at line 440 of file service-flow.cc.

References m_arqPurgeTimeout.

uint16_t ns3::ServiceFlow::GetArqRetryTimeoutRx ( void ) const

Definition at line 419 of file service-flow.cc.

References m_arqRetryTimeoutRx.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetArqRetryTimeoutTx ( void ) const

Definition at line 414 of file service-flow.cc.

References m_arqRetryTimeoutTx.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetArqSyncLoss ( void ) const

Definition at line 430 of file service-flow.cc.

References m_arqSyncLoss.

uint16_t ns3::ServiceFlow::GetArqWindowSize ( void ) const

Definition at line 409 of file service-flow.cc.

References m_arqWindowSize.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetCid ( void ) const

Definition at line 325 of file service-flow.cc.

References m_connection.

Referenced by ns3::SubscriberStationNetDevice::DoSend(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), and ToTlv().

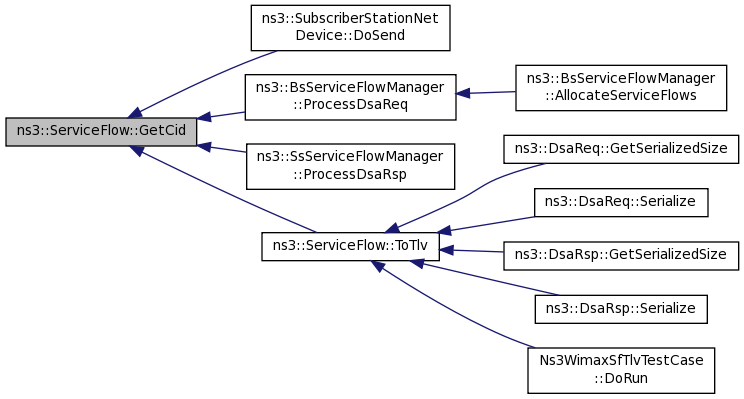

Here is the caller graph for this function:

Ptr< WimaxConnection > ns3::ServiceFlow::GetConnection ( void ) const

Definition at line 222 of file service-flow.cc.

References m_connection.

Referenced by ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), ns3::SubscriberStationNetDevice::DoSend(), operator=(), ns3::BandwidthManager::SendBandwidthRequest(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ServiceFlow(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants().

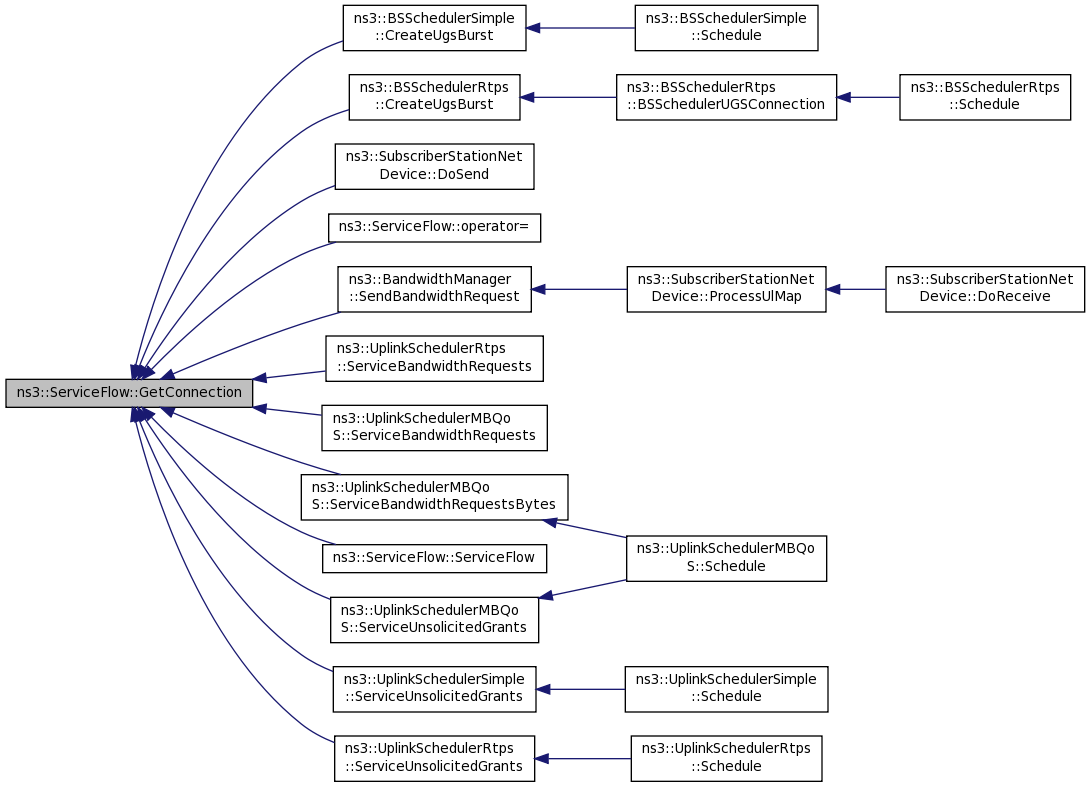

Here is the caller graph for this function:

CsParameters ns3::ServiceFlow::GetConvergenceSublayerParam ( void ) const

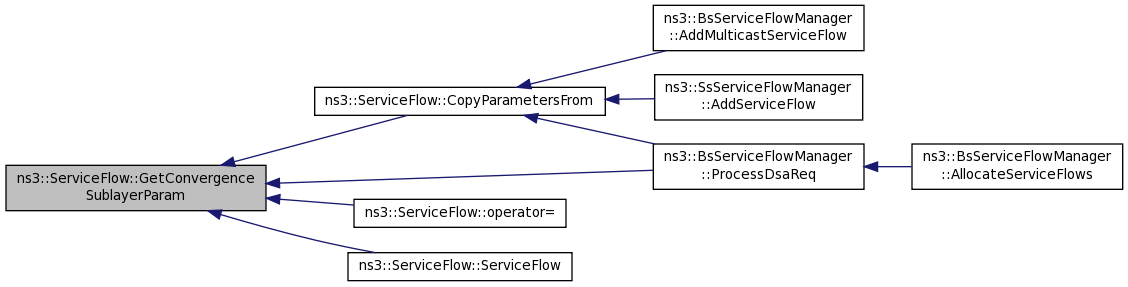

Definition at line 455 of file service-flow.cc.

References m_convergenceSublayerParam.

Referenced by CopyParametersFrom(), operator=(), ns3::BsServiceFlowManager::ProcessDsaReq(), and ServiceFlow().

Here is the caller graph for this function:

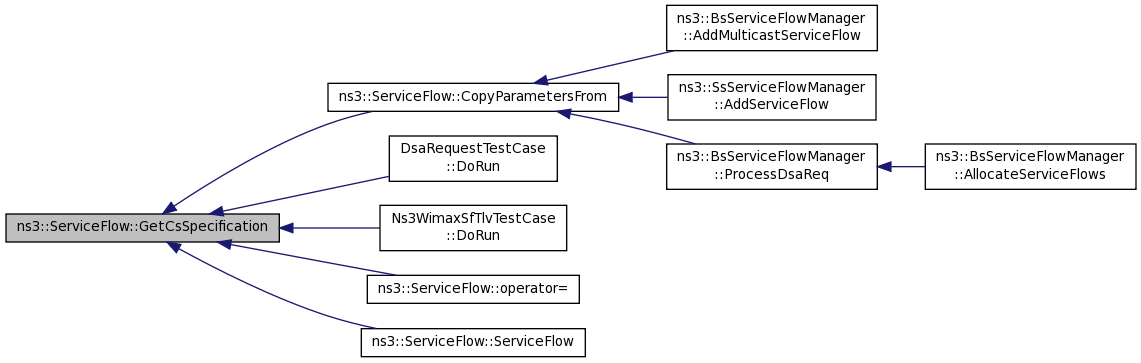

enum ServiceFlow::CsSpecification ns3::ServiceFlow::GetCsSpecification ( void ) const

Definition at line 450 of file service-flow.cc.

References m_csSpecification.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

ServiceFlow::Direction ns3::ServiceFlow::GetDirection ( void ) const

Definition at line 197 of file service-flow.cc.

References m_direction.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), ns3::BsServiceFlowManager::ProcessDsaReq(), and ServiceFlow().

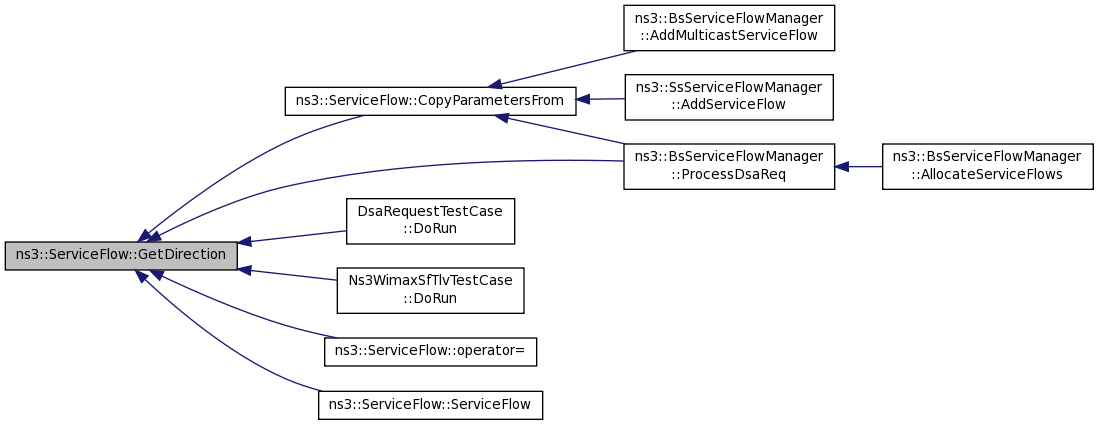

Here is the caller graph for this function:

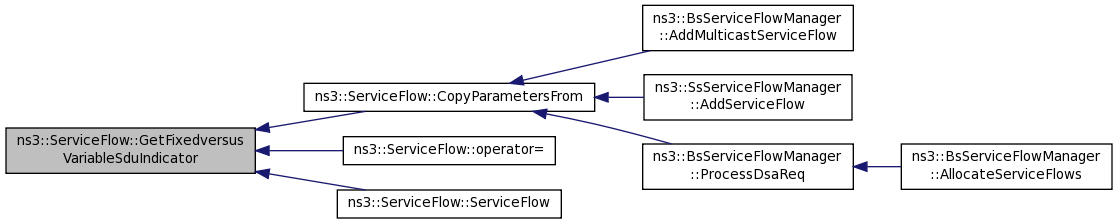

uint8_t ns3::ServiceFlow::GetFixedversusVariableSduIndicator ( void ) const

Definition at line 389 of file service-flow.cc.

References m_fixedversusVariableSduIndicator.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

bool ns3::ServiceFlow::GetIsEnabled ( void ) const

Definition at line 234 of file service-flow.cc.

References m_isEnabled.

Referenced by ns3::SubscriberStationNetDevice::DoSend(), operator=(), and ServiceFlow().

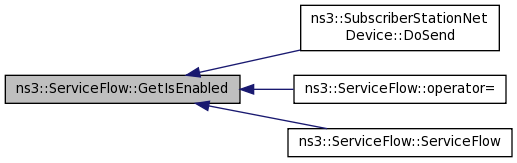

Here is the caller graph for this function:

bool ns3::ServiceFlow::GetIsMulticast ( void ) const

Definition at line 471 of file service-flow.cc.

References m_isMulticast.

Referenced by CopyParametersFrom(), operator=(), ServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

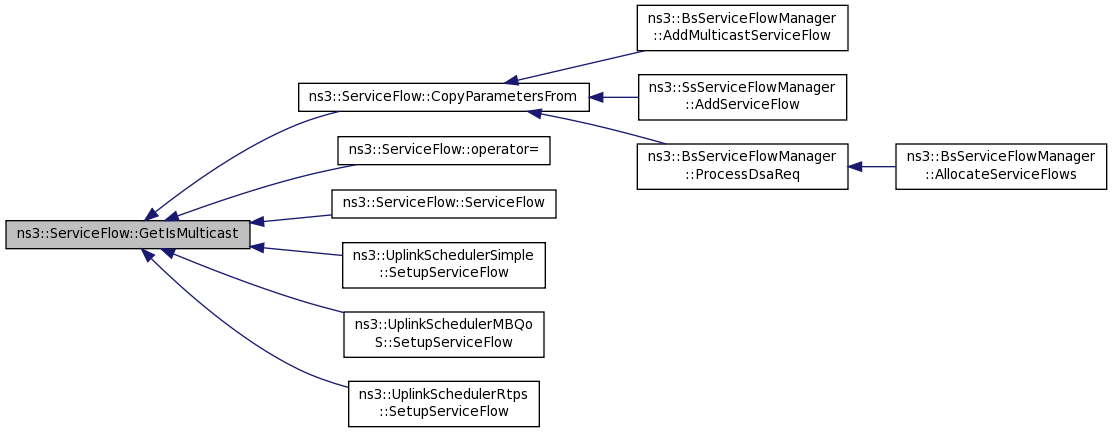

Here is the caller graph for this function:

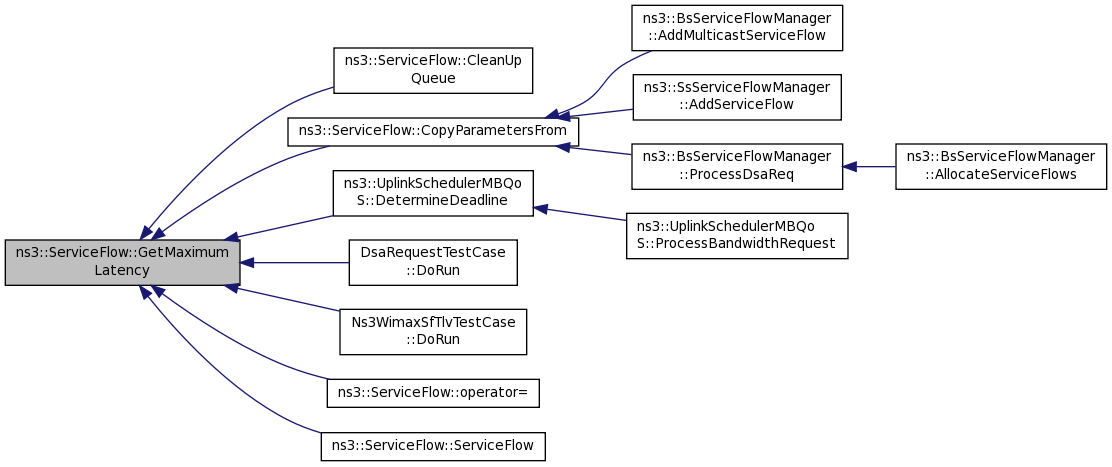

uint32_t ns3::ServiceFlow::GetMaximumLatency ( void ) const

Definition at line 384 of file service-flow.cc.

References m_maximumLatency.

Referenced by CleanUpQueue(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::DetermineDeadline(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlow::GetMaxSustainedTrafficRate ( void ) const

Definition at line 349 of file service-flow.cc.

References m_maxSustainedTrafficRate.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlow::GetMaxTrafficBurst ( void ) const

Definition at line 354 of file service-flow.cc.

References m_maxTrafficBurst.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

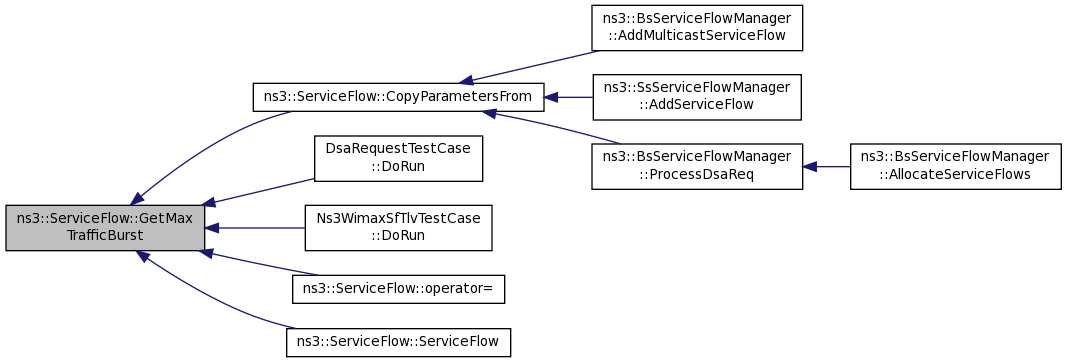

Here is the caller graph for this function:

uint32_t ns3::ServiceFlow::GetMinReservedTrafficRate ( void ) const

Definition at line 359 of file service-flow.cc.

References m_minReservedTrafficRate.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), ServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

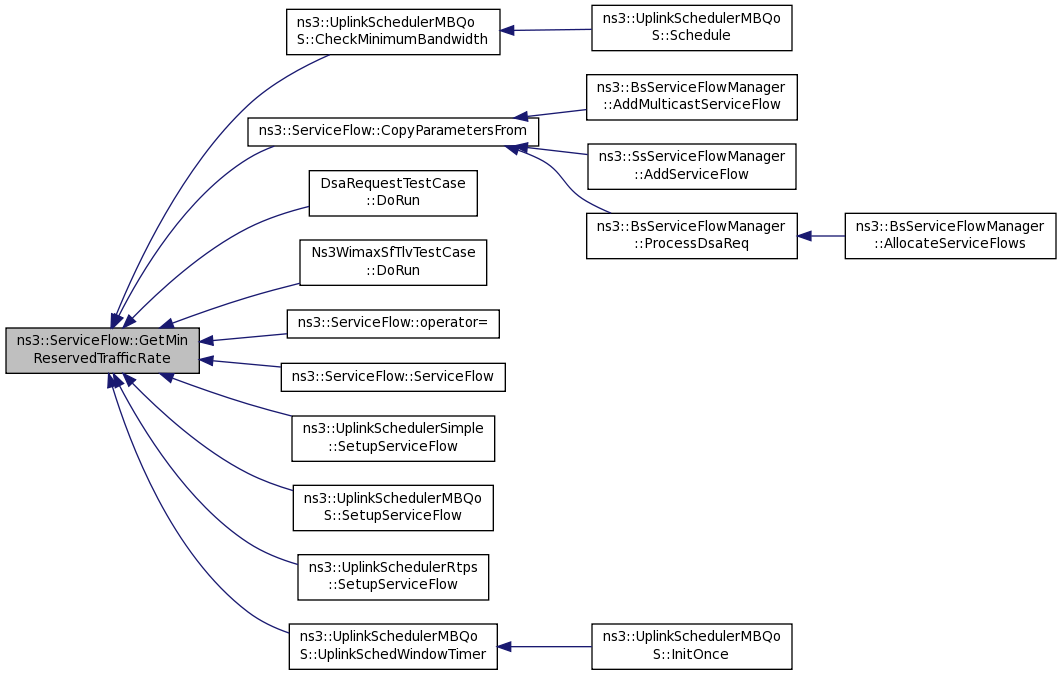

Here is the caller graph for this function:

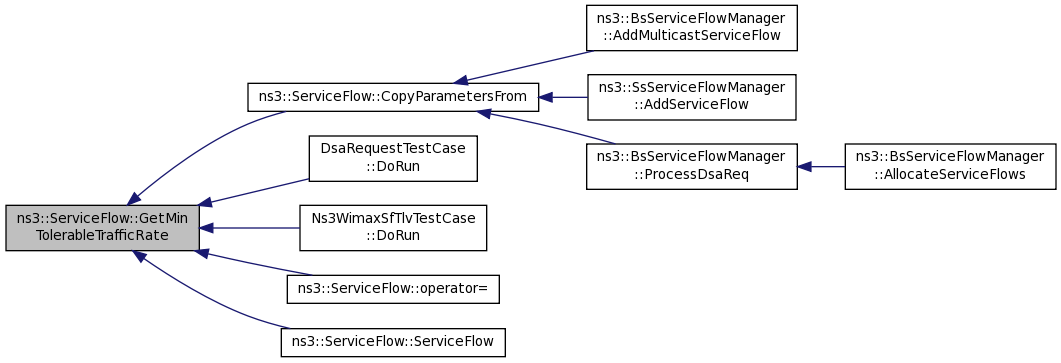

uint32_t ns3::ServiceFlow::GetMinTolerableTrafficRate ( void ) const

Definition at line 364 of file service-flow.cc.

References m_minTolerableTrafficRate.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

enum WimaxPhy::ModulationType ns3::ServiceFlow::GetModulation ( void ) const

Definition at line 476 of file service-flow.cc.

References m_modulationType.

Referenced by CopyParametersFrom(), operator=(), ServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

Here is the caller graph for this function:

uint8_t ns3::ServiceFlow::GetQosParamSetType ( void ) const

Definition at line 339 of file service-flow.cc.

References m_qosParamSetType.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

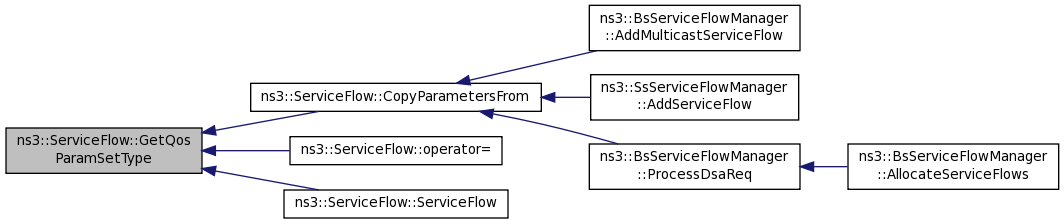

Here is the caller graph for this function:

Ptr< WimaxMacQueue > ns3::ServiceFlow::GetQueue ( void ) const

Definition at line 252 of file service-flow.cc.

References m_connection.

Referenced by ns3::BandwidthManager::SelectFlowForRequest().

Here is the caller graph for this function:

ServiceFlowRecord * ns3::ServiceFlow::GetRecord ( void ) const

Definition at line 246 of file service-flow.cc.

References m_record.

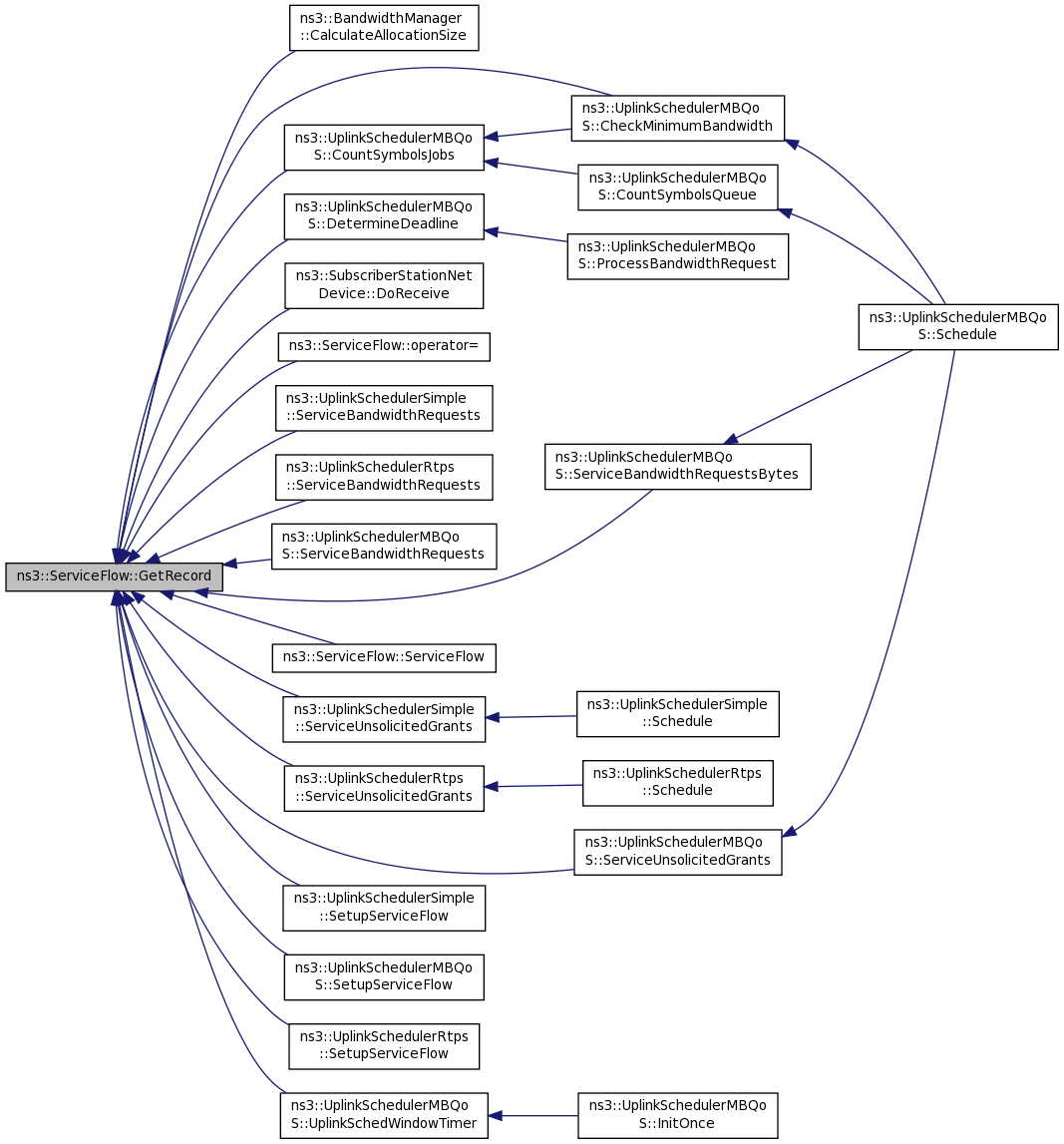

Here is the caller graph for this function:

uint32_t ns3::ServiceFlow::GetRequestTransmissionPolicy ( void ) const

Definition at line 374 of file service-flow.cc.

References m_requestTransmissionPolicy.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

enum ServiceFlow::SchedulingType ns3::ServiceFlow::GetSchedulingType ( void ) const

Definition at line 262 of file service-flow.cc.

References m_schedulingType.

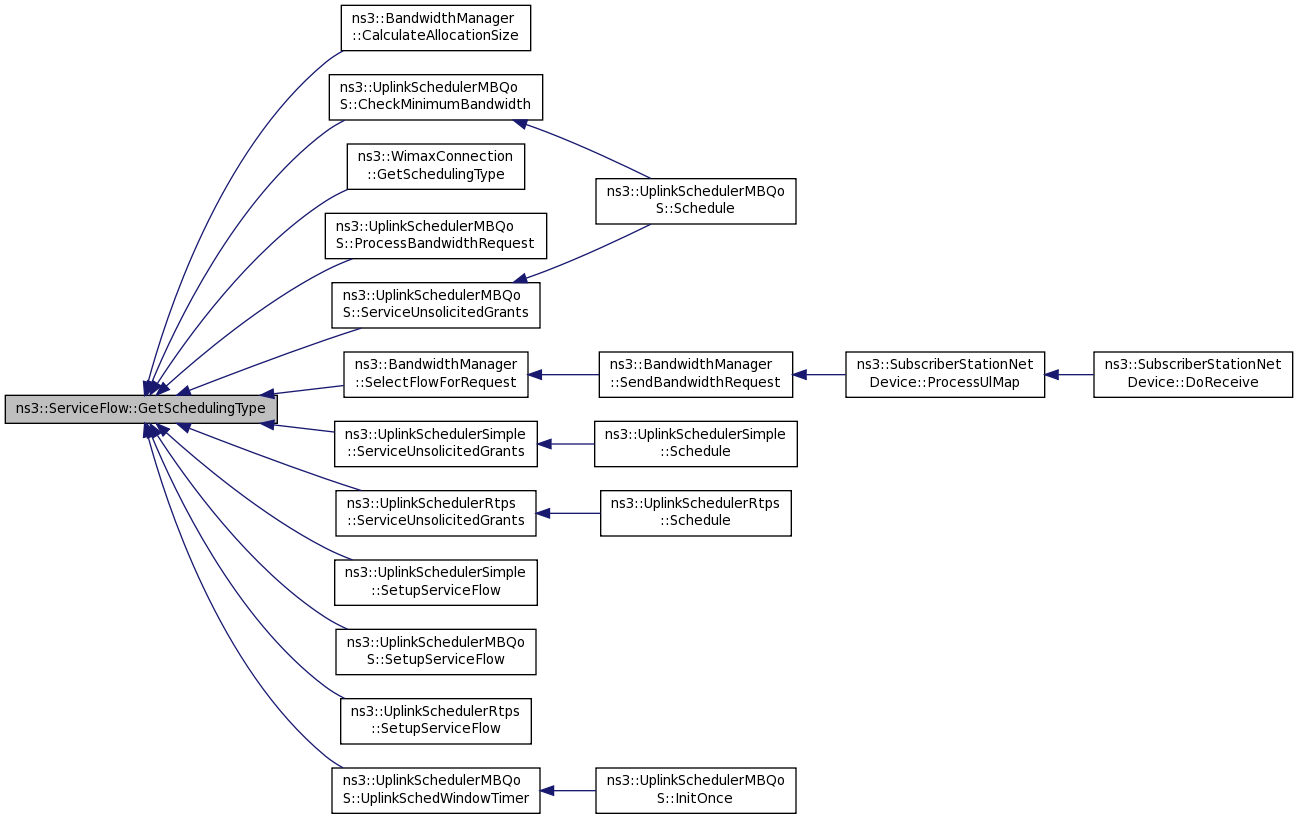

Here is the caller graph for this function:

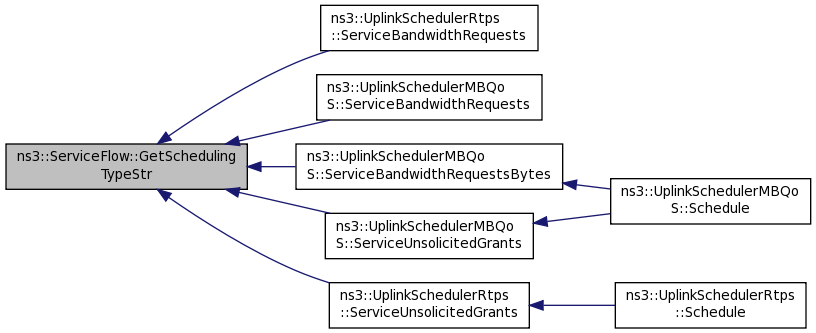

char * ns3::ServiceFlow::GetSchedulingTypeStr ( void ) const

Definition at line 781 of file service-flow.cc.

References m_schedulingType, NS_FATAL_ERROR, SF_TYPE_BE, SF_TYPE_NRTPS, SF_TYPE_RTPS, and SF_TYPE_UGS.

Referenced by ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants().

Here is the caller graph for this function:

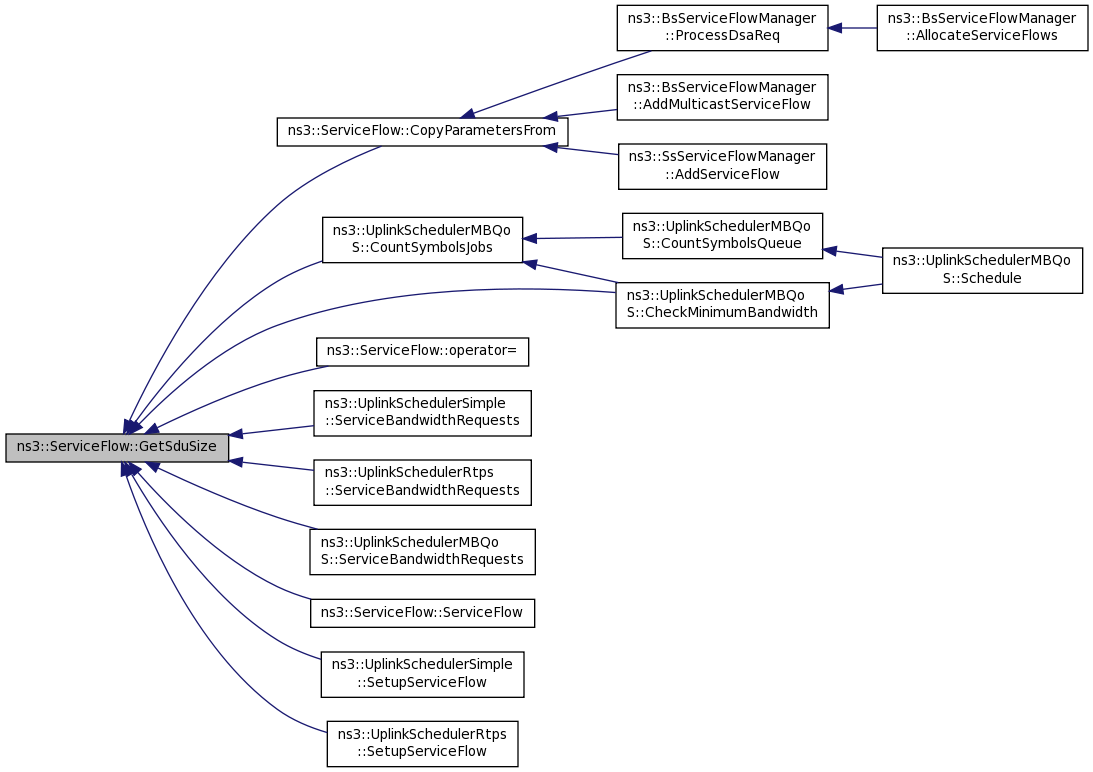

uint8_t ns3::ServiceFlow::GetSduSize ( void ) const

Definition at line 394 of file service-flow.cc.

References m_sduSize.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), operator=(), ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

Here is the caller graph for this function:

std::string ns3::ServiceFlow::GetServiceClassName ( ) const

Definition at line 334 of file service-flow.cc.

References m_serviceClassName.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

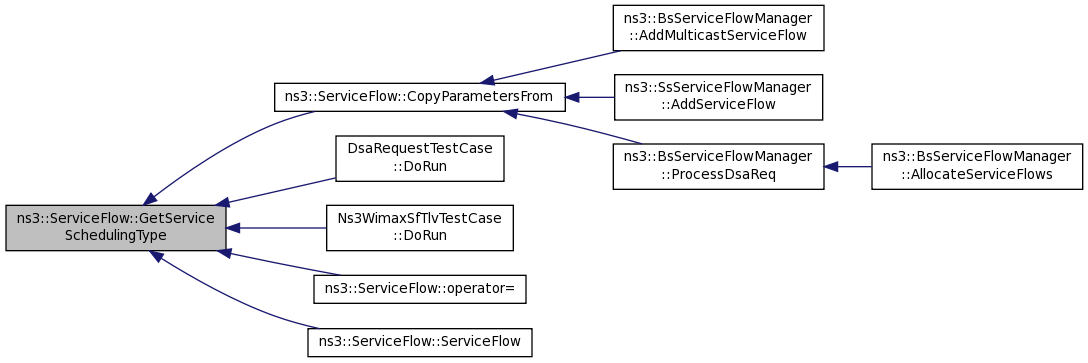

enum ServiceFlow::SchedulingType ns3::ServiceFlow::GetServiceSchedulingType ( void ) const

Definition at line 369 of file service-flow.cc.

References m_schedulingType.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

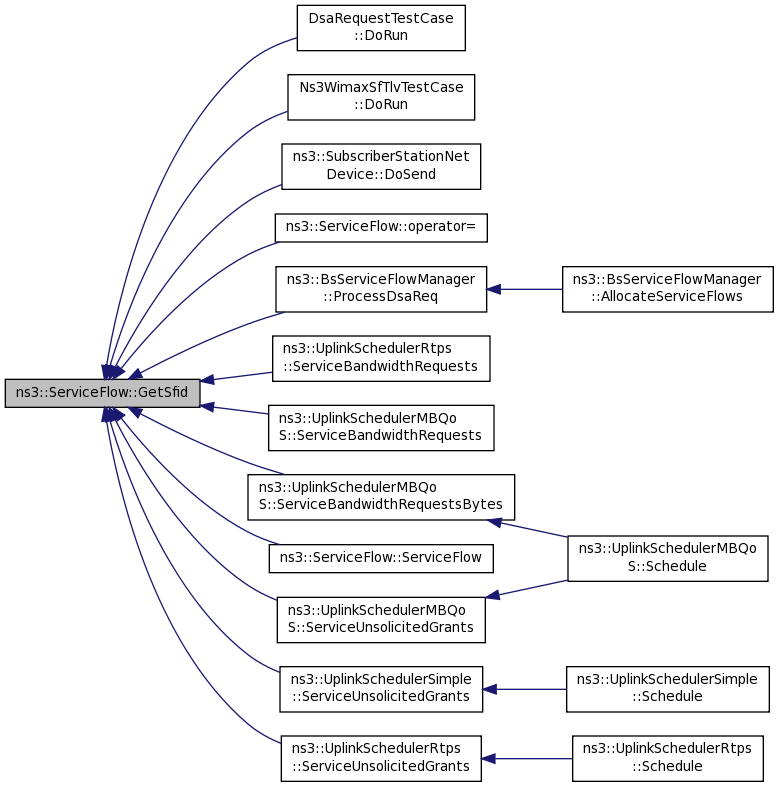

uint32_t ns3::ServiceFlow::GetSfid ( void ) const

Definition at line 320 of file service-flow.cc.

References m_sfid.

Referenced by DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), ns3::SubscriberStationNetDevice::DoSend(), operator=(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ServiceFlow(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants().

Here is the caller graph for this function:

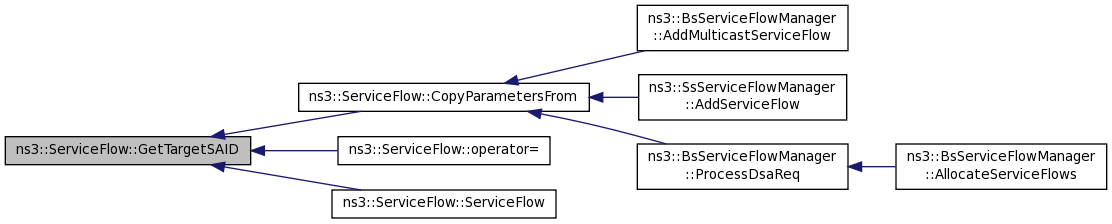

uint16_t ns3::ServiceFlow::GetTargetSAID ( void ) const

Definition at line 399 of file service-flow.cc.

References m_targetSAID.

Referenced by CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlow::GetToleratedJitter ( void ) const

Definition at line 379 of file service-flow.cc.

References m_toleratedJitter.

Referenced by CopyParametersFrom(), operator=(), ServiceFlow(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

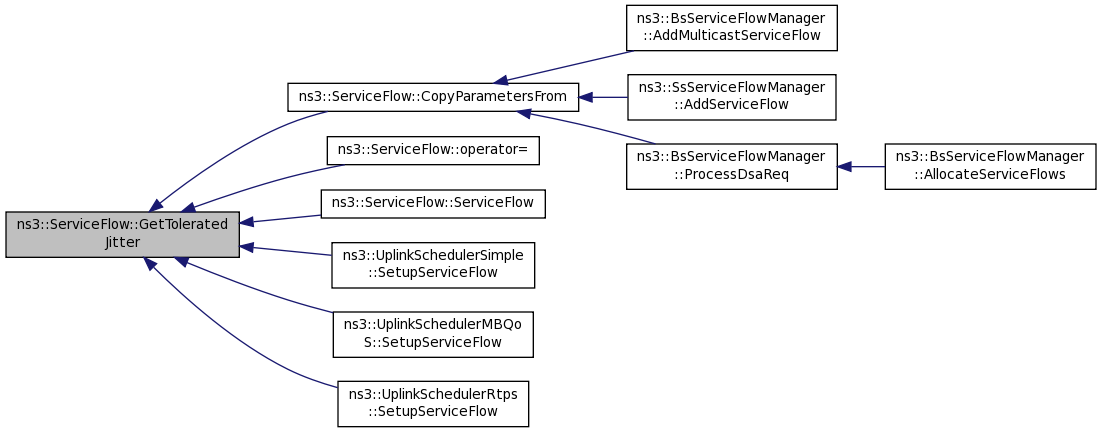

Here is the caller graph for this function:

uint8_t ns3::ServiceFlow::GetTrafficPriority ( void ) const

Definition at line 344 of file service-flow.cc.

References m_trafficPriority.

Referenced by CopyParametersFrom(), DsaRequestTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

ServiceFlow::Type ns3::ServiceFlow::GetType ( void ) const

Definition at line 209 of file service-flow.cc.

References m_type.

Referenced by operator=(), and ServiceFlow().

Here is the caller graph for this function:

uint16_t ns3::ServiceFlow::GetUnsolicitedGrantInterval ( void ) const

Definition at line 460 of file service-flow.cc.

References m_unsolicitedGrantInterval.

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), CopyParametersFrom(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

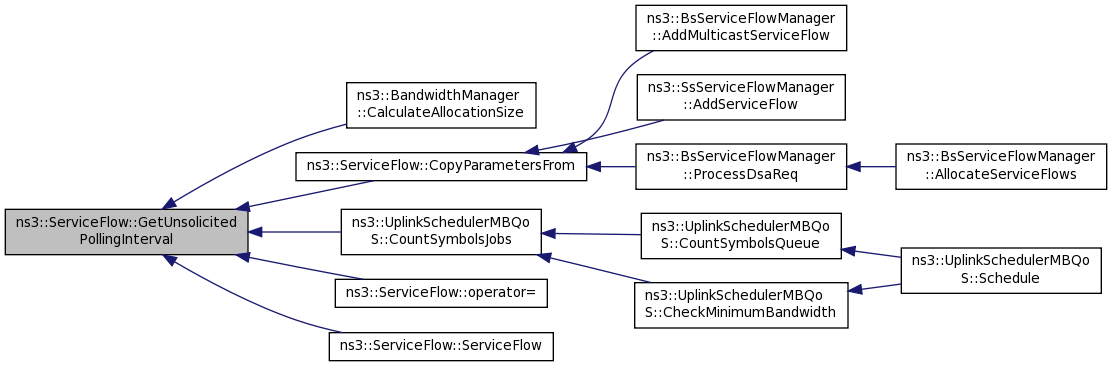

uint16_t ns3::ServiceFlow::GetUnsolicitedPollingInterval ( void ) const

Definition at line 465 of file service-flow.cc.

References m_unsolicitedPollingInterval.

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), CopyParametersFrom(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), operator=(), and ServiceFlow().

Here is the caller graph for this function:

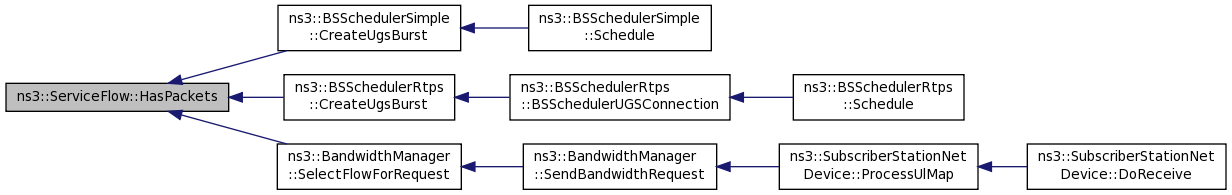

bool ns3::ServiceFlow::HasPackets ( void ) const

Definition at line 268 of file service-flow.cc.

References m_connection.

Referenced by ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), and ns3::BandwidthManager::SelectFlowForRequest().

Here is the caller graph for this function:

bool ns3::ServiceFlow::HasPackets ( MacHeaderType::HeaderType packetType ) const

Definition at line 278 of file service-flow.cc.

References m_connection.

void ns3::ServiceFlow::InitValues ( void )

Definition at line 636 of file service-flow.cc.

References IPV4, m_arqBlockLifeTime, m_arqBlockSize, m_arqDeliverInOrder, m_arqEnable, m_arqPurgeTimeout, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqSyncLoss, m_arqWindowSize, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, m_unsolicitedPollingInterval, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, SF_DIRECTION_DOWN, SF_TYPE_ACTIVE, and SF_TYPE_NONE.

Referenced by ServiceFlow().

Here is the caller graph for this function:

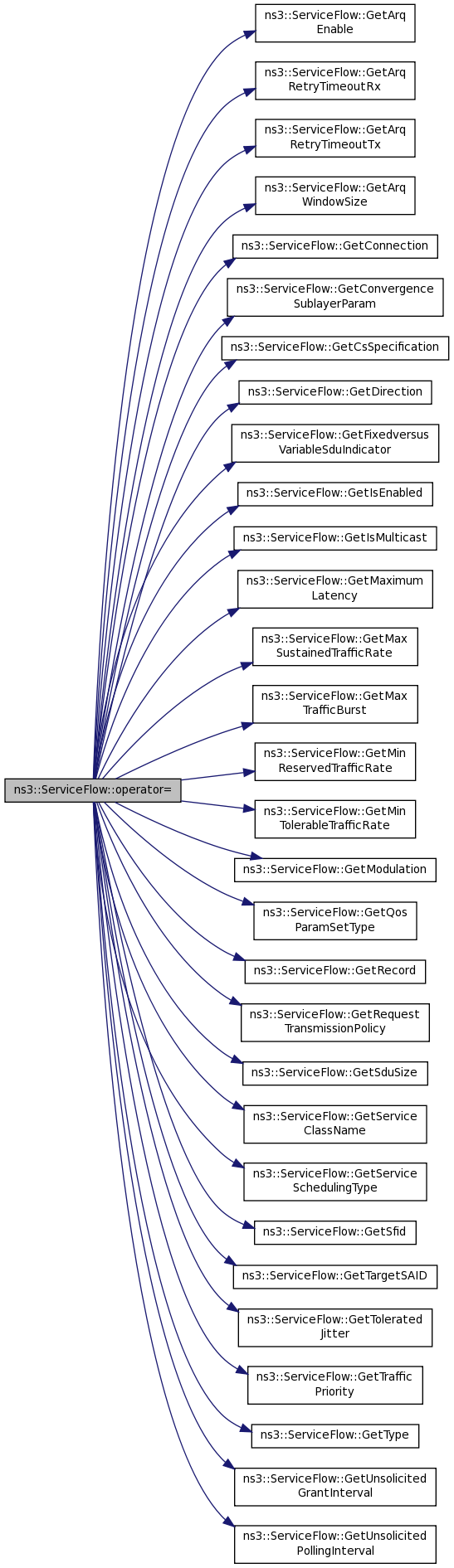

ServiceFlow & ns3::ServiceFlow::operator= ( ServiceFlow const & o )

Definition at line 737 of file service-flow.cc.

References GetArqEnable(), GetArqRetryTimeoutRx(), GetArqRetryTimeoutTx(), GetArqWindowSize(), GetConnection(), GetConvergenceSublayerParam(), GetCsSpecification(), GetDirection(), GetFixedversusVariableSduIndicator(), GetIsEnabled(), GetIsMulticast(), GetMaximumLatency(), GetMaxSustainedTrafficRate(), GetMaxTrafficBurst(), GetMinReservedTrafficRate(), GetMinTolerableTrafficRate(), GetModulation(), GetQosParamSetType(), GetRecord(), GetRequestTransmissionPolicy(), GetSduSize(), GetServiceClassName(), GetServiceSchedulingType(), GetSfid(), GetTargetSAID(), GetToleratedJitter(), GetTrafficPriority(), GetType(), GetUnsolicitedGrantInterval(), GetUnsolicitedPollingInterval(), m_arqEnable, m_arqRetryTimeoutRx, m_arqRetryTimeoutTx, m_arqWindowSize, m_connection, m_convergenceSublayerParam, m_csSpecification, m_direction, m_fixedversusVariableSduIndicator, m_isEnabled, m_isMulticast, m_maximumLatency, m_maxSustainedTrafficRate, m_maxTrafficBurst, m_minReservedTrafficRate, m_minTolerableTrafficRate, m_modulationType, m_qosParamSetType, m_record, m_requestTransmissionPolicy, m_schedulingType, m_sduSize, m_serviceClassName, m_sfid, m_targetSAID, m_toleratedJitter, m_trafficPriority, m_type, m_unsolicitedGrantInterval, and m_unsolicitedPollingInterval.

Here is the call graph for this function:

void ns3::ServiceFlow::PrintQoSParameters ( void ) const

Definition at line 313 of file service-flow.cc.

void ns3::ServiceFlow::SetArqBlockLifeTime ( uint16_t lifeTime )

Definition at line 580 of file service-flow.cc.

References m_arqBlockLifeTime.

void ns3::ServiceFlow::SetArqBlockSize ( uint16_t size )

Definition at line 600 of file service-flow.cc.

References m_arqBlockSize.

void ns3::ServiceFlow::SetArqDeliverInOrder ( uint8_t inOrder )

Definition at line 590 of file service-flow.cc.

References m_arqDeliverInOrder.

void ns3::ServiceFlow::SetArqEnable ( uint8_t arqEnable )

Definition at line 560 of file service-flow.cc.

References m_arqEnable.

void ns3::ServiceFlow::SetArqPurgeTimeout ( uint16_t timeout )

Definition at line 595 of file service-flow.cc.

References m_arqPurgeTimeout, and timeout.

void ns3::ServiceFlow::SetArqRetryTimeoutRx ( uint16_t timeout )

Definition at line 575 of file service-flow.cc.

References m_arqRetryTimeoutRx, and timeout.

void ns3::ServiceFlow::SetArqRetryTimeoutTx ( uint16_t timeout )

Definition at line 570 of file service-flow.cc.

References m_arqRetryTimeoutTx, and timeout.

void ns3::ServiceFlow::SetArqSyncLoss ( uint16_t syncLoss )

Definition at line 585 of file service-flow.cc.

References m_arqSyncLoss.

void ns3::ServiceFlow::SetArqWindowSize ( uint16_t arqWindowSize )

Definition at line 565 of file service-flow.cc.

References m_arqWindowSize.

void ns3::ServiceFlow::SetConnection ( Ptr< WimaxConnection > connection )

Definition at line 215 of file service-flow.cc.

References m_connection.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), and ns3::SsServiceFlowManager::ProcessDsaRsp().

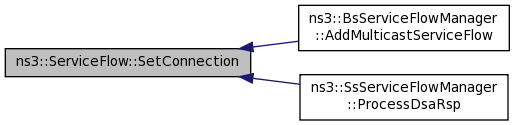

Here is the caller graph for this function:

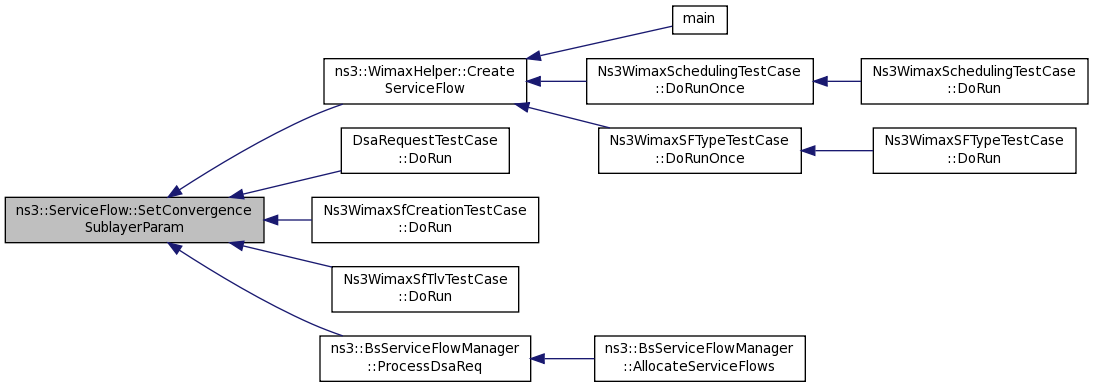

void ns3::ServiceFlow::SetConvergenceSublayerParam ( CsParameters csparam )

Definition at line 610 of file service-flow.cc.

References m_convergenceSublayerParam.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), Ns3WimaxSfTlvTestCase::DoRun(), and ns3::BsServiceFlowManager::ProcessDsaReq().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetCsSpecification ( enum CsSpecification )

Definition at line 605 of file service-flow.cc.

References m_csSpecification.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

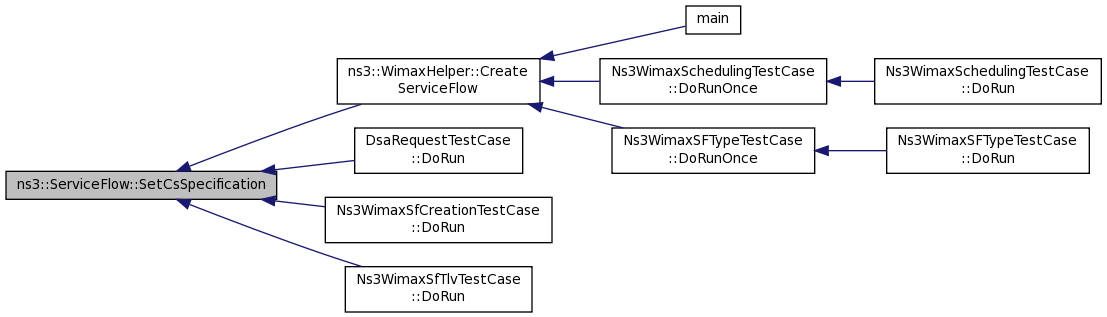

Here is the caller graph for this function:

void ns3::ServiceFlow::SetDirection ( enum Direction direction )

Definition at line 191 of file service-flow.cc.

References m_direction.

void ns3::ServiceFlow::SetFixedversusVariableSduIndicator ( uint8_t sduIndicator )

Definition at line 545 of file service-flow.cc.

References m_fixedversusVariableSduIndicator.

void ns3::ServiceFlow::SetIsEnabled ( bool isEnabled )

Definition at line 228 of file service-flow.cc.

References m_isEnabled.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), ns3::SsServiceFlowManager::ProcessDsaRsp(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

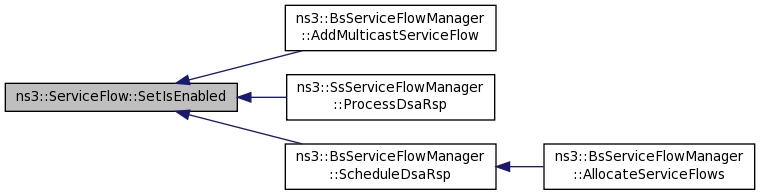

Here is the caller graph for this function:

void ns3::ServiceFlow::SetIsMulticast ( bool isMulticast )

Definition at line 625 of file service-flow.cc.

References m_isMulticast.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetMaximumLatency ( uint32_t MaximumLatency )

Definition at line 540 of file service-flow.cc.

References m_maximumLatency.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

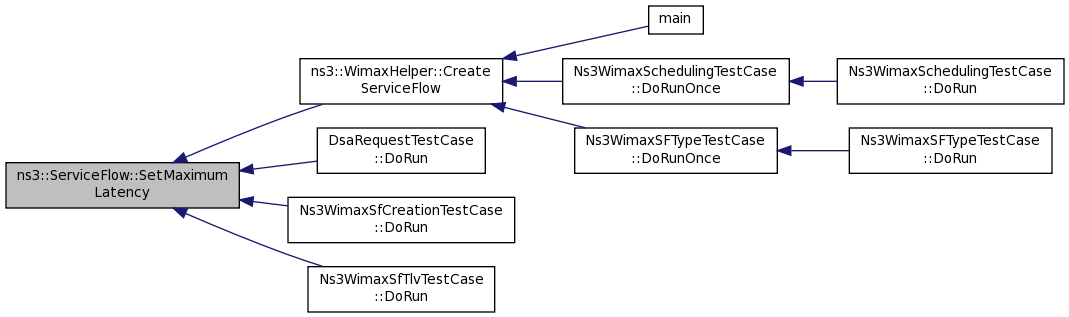

Here is the caller graph for this function:

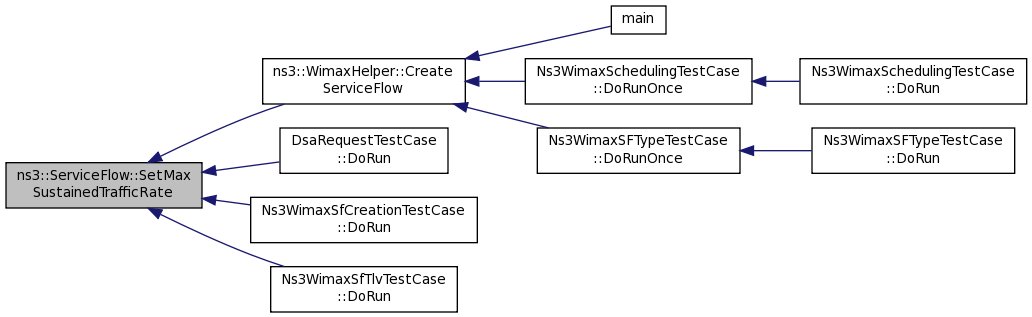

void ns3::ServiceFlow::SetMaxSustainedTrafficRate ( uint32_t maxSustainedRate )

Definition at line 505 of file service-flow.cc.

References m_maxSustainedTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetMaxTrafficBurst ( uint32_t maxTrafficBurst )

Definition at line 510 of file service-flow.cc.

References m_maxTrafficBurst.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetMinReservedTrafficRate ( uint32_t minResvRate )

Definition at line 515 of file service-flow.cc.

References m_minReservedTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetMinTolerableTrafficRate ( uint32_t minJitter )

Definition at line 520 of file service-flow.cc.

References m_minTolerableTrafficRate.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetModulation ( enum WimaxPhy::ModulationType modulationType )

Definition at line 630 of file service-flow.cc.

References m_modulationType.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetQosParamSetType ( uint8_t type )

Definition at line 495 of file service-flow.cc.

References m_qosParamSetType.

void ns3::ServiceFlow::SetRecord ( ServiceFlowRecord * record )

Definition at line 240 of file service-flow.cc.

References m_record.

void ns3::ServiceFlow::SetRequestTransmissionPolicy ( uint32_t policy )

Definition at line 530 of file service-flow.cc.

References m_requestTransmissionPolicy.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

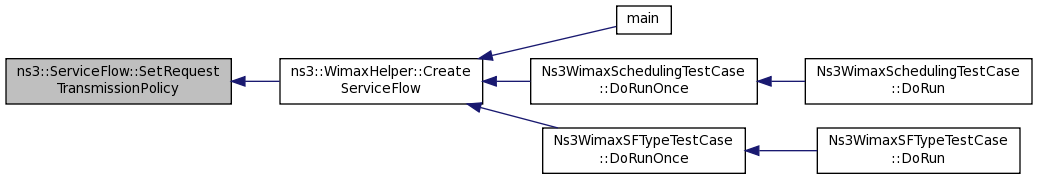

Here is the caller graph for this function:

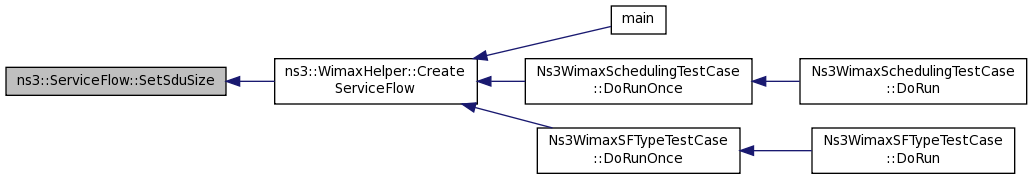

void ns3::ServiceFlow::SetSduSize ( uint8_t sduSize )

Definition at line 550 of file service-flow.cc.

References m_sduSize.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetServiceClassName ( std::string name )

Definition at line 490 of file service-flow.cc.

References m_serviceClassName.

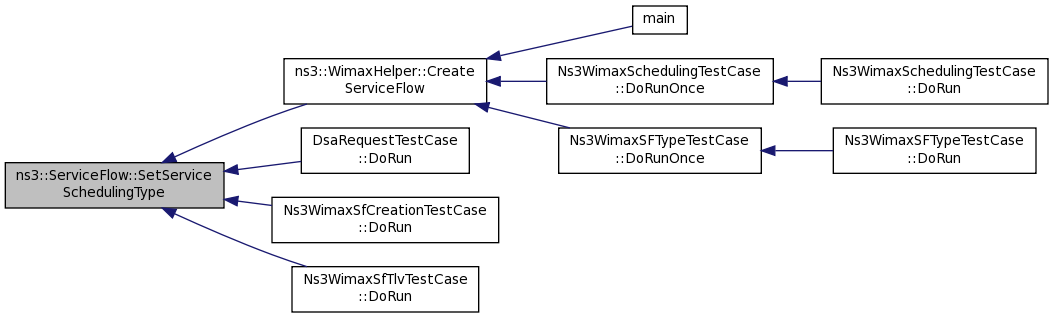

void ns3::ServiceFlow::SetServiceSchedulingType ( enum ServiceFlow::SchedulingType schedType )

Definition at line 525 of file service-flow.cc.

References m_schedulingType.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

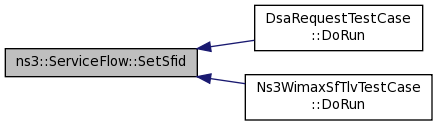

void ns3::ServiceFlow::SetSfid ( uint32_t sfid )

Definition at line 485 of file service-flow.cc.

References m_sfid.

Referenced by DsaRequestTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ServiceFlow::SetTargetSAID ( uint16_t targetSaid )

Definition at line 555 of file service-flow.cc.

References m_targetSAID.

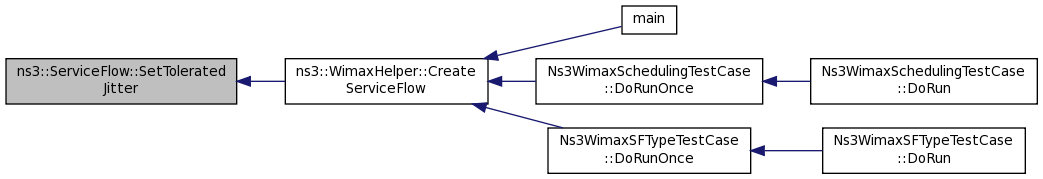

void ns3::ServiceFlow::SetToleratedJitter ( uint32_t jitter )

Definition at line 535 of file service-flow.cc.

References m_toleratedJitter.

Referenced by ns3::WimaxHelper::CreateServiceFlow().

Here is the caller graph for this function:

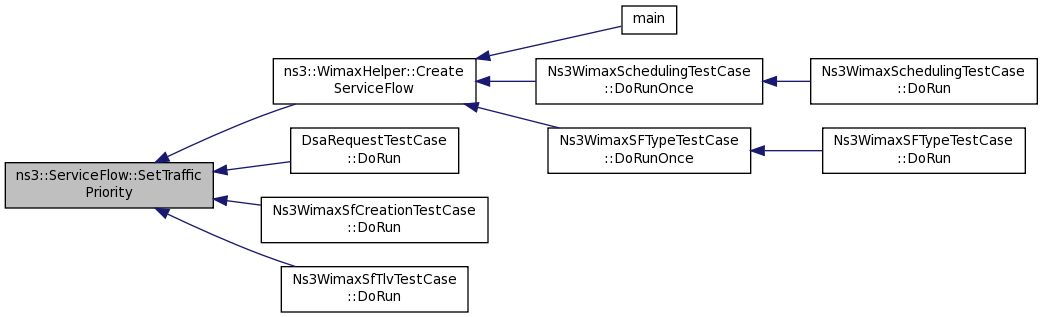

void ns3::ServiceFlow::SetTrafficPriority ( uint8_t priority )

Definition at line 500 of file service-flow.cc.

References m_trafficPriority.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), DsaRequestTestCase::DoRun(), Ns3WimaxSfCreationTestCase::DoRun(), and Ns3WimaxSfTlvTestCase::DoRun().

Here is the caller graph for this function:

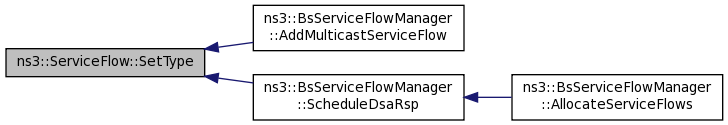

void ns3::ServiceFlow::SetType ( enum Type type )

Definition at line 203 of file service-flow.cc.

References m_type.

Referenced by ns3::BsServiceFlowManager::AddMulticastServiceFlow(), and ns3::BsServiceFlowManager::ScheduleDsaRsp().

Here is the caller graph for this function:

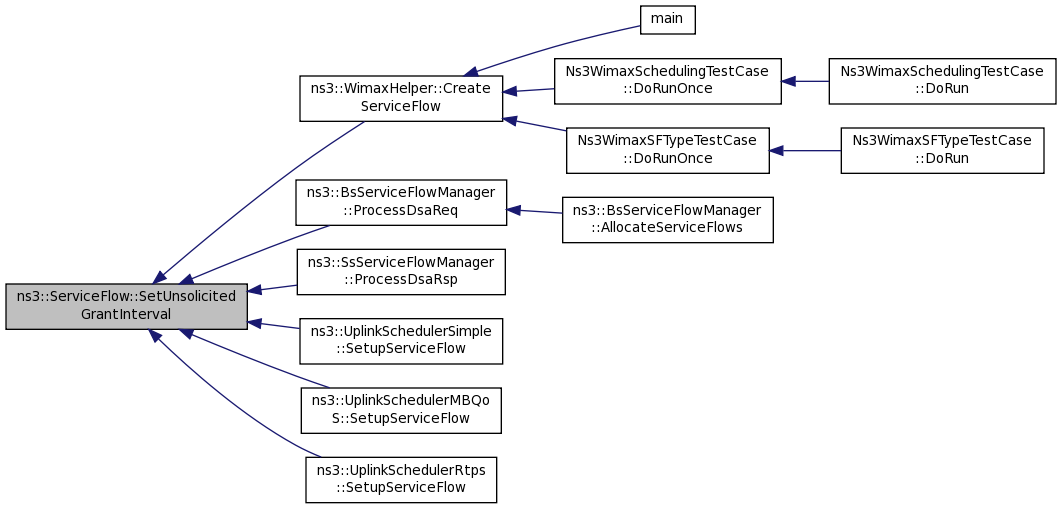

void ns3::ServiceFlow::SetUnsolicitedGrantInterval ( uint16_t unsolicitedGrantInterval )

Definition at line 615 of file service-flow.cc.

References m_unsolicitedGrantInterval.

Referenced by ns3::WimaxHelper::CreateServiceFlow(), ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

Here is the caller graph for this function:

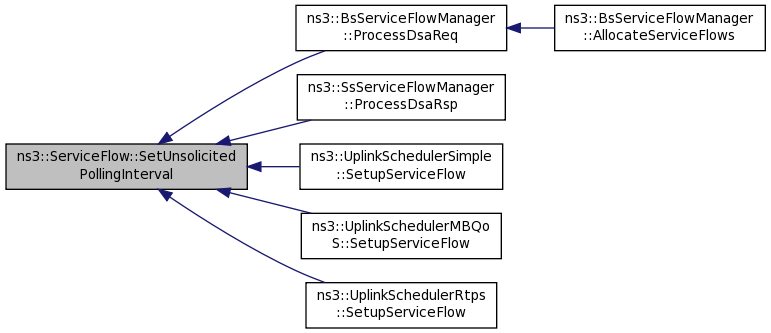

void ns3::ServiceFlow::SetUnsolicitedPollingInterval ( uint16_t unsolicitedPollingInterval )

Definition at line 620 of file service-flow.cc.

References m_unsolicitedPollingInterval.

Referenced by ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

Here is the caller graph for this function:

Tlv ns3::ServiceFlow::ToTlv ( void ) const

creates a TLV from this service flow

Returns: the created tlv

Definition at line 804 of file service-flow.cc.

Referenced by Ns3WimaxSfTlvTestCase::DoRun(), ns3::DsaReq::GetSerializedSize(), ns3::DsaRsp::GetSerializedSize(), ns3::DsaReq::Serialize(), and ns3::DsaRsp::Serialize().

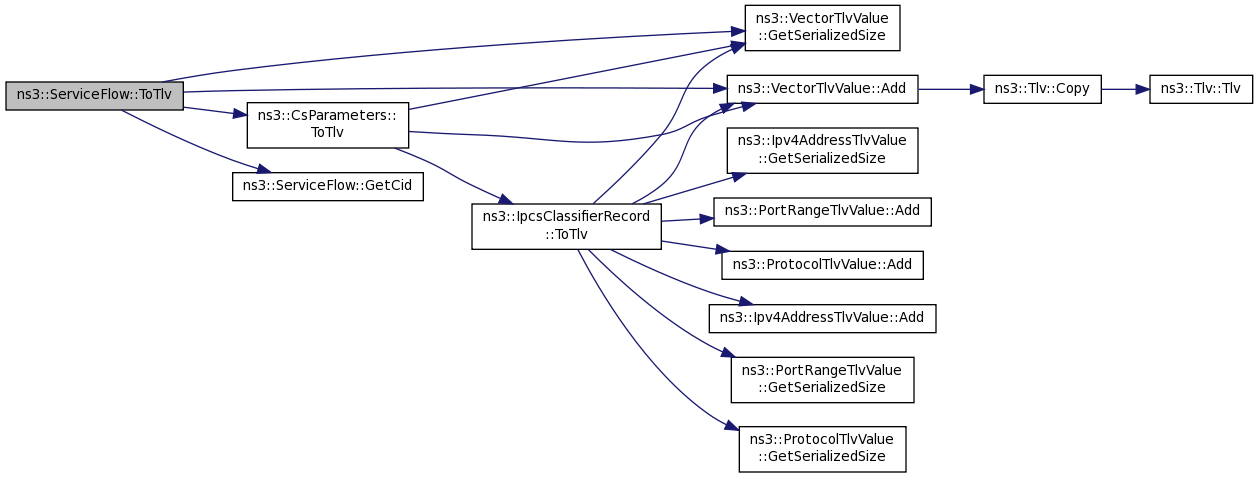

Here is the call graph for this function:

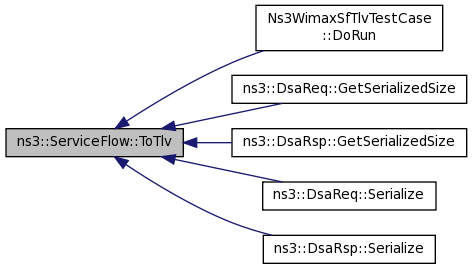

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::ServiceFlow::m_arqBlockLifeTime

private

Definition at line 221 of file service-flow.h.

Referenced by GetArqBlockLifeTime(), InitValues(), and SetArqBlockLifeTime().

uint16_t ns3::ServiceFlow::m_arqBlockSize

private

Definition at line 225 of file service-flow.h.

Referenced by GetArqBlockSize(), InitValues(), and SetArqBlockSize().

uint8_t ns3::ServiceFlow::m_arqDeliverInOrder

private

Definition at line 223 of file service-flow.h.

Referenced by GetArqDeliverInOrder(), InitValues(), and SetArqDeliverInOrder().

uint8_t ns3::ServiceFlow::m_arqEnable

private

Definition at line 217 of file service-flow.h.

Referenced by CopyParametersFrom(), GetArqEnable(), InitValues(), operator=(), ServiceFlow(), and SetArqEnable().

uint16_t ns3::ServiceFlow::m_arqPurgeTimeout

private

Definition at line 224 of file service-flow.h.

Referenced by GetArqPurgeTimeout(), InitValues(), and SetArqPurgeTimeout().

uint16_t ns3::ServiceFlow::m_arqRetryTimeoutRx

private

Definition at line 220 of file service-flow.h.

Referenced by CopyParametersFrom(), GetArqRetryTimeoutRx(), InitValues(), operator=(), ServiceFlow(), and SetArqRetryTimeoutRx().

uint16_t ns3::ServiceFlow::m_arqRetryTimeoutTx

private

Definition at line 219 of file service-flow.h.

Referenced by CopyParametersFrom(), GetArqRetryTimeoutTx(), InitValues(), operator=(), ServiceFlow(), and SetArqRetryTimeoutTx().

uint16_t ns3::ServiceFlow::m_arqSyncLoss

private

Definition at line 222 of file service-flow.h.

Referenced by GetArqSyncLoss(), InitValues(), and SetArqSyncLoss().

uint16_t ns3::ServiceFlow::m_arqWindowSize

private

Definition at line 218 of file service-flow.h.

Referenced by CopyParametersFrom(), GetArqWindowSize(), InitValues(), operator=(), ServiceFlow(), and SetArqWindowSize().

Ptr<WimaxConnection> ns3::ServiceFlow::m_connection

private

Definition at line 232 of file service-flow.h.

Referenced by CleanUpQueue(), GetCid(), GetConnection(), GetQueue(), HasPackets(), operator=(), ServiceFlow(), SetConnection(), and ~ServiceFlow().

CsParameters ns3::ServiceFlow::m_convergenceSublayerParam

private

Definition at line 227 of file service-flow.h.

Referenced by CheckClassifierMatch(), CopyParametersFrom(), GetConvergenceSublayerParam(), operator=(), ServiceFlow(), SetConvergenceSublayerParam(), and ToTlv().

enum CsSpecification ns3::ServiceFlow::m_csSpecification

private

Definition at line 226 of file service-flow.h.

Referenced by CopyParametersFrom(), GetCsSpecification(), InitValues(), operator=(), ServiceFlow(), SetCsSpecification(), and ToTlv().

Direction ns3::ServiceFlow::m_direction

private

Definition at line 230 of file service-flow.h.

Referenced by CopyParametersFrom(), GetDirection(), InitValues(), operator=(), ServiceFlow(), SetDirection(), and ToTlv().

uint8_t ns3::ServiceFlow::m_fixedversusVariableSduIndicator

private

Definition at line 214 of file service-flow.h.

Referenced by CopyParametersFrom(), GetFixedversusVariableSduIndicator(), InitValues(), operator=(), ServiceFlow(), SetFixedversusVariableSduIndicator(), and ToTlv().

bool ns3::ServiceFlow::m_isEnabled

private

Definition at line 233 of file service-flow.h.

Referenced by GetIsEnabled(), operator=(), ServiceFlow(), and SetIsEnabled().

bool ns3::ServiceFlow::m_isMulticast

private

Definition at line 234 of file service-flow.h.

Referenced by CopyParametersFrom(), GetIsMulticast(), InitValues(), operator=(), ServiceFlow(), and SetIsMulticast().

uint32_t ns3::ServiceFlow::m_maximumLatency

private

Definition at line 213 of file service-flow.h.

Referenced by CopyParametersFrom(), GetMaximumLatency(), InitValues(), operator=(), ServiceFlow(), SetMaximumLatency(), and ToTlv().

uint32_t ns3::ServiceFlow::m_maxSustainedTrafficRate

private

Definition at line 206 of file service-flow.h.

Referenced by CopyParametersFrom(), GetMaxSustainedTrafficRate(), InitValues(), operator=(), ServiceFlow(), SetMaxSustainedTrafficRate(), and ToTlv().

uint32_t ns3::ServiceFlow::m_maxTrafficBurst

private

Definition at line 207 of file service-flow.h.

Referenced by CopyParametersFrom(), GetMaxTrafficBurst(), InitValues(), operator=(), ServiceFlow(), SetMaxTrafficBurst(), and ToTlv().

uint32_t ns3::ServiceFlow::m_minReservedTrafficRate

private

Definition at line 208 of file service-flow.h.

Referenced by CopyParametersFrom(), GetMinReservedTrafficRate(), InitValues(), operator=(), ServiceFlow(), SetMinReservedTrafficRate(), and ToTlv().

uint32_t ns3::ServiceFlow::m_minTolerableTrafficRate

private

Definition at line 209 of file service-flow.h.

Referenced by CopyParametersFrom(), GetMinTolerableTrafficRate(), InitValues(), operator=(), ServiceFlow(), SetMinTolerableTrafficRate(), and ToTlv().

enum WimaxPhy::ModulationType ns3::ServiceFlow::m_modulationType

private

Definition at line 235 of file service-flow.h.

Referenced by CopyParametersFrom(), GetModulation(), InitValues(), operator=(), ServiceFlow(), and SetModulation().

uint8_t ns3::ServiceFlow::m_qosParamSetType

private

Definition at line 204 of file service-flow.h.

Referenced by CopyParametersFrom(), GetQosParamSetType(), InitValues(), operator=(), ServiceFlow(), SetQosParamSetType(), and ToTlv().

ServiceFlowRecord* ns3::ServiceFlow::m_record

private

Definition at line 237 of file service-flow.h.

Referenced by GetRecord(), operator=(), ServiceFlow(), SetRecord(), and ~ServiceFlow().

uint32_t ns3::ServiceFlow::m_requestTransmissionPolicy

private

Definition at line 211 of file service-flow.h.

Referenced by CopyParametersFrom(), GetRequestTransmissionPolicy(), InitValues(), operator=(), ServiceFlow(), SetRequestTransmissionPolicy(), and ToTlv().

enum ServiceFlow::SchedulingType ns3::ServiceFlow::m_schedulingType

private

Definition at line 210 of file service-flow.h.

Referenced by CopyParametersFrom(), GetSchedulingType(), GetSchedulingTypeStr(), GetServiceSchedulingType(), InitValues(), operator=(), ServiceFlow(), SetServiceSchedulingType(), and ToTlv().

uint8_t ns3::ServiceFlow::m_sduSize

private

Definition at line 215 of file service-flow.h.

Referenced by CopyParametersFrom(), GetSduSize(), InitValues(), operator=(), ServiceFlow(), SetSduSize(), and ToTlv().

std::string ns3::ServiceFlow::m_serviceClassName

private

Definition at line 203 of file service-flow.h.

Referenced by CopyParametersFrom(), GetServiceClassName(), InitValues(), operator=(), ServiceFlow(), and SetServiceClassName().

uint32_t ns3::ServiceFlow::m_sfid

private

Definition at line 202 of file service-flow.h.

Referenced by GetSfid(), InitValues(), operator=(), ServiceFlow(), SetSfid(), and ToTlv().

uint16_t ns3::ServiceFlow::m_targetSAID

private

Definition at line 216 of file service-flow.h.

Referenced by CopyParametersFrom(), GetTargetSAID(), InitValues(), operator=(), ServiceFlow(), SetTargetSAID(), and ToTlv().

uint32_t ns3::ServiceFlow::m_toleratedJitter

private

Definition at line 212 of file service-flow.h.

Referenced by CopyParametersFrom(), GetToleratedJitter(), InitValues(), operator=(), ServiceFlow(), SetToleratedJitter(), and ToTlv().

uint8_t ns3::ServiceFlow::m_trafficPriority

private

Definition at line 205 of file service-flow.h.

Referenced by CopyParametersFrom(), GetTrafficPriority(), InitValues(), operator=(), ServiceFlow(), SetTrafficPriority(), and ToTlv().

Type ns3::ServiceFlow::m_type

private

Definition at line 231 of file service-flow.h.

Referenced by GetType(), InitValues(), operator=(), ServiceFlow(), and SetType().

uint16_t ns3::ServiceFlow::m_unsolicitedGrantInterval

private

Definition at line 228 of file service-flow.h.

Referenced by CopyParametersFrom(), GetUnsolicitedGrantInterval(), InitValues(), operator=(), ServiceFlow(), and SetUnsolicitedGrantInterval().

uint16_t ns3::ServiceFlow::m_unsolicitedPollingInterval

private

Definition at line 229 of file service-flow.h.

Referenced by CopyParametersFrom(), GetUnsolicitedPollingInterval(), InitValues(), operator=(), ServiceFlow(), and SetUnsolicitedPollingInterval().

The documentation for this class was generated from the following files:

src/wimax/model/service-flow.h
src/wimax/model/service-flow.cc

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
