Doxygen introspection did not find any typical Config paths. More...

#include <mac-messages.h>

Inheritance diagram for ns3::DsaRsp:

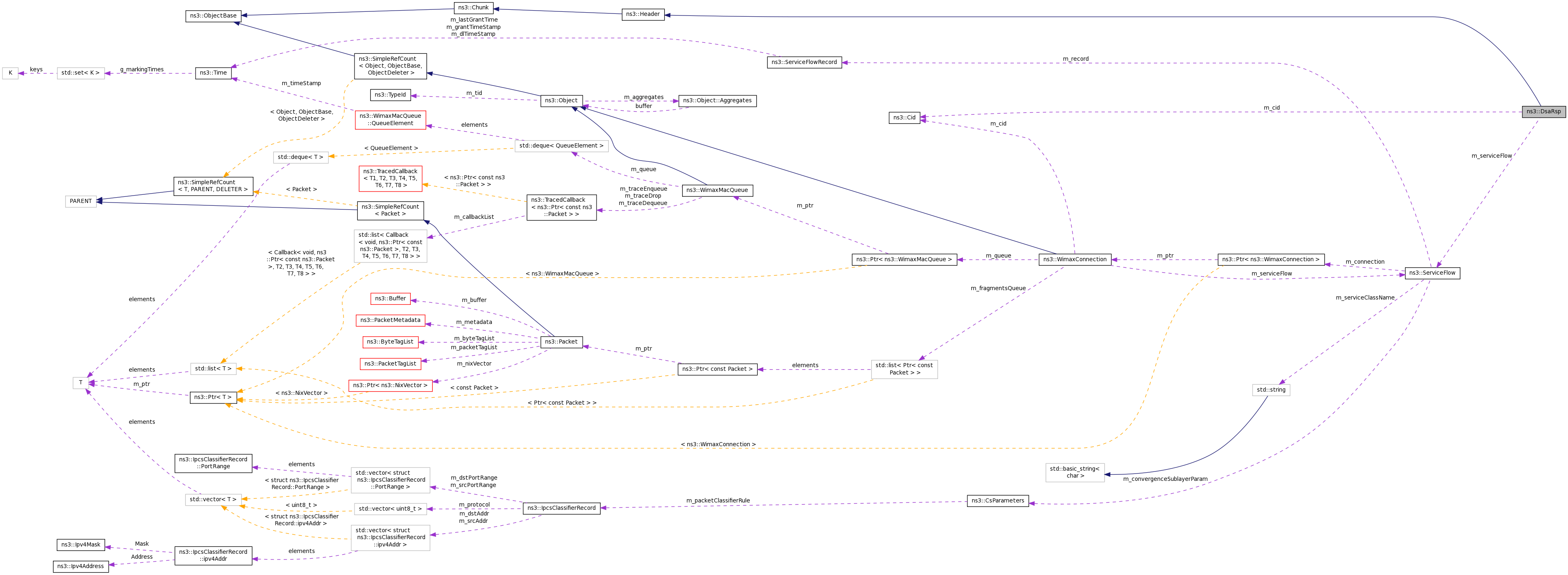

Collaboration diagram for ns3::DsaRsp:

Public Member Functions
	DsaRsp (void)
	This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63. More...

	~DsaRsp (void)

uint32_t	Deserialize (Buffer::Iterator start)

Cid	GetCid (void) const

uint16_t	GetConfirmationCode (void) const

virtual TypeId	GetInstanceTypeId (void) const

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

ServiceFlow	GetServiceFlow (void) const

uint32_t	GetSfid (void) const

uint16_t	GetTransactionId (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetCid (Cid cid)
	set the connection identifier More...

void	SetConfirmationCode (uint16_t confirmationCode)

void	SetServiceFlow (ServiceFlow sf)
	specify a service flow to be requested by this message More...

void	SetSfid (uint32_t sfid)
	set the service flow identifier More...

void	SetTransactionId (uint16_t transactionId)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Cid	m_cid

uint8_t	m_confirmationCode

ServiceFlow	m_serviceFlow

uint32_t	m_sfid

uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 335 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaRsp::DsaRsp ( void )

This class implements the DSA-RSP message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.11 DSA-RSP message, page 63.

Definition at line 641 of file mac-messages.cc.

ns3::DsaRsp::~DsaRsp ( void )

Definition at line 649 of file mac-messages.cc.

Member Function Documentation

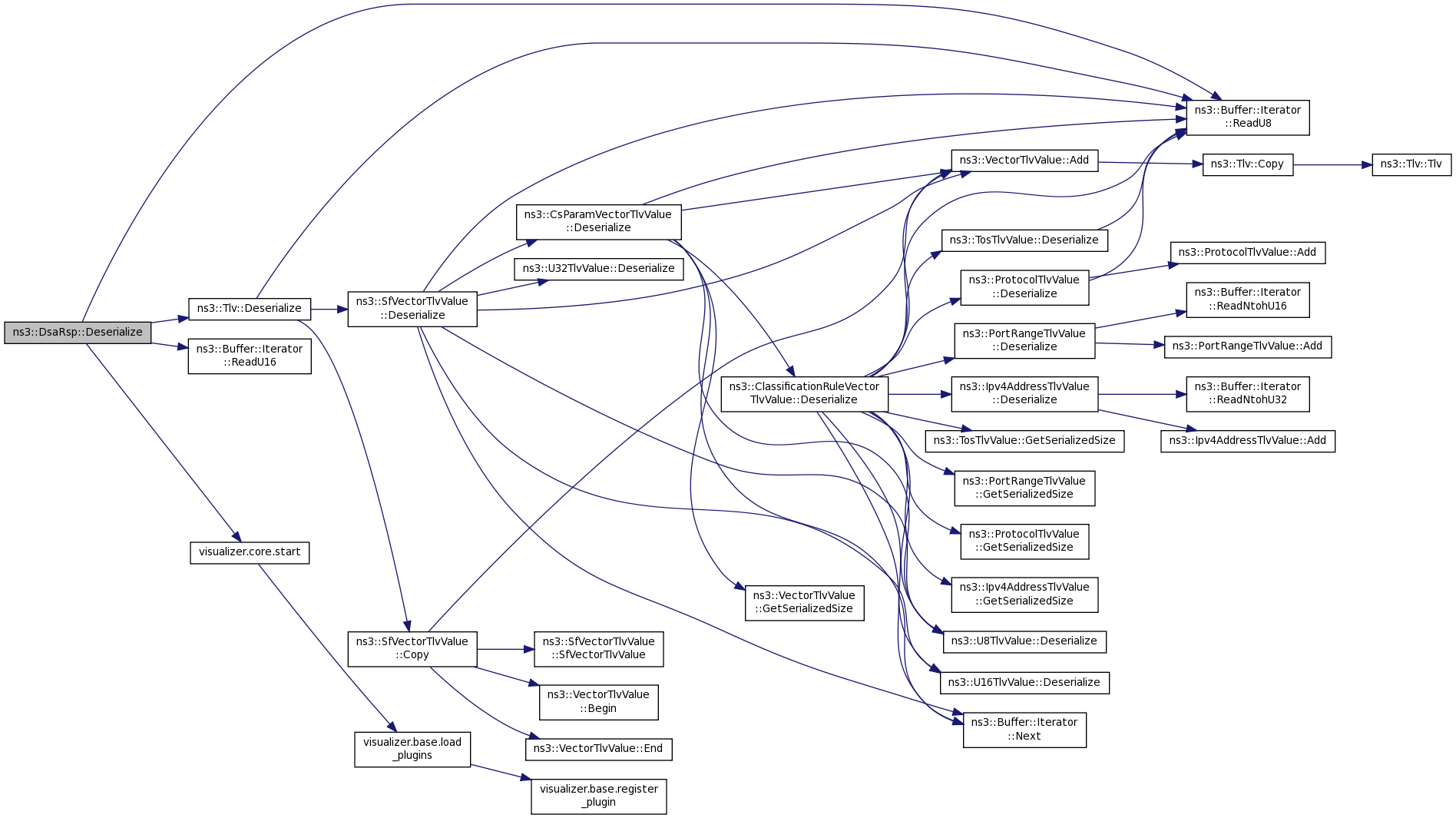

uint32_t ns3::DsaRsp::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 765 of file mac-messages.cc.

References ns3::Tlv::Deserialize(), m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

Cid ns3::DsaRsp::GetCid ( void ) const

Returns: the connection identifier

Definition at line 708 of file mac-messages.cc.

References m_cid.

uint16_t ns3::DsaRsp::GetConfirmationCode ( void ) const

Definition at line 684 of file mac-messages.cc.

References m_confirmationCode.

TypeId ns3::DsaRsp::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 727 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DsaRsp::GetName ( void ) const

Definition at line 714 of file mac-messages.cc.

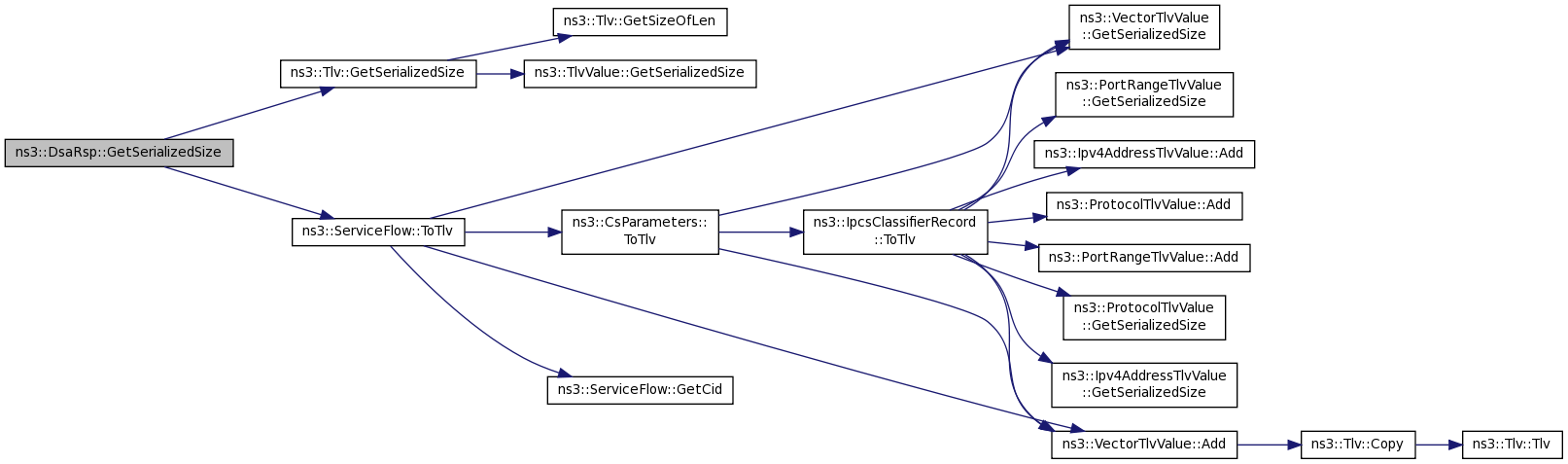

uint32_t ns3::DsaRsp::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 740 of file mac-messages.cc.

References ns3::Tlv::GetSerializedSize(), m_serviceFlow, and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

ServiceFlow ns3::DsaRsp::GetServiceFlow ( void ) const

Returns: the service flow requested by this message

Definition at line 666 of file mac-messages.cc.

References m_serviceFlow.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

uint32_t ns3::DsaRsp::GetSfid ( void ) const

Returns: the service flow identifier

Definition at line 696 of file mac-messages.cc.

References m_sfid.

uint16_t ns3::DsaRsp::GetTransactionId ( void ) const

Definition at line 660 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

TypeId ns3::DsaRsp::GetTypeId ( void )

static

Definition at line 720 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaRsp::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 733 of file mac-messages.cc.

References m_cid, m_confirmationCode, m_sfid, and m_transactionId.

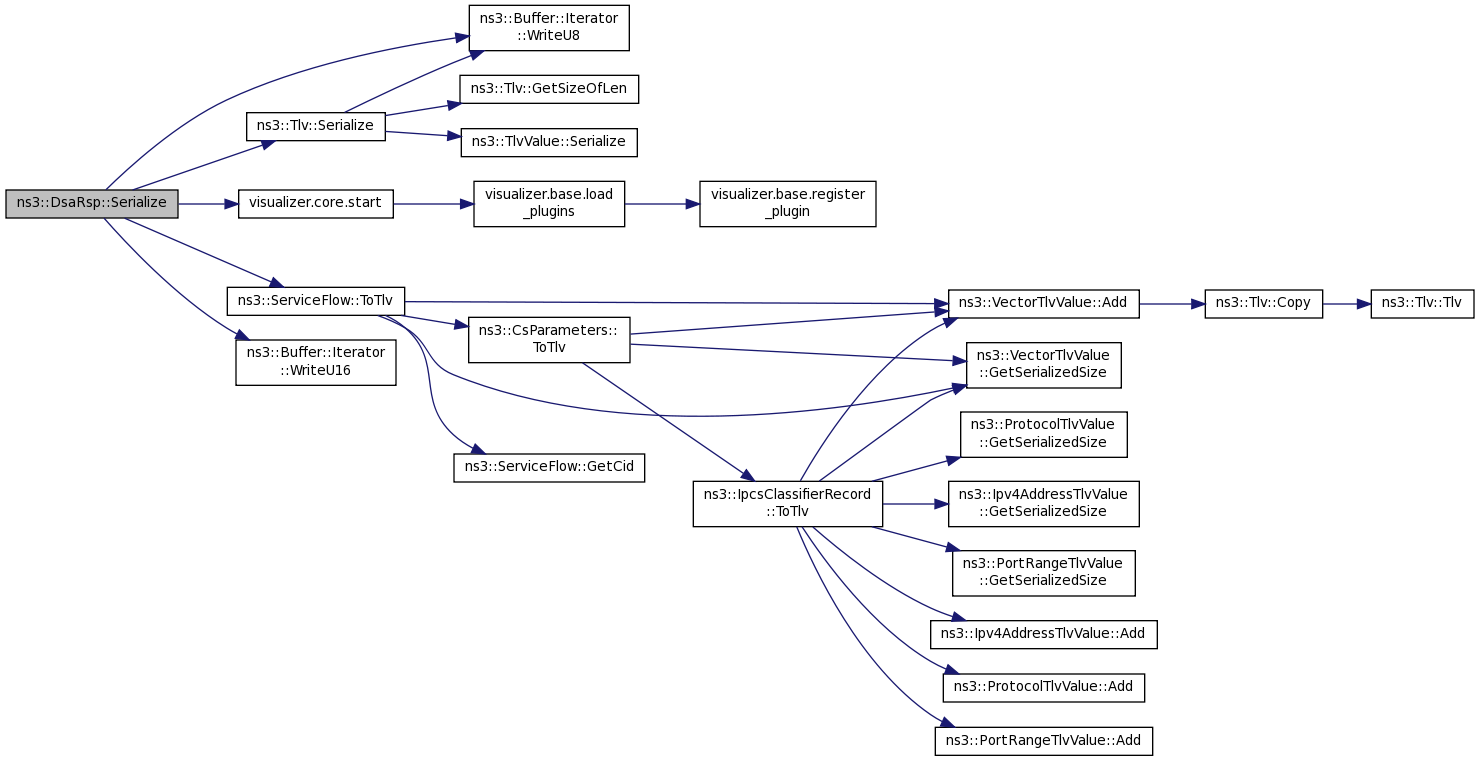

void ns3::DsaRsp::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 755 of file mac-messages.cc.

References m_confirmationCode, m_serviceFlow, m_transactionId, ns3::Tlv::Serialize(), visualizer.core::start(), ns3::ServiceFlow::ToTlv(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
