The same service flow manager class serves both for BS and SS though some functions are exclusive to only one of them. More...

#include <service-flow-manager.h>

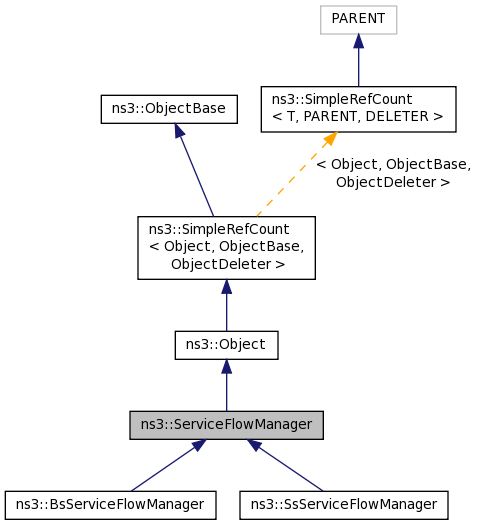

Inheritance diagram for ns3::ServiceFlowManager:

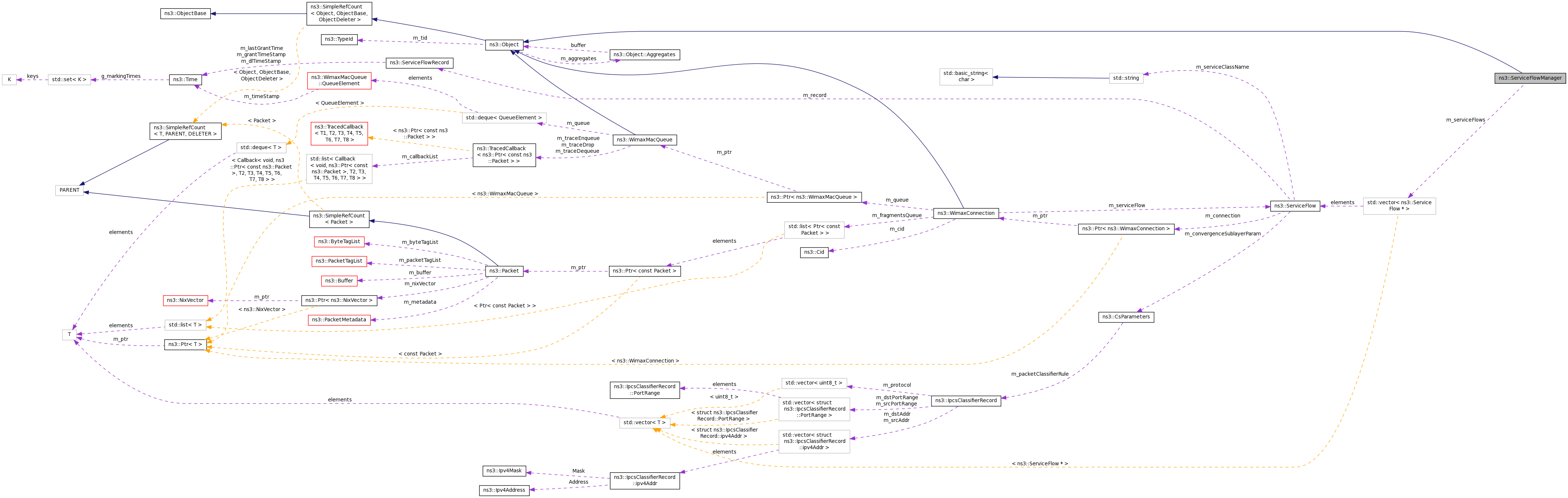

Collaboration diagram for ns3::ServiceFlowManager:

Public Types
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Member Functions
	ServiceFlowManager ()

	~ServiceFlowManager (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)

bool	AreServiceFlowsAllocated ()

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > *serviceFlows)

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > serviceFlows)

ServiceFlow *	DoClassify (Ipv4Address SrcAddress, Ipv4Address DstAddress, uint16_t SrcPort, uint16_t DstPort, uint8_t Proto, ServiceFlow::Direction dir) const

void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

ServiceFlow *	GetNextServiceFlowToAllocate ()

uint32_t	GetNrServiceFlows (void) const

ServiceFlow *	GetServiceFlow (uint32_t sfid) const

ServiceFlow *	GetServiceFlow (Cid cid) const

std::vector< ServiceFlow * >	GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< ServiceFlow * > *	m_serviceFlows

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

The same service flow manager class serves both for BS and SS though some functions are exclusive to only one of them.

Config Paths

ns3::ServiceFlowManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file service-flow-manager.h.

Member Enumeration Documentation

enum ns3::ServiceFlowManager::ConfirmationCode

Enumerator
CONFIRMATION_CODE_SUCCESS
CONFIRMATION_CODE_REJECT

Definition at line 45 of file service-flow-manager.h.

Constructor & Destructor Documentation

ns3::ServiceFlowManager::ServiceFlowManager ( )

Definition at line 56 of file service-flow-manager.cc.

References m_serviceFlows.

ns3::ServiceFlowManager::~ServiceFlowManager ( void )

Definition at line 61 of file service-flow-manager.cc.

Member Function Documentation

void ns3::ServiceFlowManager::AddServiceFlow ( ServiceFlow * serviceFlow )

Definition at line 77 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by ns3::BsServiceFlowManager::AddServiceFlow(), and ns3::SsServiceFlowManager::AddServiceFlow().

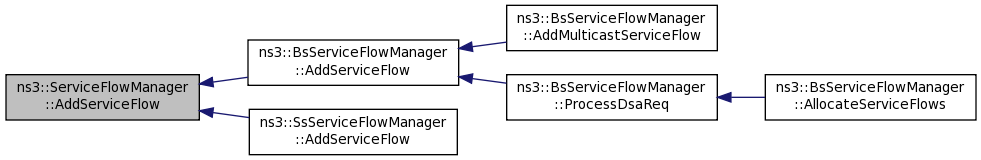

Here is the caller graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( )

Returns: true if all service flows are allocated, false otherwise

Definition at line 147 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by AreServiceFlowsAllocated(), and ns3::BsServiceFlowManager::ProcessDsaAck().

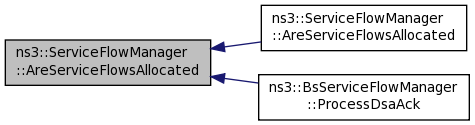

Here is the caller graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( std::vector< ServiceFlow * > * serviceFlows )

Parameters

serviceFlows the list of the service flows to be checked

Returns: true if all service flows are allocated, false otherwise

Definition at line 153 of file service-flow-manager.cc.

References AreServiceFlowsAllocated().

Here is the call graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( std::vector< ServiceFlow * > serviceFlows )

Parameters

serviceFlows the list of the service flows to be checked

Returns: true if all service flows are allocated, false otherwise

Definition at line 159 of file service-flow-manager.cc.

ServiceFlow * ns3::ServiceFlowManager::DoClassify	(	Ipv4Address	SrcAddress,
		Ipv4Address	DstAddress,
		uint16_t	SrcPort,
		uint16_t	DstPort,
		uint8_t	Proto,
		ServiceFlow::Direction	dir
	)		const

Parameters

SrcAddress	the source ip address
DstAddress	the destination ip address
SrcPort	the source port
DstPort	the destination port
Proto	the protocol
dir	the direction of the service flow

Returns: the service flow to which this ip flow is associated

Definition at line 82 of file service-flow-manager.cc.

References m_serviceFlows.

void ns3::ServiceFlowManager::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::SsServiceFlowManager.

Definition at line 66 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by ns3::BsServiceFlowManager::DoDispose(), and ns3::SsServiceFlowManager::DoDispose().

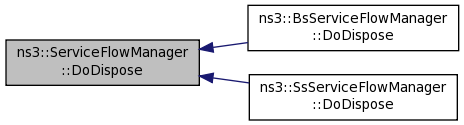

Here is the caller graph for this function:
