Doxygen introspection did not find any typical Config paths. More...

#include <mac-messages.h>

Inheritance diagram for ns3::DsaAck:

Collaboration diagram for ns3::DsaAck:

Public Member Functions
	DsaAck (void)
	This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64. More...

	~DsaAck (void)

uint32_t	Deserialize (Buffer::Iterator start)

uint16_t	GetConfirmationCode (void) const

virtual TypeId	GetInstanceTypeId (void) const

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

uint16_t	GetTransactionId (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetConfirmationCode (uint16_t confirmationCode)

void	SetTransactionId (uint16_t transactionId)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_confirmationCode

uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 412 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaAck::DsaAck ( void )

This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64.

Definition at line 782 of file mac-messages.cc.

ns3::DsaAck::~DsaAck ( void )

Definition at line 788 of file mac-messages.cc.

Member Function Documentation

uint32_t ns3::DsaAck::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 856 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_confirmationCode, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

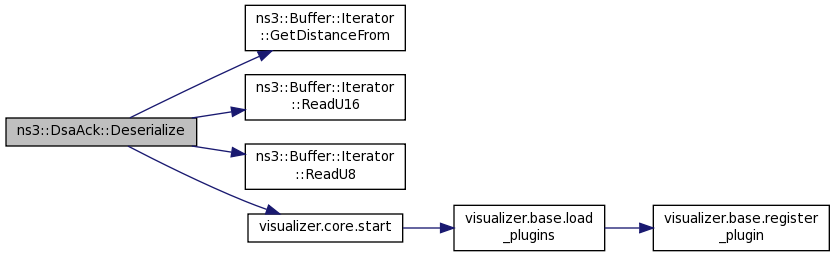

Here is the call graph for this function:

uint16_t ns3::DsaAck::GetConfirmationCode ( void ) const

Definition at line 811 of file mac-messages.cc.

References m_confirmationCode.

TypeId ns3::DsaAck::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 830 of file mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::DsaAck::GetName ( void ) const

Definition at line 817 of file mac-messages.cc.

uint32_t ns3::DsaAck::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 842 of file mac-messages.cc.

uint16_t ns3::DsaAck::GetTransactionId ( void ) const

Definition at line 799 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::BsServiceFlowManager::ProcessDsaAck().

Here is the caller graph for this function:

TypeId ns3::DsaAck::GetTypeId ( void )

static

Definition at line 823 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaAck::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 836 of file mac-messages.cc.

References m_confirmationCode, and m_transactionId.

void ns3::DsaAck::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 848 of file mac-messages.cc.

References m_confirmationCode, m_transactionId, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

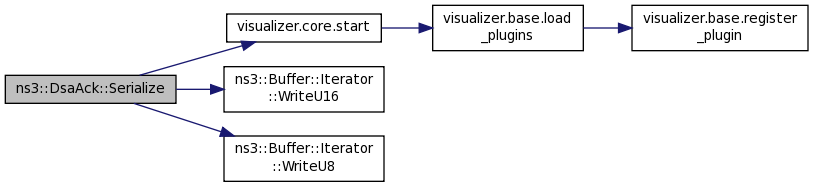

Here is the call graph for this function:
