#include <bs-net-device.h>

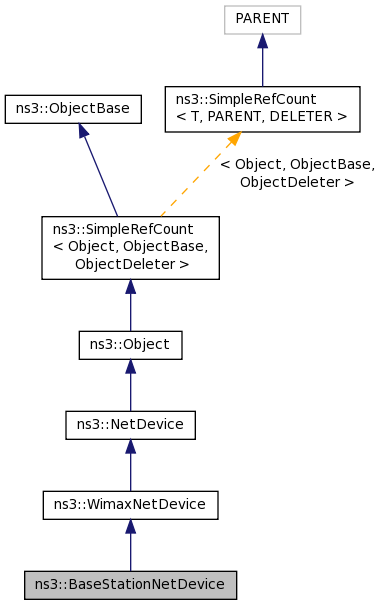

Inheritance diagram for ns3::BaseStationNetDevice:

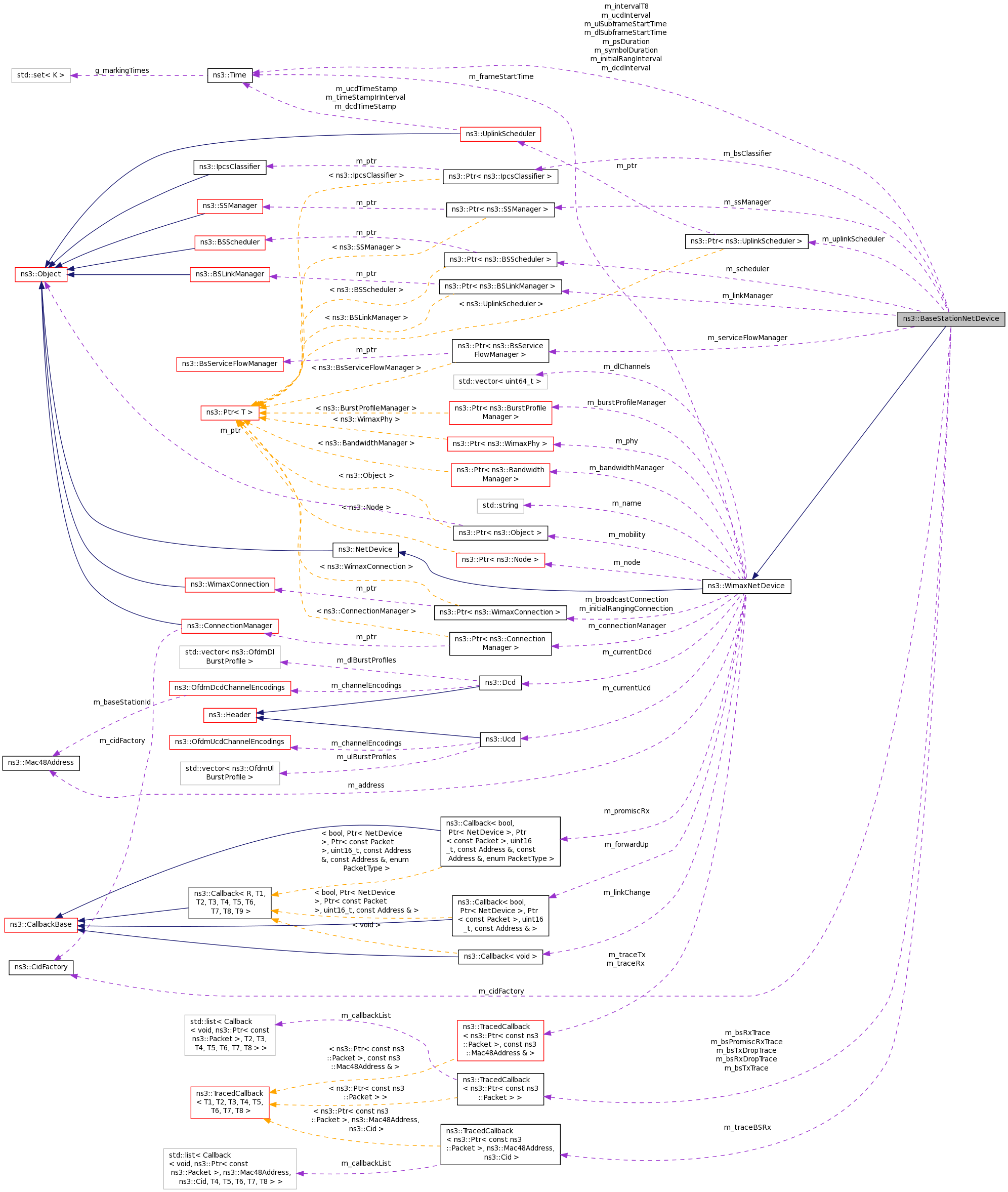

Collaboration diagram for ns3::BaseStationNetDevice:

Public Types
enum	MacPreamble { SHORT_PREAMBLE = 1, LONG_PREAMBLE }

enum	State { BS_STATE_DL_SUB_FRAME, BS_STATE_UL_SUB_FRAME, BS_STATE_TTG, BS_STATE_RTG }

Public Types inherited from ns3::WimaxNetDevice
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }

enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }

Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

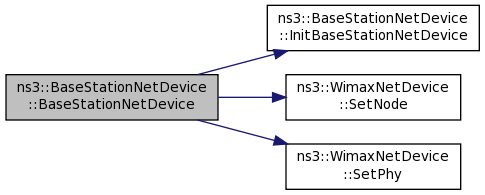

	BaseStationNetDevice (void)

	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy)

	BaseStationNetDevice (Ptr< Node > node, Ptr< WimaxPhy > phy, Ptr< UplinkScheduler > uplinkScheduler, Ptr< BSScheduler > bsScheduler)

	~BaseStationNetDevice (void)

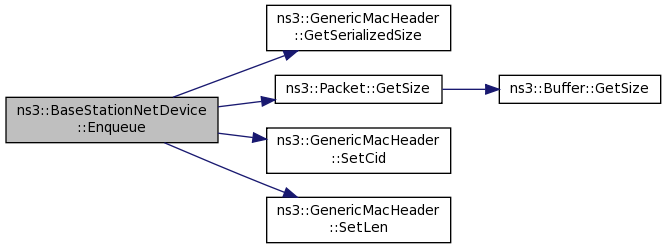

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)
	Enqueue a packet into a connection queue. More...

Ptr< IpcsClassifier >	GetBsClassifier (void) const

Ptr< BSScheduler >	GetBSScheduler (void) const

uint8_t	GetBwReqOppSize (void) const

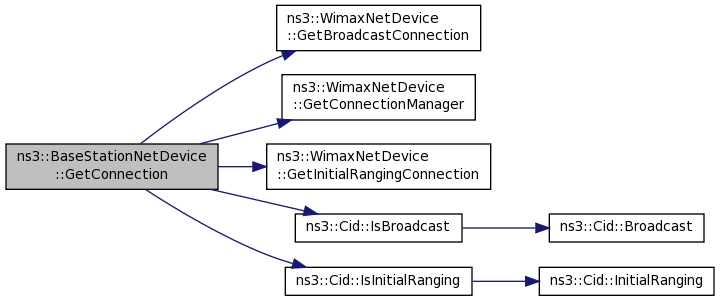

Ptr< WimaxConnection >	GetConnection (Cid cid)

Time	GetDcdInterval (void) const

Time	GetDlSubframeStartTime (void) const

Time	GetInitialRangingInterval (void) const

Time	GetIntervalT8 (void) const

Ptr< BSLinkManager >	GetLinkManager (void) const

uint8_t	GetMaxInvitedRangRetries (void) const

uint8_t	GetMaxRangingCorrectionRetries (void) const

uint32_t	GetNrDcdSent (void) const

uint32_t	GetNrDlSymbols (void) const

uint32_t	GetNrUcdSent (void) const

uint32_t	GetNrUlSymbols (void) const

Time	GetPsDuration (void) const

uint8_t	GetRangingOppNumber (void) const

uint8_t	GetRangReqOppSize (void) const

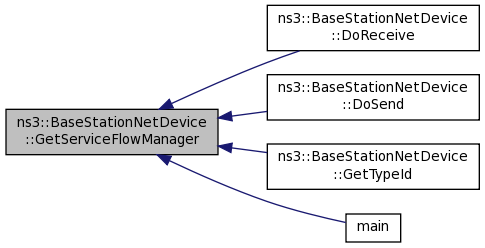

Ptr< BsServiceFlowManager >	GetServiceFlowManager (void) const

Ptr< SSManager >	GetSSManager (void) const

Time	GetSymbolDuration (void) const

Time	GetUcdInterval (void) const

Time	GetUlSubframeStartTime (void) const

Ptr< UplinkScheduler >	GetUplinkScheduler (void) const

void	InitBaseStationNetDevice (void)
	initializes the BS net device and sets its parameters to the default values More...

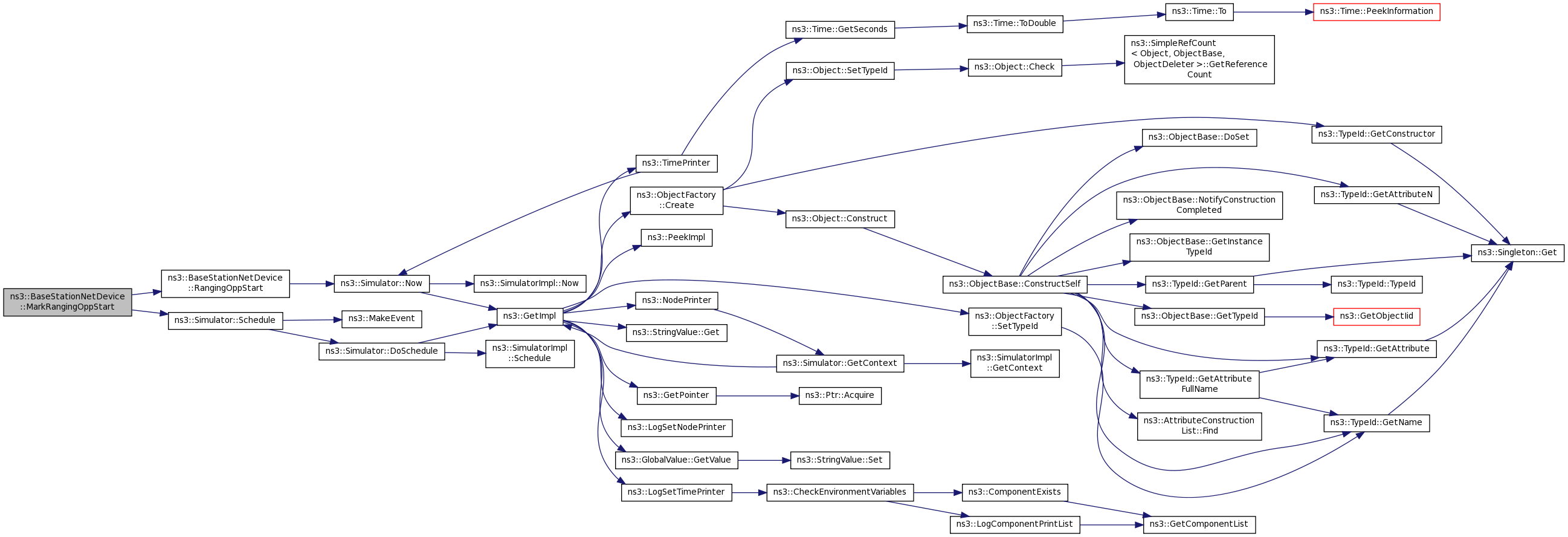

void	MarkRangingOppStart (Time rangingOppStartTime)

void	MarkUplinkAllocations (void)

void	SetBsClassifier (Ptr< IpcsClassifier > classifier)

void	SetBSScheduler (Ptr< BSScheduler > bsSchedule)

void	SetBwReqOppSize (uint8_t bwReqOppSize)

void	SetDcdInterval (Time dcdInterval)

void	SetInitialRangingInterval (Time initialRangInterval)

void	SetIntervalT8 (Time interval)

void	SetLinkManager (Ptr< BSLinkManager > linkManager)

void	SetMaxInvitedRangRetries (uint8_t maxInvitedRangRetries)

void	SetMaxRangingCorrectionRetries (uint8_t maxRangCorrectionRetries)

void	SetNrDlSymbols (uint32_t dlSymbols)

void	SetNrUlSymbols (uint32_t ulSymbols)

void	SetRangReqOppSize (uint8_t rangReqOppSize)

void	SetServiceFlowManager (Ptr< BsServiceFlowManager >)

void	SetSSManager (Ptr< SSManager > ssManager)

void	SetUcdInterval (Time ucdInterval)

void	SetUplinkScheduler (Ptr< UplinkScheduler > ulScheduler)

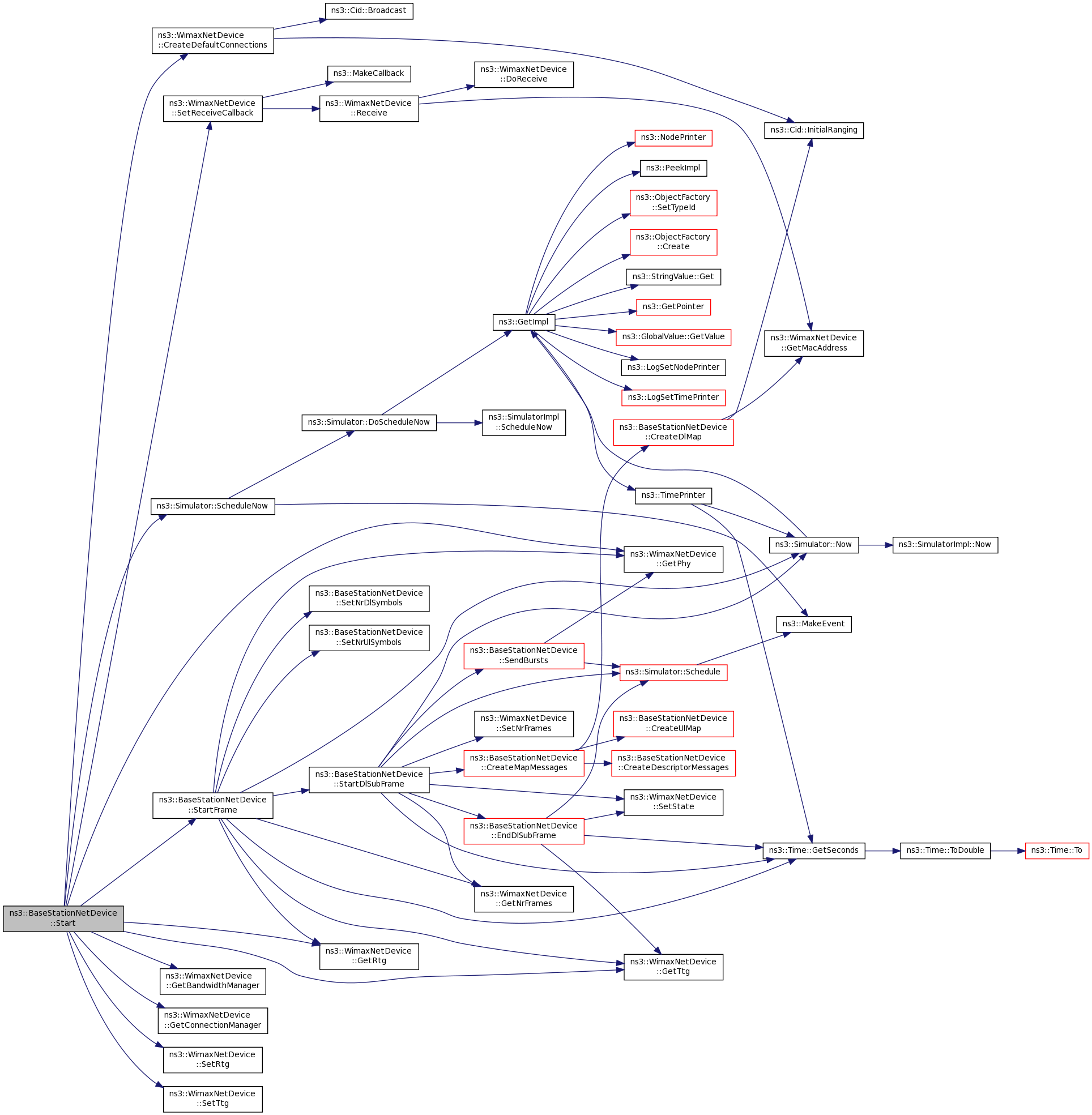

void	Start (void)

void	Stop (void)

Public Member Functions inherited from ns3::WimaxNetDevice
	WimaxNetDevice (void)

virtual	~WimaxNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	Attach (Ptr< WimaxChannel > channel)

void	CreateDefaultConnections (void)

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)

virtual Address	GetAddress (void) const

Ptr< BandwidthManager >	GetBandwidthManager (void) const

virtual Address	GetBroadcast (void) const

Ptr< WimaxConnection >	GetBroadcastConnection (void) const

Ptr< BurstProfileManager >	GetBurstProfileManager (void) const

uint64_t	GetChannel (uint8_t index) const

virtual Ptr< Channel >	GetChannel (void) const

Ptr< ConnectionManager >	GetConnectionManager (void) const

Dcd	GetCurrentDcd (void) const

Ucd	GetCurrentUcd (void) const

virtual uint32_t	GetIfIndex (void) const

Ptr< WimaxConnection >	GetInitialRangingConnection (void) const

Mac48Address	GetMacAddress (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (void) const

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual std::string	GetName (void) const

virtual Ptr< Node >	GetNode (void) const

uint32_t	GetNrFrames (void) const

Ptr< WimaxPhy >	GetPhy (void) const

virtual Ptr< Channel >	GetPhyChannel (void) const

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)

uint16_t	GetRtg (void) const

uint8_t	GetState (void) const

uint16_t	GetTtg (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

bool	IsPromisc (void)

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const

virtual bool	NeedsArp (void) const

void	NotifyPromiscTrace (Ptr< Packet > p)

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)

void	SetCurrentDcd (Dcd dcd)

void	SetCurrentUcd (Ucd ucd)

virtual void	SetIfIndex (const uint32_t index)

virtual void	SetLinkChangeCallback (Callback< void > callback)

void	SetMacAddress (Mac48Address address)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetName (const std::string name)

virtual void	SetNode (Ptr< Node > node)

void	SetNrFrames (uint32_t nrFrames)

void	SetPhy (Ptr< WimaxPhy > phy)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetReceiveCallback (void)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetRtg (uint16_t rtg)

void	SetState (uint8_t state)

void	SetTtg (uint16_t ttg)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

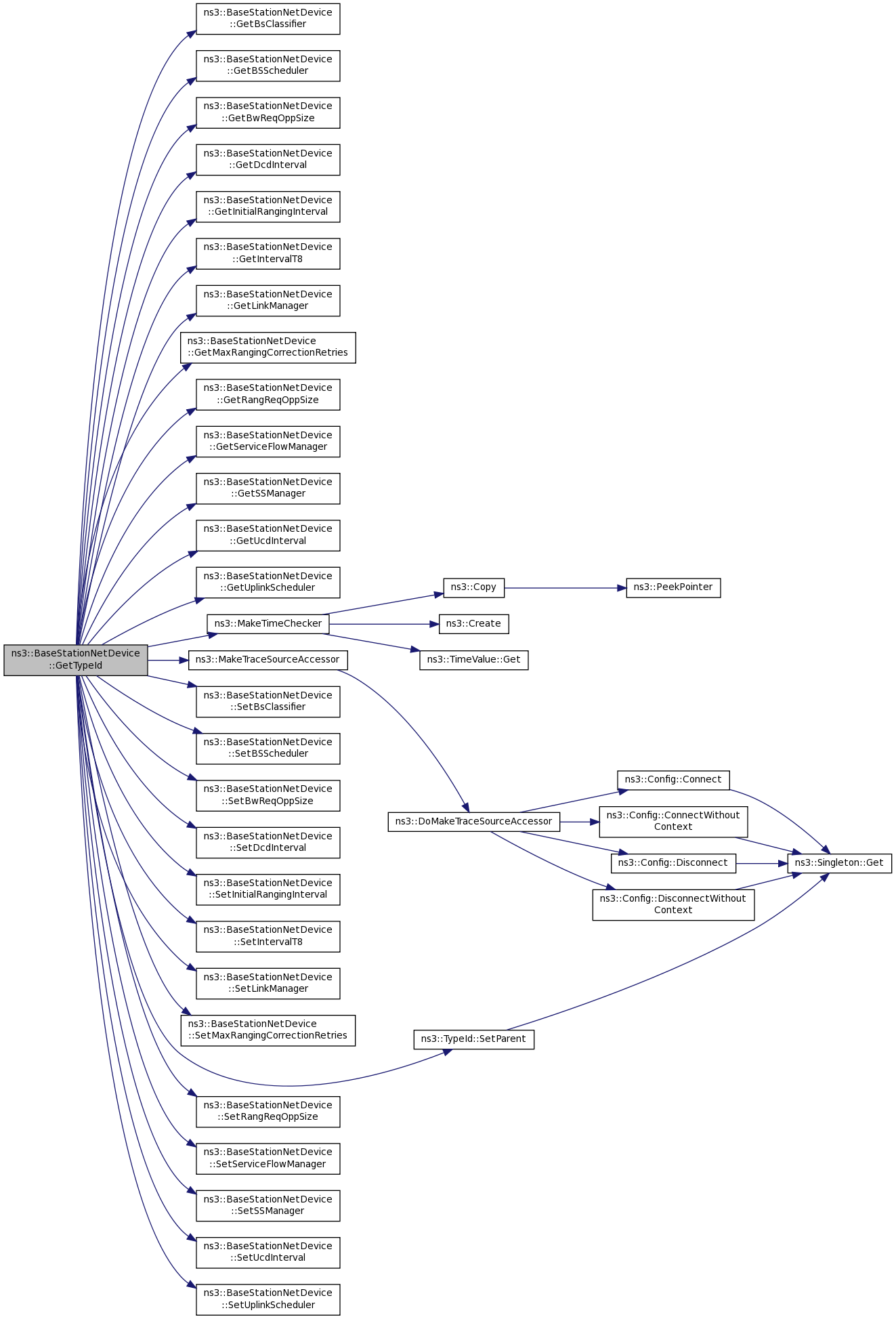

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WimaxNetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

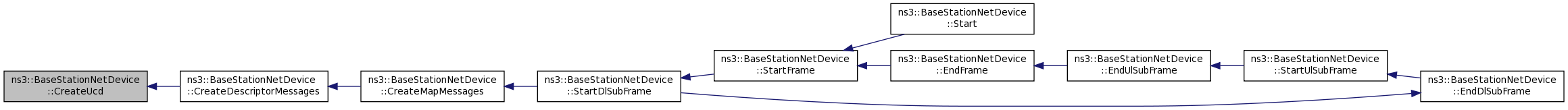

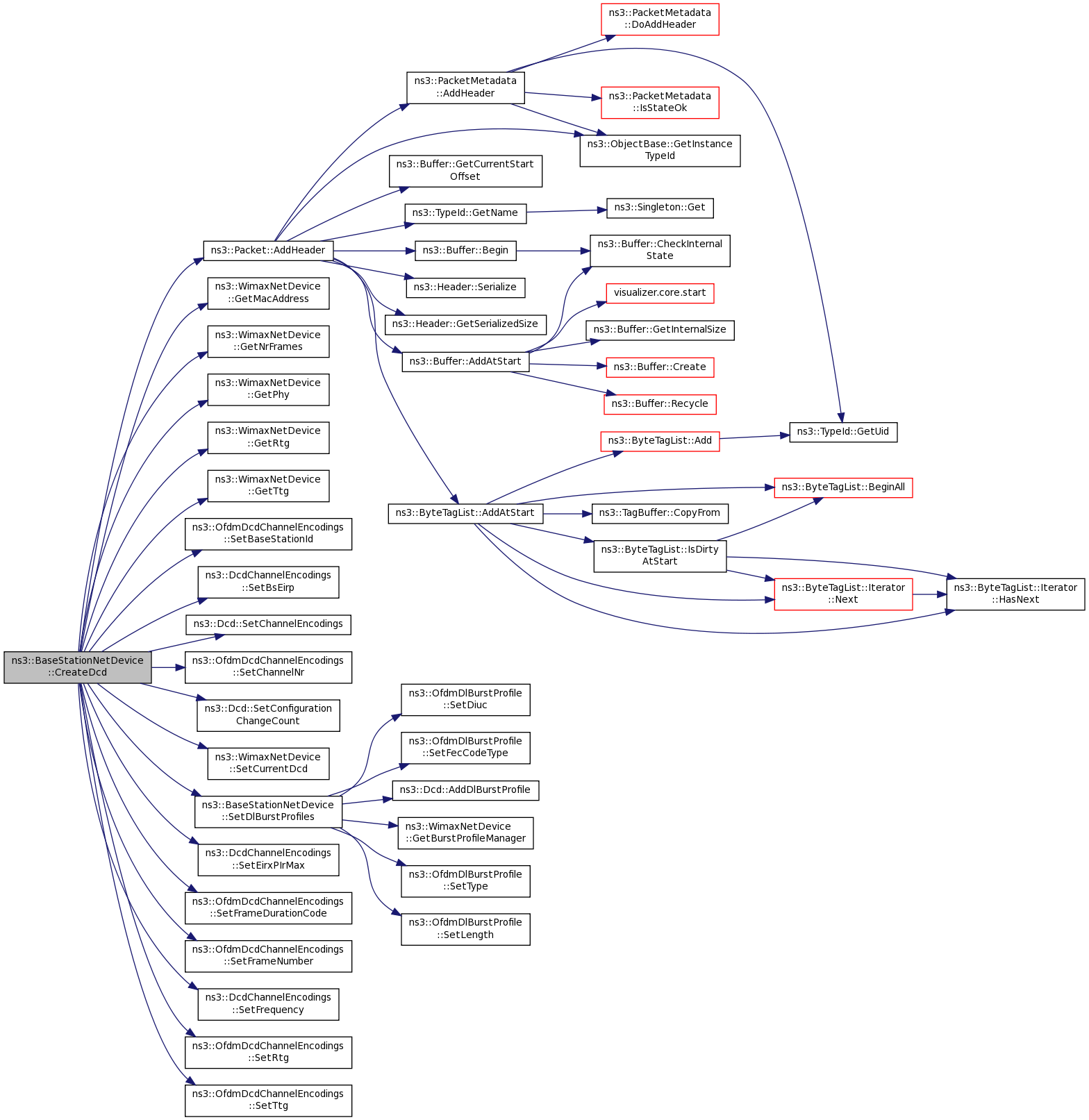

Ptr< Packet >	CreateDcd (void)

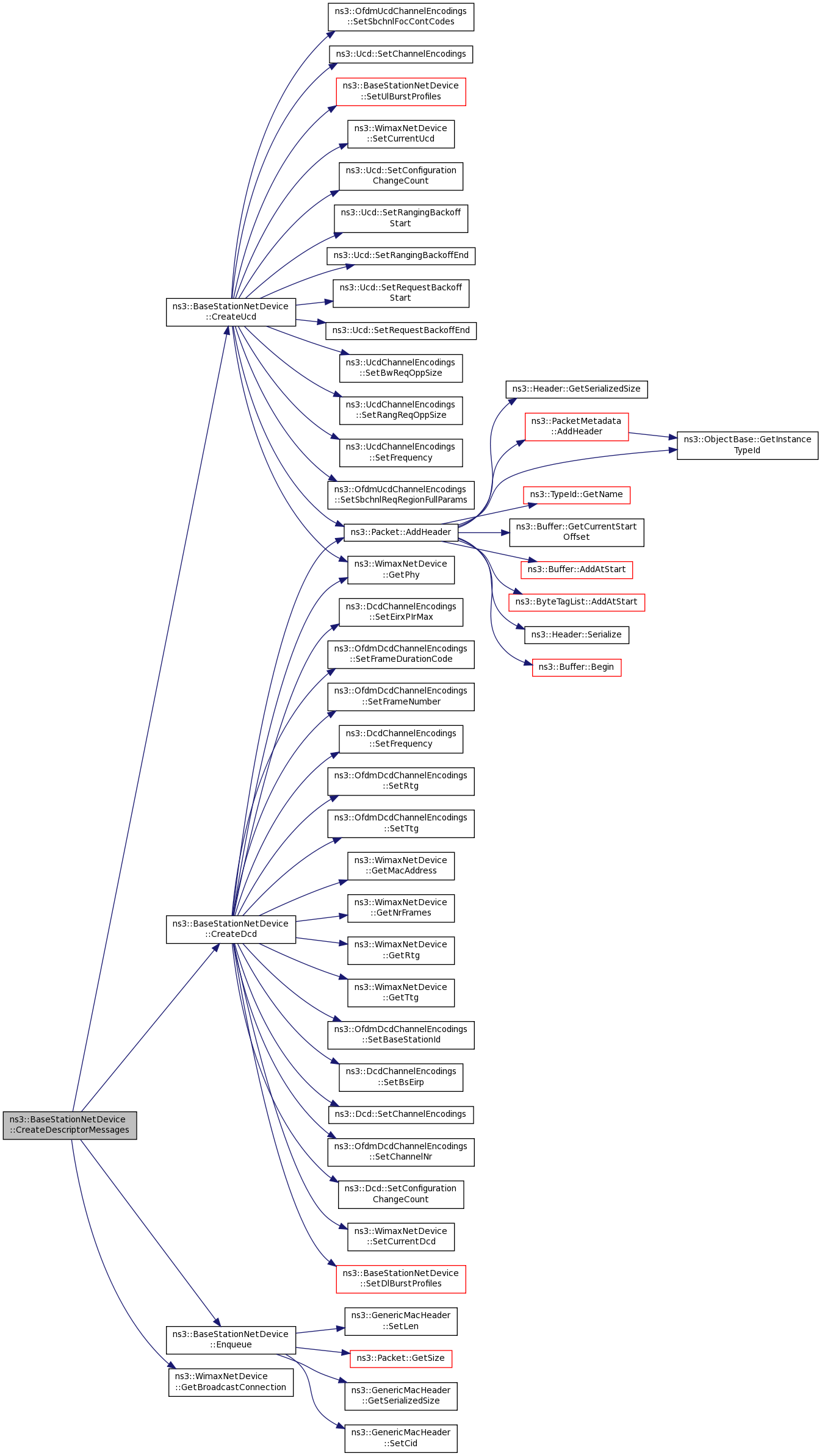

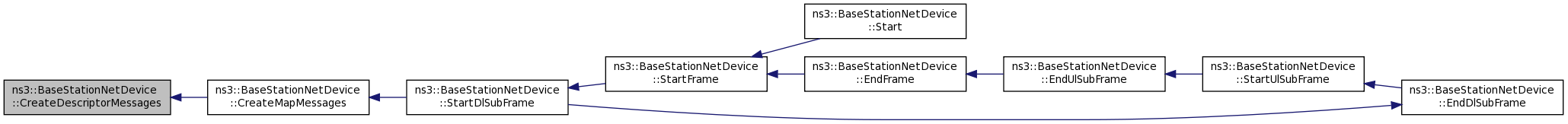

void	CreateDescriptorMessages (bool sendDcd, bool senUcd)
	creates the channel descriptor MAC management messages DCD and UCD More...

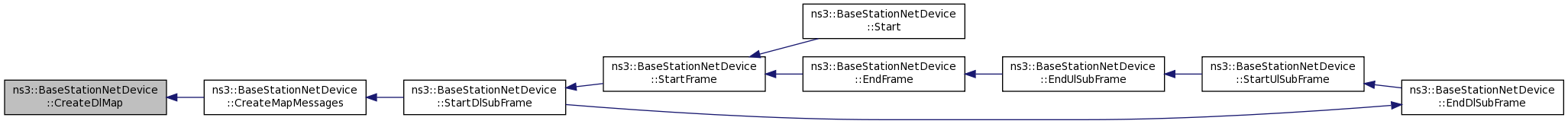

Ptr< Packet >	CreateDlMap (void)

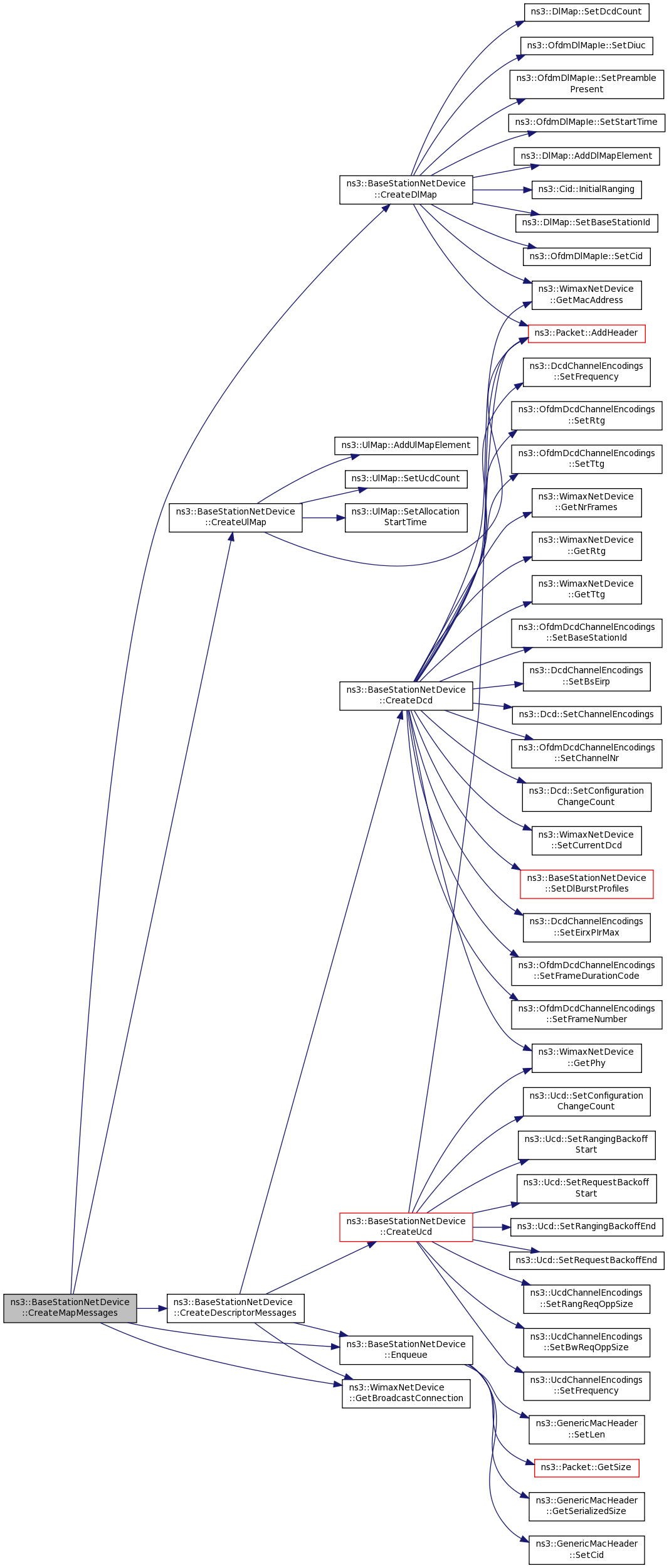

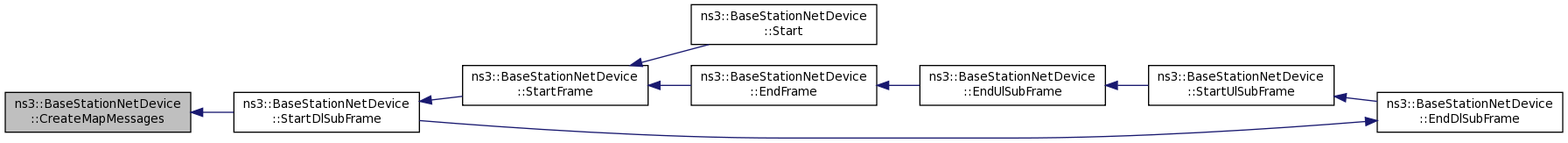

void	CreateMapMessages (void)
	creates the MAC management messages DL-MAP and UL-MAP More...

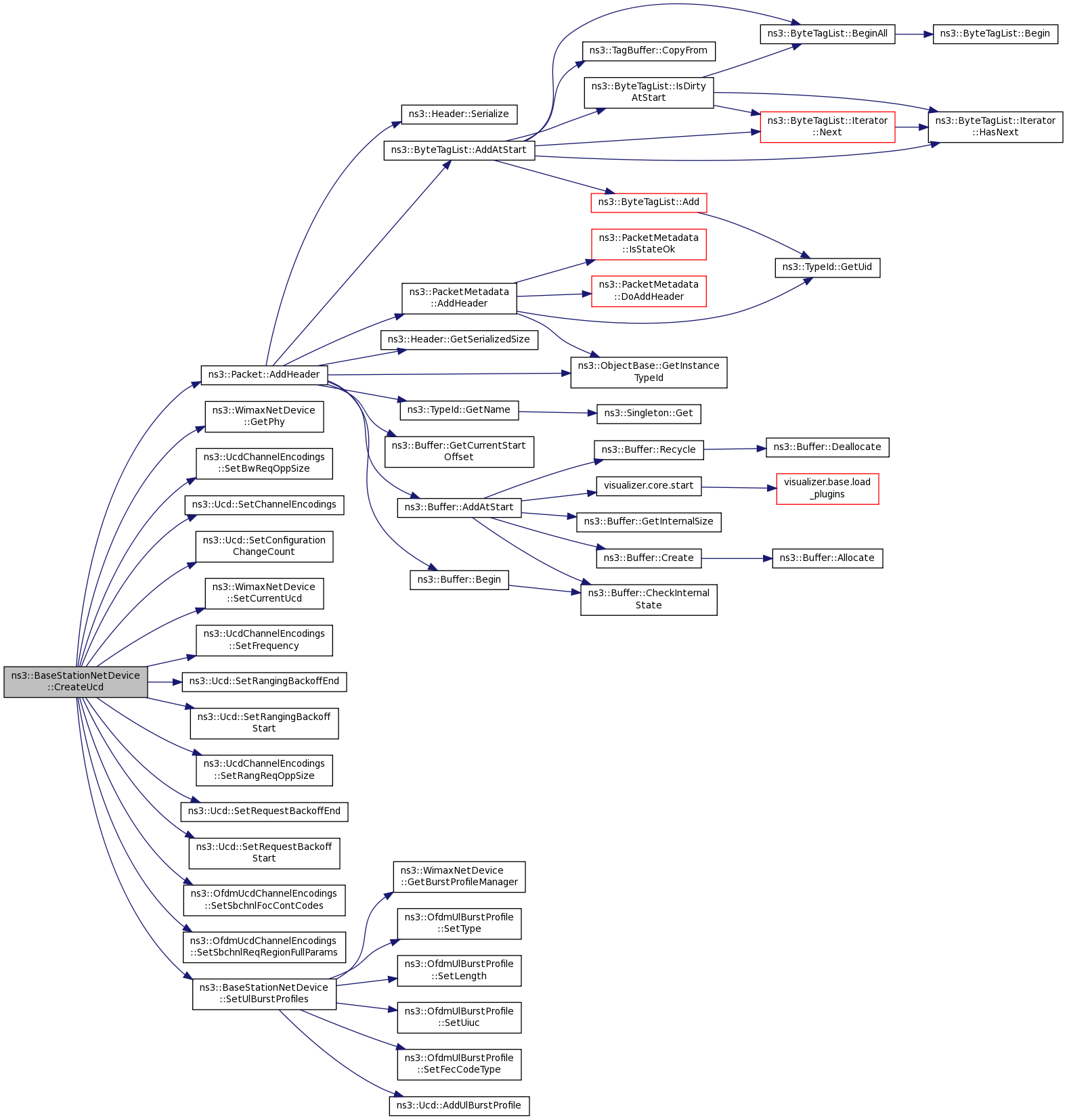

Ptr< Packet >	CreateUcd (void)

Ptr< Packet >	CreateUlMap (void)

void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

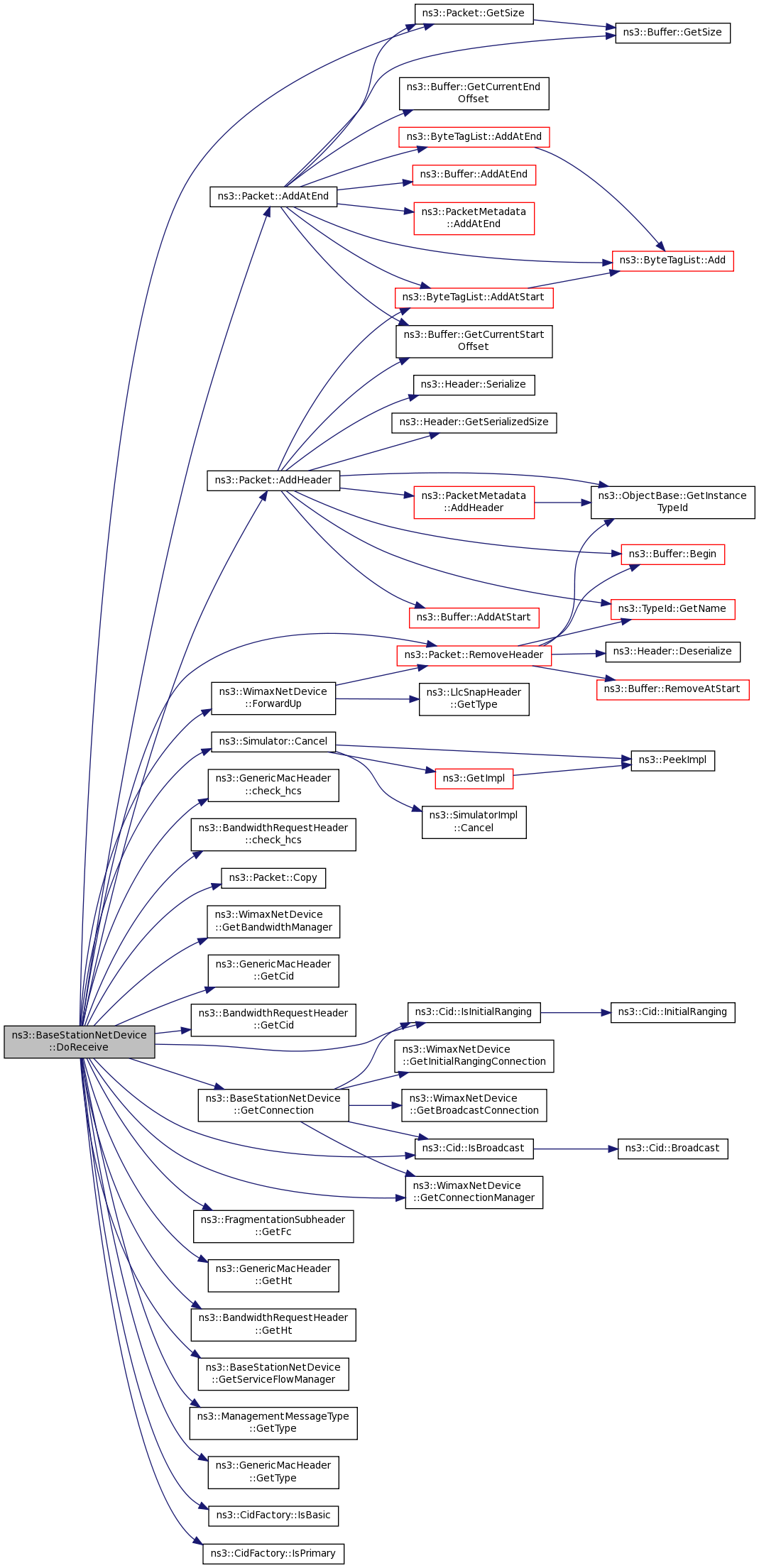

void	DoReceive (Ptr< Packet > packet)

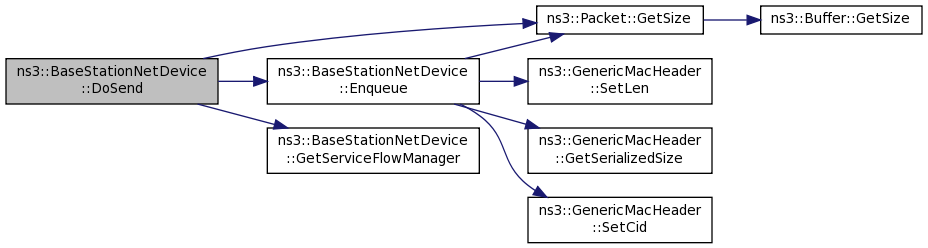

bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)

void	EndDlSubFrame (void)

void	EndFrame (void)

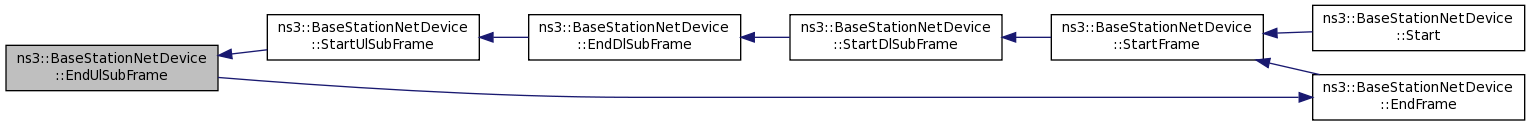

void	EndUlSubFrame (void)

void	MarkUplinkAllocationEnd (Time allocationEndTime, Cid cid, uint8_t uiuc)

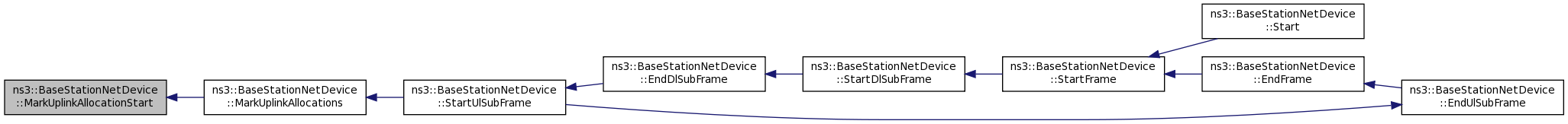

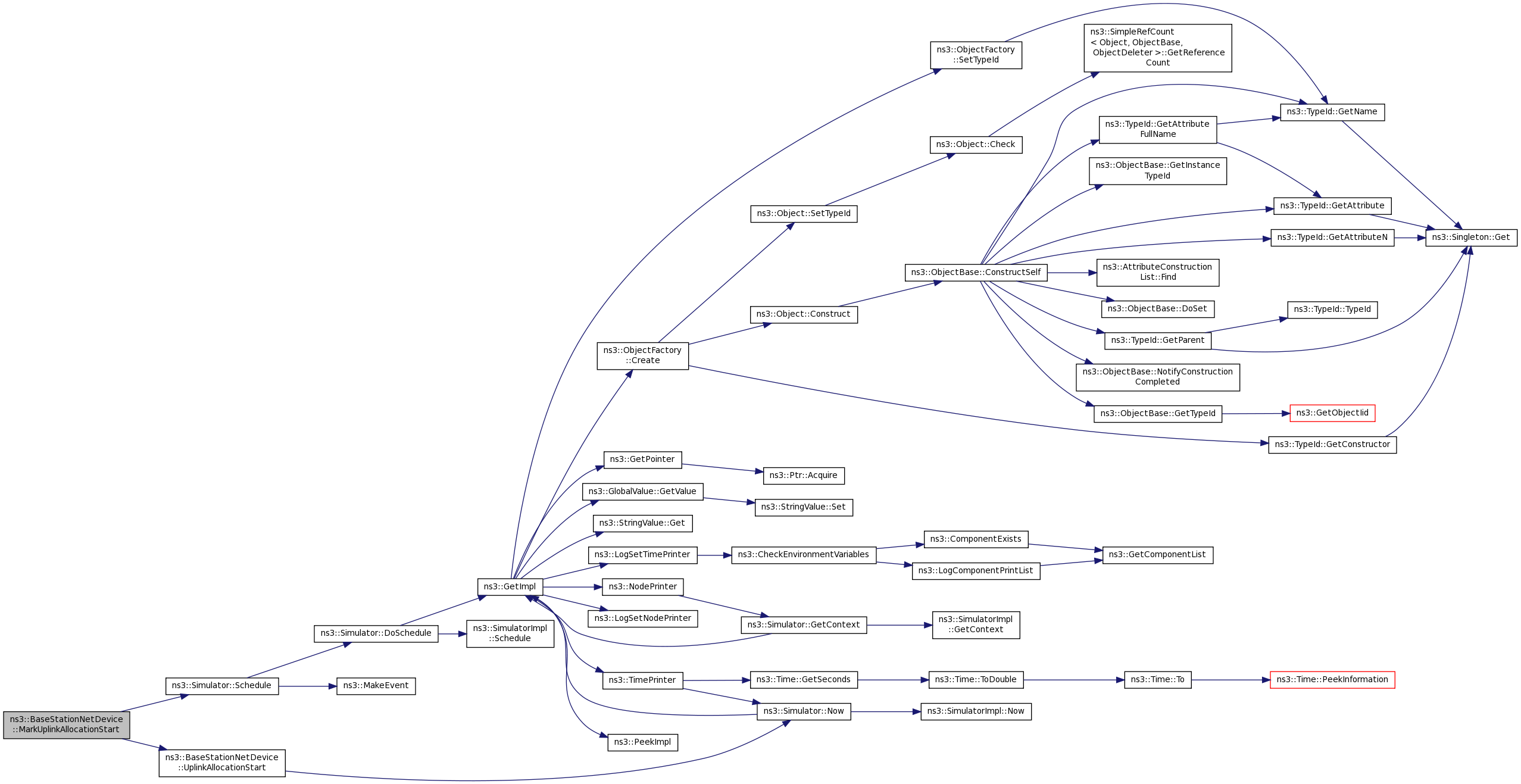

void	MarkUplinkAllocationStart (Time allocationStartTime)

void	RangingOppStart (void)

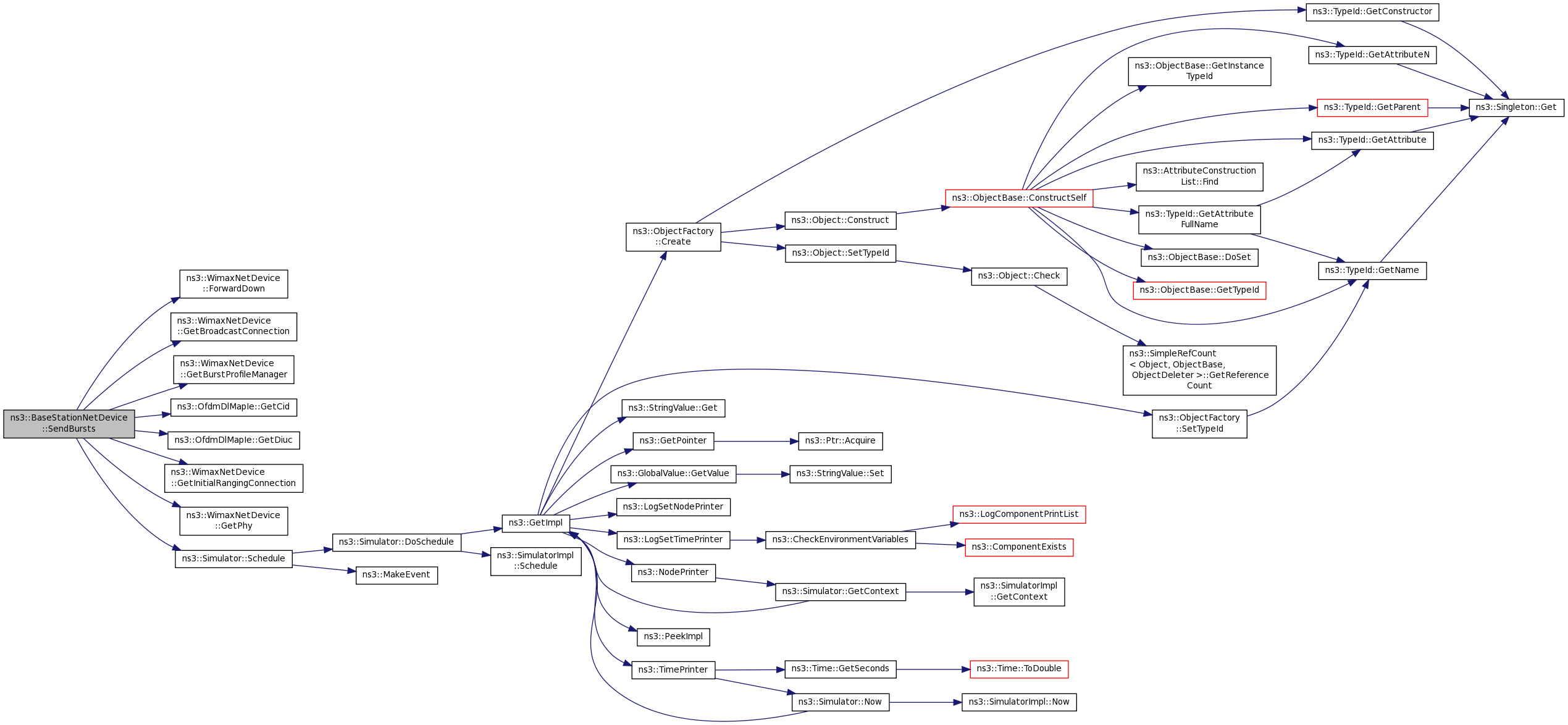

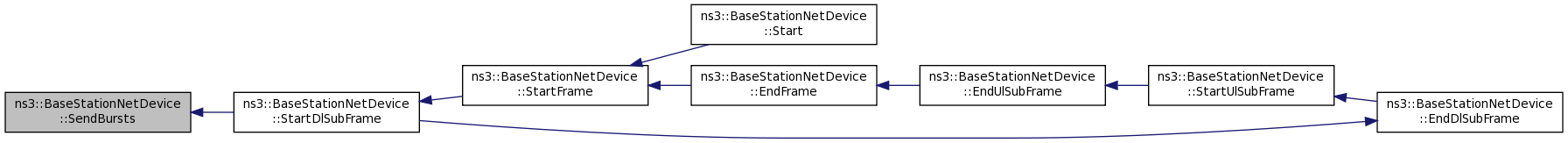

void	SendBursts (void)

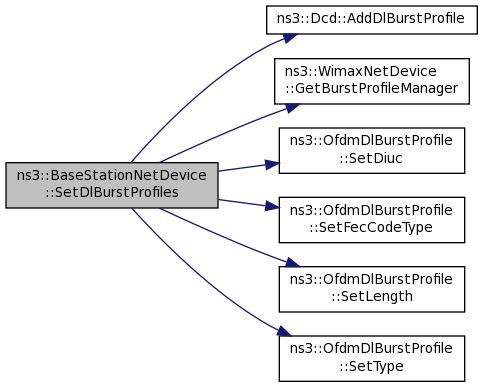

void	SetDlBurstProfiles (Dcd *dcd)

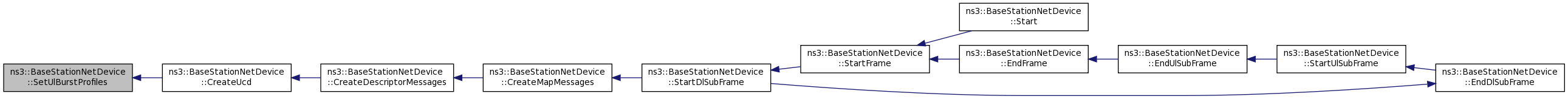

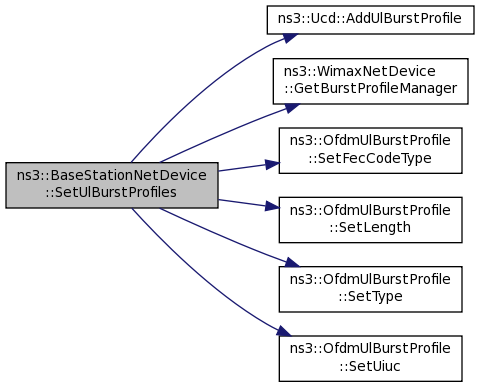

void	SetUlBurstProfiles (Ucd *ucd)

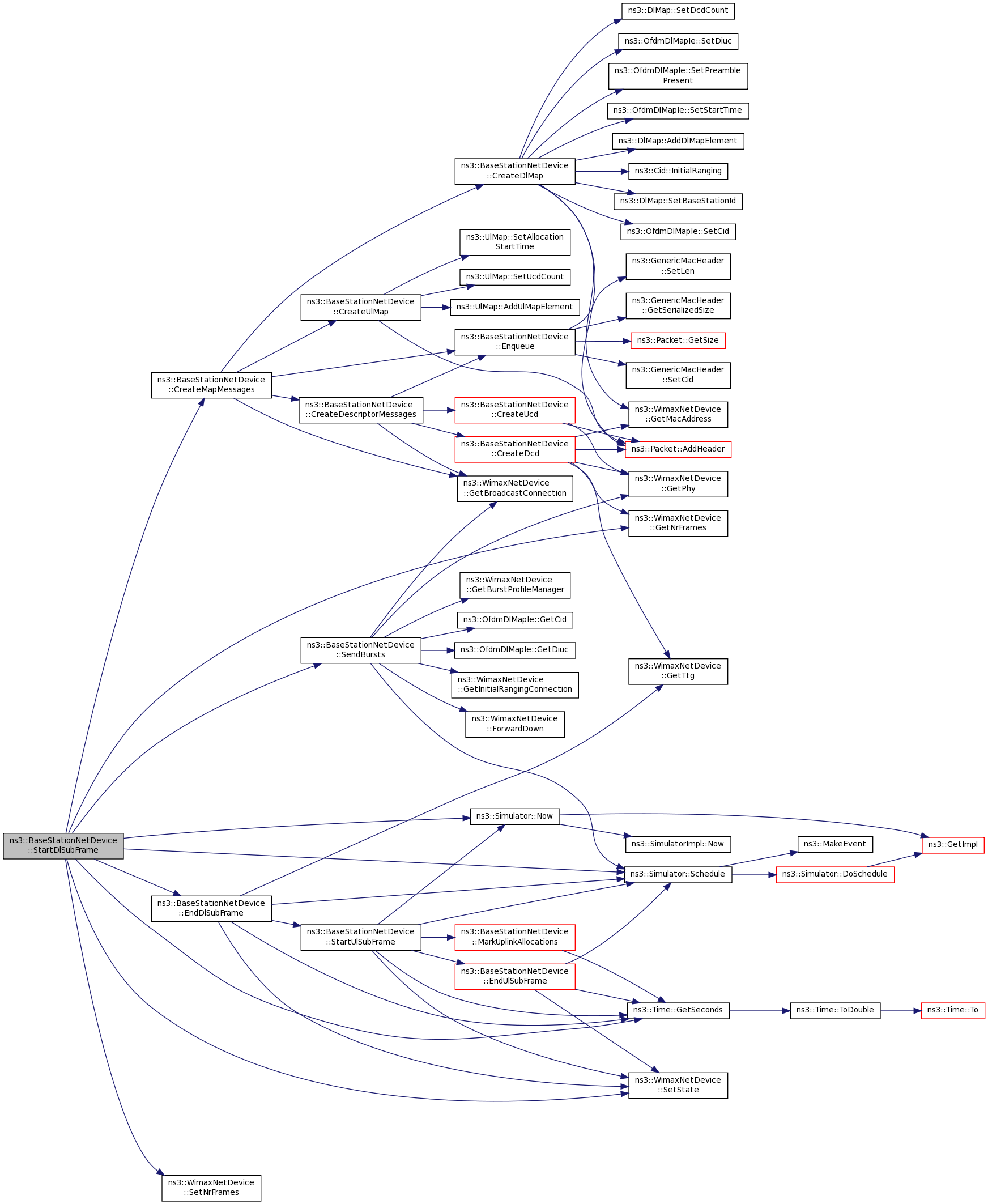

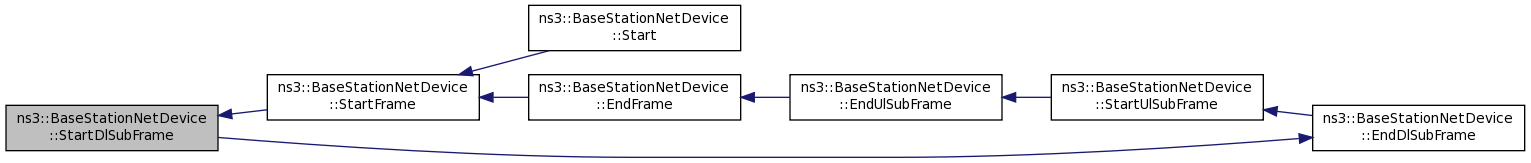

void	StartDlSubFrame (void)

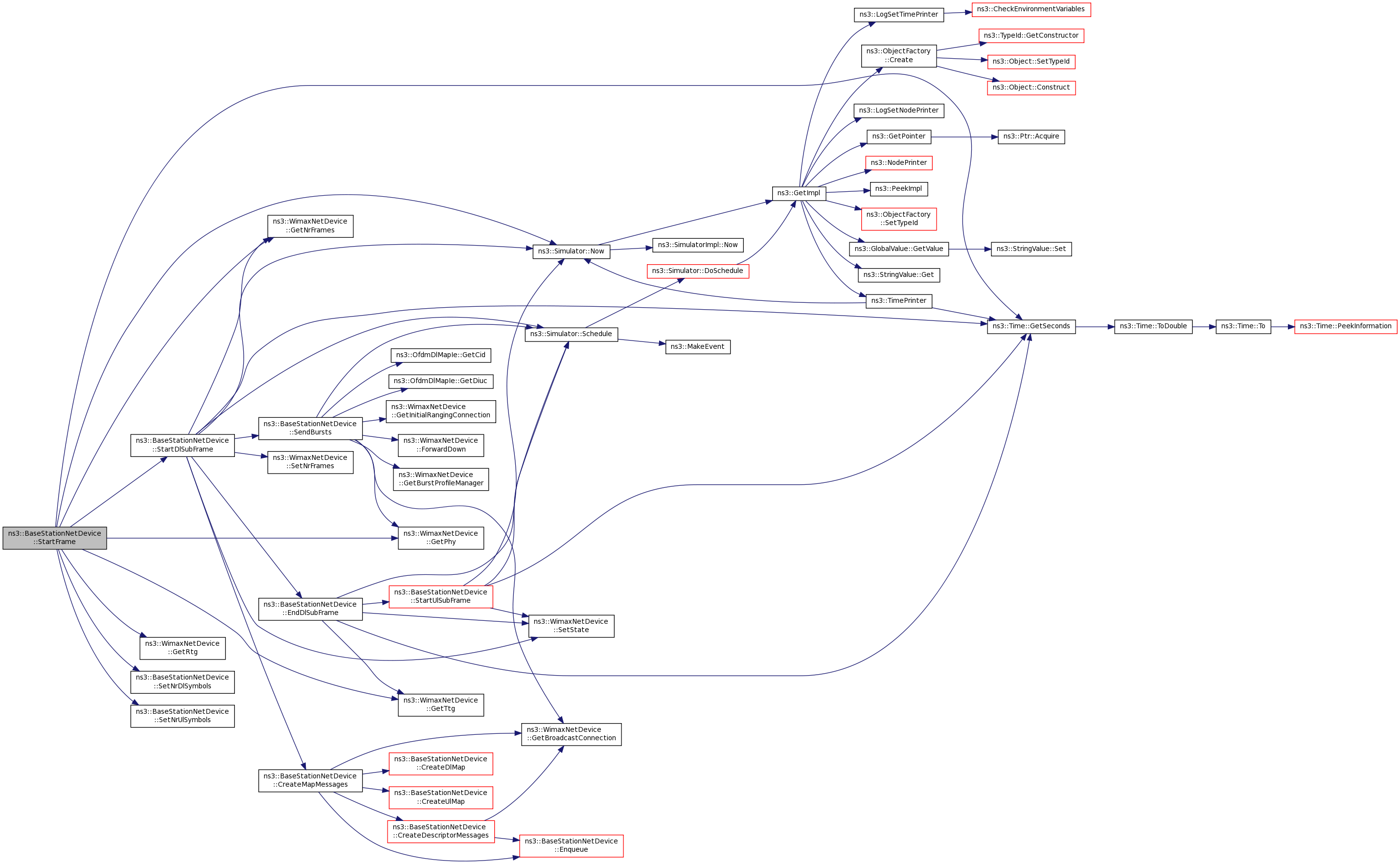

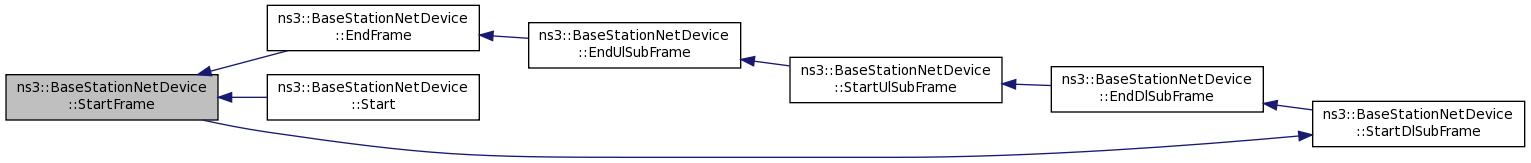

void	StartFrame (void)

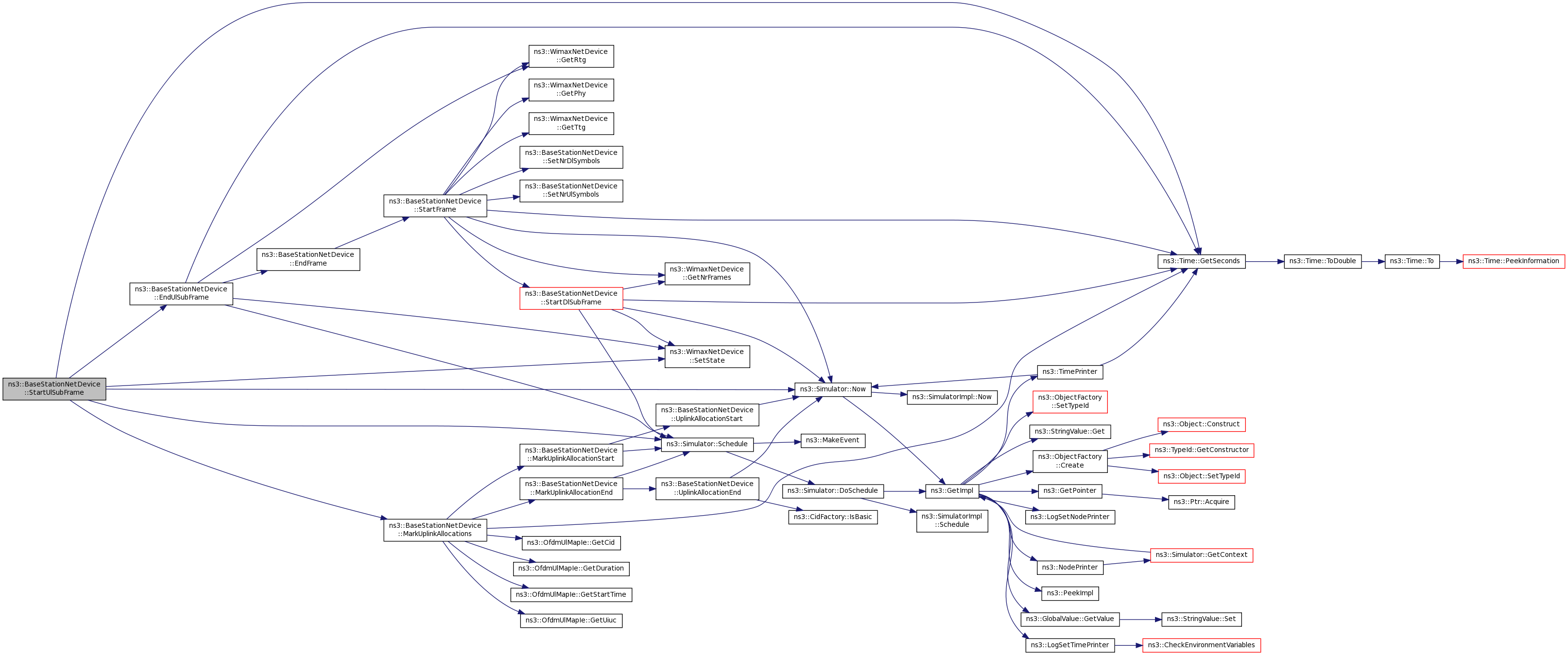

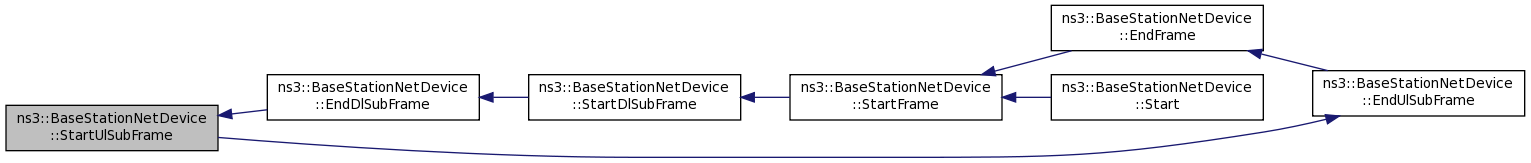

void	StartUlSubFrame (void)

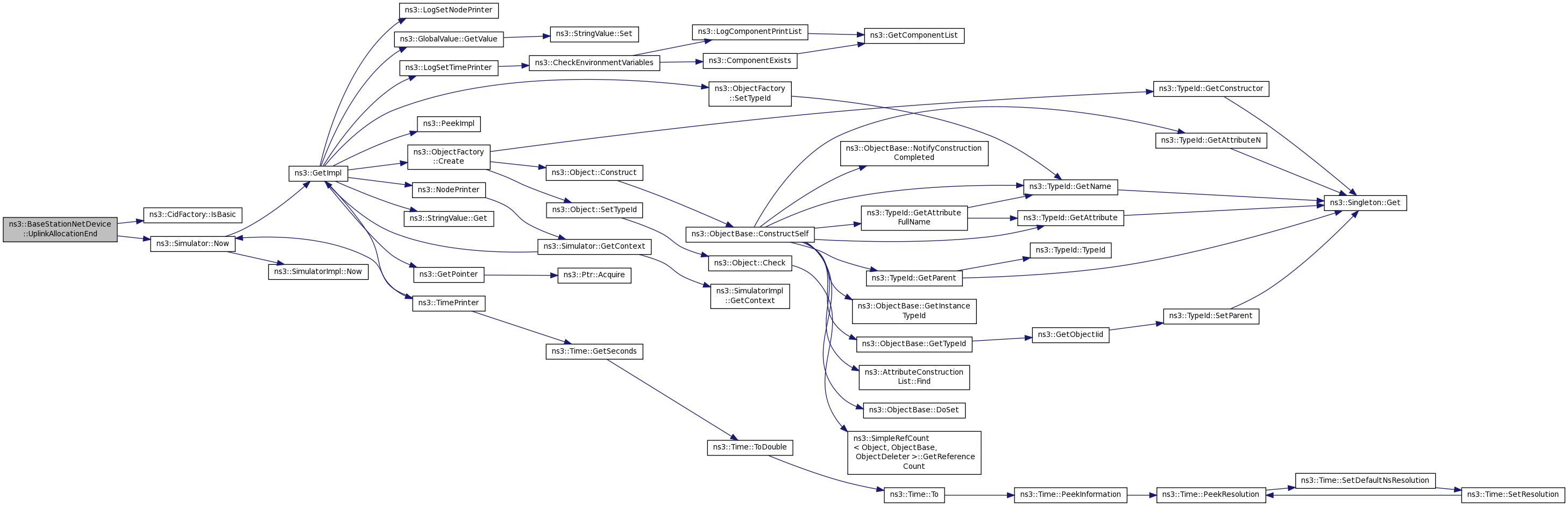

void	UplinkAllocationEnd (Cid cid, uint8_t uiuc)

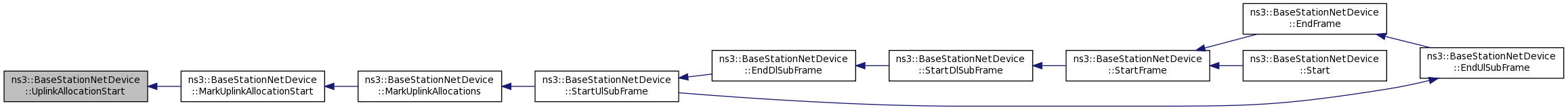

void	UplinkAllocationStart (void)

Private Attributes
uint32_t	m_allocationStartTime

Ptr< IpcsClassifier >	m_bsClassifier

TracedCallback< Ptr< const Packet > >	m_bsPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_bsRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_bsRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_bsTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > >	m_bsTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint8_t	m_bwReqOppSize

CidFactory *	m_cidFactory

uint32_t	m_dcdConfigChangeCount

Time	m_dcdInterval

Time	m_dlSubframeStartTime

uint32_t	m_framesSinceLastDcd

uint32_t	m_framesSinceLastUcd

Time	m_initialRangInterval

Time	m_intervalT8

Ptr< BSLinkManager >	m_linkManager

uint8_t	m_maxInvitedRangRetries

uint8_t	m_maxRangCorrectionRetries

uint32_t	m_nrDcdSent

uint16_t	m_nrDlAllocations

uint32_t	m_nrDlFrames

uint32_t	m_nrDlMapSent

uint32_t	m_nrDlSymbols

uint16_t	m_nrSsRegistered

uint32_t	m_nrUcdSent

uint16_t	m_nrUlAllocations

uint32_t	m_nrUlFrames

uint32_t	m_nrUlMapSent

uint32_t	m_nrUlSymbols

Time	m_psDuration

uint8_t	m_rangingOppNumber

uint8_t	m_rangReqOppSize

Ptr< BSScheduler >	m_scheduler

Ptr< BsServiceFlowManager >	m_serviceFlowManager

Ptr< SSManager >	m_ssManager

Time	m_symbolDuration

TracedCallback< Ptr< const Packet >, Mac48Address, Cid >	m_traceBSRx

uint32_t	m_ucdConfigChangeCount

Time	m_ucdInterval

uint8_t	m_ulAllocationNumber

Time	m_ulSubframeStartTime

Ptr< UplinkScheduler >	m_uplinkScheduler

Additional Inherited Members
Public Attributes inherited from ns3::WimaxNetDevice
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Static Public Attributes inherited from ns3::WimaxNetDevice
static uint8_t	m_direction = ~0

static Time	m_frameStartTime = Seconds (0)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Config Paths

ns3::BaseStationNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice

Attributes

BSScheduler: Downlink Scheduler for BS
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSScheduler >
- Initial value: 0
- Flags: construct write read
InitialRangInterval: Time between Initial Ranging regions assigned by the BS. Maximum is 2s
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000.0ns
- Flags: construct write read
DcdInterval: Time between transmission of DCD messages. Maximum value is 10s.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
UcdInterval: Time between transmission of UCD messages. Maximum value is 10s.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3000000000.0ns
- Flags: construct write read
IntervalT8: Wait for DSA/DSC Acknowledge timeout. Maximum 300ms.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000.0ns
- Flags: construct write read
RangReqOppSize: The ranging opportunity size in symbols
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:256
- Initial value: 8
- Flags: construct write read
BwReqOppSize: The bandwidth request opportunity size in symbols
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:256
- Initial value: 2
- Flags: construct write read
MaxRangCorrectionRetries: Number of retries on contention Ranging Requests
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:16
- Initial value: 16
- Flags: construct write read
SSManager: The ss manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSManager >
- Initial value: 0
- Flags: construct write read
Scheduler: The BS scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSScheduler >
- Initial value: 0
- Flags: construct write read
LinkManager: The link manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BSLinkManager >
- Initial value: 0
- Flags: construct write read
UplinkScheduler: The uplink scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UplinkScheduler >
- Initial value: 0
- Flags: construct write read
BsIpcsPacketClassifier: The uplink IP packet classifier attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::IpcsClassifier >
- Initial value: 0
- Flags: construct write read
ServiceFlowManager: The service flow manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ServiceFlowManager >
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::WimaxNetDevice

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy >
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel >
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager >
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager >
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager >
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read

TraceSources

BSTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
BSTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
BSPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
BSRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
BSRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

TraceSources defined in parent class ns3::WimaxNetDevice

Rx: Receive trace
Tx: Transmit trace

Definition at line 50 of file bs-net-device.h.

Member Enumeration Documentation

enum ns3::BaseStationNetDevice::MacPreamble

Enumerator
SHORT_PREAMBLE
LONG_PREAMBLE

Definition at line 58 of file bs-net-device.h.

enum ns3::BaseStationNetDevice::State

Enumerator
BS_STATE_DL_SUB_FRAME
BS_STATE_UL_SUB_FRAME
BS_STATE_TTG
BS_STATE_RTG

Definition at line 53 of file bs-net-device.h.

Constructor & Destructor Documentation

ns3::BaseStationNetDevice::BaseStationNetDevice ( void )

Definition at line 177 of file bs-net-device.cc.

References InitBaseStationNetDevice().

Here is the call graph for this function:

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy
	)

Definition at line 224 of file bs-net-device.cc.

References InitBaseStationNetDevice(), ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

ns3::BaseStationNetDevice::BaseStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy,
		Ptr< UplinkScheduler >	uplinkScheduler,
		Ptr< BSScheduler >	bsScheduler
	)

Definition at line 231 of file bs-net-device.cc.

References InitBaseStationNetDevice(), m_scheduler, m_uplinkScheduler, ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

ns3::BaseStationNetDevice::~BaseStationNetDevice ( void )

Definition at line 243 of file bs-net-device.cc.

Member Function Documentation

Ptr< Packet > ns3::BaseStationNetDevice::CreateDcd ( void )

private

Definition at line 1023 of file bs-net-device.cc.

Referenced by CreateDescriptorMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::CreateDescriptorMessages	(	bool	sendDcd,
		bool	senUcd
	)

private

creates the channel descriptor MAC management messages DCD and UCD

Definition at line 912 of file bs-net-device.cc.

References CreateDcd(), CreateUcd(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), m_framesSinceLastDcd, m_framesSinceLastUcd, m_nrDcdSent, and m_nrUcdSent.

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateDlMap ( void )

private

Definition at line 988 of file bs-net-device.cc.

References ns3::DlMap::AddDlMapElement(), ns3::Packet::AddHeader(), ns3::OfdmDlBurstProfile::DIUC_END_OF_MAP, ns3::WimaxNetDevice::GetMacAddress(), ns3::Cid::InitialRanging(), list, m_dcdConfigChangeCount, m_nrDlAllocations, m_scheduler, ns3::ManagementMessageType::MESSAGE_TYPE_DL_MAP, ns3::DlMap::SetBaseStationId(), ns3::OfdmDlMapIe::SetCid(), ns3::DlMap::SetDcdCount(), ns3::OfdmDlMapIe::SetDiuc(), ns3::OfdmDlMapIe::SetPreamblePresent(), and ns3::OfdmDlMapIe::SetStartTime().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::CreateMapMessages ( void )

private

creates the MAC management messages DL-MAP and UL-MAP

Definition at line 868 of file bs-net-device.cc.

References CreateDescriptorMessages(), CreateDlMap(), CreateUlMap(), Enqueue(), ns3::WimaxNetDevice::GetBroadcastConnection(), m_dcdConfigChangeCount, m_nrDlMapSent, m_nrSsRegistered, m_nrUlMapSent, m_ssManager, m_ucdConfigChangeCount, and m_uplinkScheduler.

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateUcd ( void )

private

Definition at line 1077 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::WimaxNetDevice::GetPhy(), m_bwReqOppSize, m_rangReqOppSize, m_ucdConfigChangeCount, ns3::ManagementMessageType::MESSAGE_TYPE_UCD, ns3::UcdChannelEncodings::SetBwReqOppSize(), ns3::Ucd::SetChannelEncodings(), ns3::Ucd::SetConfigurationChangeCount(), ns3::WimaxNetDevice::SetCurrentUcd(), ns3::UcdChannelEncodings::SetFrequency(), ns3::Ucd::SetRangingBackoffEnd(), ns3::Ucd::SetRangingBackoffStart(), ns3::UcdChannelEncodings::SetRangReqOppSize(), ns3::Ucd::SetRequestBackoffEnd(), ns3::Ucd::SetRequestBackoffStart(), ns3::OfdmUcdChannelEncodings::SetSbchnlFocContCodes(), ns3::OfdmUcdChannelEncodings::SetSbchnlReqRegionFullParams(), and SetUlBurstProfiles().

Referenced by CreateDescriptorMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::BaseStationNetDevice::CreateUlMap ( void )

private

Definition at line 1051 of file bs-net-device.cc.

References ns3::Packet::AddHeader(), ns3::UlMap::AddUlMapElement(), m_nrUlAllocations, m_rangingOppNumber, m_ucdConfigChangeCount, m_ulAllocationNumber, m_uplinkScheduler, ns3::ManagementMessageType::MESSAGE_TYPE_UL_MAP, ns3::UlMap::SetAllocationStartTime(), and ns3::UlMap::SetUcdCount().

Referenced by CreateMapMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::WimaxNetDevice.

Definition at line 248 of file bs-net-device.cc.

References ns3::WimaxNetDevice::DoDispose(), m_bsClassifier, m_cidFactory, m_linkManager, m_scheduler, m_serviceFlowManager, m_ssManager, and m_uplinkScheduler.

Here is the call graph for this function:

void ns3::BaseStationNetDevice::DoReceive ( Ptr< Packet > packet )

privatevirtual

Implements ns3::WimaxNetDevice.

Definition at line 663 of file bs-net-device.cc.

Here is the call graph for this function:

bool ns3::BaseStationNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

privatevirtual

Implements ns3::WimaxNetDevice.

Definition at line 597 of file bs-net-device.cc.

References Enqueue(), GetServiceFlowManager(), ns3::Packet::GetSize(), m_bsClassifier, m_bsTxDropTrace, m_bsTxTrace, NS_LOG_INFO, ns3::ServiceFlow::SF_DIRECTION_DOWN, and ns3::ServiceFlow::SF_TYPE_ALL.

Here is the call graph for this function:

void ns3::BaseStationNetDevice::EndDlSubFrame ( void )

private

Definition at line 560 of file bs-net-device.cc.

References BS_STATE_TTG, ns3::Time::GetSeconds(), ns3::WimaxNetDevice::GetTtg(), m_nrDlFrames, m_psDuration, ns3::Simulator::Schedule(), ns3::WimaxNetDevice::SetState(), and StartUlSubFrame().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::EndFrame ( void )

private

Definition at line 591 of file bs-net-device.cc.

References StartFrame().

Referenced by EndUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::EndUlSubFrame ( void )

private

Definition at line 583 of file bs-net-device.cc.

References BS_STATE_RTG, EndFrame(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), m_nrUlFrames, m_psDuration, ns3::Simulator::Schedule(), and ns3::WimaxNetDevice::SetState().

Referenced by StartUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::BaseStationNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

virtual

Enqueue a packet into a connection queue.

Parameters

packet	the packet to be enqueued
hdrType	the mac header type to be appended to the packet
connection	the connection to be used

Implements ns3::WimaxNetDevice.

Definition at line 649 of file bs-net-device.cc.

References ns3::GenericMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), NS_ASSERT_MSG, ns3::GenericMacHeader::SetCid(), and ns3::GenericMacHeader::SetLen().

Referenced by CreateDescriptorMessages(), CreateMapMessages(), and DoSend().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< IpcsClassifier > ns3::BaseStationNetDevice::GetBsClassifier ( void ) const

Returns: a pointer to the classifier installed on the BS

Definition at line 272 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< BSScheduler > ns3::BaseStationNetDevice::GetBSScheduler ( void ) const

Returns: The BS scheduler installed on the BS

Definition at line 481 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetBwReqOppSize ( void ) const

Returns: The bandwidth request opportunity size in symbols

Definition at line 368 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< WimaxConnection > ns3::BaseStationNetDevice::GetConnection ( Cid cid )

Definition at line 1137 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::WimaxNetDevice::GetConnectionManager(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::Cid::IsBroadcast(), ns3::Cid::IsInitialRanging(), and NS_ASSERT_MSG.

Referenced by DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetDcdInterval ( void ) const

Returns: the Time between transmission of DCD messages

Definition at line 296 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetDlSubframeStartTime ( void ) const

Definition at line 410 of file bs-net-device.cc.

References m_dlSubframeStartTime.

Time ns3::BaseStationNetDevice::GetInitialRangingInterval ( void ) const

Returns: Time between Initial Ranging regions assigned by the BS

Definition at line 284 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetIntervalT8 ( void ) const

Returns: the Wait for DSA/DSC Acknowledge timeout

Definition at line 320 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< BSLinkManager > ns3::BaseStationNetDevice::GetLinkManager ( void ) const

Returns: a pointer to the link manager installed on the BS

Definition at line 464 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::BaseStationNetDevice::GetMaxInvitedRangRetries ( void ) const

Returns: the number of retries on contention Ranging

Definition at line 344 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

uint8_t ns3::BaseStationNetDevice::GetMaxRangingCorrectionRetries ( void ) const

Returns: the number of retries on contention Ranging Requests

Definition at line 332 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::BaseStationNetDevice::GetNrDcdSent ( void ) const

Returns: the number dcd messages already sent

Definition at line 398 of file bs-net-device.cc.

References m_nrDcdSent.

uint32_t ns3::BaseStationNetDevice::GetNrDlSymbols ( void ) const

Returns: the number of symbols in the downlink sub-frame

Definition at line 380 of file bs-net-device.cc.

References m_nrDlSymbols.

uint32_t ns3::BaseStationNetDevice::GetNrUcdSent ( void ) const

Returns: the number ucd messages already sent

Definition at line 404 of file bs-net-device.cc.

References m_nrUcdSent.

uint32_t ns3::BaseStationNetDevice::GetNrUlSymbols ( void ) const

Returns: the number of symbols in the uplink sub-frame

Definition at line 392 of file bs-net-device.cc.

References m_nrUlSymbols.

Time ns3::BaseStationNetDevice::GetPsDuration ( void ) const

Definition at line 487 of file bs-net-device.cc.

References m_psDuration.

uint8_t ns3::BaseStationNetDevice::GetRangingOppNumber ( void ) const

Definition at line 422 of file bs-net-device.cc.

References m_rangingOppNumber.

uint8_t ns3::BaseStationNetDevice::GetRangReqOppSize ( void ) const

Returns: The ranging opportunity size in symbols

Definition at line 356 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< BsServiceFlowManager > ns3::BaseStationNetDevice::GetServiceFlowManager ( void ) const

Definition at line 440 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by DoReceive(), DoSend(), GetTypeId(), and main().

Here is the caller graph for this function:

Ptr< SSManager > ns3::BaseStationNetDevice::GetSSManager ( void ) const

Returns: a pointer to the SS manager

Definition at line 428 of file bs-net-device.cc.

References m_ssManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetSymbolDuration ( void ) const

Definition at line 493 of file bs-net-device.cc.

References m_symbolDuration.

TypeId ns3::BaseStationNetDevice::GetTypeId ( void )

static

Definition at line 56 of file bs-net-device.cc.

References GetBsClassifier(), GetBSScheduler(), GetBwReqOppSize(), GetDcdInterval(), GetInitialRangingInterval(), GetIntervalT8(), GetLinkManager(), GetMaxRangingCorrectionRetries(), GetRangReqOppSize(), GetServiceFlowManager(), GetSSManager(), GetUcdInterval(), GetUplinkScheduler(), m_bsPromiscRxTrace, m_bsRxDropTrace, m_bsRxTrace, m_bsTxDropTrace, m_bsTxTrace, m_scheduler, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), SetBsClassifier(), SetBSScheduler(), SetBwReqOppSize(), SetDcdInterval(), SetInitialRangingInterval(), SetIntervalT8(), SetLinkManager(), SetMaxRangingCorrectionRetries(), ns3::TypeId::SetParent(), SetRangReqOppSize(), SetServiceFlowManager(), SetSSManager(), SetUcdInterval(), and SetUplinkScheduler().

Here is the call graph for this function:

Time ns3::BaseStationNetDevice::GetUcdInterval ( void ) const

Returns: Time between transmission of UCD messages

Definition at line 308 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::BaseStationNetDevice::GetUlSubframeStartTime ( void ) const

Definition at line 416 of file bs-net-device.cc.

References m_ulSubframeStartTime.

Ptr< UplinkScheduler > ns3::BaseStationNetDevice::GetUplinkScheduler ( void ) const

Returns: a pointer to the uplink scheduler installed on the device

Definition at line 452 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::InitBaseStationNetDevice ( void )

initializes the BS net device and sets its parameters to the default values

Definition at line 183 of file bs-net-device.cc.

References m_allocationStartTime, m_bsClassifier, m_bwReqOppSize, m_cidFactory, m_dcdConfigChangeCount, m_dcdInterval, m_dlSubframeStartTime, m_framesSinceLastDcd, m_framesSinceLastUcd, m_initialRangInterval, m_intervalT8, m_linkManager, m_maxInvitedRangRetries, m_maxRangCorrectionRetries, m_nrDcdSent, m_nrDlAllocations, m_nrDlFrames, m_nrDlMapSent, m_nrDlSymbols, m_nrSsRegistered, m_nrUcdSent, m_nrUlAllocations, m_nrUlFrames, m_nrUlMapSent, m_nrUlSymbols, m_psDuration, m_rangingOppNumber, m_rangReqOppSize, m_serviceFlowManager, m_ssManager, m_symbolDuration, m_ucdConfigChangeCount, m_ucdInterval, m_ulAllocationNumber, and m_ulSubframeStartTime.

Referenced by BaseStationNetDevice().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkRangingOppStart ( Time rangingOppStartTime )

Definition at line 1212 of file bs-net-device.cc.

References RangingOppStart(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocationEnd	(	Time	allocationEndTime,
		Cid	cid,
		uint8_t	uiuc
	)

private

Definition at line 1185 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationEnd().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocations ( void )

Definition at line 1158 of file bs-net-device.cc.

References ns3::OfdmUlMapIe::GetCid(), ns3::OfdmUlMapIe::GetDuration(), ns3::Time::GetSeconds(), ns3::OfdmUlMapIe::GetStartTime(), ns3::OfdmUlMapIe::GetUiuc(), m_symbolDuration, m_uplinkScheduler, MarkUplinkAllocationEnd(), MarkUplinkAllocationStart(), and ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP.

Referenced by StartUlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::MarkUplinkAllocationStart ( Time allocationStartTime )

private

Definition at line 1179 of file bs-net-device.cc.

References ns3::Simulator::Schedule(), and UplinkAllocationStart().

Referenced by MarkUplinkAllocations().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::RangingOppStart ( void )

private

Definition at line 1218 of file bs-net-device.cc.

References m_rangingOppNumber, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by MarkRangingOppStart().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SendBursts ( void )

private

Definition at line 946 of file bs-net-device.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, ns3::WimaxNetDevice::ForwardDown(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmDlMapIe::GetCid(), ns3::OfdmDlMapIe::GetDiuc(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::WimaxNetDevice::GetPhy(), m_scheduler, m_serviceFlowManager, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, and ns3::Simulator::Schedule().

Referenced by StartDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBsClassifier ( Ptr< IpcsClassifier > classifier )

Parameters

classifier a classifier to be installed on the BS

Definition at line 266 of file bs-net-device.cc.

References m_bsClassifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBSScheduler ( Ptr< BSScheduler > bsSchedule )

Parameters

bsSchedule the downlink scheduler to be installed on the BS

Definition at line 476 of file bs-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetBwReqOppSize ( uint8_t bwReqOppSize )

Parameters

bwReqOppSize The bandwidth request opportunity size in symbols

Definition at line 362 of file bs-net-device.cc.

References m_bwReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetDcdInterval ( Time dcdInterval )

Parameters

dcdInterval Time between transmission of DCD messages

Definition at line 290 of file bs-net-device.cc.

References m_dcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetDlBurstProfiles ( Dcd * dcd )

private

Definition at line 1107 of file bs-net-device.cc.

References ns3::Dcd::AddDlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmDlBurstProfile::SetDiuc(), ns3::OfdmDlBurstProfile::SetFecCodeType(), ns3::OfdmDlBurstProfile::SetLength(), and ns3::OfdmDlBurstProfile::SetType().

Referenced by CreateDcd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetInitialRangingInterval ( Time initialRangInterval )

Parameters

initialRangInterval Time between Initial Ranging regions assigned by the BS

Definition at line 278 of file bs-net-device.cc.

References m_initialRangInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetIntervalT8 ( Time interval )

Parameters

interval the Wait for DSA/DSC Acknowledge timeout

Definition at line 314 of file bs-net-device.cc.

References m_intervalT8.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetLinkManager ( Ptr< BSLinkManager > linkManager )

Parameters

linkManager The link manager installed on the BS

Definition at line 470 of file bs-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetMaxInvitedRangRetries ( uint8_t maxInvitedRangRetries )

Parameters

maxInvitedRangRetries the number of retries on contention Ranging

Definition at line 338 of file bs-net-device.cc.

References m_maxInvitedRangRetries.

void ns3::BaseStationNetDevice::SetMaxRangingCorrectionRetries ( uint8_t maxRangCorrectionRetries )

Parameters

maxRangCorrectionRetries the number of retries on contention Ranging Requests

Definition at line 326 of file bs-net-device.cc.

References m_maxRangCorrectionRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetNrDlSymbols ( uint32_t dlSymbols )

Parameters

dlSymbols the number of symbols in the downlink sub-frame

Definition at line 374 of file bs-net-device.cc.

References m_nrDlSymbols.

Referenced by StartFrame().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetNrUlSymbols ( uint32_t ulSymbols )

Parameters

ulSymbols the number of symbols in the uplink sub-frame

Definition at line 386 of file bs-net-device.cc.

References m_nrUlSymbols.

Referenced by StartFrame().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetRangReqOppSize ( uint8_t rangReqOppSize )

Parameters

rangReqOppSize The ranging opportunity size in symbols

Definition at line 350 of file bs-net-device.cc.

References m_rangReqOppSize.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetServiceFlowManager ( Ptr< BsServiceFlowManager > sfm )

Definition at line 446 of file bs-net-device.cc.

References m_serviceFlowManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetSSManager ( Ptr< SSManager > ssManager )

Parameters

ssManager the SS manager to be installed on the BS

Definition at line 434 of file bs-net-device.cc.

References m_ssManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUcdInterval ( Time ucdInterval )

Parameters

ucdInterval the Time between transmission of UCD messages

Definition at line 302 of file bs-net-device.cc.

References m_ucdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUlBurstProfiles ( Ucd * ucd )

private

Definition at line 1121 of file bs-net-device.cc.

References ns3::Ucd::AddUlBurstProfile(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::OfdmUlBurstProfile::SetFecCodeType(), ns3::OfdmUlBurstProfile::SetLength(), ns3::OfdmUlBurstProfile::SetType(), and ns3::OfdmUlBurstProfile::SetUiuc().

Referenced by CreateUcd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::SetUplinkScheduler ( Ptr< UplinkScheduler > ulScheduler )

Parameters

ulScheduler the ulScheduler to be isnstalled on the BS

Definition at line 458 of file bs-net-device.cc.

References m_uplinkScheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::Start ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 499 of file bs-net-device.cc.

References ns3::WimaxNetDevice::CreateDefaultConnections(), ns3::WimaxNetDevice::GetBandwidthManager(), ns3::WimaxNetDevice::GetConnectionManager(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxNetDevice::GetRtg(), ns3::WimaxNetDevice::GetTtg(), m_bwReqOppSize, m_cidFactory, m_linkManager, m_psDuration, m_symbolDuration, m_uplinkScheduler, ns3::Simulator::ScheduleNow(), ns3::WimaxNetDevice::SetReceiveCallback(), ns3::WimaxNetDevice::SetRtg(), ns3::WimaxNetDevice::SetTtg(), and StartFrame().

Here is the call graph for this function:

void ns3::BaseStationNetDevice::StartDlSubFrame ( void )

private

Definition at line 541 of file bs-net-device.cc.

References BS_STATE_DL_SUB_FRAME, CreateMapMessages(), ns3::WimaxNetDevice::DIRECTION_DOWNLINK, EndDlSubFrame(), ns3::WimaxNetDevice::GetNrFrames(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_dlSubframeStartTime, ns3::WimaxNetDevice::m_frameStartTime, m_nrDlSymbols, m_scheduler, m_symbolDuration, m_uplinkScheduler, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), SendBursts(), ns3::WimaxNetDevice::SetNrFrames(), and ns3::WimaxNetDevice::SetState().

Referenced by StartFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::StartFrame ( void )

private

Definition at line 526 of file bs-net-device.cc.

References ns3::WimaxNetDevice::GetNrFrames(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxNetDevice::GetRtg(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::GetTtg(), ns3::WimaxNetDevice::m_frameStartTime, m_psDuration, m_symbolDuration, ns3::Simulator::Now(), NS_LOG_INFO, SetNrDlSymbols(), SetNrUlSymbols(), and StartDlSubFrame().

Referenced by EndFrame(), and Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::StartUlSubFrame ( void )

private

Definition at line 568 of file bs-net-device.cc.

References BS_STATE_UL_SUB_FRAME, ns3::WimaxNetDevice::DIRECTION_UPLINK, EndUlSubFrame(), ns3::Time::GetSeconds(), ns3::WimaxNetDevice::m_direction, m_nrUlSymbols, m_symbolDuration, m_ulSubframeStartTime, MarkUplinkAllocations(), ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and ns3::WimaxNetDevice::SetState().

Referenced by EndDlSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::Stop ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 521 of file bs-net-device.cc.

void ns3::BaseStationNetDevice::UplinkAllocationEnd	(	Cid	cid,
		uint8_t	uiuc
	)

private

Definition at line 1201 of file bs-net-device.cc.

References ns3::CidFactory::IsBasic(), m_cidFactory, m_linkManager, m_ulAllocationNumber, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by MarkUplinkAllocationEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BaseStationNetDevice::UplinkAllocationStart ( void )

private

Definition at line 1191 of file bs-net-device.cc.

References m_ulAllocationNumber, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by MarkUplinkAllocationStart().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::BaseStationNetDevice::m_allocationStartTime

private

Definition at line 307 of file bs-net-device.h.

Referenced by InitBaseStationNetDevice().

Ptr<IpcsClassifier> ns3::BaseStationNetDevice::m_bsClassifier

private

Definition at line 313 of file bs-net-device.h.

Referenced by DoDispose(), DoSend(), GetBsClassifier(), InitBaseStationNetDevice(), and SetBsClassifier().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 344 of file bs-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource

Definition at line 361 of file bs-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::BaseStationNetDevice::m_bsRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.
