Doxygen introspection did not find any typical Config paths. More...

#include <ul-mac-messages.h>

Inheritance diagram for ns3::Ucd:

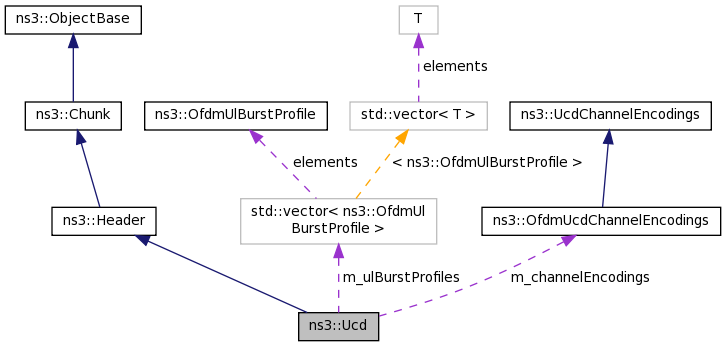

Collaboration diagram for ns3::Ucd:

Public Member Functions
	Ucd (void)
	This class implements the UCD message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.3 Uplink Channel Descriptor (UCD) message, page 47. More...

virtual	~Ucd (void)

void	AddUlBurstProfile (OfdmUlBurstProfile ulBurstProfile)

uint32_t	Deserialize (Buffer::Iterator start)

OfdmUcdChannelEncodings	GetChannelEncodings (void) const

uint8_t	GetConfigurationChangeCount (void) const

virtual TypeId	GetInstanceTypeId (void) const

std::string	GetName (void) const

uint8_t	GetNrUlBurstProfiles (void) const

uint8_t	GetRangingBackoffEnd (void) const

uint8_t	GetRangingBackoffStart (void) const

uint8_t	GetRequestBackoffEnd (void) const

uint8_t	GetRequestBackoffStart (void) const

uint32_t	GetSerializedSize (void) const

std::vector< OfdmUlBurstProfile >	GetUlBurstProfiles (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetChannelEncodings (OfdmUcdChannelEncodings channelEncodings)

void	SetConfigurationChangeCount (uint8_t ucdCount)

void	SetNrUlBurstProfiles (uint8_t nrUlBurstProfiles)

void	SetRangingBackoffEnd (uint8_t rangingBackoffEnd)

void	SetRangingBackoffStart (uint8_t rangingBackoffStart)

void	SetRequestBackoffEnd (uint8_t requestBackoffEnd)

void	SetRequestBackoffStart (uint8_t requestBackoffStart)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
OfdmUcdChannelEncodings	m_channelEncodings

uint8_t	m_configurationChangeCount

uint8_t	m_nrUlBurstProfiles

uint8_t	m_rangingBackoffEnd

uint8_t	m_rangingBackoffStart

uint8_t	m_requestBackoffEnd

uint8_t	m_requestBackoffStart

std::vector< OfdmUlBurstProfile >	m_ulBurstProfiles

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 190 of file ul-mac-messages.h.

Constructor & Destructor Documentation

ns3::Ucd::Ucd ( void )

This class implements the UCD message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.3 Uplink Channel Descriptor (UCD) message, page 47.

Definition at line 257 of file ul-mac-messages.cc.

ns3::Ucd::~Ucd ( void )

virtual

Definition at line 268 of file ul-mac-messages.cc.

Member Function Documentation

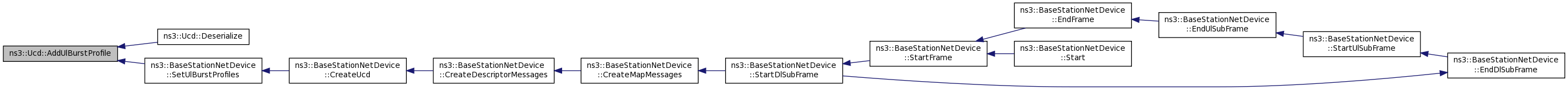

void ns3::Ucd::AddUlBurstProfile ( OfdmUlBurstProfile ulBurstProfile )

Definition at line 309 of file ul-mac-messages.cc.

References m_ulBurstProfiles.

Referenced by Deserialize(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

Here is the caller graph for this function:

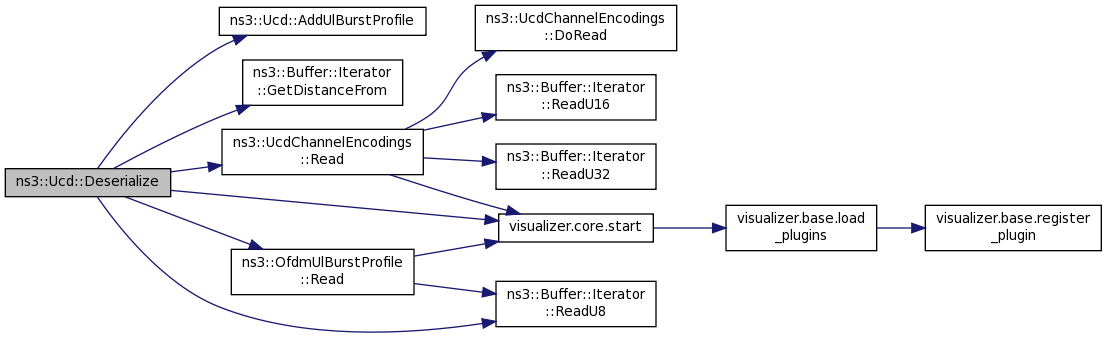

uint32_t ns3::Ucd::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 438 of file ul-mac-messages.cc.

References AddUlBurstProfile(), ns3::Buffer::Iterator::GetDistanceFrom(), m_channelEncodings, m_configurationChangeCount, m_nrUlBurstProfiles, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, ns3::UcdChannelEncodings::Read(), ns3::OfdmUlBurstProfile::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

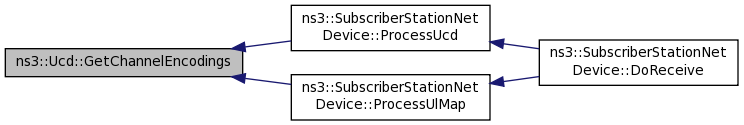

OfdmUcdChannelEncodings ns3::Ucd::GetChannelEncodings ( void ) const

Definition at line 352 of file ul-mac-messages.cc.

References m_channelEncodings.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

uint8_t ns3::Ucd::GetConfigurationChangeCount ( void ) const

Definition at line 322 of file ul-mac-messages.cc.

References m_configurationChangeCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

TypeId ns3::Ucd::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 386 of file ul-mac-messages.cc.

References GetTypeId().

Here is the call graph for this function:

std::string ns3::Ucd::GetName ( void ) const

Definition at line 370 of file ul-mac-messages.cc.

uint8_t ns3::Ucd::GetNrUlBurstProfiles ( void ) const

Definition at line 364 of file ul-mac-messages.cc.

References m_nrUlBurstProfiles.

uint8_t ns3::Ucd::GetRangingBackoffEnd ( void ) const

Definition at line 334 of file ul-mac-messages.cc.

References m_rangingBackoffEnd.

uint8_t ns3::Ucd::GetRangingBackoffStart ( void ) const

Definition at line 328 of file ul-mac-messages.cc.

References m_rangingBackoffStart.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

uint8_t ns3::Ucd::GetRequestBackoffEnd ( void ) const

Definition at line 346 of file ul-mac-messages.cc.

References m_requestBackoffEnd.

uint8_t ns3::Ucd::GetRequestBackoffStart ( void ) const

Definition at line 340 of file ul-mac-messages.cc.

References m_requestBackoffStart.

uint32_t ns3::Ucd::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 404 of file ul-mac-messages.cc.

References ns3::OfdmUcdChannelEncodings::GetSize(), ns3::OfdmUlBurstProfile::GetSize(), m_channelEncodings, and m_ulBurstProfiles.

Here is the call graph for this function:

TypeId ns3::Ucd::GetTypeId ( void )

static

Definition at line 376 of file ul-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

std::vector< OfdmUlBurstProfile > ns3::Ucd::GetUlBurstProfiles ( void ) const

Definition at line 358 of file ul-mac-messages.cc.

References m_ulBurstProfiles.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

void ns3::Ucd::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 392 of file ul-mac-messages.cc.

References m_configurationChangeCount, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, and m_ulBurstProfiles.

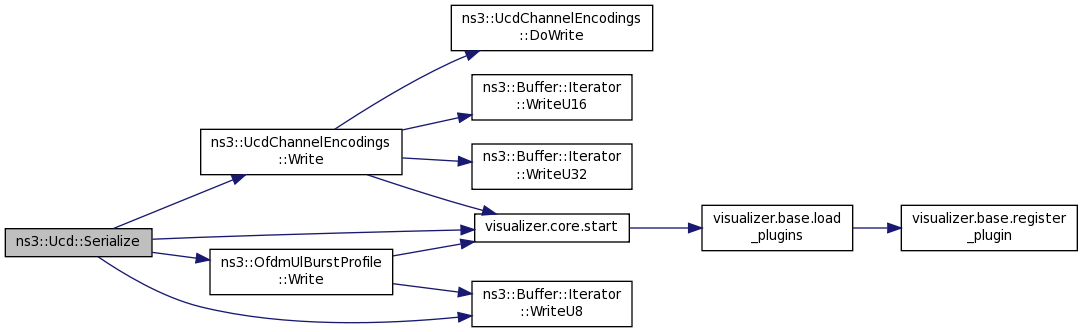

void ns3::Ucd::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 419 of file ul-mac-messages.cc.

References m_channelEncodings, m_configurationChangeCount, m_rangingBackoffEnd, m_rangingBackoffStart, m_requestBackoffEnd, m_requestBackoffStart, m_ulBurstProfiles, visualizer.core::start(), ns3::UcdChannelEncodings::Write(), ns3::OfdmUlBurstProfile::Write(), and ns3::Buffer::Iterator::WriteU8().
