The same connection manager class serves both for BS and SS though some functions are exclusive to only one of them. More...

#include <connection-manager.h>

Inheritance diagram for ns3::ConnectionManager:

Collaboration diagram for ns3::ConnectionManager:

Public Member Functions
	ConnectionManager (void)

	~ConnectionManager (void)

void	AddConnection (Ptr< WimaxConnection > connection, Cid::Type type)
	add a connection to the list of managed connections More...

void	AllocateManagementConnections (SSRecord ssRecord, RngRsp rngrsp)
	allocates the management connection for an ss record. More...

Ptr< WimaxConnection >	CreateConnection (Cid::Type type)
	create a connection of type type More...

void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Ptr< WimaxConnection >	GetConnection (Cid cid)

std::vector< Ptr < WimaxConnection > >	GetConnections (Cid::Type type) const

uint32_t	GetNPackets (Cid::Type type, ServiceFlow::SchedulingType schedulingType) const

bool	HasPackets (void) const

void	SetCidFactory (CidFactory *cidFactory)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< Ptr < WimaxConnection > >	m_basicConnections

CidFactory *	m_cidFactory

std::vector< Ptr < WimaxConnection > >	m_multicastConnections

std::vector< Ptr < WimaxConnection > >	m_primaryConnections

std::vector< Ptr < WimaxConnection > >	m_transportConnections

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

The same connection manager class serves both for BS and SS though some functions are exclusive to only one of them.

Config Paths

ns3::ConnectionManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 44 of file connection-manager.h.

Constructor & Destructor Documentation

ns3::ConnectionManager::ConnectionManager ( void )

Definition at line 48 of file connection-manager.cc.

ns3::ConnectionManager::~ConnectionManager ( void )

Definition at line 58 of file connection-manager.cc.

Member Function Documentation

void ns3::ConnectionManager::AddConnection	(	Ptr< WimaxConnection >	connection,
		Cid::Type	type
	)

add a connection to the list of managed connections

Parameters

connection	the connection to add
type	the type of connection to add

Definition at line 105 of file connection-manager.cc.

References ns3::Cid::BASIC, m_basicConnections, m_multicastConnections, m_primaryConnections, m_transportConnections, ns3::Cid::MULTICAST, NS_FATAL_ERROR, ns3::Cid::PRIMARY, and ns3::Cid::TRANSPORT.

Referenced by CreateConnection().

Here is the caller graph for this function:

void ns3::ConnectionManager::AllocateManagementConnections	(	SSRecord *	ssRecord,
		RngRsp *	rngrsp
	)

allocates the management connection for an ss record.

This method is only used by BS

Parameters

ssRecord	the ss record to wich the management connection will be allocated
rngrsp	the ranging response message

Definition at line 69 of file connection-manager.cc.

References ns3::Cid::BASIC, CreateConnection(), ns3::Cid::PRIMARY, ns3::SSRecord::SetBasicCid(), ns3::RngRsp::SetBasicCid(), ns3::SSRecord::SetPrimaryCid(), and ns3::RngRsp::SetPrimaryCid().

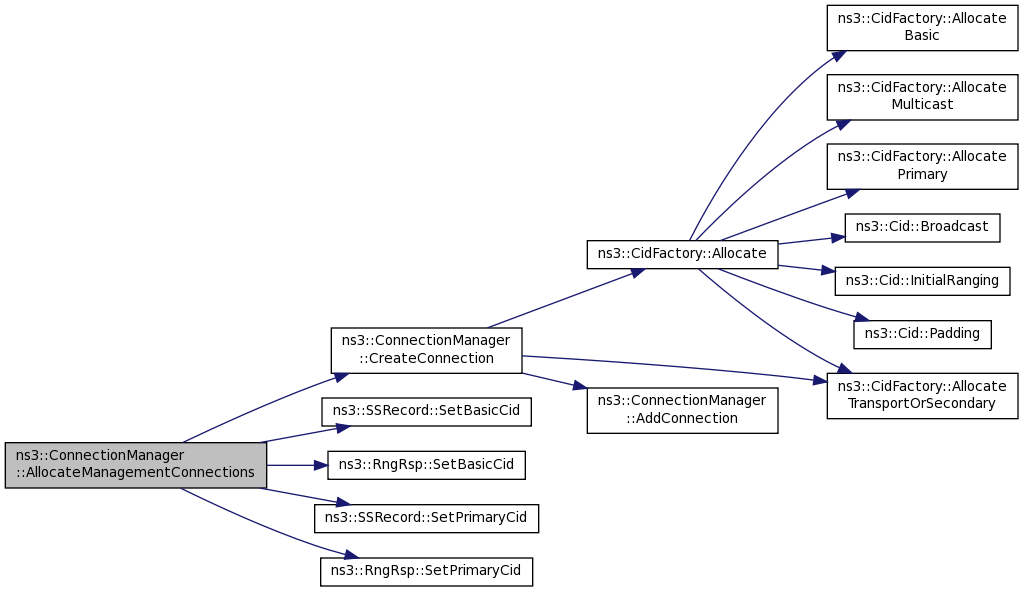

Here is the call graph for this function:

Ptr< WimaxConnection > ns3::ConnectionManager::CreateConnection ( Cid::Type type )

create a connection of type type

Parameters

type	type of the connection to create

Definition at line 82 of file connection-manager.cc.

References AddConnection(), ns3::CidFactory::Allocate(), ns3::CidFactory::AllocateTransportOrSecondary(), ns3::Cid::BASIC, m_cidFactory, ns3::Cid::MULTICAST, NS_FATAL_ERROR, ns3::Cid::PRIMARY, and ns3::Cid::TRANSPORT.

Referenced by AllocateManagementConnections().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ConnectionManager::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 54 of file connection-manager.cc.

Ptr< WimaxConnection > ns3::ConnectionManager::GetConnection ( Cid cid )
