this class manages a list of SSrecord More...

#include <ss-manager.h>

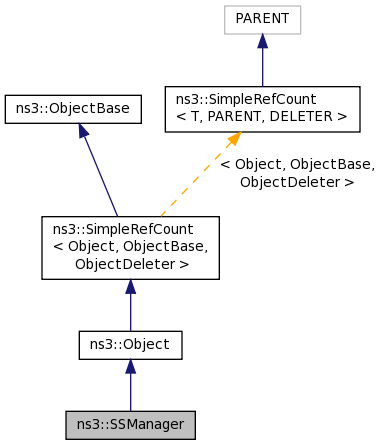

Inheritance diagram for ns3::SSManager:

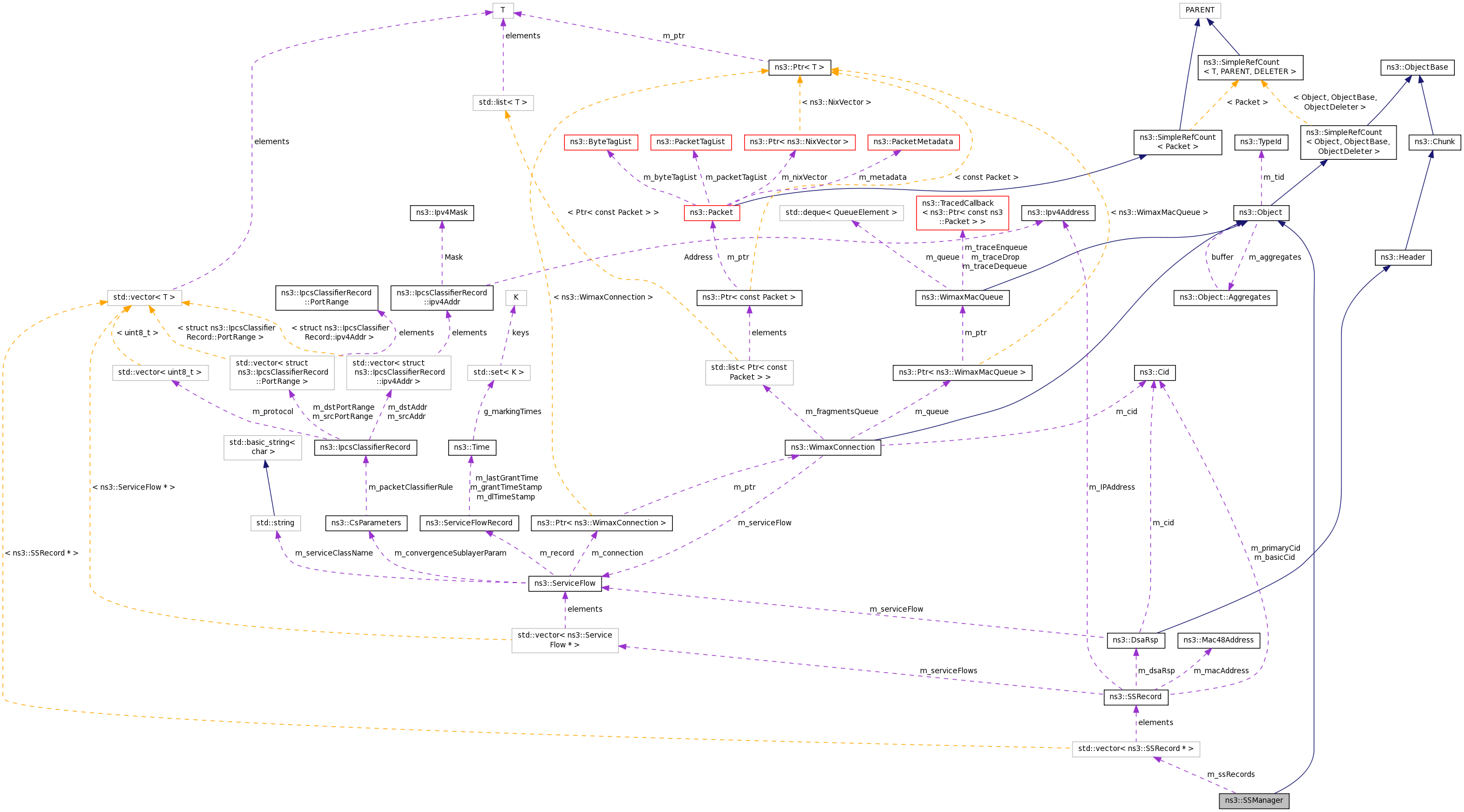

Collaboration diagram for ns3::SSManager:

Public Member Functions
	SSManager (void)

	~SSManager (void)

SSRecord *	CreateSSRecord (const Mac48Address &macAddress)

void	DeleteSSRecord (Cid cid)

Mac48Address	GetMacAddress (Cid cid) const

uint32_t	GetNRegisteredSSs (void) const

uint32_t	GetNSSs (void) const

SSRecord *	GetSSRecord (const Mac48Address &macAddress) const

SSRecord *	GetSSRecord (Cid cid) const
	returns the ssrecord which has been assigned this cid. More...

std::vector< SSRecord * > *	GetSSRecords (void) const

bool	IsInRecord (const Mac48Address &macAddress) const

bool	IsRegistered (const Mac48Address &macAddress) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< SSRecord * > *	m_ssRecords

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

this class manages a list of SSrecord

See also: SSrecord

Config Paths

ns3::SSManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file ss-manager.h.

Constructor & Destructor Documentation

ns3::SSManager::SSManager ( void )

Definition at line 41 of file ss-manager.cc.

References m_ssRecords.

ns3::SSManager::~SSManager ( void )

Definition at line 46 of file ss-manager.cc.

References m_ssRecords.

Member Function Documentation

SSRecord * ns3::SSManager::CreateSSRecord ( const Mac48Address & macAddress )

Definition at line 57 of file ss-manager.cc.

References m_ssRecords.

void ns3::SSManager::DeleteSSRecord ( Cid cid )

Definition at line 133 of file ss-manager.cc.

References ns3::SSRecord::GetBasicCid(), ns3::SSRecord::GetPrimaryCid(), ns3::SSRecord::GetServiceFlows(), m_ssRecords, and ns3::ServiceFlow::SF_TYPE_ALL.

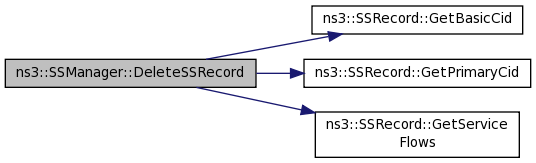

Here is the call graph for this function:

Mac48Address ns3::SSManager::GetMacAddress ( Cid cid ) const

Definition at line 159 of file ss-manager.cc.

References ns3::SSRecord::GetMacAddress(), and GetSSRecord().

Here is the call graph for this function:

uint32_t ns3::SSManager::GetNRegisteredSSs ( void ) const

Definition at line 171 of file ss-manager.cc.

References m_ssRecords, and ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS.

uint32_t ns3::SSManager::GetNSSs ( void ) const

Definition at line 165 of file ss-manager.cc.

References m_ssRecords.

SSRecord * ns3::SSManager::GetSSRecord ( const Mac48Address & macAddress ) const

Definition at line 65 of file ss-manager.cc.

References m_ssRecords, and NS_LOG_DEBUG.

Referenced by GetMacAddress(), and IsRegistered().

Here is the caller graph for this function:

SSRecord * ns3::SSManager::GetSSRecord ( Cid cid ) const

returns the ssrecord which has been assigned this cid.

Since different types of cids (basic, primary, transport) are assigned different values, all cids (basic, primary and transport) of the ssrecord are matched.

Parameters
