ns3::BurstProfileManager Class Reference

#include <burst-profile-manager.h>

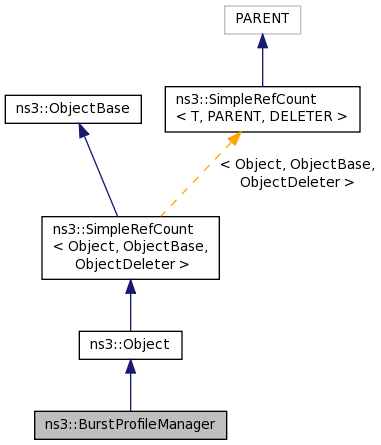

+ Inheritance diagram for ns3::BurstProfileManager:

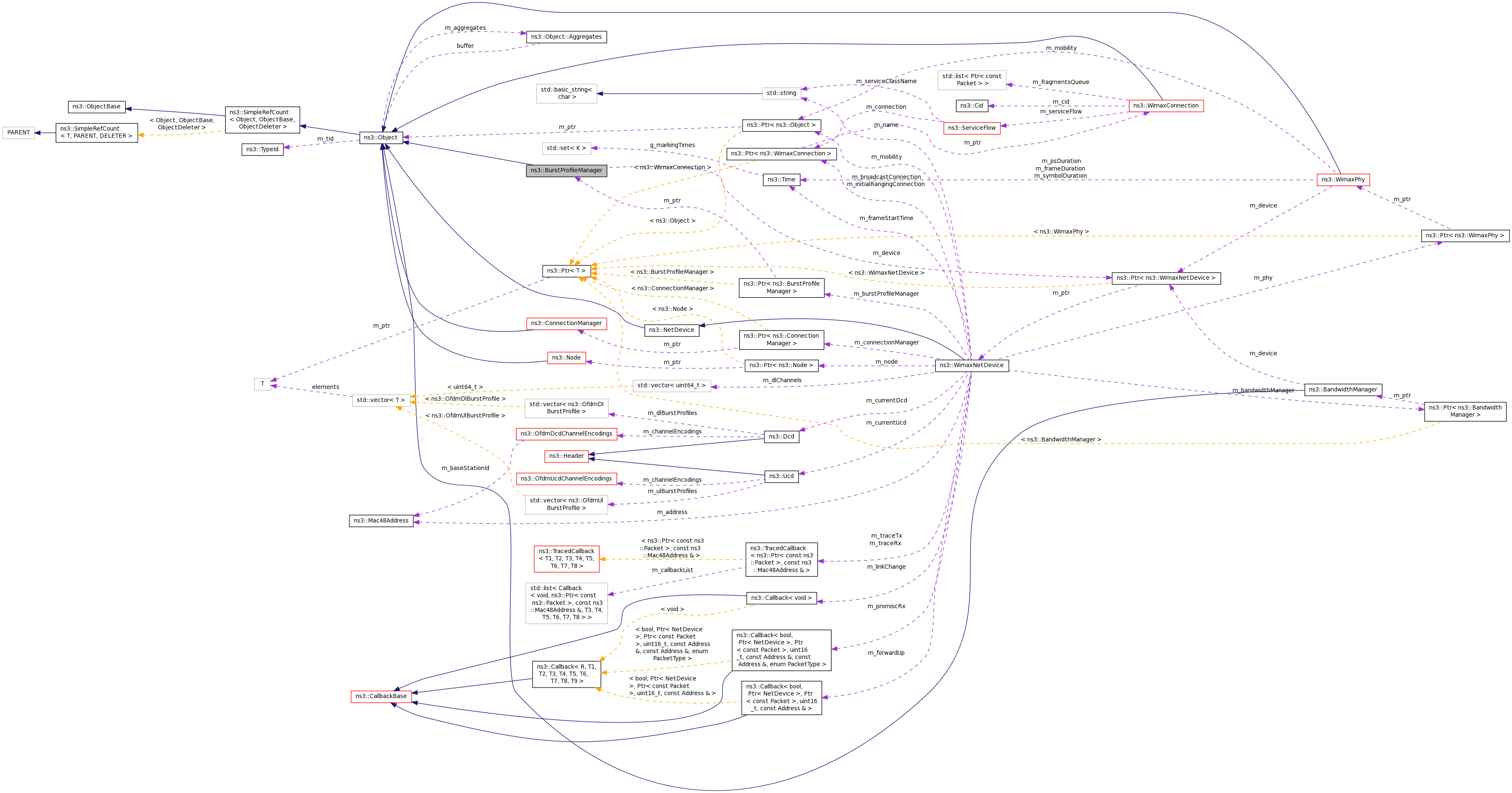

+ Collaboration diagram for ns3::BurstProfileManager:

Public Member Functions

 BurstProfileManager (Ptr< WimaxNetDevice > device)

 ~BurstProfileManager (void)

void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

uint8_t GetBurstProfile (WimaxPhy::ModulationType modulationType, WimaxNetDevice::Direction direction) const

uint8_t GetBurstProfileForSS (const SSRecord *ssRecord, const RngReq *rngreq, WimaxPhy::ModulationType &modulationType)

uint8_t GetBurstProfileToRequest (void)

WimaxPhy::ModulationType GetModulationType (uint8_t iuc, WimaxNetDevice::Direction direction) const

WimaxPhy::ModulationType GetModulationTypeForSS (const SSRecord *ssRecord, const RngReq *rngreq)

uint16_t GetNrBurstProfilesToDefine (void)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

 BurstProfileManager (const BurstProfileManager &)

BurstProfileManageroperator= (const BurstProfileManager &)


Private Attributes

Ptr< WimaxNetDevicem_device


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Config Paths

ns3::BurstProfileManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file burst-profile-manager.h.

Constructor & Destructor Documentation

ns3::BurstProfileManager::BurstProfileManager ( Ptr< WimaxNetDevice device)

Definition at line 44 of file burst-profile-manager.cc.

ns3::BurstProfileManager::~BurstProfileManager ( void  )

Definition at line 49 of file burst-profile-manager.cc.

References m_device.

ns3::BurstProfileManager::BurstProfileManager ( const BurstProfileManager )
private

Member Function Documentation

void ns3::BurstProfileManager::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 55 of file burst-profile-manager.cc.

References m_device.

uint8_t ns3::BurstProfileManager::GetBurstProfile ( WimaxPhy::ModulationType  modulationType,
WimaxNetDevice::Direction  direction
) const

Definition at line 107 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, m_device, and NS_FATAL_ERROR.

Referenced by GetBurstProfileForSS(), and GetBurstProfileToRequest().

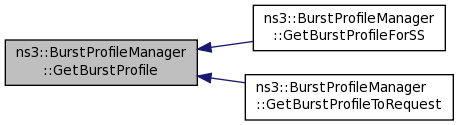

+ Here is the caller graph for this function:

uint8_t ns3::BurstProfileManager::GetBurstProfileForSS ( const SSRecord ssRecord,
const RngReq rngreq,
WimaxPhy::ModulationType modulationType
)

Definition at line 145 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, GetBurstProfile(), and GetModulationTypeForSS().

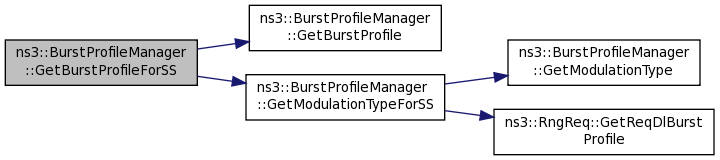

+ Here is the call graph for this function:

uint8_t ns3::BurstProfileManager::GetBurstProfileToRequest ( void  )

Definition at line 165 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, GetBurstProfile(), ns3::SubscriberStationNetDevice::GetModulationType(), and m_device.

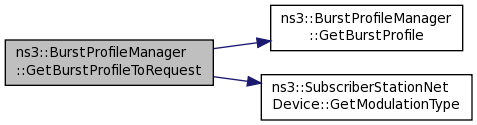

+ Here is the call graph for this function:

WimaxPhy::ModulationType ns3::BurstProfileManager::GetModulationType ( uint8_t  iuc,
WimaxNetDevice::Direction  direction
) const

Definition at line 70 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, m_device, and NS_FATAL_ERROR.

Referenced by GetModulationTypeForSS().

+ Here is the caller graph for this function:

WimaxPhy::ModulationType ns3::BurstProfileManager::GetModulationTypeForSS ( const SSRecord ssRecord,
const RngReq rngreq
)

Definition at line 157 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, GetModulationType(), and ns3::RngReq::GetReqDlBurstProfile().

Referenced by GetBurstProfileForSS().

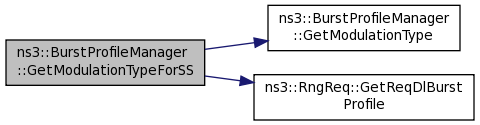

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::BurstProfileManager::GetNrBurstProfilesToDefine ( void  )

Definition at line 61 of file burst-profile-manager.cc.

TypeId ns3::BurstProfileManager::GetTypeId ( void  )
static

Definition at line 37 of file burst-profile-manager.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

BurstProfileManager& ns3::BurstProfileManager::operator= ( const BurstProfileManager )
private

Member Data Documentation

Ptr<WimaxNetDevice> ns3::BurstProfileManager::m_device
private

The documentation for this class was generated from the following files:
