DSR passive buffer. More...

#include <dsr-passive-buff.h>

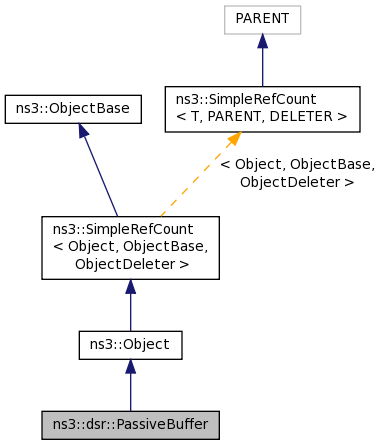

Inheritance diagram for ns3::dsr::PassiveBuffer:

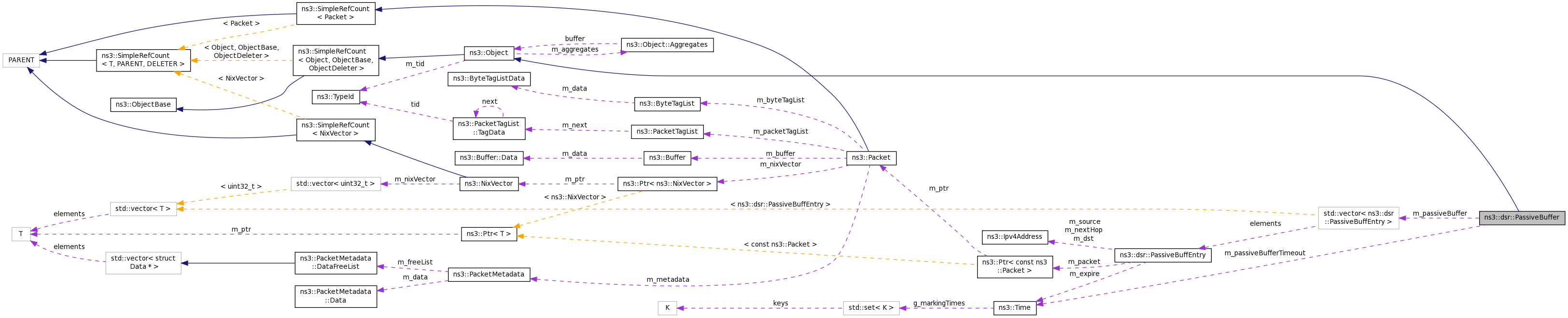

Collaboration diagram for ns3::dsr::PassiveBuffer:

Public Member Functions
	PassiveBuffer ()

virtual	~PassiveBuffer ()

bool	AllEqual (PassiveBuffEntry &entry)
	Check if all the entries in passive buffer entry is all equal or not. More...

bool	Dequeue (Ipv4Address dst, PassiveBuffEntry &entry)
	Return first found (the earliest) entry for given destination. More...

bool	Enqueue (PassiveBuffEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Finds whether a packet with destination dst exists in the queue. More...

uint32_t	GetSize ()
	Number of entries. More...

Fields
uint32_t	GetMaxQueueLen () const

void	SetMaxQueueLen (uint32_t len)

Time	GetPassiveBufferTimeout () const

void	SetPassiveBufferTimeout (Time t)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	Drop (PassiveBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	DropLink (PassiveBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	Purge ()
	Remove all expired entries. More...

Static Private Member Functions
static bool	LinkEqual (PassiveBuffEntry en, const std::vector< Ipv4Address > link)
	Check if the send buffer entry is the same or not. More...

Private Attributes
uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

std::vector< PassiveBuffEntry >	m_passiveBuffer
	The send buffer to cache unsent packet. More...

Time	m_passiveBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

DSR passive buffer.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 182 of file dsr-passive-buff.h.

Constructor & Destructor Documentation

ns3::dsr::PassiveBuffer::PassiveBuffer ( )

Definition at line 56 of file dsr-passive-buff.cc.

ns3::dsr::PassiveBuffer::~PassiveBuffer ( )

virtual

Definition at line 60 of file dsr-passive-buff.cc.

Member Function Documentation

bool ns3::dsr::PassiveBuffer::AllEqual ( PassiveBuffEntry & entry )

Check if all the entries in passive buffer entry is all equal or not.

Definition at line 106 of file dsr-passive-buff.cc.

References ns3::dsr::PassiveBuffEntry::GetDestination(), ns3::dsr::PassiveBuffEntry::GetFragmentOffset(), ns3::dsr::PassiveBuffEntry::GetIdentification(), ns3::dsr::PassiveBuffEntry::GetNextHop(), ns3::dsr::PassiveBuffEntry::GetPacket(), ns3::dsr::PassiveBuffEntry::GetSegsLeft(), ns3::dsr::PassiveBuffEntry::GetSource(), ns3::Packet::GetUid(), and m_passiveBuffer.

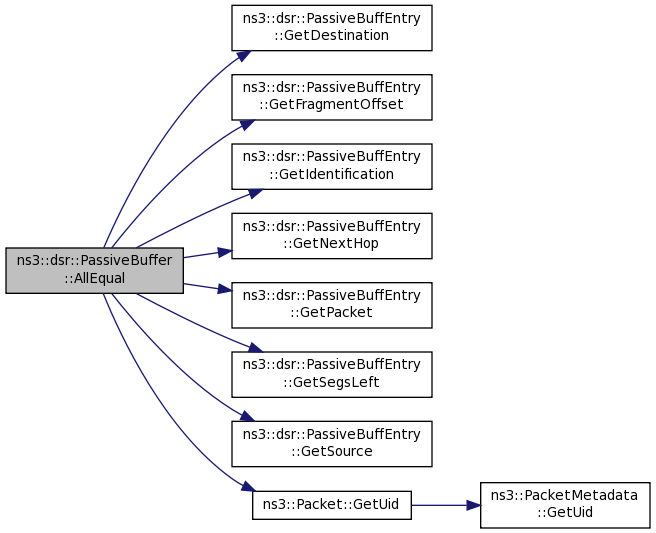

Here is the call graph for this function:

bool ns3::dsr::PassiveBuffer::Dequeue	(	Ipv4Address	dst,
		PassiveBuffEntry &	entry
	)

Return first found (the earliest) entry for given destination.

Definition at line 128 of file dsr-passive-buff.cc.

References ns3::dsr::PassiveBuffEntry::GetPacket(), ns3::Packet::GetSize(), m_passiveBuffer, NS_LOG_DEBUG, and Purge().

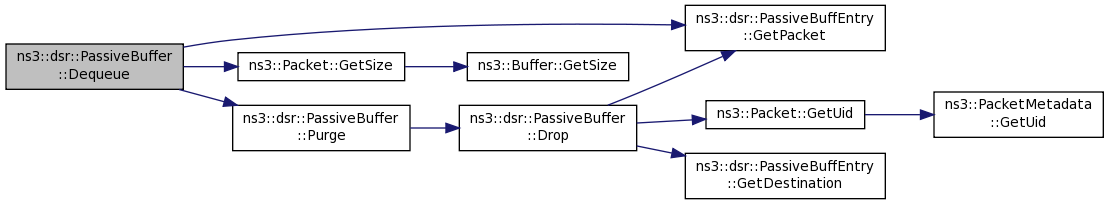

Here is the call graph for this function:

void ns3::dsr::PassiveBuffer::Drop	(	PassiveBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Definition at line 197 of file dsr-passive-buff.cc.

References ns3::dsr::PassiveBuffEntry::GetDestination(), ns3::dsr::PassiveBuffEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

Referenced by Enqueue(), and Purge().

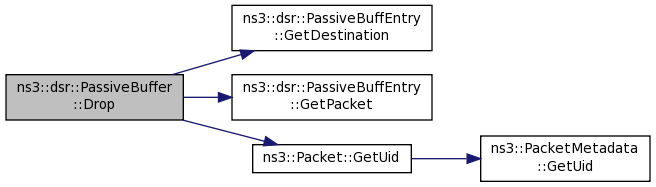

Here is the call graph for this function:

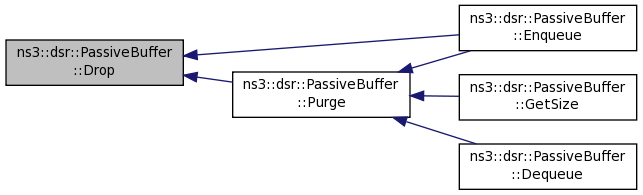

Here is the caller graph for this function:

void ns3::dsr::PassiveBuffer::DropLink	(	PassiveBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Definition at line 206 of file dsr-passive-buff.cc.

References ns3::dsr::PassiveBuffEntry::GetNextHop(), ns3::dsr::PassiveBuffEntry::GetPacket(), ns3::dsr::PassiveBuffEntry::GetSource(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

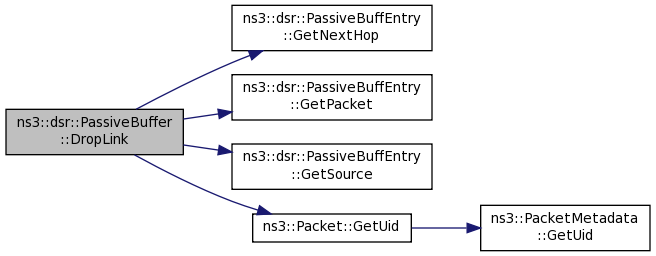

Here is the call graph for this function:

bool ns3::dsr::PassiveBuffer::Enqueue ( PassiveBuffEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Definition at line 72 of file dsr-passive-buff.cc.

References Drop(), ns3::dsr::PassiveBuffEntry::GetDestination(), ns3::dsr::PassiveBuffEntry::GetFragmentOffset(), ns3::dsr::PassiveBuffEntry::GetIdentification(), ns3::dsr::PassiveBuffEntry::GetNextHop(), ns3::dsr::PassiveBuffEntry::GetPacket(), ns3::dsr::PassiveBuffEntry::GetSegsLeft(), ns3::dsr::PassiveBuffEntry::GetSource(), ns3::Packet::GetUid(), m_maxLen, m_passiveBuffer, m_passiveBufferTimeout, Purge(), and ns3::dsr::PassiveBuffEntry::SetExpireTime().

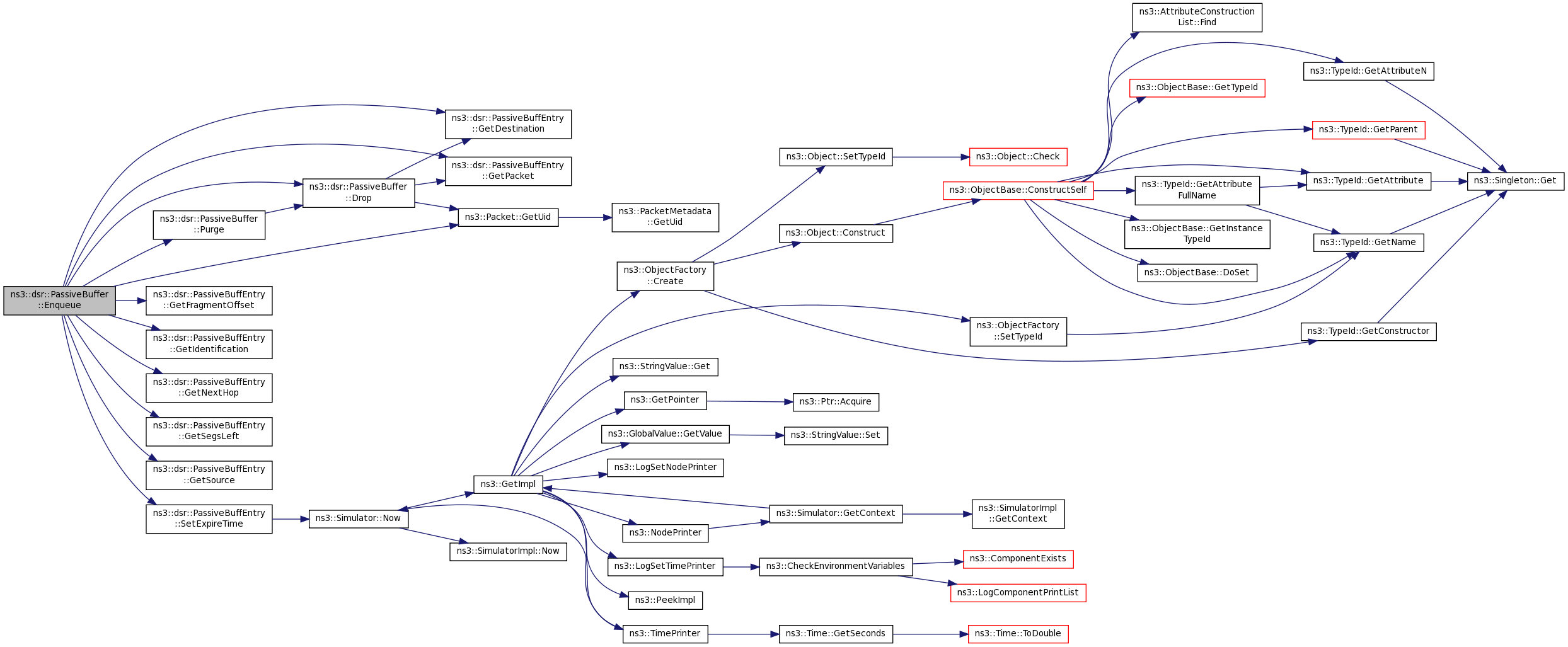

Here is the call graph for this function:

bool ns3::dsr::PassiveBuffer::Find ( Ipv4Address dst )

Finds whether a packet with destination dst exists in the queue.

Definition at line 148 of file dsr-passive-buff.cc.

References m_passiveBuffer, and NS_LOG_DEBUG.

uint32_t ns3::dsr::PassiveBuffer::GetMaxQueueLen ( ) const

inline

Definition at line 203 of file dsr-passive-buff.h.

References m_maxLen.

Time ns3::dsr::PassiveBuffer::GetPassiveBufferTimeout ( ) const

inline

Definition at line 211 of file dsr-passive-buff.h.

References m_passiveBufferTimeout.

uint32_t ns3::dsr::PassiveBuffer::GetSize ( )

Number of entries.

Definition at line 65 of file dsr-passive-buff.cc.

References m_passiveBuffer, and Purge().

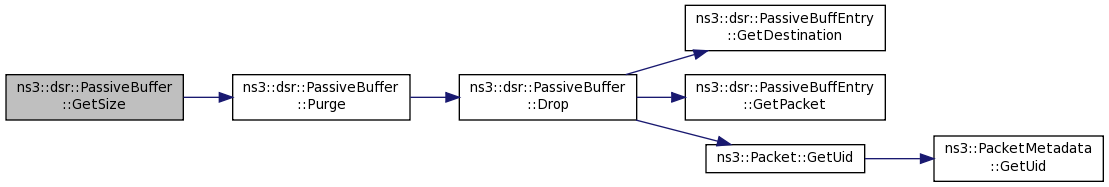

Here is the call graph for this function:

TypeId ns3::dsr::PassiveBuffer::GetTypeId ( void )

static

Definition at line 47 of file dsr-passive-buff.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

static bool ns3::dsr::PassiveBuffer::LinkEqual	(	PassiveBuffEntry	en,
		const std::vector< Ipv4Address >	link
	)

inlinestaticprivate

Check if the send buffer entry is the same or not.

Definition at line 235 of file dsr-passive-buff.h.

References ns3::dsr::PassiveBuffEntry::GetNextHop(), and ns3::dsr::PassiveBuffEntry::GetSource().

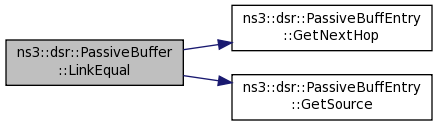

Here is the call graph for this function:

void ns3::dsr::PassiveBuffer::Purge ( )

private

Remove all expired entries.

Definition at line 176 of file dsr-passive-buff.cc.

References Drop(), m_passiveBuffer, and NS_LOG_DEBUG.

Referenced by Dequeue(), Enqueue(), and GetSize().

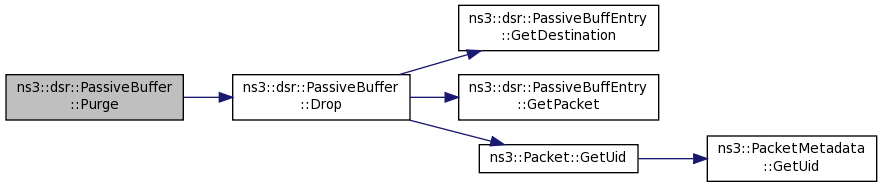

Here is the call graph for this function:

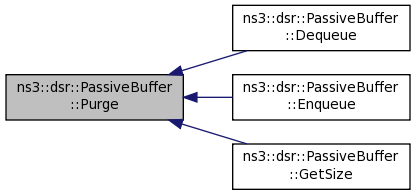

Here is the caller graph for this function:

void ns3::dsr::PassiveBuffer::SetMaxQueueLen ( uint32_t len )

inline

Definition at line 207 of file dsr-passive-buff.h.

References m_maxLen.

void ns3::dsr::PassiveBuffer::SetPassiveBufferTimeout ( Time t )

inline

Definition at line 215 of file dsr-passive-buff.h.

References m_passiveBufferTimeout.

Member Data Documentation

uint32_t ns3::dsr::PassiveBuffer::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 231 of file dsr-passive-buff.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

std::vector<PassiveBuffEntry> ns3::dsr::PassiveBuffer::m_passiveBuffer

private

The send buffer to cache unsent packet.

Definition at line 223 of file dsr-passive-buff.h.

Referenced by AllEqual(), Dequeue(), Enqueue(), Find(), GetSize(), and Purge().

Time ns3::dsr::PassiveBuffer::m_passiveBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 233 of file dsr-passive-buff.h.

Referenced by Enqueue(), GetPassiveBufferTimeout(), and SetPassiveBufferTimeout().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-passive-buff.h
src/dsr/model/dsr-passive-buff.cc
