handle packet fragmentation and retransmissions. More...

#include <dca-txop.h>

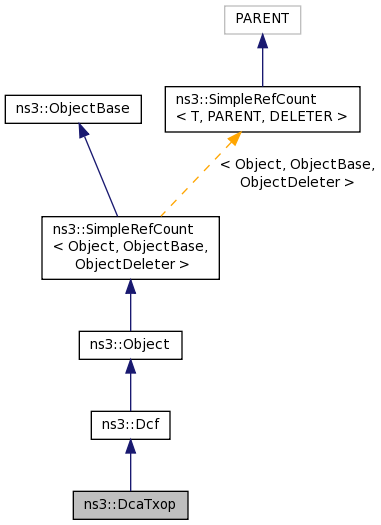

Inheritance diagram for ns3::DcaTxop:

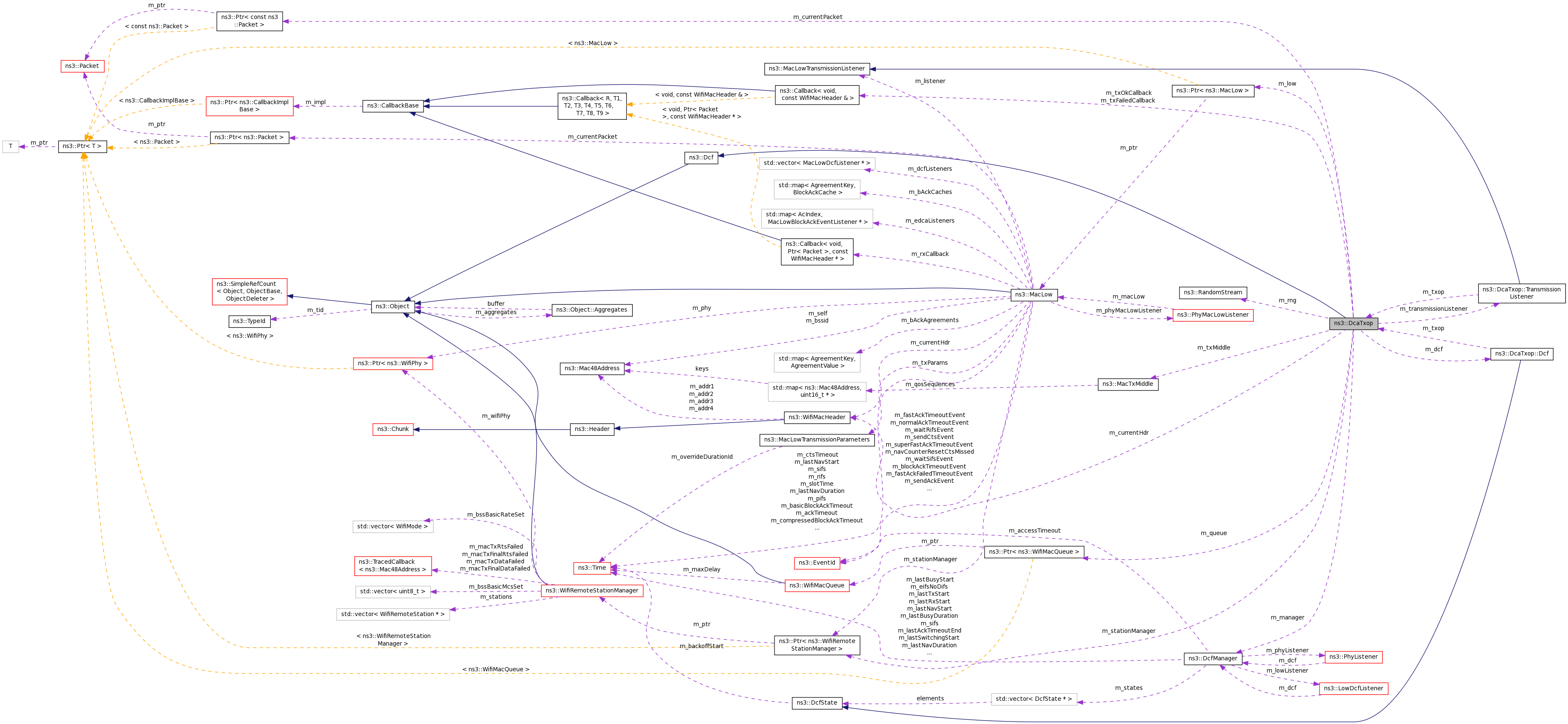

Collaboration diagram for ns3::DcaTxop:

Classes
class	Dcf

class	TransmissionListener
	Listener for MacLow events. More...

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions
	DcaTxop ()

	~DcaTxop ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

virtual uint32_t	GetMaxCw (void) const
	Return the maximum congestion window size. More...

virtual uint32_t	GetMinCw (void) const
	Return the minimum congestion window size. More...

Ptr< WifiMacQueue >	GetQueue () const
	Return the packet queue associated with this DcaTxop. More...

void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

virtual void	SetAifsn (uint32_t aifsn)

void	SetLow (Ptr< MacLow > low)
	Set MacLow associated with this DcaTxop. More...

void	SetManager (DcfManager *manager)
	Set DcfManager this DcaTxop is associated to. More...

virtual void	SetMaxCw (uint32_t maxCw)
	Set the maximum congestion window size. More...

virtual void	SetMinCw (uint32_t minCw)
	Set the minimum congestion window size. More...

void	SetTxFailedCallback (TxFailed callback)

void	SetTxOkCallback (TxOk callback)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)
	Set WifiRemoteStationsManager this DcaTxop is associated to. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Dcf
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	DcaTxop (const DcaTxop &o)

void	Cancel (void)
	Cancel the transmission. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

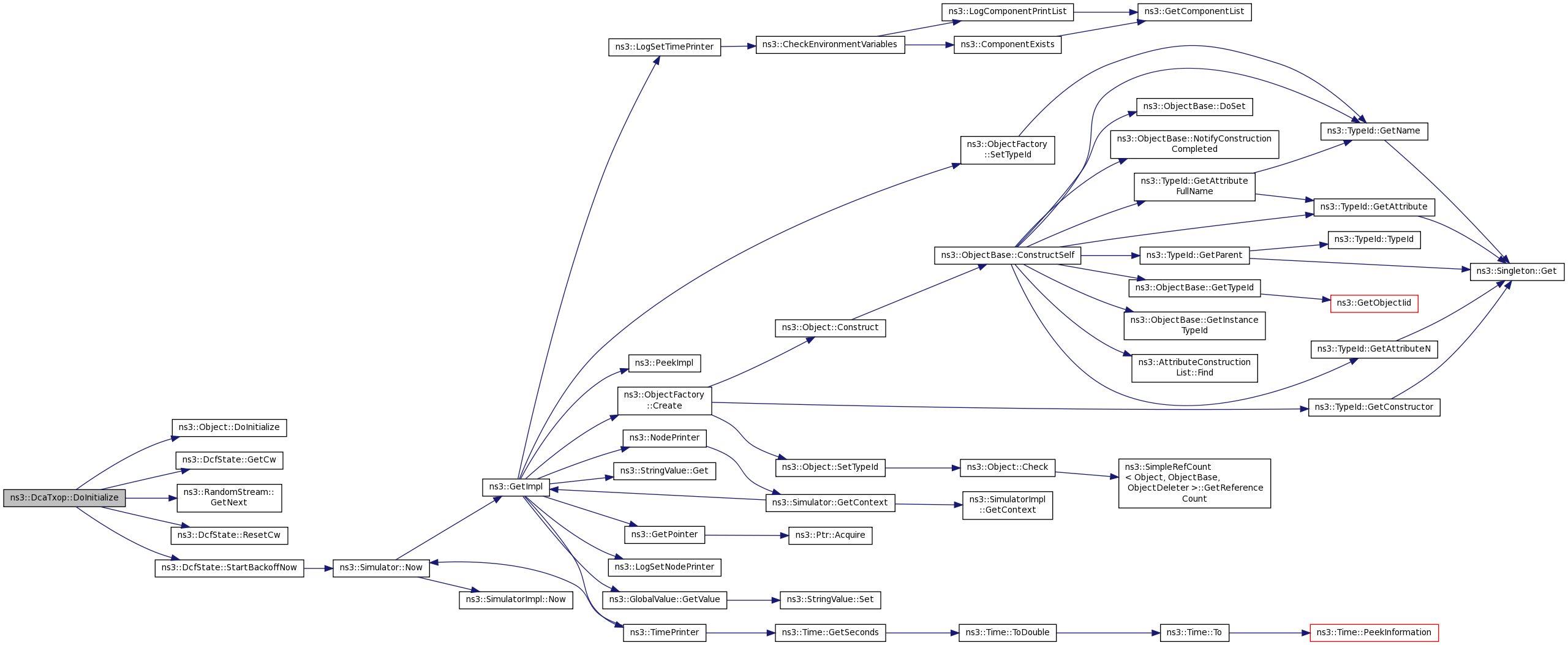

void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

void	EndTxNoAck (void)
	Event handler when a transmission that does not require an ACK has completed. More...

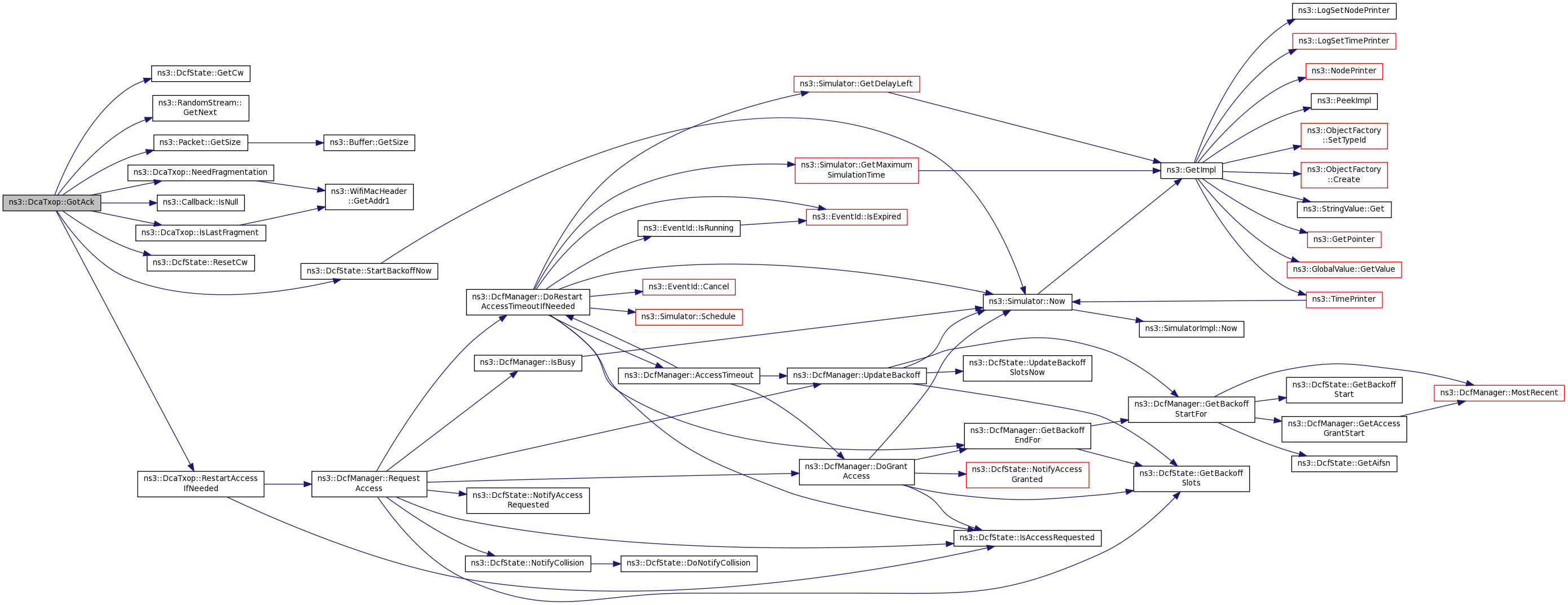

uint32_t	GetFragmentOffset (void)
	Calculate the offset for the current fragment. More...

Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
	Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

uint32_t	GetFragmentSize (void)
	Calculate the size of the current fragment. More...

uint32_t	GetNextFragmentSize (void)
	Calculate the size of the next fragment. More...

void	GotAck (double snr, WifiMode txMode)
	Event handler when an ACK is received. More...

void	GotCts (double snr, WifiMode txMode)
	Event handler when a CTS is received. More...

bool	IsLastFragment (void)
	Check if the curren fragment is the last fragment. More...

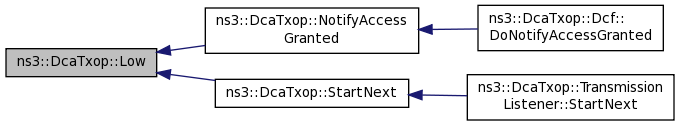

Ptr< MacLow >	Low (void)
	Return the MacLow associated with this DcaTxop. More...

void	MissedAck (void)
	Event handler when an ACK is received. More...

void	MissedCts (void)
	Event handler when a CTS timeout has occurred. More...

bool	NeedDataRetransmission (void)
	Check if DATA should be re-transmitted if ACK was missed. More...

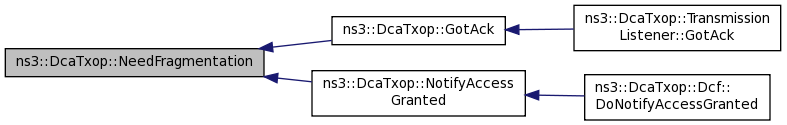

bool	NeedFragmentation (void)
	Check if the current packet should be fragmented. More...

bool	NeedRts (Ptr< const Packet > packet, const WifiMacHeader *header)
	Check if the current packet should be sent with a RTS protection. More...

bool	NeedRtsRetransmission (void)
	Check if RTS should be re-transmitted if CTS was missed. More...

bool	NeedsAccess (void) const
	Check if the DCF requires access. More...

void	NextFragment (void)
	Continue to the next fragment. More...

void	NotifyAccessGranted (void)
	Notify the DCF that access has been granted. More...

void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

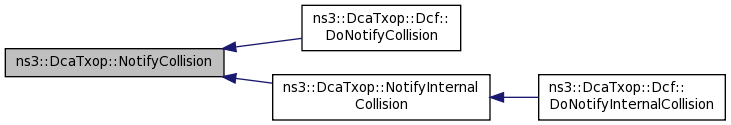

void	NotifyCollision (void)
	Notify the DCF that collision has occurred. More...

void	NotifyInternalCollision (void)
	Notify the DCF that internal collision has occurred. More...

DcaTxop &	operator= (const DcaTxop &)

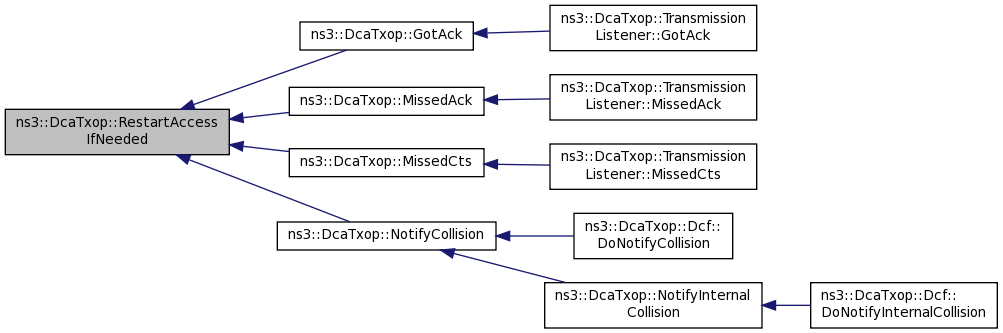

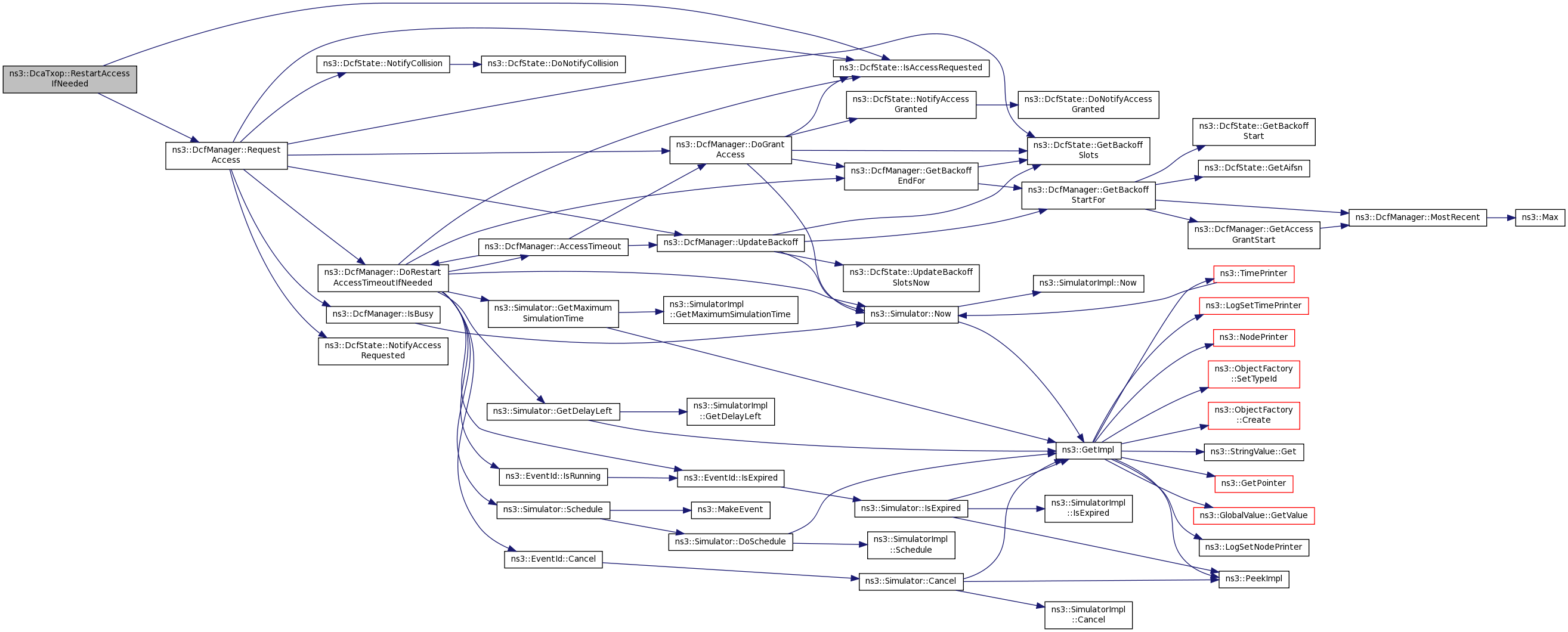

void	RestartAccessIfNeeded (void)
	Restart access request if needed. More...

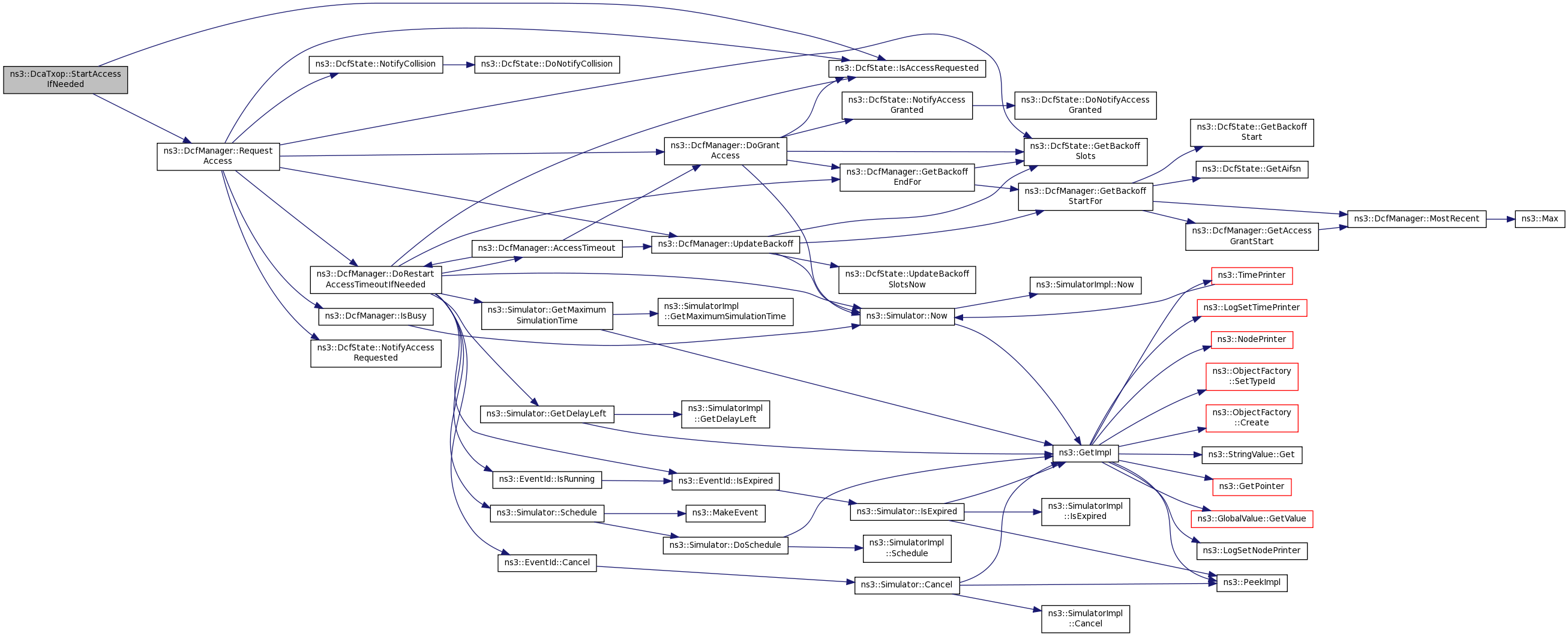

void	StartAccessIfNeeded (void)
	Request access from DCF manager if needed. More...

void	StartNext (void)
	Start transmission for the next fragment. More...

Private Attributes
bool	m_accessOngoing

WifiMacHeader	m_currentHdr

Ptr< const Packet >	m_currentPacket

Dcf *	m_dcf

uint8_t	m_fragmentNumber

Ptr< MacLow >	m_low

DcfManager *	m_manager

Ptr< WifiMacQueue >	m_queue

RandomStream *	m_rng

Ptr< WifiRemoteStationManager >	m_stationManager

TransmissionListener *	m_transmissionListener

TxFailed	m_txFailedCallback

MacTxMiddle *	m_txMiddle

TxOk	m_txOkCallback

Friends
class	Dcf

class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

handle packet fragmentation and retransmissions.

This class implements the packet fragmentation and retransmission policy. It uses the ns3::MacLow and ns3::DcfManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

The policy currently implemented uses a simple fragmentation threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the ssrc or slrc thresholds.

The rts/cts policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the rts/cts protocol is used.

Config Paths

ns3::DcaTxop is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop

Attributes

Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue >
- Flags: read

Attributes defined in parent class ns3::Dcf

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 67 of file dca-txop.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 81 of file dca-txop.h.

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 76 of file dca-txop.h.

Constructor & Destructor Documentation

ns3::DcaTxop::DcaTxop ( )

Definition at line 140 of file dca-txop.cc.

References Dcf, m_dcf, m_queue, m_rng, m_transmissionListener, m_txMiddle, NS_LOG_FUNCTION, and TransmissionListener.

ns3::DcaTxop::~DcaTxop ( )

Definition at line 152 of file dca-txop.cc.

References NS_LOG_FUNCTION.

ns3::DcaTxop::DcaTxop ( const DcaTxop & o )

private

Member Function Documentation

int64_t ns3::DcaTxop::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 264 of file dca-txop.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by AssignWifiRandomStreams(), and ns3::AssignWifiRandomStreams().

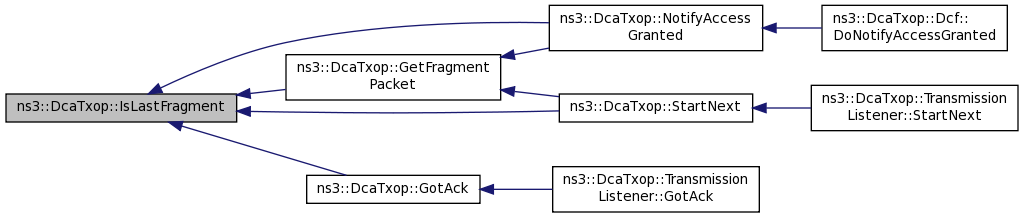

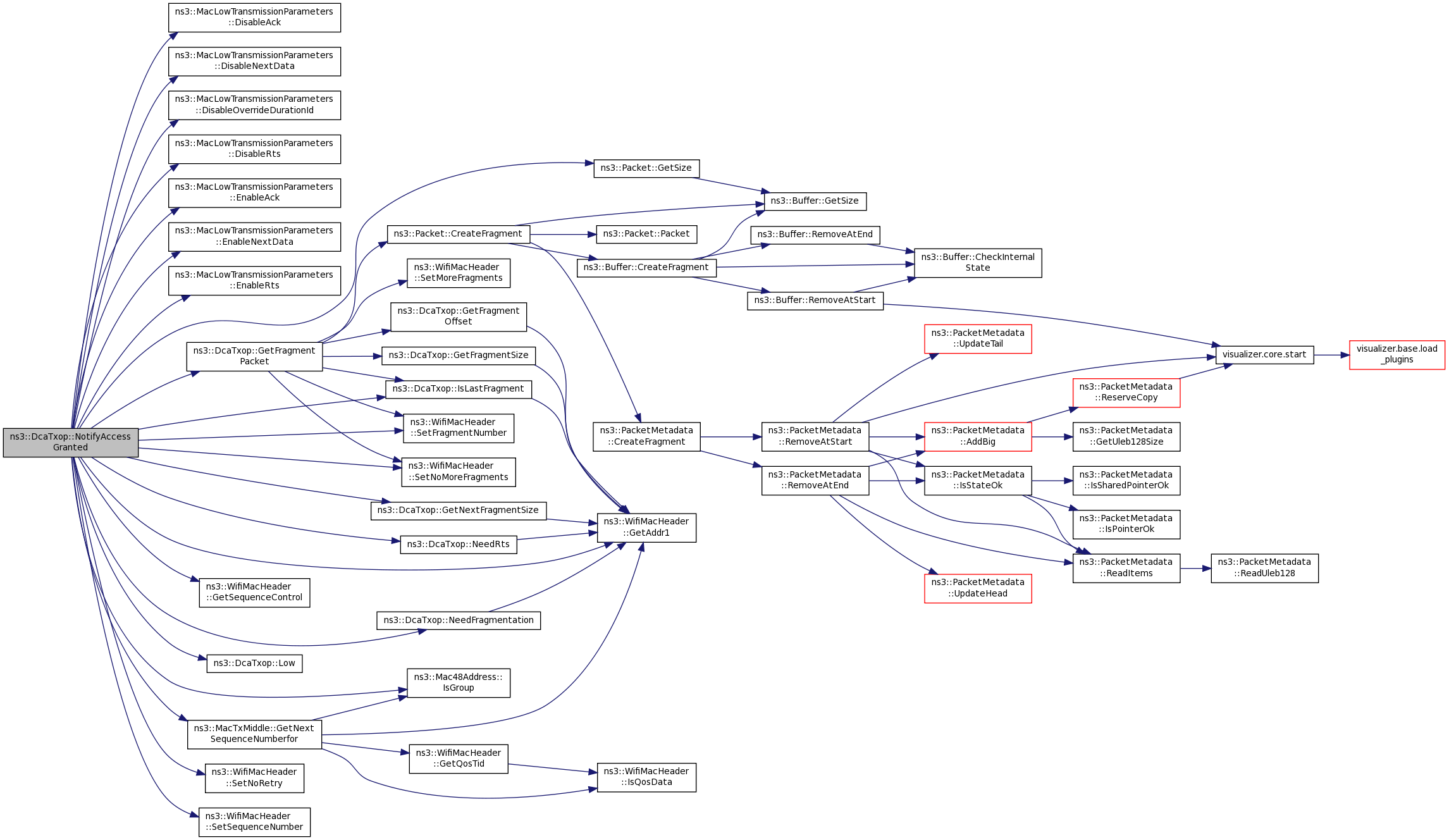

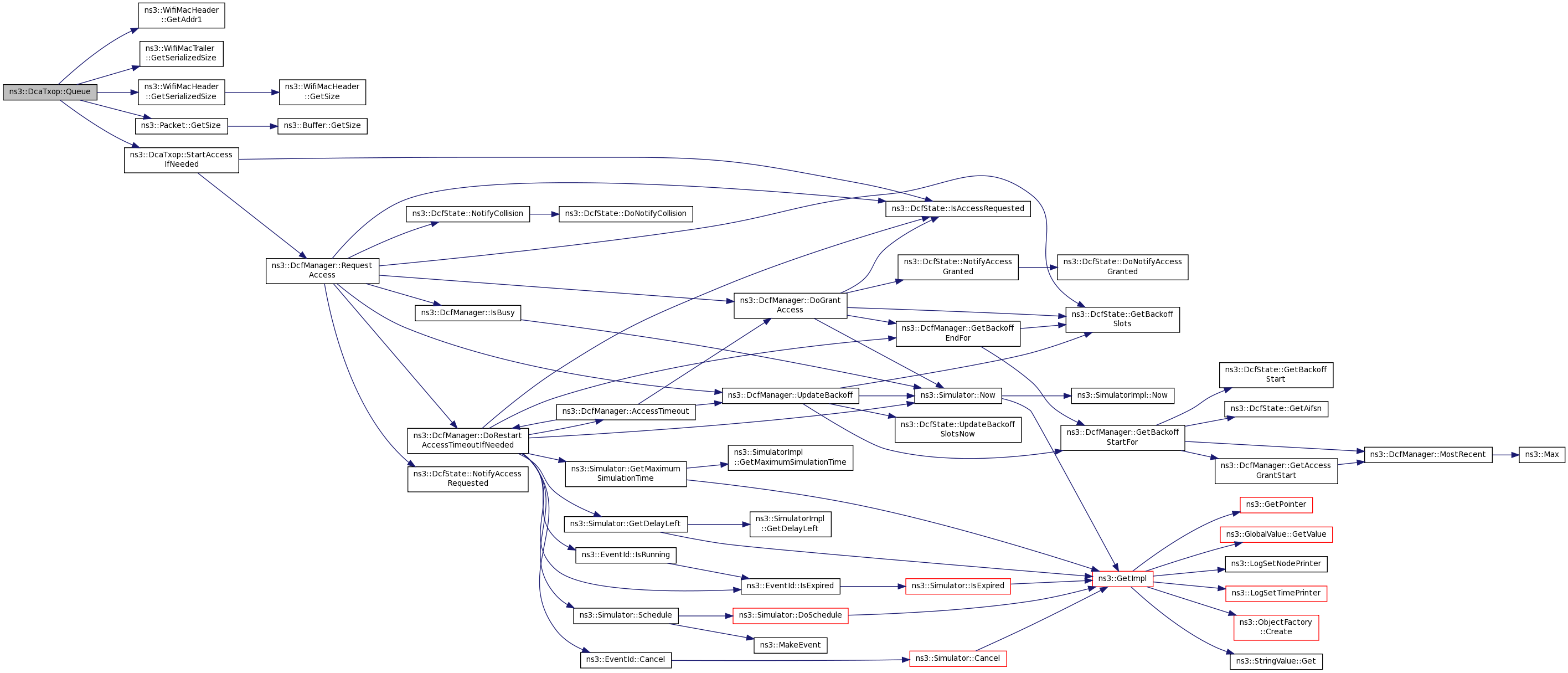

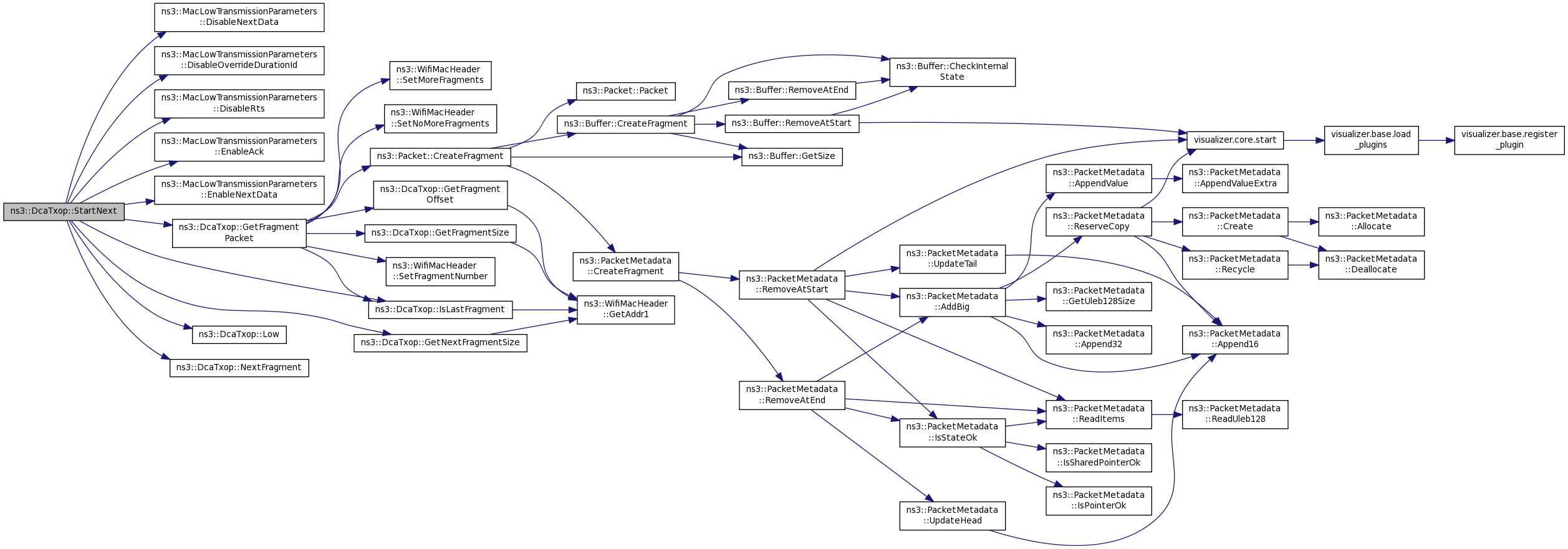

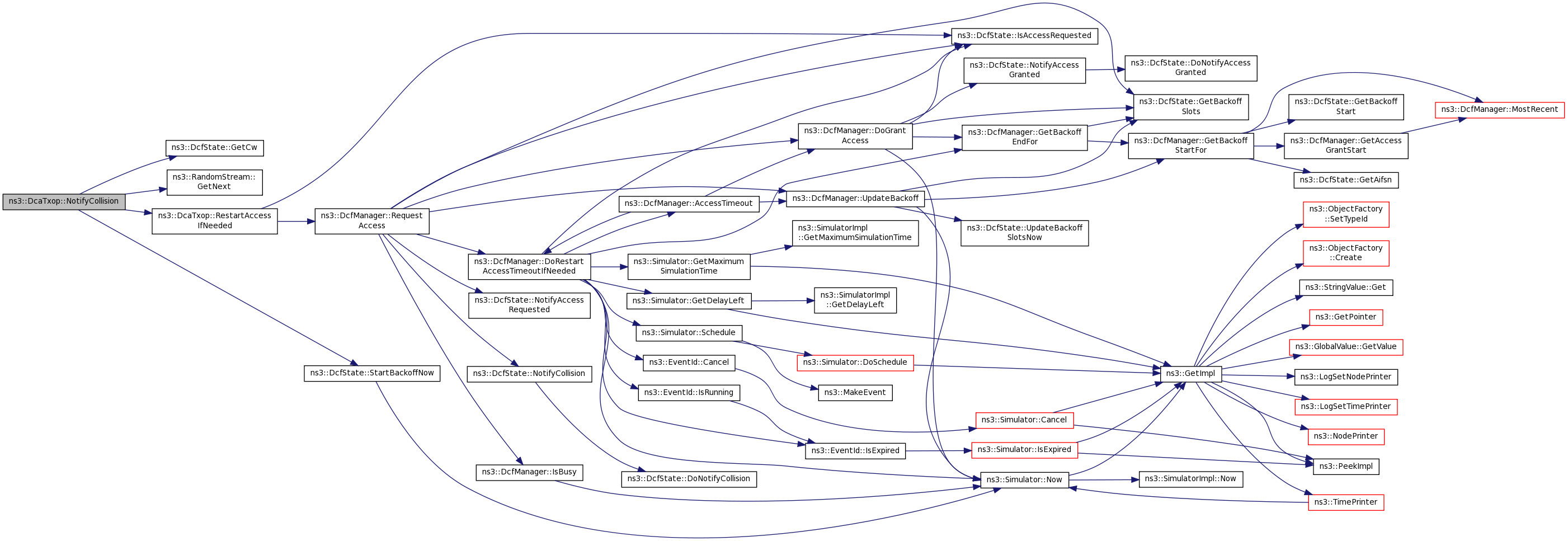

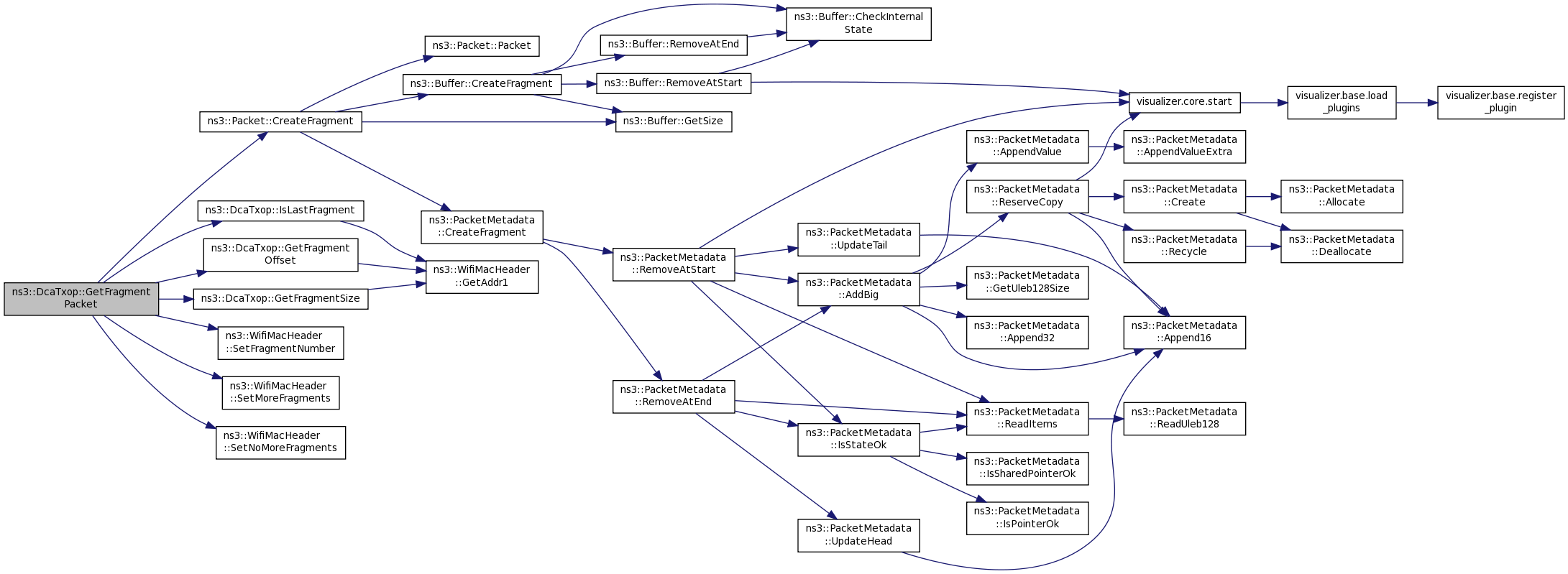

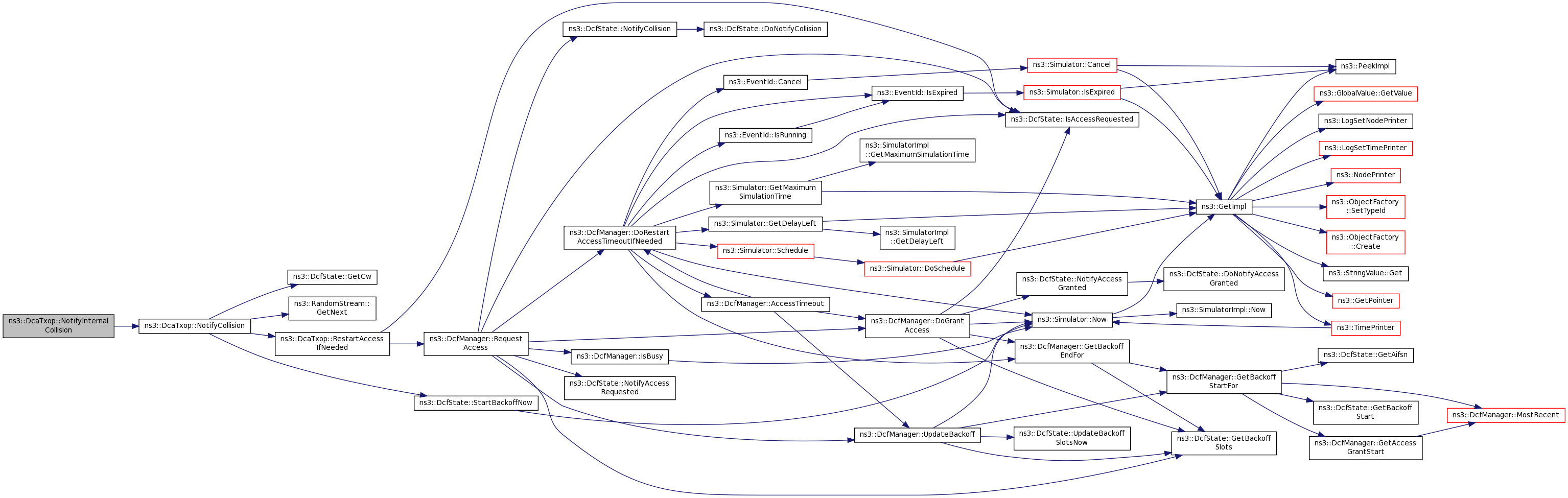

Here is the call graph for this function:

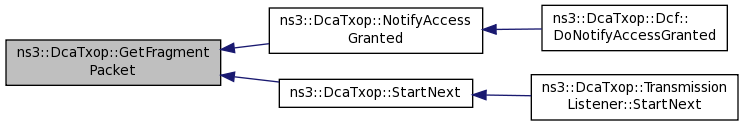

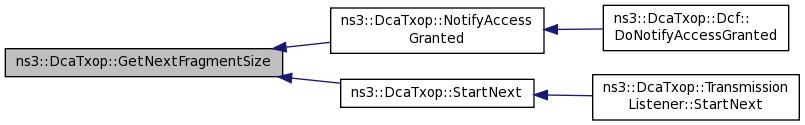

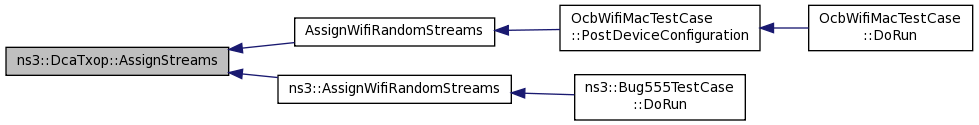

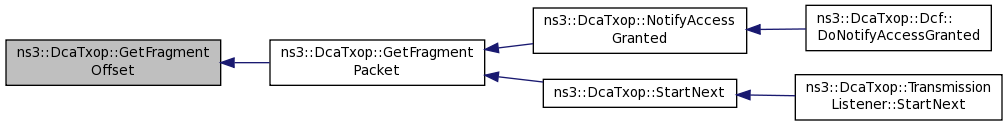

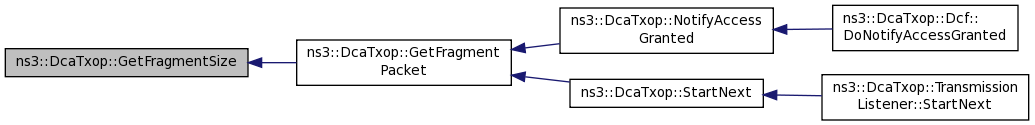

Here is the caller graph for this function:

void ns3::DcaTxop::Cancel ( void )

private

Cancel the transmission.

This happens in only one case: in an AP, you have two DcaTxop:

one is used exclusively for beacons and has a high priority.
the other is used for everything else and has a normal priority.

If the normal queue tries to send a unicast data frame, but if the tx fails (ack timeout), it starts a backoff. If the beacon queue gets a tx oportunity during this backoff, it will trigger a call to this Cancel function.

Since we are already doing a backoff, we will get access to the medium when we can, we have nothing to do here. We just ignore the cancel event and wait until we are given again a tx oportunity.

Note that this is really non-trivial because each of these frames is assigned a sequence number from the same sequence counter (because this is a non-802.11e device) so, the scheme described here fails to ensure in-order delivery of frames at the receiving side. This, however, does not matter in this case because we assume that the receiving side does not update its <seq,ad> tupple for packets whose destination address is a broadcast address.

Definition at line 621 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::Cancel().

Here is the caller graph for this function:

void ns3::DcaTxop::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 158 of file dca-txop.cc.

References m_dcf, m_low, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::DcaTxop::DoInitialize ( void )

privatevirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 312 of file dca-txop.cc.

References ns3::Object::DoInitialize(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

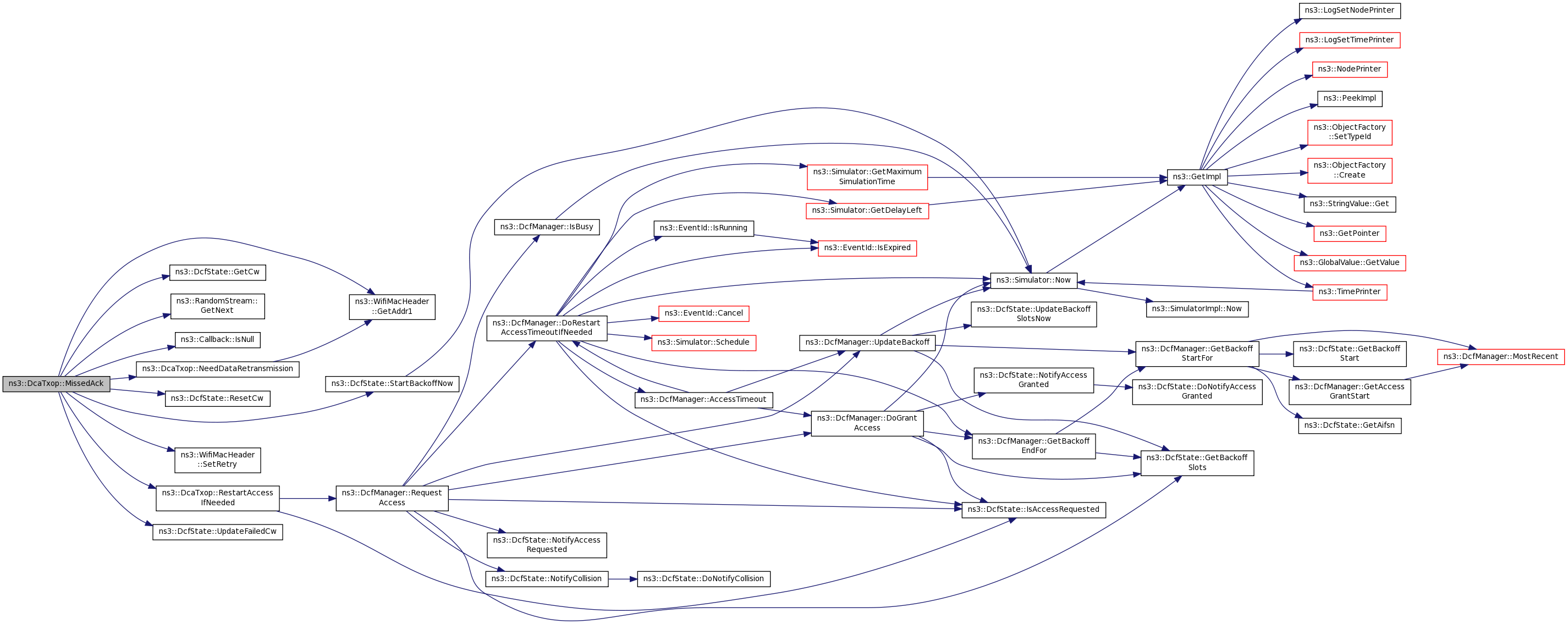

Here is the call graph for this function:

void ns3::DcaTxop::EndTxNoAck ( void )

private

Event handler when a transmission that does not require an ACK has completed.

Definition at line 653 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::EndTxNoAck().

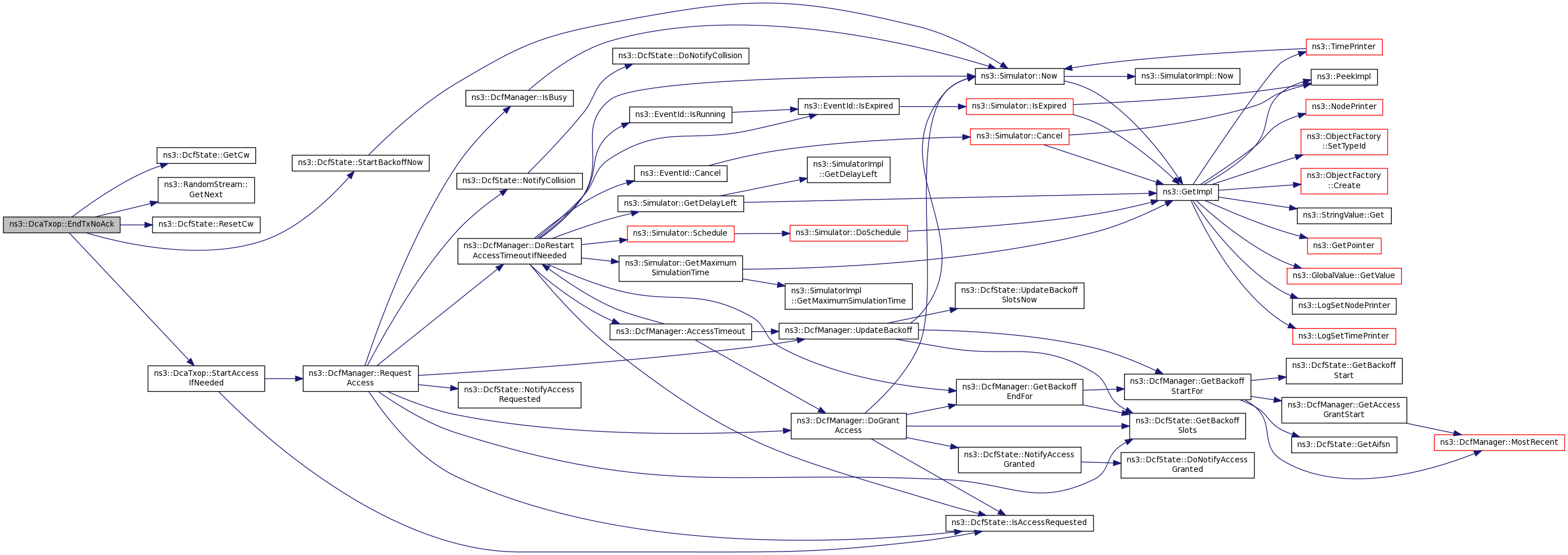

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetAifsn ( void ) const

virtual

Return the number of slots that make up an AIFS.

Returns: the number of slots that make up an AIFS

Implements ns3::Dcf.

Definition at line 245 of file dca-txop.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetFragmentOffset ( void )

private

Calculate the offset for the current fragment.

Returns: the offset for the current fragment

Definition at line 373 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::DcaTxop::GetFragmentPacket ( WifiMacHeader * hdr )

private

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters

hdr

Returns: the fragment with the current fragment number

Definition at line 381 of file dca-txop.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetFragmentSize ( void )

private

Calculate the size of the current fragment.

Returns: the size of the current fragment

Definition at line 350 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetMaxCw ( void ) const

virtual

Return the maximum congestion window size.

Returns: the maximum congestion window size

Implements ns3::Dcf.

Definition at line 239 of file dca-txop.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetMinCw ( void ) const

virtual

Return the minimum congestion window size.

Returns: the minimum congestion window size

Implements ns3::Dcf.

Definition at line 233 of file dca-txop.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetNextFragmentSize ( void )

private

Calculate the size of the next fragment.

Returns: the size of the next fragment

Definition at line 365 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::DcaTxop::GetQueue ( void ) const

Return the packet queue associated with this DcaTxop.

Returns: WifiMacQueue

Definition at line 208 of file dca-txop.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::DcaTxop::GetTypeId ( void )

static

Definition at line 127 of file dca-txop.cc.

References ns3::TypeId::AddConstructor(), GetQueue(), ns3::Dcf::GetTypeId(), and ns3::TypeId::SetParent().

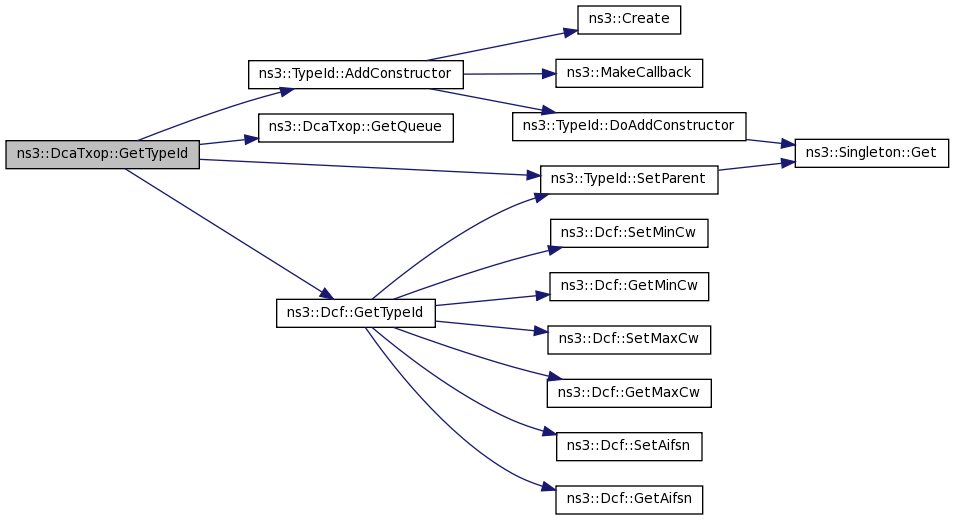

Here is the call graph for this function:

void ns3::DcaTxop::GotAck	(	double	snr,
		WifiMode	txMode
	)

private

Event handler when an ACK is received.

Parameters

snr
txMode

Definition at line 545 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::GotCts	(	double	snr,
		WifiMode	txMode
	)

private

Event handler when a CTS is received.

Parameters

snr
txMode

Definition at line 515 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::GotCts().

Here is the caller graph for this function:

bool ns3::DcaTxop::IsLastFragment ( void )

private

Check if the curren fragment is the last fragment.

Returns: true if the curren fragment is the last fragment, false otherwise

Definition at line 357 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< MacLow > ns3::DcaTxop::Low ( void )

private

Return the MacLow associated with this DcaTxop.

Returns: MacLow

Definition at line 297 of file dca-txop.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

Here is the caller graph for this function:

void ns3::DcaTxop::MissedAck ( void )

private

Event handler when an ACK is received.

Definition at line 571 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedAck().

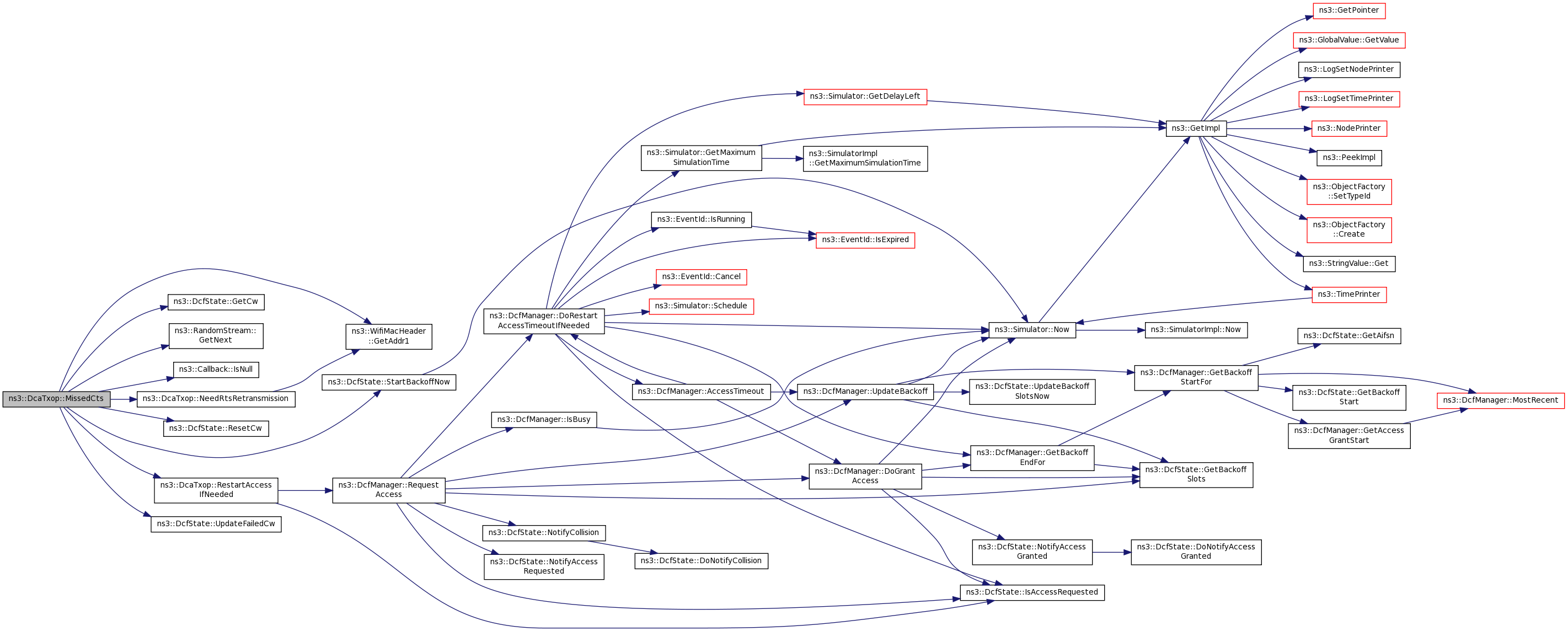

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::MissedCts ( void )

private

Event handler when a CTS timeout has occurred.

Definition at line 521 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedDataRetransmission ( void )

private

Check if DATA should be re-transmitted if ACK was missed.

Returns: true if DATA should be re-transmitted, false otherwise

Definition at line 328 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedFragmentation ( void )

private

Check if the current packet should be fragmented.

Returns: true if the current packet should be fragmented, false otherwise

Definition at line 335 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedRts	(	Ptr< const Packet >	packet,
		const WifiMacHeader *	header
	)

private

Check if the current packet should be sent with a RTS protection.

Parameters

packet
header

Returns: true if RTS protection should be used, false otherwise

Definition at line 304 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedRtsRetransmission ( void )

private

Check if RTS should be re-transmitted if CTS was missed.

Returns: true if RTS should be re-transmitted, false otherwise

Definition at line 320 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedsAccess ( void ) const

private

Check if the DCF requires access.

Returns: true if the DCF requires access, false otherwise

Definition at line 402 of file dca-txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

void ns3::DcaTxop::NextFragment ( void )

private

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 343 of file dca-txop.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNext().

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyAccessGranted ( void )

private

Notify the DCF that access has been granted.

Definition at line 408 of file dca-txop.cc.

References ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::WifiMacHeader::GetAddr1(), GetFragmentPacket(), GetNextFragmentSize(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), IsLastFragment(), Low(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_queue, m_transmissionListener, m_txMiddle, NeedFragmentation(), NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), and ns3::WifiMacHeader::SetSequenceNumber().

Referenced by ns3::DcaTxop::Dcf::DoNotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyChannelSwitching ( void )

private

When a channel switching occurs, enqueued packets are removed.

Definition at line 507 of file dca-txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifyChannelSwitching().

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyCollision ( void )

private

Notify the DCF that collision has occurred.

Definition at line 498 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyInternalCollision ( void )

private

Notify the DCF that internal collision has occurred.

Definition at line 492 of file dca-txop.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

DcaTxop& ns3::DcaTxop::operator= ( const DcaTxop & )

private

void ns3::DcaTxop::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 252 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, and StartAccessIfNeeded().

Here is the call graph for this function:

void ns3::DcaTxop::RestartAccessIfNeeded ( void )

private

Restart access request if needed.

Definition at line 272 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), MissedAck(), MissedCts(), and NotifyCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::SetAifsn ( uint32_t aifsn )

virtual

Parameters

aifsn the number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Implements ns3::Dcf.

Definition at line 227 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Here is the call graph for this function:

void ns3::DcaTxop::SetLow ( Ptr< MacLow > low )

Set MacLow associated with this DcaTxop.

Parameters

low MacLow

Definition at line 183 of file dca-txop.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetManager ( DcfManager * manager )

Set DcfManager this DcaTxop is associated to.

Parameters

manager DcfManager

Definition at line 175 of file dca-txop.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::DcaTxop::SetMaxCw ( uint32_t maxCw )

virtual

Set the maximum congestion window size.

Parameters

maxCw the maximum congestion window size

Implements ns3::Dcf.

Definition at line 221 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Here is the call graph for this function:

void ns3::DcaTxop::SetMinCw ( uint32_t minCw )

virtual

Set the minimum congestion window size.

Parameters

minCw the minimum congestion window size

Implements ns3::Dcf.

Definition at line 215 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Here is the call graph for this function:

void ns3::DcaTxop::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 201 of file dca-txop.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 195 of file dca-txop.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > remoteManager )

Set WifiRemoteStationsManager this DcaTxop is associated to.

Parameters

remoteManager WifiRemoteStationManager

Definition at line 189 of file dca-txop.cc.

References m_stationManager, and NS_LOG_FUNCTION.

void ns3::DcaTxop::StartAccessIfNeeded ( void )

private

Request access from DCF manager if needed.

Definition at line 284 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), and Queue().

Here is the call graph for this function:

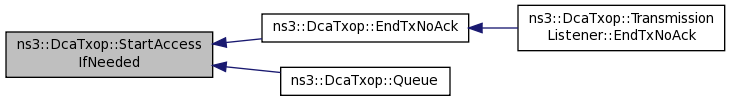

Here is the caller graph for this function:

void ns3::DcaTxop::StartNext ( void )

private

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 597 of file dca-txop.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::StartNext().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf

friend

Definition at line 152 of file dca-txop.h.

Referenced by DcaTxop().

friend class TransmissionListener

friend

Definition at line 154 of file dca-txop.h.

Referenced by DcaTxop().

Member Data Documentation

bool ns3::DcaTxop::m_accessOngoing

private

Definition at line 317 of file dca-txop.h.

WifiMacHeader ns3::DcaTxop::m_currentHdr

private

Definition at line 319 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), and NotifyAccessGranted().

Ptr<const Packet> ns3::DcaTxop::m_currentPacket

private

Definition at line 318 of file dca-txop.h.

Referenced by EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

Dcf* ns3::DcaTxop::m_dcf

private

Definition at line 306 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), DoInitialize(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), MissedAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::DcaTxop::m_fragmentNumber

private

Definition at line 320 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::DcaTxop::m_low

private

Definition at line 312 of file dca-txop.h.

Referenced by DoDispose(), Low(), and SetLow().

DcfManager* ns3::DcaTxop::m_manager

private

Definition at line 307 of file dca-txop.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

Ptr<WifiMacQueue> ns3::DcaTxop::m_queue

private

Definition at line 310 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), Queue(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::DcaTxop::m_rng

private

Definition at line 315 of file dca-txop.h.

Referenced by AssignStreams(), DcaTxop(), DoDispose(), DoInitialize(), EndTxNoAck(), GotAck(), MissedAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::DcaTxop::m_stationManager

private

Definition at line 313 of file dca-txop.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::DcaTxop::m_transmissionListener

private

Definition at line 314 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), NotifyAccessGranted(), and StartNext().

TxFailed ns3::DcaTxop::m_txFailedCallback

private

Definition at line 309 of file dca-txop.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::DcaTxop::m_txMiddle

private

Definition at line 311 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), and NotifyAccessGranted().

TxOk ns3::DcaTxop::m_txOkCallback

private

Definition at line 308 of file dca-txop.h.

Referenced by GotAck(), and SetTxOkCallback().

The documentation for this class was generated from the following files:

src/wifi/model/dca-txop.h
src/wifi/model/dca-txop.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Dcf

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
