The LteSpectrumPhy models the physical layer of LTE. More...

#include <lte-ue-phy.h>

Inheritance diagram for ns3::LteUePhy:

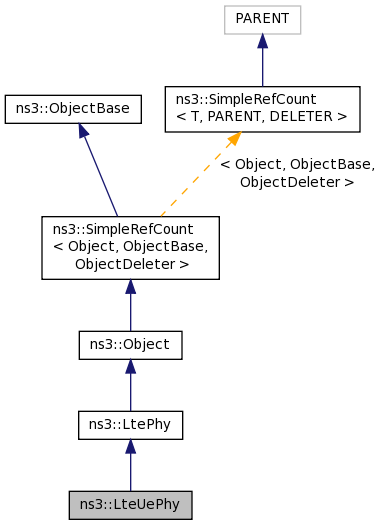

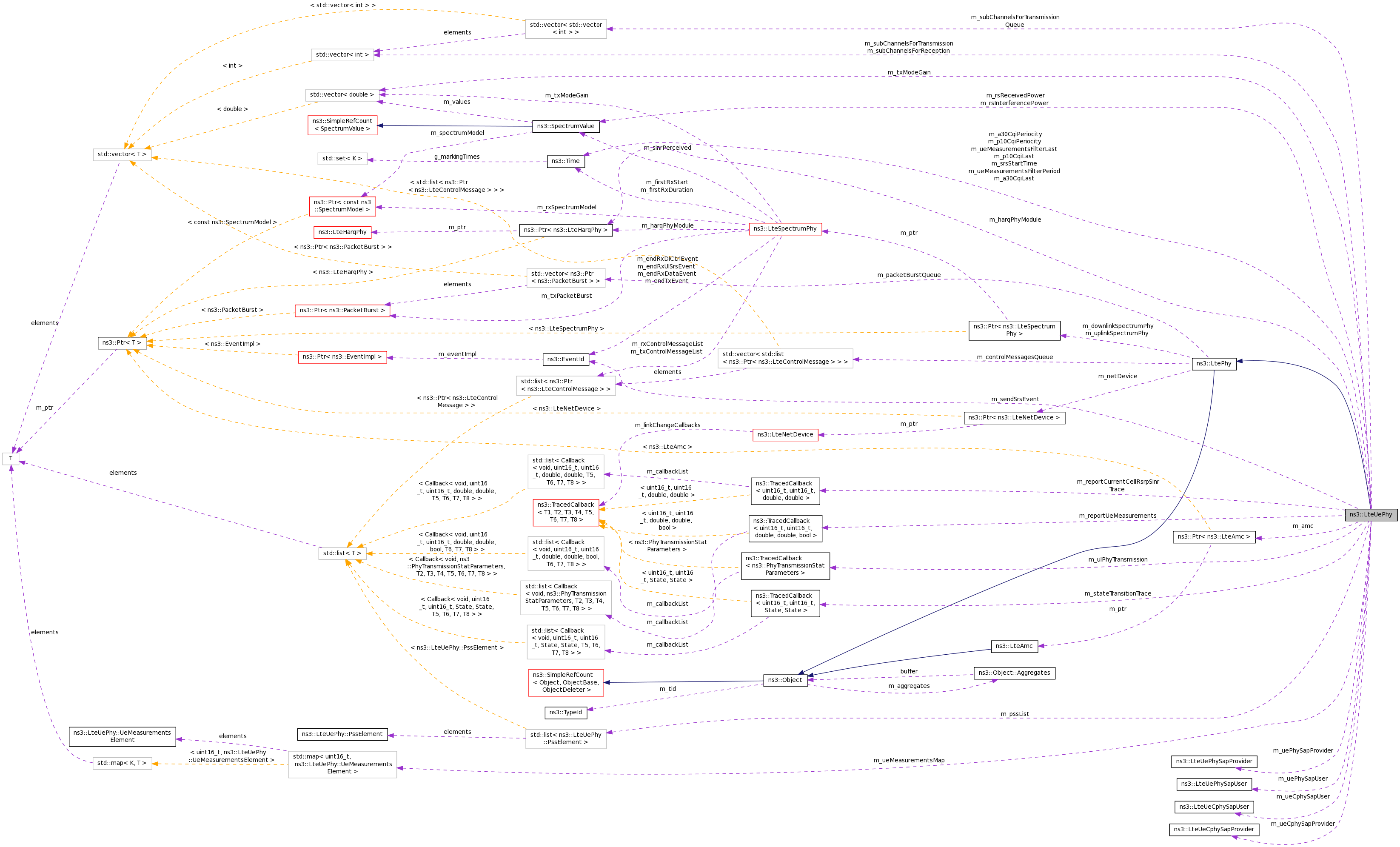

Collaboration diagram for ns3::LteUePhy:

Classes
struct	PssElement

struct	UeMeasurementsElement

Public Types
enum	State { CELL_SEARCH = 0, SYNCHRONIZED, NUM_STATES }
	The states of the UE PHY entity. More...

Public Member Functions
	LteUePhy ()

	LteUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LteUePhy ()

Ptr< DlCqiLteControlMessage >	CreateDlCqiFeedbackMessage (const SpectrumValue &sinr)
	Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB. More...

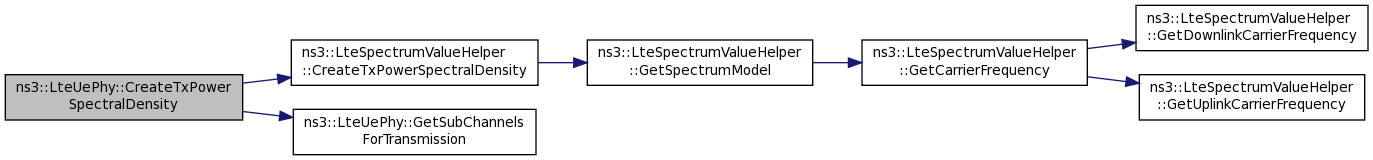

virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

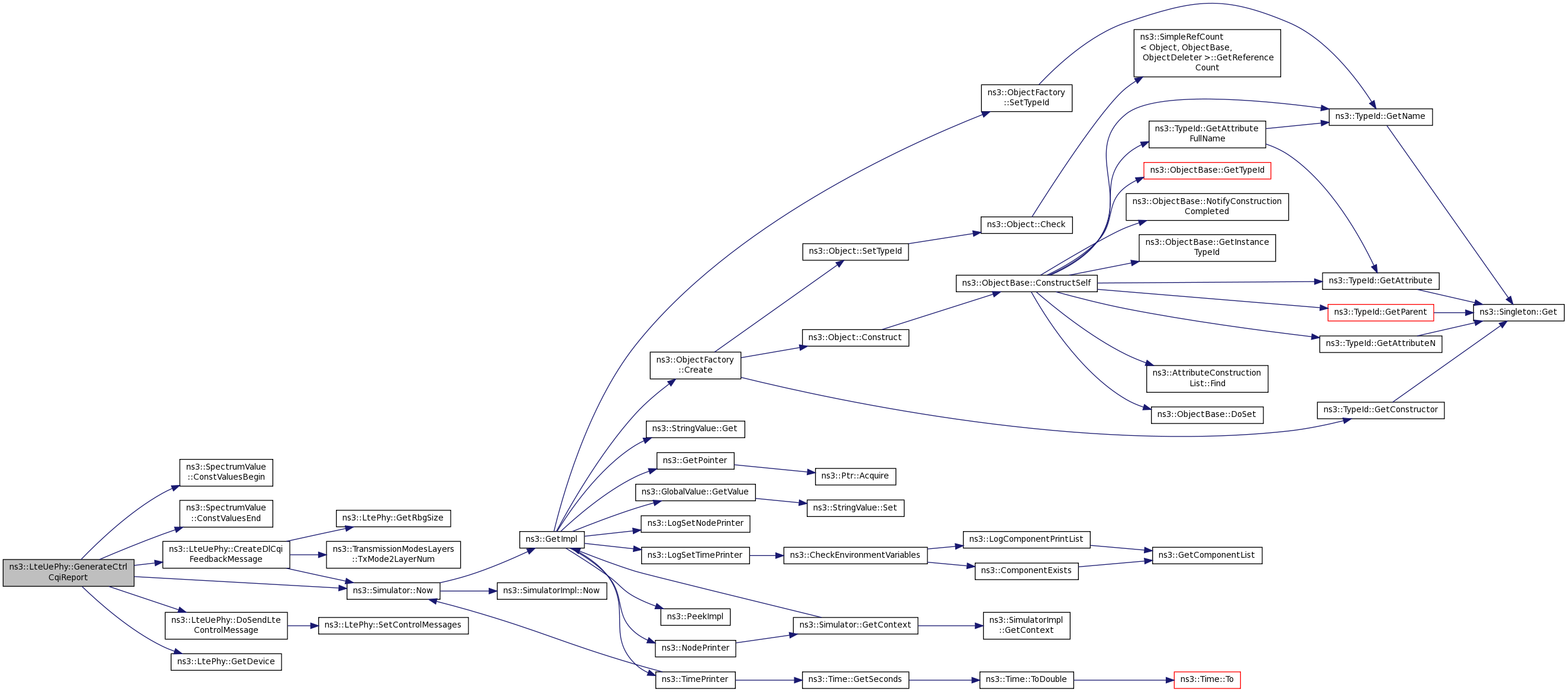

virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Ctrl frame More...

virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs) More...

Ptr< LteSpectrumPhy >	GetDlSpectrumPhy () const

LteUeCphySapProvider *	GetLteUeCphySapProvider ()
	Get the CPHY SAP provider. More...

LteUePhySapProvider *	GetLteUePhySapProvider ()
	Get the PHY SAP provider. More...

uint8_t	GetMacChDelay (void) const

double	GetNoiseFigure () const

State	GetState () const

std::vector< int >	GetSubChannelsForReception (void)
	Get a list of sub channels to use in RX. More...

std::vector< int >	GetSubChannelsForTransmission (void)
	Get a list of sub channels to use in RX. More...

double	GetTxPower () const

Ptr< LteSpectrumPhy >	GetUlSpectrumPhy () const

void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU. More...

virtual void	ReceiveLteControlMessageList (std::list< Ptr< LteControlMessage > >)

virtual void	ReceiveLteDlHarqFeedback (DlInfoListElement_s mes)
	PhySpectrum generated a new DL HARQ feedback. More...

virtual void	ReceivePss (uint16_t cellId, Ptr< SpectrumValue > p)

virtual void	ReportInterference (const SpectrumValue &interf)
	generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB More...

virtual void	ReportRsReceivedPower (const SpectrumValue &power)
	generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP More...

void	SendSrs ()
	Send the SRS signal in the last symbols of the frame. More...

void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)
	Set the HARQ PHY module. More...

void	SetLteUeCphySapUser (LteUeCphySapUser *s)
	Set the CPHY SAP User. More...

void	SetLteUePhySapUser (LteUePhySapUser *s)
	Set the PHY SAP User. More...

void	SetNoiseFigure (double nf)

void	SetSubChannelsForReception (std::vector< int > mask)
	Get a list of sub channels to use in RX. More...

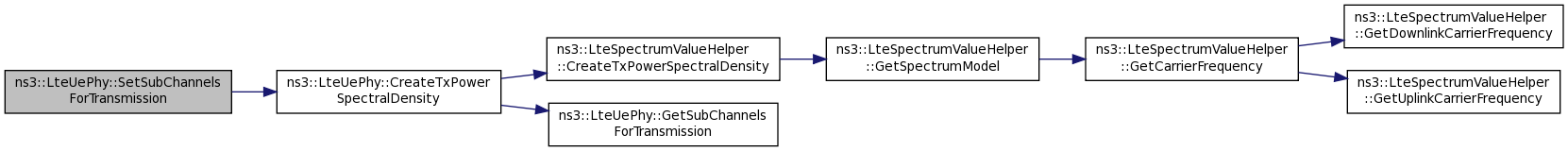

void	SetSubChannelsForTransmission (std::vector< int > mask)
	Set a list of sub channels to use in TX. More...

void	SetTxPower (double pow)

void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	trigger from eNB the start from a new frame More...

Public Member Functions inherited from ns3::LtePhy
	LtePhy ()

	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LtePhy ()

void	DoSetCellId (uint16_t cellId)

std::list< Ptr < LteControlMessage > >	GetControlMessages (void)

Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached. More...

Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()

Ptr< PacketBurst >	GetPacketBurst (void)

uint8_t	GetRbgSize (void) const

uint16_t	GetSrsPeriodicity (uint16_t srcCi) const

uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const

double	GetTti (void) const

Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()

void	SetControlMessages (Ptr< LteControlMessage > m)

void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached. More...

void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
	Set the downlink channel. More...

void	SetMacPdu (Ptr< Packet > p)

void	SetTti (double tti)

void	SetUplinkChannel (Ptr< SpectrumChannel > c)
	Set the uplink channel. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LtePhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

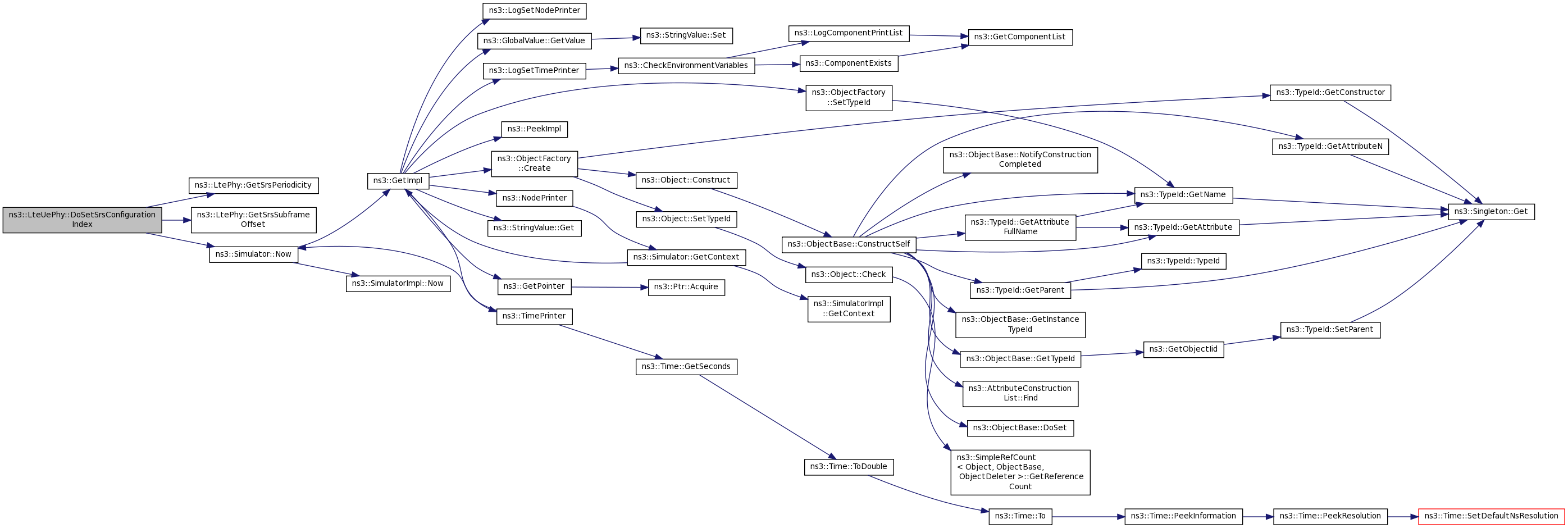

void	DoConfigureUplink (uint16_t ulEarfcn, uint8_t ulBandwidth)

void	DoReset ()

virtual void	DoSendLteControlMessage (Ptr< LteControlMessage > msg)

virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent (according to m_macChTtiDelay) More...

virtual void	DoSendRachPreamble (uint32_t prachId, uint32_t raRnti)

void	DoSetDlBandwidth (uint8_t ulBandwidth)

void	DoSetRnti (uint16_t rnti)

void	DoSetSrsConfigurationIndex (uint16_t srcCi)

void	DoSetTransmissionMode (uint8_t txMode)

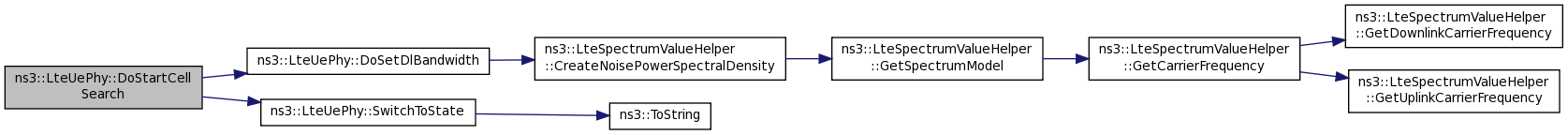

void	DoStartCellSearch (uint16_t dlEarfcn)

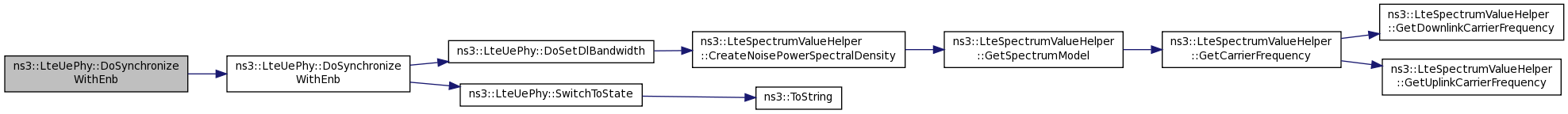

void	DoSynchronizeWithEnb (uint16_t cellId)

void	DoSynchronizeWithEnb (uint16_t cellId, uint16_t dlEarfcn)

void	QueueSubChannelsForTransmission (std::vector< int > rbMap)

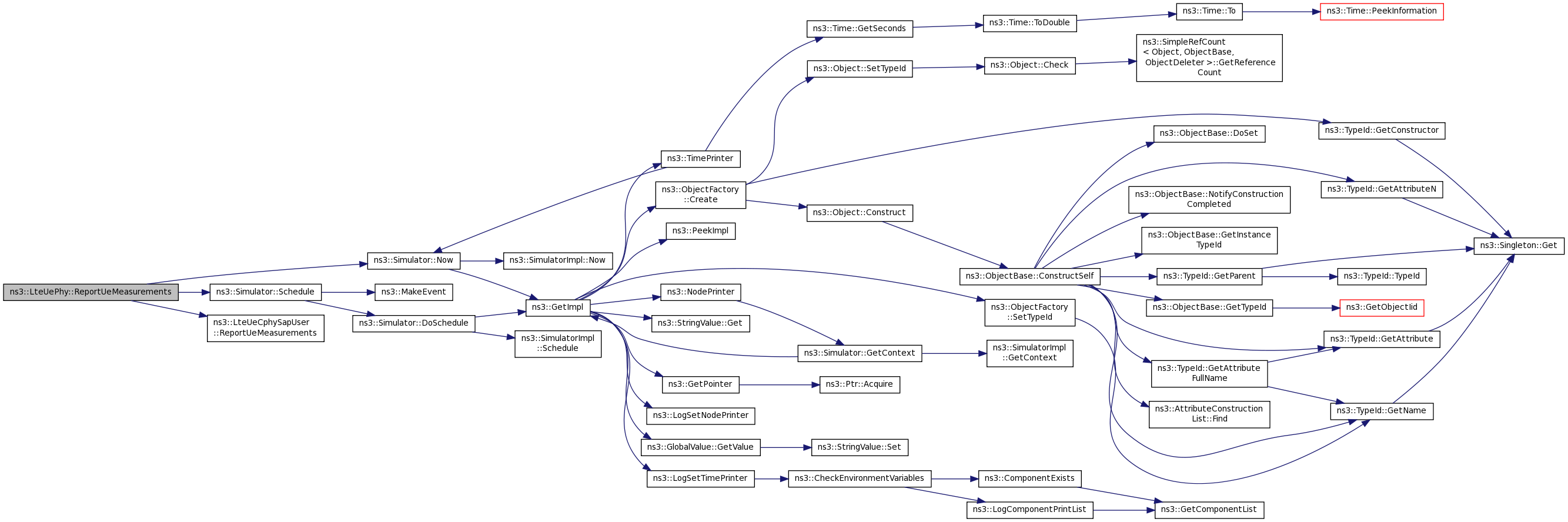

void	ReportUeMeasurements ()
	Layer-1 filtering of RSRP and RSRQ measurements and reporting to the RRC entity. More...

void	SetTxMode1Gain (double gain)

void	SetTxMode2Gain (double gain)

void	SetTxMode3Gain (double gain)

void	SetTxMode4Gain (double gain)

void	SetTxMode5Gain (double gain)

void	SetTxMode6Gain (double gain)

void	SetTxMode7Gain (double gain)

void	SetTxModeGain (uint8_t txMode, double gain)

void	SwitchToState (State s)

Private Attributes
Time	m_a30CqiLast

Time	m_a30CqiPeriocity

Ptr< LteAmc >	m_amc

bool	m_dlConfigured

Ptr< LteHarqPhy >	m_harqPhyModule

Time	m_p10CqiLast
	SubBand Aperiodic CQI: activated by DCI format 0 or Random Access Response Grant. More...

Time	m_p10CqiPeriocity
	Wideband Periodic CQI: 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms. More...

std::list< PssElement >	m_pssList

bool	m_pssReceived

double	m_pssReceptionThreshold

uint32_t	m_raPreambleId

uint32_t	m_raRnti

TracedCallback< uint16_t, uint16_t, double, double >	m_reportCurrentCellRsrpSinrTrace
	Trace information regarding RSRP and average SINR (see TS 36.214) uint16_t cellId, uint16_t rnti, double rsrp, double sinr. More...

TracedCallback< uint16_t, uint16_t, double, double, bool >	m_reportUeMeasurements
	Trace information regarding RSRP and RSRQ (see TS 36.214) uint16_t rnti, uint16_t cellId, double rsrpDbm, double rsrqDb, bool isServingCell. More...

uint16_t	m_rnti

SpectrumValue	m_rsInterferencePower

bool	m_rsInterferencePowerUpdated

SpectrumValue	m_rsReceivedPower

bool	m_rsReceivedPowerUpdated

uint16_t	m_rsrpSinrSampleCounter

uint16_t	m_rsrpSinrSamplePeriod

EventId	m_sendSrsEvent

uint16_t	m_srsConfigured

uint16_t	m_srsPeriodicity

Time	m_srsStartTime

uint16_t	m_srsSubframeOffset

State	m_state

TracedCallback< uint16_t, uint16_t, State, State >	m_stateTransitionTrace

std::vector< int >	m_subChannelsForReception

std::vector< int >	m_subChannelsForTransmission

std::vector< std::vector< int > >	m_subChannelsForTransmissionQueue

uint8_t	m_subframeNo

uint8_t	m_transmissionMode

std::vector< double >	m_txModeGain

LteUeCphySapProvider *	m_ueCphySapProvider

LteUeCphySapUser *	m_ueCphySapUser

Time	m_ueMeasurementsFilterLast

Time	m_ueMeasurementsFilterPeriod

std::map< uint16_t, UeMeasurementsElement >	m_ueMeasurementsMap

LteUePhySapProvider *	m_uePhySapProvider

LteUePhySapUser *	m_uePhySapUser

bool	m_ulConfigured

TracedCallback < PhyTransmissionStatParameters >	m_ulPhyTransmission
	Trace information regarding PHY stats from DL Tx perspective PhyTrasmissionStatParameters see lte-common.h. More...

Friends
class	MemberLteUeCphySapProvider< LteUePhy >

class	UeMemberLteUePhySapProvider

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId

std::vector< std::list< Ptr < LteControlMessage > > >	m_controlMessagesQueue

uint8_t	m_dlBandwidth

uint16_t	m_dlEarfcn

Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy

uint8_t	m_macChTtiDelay

Ptr< LteNetDevice >	m_netDevice

double	m_noiseFigure

std::vector< Ptr< PacketBurst > >	m_packetBurstQueue

uint8_t	m_rbgSize

double	m_tti

double	m_txPower

uint8_t	m_ulBandwidth

uint16_t	m_ulEarfcn

Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

The LteSpectrumPhy models the physical layer of LTE.

Config Paths

ns3::LteUePhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy

Attributes

TxPower: Transmission power in dBm
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 9
- Flags: construct write read
TxMode1Gain: Transmission mode 1 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode2Gain: Transmission mode 2 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 4.2
- Flags: construct write
TxMode3Gain: Transmission mode 3 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -2.8
- Flags: construct write
TxMode4Gain: Transmission mode 4 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode5Gain: Transmission mode 5 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode6Gain: Transmission mode 6 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode7Gain: Transmission mode 7 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
RsrpSinrSamplePeriod: The sampling period for reporting RSRP-SINR stats (default value 1)
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
DlSpectrumPhy: The downlink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
- Flags: read
UlSpectrumPhy: The uplink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy >
- Flags: read
RsrqUeMeasThreshold: Receive threshold for PSS on RSRQ [dB]
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -1000
- Flags: construct write read
UeMeasurementsFilterPeriod: Time period for reporting UE measurements (default 200 ms.)
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read

TraceSources

ReportCurrentCellRsrpSinr: RSRP and SINR statistics.
UlPhyTransmission: DL transmission PHY layer statistics.
ReportUeMeasurements: Report UE measurements RSRP (dBm) and RSRQ (dB).
StateTransition: Trace fired upon every UE PHY state transition

Definition at line 50 of file lte-ue-phy.h.

Member Enumeration Documentation

enum ns3::LteUePhy::State

The states of the UE PHY entity.

Enumerator
CELL_SEARCH
SYNCHRONIZED
NUM_STATES

Definition at line 60 of file lte-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteUePhy::LteUePhy ( )

Warning: the default constructor should not be used

Definition at line 125 of file lte-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteUePhy::LteUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 131 of file lte-ue-phy.cc.

References DoReset(), m_amc, ns3::LtePhy::m_macChTtiDelay, m_ueCphySapProvider, m_ueMeasurementsFilterPeriod, m_uePhySapProvider, ns3::Simulator::Now(), NS_ASSERT_MSG, ReportUeMeasurements(), ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), SubframeIndication(), UeMemberLteUePhySapProvider, and UL_PUSCH_TTIS_DELAY.

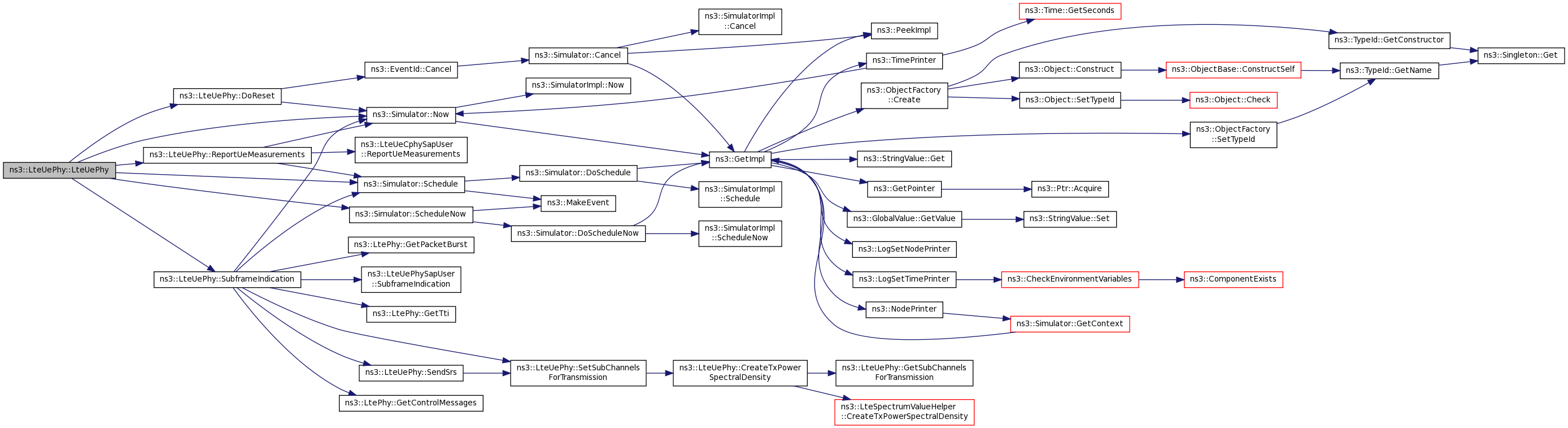

Here is the call graph for this function:

ns3::LteUePhy::~LteUePhy ( )

virtual

Definition at line 160 of file lte-ue-phy.cc.

References m_txModeGain.

Member Function Documentation

Ptr< DlCqiLteControlMessage > ns3::LteUePhy::CreateDlCqiFeedbackMessage ( const SpectrumValue & sinr )

Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.

Parameters

sinr	SINR values vector

Returns: a DL CQI control message containing the CQI feedback

Definition at line 564 of file lte-ue-phy.cc.

References ns3::CqiListElement_s::A30, ns3::LtePhy::GetRbgSize(), m_a30CqiLast, m_a30CqiPeriocity, m_amc, ns3::LtePhy::m_dlBandwidth, ns3::SbMeasResult_s::m_higherLayerSelected, m_p10CqiLast, m_p10CqiPeriocity, m_rnti, ns3::HigherLayerSelected_s::m_sbCqi, ns3::HigherLayerSelected_s::m_sbPmi, m_transmissionMode, m_txModeGain, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::CqiListElement_s::P10, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Referenced by GenerateCtrlCqiReport().

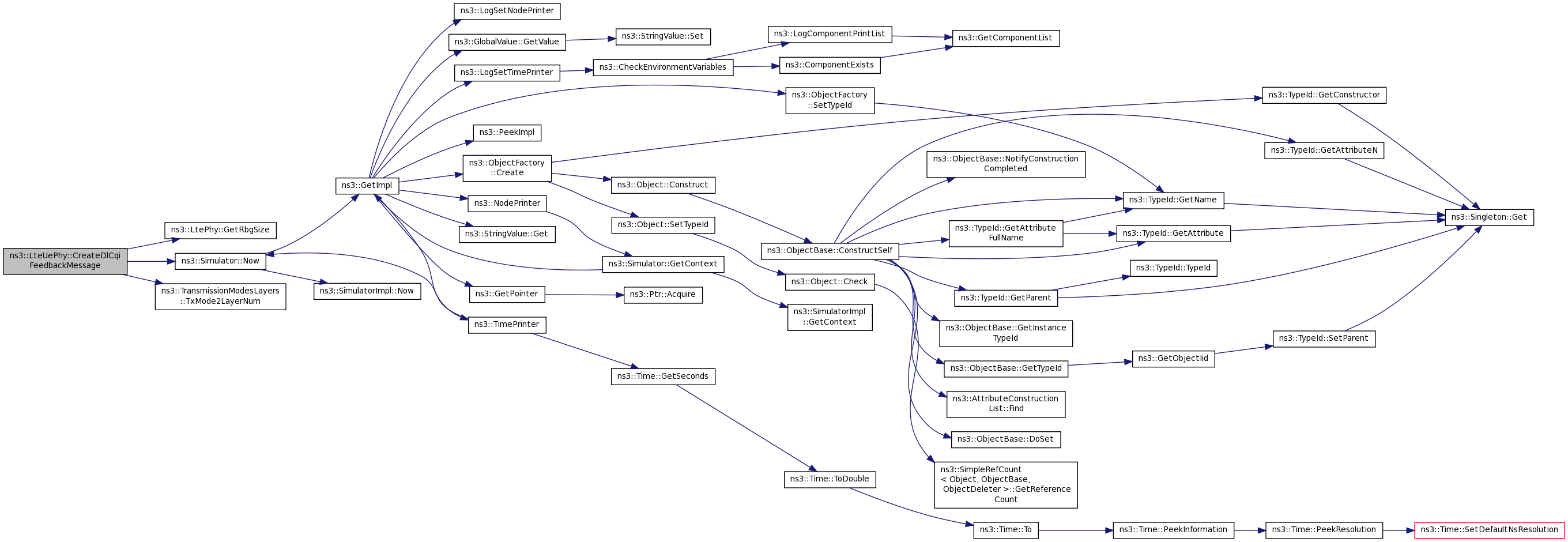

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns: the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 413 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetSubChannelsForTransmission(), ns3::LtePhy::m_txPower, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

Referenced by SetSubChannelsForTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoConfigureUplink	(	uint16_t	ulEarfcn,
		uint8_t	ulBandwidth
	)

private

Definition at line 1137 of file lte-ue-phy.cc.

References ns3::LtePhy::m_ulBandwidth, m_ulConfigured, and ns3::LtePhy::m_ulEarfcn.

void ns3::LteUePhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 166 of file lte-ue-phy.cc.

References ns3::LtePhy::DoDispose(), m_ueCphySapProvider, m_uePhySapProvider, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoInitialize ( void )

virtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 279 of file lte-ue-phy.cc.

References ns3::Object::DoInitialize(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoReset ( void )

private

Definition at line 1030 of file lte-ue-phy.cc.

References ns3::EventId::Cancel(), m_a30CqiLast, ns3::LtePhy::m_controlMessagesQueue, m_dlConfigured, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_macChTtiDelay, m_p10CqiLast, ns3::LtePhy::m_packetBurstQueue, m_raPreambleId, m_raRnti, m_rnti, m_rsrpSinrSampleCounter, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_subChannelsForTransmissionQueue, m_transmissionMode, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by LteUePhy().

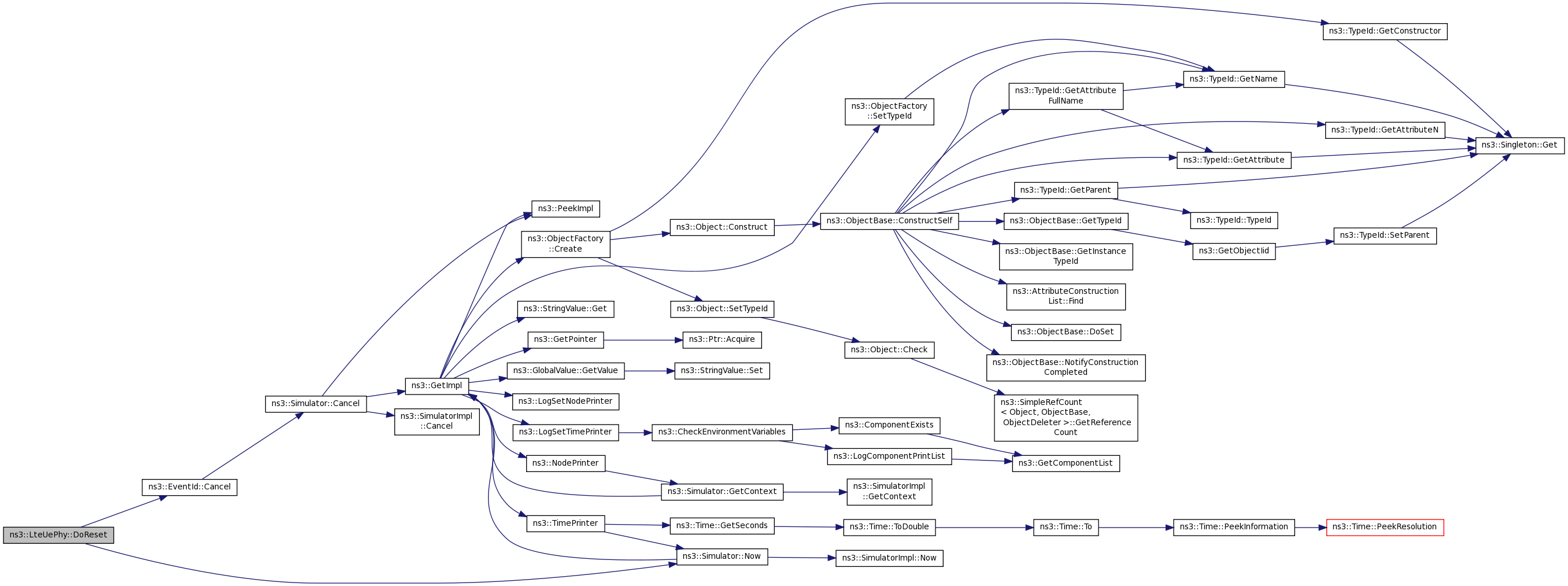

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendLteControlMessage ( Ptr< LteControlMessage > msg )

privatevirtual

Definition at line 705 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by GenerateCtrlCqiReport(), and ns3::UeMemberLteUePhySapProvider::SendLteControlMessage().

Here is the call graph for this function:

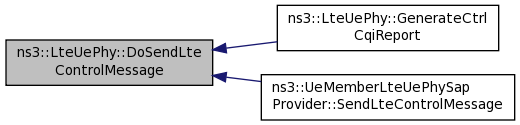

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendMacPdu ( Ptr< Packet > p )

privatevirtual

Queue the MAC PDU to be sent (according to m_macChTtiDelay)

Parameters

p	the MAC PDU to sent

Implements ns3::LtePhy.

Definition at line 362 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::UeMemberLteUePhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendRachPreamble	(	uint32_t	prachId,
		uint32_t	raRnti
	)

privatevirtual

Definition at line 713 of file lte-ue-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, m_raPreambleId, m_raRnti, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUePhySapProvider::SendRachPreamble().

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetDlBandwidth ( uint8_t ulBandwidth )

private

Definition at line 1106 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LtePhy::m_dlBandwidth, m_dlConfigured, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_noiseFigure, ns3::LtePhy::m_rbgSize, NS_LOG_FUNCTION, and ns3::Type0AllocationRbg.

Referenced by DoStartCellSearch(), and DoSynchronizeWithEnb().

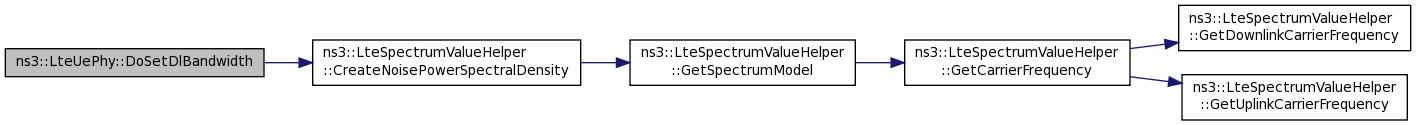

Here is the call graph for this function:

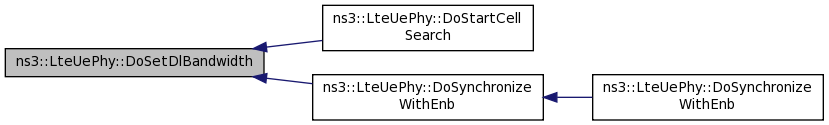

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetRnti ( uint16_t rnti )

private

Definition at line 1146 of file lte-ue-phy.cc.

References m_rnti, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoSetSrsConfigurationIndex ( uint16_t srcCi )

private

Definition at line 1161 of file lte-ue-phy.cc.

References ns3::LtePhy::GetSrsPeriodicity(), ns3::LtePhy::GetSrsSubframeOffset(), ns3::LtePhy::m_cellId, m_rnti, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::DoSetTransmissionMode ( uint8_t txMode )

private

Definition at line 1153 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_transmissionMode, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoStartCellSearch ( uint16_t dlEarfcn )

private

Definition at line 1066 of file lte-ue-phy.cc.

References CELL_SEARCH, DoSetDlBandwidth(), ns3::LtePhy::m_dlEarfcn, NS_LOG_FUNCTION, and SwitchToState().

Here is the call graph for this function:

void ns3::LteUePhy::DoSynchronizeWithEnb ( uint16_t cellId )

private

Definition at line 1083 of file lte-ue-phy.cc.

References DoSetDlBandwidth(), ns3::LtePhy::m_cellId, m_dlConfigured, ns3::LtePhy::m_downlinkSpectrumPhy, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, NS_FATAL_ERROR, NS_LOG_FUNCTION, SwitchToState(), and SYNCHRONIZED.

Referenced by DoSynchronizeWithEnb().

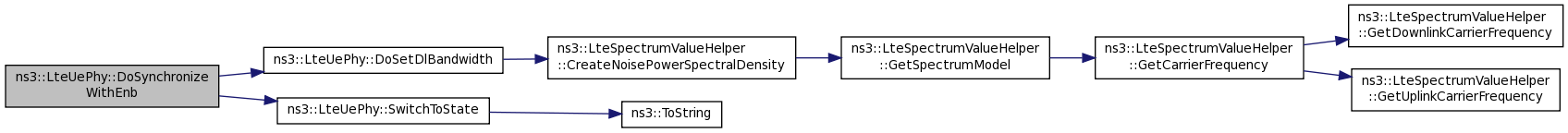

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSynchronizeWithEnb	(	uint16_t	cellId,
		uint16_t	dlEarfcn
	)

private

Definition at line 1075 of file lte-ue-phy.cc.

References DoSynchronizeWithEnb(), ns3::LtePhy::m_dlEarfcn, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteUePhy::GenerateCtrlCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Ctrl frame

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 423 of file lte-ue-phy.cc.

References CELL_SEARCH, ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), CreateDlCqiFeedbackMessage(), DoSendLteControlMessage(), ns3::LtePhy::GetDevice(), m_a30CqiLast, m_a30CqiPeriocity, ns3::LtePhy::m_cellId, m_dlConfigured, m_p10CqiLast, m_p10CqiPeriocity, m_pssList, m_pssReceived, m_pssReceptionThreshold, m_reportCurrentCellRsrpSinrTrace, m_rnti, m_rsInterferencePower, m_rsInterferencePowerUpdated, m_rsReceivedPower, m_rsReceivedPowerUpdated, m_rsrpSinrSampleCounter, m_rsrpSinrSamplePeriod, m_state, m_ueMeasurementsMap, m_ulConfigured, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Here is the call graph for this function:

void ns3::LteUePhy::GenerateDataCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs)

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 540 of file lte-ue-phy.cc.

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetDlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the downlink

Definition at line 350 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUeCphySapProvider * ns3::LteUePhy::GetLteUeCphySapProvider ( )

Get the CPHY SAP provider.

Returns: a pointer to the SAP Provider

Definition at line 308 of file lte-ue-phy.cc.

References m_ueCphySapProvider, and NS_LOG_FUNCTION.

LteUePhySapProvider * ns3::LteUePhy::GetLteUePhySapProvider ( )

Get the PHY SAP provider.

Returns: a pointer to the SAP Provider

Definition at line 293 of file lte-ue-phy.cc.

References m_uePhySapProvider, and NS_LOG_FUNCTION.

uint8_t ns3::LteUePhy::GetMacChDelay ( void ) const

Returns: the TTI delay between MAC and channel

Definition at line 344 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

double ns3::LteUePhy::GetNoiseFigure ( ) const

Returns: the noise figure in dB

Definition at line 322 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

LteUePhy::State ns3::LteUePhy::GetState ( void ) const

Returns: The current state

Definition at line 1266 of file lte-ue-phy.cc.

References m_state, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForReception ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 405 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForTransmission ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 397 of file lte-ue-phy.cc.

References m_subChannelsForTransmission, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity().

Here is the caller graph for this function:

double ns3::LteUePhy::GetTxPower ( ) const

Returns: the transmission power in dBm

Definition at line 336 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::LteUePhy::GetTypeId ( void )

static

Definition at line 177 of file lte-ue-phy.cc.

References ns3::TypeId::ATTR_GET, GetDlSpectrumPhy(), GetNoiseFigure(), GetTxPower(), GetUlSpectrumPhy(), m_pssReceptionThreshold, m_reportCurrentCellRsrpSinrTrace, m_reportUeMeasurements, m_rsrpSinrSamplePeriod, m_stateTransitionTrace, m_ueMeasurementsFilterPeriod, m_ulPhyTransmission, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), SetTxMode7Gain(), and SetTxPower().

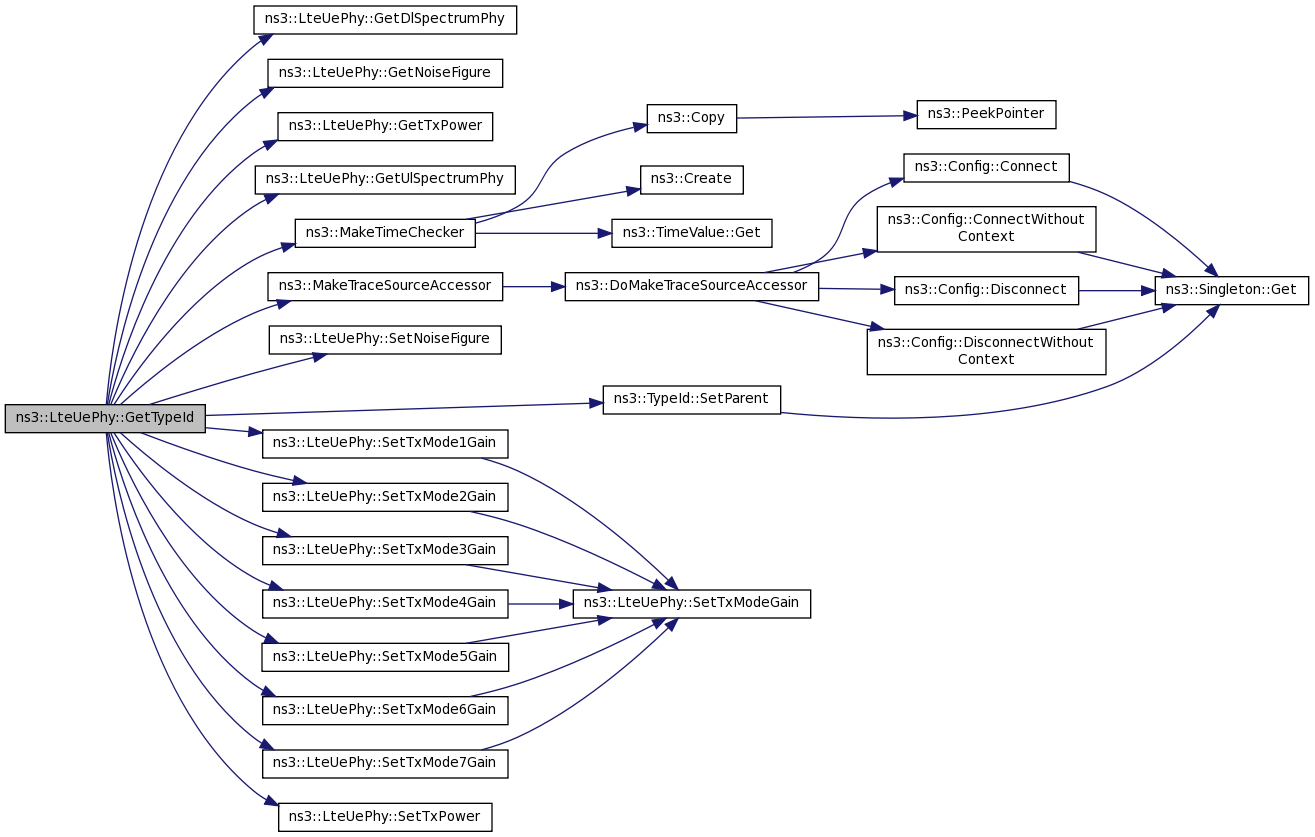

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteUePhy::GetUlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the uplink

Definition at line 356 of file lte-ue-phy.cc.

References ns3::LtePhy::m_uplinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::PhyPduReceived ( Ptr< Packet > p )

PhySpectrum received a new PHY-PDU.

Definition at line 371 of file lte-ue-phy.cc.

References m_uePhySapUser, and ns3::LteUePhySapUser::ReceivePhyPdu().

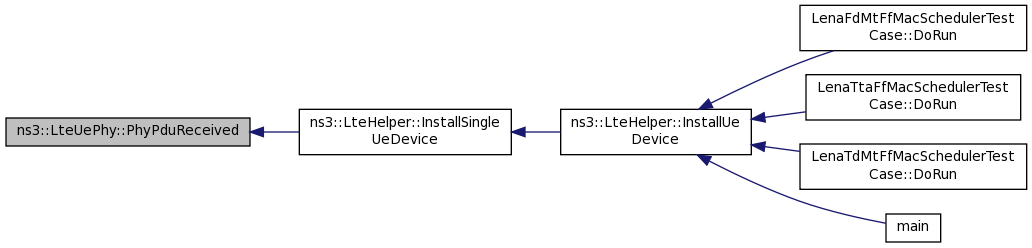

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::QueueSubChannelsForTransmission ( std::vector< int > rbMap )

private

Definition at line 928 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay, and m_subChannelsForTransmissionQueue.

Referenced by ReceiveLteControlMessageList().

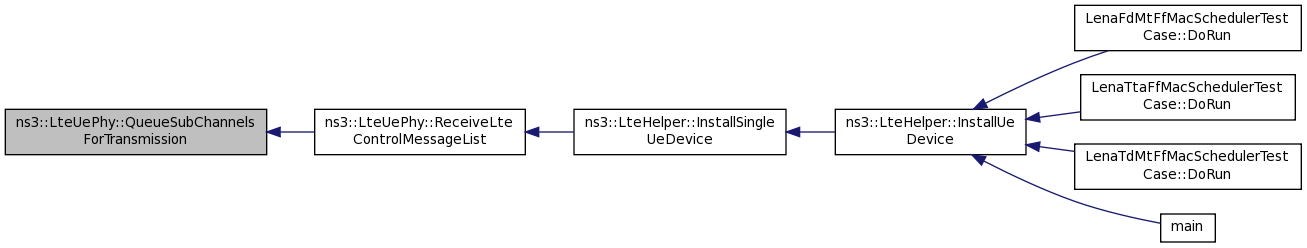

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveLteControlMessageList ( std::list< Ptr< LteControlMessage > > msgList )

virtual

Definition at line 727 of file lte-ue-phy.cc.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

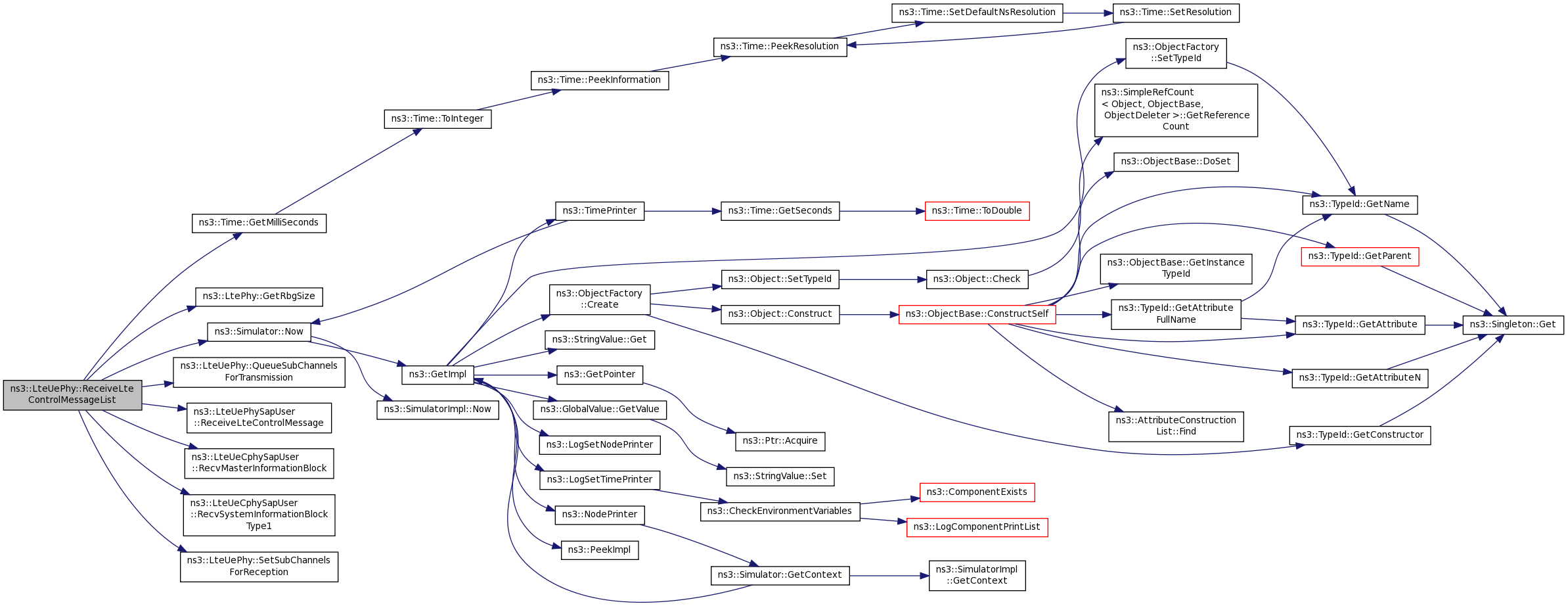

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveLteDlHarqFeedback ( DlInfoListElement_s mes )

virtual

PhySpectrum generated a new DL HARQ feedback.

Definition at line 1249 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

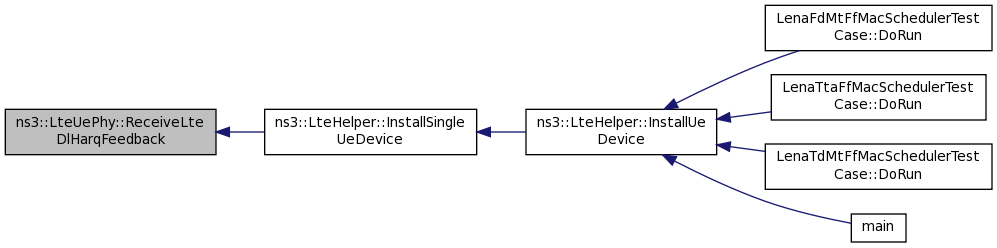

Here is the caller graph for this function:

void ns3::LteUePhy::ReceivePss	(	uint16_t	cellId,
		Ptr< SpectrumValue >	p
	)

virtual

Definition at line 874 of file lte-ue-phy.cc.

References ns3::LteUePhy::PssElement::cellId, ns3::LtePhy::m_cellId, m_pssList, m_pssReceived, m_rnti, m_ueMeasurementsMap, ns3::LteUePhy::PssElement::nRB, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteUePhy::PssElement::pssPsdSum, ns3::LteUePhy::UeMeasurementsElement::rsrpNum, ns3::LteUePhy::UeMeasurementsElement::rsrpSum, ns3::LteUePhy::UeMeasurementsElement::rsrqNum, and ns3::LteUePhy::UeMeasurementsElement::rsrqSum.

Referenced by ns3::LteHelper::InstallSingleUeDevice().

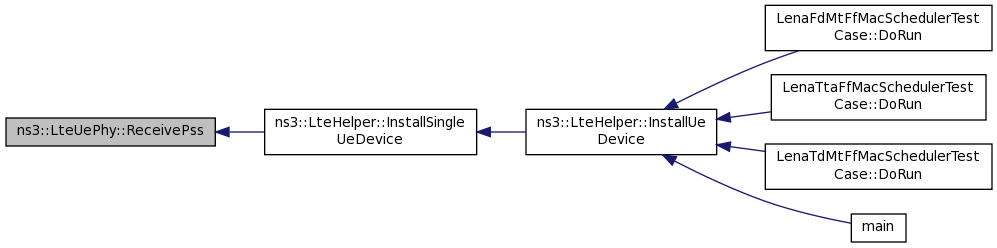

Here is the caller graph for this function:

void ns3::LteUePhy::ReportInterference ( const SpectrumValue & interf )

virtual

generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB

Parameters

interf the interference + noise power measured by the device

Implements ns3::LtePhy.

Definition at line 546 of file lte-ue-phy.cc.

References m_rsInterferencePower, m_rsInterferencePowerUpdated, and NS_LOG_FUNCTION.

void ns3::LteUePhy::ReportRsReceivedPower ( const SpectrumValue & power )

virtual

generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP

Parameters

power the RS power measured by the device

Implements ns3::LtePhy.

Definition at line 554 of file lte-ue-phy.cc.

References m_rsReceivedPower, m_rsReceivedPowerUpdated, and NS_LOG_FUNCTION.

void ns3::LteUePhy::ReportUeMeasurements ( )

private

Layer-1 filtering of RSRP and RSRQ measurements and reporting to the RRC entity.

Initially executed at +0.200s, and then repeatedly executed with periodicity as indicated by the UeMeasurementsFilterPeriod attribute.

Definition at line 664 of file lte-ue-phy.cc.

References ns3::LteUeCphySapUser::UeMeasurementsElement::m_cellId, ns3::LtePhy::m_cellId, m_reportUeMeasurements, m_rnti, ns3::LteUeCphySapUser::UeMeasurementsElement::m_rsrp, ns3::LteUeCphySapUser::UeMeasurementsElement::m_rsrq, m_ueCphySapUser, m_ueMeasurementsFilterPeriod, ns3::LteUeCphySapUser::UeMeasurementsParameters::m_ueMeasurementsList, m_ueMeasurementsMap, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LteUeCphySapUser::ReportUeMeasurements(), and ns3::Simulator::Schedule().

Referenced by LteUePhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SendSrs ( )

Send the SRS signal in the last symbols of the frame.

Definition at line 1014 of file lte-ue-phy.cc.

References ns3::LtePhy::m_cellId, m_rnti, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_uplinkSpectrumPhy, NS_ASSERT, NS_LOG_FUNCTION, and SetSubChannelsForTransmission().

Referenced by SubframeIndication().

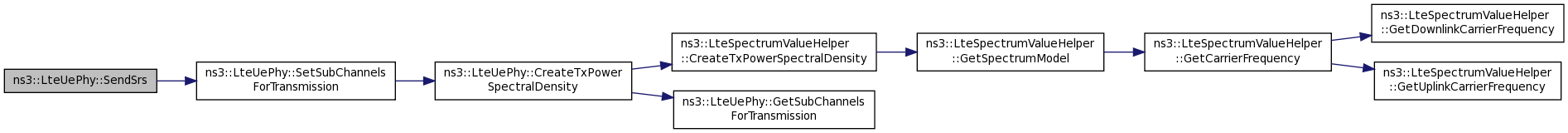

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetHarqPhyModule ( Ptr< LteHarqPhy > harq )

Set the HARQ PHY module.

Definition at line 1259 of file lte-ue-phy.cc.

References m_harqPhyModule.

void ns3::LteUePhy::SetLteUeCphySapUser ( LteUeCphySapUser * s )

Set the CPHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 301 of file lte-ue-phy.cc.

References m_ueCphySapUser, NS_LOG_FUNCTION, and s.

void ns3::LteUePhy::SetLteUePhySapUser ( LteUePhySapUser * s )

Set the PHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 286 of file lte-ue-phy.cc.

References m_uePhySapUser, NS_LOG_FUNCTION, and s.

void ns3::LteUePhy::SetNoiseFigure ( double nf )

Parameters

nf	the noise figure in dB

Definition at line 315 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForReception ( std::vector< int > mask )

Get a list of sub channels to use in RX.

Parameters

mask	list of sub channels

Definition at line 389 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

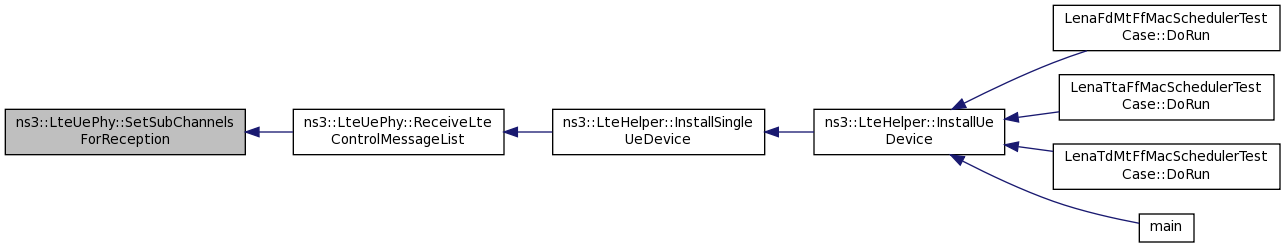

Referenced by ReceiveLteControlMessageList().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForTransmission ( std::vector< int > mask )

Set a list of sub channels to use in TX.

Parameters

mask	a list of sub channels

Definition at line 377 of file lte-ue-phy.cc.

References CreateTxPowerSpectralDensity(), m_subChannelsForTransmission, ns3::LtePhy::m_uplinkSpectrumPhy, and NS_LOG_FUNCTION.

Referenced by SendSrs(), and SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode1Gain ( double gain )

private

Definition at line 1176 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode2Gain ( double gain )

private

Definition at line 1182 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode3Gain ( double gain )

private

Definition at line 1188 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode4Gain ( double gain )

private

Definition at line 1194 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode5Gain ( double gain )

private

Definition at line 1200 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode6Gain ( double gain )

private

Definition at line 1206 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode7Gain ( double gain )

private

Definition at line 1212 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 1219 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_txModeGain, and NS_LOG_FUNCTION.

Referenced by SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), and SetTxMode7Gain().

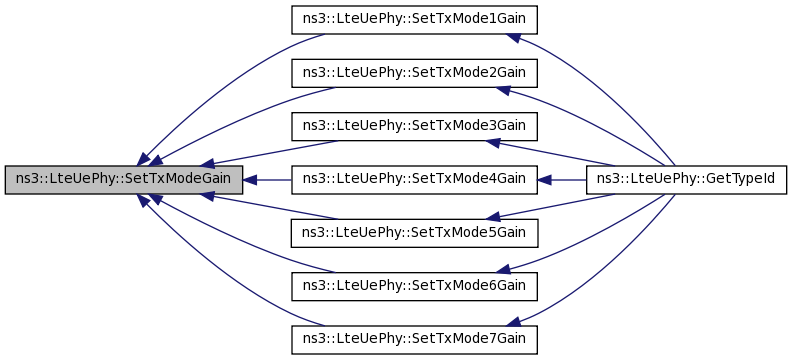

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxPower ( double pow )

Parameters

pow	the transmission power in dBm

Definition at line 329 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

trigger from eNB the start from a new frame

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 935 of file lte-ue-phy.cc.

References ns3::LtePhy::GetControlMessages(), ns3::LtePhy::GetPacketBurst(), ns3::LtePhy::GetTti(), ns3::LtePhy::m_cellId, ns3::LtePhy::m_macChTtiDelay, m_pssReceived, m_rnti, m_rsInterferencePowerUpdated, m_rsReceivedPowerUpdated, m_sendSrsEvent, m_srsConfigured, m_srsPeriodicity, m_srsStartTime, m_srsSubframeOffset, m_subChannelsForTransmissionQueue, m_subframeNo, m_uePhySapUser, m_ulConfigured, ns3::LtePhy::m_uplinkSpectrumPhy, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Simulator::Schedule(), SendSrs(), SetSubChannelsForTransmission(), ns3::LteUePhySapUser::SubframeIndication(), ns3::UL_DATA_DURATION, and ns3::UL_SRS_DELAY_FROM_SUBFRAME_START.

Referenced by LteUePhy().

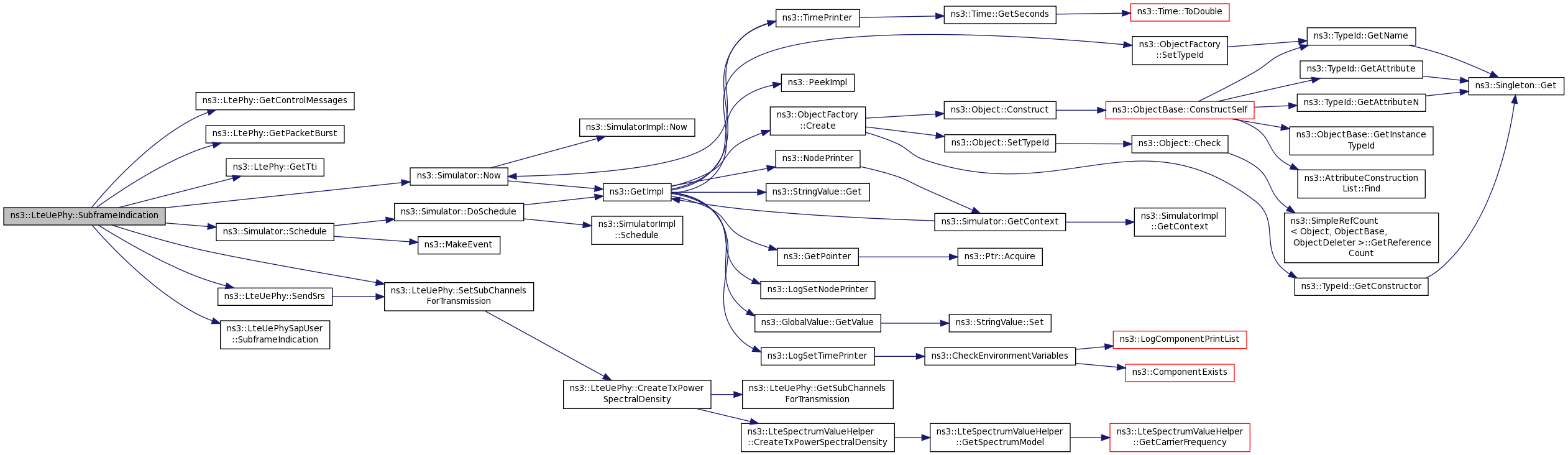

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SwitchToState ( State s )

private

Definition at line 1274 of file lte-ue-phy.cc.

References ns3::LtePhy::m_cellId, m_rnti, m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::ToString().

Referenced by DoStartCellSearch(), and DoSynchronizeWithEnb().

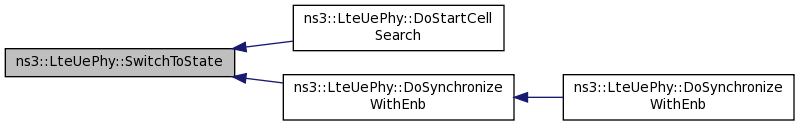

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteUeCphySapProvider< LteUePhy >

friend

Definition at line 54 of file lte-ue-phy.h.

friend class UeMemberLteUePhySapProvider

friend

Definition at line 53 of file lte-ue-phy.h.

Referenced by LteUePhy().

Member Data Documentation

Time ns3::LteUePhy::m_a30CqiLast

private

Definition at line 286 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCtrlCqiReport().

Time ns3::LteUePhy::m_a30CqiPeriocity

private

Definition at line 285 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCtrlCqiReport().

Ptr<LteAmc> ns3::LteUePhy::m_amc

private

Definition at line 278 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and LteUePhy().

bool ns3::LteUePhy::m_dlConfigured

private

Definition at line 304 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetDlBandwidth(), DoSynchronizeWithEnb(), and GenerateCtrlCqiReport().

Ptr<LteHarqPhy> ns3::LteUePhy::m_harqPhyModule

private

Definition at line 342 of file lte-ue-phy.h.

Referenced by ReceiveLteControlMessageList(), and SetHarqPhyModule().

Time ns3::LteUePhy::m_p10CqiLast

private

SubBand Aperiodic CQI: activated by DCI format 0 or Random Access Response Grant.

Definition at line 281 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and GenerateCtrlCqiReport().

Time ns3::LteUePhy::m_p10CqiPeriocity

private

Wideband Periodic CQI: 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms.

Definition at line 280 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCtrlCqiReport().

std::list<PssElement> ns3::LteUePhy::m_pssList

private

Definition at line 326 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and ReceivePss().

bool ns3::LteUePhy::m_pssReceived

private

Definition at line 319 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), ReceivePss(), and SubframeIndication().

double ns3::LteUePhy::m_pssReceptionThreshold

private

Definition at line 328 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and GetTypeId().

uint32_t ns3::LteUePhy::m_raPreambleId

private

Definition at line 344 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

uint32_t ns3::LteUePhy::m_raRnti

private

Definition at line 345 of file lte-ue-phy.h.

Referenced by DoReset(), DoSendRachPreamble(), and ReceiveLteControlMessageList().

TracedCallback<uint16_t, uint16_t, double, double> ns3::LteUePhy::m_reportCurrentCellRsrpSinrTrace

private

Trace information regarding RSRP and average SINR (see TS 36.214) uint16_t cellId, uint16_t rnti, double rsrp, double sinr.

Definition at line 351 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double, double, bool> ns3::LteUePhy::m_reportUeMeasurements

private

Trace information regarding RSRP and RSRQ (see TS 36.214) uint16_t rnti, uint16_t cellId, double rsrpDbm, double rsrqDb, bool isServingCell.

Definition at line 359 of file lte-ue-phy.h.

Referenced by GetTypeId(), and ReportUeMeasurements().

uint16_t ns3::LteUePhy::m_rnti

private

Definition at line 294 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), DoSetRnti(), DoSetSrsConfigurationIndex(), GenerateCtrlCqiReport(), ReceiveLteControlMessageList(), ReceivePss(), ReportUeMeasurements(), SendSrs(), SubframeIndication(), and SwitchToState().

SpectrumValue ns3::LteUePhy::m_rsInterferencePower

private

Definition at line 317 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and ReportInterference().

bool ns3::LteUePhy::m_rsInterferencePowerUpdated

private

Definition at line 316 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), ReportInterference(), and SubframeIndication().

SpectrumValue ns3::LteUePhy::m_rsReceivedPower

private

Definition at line 314 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and ReportRsReceivedPower().

bool ns3::LteUePhy::m_rsReceivedPowerUpdated

private

Definition at line 313 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), ReportRsReceivedPower(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_rsrpSinrSampleCounter

private

Definition at line 353 of file lte-ue-phy.h.

Referenced by DoReset(), and GenerateCtrlCqiReport().

uint16_t ns3::LteUePhy::m_rsrpSinrSamplePeriod

private

Definition at line 352 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), and GetTypeId().

EventId ns3::LteUePhy::m_sendSrsEvent

private

Definition at line 361 of file lte-ue-phy.h.

Referenced by DoReset(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsConfigured

private

Definition at line 301 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetSrsConfigurationIndex(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsPeriodicity

private

Definition at line 299 of file lte-ue-phy.h.

Referenced by DoReset(), DoSetSrsConfigurationIndex(), and SubframeIndication().

Time ns3::LteUePhy::m_srsStartTime

private

Definition at line 302 of file lte-ue-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and SubframeIndication().

uint16_t ns3::LteUePhy::m_srsSubframeOffset

private

Definition at line 300 of file lte-ue-phy.h.

Referenced by DoSetSrsConfigurationIndex(), and SubframeIndication().

State ns3::LteUePhy::m_state

private

Definition at line 307 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), GetState(), and SwitchToState().

TracedCallback<uint16_t, uint16_t, State, State> ns3::LteUePhy::m_stateTransitionTrace

private

Definition at line 309 of file lte-ue-phy.h.

Referenced by GetTypeId(), and SwitchToState().

std::vector<int> ns3::LteUePhy::m_subChannelsForReception

private

Definition at line 273 of file lte-ue-phy.h.

Referenced by GetSubChannelsForReception(), and SetSubChannelsForReception().

std::vector<int> ns3::LteUePhy::m_subChannelsForTransmission

private

Definition at line 272 of file lte-ue-phy.h.

Referenced by GetSubChannelsForTransmission(), and SetSubChannelsForTransmission().

std::vector< std::vector <int> > ns3::LteUePhy::m_subChannelsForTransmissionQueue

private

Definition at line 275 of file lte-ue-phy.h.

Referenced by DoReset(), QueueSubChannelsForTransmission(), and SubframeIndication().

uint8_t ns3::LteUePhy::m_subframeNo

private

Definition at line 311 of file lte-ue-phy.h.

Referenced by SubframeIndication().

uint8_t ns3::LteUePhy::m_transmissionMode

private

Definition at line 296 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), DoReset(), and DoSetTransmissionMode().

std::vector<double> ns3::LteUePhy::m_txModeGain

private

Definition at line 297 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), SetTxModeGain(), and ~LteUePhy().

LteUeCphySapProvider* ns3::LteUePhy::m_ueCphySapProvider

private

Definition at line 291 of file lte-ue-phy.h.

Referenced by DoDispose(), GetLteUeCphySapProvider(), and LteUePhy().

LteUeCphySapUser* ns3::LteUePhy::m_ueCphySapUser

private

Definition at line 292 of file lte-ue-phy.h.

Referenced by ReceiveLteControlMessageList(), ReportUeMeasurements(), and SetLteUeCphySapUser().

Time ns3::LteUePhy::m_ueMeasurementsFilterLast

private

Definition at line 340 of file lte-ue-phy.h.

Time ns3::LteUePhy::m_ueMeasurementsFilterPeriod

private

Definition at line 339 of file lte-ue-phy.h.

Referenced by GetTypeId(), LteUePhy(), and ReportUeMeasurements().

std::map<uint16_t, UeMeasurementsElement> ns3::LteUePhy::m_ueMeasurementsMap

private

Definition at line 338 of file lte-ue-phy.h.

Referenced by GenerateCtrlCqiReport(), ReceivePss(), and ReportUeMeasurements().

LteUePhySapProvider* ns3::LteUePhy::m_uePhySapProvider

private

Definition at line 288 of file lte-ue-phy.h.

Referenced by DoDispose(), GetLteUePhySapProvider(), and LteUePhy().

LteUePhySapUser* ns3::LteUePhy::m_uePhySapUser

private

Definition at line 289 of file lte-ue-phy.h.

Referenced by PhyPduReceived(), ReceiveLteControlMessageList(), SetLteUePhySapUser(), and SubframeIndication().

bool ns3::LteUePhy::m_ulConfigured

private

Definition at line 305 of file lte-ue-phy.h.

Referenced by DoConfigureUplink(), DoReset(), DoSynchronizeWithEnb(), GenerateCtrlCqiReport(), and SubframeIndication().

TracedCallback<PhyTransmissionStatParameters> ns3::LteUePhy::m_ulPhyTransmission

private

Trace information regarding PHY stats from DL Tx perspective PhyTrasmissionStatParameters see lte-common.h.

Definition at line 367 of file lte-ue-phy.h.

Referenced by GetTypeId(), and ReceiveLteControlMessageList().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-phy.h
src/lte/model/lte-ue-phy.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
