The LteSpectrumPhy models the physical layer of LTE. More...

#include <lte-spectrum-phy.h>

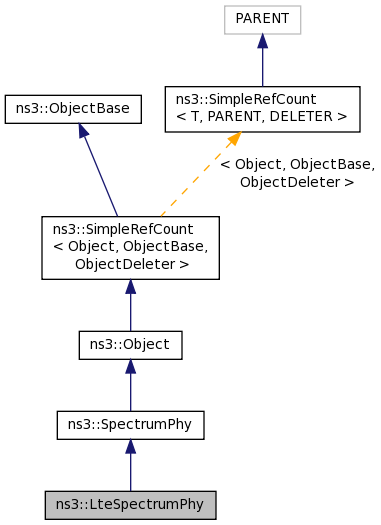

Inheritance diagram for ns3::LteSpectrumPhy:

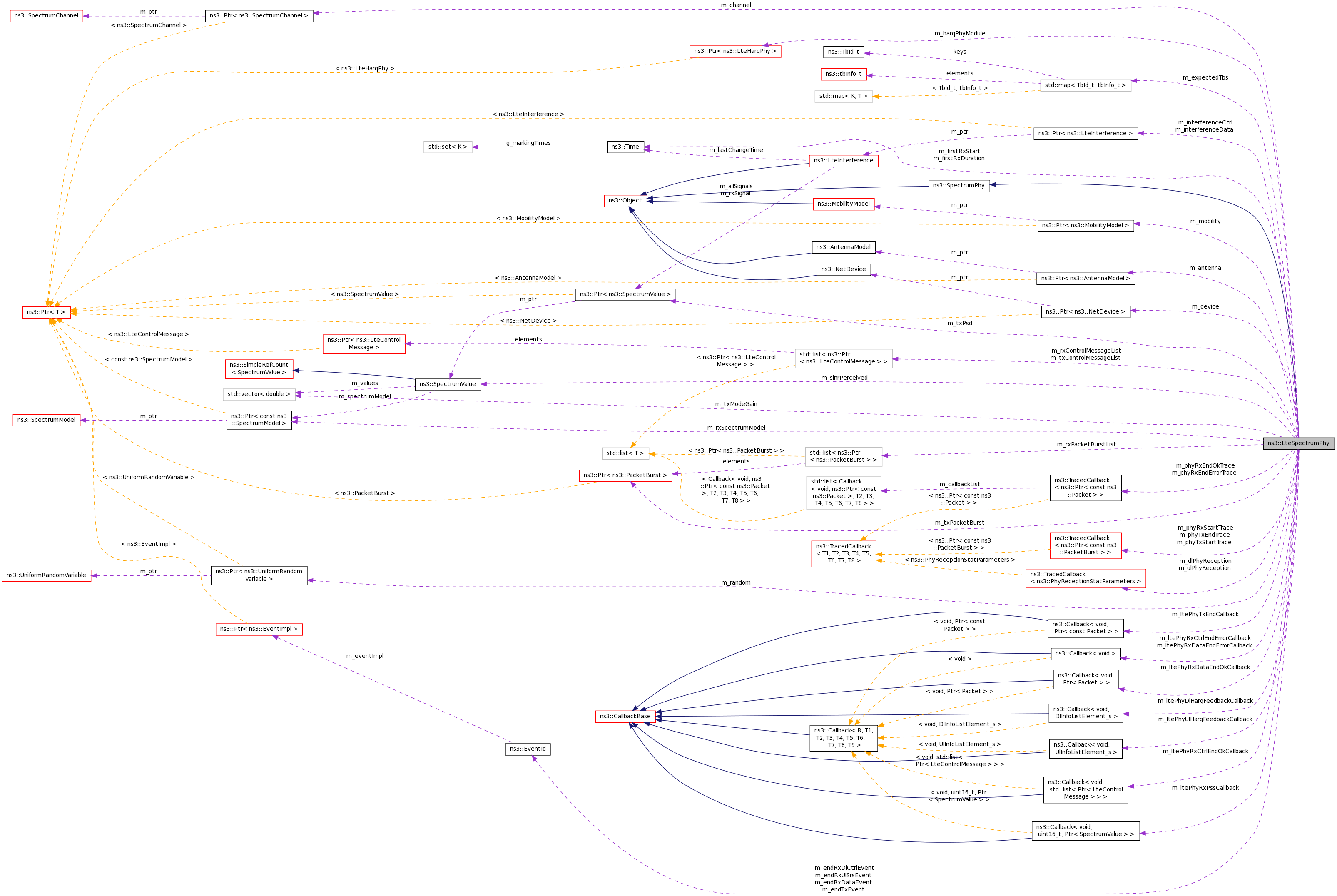

Collaboration diagram for ns3::LteSpectrumPhy:

Public Types
enum	State { IDLE, TX, RX_DATA, RX_CTRL }
	PHY states. More...

Public Member Functions
	LteSpectrumPhy ()

virtual	~LteSpectrumPhy ()

void	AddCtrlSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void	AddDataSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void	AddExpectedTb (uint16_t rnti, uint8_t ndi, uint16_t size, uint8_t mcs, std::vector< int > map, uint8_t layer, uint8_t harqId, uint8_t rv, bool downlink)

void	AddInterferenceCtrlChunkProcessor (Ptr< LteSinrChunkProcessor > p)
	LteSinrChunkProcessor devoted to evaluate interference + noise power in control symbols of the subframe. More...

void	AddInterferenceDataChunkProcessor (Ptr< LteSinrChunkProcessor > p)
	LteSinrChunkProcessor devoted to evaluate interference + noise power in data symbols of the subframe. More...

void	AddRsPowerChunkProcessor (Ptr< LteSinrChunkProcessor > p)

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Ptr< SpectrumChannel >	GetChannel ()

Ptr< NetDevice >	GetDevice ()
	get the associated NetDevice instance More...

Ptr< MobilityModel >	GetMobility ()
	get the associated MobilityModel instance More...

Ptr< AntennaModel >	GetRxAntenna ()
	get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	Reset ()
	reset the internal state More...

void	SetAntenna (Ptr< AntennaModel > a)
	set the AntennaModel to be used More...

void	SetCellId (uint16_t cellId)

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	set the associated NetDevice instance More...

void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)

void	SetLtePhyDlHarqFeedbackCallback (LtePhyDlHarqFeedbackCallback c)
	set the callback for the DL HARQ feedback as part of the interconnections between the LteSpectrumPhy and the PHY More...

void	SetLtePhyRxCtrlEndErrorCallback (LtePhyRxCtrlEndErrorCallback c)
	set the callback for the erroneous end of a RX ctrl frame, as part of the interconnections between the LteSpectrumPhy and the PHY More...

void	SetLtePhyRxCtrlEndOkCallback (LtePhyRxCtrlEndOkCallback c)
	set the callback for the successful end of a RX ctrl frame, as part of the interconnections between the LteSpectrumPhy and the PHY More...

void	SetLtePhyRxDataEndErrorCallback (LtePhyRxDataEndErrorCallback c)
	set the callback for the end of a RX in error, as part of the interconnections between the PHY and the MAC More...

void	SetLtePhyRxDataEndOkCallback (LtePhyRxDataEndOkCallback c)
	set the callback for the successful end of a RX, as part of the interconnections between the PHY and the MAC More...

void	SetLtePhyRxPssCallback (LtePhyRxPssCallback c)
	set the callback for the reception of the PSS as part of the interconnections between the LteSpectrumPhy and the UE PHY More...

void	SetLtePhyTxEndCallback (LtePhyTxEndCallback c)
	set the callback for the end of a TX, as part of the interconnections between the PHY and the MAC More...

void	SetLtePhyUlHarqFeedbackCallback (LtePhyUlHarqFeedbackCallback c)
	set the callback for the UL HARQ feedback as part of the interconnections between the LteSpectrumPhy and the PHY More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
	set the noise power spectral density More...

void	SetState (State newState)
	Set the state of the phy layer. More...

void	SetTransmissionMode (uint8_t txMode)

void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
	set the Power Spectral Density of outgoing signals in W/Hz. More...

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

void	StartRxCtrl (Ptr< SpectrumSignalParameters > params)

void	StartRxData (Ptr< LteSpectrumSignalParametersDataFrame > params)

bool	StartTxDataFrame (Ptr< PacketBurst > pb, std::list< Ptr< LteControlMessage > > ctrlMsgList, Time duration)
	Start a transmission of data frame in DL and UL. More...

bool	StartTxDlCtrlFrame (std::list< Ptr< LteControlMessage > > ctrlMsgList, bool pss)
	Start a transmission of control frame in DL. More...

bool	StartTxUlSrsFrame ()
	Start a transmission of control frame in UL. More...

void	UpdateSinrPerceived (const SpectrumValue &sinr)

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	ChangeState (State newState)

void	EndRxData ()

void	EndRxDlCtrl ()

void	EndRxUlSrs ()

void	EndTx ()

void	SetTxModeGain (uint8_t txMode, double gain)

Private Attributes
Ptr< AntennaModel >	m_antenna

uint16_t	m_cellId

Ptr< SpectrumChannel >	m_channel

bool	m_ctrlErrorModelEnabled

bool	m_dataErrorModelEnabled

Ptr< NetDevice >	m_device

TracedCallback < PhyReceptionStatParameters >	m_dlPhyReception
	Trace information regarding PHY stats from DL Rx perspective PhyReceptionStatParameters (see lte-common.h) More...

EventId	m_endRxDataEvent

EventId	m_endRxDlCtrlEvent

EventId	m_endRxUlSrsEvent

EventId	m_endTxEvent

expectedTbs_t	m_expectedTbs

Time	m_firstRxDuration

Time	m_firstRxStart

Ptr< LteHarqPhy >	m_harqPhyModule

Ptr< LteInterference >	m_interferenceCtrl

Ptr< LteInterference >	m_interferenceData

uint8_t	m_layersNum

LtePhyDlHarqFeedbackCallback	m_ltePhyDlHarqFeedbackCallback

LtePhyRxCtrlEndErrorCallback	m_ltePhyRxCtrlEndErrorCallback

LtePhyRxCtrlEndOkCallback	m_ltePhyRxCtrlEndOkCallback

LtePhyRxDataEndErrorCallback	m_ltePhyRxDataEndErrorCallback

LtePhyRxDataEndOkCallback	m_ltePhyRxDataEndOkCallback

LtePhyRxPssCallback	m_ltePhyRxPssCallback

LtePhyTxEndCallback	m_ltePhyTxEndCallback

LtePhyUlHarqFeedbackCallback	m_ltePhyUlHarqFeedbackCallback

Ptr< MobilityModel >	m_mobility

TracedCallback< Ptr< const Packet > >	m_phyRxEndErrorTrace

TracedCallback< Ptr< const Packet > >	m_phyRxEndOkTrace

TracedCallback< Ptr< const PacketBurst > >	m_phyRxStartTrace

TracedCallback< Ptr< const PacketBurst > >	m_phyTxEndTrace

TracedCallback< Ptr< const PacketBurst > >	m_phyTxStartTrace

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

std::list< Ptr < LteControlMessage > >	m_rxControlMessageList

std::list< Ptr< PacketBurst > >	m_rxPacketBurstList

Ptr< const SpectrumModel >	m_rxSpectrumModel

SpectrumValue	m_sinrPerceived

State	m_state

uint8_t	m_transmissionMode

std::list< Ptr < LteControlMessage > >	m_txControlMessageList

std::vector< double >	m_txModeGain

Ptr< PacketBurst >	m_txPacketBurst

Ptr< SpectrumValue >	m_txPsd

TracedCallback < PhyReceptionStatParameters >	m_ulPhyReception
	Trace information regarding PHY stats from UL Rx perspective PhyReceptionStatParameters (see lte-common.h) More...

Friends
class	LteUePhy

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

The LteSpectrumPhy models the physical layer of LTE.

It supports a single antenna model instance which is used for both transmission and reception.

Config Paths

ns3::LteSpectrumPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy

Attributes

DataErrorModelEnabled: Activate/Deactivate the error model of data (TBs of PDSCH and PUSCH) [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
CtrlErrorModelEnabled: Activate/Deactivate the error model of control (PCFICH-PDCCH decodification) [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

TxStart: Trace fired when a new transmission is started
TxEnd: Trace fired when a previosuly started transmission is finished
RxStart: Trace fired when the start of a signal is detected
RxEndOk: Trace fired when a previosuly started RX terminates successfully
RxEndError: Trace fired when a previosuly started RX terminates with an error
DlPhyReception: DL reception PHY layer statistics.
UlPhyReception: DL reception PHY layer statistics.

Definition at line 153 of file lte-spectrum-phy.h.

Member Enumeration Documentation

enum ns3::LteSpectrumPhy::State

PHY states.

Enumerator
IDLE
TX
RX_DATA
RX_CTRL

Definition at line 163 of file lte-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSpectrumPhy::LteSpectrumPhy ( )

Definition at line 116 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_random, m_txModeGain, NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

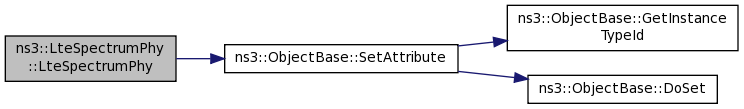

Here is the call graph for this function:

ns3::LteSpectrumPhy::~LteSpectrumPhy ( )

virtual

Definition at line 136 of file lte-spectrum-phy.cc.

References m_expectedTbs, m_txModeGain, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSpectrumPhy::AddCtrlSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the ctrl processing chain

Definition at line 1145 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

void ns3::LteSpectrumPhy::AddDataSinrChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1127 of file lte-spectrum-phy.cc.

References m_interferenceData.

void ns3::LteSpectrumPhy::AddExpectedTb	(	uint16_t	rnti,
		uint8_t	ndi,
		uint16_t	size,
		uint8_t	mcs,
		std::vector< int >	map,
		uint8_t	layer,
		uint8_t	harqId,
		uint8_t	rv,
		bool	downlink
	)

Parameters

rnti	the rnti of the source of the TB
ndi	new data indicator flag
size	the size of the TB
mcs	the MCS of the TB
map	the map of RB(s) used
layer	the layer (in case of MIMO tx)
harqId	the id of the HARQ process (valid only for DL)
downlink	true when the TB is for DL

Definition at line 837 of file lte-spectrum-phy.cc.

References m_expectedTbs, ns3::TbId_t::m_layer, ns3::TbId_t::m_rnti, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::AddInterferenceCtrlChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

LteSinrChunkProcessor devoted to evaluate interference + noise power in control symbols of the subframe.

Parameters

p	the new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1133 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

void ns3::LteSpectrumPhy::AddInterferenceDataChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

LteSinrChunkProcessor devoted to evaluate interference + noise power in data symbols of the subframe.

Parameters

p	the new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1139 of file lte-spectrum-phy.cc.

References m_interferenceData.

void ns3::LteSpectrumPhy::AddRsPowerChunkProcessor ( Ptr< LteSinrChunkProcessor > p )

Parameters

p	the new LteSinrChunkProcessor to be added to the RS power processing chain

Definition at line 1120 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

int64_t ns3::LteSpectrumPhy::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 1187 of file lte-spectrum-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

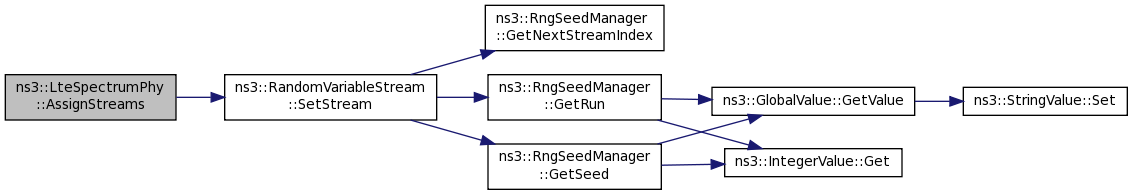

Here is the call graph for this function:

void ns3::LteSpectrumPhy::ChangeState ( State newState )

private

Definition at line 404 of file lte-spectrum-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), SetState(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

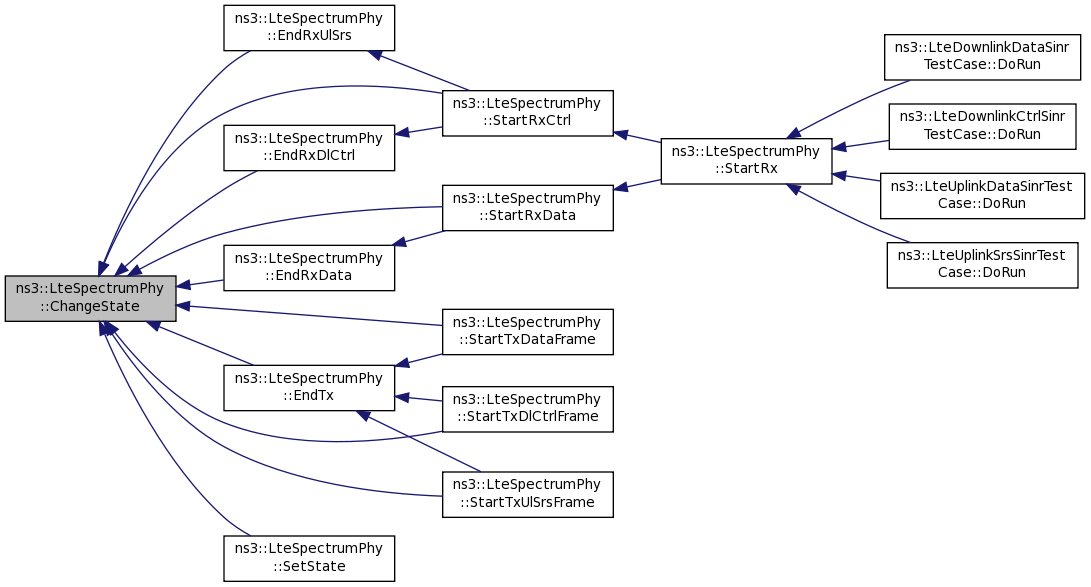

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 143 of file lte-spectrum-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_device, m_interferenceCtrl, m_interferenceData, m_ltePhyDlHarqFeedbackCallback, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_ltePhyRxDataEndErrorCallback, m_ltePhyRxDataEndOkCallback, m_ltePhyRxPssCallback, m_ltePhyTxEndCallback, m_ltePhyUlHarqFeedbackCallback, m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteSpectrumPhy::EndRxData ( )

private

Definition at line 857 of file lte-spectrum-phy.cc.

Referenced by StartRxData().

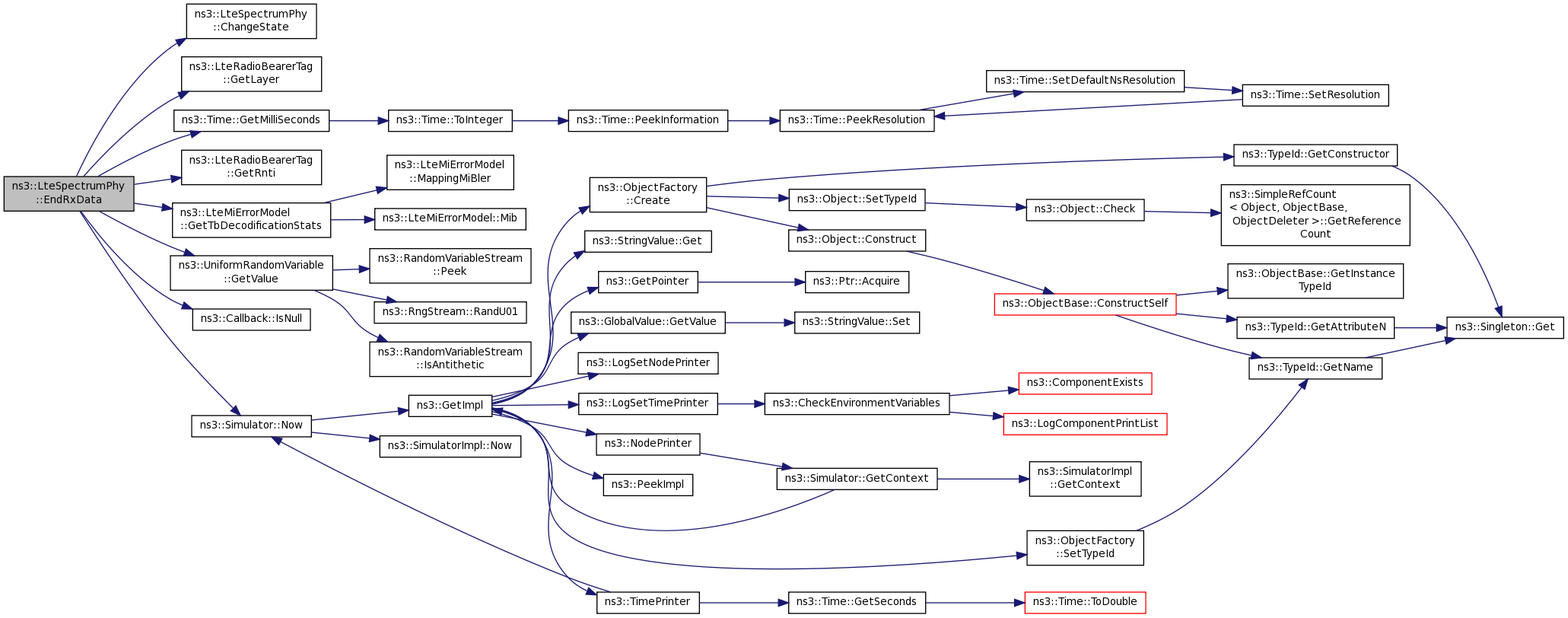

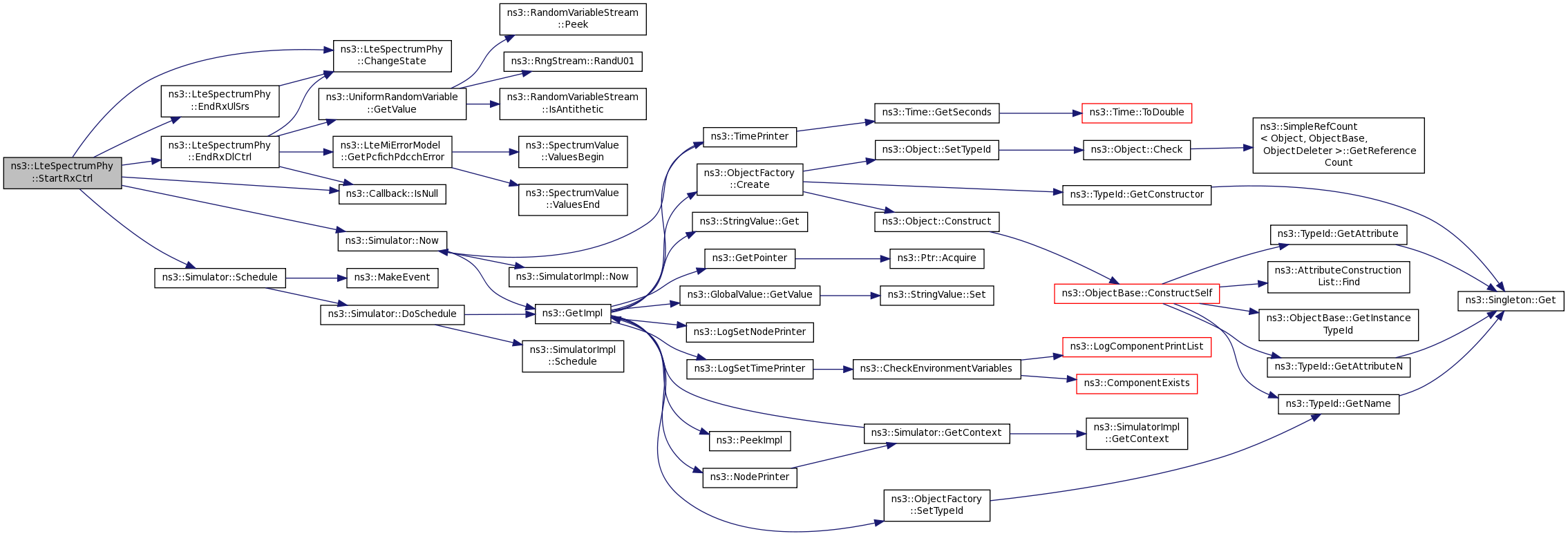

Here is the call graph for this function:

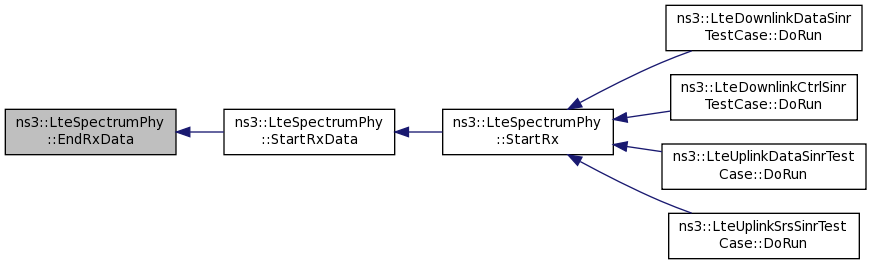

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxDlCtrl ( )

private

Definition at line 1055 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::LteMiErrorModel::GetPcfichPdcchError(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ctrlErrorModelEnabled, m_interferenceCtrl, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_random, m_rxControlMessageList, m_sinrPerceived, m_state, m_transmissionMode, m_txModeGain, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX_CTRL.

Referenced by StartRxCtrl().

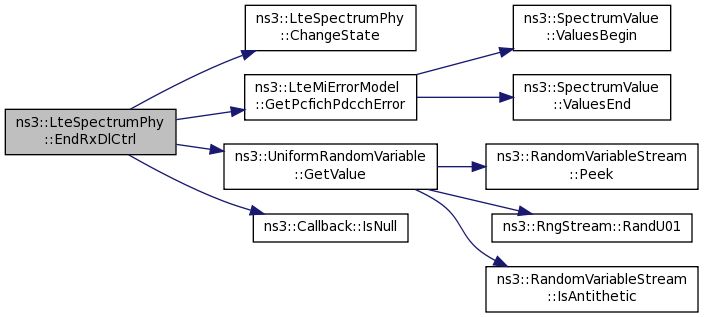

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxUlSrs ( )

private

Definition at line 1104 of file lte-spectrum-phy.cc.

References ChangeState(), IDLE, m_interferenceCtrl, m_state, NS_ASSERT, and RX_CTRL.

Referenced by StartRxCtrl().

Here is the call graph for this function:

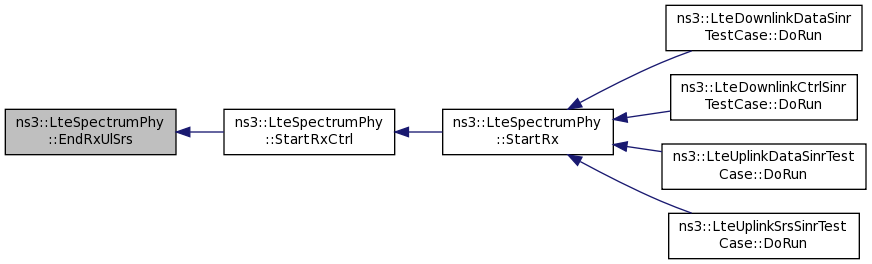

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndTx ( )

private

Definition at line 591 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::Packet::Copy(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, m_ltePhyTxEndCallback, m_phyTxEndTrace, m_state, m_txPacketBurst, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

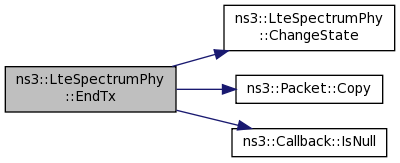

Here is the call graph for this function:

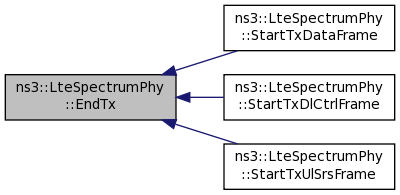

Here is the caller graph for this function:

Ptr< SpectrumChannel > ns3::LteSpectrumPhy::GetChannel ( void )

Returns: the previously set channel

Definition at line 269 of file lte-spectrum-phy.cc.

References m_channel.

Ptr< NetDevice > ns3::LteSpectrumPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 230 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSpectrumPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 238 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSpectrumPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 384 of file lte-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 275 of file lte-spectrum-phy.cc.

References m_rxSpectrumModel.

TypeId ns3::LteSpectrumPhy::GetTypeId ( void )

static

Definition at line 188 of file lte-spectrum-phy.cc.

References m_ctrlErrorModelEnabled, m_dataErrorModelEnabled, m_dlPhyReception, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, m_ulPhyReception, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

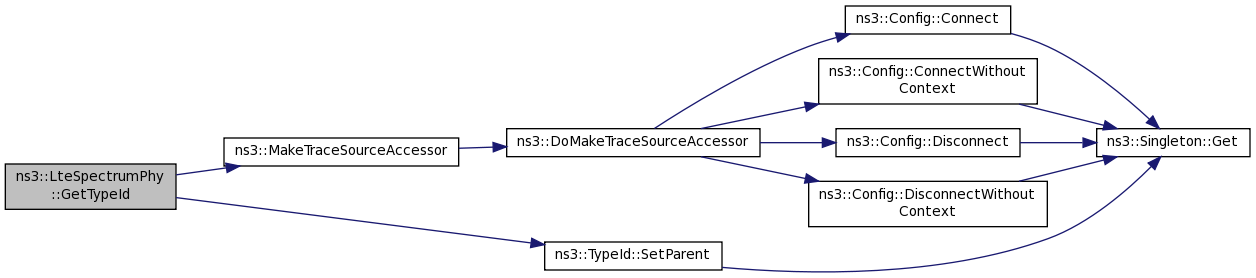

Here is the call graph for this function:

void ns3::LteSpectrumPhy::Reset ( void )

reset the internal state

Definition at line 302 of file lte-spectrum-phy.cc.

References ns3::EventId::Cancel(), IDLE, m_cellId, m_endRxDataEvent, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_endTxEvent, m_expectedTbs, m_layersNum, m_rxControlMessageList, m_rxPacketBurstList, m_rxSpectrumModel, m_state, m_transmissionMode, m_txControlMessageList, m_txPacketBurst, and NS_LOG_FUNCTION.

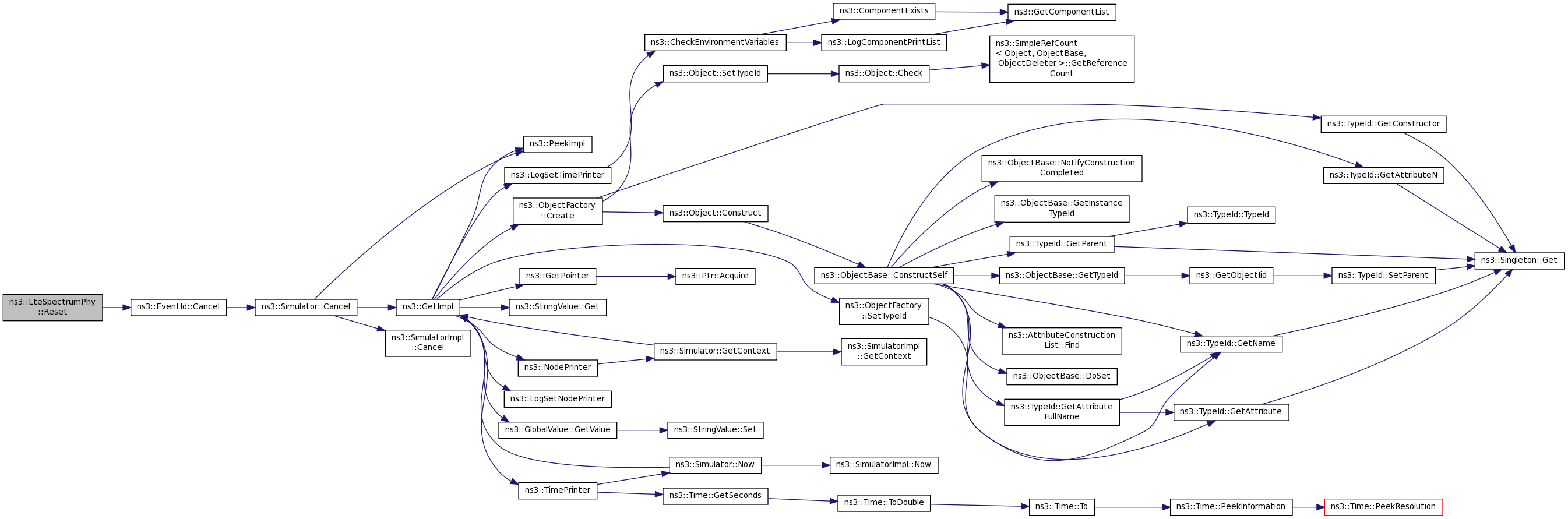

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetAntenna ( Ptr< AntennaModel > a )

set the AntennaModel to be used

Parameters

a	the Antenna Model

Definition at line 390 of file lte-spectrum-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetCellId ( uint16_t cellId )

Parameters

cellId the Cell Identifier

Definition at line 1113 of file lte-spectrum-phy.cc.

References m_cellId.

void ns3::LteSpectrumPhy::SetChannel ( Ptr< SpectrumChannel > c )

virtual

Set the channel attached to this device.

Parameters

c	the channel

Implements ns3::SpectrumPhy.

Definition at line 262 of file lte-spectrum-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetDevice ( Ptr< NetDevice > d )

virtual

set the associated NetDevice instance

Parameters

d	the NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 246 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetHarqPhyModule ( Ptr< LteHarqPhy > harq )

Definition at line 412 of file lte-spectrum-phy.cc.

References m_harqPhyModule.

void ns3::LteSpectrumPhy::SetLtePhyDlHarqFeedbackCallback ( LtePhyDlHarqFeedbackCallback c )

set the callback for the DL HARQ feedback as part of the interconnections between the LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 369 of file lte-spectrum-phy.cc.

References m_ltePhyDlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndErrorCallback ( LtePhyRxCtrlEndErrorCallback c )

set the callback for the erroneous end of a RX ctrl frame, as part of the interconnections between the LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 354 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndOkCallback ( LtePhyRxCtrlEndOkCallback c )

set the callback for the successful end of a RX ctrl frame, as part of the interconnections between the LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 347 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndErrorCallback ( LtePhyRxDataEndErrorCallback c )

set the callback for the end of a RX in error, as part of the interconnections between the PHY and the MAC

Parameters

c	the callback

Definition at line 332 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndOkCallback ( LtePhyRxDataEndOkCallback c )

set the callback for the successful end of a RX, as part of the interconnections between the PHY and the MAC

Parameters

c	the callback

Definition at line 340 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxPssCallback ( LtePhyRxPssCallback c )

set the callback for the reception of the PSS as part of the interconnections between the LteSpectrumPhy and the UE PHY

Parameters

c	the callback

Definition at line 362 of file lte-spectrum-phy.cc.

References m_ltePhyRxPssCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyTxEndCallback ( LtePhyTxEndCallback c )

set the callback for the end of a TX, as part of the interconnections between the PHY and the MAC

Parameters

c	the callback

Definition at line 324 of file lte-spectrum-phy.cc.

References m_ltePhyTxEndCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyUlHarqFeedbackCallback ( LtePhyUlHarqFeedbackCallback c )

set the callback for the UL HARQ feedback as part of the interconnections between the LteSpectrumPhy and the PHY

Parameters

c	the callback

Definition at line 376 of file lte-spectrum-phy.cc.

References m_ltePhyUlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetMobility ( Ptr< MobilityModel > m )

virtual

Set the mobility model associated with this device.

Parameters

m	the mobility model

Implements ns3::SpectrumPhy.

Definition at line 254 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue > noisePsd )

set the noise power spectral density

Parameters

noisePsd the Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 291 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_rxSpectrumModel, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetState ( State newState )

Set the state of the phy layer.

Parameters

newState the state

Definition at line 397 of file lte-spectrum-phy.cc.

References ChangeState().

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTransmissionMode ( uint8_t txMode )

Parameters

txMode UE transmission mode (SISO, MIMO tx diversity, ...)

Definition at line 1151 of file lte-spectrum-phy.cc.

References m_layersNum, m_transmissionMode, m_txModeGain, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 1161 of file lte-spectrum-phy.cc.

References m_txModeGain, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue > txPsd )

set the Power Spectral Density of outgoing signals in W/Hz.

Parameters

txPsd

Definition at line 282 of file lte-spectrum-phy.cc.

References m_txPsd, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::StartRx ( Ptr< SpectrumSignalParameters > params )

virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters

params the parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 616 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_state, NS_LOG_FUNCTION, NS_LOG_LOGIC, StartRxCtrl(), and StartRxData().

Referenced by ns3::LteDownlinkDataSinrTestCase::DoRun(), ns3::LteUplinkDataSinrTestCase::DoRun(), ns3::LteDownlinkCtrlSinrTestCase::DoRun(), and ns3::LteUplinkSrsSinrTestCase::DoRun().

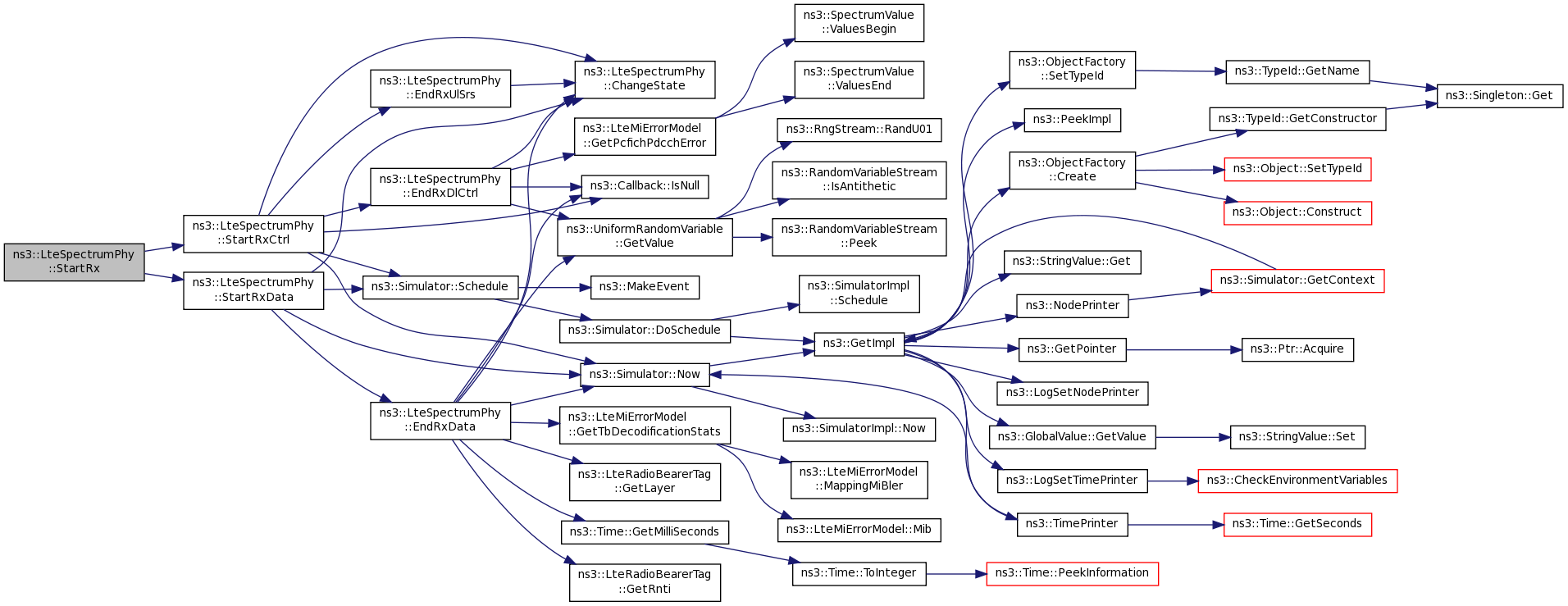

Here is the call graph for this function:

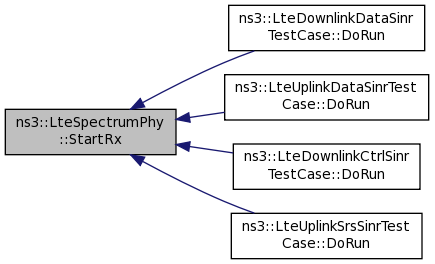

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxCtrl ( Ptr< SpectrumSignalParameters > params )

Definition at line 728 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxDlCtrl(), EndRxUlSrs(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_cellId, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_firstRxDuration, m_firstRxStart, m_interferenceCtrl, m_ltePhyRxPssCallback, m_rxControlMessageList, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

Referenced by StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxData ( Ptr< LteSpectrumSignalParametersDataFrame > params )

Definition at line 652 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxData(), IDLE, m_cellId, m_endRxDataEvent, m_firstRxDuration, m_firstRxStart, m_interferenceData, m_phyRxStartTrace, m_rxControlMessageList, m_rxPacketBurstList, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

Referenced by StartRx().

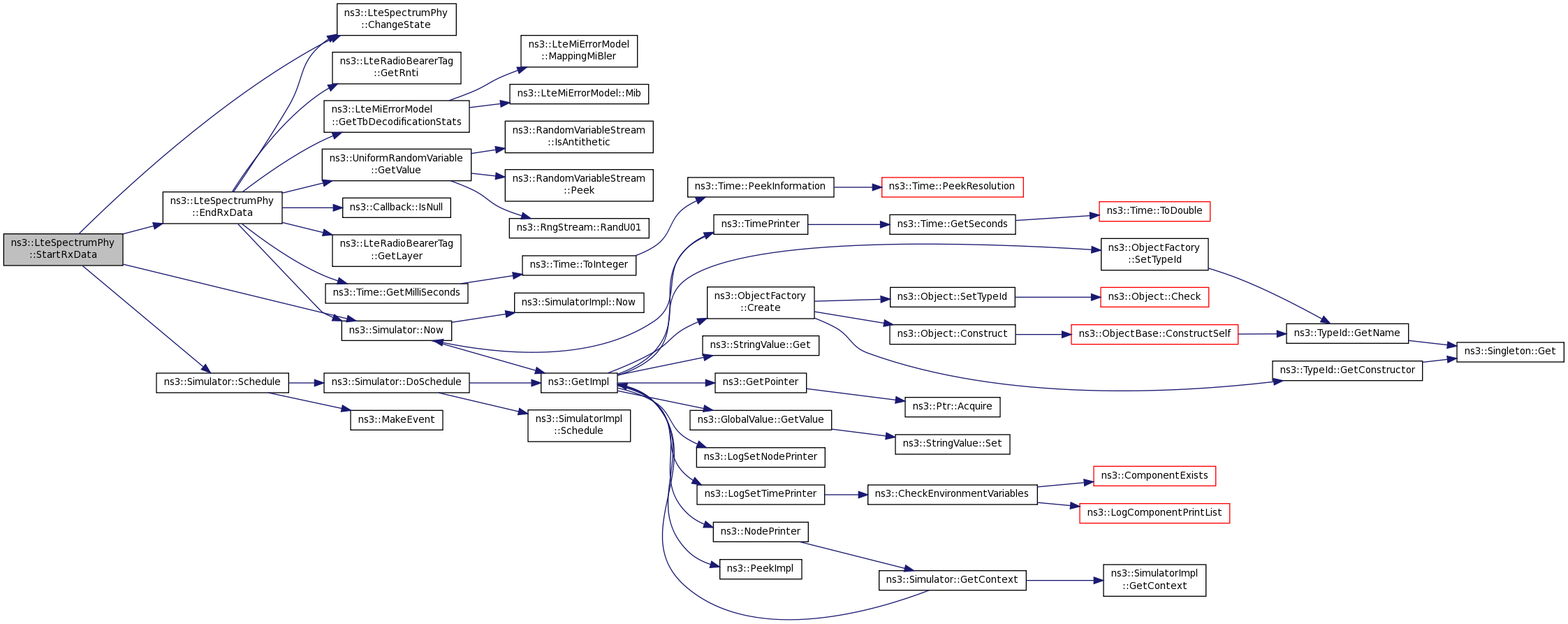

Here is the call graph for this function:

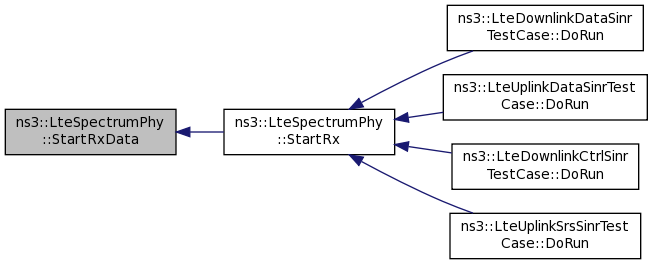

Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTxDataFrame	(	Ptr< PacketBurst >	pb,
		std::list< Ptr< LteControlMessage > >	ctrlMsgList,
		Time	duration
	)

Start a transmission of data frame in DL and UL.

Parameters

pb	the burst of packets to be transmitted in PDSCH/PUSCH
ctrlMsgList	the list of LteControlMessage to send
duration	the duration of the data frame

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 421 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_phyTxStartTrace, m_state, m_txPacketBurst, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

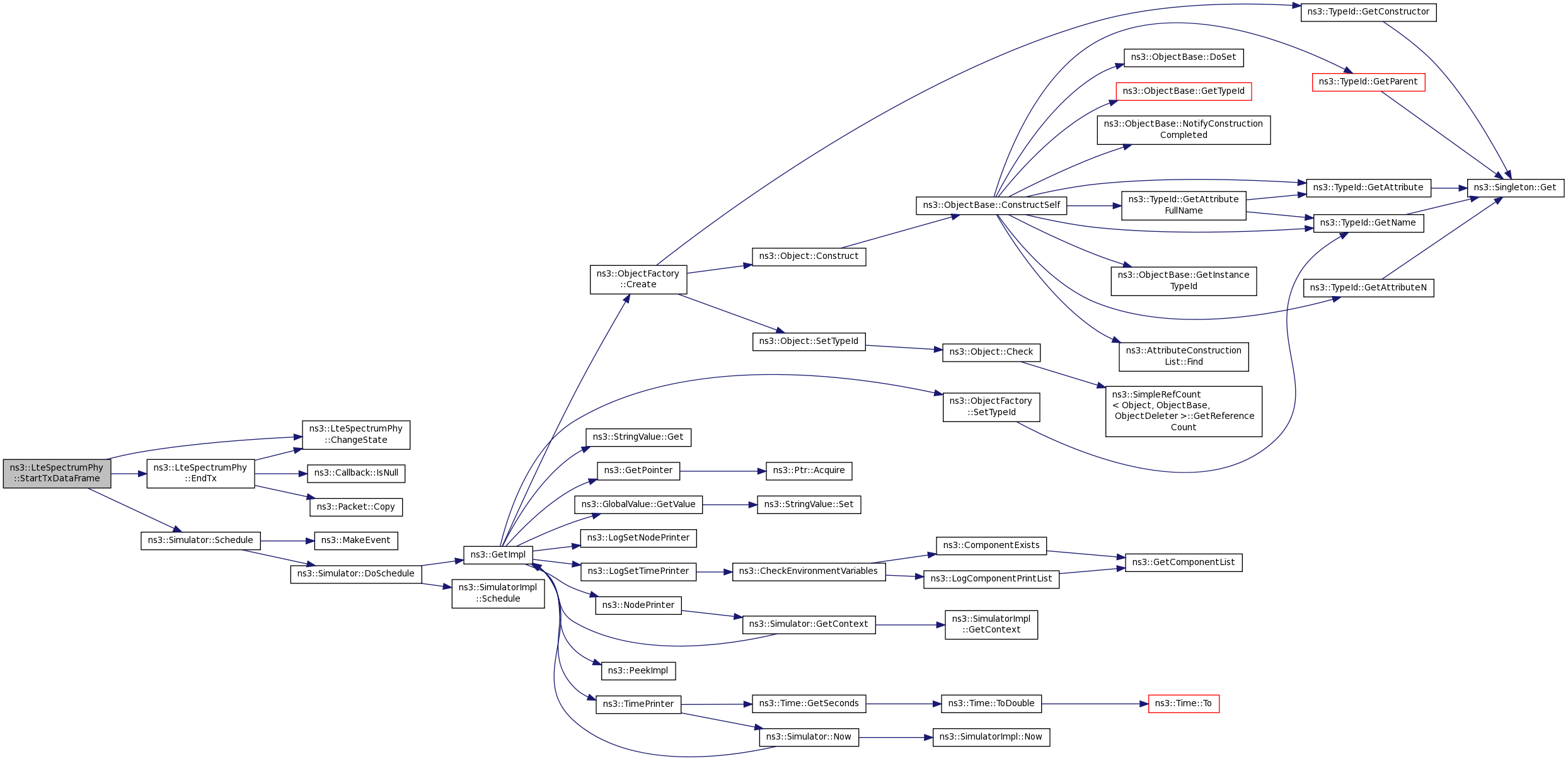

Here is the call graph for this function:

bool ns3::LteSpectrumPhy::StartTxDlCtrlFrame	(	std::list< Ptr< LteControlMessage > >	ctrlMsgList,
		bool	pss
	)

Start a transmission of control frame in DL.

Parameters

ctrlMsgList	the burst of control messages to be transmitted
pss	the flag for transmitting the primary synchronization signal

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 477 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::DL_CTRL_DURATION, EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

Here is the call graph for this function:

bool ns3::LteSpectrumPhy::StartTxUlSrsFrame ( )

Start a transmission of control frame in UL.

Returns: true if an error occurred and the transmission was not started, false otherwise.

Definition at line 535 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), TX, and ns3::UL_SRS_DURATION.

Here is the call graph for this function:

void ns3::LteSpectrumPhy::UpdateSinrPerceived ( const SpectrumValue & sinr )

Parameters

sinr	vector of sinr perceived per each RB

Definition at line 829 of file lte-spectrum-phy.cc.

References m_sinrPerceived, and NS_LOG_FUNCTION.

Friends And Related Function Documentation

friend class LteUePhy

friend

Definition at line 401 of file lte-spectrum-phy.h.

Member Data Documentation

Ptr<AntennaModel> ns3::LteSpectrumPhy::m_antenna

private

Definition at line 424 of file lte-spectrum-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint16_t ns3::LteSpectrumPhy::m_cellId

private

Definition at line 459 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), SetCellId(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

Ptr<SpectrumChannel> ns3::LteSpectrumPhy::m_channel

private

Definition at line 427 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetChannel(), SetChannel(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

bool ns3::LteSpectrumPhy::m_ctrlErrorModelEnabled

private

Definition at line 467 of file lte-spectrum-phy.h.

Referenced by EndRxDlCtrl(), and GetTypeId().

bool ns3::LteSpectrumPhy::m_dataErrorModelEnabled

private

Definition at line 466 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

Ptr<NetDevice> ns3::LteSpectrumPhy::m_device

private

Definition at line 425 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_dlPhyReception

private

Trace information regarding PHY stats from DL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 482 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

EventId ns3::LteSpectrumPhy::m_endRxDataEvent

private

Definition at line 492 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxData().

EventId ns3::LteSpectrumPhy::m_endRxDlCtrlEvent

private

Definition at line 493 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endRxUlSrsEvent

private

Definition at line 494 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endTxEvent

private

Definition at line 491 of file lte-spectrum-phy.h.

Referenced by Reset(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

expectedTbs_t ns3::LteSpectrumPhy::m_expectedTbs

private

Definition at line 461 of file lte-spectrum-phy.h.

Referenced by AddExpectedTb(), EndRxData(), Reset(), and ~LteSpectrumPhy().

Time ns3::LteSpectrumPhy::m_firstRxDuration

private

Definition at line 440 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Time ns3::LteSpectrumPhy::m_firstRxStart

private

Definition at line 439 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Ptr<LteHarqPhy> ns3::LteSpectrumPhy::m_harqPhyModule

private

Definition at line 473 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and SetHarqPhyModule().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceCtrl

private

Definition at line 457 of file lte-spectrum-phy.h.

Referenced by AddCtrlSinrChunkProcessor(), AddInterferenceCtrlChunkProcessor(), AddRsPowerChunkProcessor(), DoDispose(), EndRxDlCtrl(), EndRxUlSrs(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxCtrl().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceData

private

Definition at line 456 of file lte-spectrum-phy.h.

Referenced by AddDataSinrChunkProcessor(), AddInterferenceDataChunkProcessor(), DoDispose(), EndRxData(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxData().

uint8_t ns3::LteSpectrumPhy::m_layersNum

private

Definition at line 470 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and SetTransmissionMode().

LtePhyDlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyDlHarqFeedbackCallback

private

Definition at line 474 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyDlHarqFeedbackCallback().

LtePhyRxCtrlEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndErrorCallback

private

Definition at line 453 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndErrorCallback().

LtePhyRxCtrlEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndOkCallback

private

Definition at line 452 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndOkCallback().

LtePhyRxDataEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndErrorCallback

private

Definition at line 449 of file lte-spectrum-phy.h.

Referenced by DoDispose(), and SetLtePhyRxDataEndErrorCallback().

LtePhyRxDataEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndOkCallback

private

Definition at line 450 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyRxDataEndOkCallback().

LtePhyRxPssCallback ns3::LteSpectrumPhy::m_ltePhyRxPssCallback

private

Definition at line 454 of file lte-spectrum-phy.h.

Referenced by DoDispose(), SetLtePhyRxPssCallback(), and StartRxCtrl().

LtePhyTxEndCallback ns3::LteSpectrumPhy::m_ltePhyTxEndCallback

private

Definition at line 448 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndTx(), and SetLtePhyTxEndCallback().

LtePhyUlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyUlHarqFeedbackCallback

private

Definition at line 475 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyUlHarqFeedbackCallback().

Ptr<MobilityModel> ns3::LteSpectrumPhy::m_mobility

private

Definition at line 423 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndErrorTrace

private

Definition at line 446 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndOkTrace

private

Definition at line 445 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyRxStartTrace

private

Definition at line 444 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartRxData().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxEndTrace

private

Definition at line 443 of file lte-spectrum-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxStartTrace

private

Definition at line 442 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartTxDataFrame().

Ptr<UniformRandomVariable> ns3::LteSpectrumPhy::m_random

private

Provides uniform random variables.

Definition at line 465 of file lte-spectrum-phy.h.

Referenced by AssignStreams(), EndRxData(), EndRxDlCtrl(), and LteSpectrumPhy().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_rxControlMessageList

private

Definition at line 435 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), StartRxCtrl(), and StartRxData().

std::list<Ptr<PacketBurst> > ns3::LteSpectrumPhy::m_rxPacketBurstList

private

Definition at line 432 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and StartRxData().

Ptr<const SpectrumModel> ns3::LteSpectrumPhy::m_rxSpectrumModel

private

Definition at line 429 of file lte-spectrum-phy.h.

Referenced by GetRxSpectrumModel(), Reset(), and SetNoisePowerSpectralDensity().

SpectrumValue ns3::LteSpectrumPhy::m_sinrPerceived

private

Definition at line 462 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), and UpdateSinrPerceived().

State ns3::LteSpectrumPhy::m_state

private

Definition at line 438 of file lte-spectrum-phy.h.

Referenced by ChangeState(), EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), Reset(), StartRx(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint8_t ns3::LteSpectrumPhy::m_transmissionMode

private

Definition at line 469 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), and SetTransmissionMode().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_txControlMessageList

private

Definition at line 434 of file lte-spectrum-phy.h.

Referenced by Reset().

std::vector<double> ns3::LteSpectrumPhy::m_txModeGain

private

Definition at line 471 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), LteSpectrumPhy(), SetTransmissionMode(), SetTxModeGain(), and ~LteSpectrumPhy().

Ptr<PacketBurst> ns3::LteSpectrumPhy::m_txPacketBurst

private

Definition at line 431 of file lte-spectrum-phy.h.

Referenced by EndTx(), Reset(), and StartTxDataFrame().

Ptr<SpectrumValue> ns3::LteSpectrumPhy::m_txPsd

private

Definition at line 430 of file lte-spectrum-phy.h.

Referenced by SetTxPowerSpectralDensity(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_ulPhyReception

private

Trace information regarding PHY stats from UL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 489 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/model/lte-spectrum-phy.h
src/lte/model/lte-spectrum-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
