ns3::LteRlcTm Class Reference

LTE RLC Transparent Mode (TM), see 3GPP TS 36.322. More...

#include <lte-rlc-tm.h>

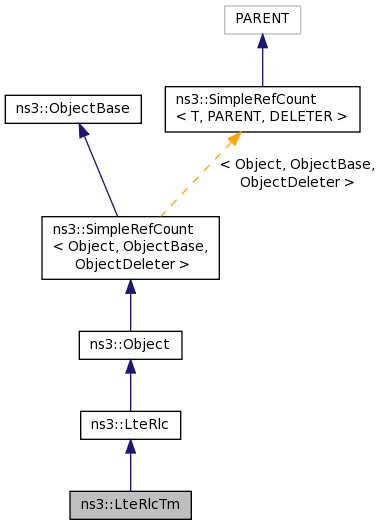

+ Inheritance diagram for ns3::LteRlcTm:

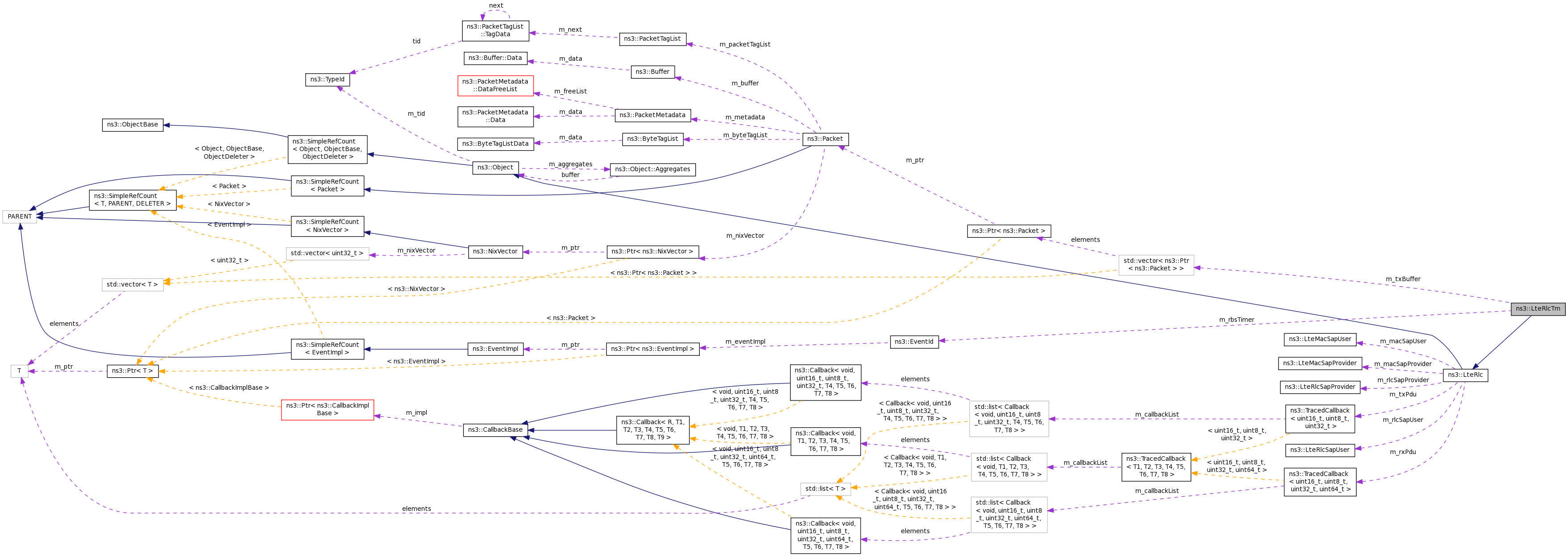

+ Collaboration diagram for ns3::LteRlcTm:

Public Member Functions

 LteRlcTm ()

virtual ~LteRlcTm ()

virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoNotifyHarqDeliveryFailure ()

virtual void DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)
 MAC SAP. More...

virtual void DoReceivePdu (Ptr< Packet > p)

virtual void DoTransmitPdcpPdu (Ptr< Packet > p)
 RLC SAP. More...

- Public Member Functions inherited from ns3::LteRlc
 LteRlc ()

virtual ~LteRlc ()

LteMacSapUser * GetLteMacSapUser ()

LteRlcSapProvider * GetLteRlcSapProvider ()

void SetLcId (uint8_t lcId)

void SetLteMacSapProvider (LteMacSapProvider *s)

void SetLteRlcSapUser (LteRlcSapUser *s)

void SetRnti (uint16_t rnti)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::LteRlc
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoReportBufferStatus ()

void ExpireRbsTimer (void)


Private Attributes

uint32_t m_maxTxBufferSize

EventId m_rbsTimer

std::vector< Ptr< Packet > > m_txBuffer

uint32_t m_txBufferSize


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...

- Protected Attributes inherited from ns3::LteRlc
uint8_t m_lcid

LteMacSapProvider * m_macSapProvider

LteMacSapUser * m_macSapUser

LteRlcSapProvider * m_rlcSapProvider

LteRlcSapUser * m_rlcSapUser

uint16_t m_rnti

TracedCallback< uint16_t,
uint8_t, uint32_t, uint64_t > 		m_rxPdu
 Used to inform of a PDU reception from the MAC SAP user. More...

TracedCallback< uint16_t,
uint8_t, uint32_t > 		m_txPdu
 Used to inform of a PDU delivery to the MAC SAP provider. More...


Detailed Description

LTE RLC Transparent Mode (TM), see 3GPP TS 36.322.

Config Paths

ns3::LteRlcTm is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcTm
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcTm

Attributes

  • MaxTxBufferSize: Maximum Size of the Transmission Buffer (in Bytes)

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

  • TxPDU: PDU transmission notified to the MAC.
  • RxPDU: PDU received.

Definition at line 35 of file lte-rlc-tm.h.

Constructor & Destructor Documentation

ns3::LteRlcTm::LteRlcTm ( )

Definition at line 35 of file lte-rlc-tm.cc.

References NS_LOG_FUNCTION.

ns3::LteRlcTm::~LteRlcTm ( )
virtual

Definition at line 42 of file lte-rlc-tm.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcTm::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 63 of file lte-rlc-tm.cc.

References ns3::EventId::Cancel(), ns3::LteRlc::DoDispose(), m_rbsTimer, m_txBuffer, and NS_LOG_FUNCTION.

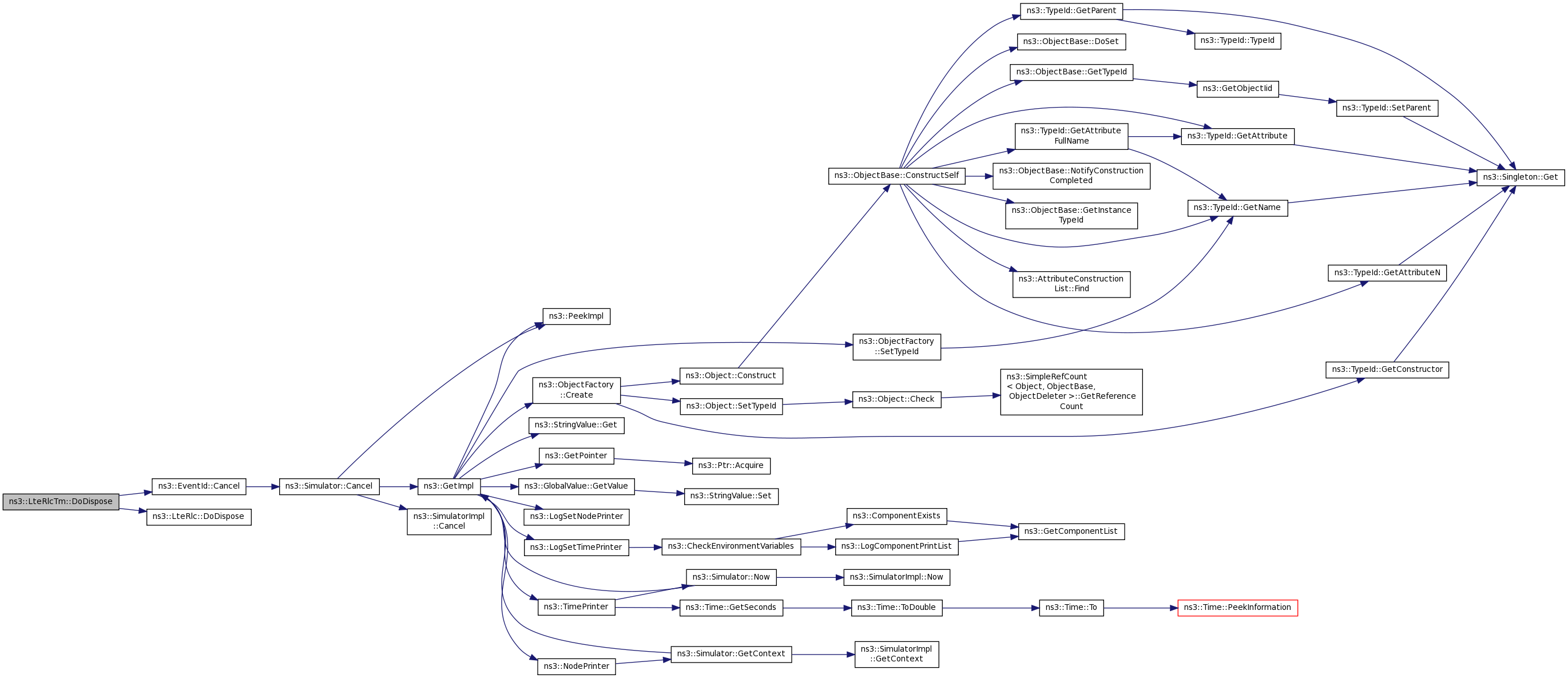

+ Here is the call graph for this function:

void ns3::LteRlcTm::DoNotifyHarqDeliveryFailure ( )
virtual

Implements ns3::LteRlc.

Definition at line 164 of file lte-rlc-tm.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcTm::DoNotifyTxOpportunity ( uint32_t  bytes,
uint8_t  layer,
uint8_t  harqId
)
virtual

MAC SAP.

Implements ns3::LteRlc.

Definition at line 114 of file lte-rlc-tm.cc.

References ns3::Packet::AddByteTag(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ExpireRbsTimer(), ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, m_rbsTimer, ns3::LteRlc::m_rnti, m_txBuffer, m_txBufferSize, ns3::LteRlc::m_txPdu, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::Simulator::Schedule(), and ns3::LteMacSapProvider::TransmitPdu().

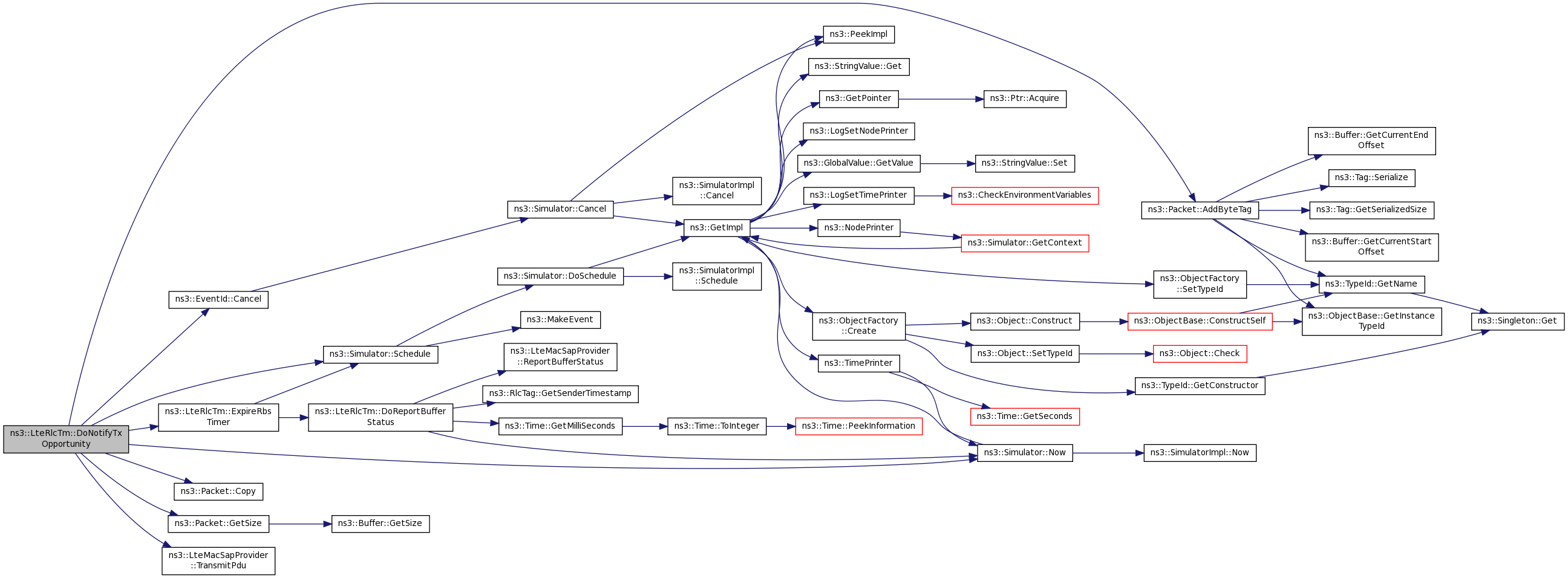

+ Here is the call graph for this function:

void ns3::LteRlcTm::DoReceivePdu ( Ptr< Packet >  p)
virtual

Implements ns3::LteRlc.

Definition at line 170 of file lte-rlc-tm.cc.

References ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, ns3::LteRlc::m_rlcSapUser, ns3::LteRlc::m_rnti, ns3::LteRlc::m_rxPdu, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::LteRlcSapUser::ReceivePdcpPdu().

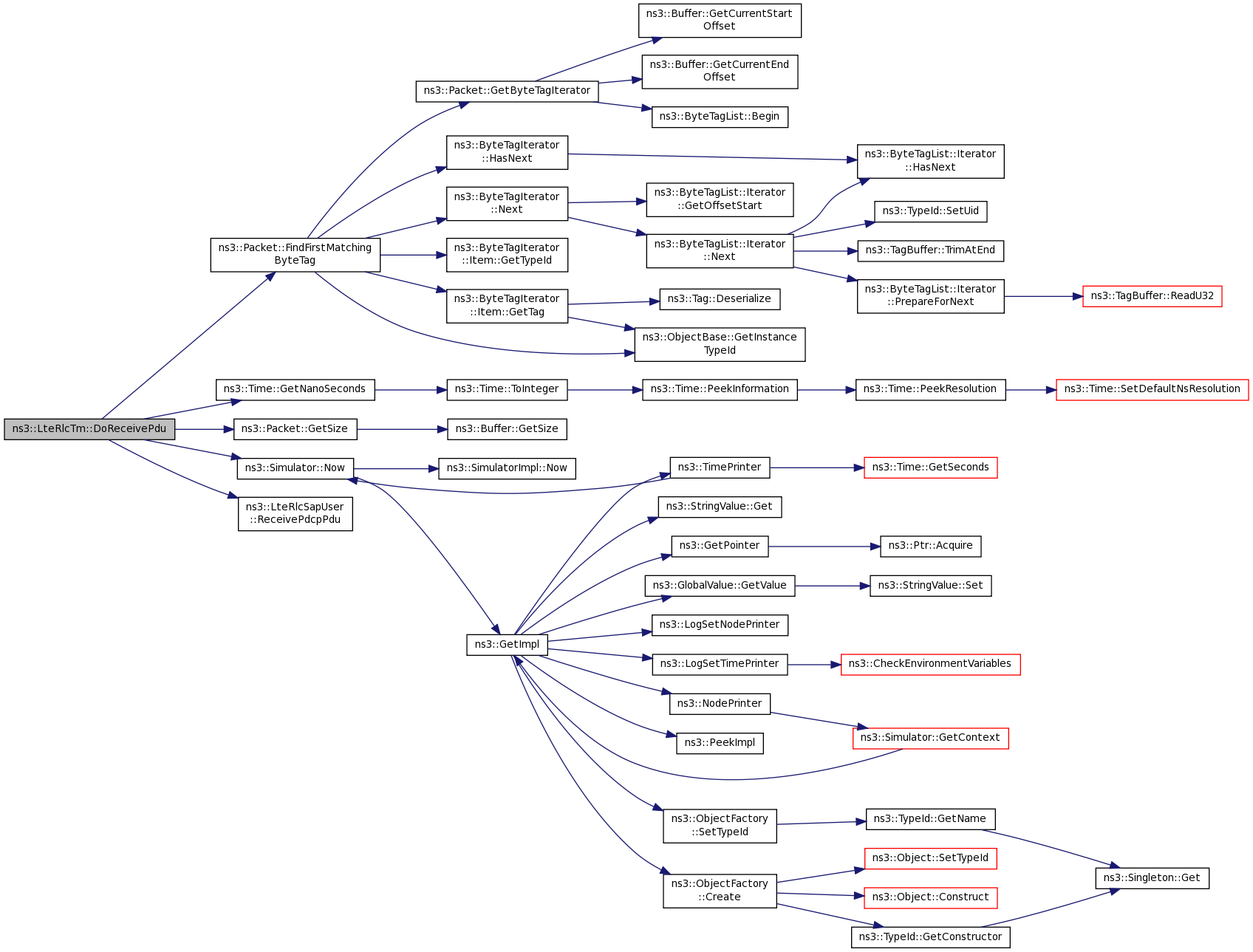

+ Here is the call graph for this function:

void ns3::LteRlcTm::DoReportBufferStatus ( void  )
private

Definition at line 193 of file lte-rlc-tm.cc.

References ns3::Time::GetMilliSeconds(), ns3::RlcTag::GetSenderTimestamp(), ns3::LteMacSapProvider::ReportBufferStatusParameters::lcid, ns3::LteRlc::m_lcid, ns3::LteRlc::m_macSapProvider, ns3::LteRlc::m_rnti, m_txBuffer, m_txBufferSize, ns3::Simulator::Now(), NS_LOG_LOGIC, ns3::LteMacSapProvider::ReportBufferStatus(), ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueHolDelay, ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::rnti, ns3::LteMacSapProvider::ReportBufferStatusParameters::statusPduSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueHolDelay, and ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueSize.

Referenced by DoTransmitPdcpPdu(), and ExpireRbsTimer().

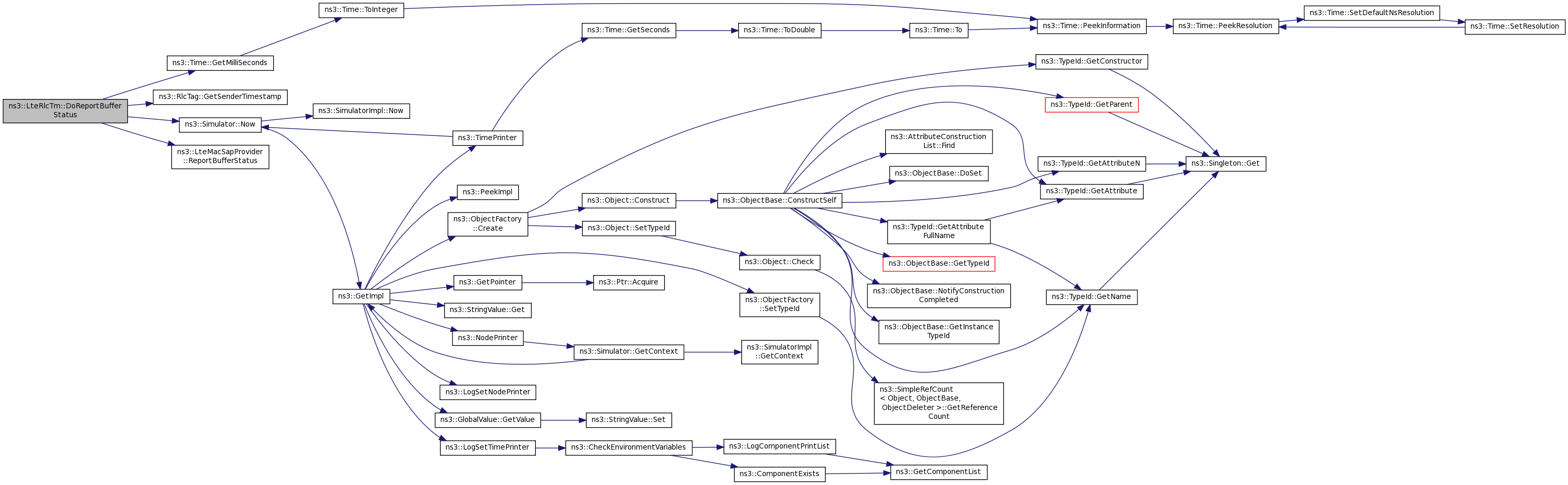

+ Here is the call graph for this function:

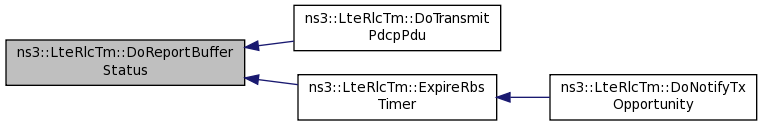

+ Here is the caller graph for this function:

void ns3::LteRlcTm::DoTransmitPdcpPdu ( Ptr< Packet >  p)
virtual

RLC SAP.

Store arrival time

Report Buffer Status

Implements ns3::LteRlc.

Definition at line 78 of file lte-rlc-tm.cc.

References ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), DoReportBufferStatus(), ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, m_maxTxBufferSize, m_rbsTimer, ns3::LteRlc::m_rnti, m_txBuffer, m_txBufferSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

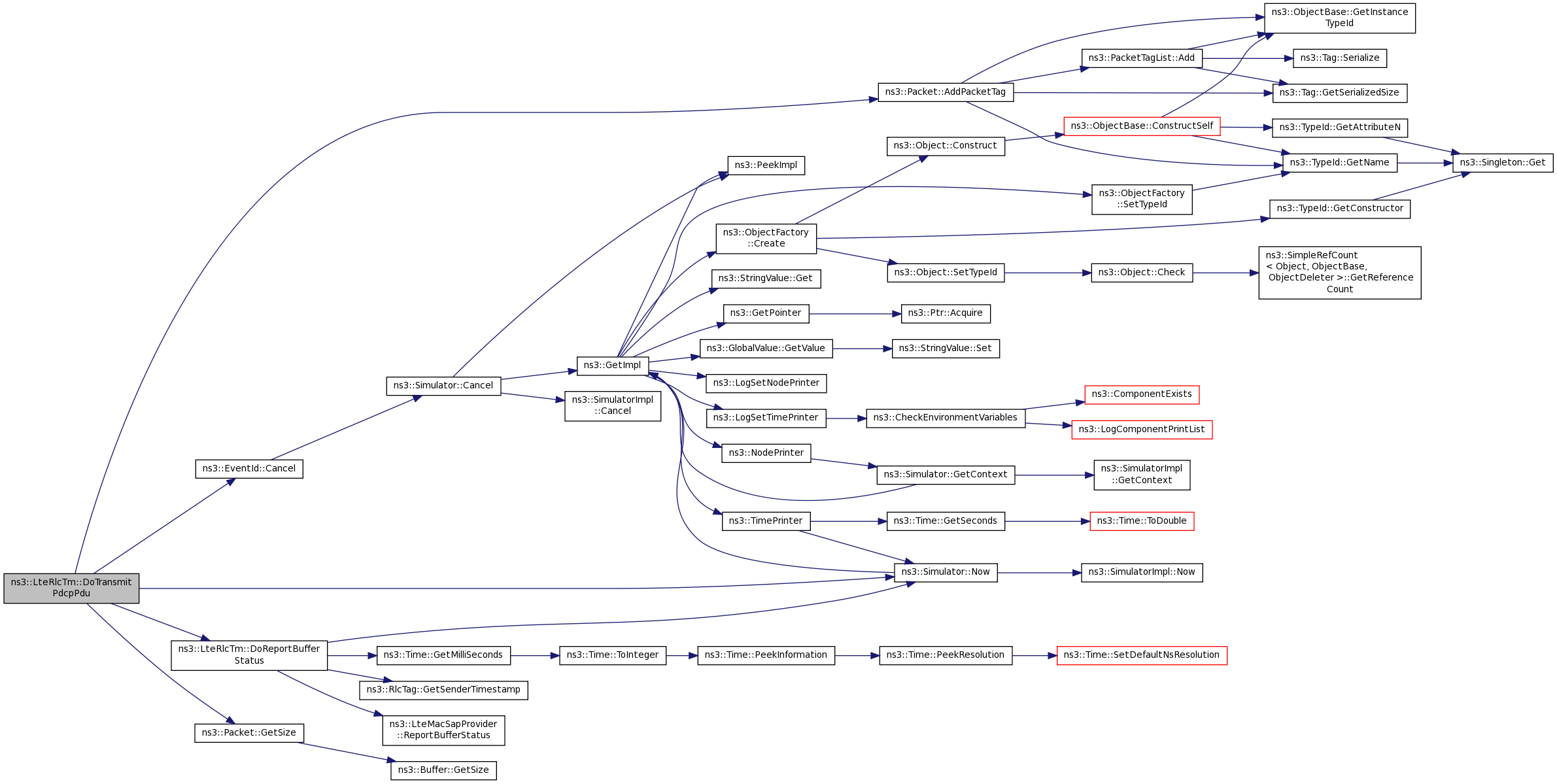

+ Here is the call graph for this function:

void ns3::LteRlcTm::ExpireRbsTimer ( void  )
private

Definition at line 221 of file lte-rlc-tm.cc.

References DoReportBufferStatus(), m_rbsTimer, m_txBuffer, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoNotifyTxOpportunity().

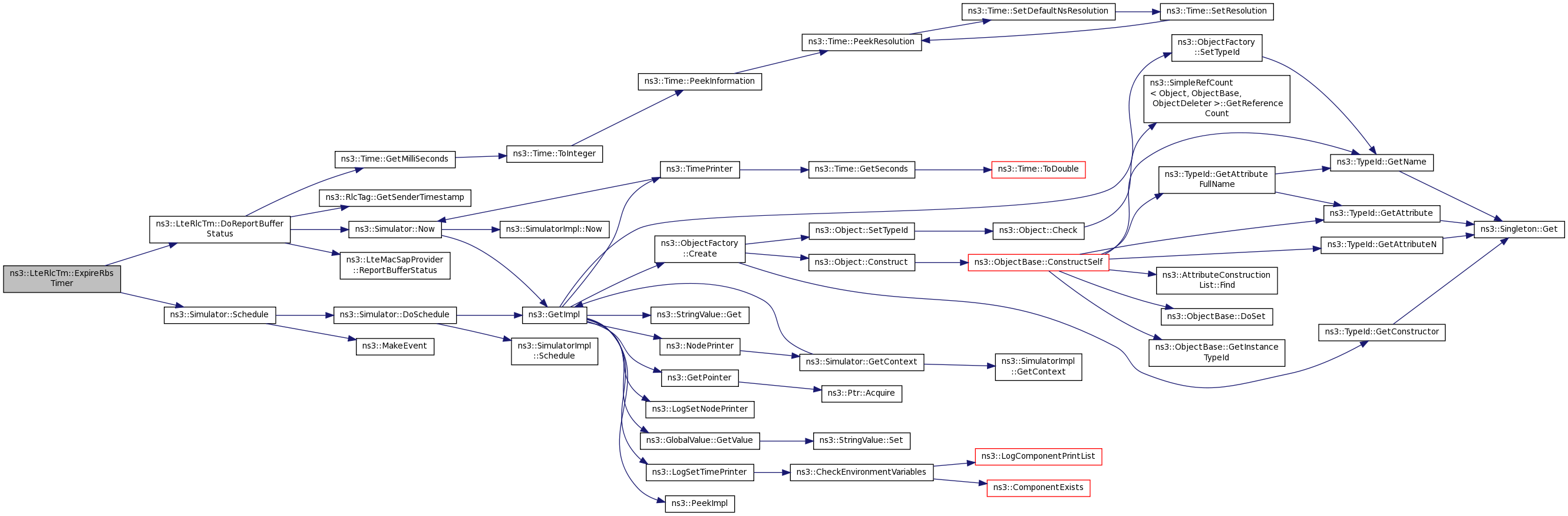

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::LteRlcTm::GetTypeId ( void  )
static

Definition at line 48 of file lte-rlc-tm.cc.

References m_maxTxBufferSize, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

uint32_t ns3::LteRlcTm::m_maxTxBufferSize
private

Definition at line 60 of file lte-rlc-tm.h.

Referenced by DoTransmitPdcpPdu(), and GetTypeId().

EventId ns3::LteRlcTm::m_rbsTimer
private

Definition at line 64 of file lte-rlc-tm.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoTransmitPdcpPdu(), and ExpireRbsTimer().

std::vector< Ptr<Packet> > ns3::LteRlcTm::m_txBuffer
private

Definition at line 62 of file lte-rlc-tm.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReportBufferStatus(), DoTransmitPdcpPdu(), and ExpireRbsTimer().

uint32_t ns3::LteRlcTm::m_txBufferSize
private

Definition at line 61 of file lte-rlc-tm.h.

Referenced by DoNotifyTxOpportunity(), DoReportBufferStatus(), and DoTransmitPdcpPdu().

The documentation for this class was generated from the following files:
