An object that monitors and reports back packet flows observed during a simulation. More...

#include <flow-monitor.h>

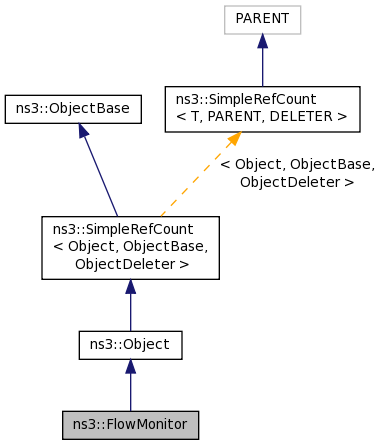

Inheritance diagram for ns3::FlowMonitor:

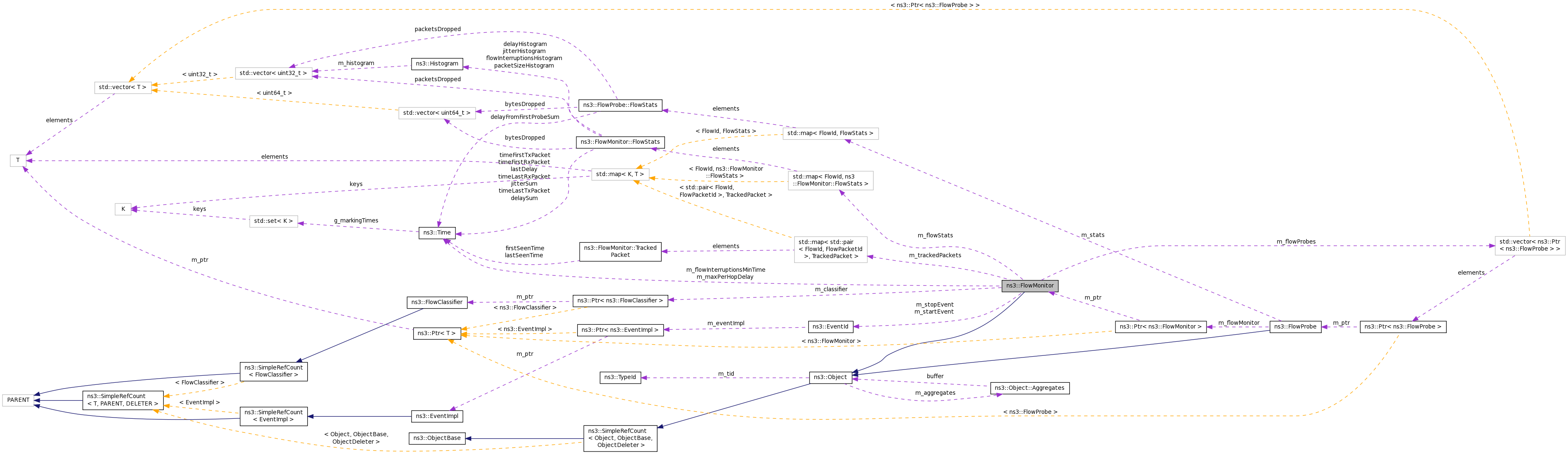

Collaboration diagram for ns3::FlowMonitor:

Classes
struct	FlowStats
	Structure that represents the measured metrics of an individual packet flow. More...

struct	TrackedPacket
	Structure to represent a single tracked packet data. More...

Public Member Functions
	FlowMonitor ()

void	AddProbe (Ptr< FlowProbe > probe)
	Register a new FlowProbe that will begin monitoring and report events to this monitor. More...

void	CheckForLostPackets ()
	Check right now for packets that appear to be lost. More...

void	CheckForLostPackets (Time maxDelay)
	Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay. More...

std::vector< Ptr< FlowProbe > >	GetAllProbes () const
	Get a list of all FlowProbe's associated with this FlowMonitor. More...

std::map< FlowId, FlowStats >	GetFlowStats () const
	Retrieve all collected the flow statistics. More...

TypeId	GetInstanceTypeId () const

void	ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)
	FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason. More...

void	ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded). More...

void	ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded. More...

void	ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
	FlowProbe implementations are supposed to call this method to report that a known packet is being received. More...

void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but writes to a file instead. More...

void	SerializeToXmlStream (std::ostream &os, int indent, bool enableHistograms, bool enableProbes)
	Serializes the results to an std::ostream in XML format. More...

std::string	SerializeToXmlString (int indent, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but returns the output as a std::string. More...

void	SetFlowClassifier (Ptr< FlowClassifier > classifier)
	Set the FlowClassifier to be used by the flow monitor. More...

void	Start (const Time &time)
	Set the time, counting from the current time, from which to start monitoring flows. More...

void	StartRightNow ()
	Begin monitoring flows right now More...

void	Stop (const Time &time)
	Set the time, counting from the current time, from which to stop monitoring flows. More...

void	StopRightNow ()
	End monitoring flows right now More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	NotifyConstructionCompleted ()
	This method is invoked once all member attributes have been initialized. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

Private Types
typedef std::map< std::pair < FlowId, FlowPacketId > , TrackedPacket >	TrackedPacketMap
	(FlowId,PacketId) –> TrackedPacket More...

Private Member Functions
FlowStats &	GetStatsForFlow (FlowId flowId)
	Get the stats for a given flow. More...

void	PeriodicCheckForLostPackets ()
	Periodic function to check for lost packets and prune statistics. More...

Private Attributes
Ptr< FlowClassifier >	m_classifier
	the FlowClassifier More...

double	m_delayBinWidth
	Delay bin width (for histograms) More...

bool	m_enabled
	FlowMon is enabled. More...

double	m_flowInterruptionsBinWidth
	Flow interruptions bin width (for histograms) More...

Time	m_flowInterruptionsMinTime
	Flow interruptions minimum time. More...

std::vector< Ptr< FlowProbe > >	m_flowProbes
	all the FlowProbes More...

std::map< FlowId, FlowStats >	m_flowStats
	FlowId –> FlowStats. More...

double	m_jitterBinWidth
	Jitter bin width (for histograms) More...

Time	m_maxPerHopDelay
	Minimum per-hop delay. More...

double	m_packetSizeBinWidth
	packet size bin width (for histograms) More...

EventId	m_startEvent
	Start event. More...

EventId	m_stopEvent
	Stop event. More...

TrackedPacketMap	m_trackedPackets
	Tracked packets. More...

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

Doxygen introspection did not find any typical Config paths.

The FlowMonitor class is responsible for coordinating efforts regarding probes, and collects end-to-end flow statistics.

Attributes

MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
StartTime: The time when the monitoring starts.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write
DelayBinWidth: The width used in the delay histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
JitterBinWidth: The width used in the jitter histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
PacketSizeBinWidth: The width used in the packetSize histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
FlowInterruptionsBinWidth: The width used in the flowInterruptions histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.25
- Flags: construct write read
FlowInterruptionsMinTime: The minimum inter-arrival time that is considered a flow interruption.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 50 of file flow-monitor.h.

Member Typedef Documentation

typedef std::map< std::pair<FlowId, FlowPacketId>, TrackedPacket> ns3::FlowMonitor::TrackedPacketMap

private

(FlowId,PacketId) –> TrackedPacket

Definition at line 263 of file flow-monitor.h.

Constructor & Destructor Documentation

ns3::FlowMonitor::FlowMonitor ( )

Definition at line 86 of file flow-monitor.cc.

Member Function Documentation

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe > probe )

Register a new FlowProbe that will begin monitoring and report events to this monitor.

This method is normally only used by FlowProbe implementations.

Parameters

probe the probe to add

Definition at line 336 of file flow-monitor.cc.

References m_flowProbes.

void ns3::FlowMonitor::CheckForLostPackets ( )

Check right now for packets that appear to be lost.

Definition at line 316 of file flow-monitor.cc.

References m_maxPerHopDelay.

Referenced by experiment(), PeriodicCheckForLostPackets(), SerializeToXmlStream(), and StopRightNow().

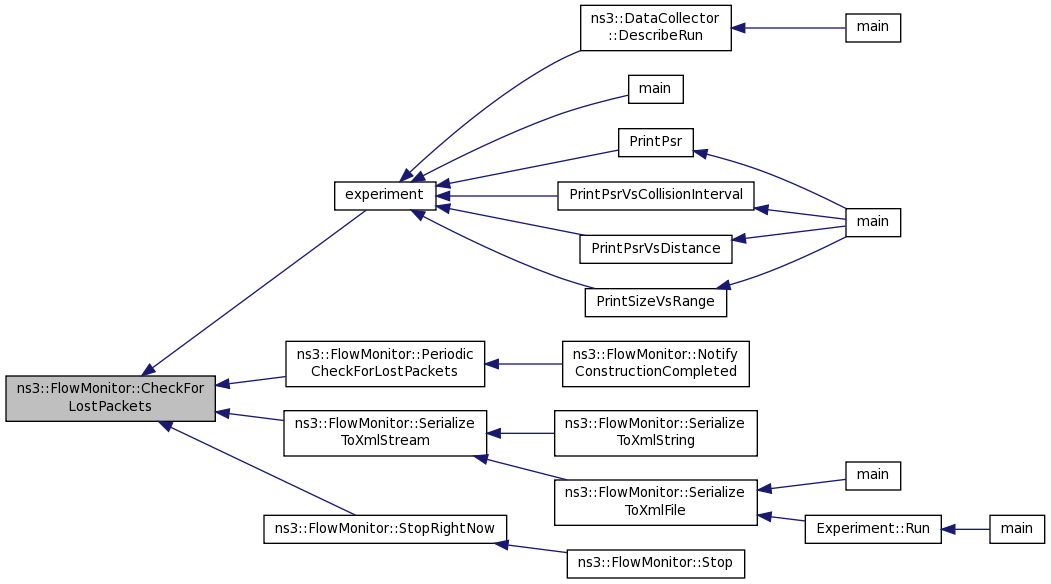

Here is the caller graph for this function:

void ns3::FlowMonitor::CheckForLostPackets ( Time maxDelay )

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay.

Parameters

maxDelay the max delay for a packet

Definition at line 290 of file flow-monitor.cc.

References m_flowStats, m_trackedPackets, ns3::Simulator::Now(), and NS_ASSERT.

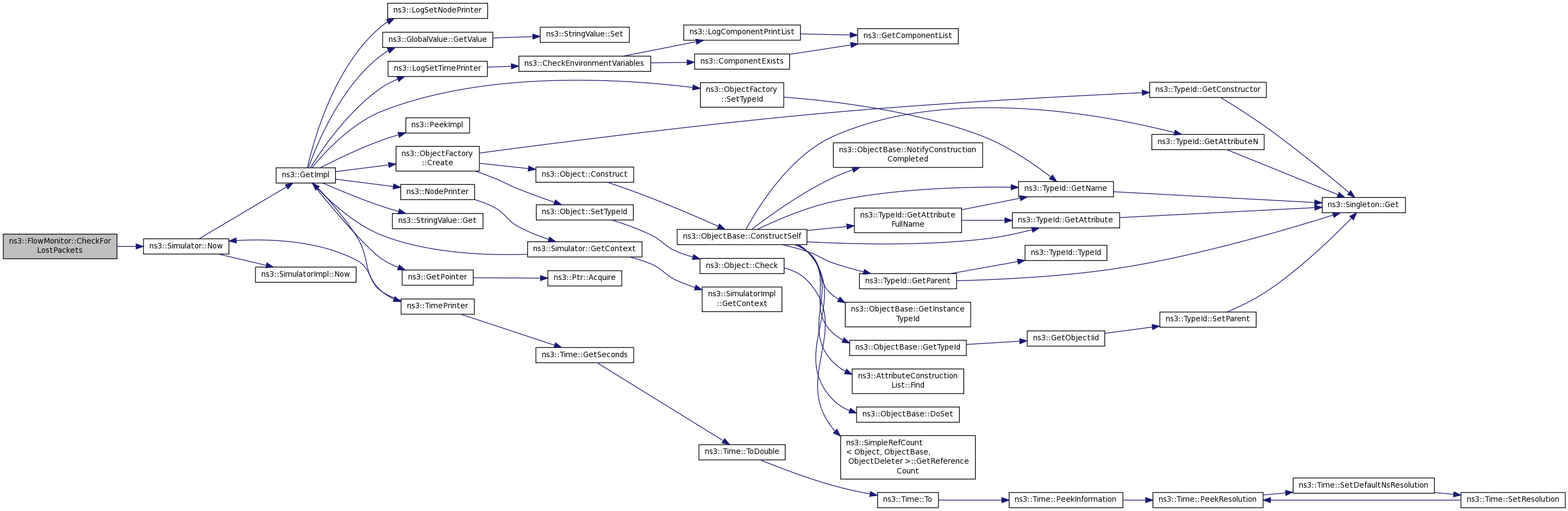

Here is the call graph for this function:

void ns3::FlowMonitor::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 93 of file flow-monitor.cc.

References ns3::Object::DoDispose(), m_classifier, and m_flowProbes.

Here is the call graph for this function:

std::vector< Ptr< FlowProbe > > ns3::FlowMonitor::GetAllProbes ( ) const

Get a list of all FlowProbe's associated with this FlowMonitor.

Returns: a list of all the probes

Definition at line 342 of file flow-monitor.cc.

References m_flowProbes.

std::map< FlowId, FlowMonitor::FlowStats > ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics.

Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

Returns: the flows statistics

Definition at line 283 of file flow-monitor.cc.

References m_flowStats.

Referenced by experiment().

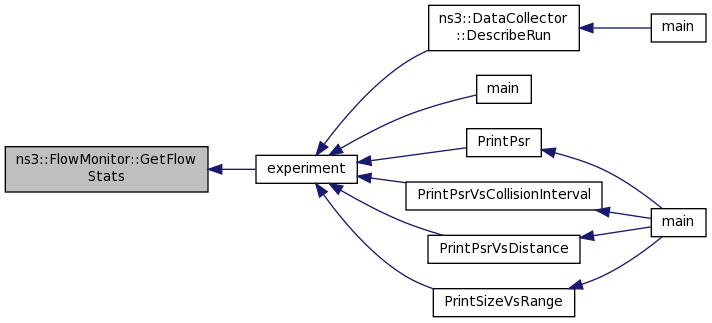

Here is the caller graph for this function:

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

Definition at line 81 of file flow-monitor.cc.

References GetTypeId().

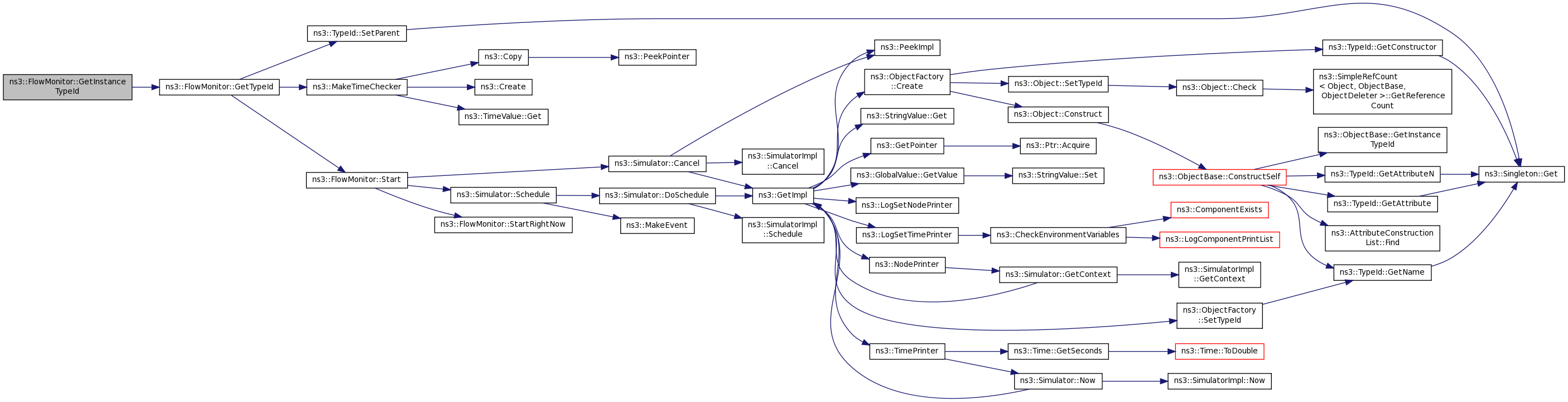

Here is the call graph for this function:

FlowMonitor::FlowStats & ns3::FlowMonitor::GetStatsForFlow ( FlowId flowId )

inlineprivate

Get the stats for a given flow.

Parameters

flowId the Flow identification

Returns: the stats of the flow

Definition at line 105 of file flow-monitor.cc.

Referenced by ReportDrop(), ReportFirstTx(), and ReportLastRx().

Here is the call graph for this function:

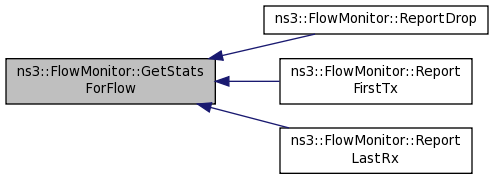

Here is the caller graph for this function:

TypeId ns3::FlowMonitor::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file flow-monitor.cc.

References m_delayBinWidth, m_flowInterruptionsBinWidth, m_flowInterruptionsMinTime, m_jitterBinWidth, m_maxPerHopDelay, m_packetSizeBinWidth, ns3::MakeTimeChecker(), ns3::TypeId::SetParent(), and Start().

Referenced by GetInstanceTypeId().

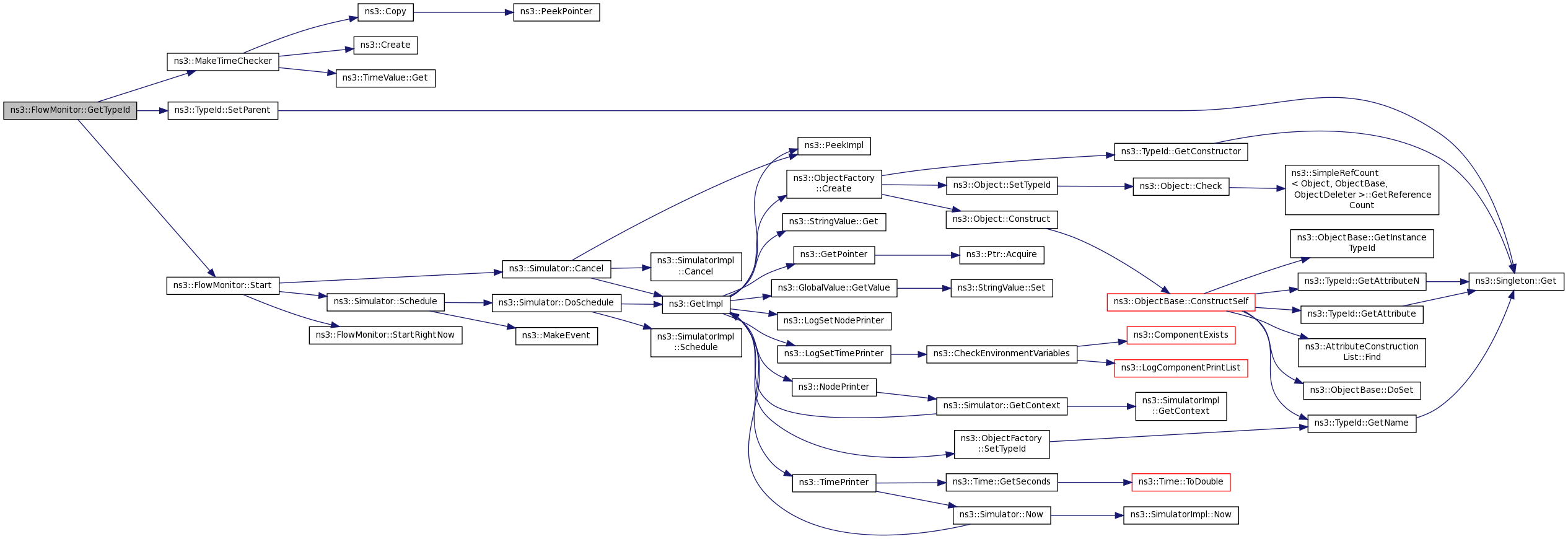

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::NotifyConstructionCompleted ( void )

protectedvirtual

This method is invoked once all member attributes have been initialized.

Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 329 of file flow-monitor.cc.

References ns3::ObjectBase::NotifyConstructionCompleted(), PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

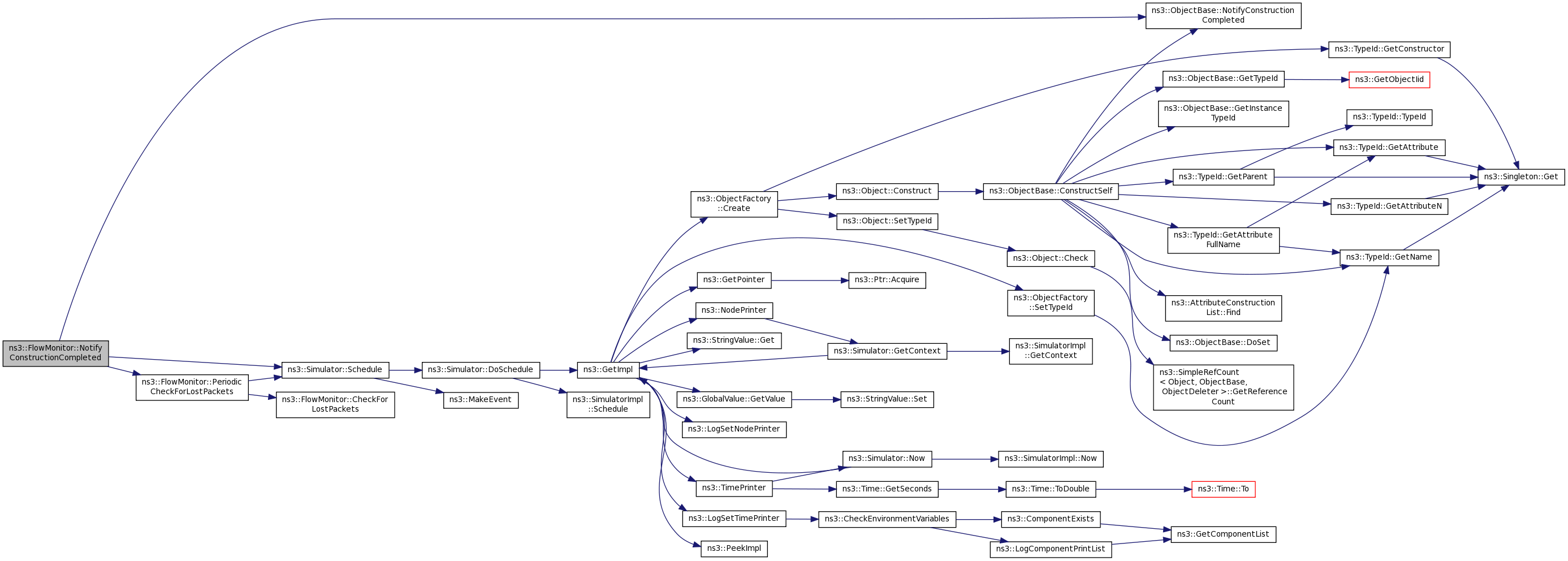

Here is the call graph for this function:

void ns3::FlowMonitor::PeriodicCheckForLostPackets ( )

private

Periodic function to check for lost packets and prune statistics.

Definition at line 322 of file flow-monitor.cc.

References CheckForLostPackets(), PERIODIC_CHECK_INTERVAL, and ns3::Simulator::Schedule().

Referenced by NotifyConstructionCompleted().

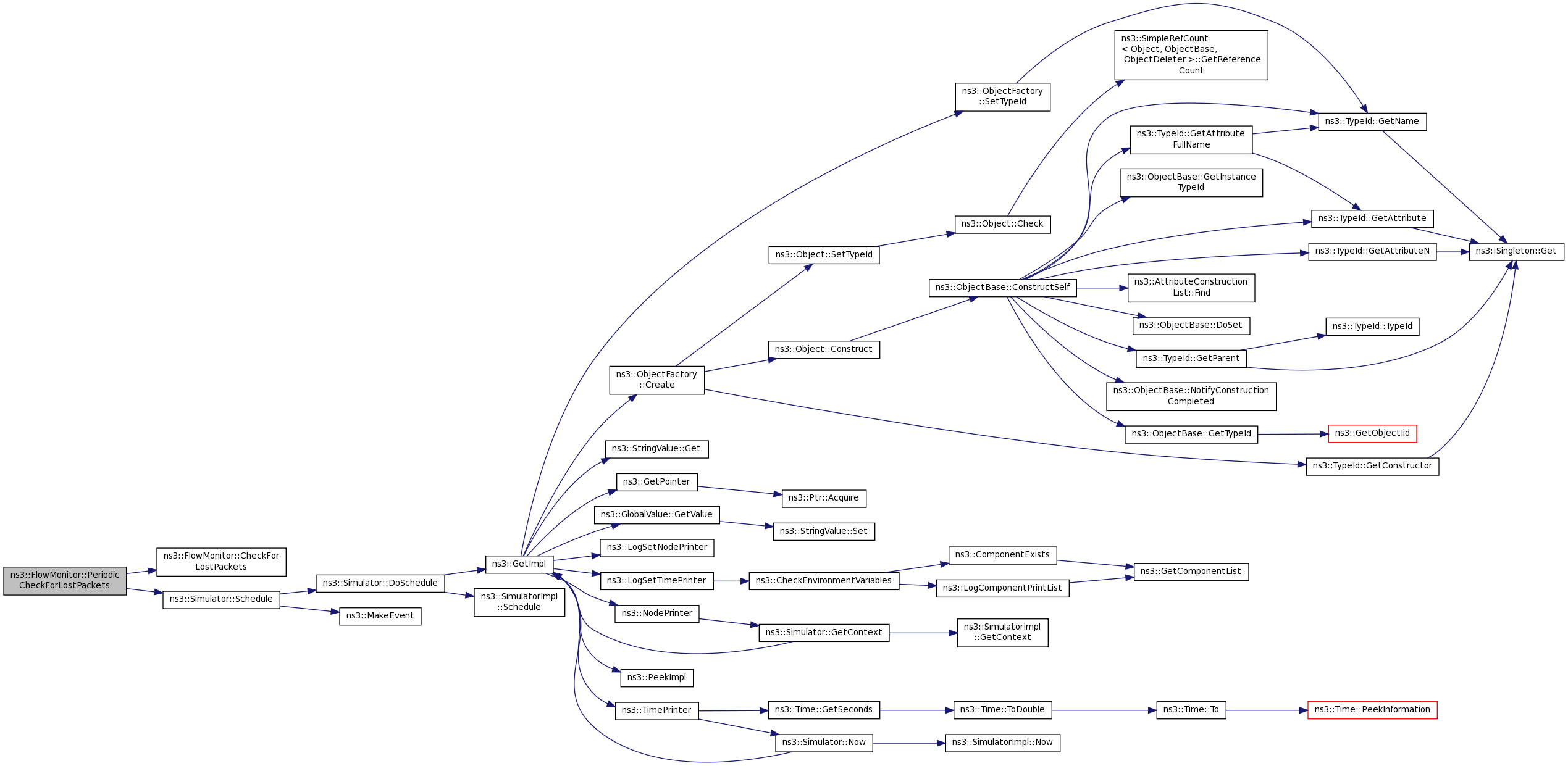

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::ReportDrop	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size
reasonCode	drop reason code

Definition at line 250 of file flow-monitor.cc.

References ns3::FlowMonitor::FlowStats::bytesDropped, GetStatsForFlow(), ns3::FlowMonitor::FlowStats::lostPackets, m_enabled, m_trackedPackets, NS_LOG_DEBUG, and ns3::FlowMonitor::FlowStats::packetsDropped.

Here is the call graph for this function:

void ns3::FlowMonitor::ReportFirstTx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 135 of file flow-monitor.cc.

References ns3::FlowMonitor::TrackedPacket::firstSeenTime, GetStatsForFlow(), ns3::FlowMonitor::TrackedPacket::lastSeenTime, m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::FlowMonitor::FlowStats::timeFirstTxPacket, ns3::FlowMonitor::FlowStats::timeLastTxPacket, ns3::FlowMonitor::TrackedPacket::timesForwarded, ns3::FlowMonitor::FlowStats::txBytes, and ns3::FlowMonitor::FlowStats::txPackets.

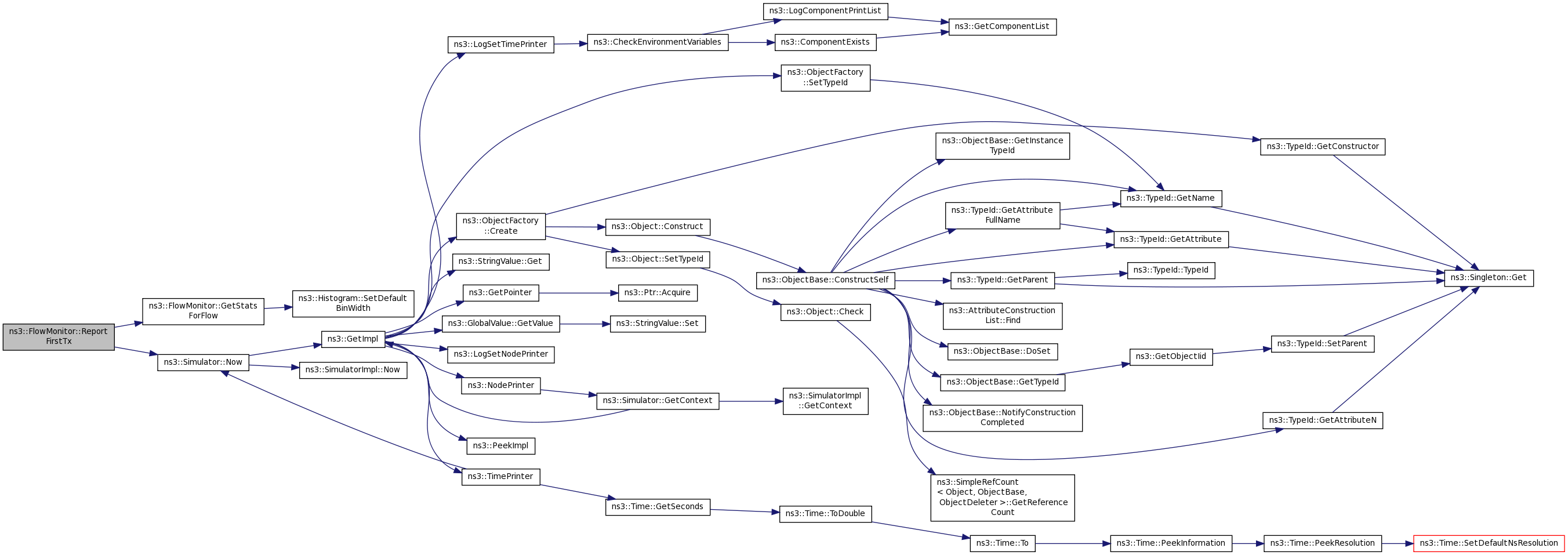

Here is the call graph for this function:

void ns3::FlowMonitor::ReportForwarding	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 163 of file flow-monitor.cc.

References m_enabled, m_trackedPackets, ns3::Simulator::Now(), and NS_LOG_WARN.

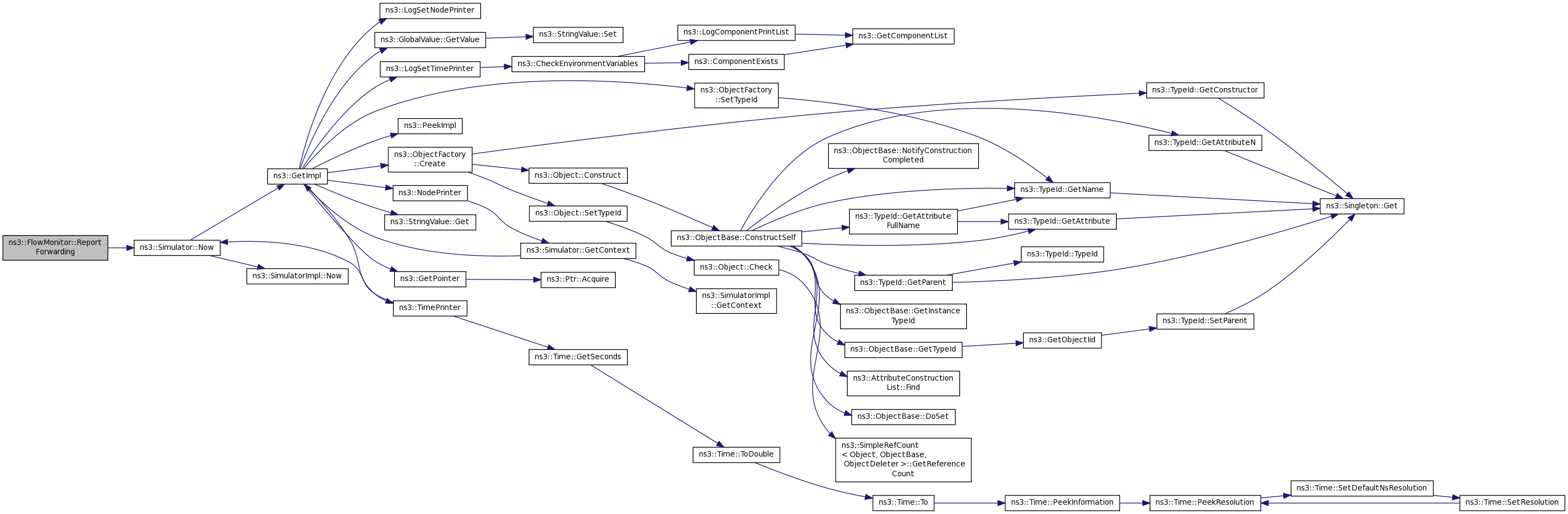

Here is the call graph for this function:

void ns3::FlowMonitor::ReportLastRx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being received.

Parameters

probe	the reporting probe
flowId	flow identification
packetId	Packet ID
packetSize	packet size

Definition at line 187 of file flow-monitor.cc.

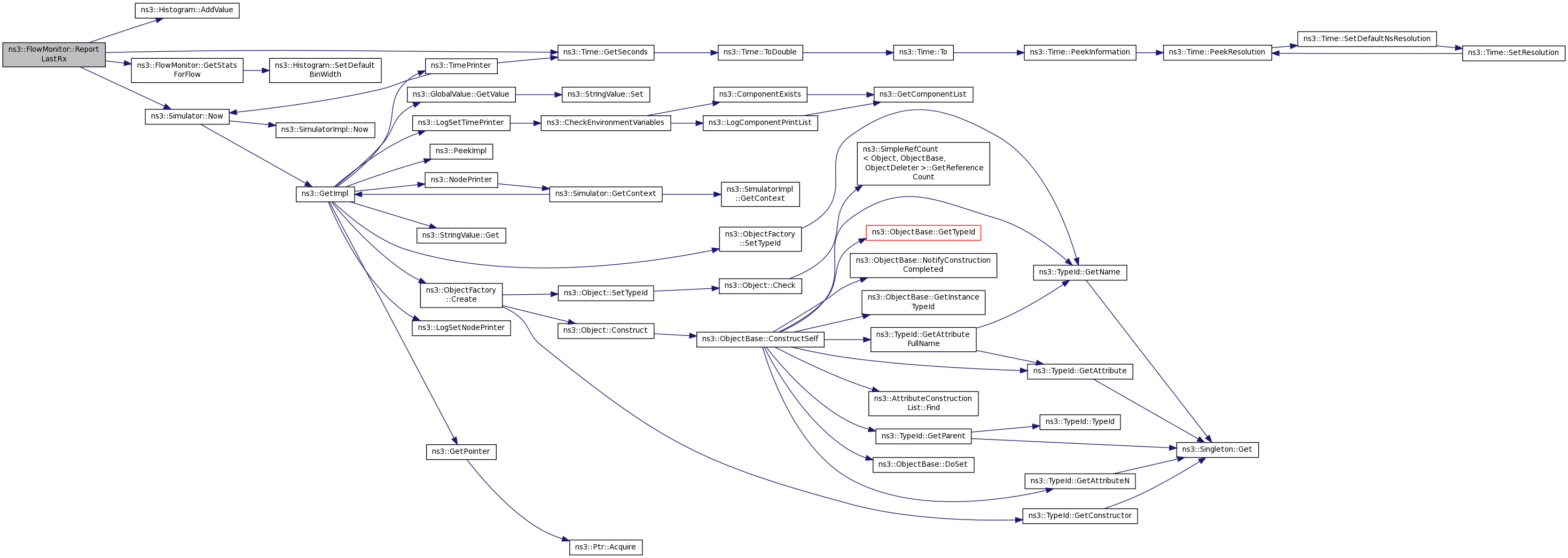

Here is the call graph for this function:

void ns3::FlowMonitor::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead.

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 490 of file flow-monitor.cc.

References SerializeToXmlStream().

Referenced by main(), and Experiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 400 of file flow-monitor.cc.

References ATTRIB, CheckForLostPackets(), INDENT, m_classifier, m_flowProbes, and m_flowStats.

Referenced by SerializeToXmlFile(), and SerializeToXmlString().

Here is the call graph for this function:

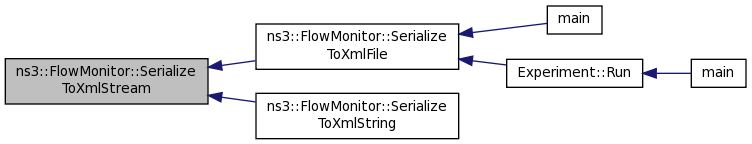

Here is the caller graph for this function:

std::string ns3::FlowMonitor::SerializeToXmlString	(	int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string.

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output
