ns3::HalfDuplexIdealPhy Class Reference

This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time). More...

#include <half-duplex-ideal-phy.h>

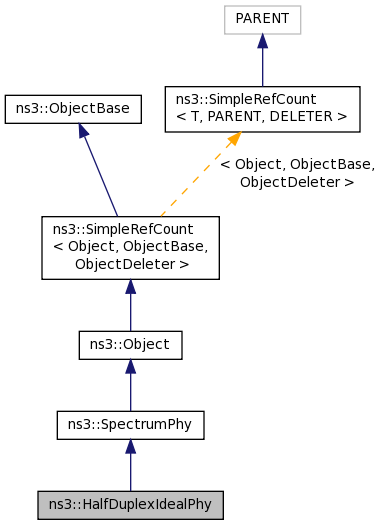

+ Inheritance diagram for ns3::HalfDuplexIdealPhy:

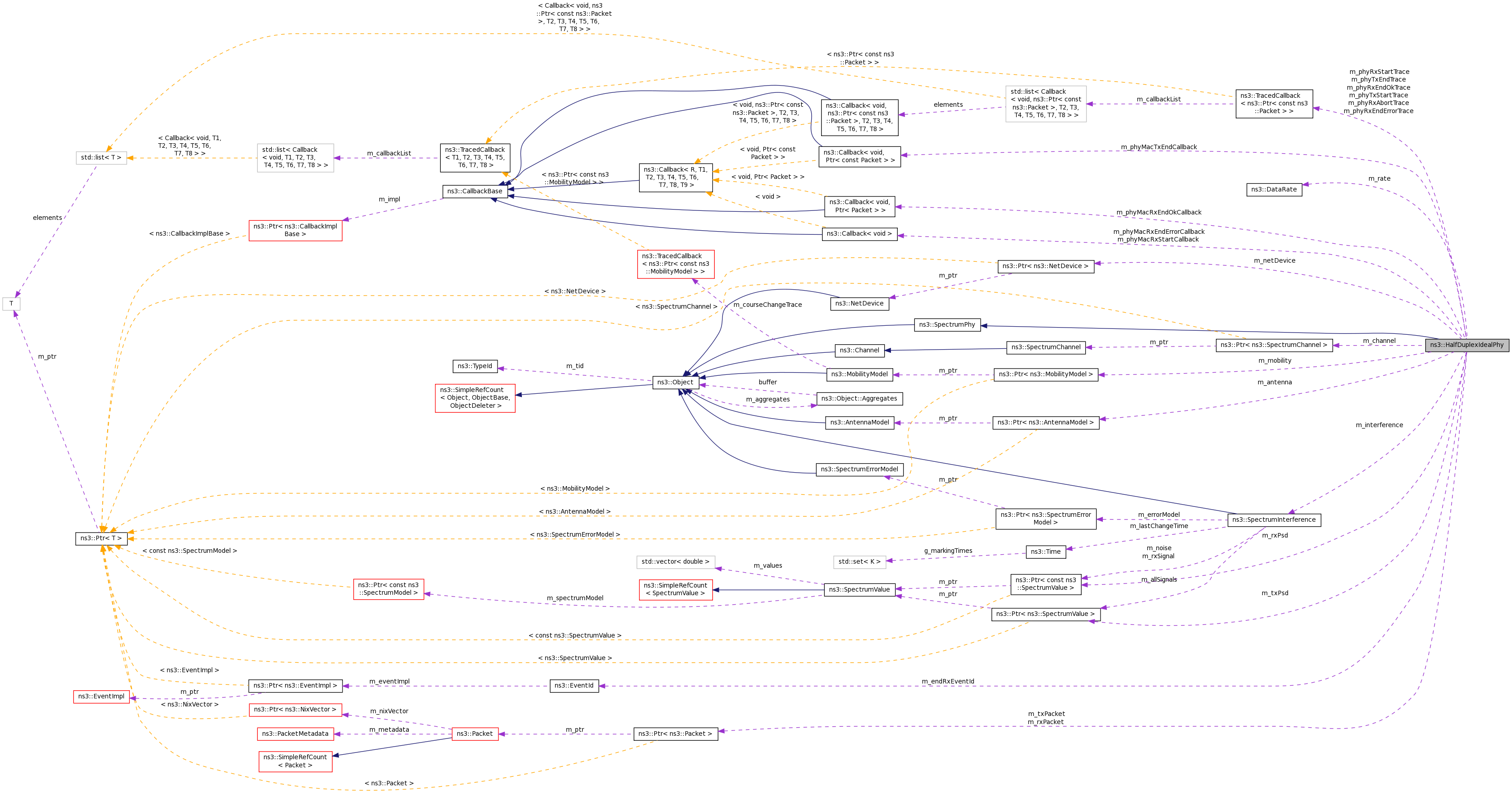

+ Collaboration diagram for ns3::HalfDuplexIdealPhy:

Public Types

enum  State { IDLE, TX, RX }
 PHY states. More...


Public Member Functions

 HalfDuplexIdealPhy ()

virtual ~HalfDuplexIdealPhy ()

Ptr< NetDeviceGetDevice ()
 get the associated NetDevice instance More...

Ptr< MobilityModelGetMobility ()
 get the associated MobilityModel instance More...

DataRate GetRate () const

Ptr< AntennaModelGetRxAntenna ()
 get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModelGetRxSpectrumModel () const

void SetAntenna (Ptr< AntennaModel > a)
 set the AntennaModel to be used More...

void SetChannel (Ptr< SpectrumChannel > c)
 Set the channel attached to this device. More...

void SetDevice (Ptr< NetDevice > d)
 set the associated NetDevice instance More...

void SetGenericPhyRxEndErrorCallback (GenericPhyRxEndErrorCallback c)
 set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC More...

void SetGenericPhyRxEndOkCallback (GenericPhyRxEndOkCallback c)
 set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC More...

void SetGenericPhyRxStartCallback (GenericPhyRxStartCallback c)
 set the callback for the start of RX, as part of the interconnections betweenthe PHY and the MAC More...

void SetGenericPhyTxEndCallback (GenericPhyTxEndCallback c)
 set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC More...

void SetMobility (Ptr< MobilityModel > m)
 Set the mobility model associated with this device. More...

void SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)

void SetRate (DataRate rate)
 set the PHY rate to be used by this PHY. More...

void SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
 set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz. More...

void StartRx (Ptr< SpectrumSignalParameters > params)
 Notify the SpectrumPhy instance of an incoming signal. More...

bool StartTx (Ptr< Packet > p)
 Start a transmission. More...

- Public Member Functions inherited from ns3::SpectrumPhy
 SpectrumPhy ()

virtual ~SpectrumPhy ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void AbortRx ()

void ChangeState (State newState)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

void EndRx ()

void EndTx ()


Private Attributes

Ptr< AntennaModelm_antenna

Ptr< SpectrumChannelm_channel

EventId m_endRxEventId

SpectrumInterference m_interference

Ptr< MobilityModelm_mobility

Ptr< NetDevicem_netDevice

GenericPhyRxEndErrorCallback m_phyMacRxEndErrorCallback

GenericPhyRxEndOkCallback m_phyMacRxEndOkCallback

GenericPhyRxStartCallback m_phyMacRxStartCallback

GenericPhyTxEndCallback m_phyMacTxEndCallback

TracedCallback< Ptr< const
Packet > >
m_phyRxAbortTrace

TracedCallback< Ptr< const
Packet > >
m_phyRxEndErrorTrace

TracedCallback< Ptr< const
Packet > >
m_phyRxEndOkTrace

TracedCallback< Ptr< const
Packet > >
m_phyRxStartTrace

TracedCallback< Ptr< const
Packet > >
m_phyTxEndTrace

TracedCallback< Ptr< const
Packet > >
m_phyTxStartTrace

DataRate m_rate

Ptr< Packetm_rxPacket

Ptr< const SpectrumValuem_rxPsd

State m_state

Ptr< Packetm_txPacket

Ptr< SpectrumValuem_txPsd


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time).

Doxygen introspection did not find any typical Config paths.

The device is ideal in the sense that: 1) it uses an error model based on the Shannon capacity, which assumes ideal channel coding; 2) it uses ideal signal acquisition, i.e., preamble detection and synchronization are always successful 3) it has no PHY layer overhead

Being half duplex, if a RX is ongoing but a TX is requested, the RX is aborted and the TX is started. Of course, no RX can be performed while there is an ongoing TX.

The use of OFDM is modeled by means of the Spectrum framework. By calling the method SetTxPowerSpectralDensity(), the user can specify how much of the spectrum is used, how many subcarriers are used, and what power is allocated to each subcarrier.

The user can also specify the PHY rate at which communications take place by using SetRate(). This is equivalent to choosing a particular modulation and coding scheme.

The use of the ShannonSpectrumErrorModel allows us to account for the following aspects in determining whether a transmission is successful or not:

  • the PHY rate (trades off communication speed with reliability)
  • the power spectral density (trade-off among total power consumed, total bandwidth used (i.e., how much of the spectrum is occupied), and communication reliability)
  • the signal propagation

This PHY model supports a single antenna model instance which is used for both transmission and reception.


Attributes

  • Rate: The PHY rate used by this device
    • Set with class: DataRateValue
    • Underlying type: DataRate
    • Initial value: 1000000bps
    • Flags: construct write read

TraceSources

  • TxStart: Trace fired when a new transmission is started
  • TxEnd: Trace fired when a previosuly started transmission is finished
  • RxStart: Trace fired when the start of a signal is detected
  • RxAbort: Trace fired when a previously started RX is aborted before time
  • RxEndOk: Trace fired when a previosuly started RX terminates successfully
  • RxEndError: Trace fired when a previosuly started RX terminates with an error (packet is corrupted)

Definition at line 78 of file half-duplex-ideal-phy.h.

Member Enumeration Documentation

PHY states.

Enumerator
IDLE
TX
RX

Definition at line 89 of file half-duplex-ideal-phy.h.

Constructor & Destructor Documentation

ns3::HalfDuplexIdealPhy::HalfDuplexIdealPhy ( )

Definition at line 42 of file half-duplex-ideal-phy.cc.

References m_interference, and ns3::SpectrumInterference::SetErrorModel().

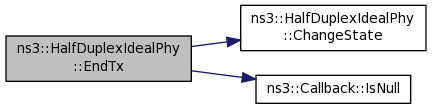

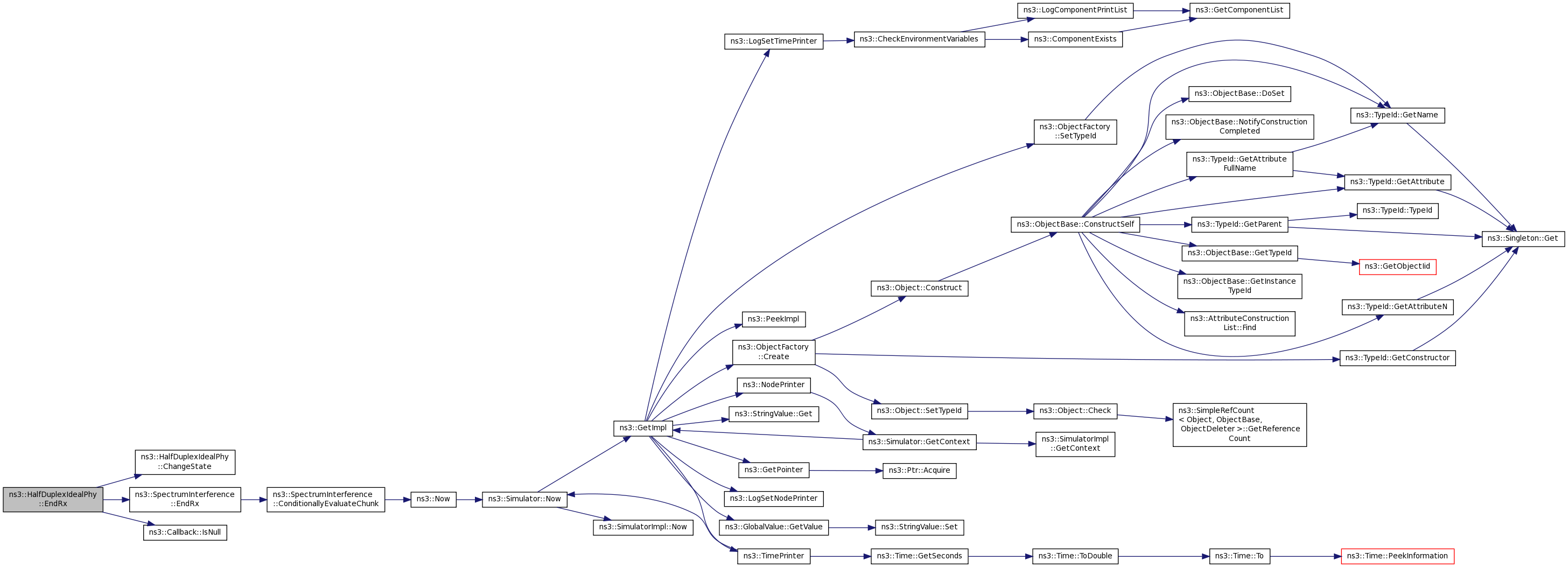

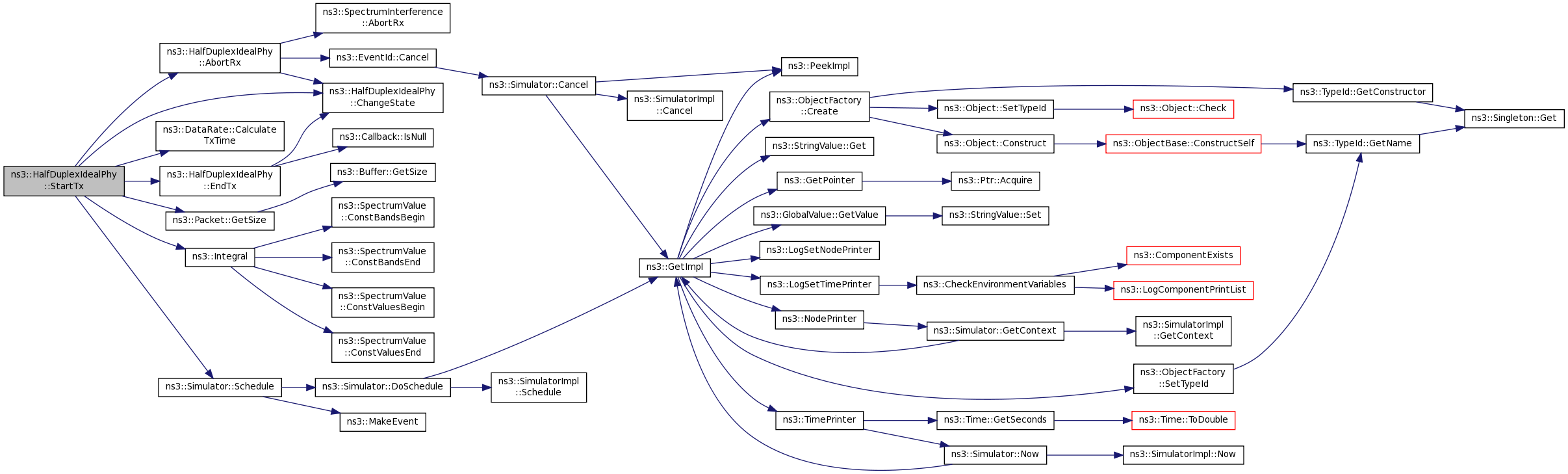

+ Here is the call graph for this function:

ns3::HalfDuplexIdealPhy::~HalfDuplexIdealPhy ( )
virtual

Definition at line 53 of file half-duplex-ideal-phy.cc.

Member Function Documentation

void ns3::HalfDuplexIdealPhy::AbortRx ( )
private

Definition at line 394 of file half-duplex-ideal-phy.cc.

References ns3::SpectrumInterference::AbortRx(), ns3::EventId::Cancel(), ChangeState(), IDLE, m_endRxEventId, m_interference, m_phyRxAbortTrace, m_rxPacket, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX.

Referenced by StartTx().

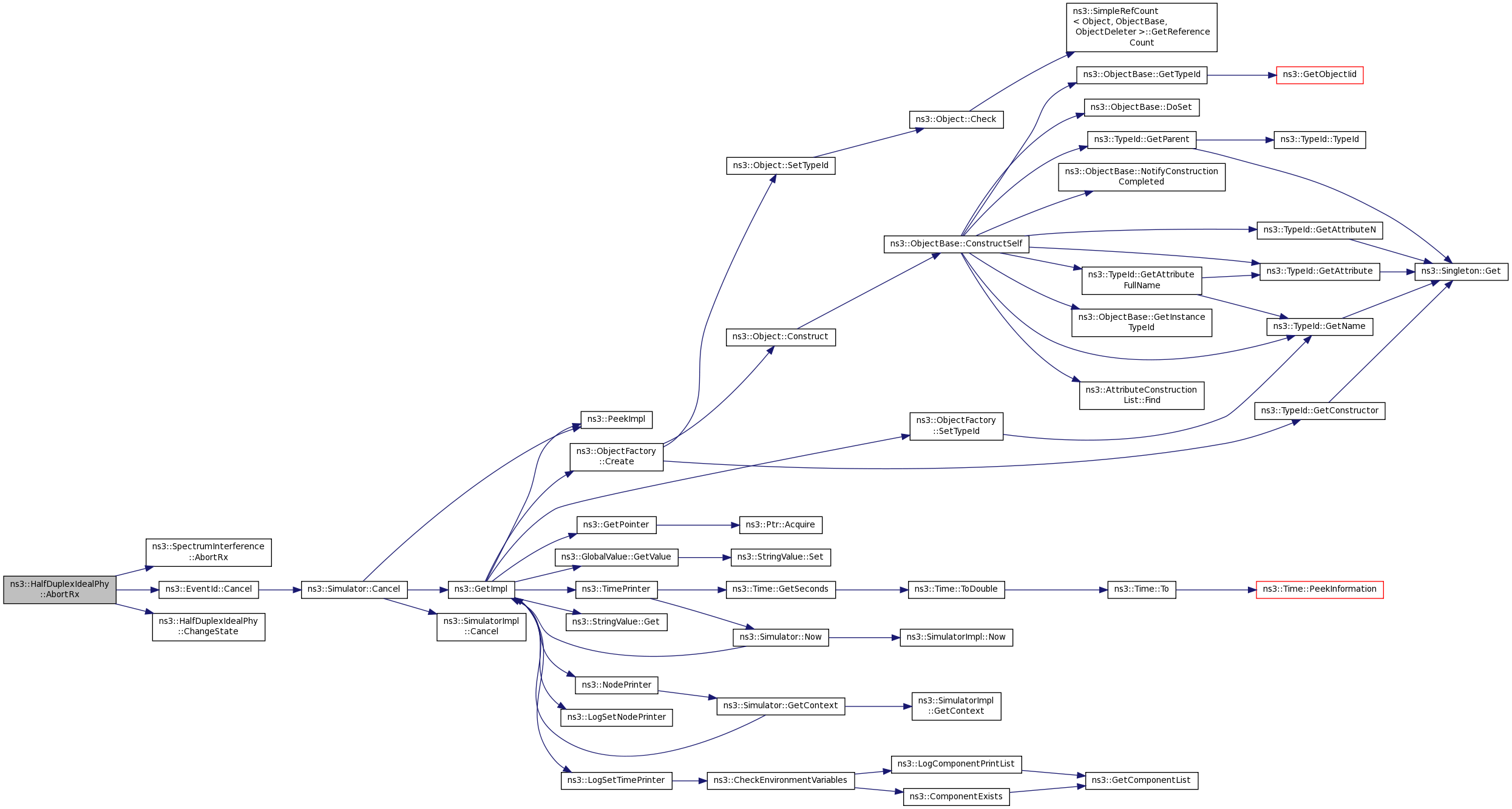

+ Here is the call graph for this function:

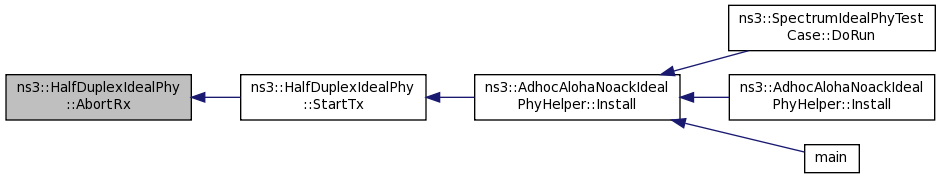

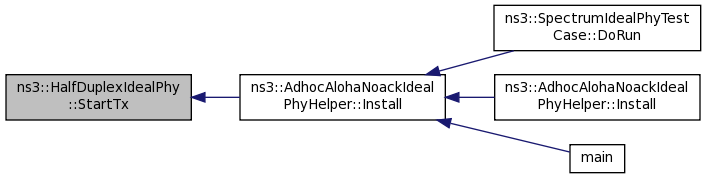

+ Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::ChangeState ( State  newState)
private

Definition at line 261 of file half-duplex-ideal-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by AbortRx(), EndRx(), EndTx(), StartRx(), and StartTx().

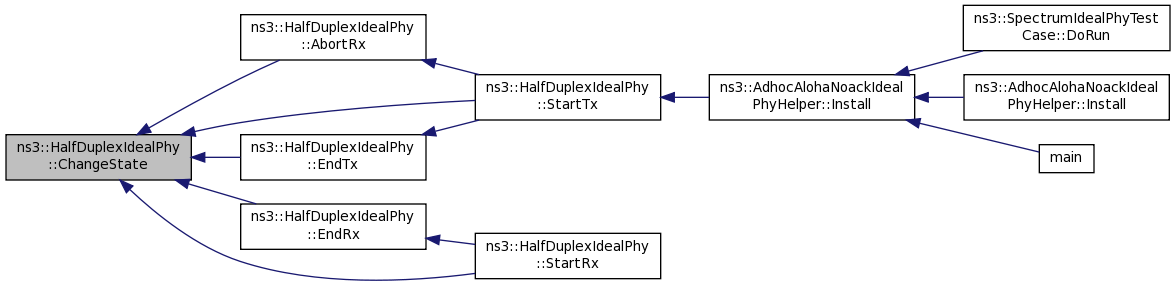

+ Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::DoDispose ( void  )
privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 58 of file half-duplex-ideal-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_mobility, m_netDevice, m_phyMacRxEndErrorCallback, m_phyMacRxEndOkCallback, m_phyMacRxStartCallback, m_phyMacTxEndCallback, m_rxPacket, m_rxPsd, m_txPacket, m_txPsd, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::HalfDuplexIdealPhy::EndRx ( )
private
void ns3::HalfDuplexIdealPhy::EndTx ( )
private

Definition at line 309 of file half-duplex-ideal-phy.cc.

References ChangeState(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_phyMacTxEndCallback, m_phyTxEndTrace, m_state, m_txPacket, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTx().

+ Here is the call graph for this function:

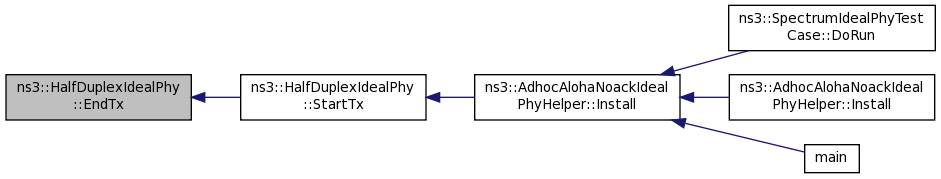

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::HalfDuplexIdealPhy::GetDevice ( )
virtual

get the associated NetDevice instance

Returns
a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 133 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::HalfDuplexIdealPhy::GetMobility ( )
virtual

get the associated MobilityModel instance

Returns
a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 141 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

DataRate ns3::HalfDuplexIdealPhy::GetRate ( void  ) const
Returns
the PHY rate used by this PHY.

Definition at line 209 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Ptr< AntennaModel > ns3::HalfDuplexIdealPhy::GetRxAntenna ( )
virtual

get the AntennaModel used by the NetDevice for reception

Returns
a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 247 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

Ptr< const SpectrumModel > ns3::HalfDuplexIdealPhy::GetRxSpectrumModel ( ) const
virtual
Returns
returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 172 of file half-duplex-ideal-phy.cc.

References m_txPsd.

TypeId ns3::HalfDuplexIdealPhy::GetTypeId ( void  )
static
void ns3::HalfDuplexIdealPhy::SetAntenna ( Ptr< AntennaModel a)

set the AntennaModel to be used

Parameters
athe Antenna Model

Definition at line 254 of file half-duplex-ideal-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetChannel ( Ptr< SpectrumChannel c)
virtual

Set the channel attached to this device.

Parameters
cthe channel

Implements ns3::SpectrumPhy.

Definition at line 165 of file half-duplex-ideal-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetDevice ( Ptr< NetDevice d)
virtual

set the associated NetDevice instance

Parameters
dthe NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 149 of file half-duplex-ideal-phy.cc.

References m_netDevice, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndErrorCallback ( GenericPhyRxEndErrorCallback  c)

set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 232 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxEndOkCallback ( GenericPhyRxEndOkCallback  c)

set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 240 of file half-duplex-ideal-phy.cc.

References m_phyMacRxEndOkCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyRxStartCallback ( GenericPhyRxStartCallback  c)

set the callback for the start of RX, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 224 of file half-duplex-ideal-phy.cc.

References m_phyMacRxStartCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetGenericPhyTxEndCallback ( GenericPhyTxEndCallback  c)

set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 217 of file half-duplex-ideal-phy.cc.

References m_phyMacTxEndCallback, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetMobility ( Ptr< MobilityModel m)
virtual

Set the mobility model associated with this device.

Parameters
mthe mobility model

Implements ns3::SpectrumPhy.

Definition at line 157 of file half-duplex-ideal-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::HalfDuplexIdealPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue noisePsd)
Parameters
noisePsdthe Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 194 of file half-duplex-ideal-phy.cc.

References m_interference, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SpectrumInterference::SetNoisePowerSpectralDensity().

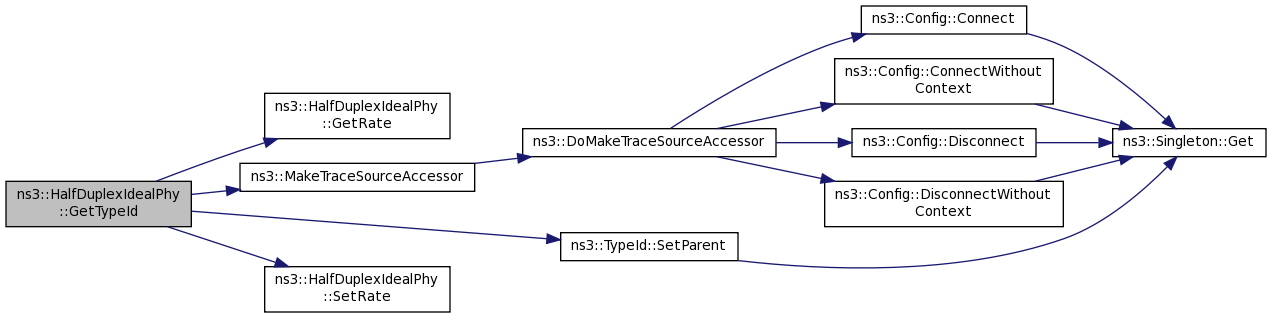

+ Here is the call graph for this function:

void ns3::HalfDuplexIdealPhy::SetRate ( DataRate  rate)

set the PHY rate to be used by this PHY.

Parameters
rate

Definition at line 202 of file half-duplex-ideal-phy.cc.

References m_rate, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::HalfDuplexIdealPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue txPsd)

set the Power Spectral Density of outgoing signals in power units (Watt, Pascal...) per Hz.

Parameters
txPsd

Definition at line 185 of file half-duplex-ideal-phy.cc.

References m_txPsd, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_INFO.

void ns3::HalfDuplexIdealPhy::StartRx ( Ptr< SpectrumSignalParameters params)
virtual
bool ns3::HalfDuplexIdealPhy::StartTx ( Ptr< Packet p)

Start a transmission.

Parameters
pthe packet to be transmitted
Returns
true if an error occurred and the transmission was not started, false otherwise.

Definition at line 268 of file half-duplex-ideal-phy.cc.

References AbortRx(), ns3::DataRate::CalculateTxTime(), ChangeState(), EndTx(), ns3::Packet::GetSize(), IDLE, ns3::Integral(), m_antenna, m_channel, m_phyTxStartTrace, m_rate, m_state, m_txPacket, m_txPsd, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX, ns3::Simulator::Schedule(), and TX.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

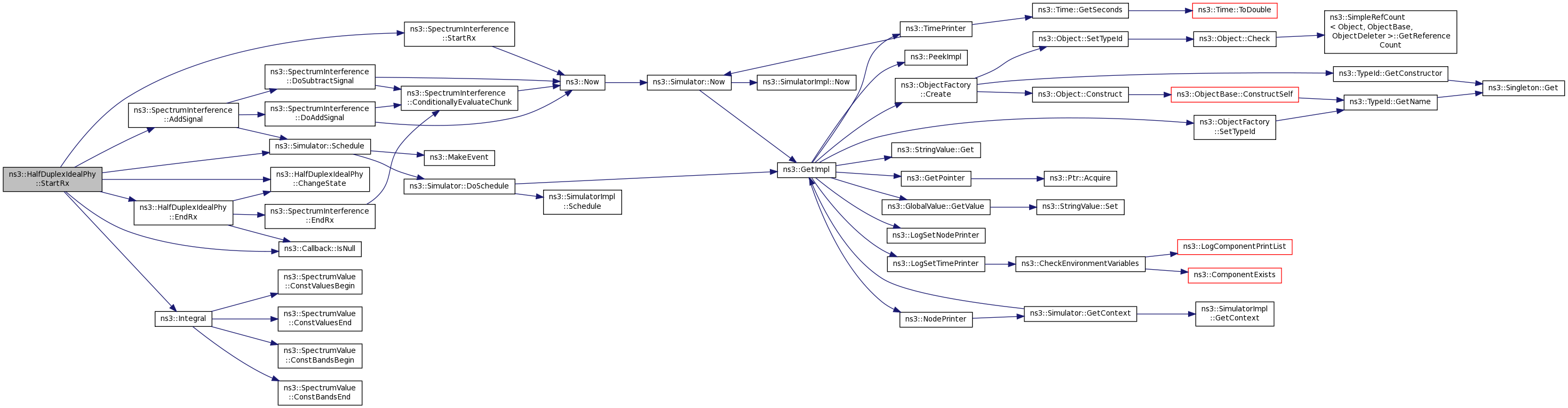

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<AntennaModel> ns3::HalfDuplexIdealPhy::m_antenna
private

Definition at line 197 of file half-duplex-ideal-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), and StartTx().

Ptr<SpectrumChannel> ns3::HalfDuplexIdealPhy::m_channel
private

Definition at line 199 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetChannel(), and StartTx().

EventId ns3::HalfDuplexIdealPhy::m_endRxEventId
private

Definition at line 194 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and StartRx().

SpectrumInterference ns3::HalfDuplexIdealPhy::m_interference
private
Ptr<MobilityModel> ns3::HalfDuplexIdealPhy::m_mobility
private

Definition at line 196 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

Ptr<NetDevice> ns3::HalfDuplexIdealPhy::m_netDevice
private

Definition at line 198 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

GenericPhyRxEndErrorCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndErrorCallback
private

Definition at line 219 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndErrorCallback().

GenericPhyRxEndOkCallback ns3::HalfDuplexIdealPhy::m_phyMacRxEndOkCallback
private

Definition at line 220 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and SetGenericPhyRxEndOkCallback().

GenericPhyRxStartCallback ns3::HalfDuplexIdealPhy::m_phyMacRxStartCallback
private

Definition at line 218 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), SetGenericPhyRxStartCallback(), and StartRx().

GenericPhyTxEndCallback ns3::HalfDuplexIdealPhy::m_phyMacTxEndCallback
private

Definition at line 217 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and SetGenericPhyTxEndCallback().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxAbortTrace
private

Definition at line 213 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndErrorTrace
private

Definition at line 215 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxEndOkTrace
private

Definition at line 214 of file half-duplex-ideal-phy.h.

Referenced by EndRx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyRxStartTrace
private

Definition at line 212 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartRx().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxEndTrace
private

Definition at line 211 of file half-duplex-ideal-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::HalfDuplexIdealPhy::m_phyTxStartTrace
private

Definition at line 210 of file half-duplex-ideal-phy.h.

Referenced by GetTypeId(), and StartTx().

DataRate ns3::HalfDuplexIdealPhy::m_rate
private

Definition at line 206 of file half-duplex-ideal-phy.h.

Referenced by GetRate(), SetRate(), and StartTx().

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_rxPacket
private

Definition at line 204 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), DoDispose(), EndRx(), and StartRx().

Ptr<const SpectrumValue> ns3::HalfDuplexIdealPhy::m_rxPsd
private

Definition at line 202 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndRx(), and StartRx().

State ns3::HalfDuplexIdealPhy::m_state
private

Definition at line 208 of file half-duplex-ideal-phy.h.

Referenced by AbortRx(), ChangeState(), EndRx(), EndTx(), StartRx(), and StartTx().

Ptr<Packet> ns3::HalfDuplexIdealPhy::m_txPacket
private

Definition at line 203 of file half-duplex-ideal-phy.h.

Referenced by DoDispose(), EndTx(), and StartTx().

Ptr<SpectrumValue> ns3::HalfDuplexIdealPhy::m_txPsd
private

The documentation for this class was generated from the following files:
