Non-gateway node MAC for reservation channel MAC protocol. More...

#include <uan-mac-rc.h>

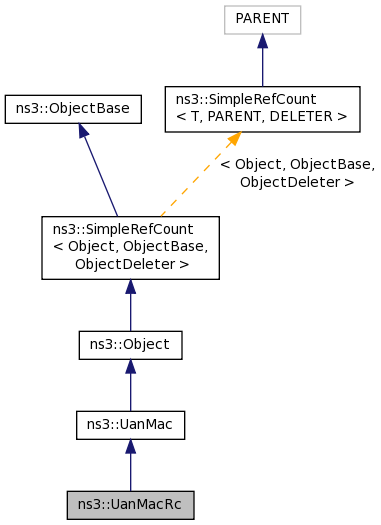

Inheritance diagram for ns3::UanMacRc:

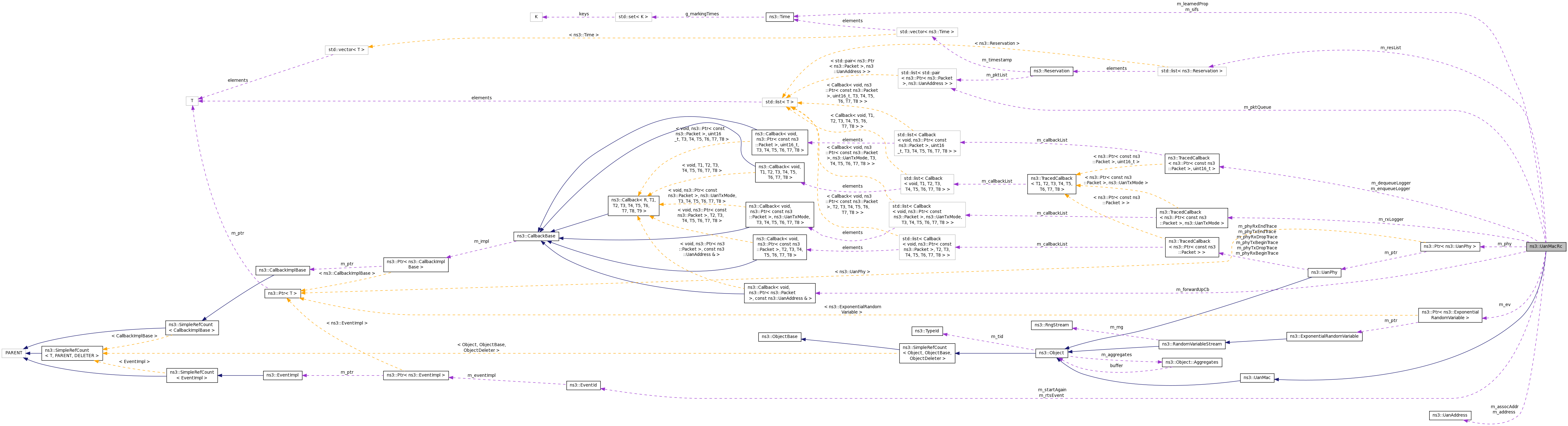

Collaboration diagram for ns3::UanMacRc:

Public Types
enum	{ TYPE_DATA, TYPE_GWPING, TYPE_RTS, TYPE_CTS, TYPE_ACK }
	Packet types. More...

Public Member Functions
	UanMacRc ()
	Default constructor. More...

virtual	~UanMacRc ()
	Dummy destructor, DoDispose. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	AttachPhy (Ptr< UanPhy > phy)
	Attach PHY layer to this MAC. More...

virtual void	Clear (void)
	Clears all pointer references. More...

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)
	Enqueue packet to be transmitted. More...

virtual Address	GetAddress (void)
	Get the MAC Address. More...

virtual Address	GetBroadcast (void) const
	Get the broadcast address. More...

virtual void	SetAddress (UanAddress addr)
	Set the address. More...

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)
	Set the callback to forward packets up to higher layers. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
enum	State { UNASSOCIATED, GWPSENT, IDLE, RTSSENT, DATATX }
	MAC state. More...

Private Member Functions
void	Associate (void)
	Associate with a gateway by sending the first GWPING. More...

void	AssociateTimeout (void)
	Periodically retry association. More...

void	BlockRtsing (void)
	Callback to block RST. More...

UanHeaderRcRts	CreateRtsHeader (const Reservation &res)
	Create the RTS header from a Reservation. More...

bool	IsPhy1Ok (void)
	Check that PHY is ok: not CTS or ACK not to my address. More...

void	ProcessAck (Ptr< Packet > ack)
	Process a received ACK. More...

void	ReceiveOkFromPhy (Ptr< Packet > pkt, double sinr, UanTxMode mode)
	PHY receive ok Callback. More...

void	RtsTimeout (void)
	Retry RTS. More...

void	ScheduleData (const UanHeaderRcCts &ctsh, const UanHeaderRcCtsGlobal &ctsg, uint32_t ctsBytes)
	Schedule Packet sends. More...

void	SendPacket (Ptr< Packet > pkt, uint32_t rate)
	Send on packet on the PHY. More...

void	SendRts (void)
	Send RTS packet. More...

Private Attributes
UanAddress	m_address
	My addrese.s. More...

UanAddress	m_assocAddr
	Next hop address. More...

bool	m_cleared
	Flag when we've been cleared. More...

uint32_t	m_ctsSizeG
	Size of UanHeaderCommon and UanHeaderRcCtsGlobal. More...

uint32_t	m_ctsSizeN
	Size of UanHeaderRcCts. More...

uint32_t	m_currentRate
	Rate number corresponding to data rate of current cycle. More...

TracedCallback< Ptr< const Packet >, uint16_t >	m_dequeueLogger
	A was passed down to the PHY from the MAC. More...

TracedCallback< Ptr< const Packet >, uint16_t >	m_enqueueLogger
	A packet arrived at the MAC for transmission. More...

Ptr< ExponentialRandomVariable >	m_ev
	Provides exponential random variables. More...

Callback< void, Ptr< Packet > , const UanAddress & >	m_forwardUpCb
	The callback to forward a packet up to higher layer. More...

uint8_t	m_frameNo
	Current frame number. More...

Time	m_learnedProp
	Propagation delay to gateway. More...

uint32_t	m_maxFrames
	Maximum number of frames to include in a single RTS. More...

double	m_minRetryRate
	Smallest allowed RTS retry rate. More...

uint32_t	m_numRates
	Number of rates per Phy layer. More...

Ptr< UanPhy >	m_phy
	PHY layer attached to this MAC. More...

std::list< std::pair< Ptr < Packet >, UanAddress > >	m_pktQueue
	Pending packets. More...

uint32_t	m_queueLimit
	Maximum packets to queue at MAC. More...

std::list< Reservation >	m_resList
	List of scheduled reservations. More...

double	m_retryRate
	Number of retry attempts per second (of RTS/GWPING. More...

double	m_retryStep
	Retry rate increment. More...

bool	m_rtsBlocked
	RTS blocked while processing ACK. More...

EventId	m_rtsEvent
	The RTS event. More...

TracedCallback< Ptr< const Packet >, UanTxMode >	m_rxLogger
	A packet was destined for and received at this MAC layer. More...

Time	m_sifs
	Spacing between frames to account for timing error and processing delay. More...

EventId	m_startAgain
	(Unused). More...

State	m_state
	MAC state. More...

Static Private Attributes
static uint32_t	m_cntrlSends = 0
	Global count of calls to Associate, AssociateTimeout, SendRts, and RtsTimeout. More...

Detailed Description

Non-gateway node MAC for reservation channel MAC protocol.

This MAC protocol assumes a network topology where all traffic is destined for a set of GW nodes which are connected via some out of band (RF?) means. This particular implementation assumes that there is only a single gateway.

For more information on class operation email lentr.nosp@m.acy@.nosp@m.u.was.nosp@m.hing.nosp@m.ton.e.nosp@m.du (This work is, as of yet, unpublished)

Config Paths

ns3::UanMacRc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanMacRc

Attributes

RetryRate: Number of retry attempts per second (of RTS/GWPING).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.2
- Flags: construct write read
MaxFrames: Maximum number of frames to include in a single RTS.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
QueueLimit: Maximum packets to queue at MAC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
SIFS: Spacing to give between frames (this should match gateway).
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
NumberOfRates: Number of rate divisions supported by each PHY.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
MinRetryRate: Smallest allowed RTS retry rate.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
RetryStep: Retry rate increment.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
MaxPropDelay: Maximum possible propagation delay to gateway.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000000000.0ns
- Flags: construct write read

TraceSources

Enqueue: A (data) packet arrived at MAC for transmission.
Dequeue: A (data) packet was passed down to PHY from MAC.
RX: A packet was destined for and received at this MAC layer.

Definition at line 163 of file uan-mac-rc.h.

Member Enumeration Documentation

anonymous enum

Packet types.

Enumerator
TYPE_DATA	Data.
TYPE_GWPING	Gateway ping.
TYPE_RTS	RTS.
TYPE_CTS	CTS.
TYPE_ACK	ACK.

Definition at line 167 of file uan-mac-rc.h.

enum ns3::UanMacRc::State

private

MAC state.

Enumerator
UNASSOCIATED	Initial state.
GWPSENT	Associated with gateway.
IDLE	Finished scheduling packet sends.
RTSSENT	RTS just sent.
DATATX	(Unused).

Definition at line 197 of file uan-mac-rc.h.

Constructor & Destructor Documentation

ns3::UanMacRc::UanMacRc ( )

Default constructor.

Definition at line 154 of file uan-mac-rc.cc.

References ns3::UanHeaderRcCtsGlobal::GetSerializedSize(), ns3::UanHeaderRcCts::GetSerializedSize(), m_ctsSizeG, m_ctsSizeN, and m_ev.

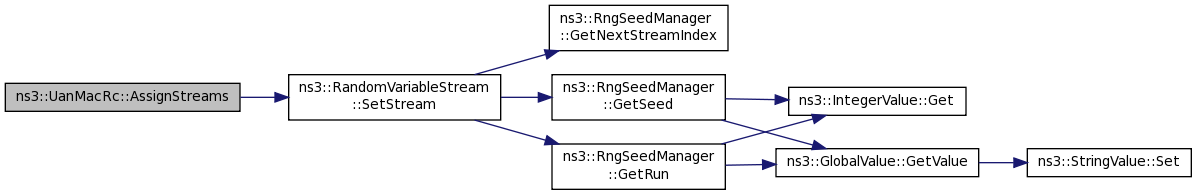

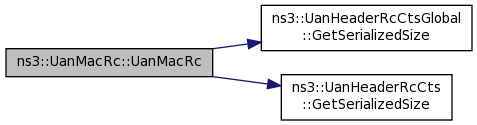

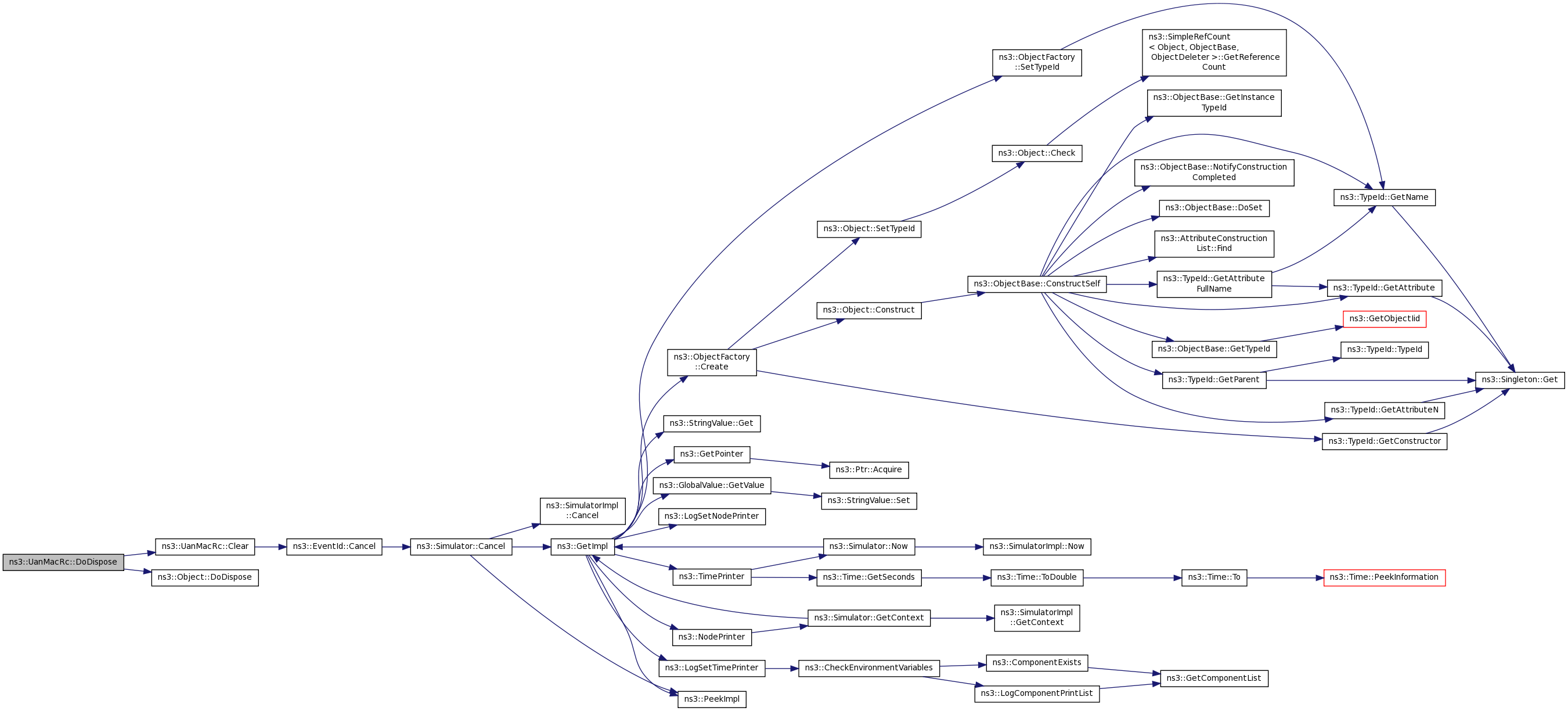

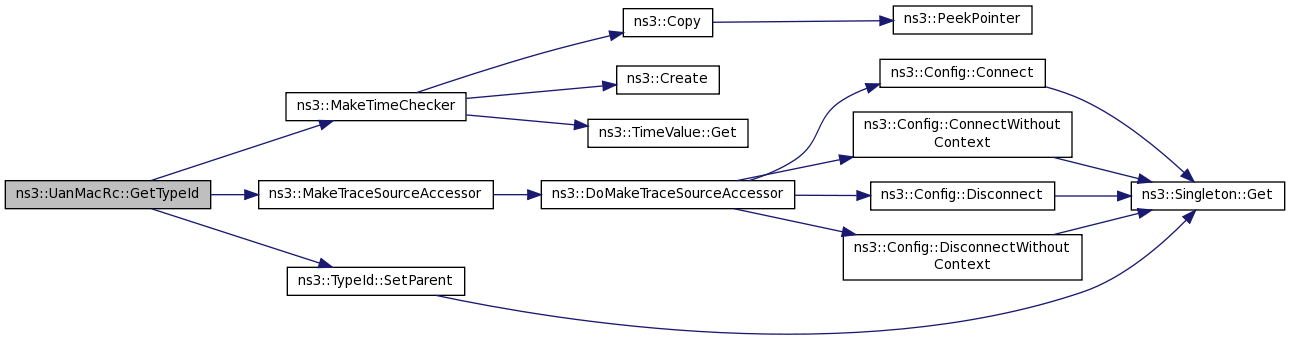

Here is the call graph for this function:

ns3::UanMacRc::~UanMacRc ( )

virtual

Dummy destructor, DoDispose.

Definition at line 172 of file uan-mac-rc.cc.

Member Function Documentation

int64_t ns3::UanMacRc::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implements ns3::UanMac.

Definition at line 267 of file uan-mac-rc.cc.

References m_ev, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::UanMacRc::Associate ( void )

private

Associate with a gateway by sending the first GWPING.

Definition at line 619 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), ns3::Reservation::AddTimestamp(), AssociateTimeout(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_frameNo, m_maxFrames, m_numRates, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_GWPING.

Referenced by Enqueue().

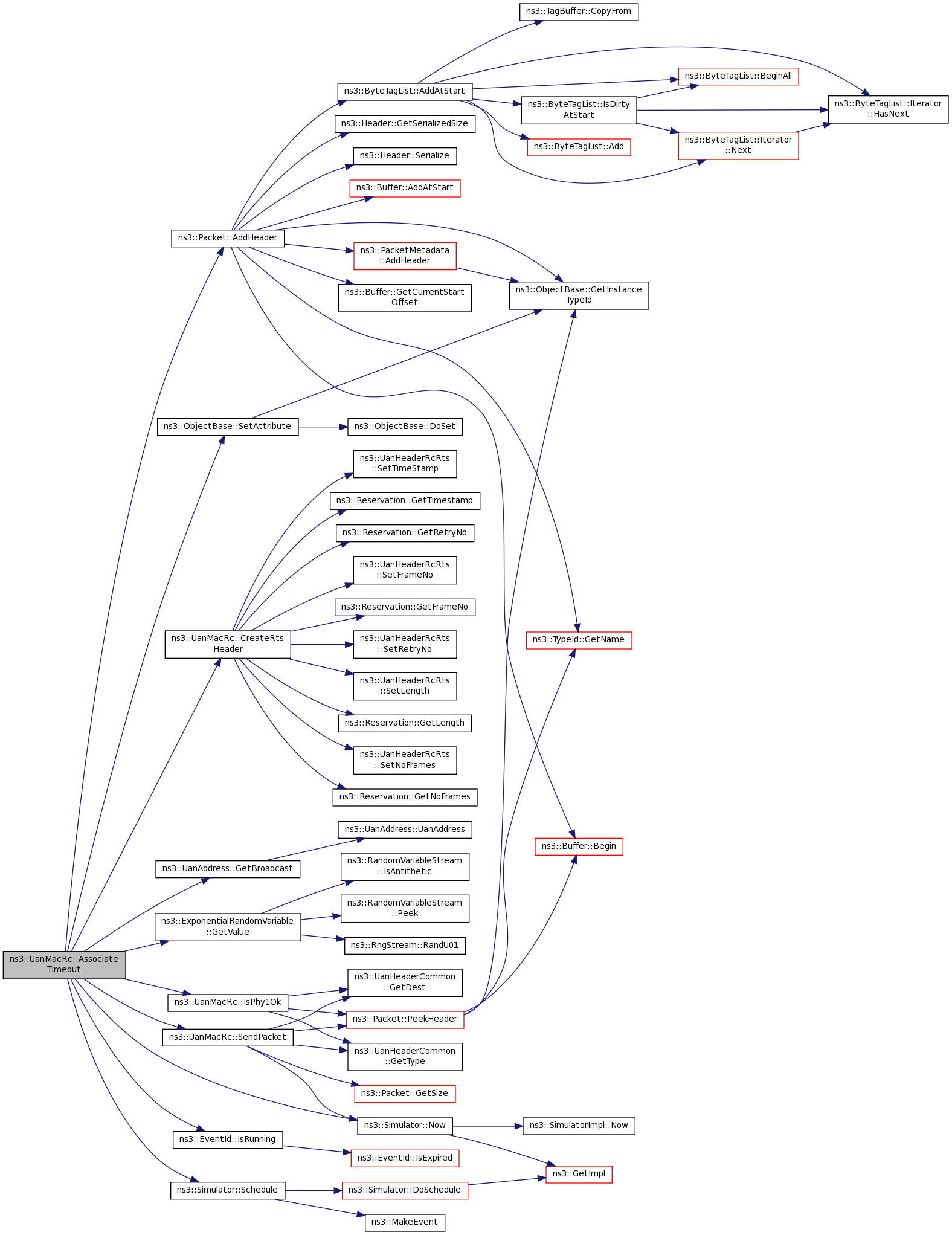

Here is the call graph for this function:

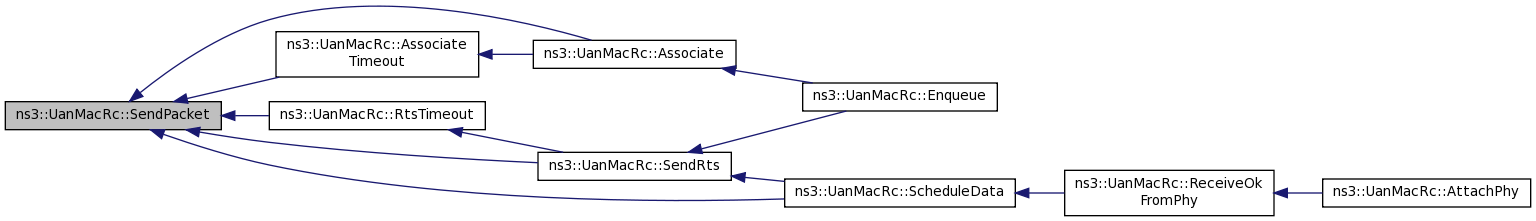

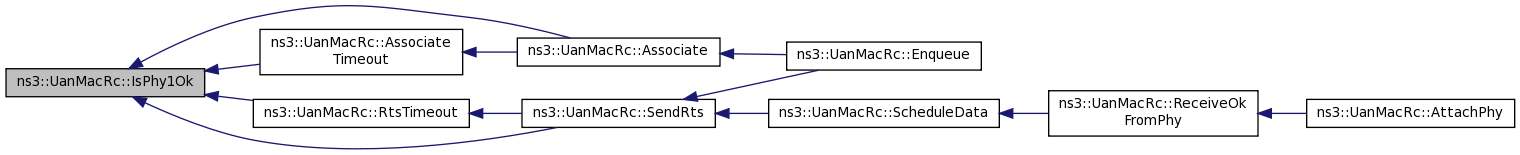

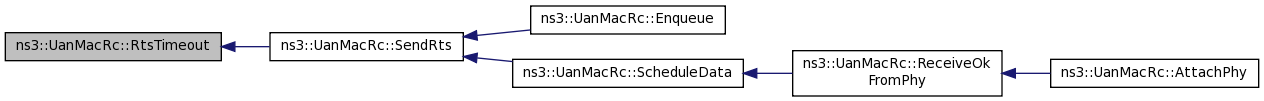

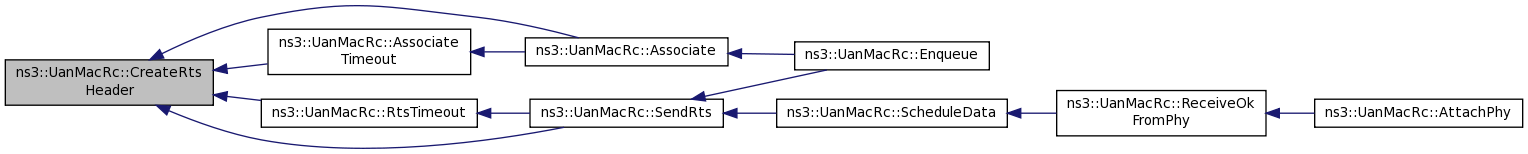

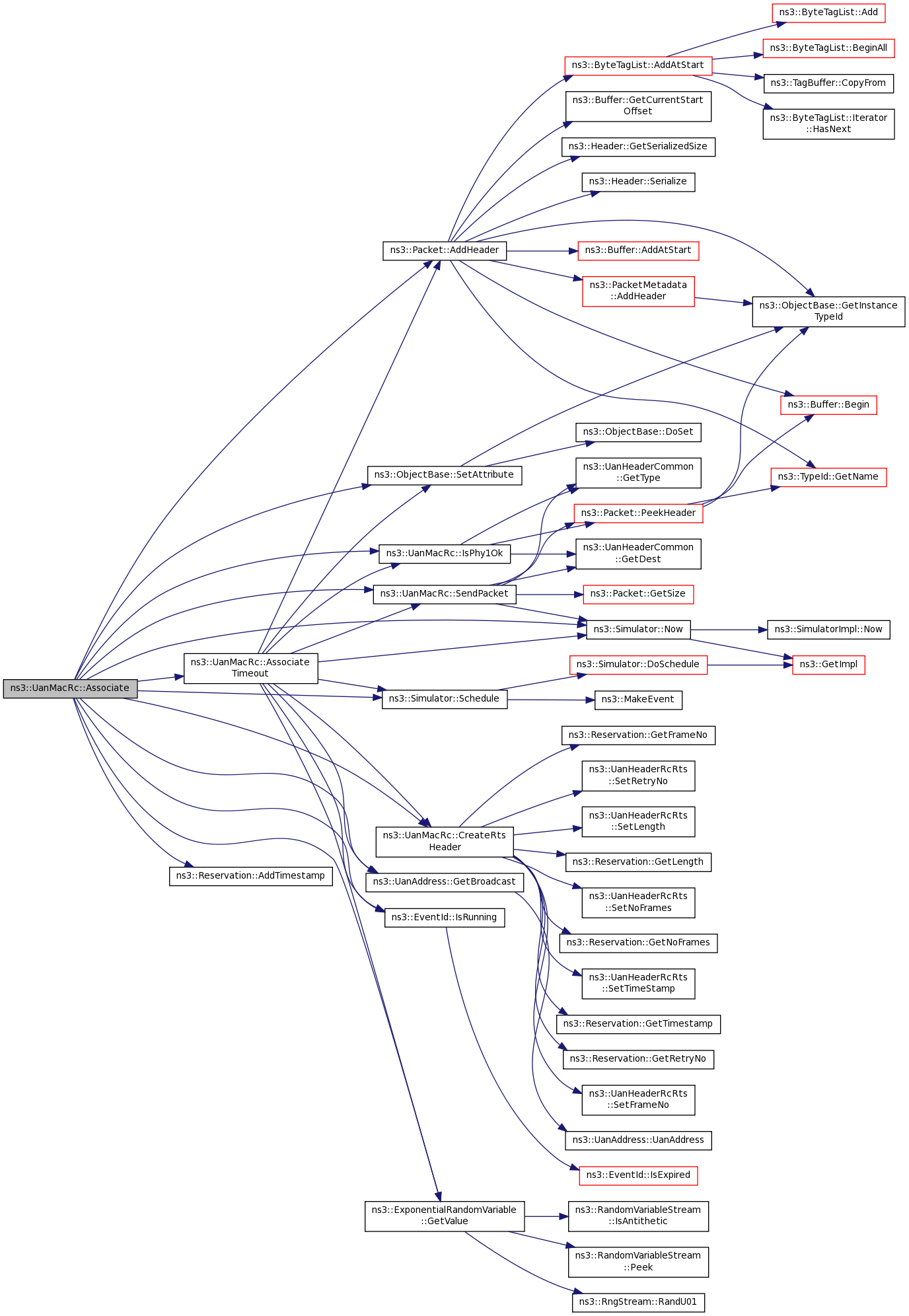

Here is the caller graph for this function:

void ns3::UanMacRc::AssociateTimeout ( void )

private

Periodically retry association.

Definition at line 645 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_numRates, m_phy, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_GWPING.

Referenced by Associate().

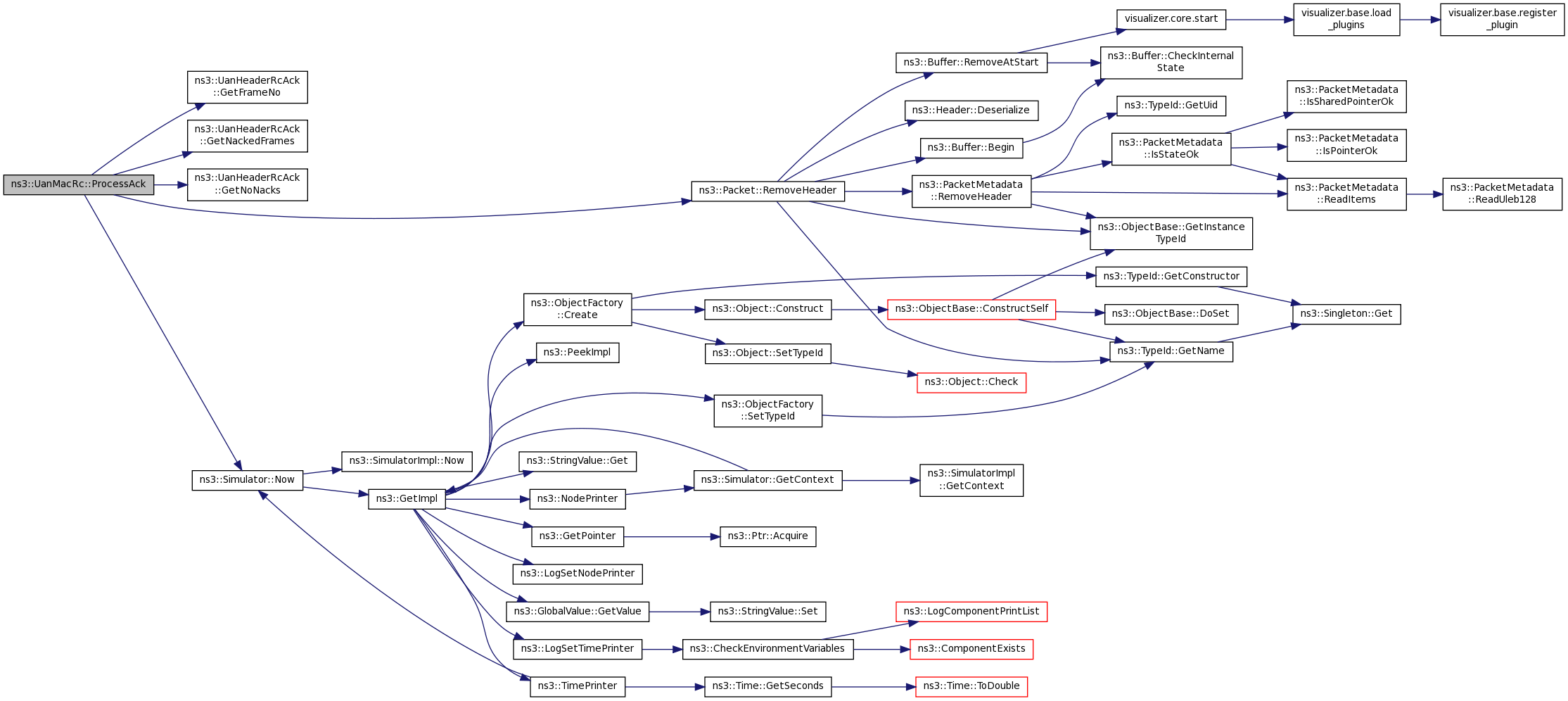

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC.

Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC.

Implements ns3::UanMac.

Definition at line 329 of file uan-mac-rc.cc.

References m_phy, ns3::MakeCallback(), and ReceiveOkFromPhy().

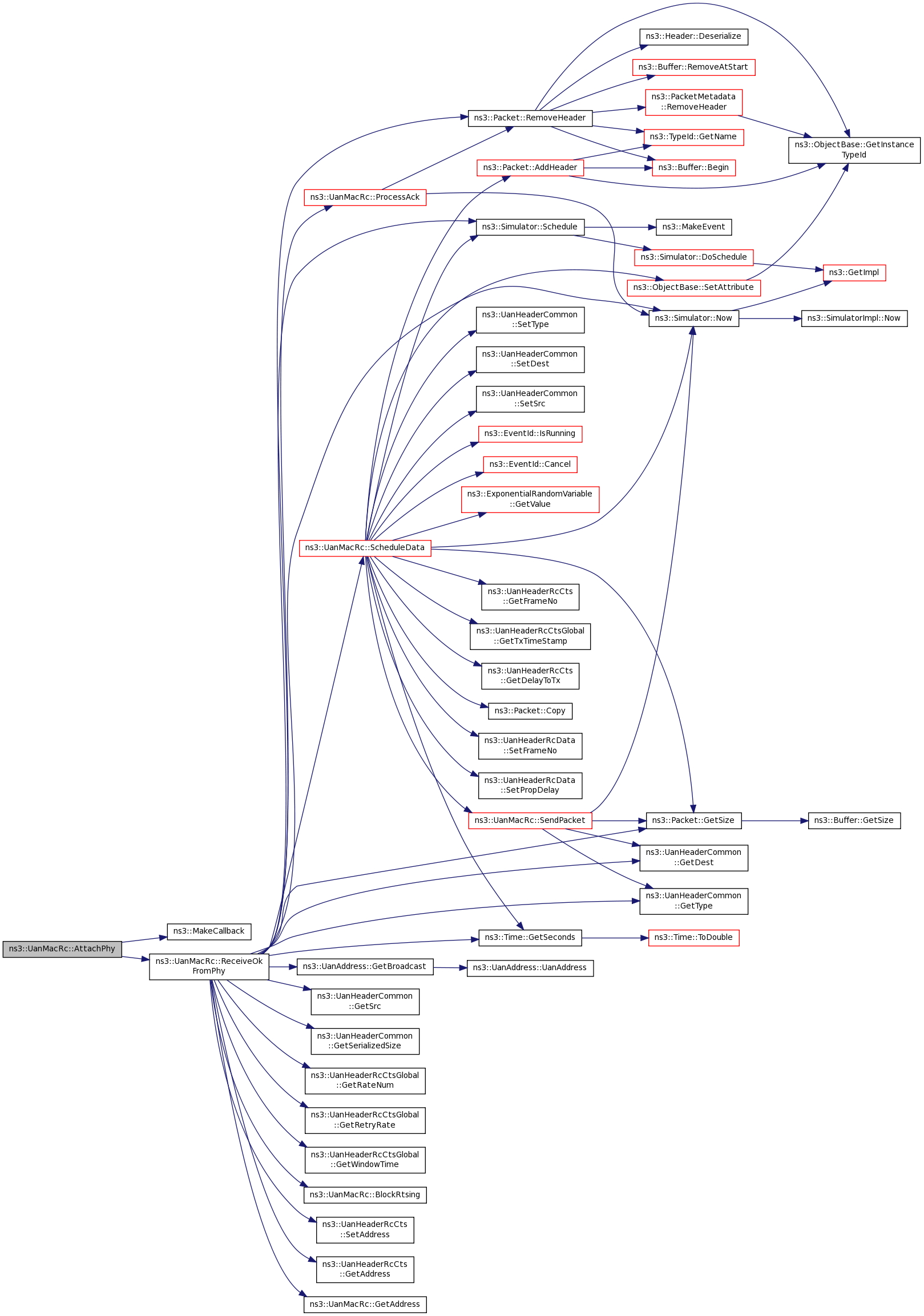

Here is the call graph for this function:

void ns3::UanMacRc::BlockRtsing ( void )

private

Callback to block RST.

Definition at line 772 of file uan-mac-rc.cc.

References m_rtsBlocked.

Referenced by ReceiveOkFromPhy().

Here is the caller graph for this function:

void ns3::UanMacRc::Clear ( void )

virtual

Clears all pointer references.

Implements ns3::UanMac.

Definition at line 177 of file uan-mac-rc.cc.

References ns3::EventId::Cancel(), m_cleared, m_phy, m_pktQueue, m_resList, m_rtsEvent, and m_startAgain.

Referenced by DoDispose().

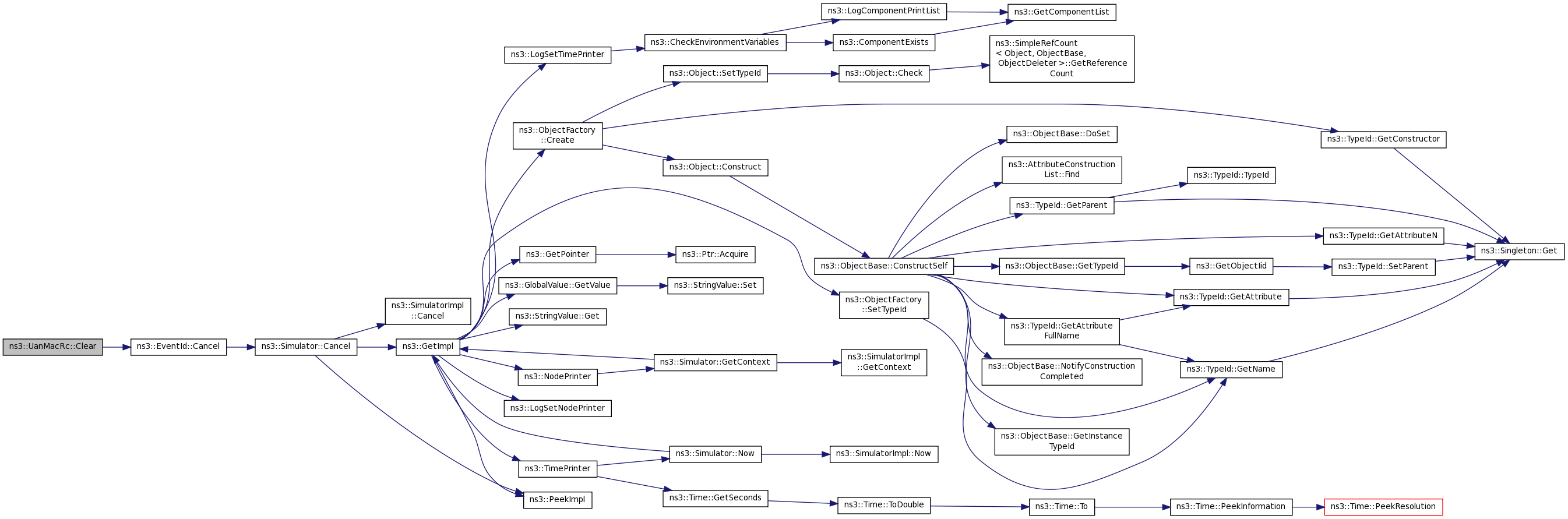

Here is the call graph for this function:

Here is the caller graph for this function:

UanHeaderRcRts ns3::UanMacRc::CreateRtsHeader ( const Reservation & res )

private

Create the RTS header from a Reservation.

Parameters

res	The Reservation.

Returns: A RTS header.

Definition at line 606 of file uan-mac-rc.cc.

References ns3::Reservation::GetFrameNo(), ns3::Reservation::GetLength(), ns3::Reservation::GetNoFrames(), ns3::Reservation::GetRetryNo(), ns3::Reservation::GetTimestamp(), ns3::UanHeaderRcRts::SetFrameNo(), ns3::UanHeaderRcRts::SetLength(), ns3::UanHeaderRcRts::SetNoFrames(), ns3::UanHeaderRcRts::SetRetryNo(), and ns3::UanHeaderRcRts::SetTimeStamp().

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

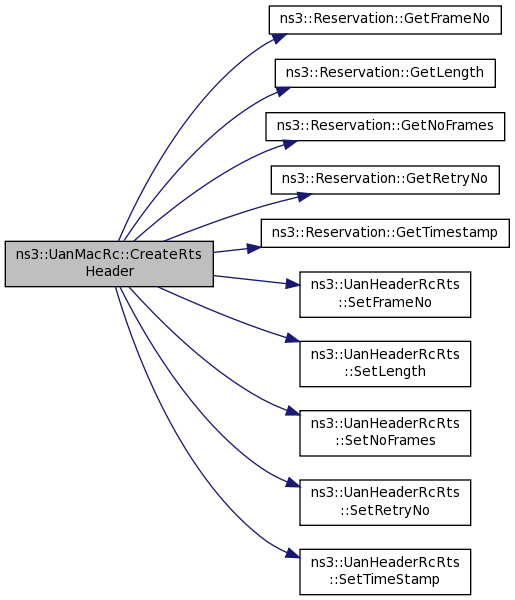

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 201 of file uan-mac-rc.cc.

References Clear(), and ns3::Object::DoDispose().

Here is the call graph for this function:

bool ns3::UanMacRc::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Enqueue packet to be transmitted.

Parameters

pkt	Packet to be transmitted.
dest	Destination address.
protocolNumber	Protocol number. Usage varies by MAC.

Returns: True if packet was successfully enqueued.

Implements ns3::UanMac.

Definition at line 287 of file uan-mac-rc.cc.

References Associate(), ns3::UanAddress::ConvertFrom(), DATATX, GWPSENT, IDLE, ns3::EventId::IsRunning(), m_pktQueue, m_queueLimit, m_rtsEvent, m_state, NS_LOG_WARN, RTSSENT, SendRts(), and UNASSOCIATED.

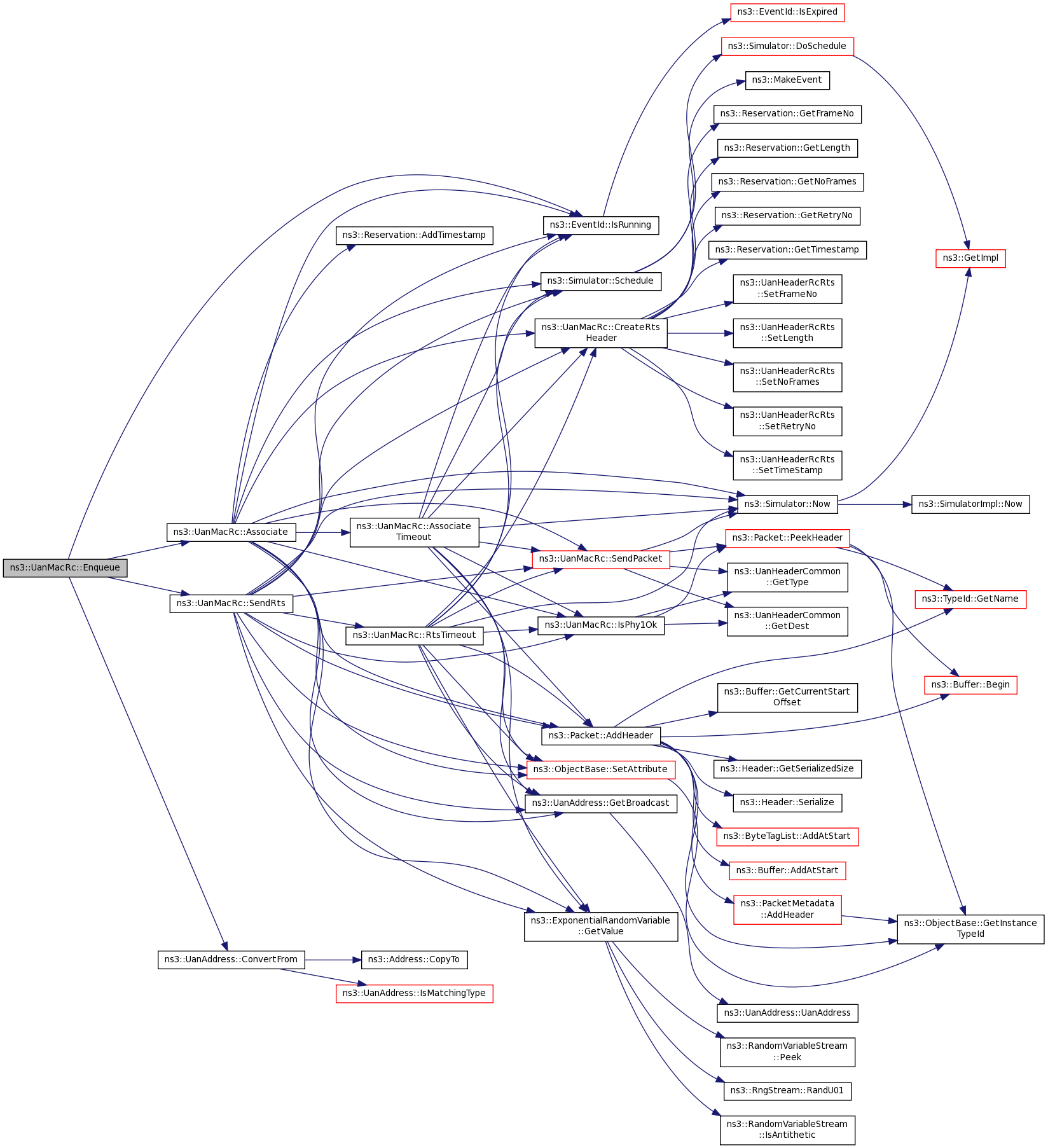

Here is the call graph for this function:

Address ns3::UanMacRc::GetAddress ( void )

virtual

Get the MAC Address.

Returns: MAC Address.

Implements ns3::UanMac.

Definition at line 275 of file uan-mac-rc.cc.

References m_address.

Referenced by ReceiveOkFromPhy().

Here is the caller graph for this function:

Address ns3::UanMacRc::GetBroadcast ( void ) const

virtual

Get the broadcast address.

Returns: The broadcast address.

Implements ns3::UanMac.

Definition at line 336 of file uan-mac-rc.cc.

References ns3::UanAddress::GetBroadcast().

Here is the call graph for this function:

TypeId ns3::UanMacRc::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 208 of file uan-mac-rc.cc.

References m_dequeueLogger, m_enqueueLogger, m_learnedProp, m_maxFrames, m_minRetryRate, m_numRates, m_queueLimit, m_retryRate, m_retryStep, m_rxLogger, m_sifs, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::UanMacRc::IsPhy1Ok ( void )

private

Check that PHY is ok: not CTS or ACK not to my address.

Returns: True if PHY is ok.

Definition at line 710 of file uan-mac-rc.cc.

References ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderCommon::GetType(), m_address, m_phy, ns3::Packet::PeekHeader(), TYPE_ACK, and TYPE_CTS.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::ProcessAck ( Ptr< Packet > ack )

private

Process a received ACK.

Parameters

ack	The ACK packet.

Definition at line 554 of file uan-mac-rc.cc.

References ns3::UanHeaderRcAck::GetFrameNo(), ns3::UanHeaderRcAck::GetNackedFrames(), ns3::UanHeaderRcAck::GetNoNacks(), m_address, m_pktQueue, m_resList, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Packet::RemoveHeader().

Referenced by ReceiveOkFromPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::ReceiveOkFromPhy	(	Ptr< Packet >	pkt,
		double	sinr,
		UanTxMode	mode
	)

private

PHY receive ok Callback.

Parameters

pkt	The received packet.
sinr	(Unused).
mode	Modulation mode.

Definition at line 342 of file uan-mac-rc.cc.

References BlockRtsing(), GetAddress(), ns3::UanHeaderRcCts::GetAddress(), ns3::UanAddress::GetBroadcast(), ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderRcCtsGlobal::GetRateNum(), ns3::UanHeaderRcCtsGlobal::GetRetryRate(), ns3::Time::GetSeconds(), ns3::UanHeaderCommon::GetSerializedSize(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetSrc(), ns3::UanHeaderCommon::GetType(), ns3::UanHeaderRcCtsGlobal::GetWindowTime(), GWPSENT, m_address, m_assocAddr, m_currentRate, m_forwardUpCb, m_minRetryRate, m_retryRate, m_retryStep, m_rtsBlocked, m_rxLogger, m_state, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, ProcessAck(), ns3::Packet::RemoveHeader(), RTSSENT, ns3::Simulator::Schedule(), ScheduleData(), ns3::UanHeaderRcCts::SetAddress(), TYPE_ACK, TYPE_CTS, TYPE_DATA, TYPE_GWPING, and TYPE_RTS.

Referenced by AttachPhy().

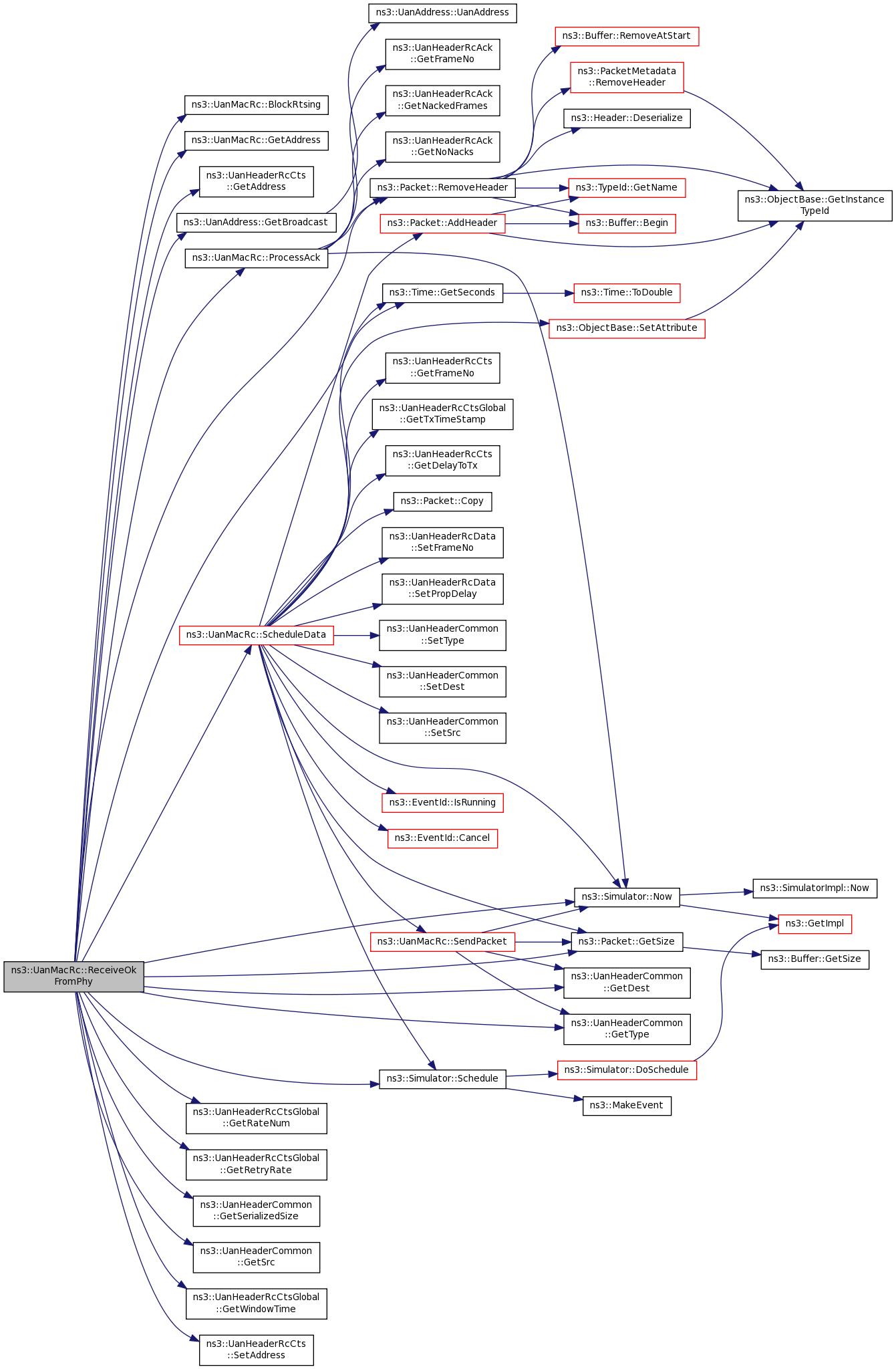

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::RtsTimeout ( void )

private

Retry RTS.

Definition at line 733 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_numRates, m_phy, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, RTSSENT, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_RTS.

Referenced by SendRts().

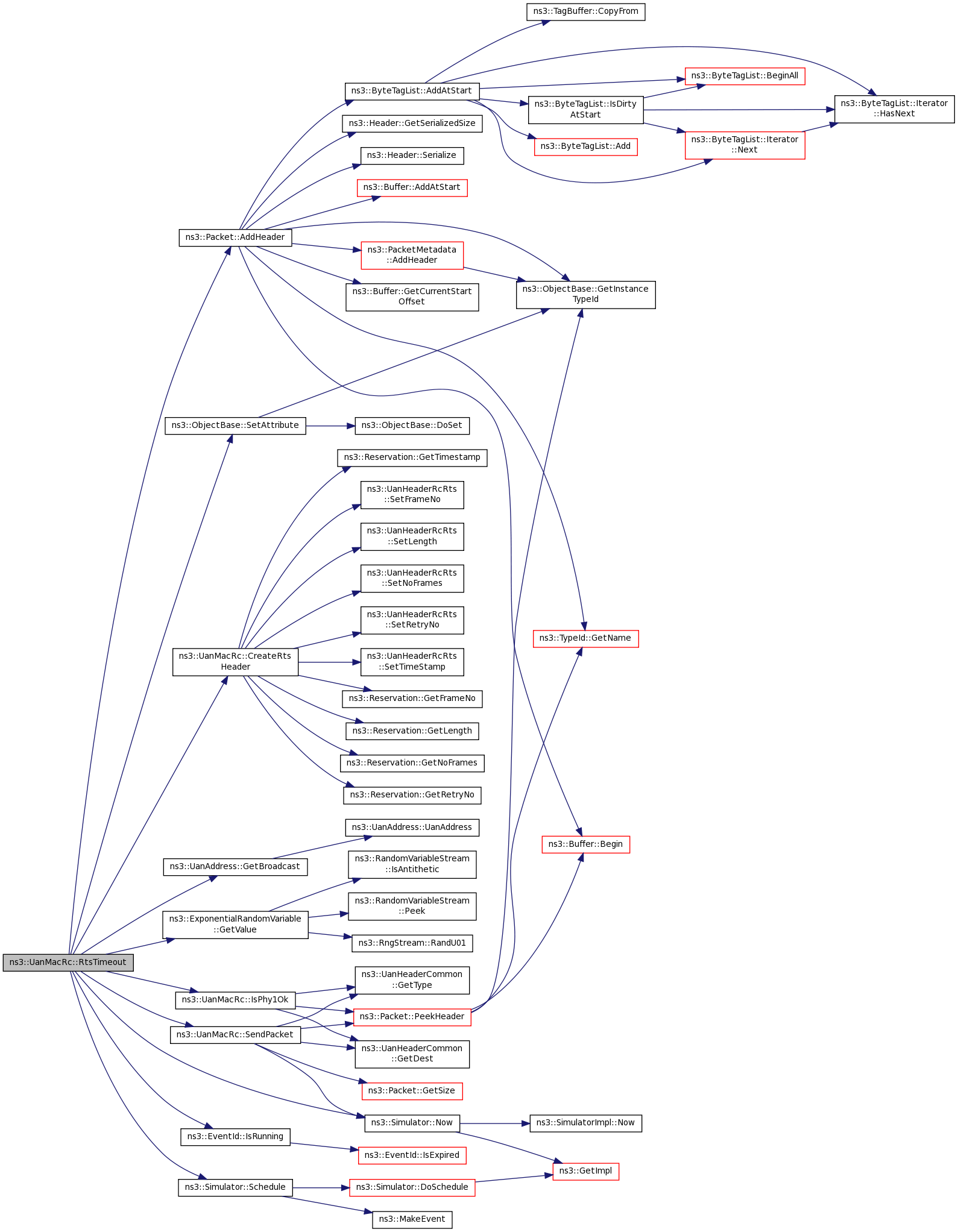

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::ScheduleData	(	const UanHeaderRcCts &	ctsh,
		const UanHeaderRcCtsGlobal &	ctsg,
		uint32_t	ctsBytes
	)

private

Schedule Packet sends.

Parameters

ctsh	The CTS header identifying the frame number and delay.
ctsg	The CTS global header giving the transmit time stamp base.
ctsBytes	Number of bytes total in CTS packet.

Definition at line 433 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::UanHeaderRcCts::GetDelayToTx(), ns3::UanHeaderRcCts::GetFrameNo(), ns3::Time::GetSeconds(), ns3::Packet::GetSize(), ns3::UanHeaderRcCtsGlobal::GetTxTimeStamp(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IDLE, ns3::EventId::IsRunning(), m_address, m_assocAddr, m_currentRate, m_ev, m_learnedProp, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsEvent, m_sifs, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, RTSSENT, ns3::Simulator::Schedule(), SendPacket(), SendRts(), ns3::ObjectBase::SetAttribute(), ns3::UanHeaderCommon::SetDest(), ns3::UanHeaderRcData::SetFrameNo(), ns3::UanHeaderRcData::SetPropDelay(), ns3::UanHeaderCommon::SetSrc(), ns3::UanHeaderCommon::SetType(), timeout, and TYPE_DATA.

Referenced by ReceiveOkFromPhy().

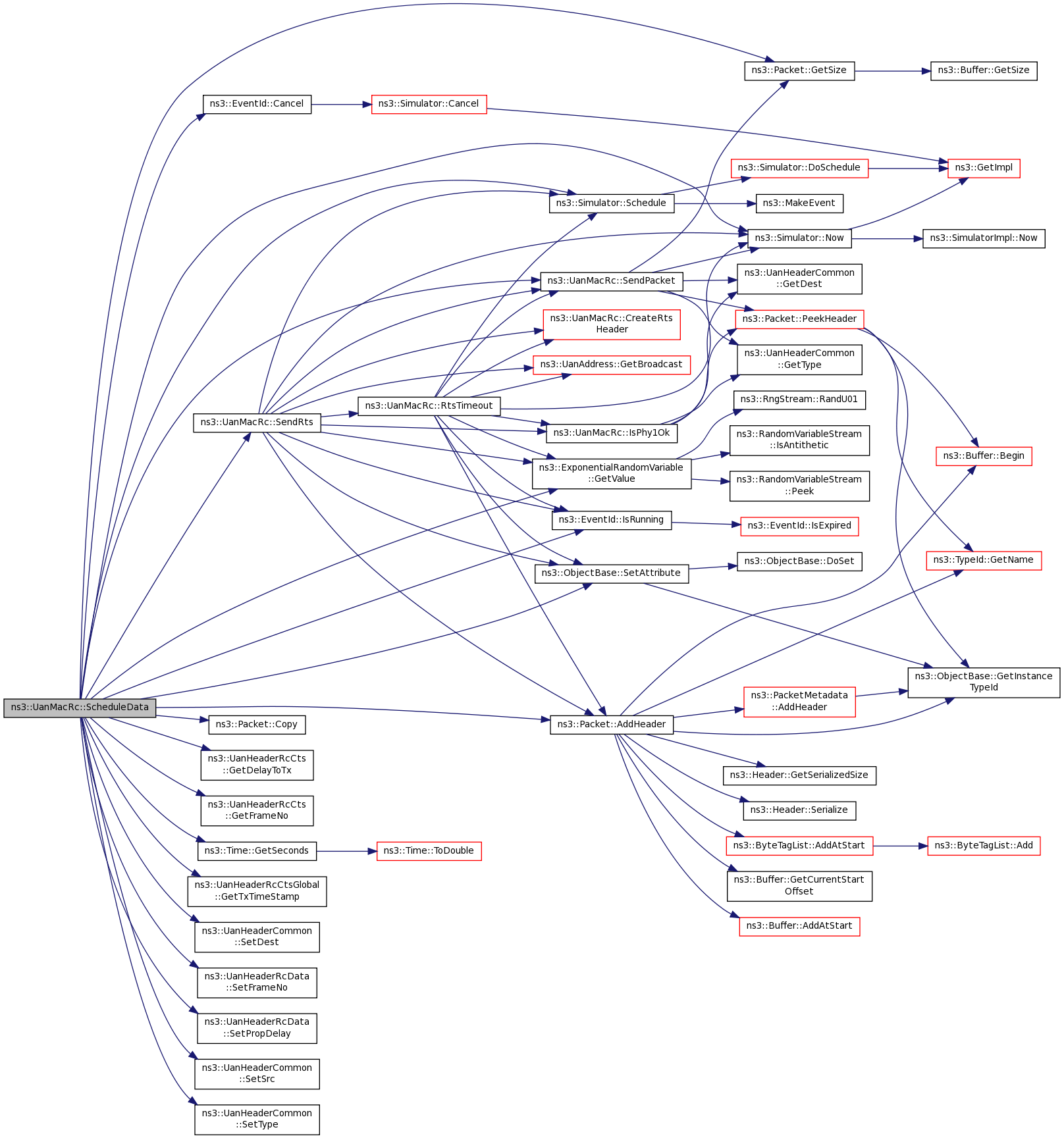

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	rate
	)

private

Send on packet on the PHY.

Parameters

pkt	The packet.
rate	The transmission rate.

Definition at line 522 of file uan-mac-rc.cc.

References ns3::UanHeaderCommon::GetDest(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetType(), m_address, m_dequeueLogger, m_phy, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Packet::PeekHeader(), TYPE_ACK, TYPE_CTS, TYPE_DATA, TYPE_GWPING, and TYPE_RTS.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), ScheduleData(), and SendRts().

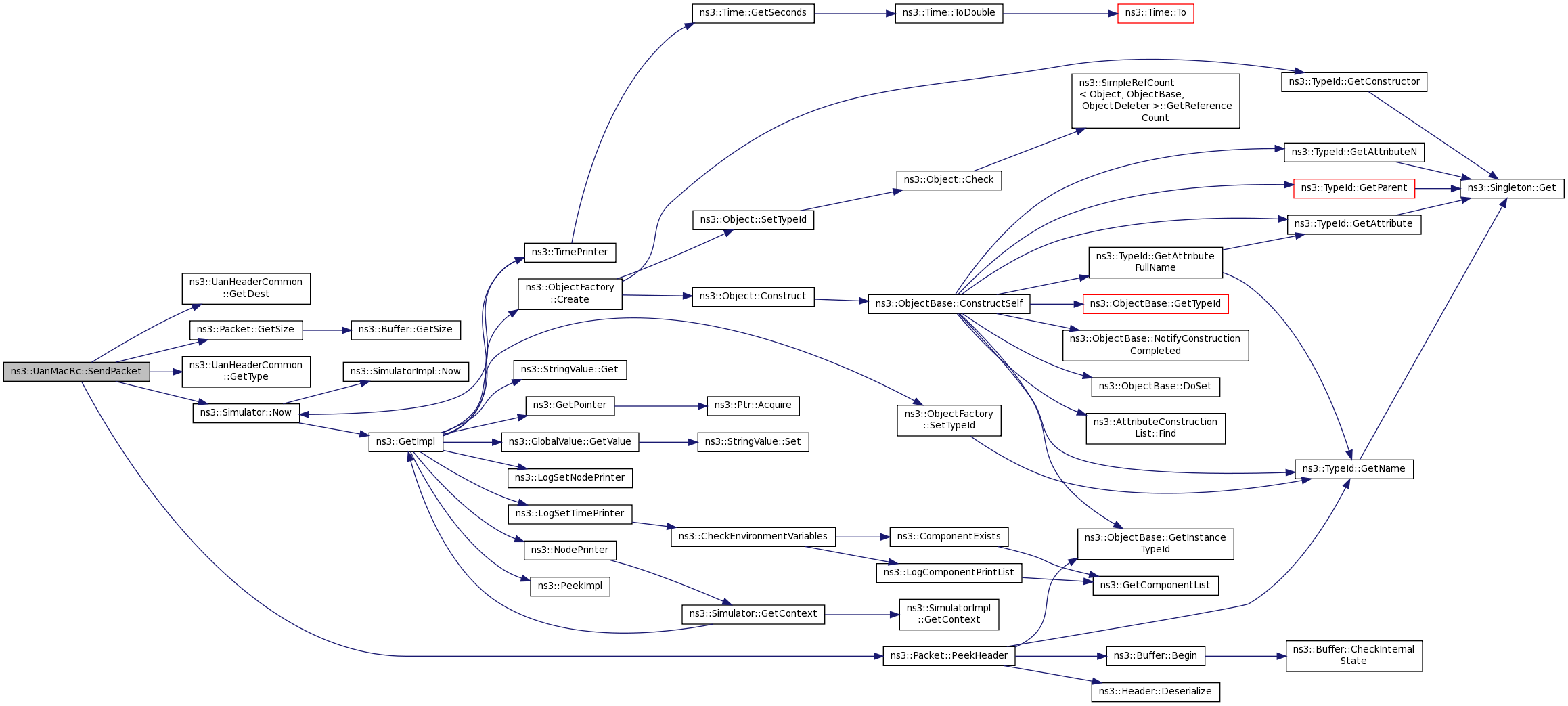

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::SendRts ( void )

private

Send RTS packet.

Definition at line 677 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_frameNo, m_maxFrames, m_numRates, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, RTSSENT, RtsTimeout(), ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_RTS.

Referenced by Enqueue(), and ScheduleData().

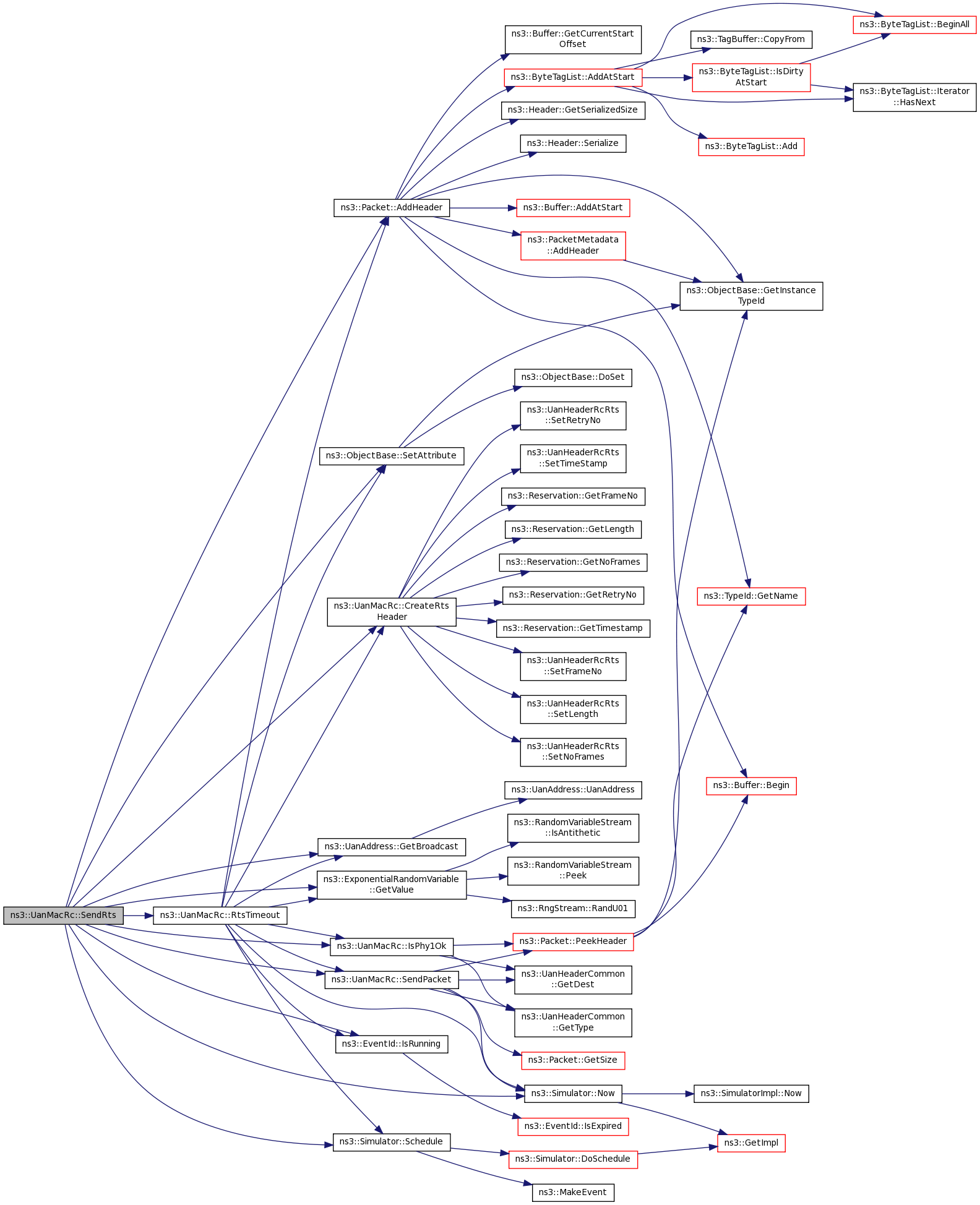

Here is the call graph for this function:

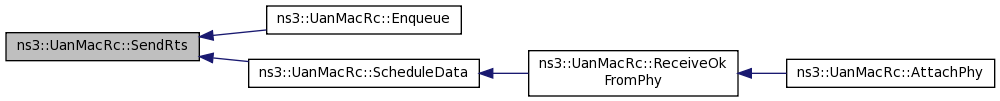

Here is the caller graph for this function:

void ns3::UanMacRc::SetAddress ( UanAddress addr )

virtual

Set the address.

Parameters

addr	UanAddress for this MAC.

Implements ns3::UanMac.

Definition at line 281 of file uan-mac-rc.cc.

References m_address.

void ns3::UanMacRc::SetForwardUpCb ( Callback< void, Ptr< Packet >, const UanAddress & > cb )

virtual

Set the callback to forward packets up to higher layers.

Parameters

cb	The callback. packet The packet. address The source address.

Implements ns3::UanMac.

Definition at line 323 of file uan-mac-rc.cc.

References m_forwardUpCb.

Member Data Documentation

UanAddress ns3::UanMacRc::m_address

private

My addrese.s.

Definition at line 209 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetAddress(), IsPhy1Ok(), ProcessAck(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), SendPacket(), SendRts(), and SetAddress().

UanAddress ns3::UanMacRc::m_assocAddr

private

Next hop address.

Definition at line 211 of file uan-mac-rc.h.

Referenced by ReceiveOkFromPhy(), and ScheduleData().

bool ns3::UanMacRc::m_cleared

private

Flag when we've been cleared.

Definition at line 227 of file uan-mac-rc.h.

Referenced by Clear().

uint32_t ns3::UanMacRc::m_cntrlSends = 0

staticprivate

Global count of calls to Associate, AssociateTimeout, SendRts, and RtsTimeout.

Definition at line 304 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

uint32_t ns3::UanMacRc::m_ctsSizeG

private

Size of UanHeaderCommon and UanHeaderRcCtsGlobal.

Definition at line 225 of file uan-mac-rc.h.

Referenced by UanMacRc().

uint32_t ns3::UanMacRc::m_ctsSizeN

private

Size of UanHeaderRcCts.

Definition at line 224 of file uan-mac-rc.h.

Referenced by UanMacRc().

uint32_t ns3::UanMacRc::m_currentRate

private

Rate number corresponding to data rate of current cycle.

Definition at line 214 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacRc::m_dequeueLogger

private

A was passed down to the PHY from the MAC.

Definition at line 242 of file uan-mac-rc.h.

Referenced by GetTypeId(), and SendPacket().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacRc::m_enqueueLogger

private

A packet arrived at the MAC for transmission.

Definition at line 240 of file uan-mac-rc.h.

Referenced by GetTypeId().

Ptr<ExponentialRandomVariable> ns3::UanMacRc::m_ev

private

Provides exponential random variables.

Definition at line 307 of file uan-mac-rc.h.

Referenced by AssignStreams(), Associate(), AssociateTimeout(), RtsTimeout(), ScheduleData(), SendRts(), and UanMacRc().

Callback<void, Ptr<Packet>, const UanAddress& > ns3::UanMacRc::m_forwardUpCb

private

The callback to forward a packet up to higher layer.

Definition at line 235 of file uan-mac-rc.h.

Referenced by ReceiveOkFromPhy(), and SetForwardUpCb().

uint8_t ns3::UanMacRc::m_frameNo

private

Current frame number.

Definition at line 217 of file uan-mac-rc.h.

Referenced by Associate(), and SendRts().

Time ns3::UanMacRc::m_learnedProp

private

Propagation delay to gateway.

Definition at line 219 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ScheduleData().

uint32_t ns3::UanMacRc::m_maxFrames

private

Maximum number of frames to include in a single RTS.

Definition at line 215 of file uan-mac-rc.h.

Referenced by Associate(), GetTypeId(), and SendRts().

double ns3::UanMacRc::m_minRetryRate

private

Smallest allowed RTS retry rate.

Definition at line 221 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

uint32_t ns3::UanMacRc::m_numRates

private

Number of rates per Phy layer.

Definition at line 213 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetTypeId(), RtsTimeout(), and SendRts().

Ptr<UanPhy> ns3::UanMacRc::m_phy

private

PHY layer attached to this MAC.

Definition at line 212 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), AttachPhy(), Clear(), IsPhy1Ok(), RtsTimeout(), ScheduleData(), SendPacket(), and SendRts().

std::list<std::pair <Ptr<Packet>, UanAddress > > ns3::UanMacRc::m_pktQueue

private

Pending packets.

Definition at line 230 of file uan-mac-rc.h.

Referenced by Associate(), Clear(), Enqueue(), ProcessAck(), ScheduleData(), and SendRts().

uint32_t ns3::UanMacRc::m_queueLimit

private

Maximum packets to queue at MAC.

Definition at line 216 of file uan-mac-rc.h.

Referenced by Enqueue(), and GetTypeId().

std::list<Reservation> ns3::UanMacRc::m_resList

private

List of scheduled reservations.

Definition at line 232 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Clear(), ProcessAck(), RtsTimeout(), ScheduleData(), and SendRts().

double ns3::UanMacRc::m_retryRate

private

Number of retry attempts per second (of RTS/GWPING.

Definition at line 210 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetTypeId(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

double ns3::UanMacRc::m_retryStep

private

Retry rate increment.

Definition at line 222 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

bool ns3::UanMacRc::m_rtsBlocked

private

RTS blocked while processing ACK.

Definition at line 206 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), BlockRtsing(), ReceiveOkFromPhy(), RtsTimeout(), and SendRts().

EventId ns3::UanMacRc::m_rtsEvent

private

The RTS event.

Definition at line 245 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Clear(), Enqueue(), RtsTimeout(), ScheduleData(), and SendRts().

TracedCallback<Ptr<const Packet>, UanTxMode > ns3::UanMacRc::m_rxLogger

private

A packet was destined for and received at this MAC layer.

Definition at line 238 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

Time ns3::UanMacRc::m_sifs

private

Spacing between frames to account for timing error and processing delay.

Definition at line 218 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ScheduleData().

EventId ns3::UanMacRc::m_startAgain

private

(Unused).

Definition at line 208 of file uan-mac-rc.h.

Referenced by Clear().

State ns3::UanMacRc::m_state

private

MAC state.

Definition at line 205 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Enqueue(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

The documentation for this class was generated from the following files:

src/uan/model/uan-mac-rc.h
src/uan/model/uan-mac-rc.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
