CW-MAC protocol, similar in idea to the 802.11 DCF with constant backoff window. More...

#include <uan-mac-cw.h>

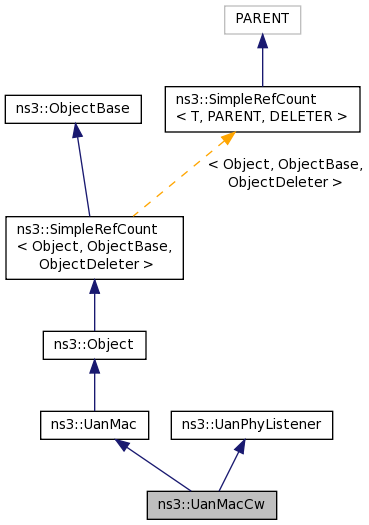

Inheritance diagram for ns3::UanMacCw:

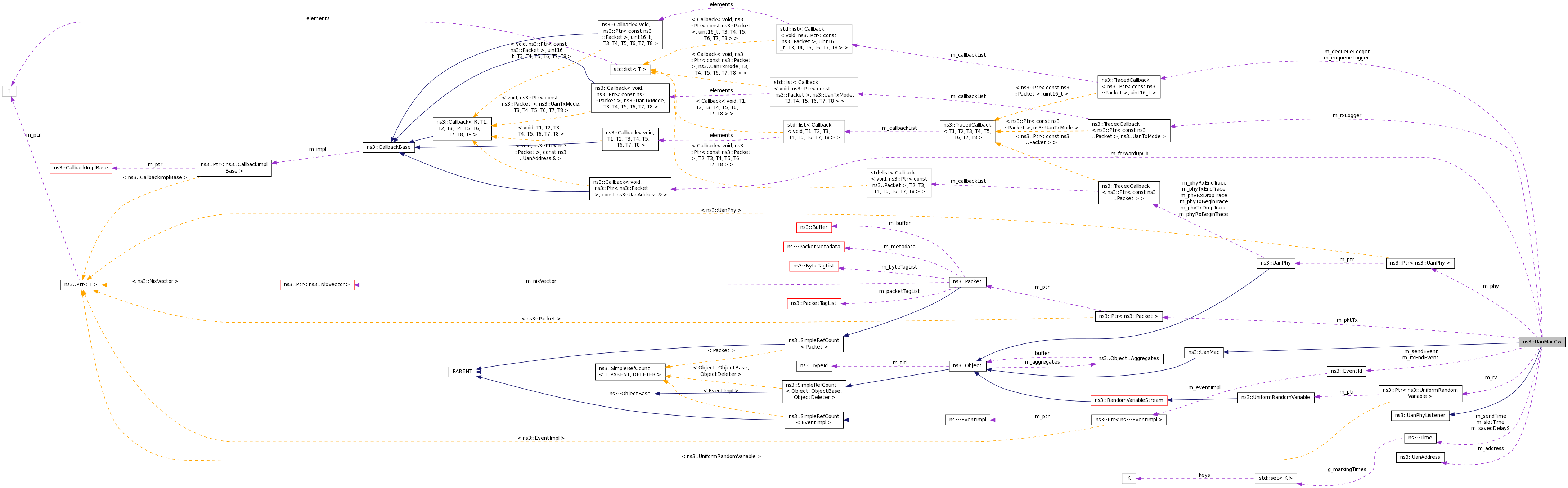

Collaboration diagram for ns3::UanMacCw:

Public Member Functions
	UanMacCw ()
	Default constructor. More...

virtual	~UanMacCw ()
	Dummy destructor, DoDispose. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	AttachPhy (Ptr< UanPhy > phy)
	Attach PHY layer to this MAC. More...

virtual void	Clear (void)
	Clears all pointer references. More...

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)
	Enqueue packet to be transmitted. More...

virtual Address	GetAddress ()
	Get the MAC Address. More...

virtual Address	GetBroadcast (void) const
	Get the broadcast address. More...

virtual uint32_t	GetCw (void)
	Get the contention window size. More...

virtual Time	GetSlotTime (void)
	Get the slot time duration. More...

virtual void	NotifyCcaEnd (void)
	Called when UanPhy stops sensing channel is busy. More...

virtual void	NotifyCcaStart (void)
	Called when UanPhy begins sensing channel is busy. More...

virtual void	NotifyRxEndError (void)
	Called when UanPhy finishes receiving packet in error. More...

virtual void	NotifyRxEndOk (void)
	Called when UanPhy finishes receiving packet without error. More...

virtual void	NotifyRxStart (void)
	Called when UanPhy begins receiving packet. More...

virtual void	NotifyTxStart (Time duration)
	Called when transmission starts from Phy object. More...

virtual void	SetAddress (UanAddress addr)
	Set the address. More...

virtual void	SetCw (uint32_t cw)
	Set the contention window size. More...

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)
	Set the callback to forward packets up to higher layers. More...

virtual void	SetSlotTime (Time duration)
	Set the slot time duration. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Public Member Functions inherited from ns3::UanPhyListener
virtual	~UanPhyListener ()
	Default destructor. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
enum	State { IDLE, CCABUSY, RUNNING, TX }
	Enum defining possible Phy states. More...

Private Member Functions
void	EndTx (void)
	End TX state. More...

void	PhyRxPacketError (Ptr< Packet > packet, double sinr)
	Packet received at lower layer in error. More...

void	PhyRxPacketGood (Ptr< Packet > packet, double sinr, UanTxMode mode)
	Receive packet from lower layer (passed to PHY as callback). More...

void	SaveTimer (void)
	Cancel SendEvent and save remaining delay. More...

void	SendPacket (void)
	Send packet on PHY. More...

void	StartTimer (void)
	Schedule SendPacket after delay. More...

Private Attributes
UanAddress	m_address
	The MAC address. More...

bool	m_cleared
	Flag when we've been cleared. More...

uint32_t	m_cw
	Contention window size. More...

TracedCallback< Ptr< const Packet >, uint16_t >	m_dequeueLogger
	A packet was passed down to the PHY from the MAC. More...

TracedCallback< Ptr< const Packet >, uint16_t >	m_enqueueLogger
	A packet arrived at the MAC for transmission. More...

Callback< void, Ptr< Packet > , const UanAddress & >	m_forwardUpCb
	Forwarding up callback. More...

Ptr< UanPhy >	m_phy
	PHY layer attached to this MAC. More...

Ptr< Packet >	m_pktTx
	Next packet to send. More...

uint16_t	m_pktTxProt
	Next packet protocol number (usage varies by MAC). More...

Ptr< UniformRandomVariable >	m_rv
	Provides uniform random variable for contention window. More...

TracedCallback< Ptr< const Packet >, UanTxMode >	m_rxLogger
	A packet destined for this MAC was received. More...

Time	m_savedDelayS
	Remaining delay until next send. More...

EventId	m_sendEvent
	Scheduled SendPacket event. More...

Time	m_sendTime
	Time to send next packet. More...

Time	m_slotTime
	Slot time duration. More...

State	m_state
	Current state. More...

EventId	m_txEndEvent
	Scheduled EndTx event. More...

Detailed Description

CW-MAC protocol, similar in idea to the 802.11 DCF with constant backoff window.

Doxygen introspection did not find any typical Config paths.

For more information on this MAC protocol, see: Parrish, N.; Tracy, L.; Roy, S.; Arabshahi, P.; Fox, W., "System Design Considerations for Undersea Networks: Link and Multiple Access Protocols," Selected Areas in Communications, IEEE Journal on , vol.26, no.9, pp.1720-1730, December 2008

Attributes

CW: The MAC parameter CW.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
SlotTime: Time slot duration for MAC backoff.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read

TraceSources

Enqueue: A packet arrived at the MAC for transmission.
Dequeue: A was passed down to the PHY from the MAC.
RX: A packet was destined for this MAC and was received.

Definition at line 46 of file uan-mac-cw.h.

Member Enumeration Documentation

enum ns3::UanMacCw::State

private

Enum defining possible Phy states.

Enumerator
IDLE	Idle state.
CCABUSY	Channel busy.
RUNNING	Delay timer running.
TX	Transmitting.

Definition at line 106 of file uan-mac-cw.h.

Constructor & Destructor Documentation

ns3::UanMacCw::UanMacCw ( )

Default constructor.

Definition at line 37 of file uan-mac-cw.cc.

References m_rv.

ns3::UanMacCw::~UanMacCw ( )

virtual

Dummy destructor, DoDispose.

Definition at line 48 of file uan-mac-cw.cc.

Member Function Documentation

int64_t ns3::UanMacCw::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implements ns3::UanMac.

Definition at line 291 of file uan-mac-cw.cc.

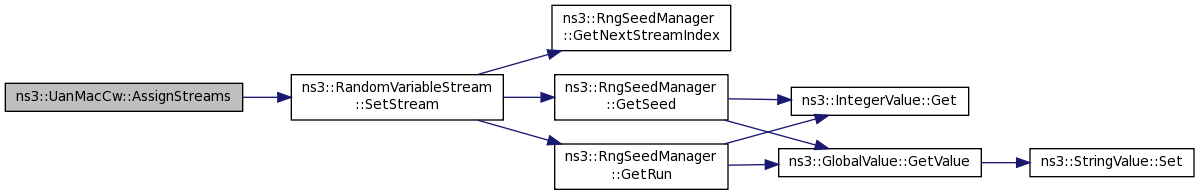

References m_rv, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

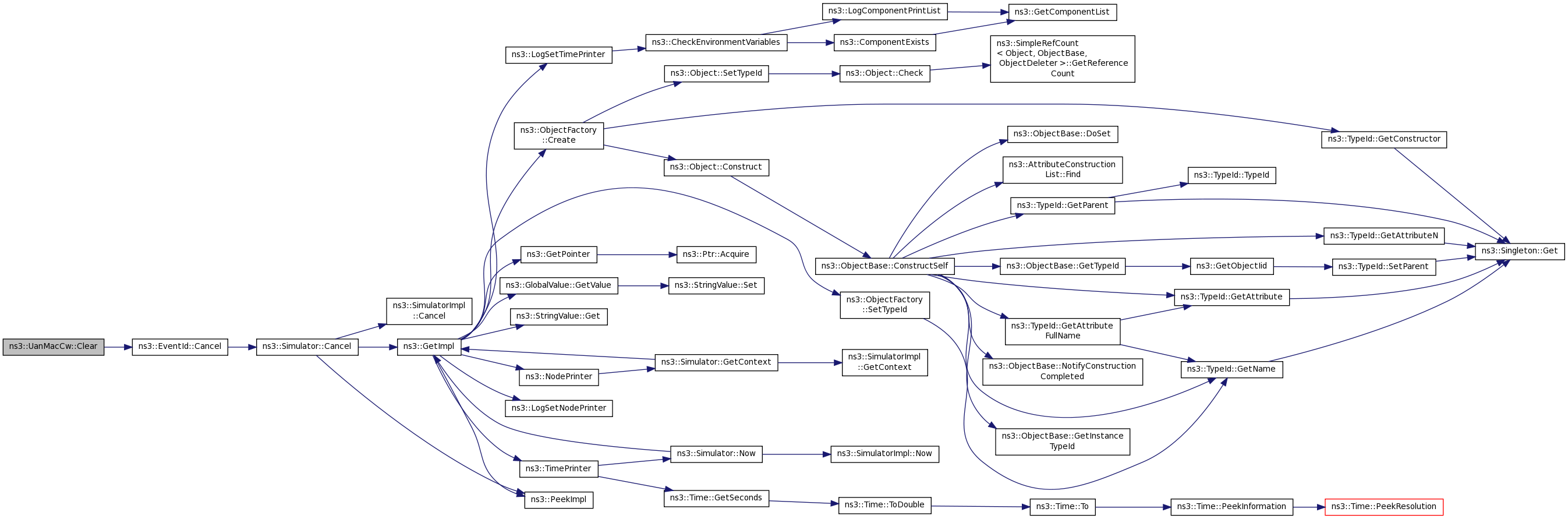

Here is the call graph for this function:

void ns3::UanMacCw::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC.

Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC.

Implements ns3::UanMac.

Definition at line 194 of file uan-mac-cw.cc.

References m_phy, ns3::MakeCallback(), PhyRxPacketError(), and PhyRxPacketGood().

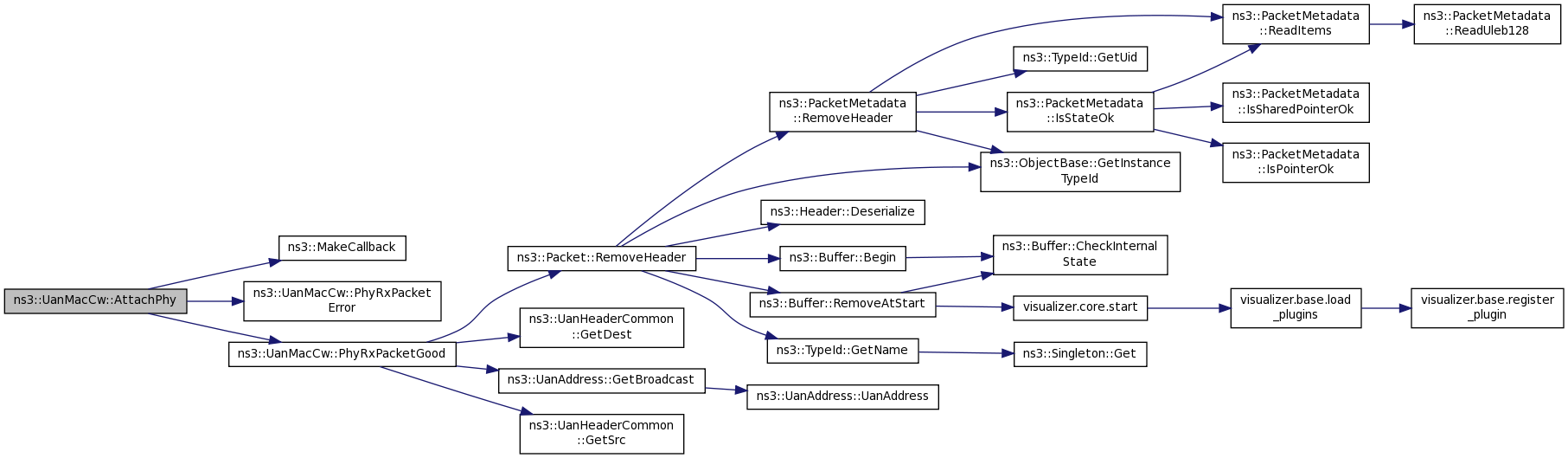

Here is the call graph for this function:

void ns3::UanMacCw::Clear ( void )

virtual

Clears all pointer references.

Implements ns3::UanMac.

Definition at line 53 of file uan-mac-cw.cc.

References ns3::EventId::Cancel(), m_cleared, m_phy, m_pktTx, m_sendEvent, and m_txEndEvent.

Referenced by DoDispose().

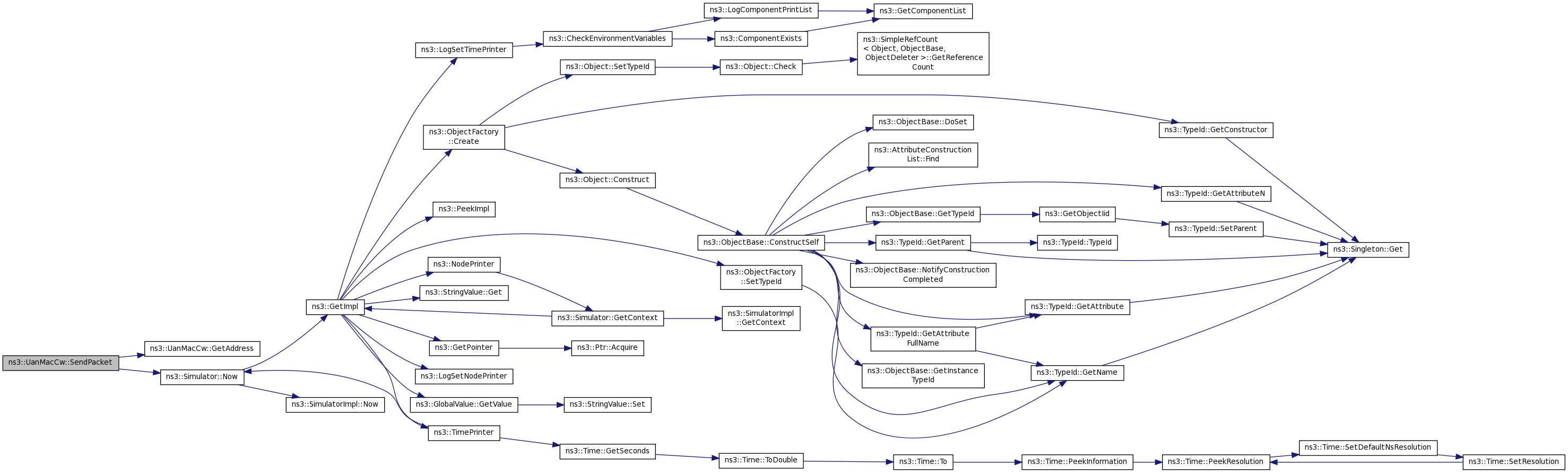

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacCw::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 71 of file uan-mac-cw.cc.

References Clear(), and ns3::Object::DoDispose().

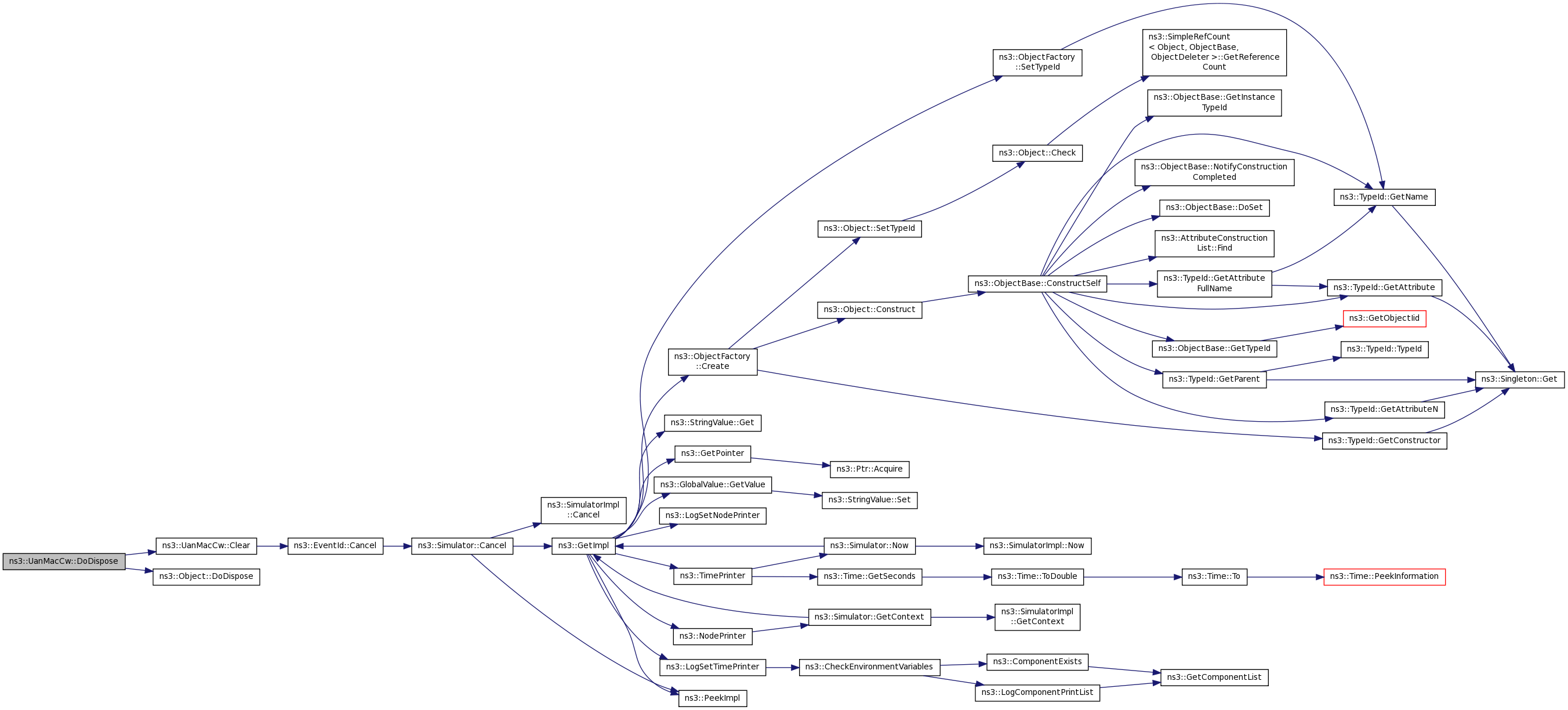

Here is the call graph for this function:

void ns3::UanMacCw::EndTx ( void )

private

End TX state.

Definition at line 299 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), IDLE, m_phy, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, RUNNING, StartTimer(), and TX.

Referenced by NotifyTxStart().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::UanMacCw::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Enqueue packet to be transmitted.

Parameters

pkt	Packet to be transmitted.
dest	Destination address.
protocolNumber	Protocol number. Usage varies by MAC.

Returns: True if packet was successfully enqueued.

Implements ns3::UanMac.

Definition at line 120 of file uan-mac-cw.cc.

References ns3::Packet::AddHeader(), CCABUSY, ns3::UanAddress::ConvertFrom(), GetAddress(), ns3::Time::GetSeconds(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::EventId::IsRunning(), m_address, m_cw, m_enqueueLogger, m_phy, m_pktTx, m_pktTxProt, m_rv, m_savedDelayS, m_sendTime, m_slotTime, m_state, m_txEndEvent, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, RUNNING, ns3::UanHeaderCommon::SetDest(), ns3::UanHeaderCommon::SetSrc(), ns3::UanHeaderCommon::SetType(), and TX.

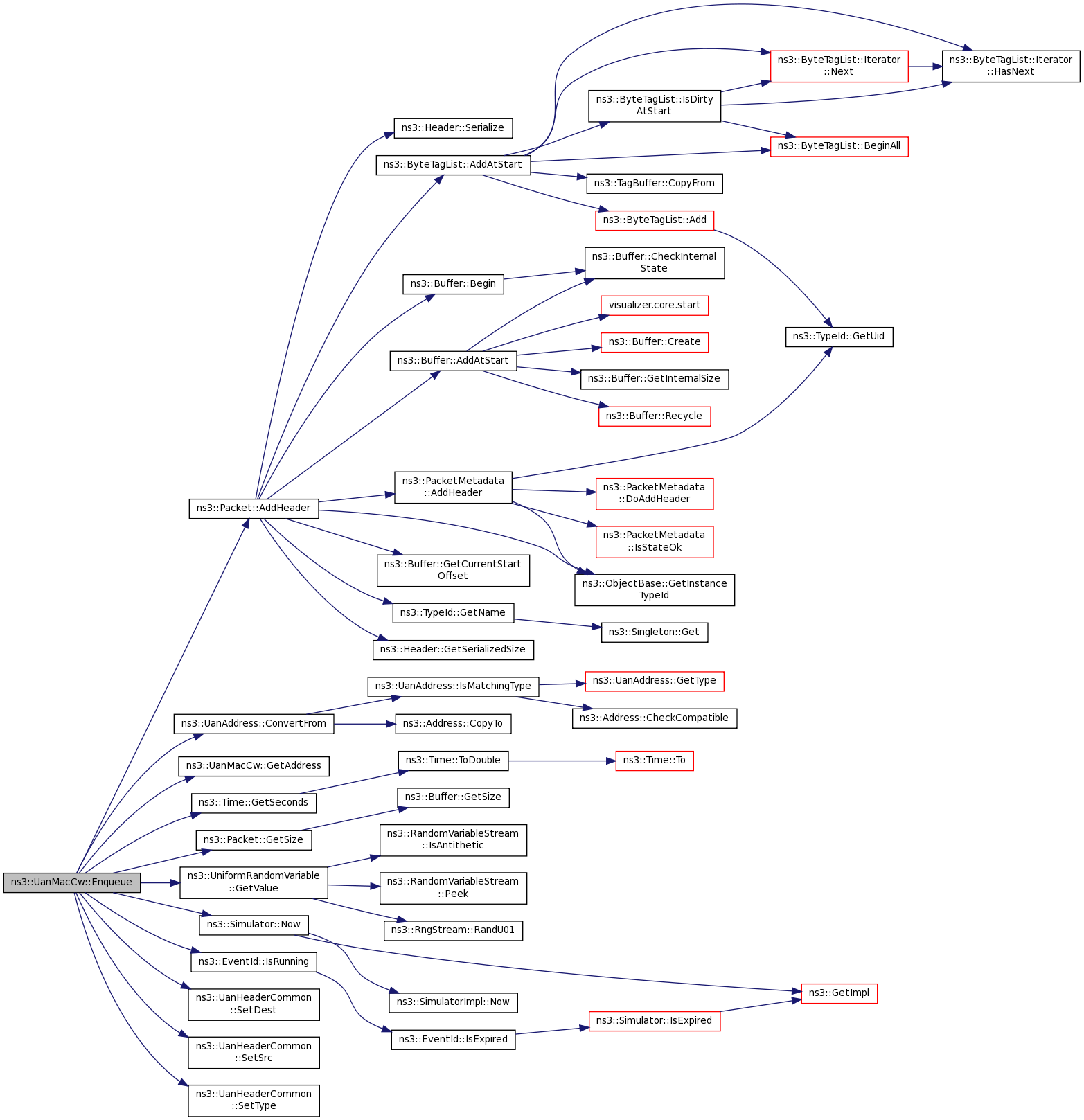

Here is the call graph for this function:

Address ns3::UanMacCw::GetAddress ( )

virtual

Get the MAC Address.

Returns: MAC Address.

Implements ns3::UanMac.

Definition at line 108 of file uan-mac-cw.cc.

References m_address.

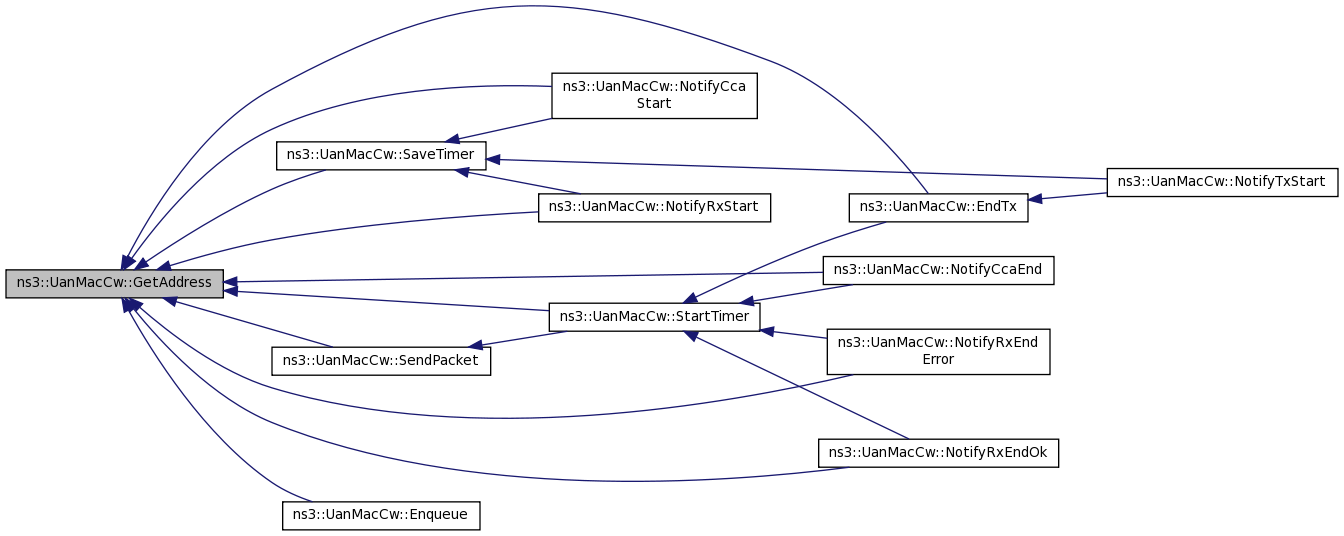

Referenced by EndTx(), Enqueue(), NotifyCcaEnd(), NotifyCcaStart(), NotifyRxEndError(), NotifyRxEndOk(), NotifyRxStart(), SaveTimer(), SendPacket(), and StartTimer().

Here is the caller graph for this function:

Address ns3::UanMacCw::GetBroadcast ( void ) const

virtual

Get the broadcast address.

Returns: The broadcast address.

Implements ns3::UanMac.

Definition at line 203 of file uan-mac-cw.cc.

References ns3::UanAddress::GetBroadcast().

Here is the call graph for this function:

uint32_t ns3::UanMacCw::GetCw ( void )

virtual

Get the contention window size.

Returns: Contention window size.

Definition at line 331 of file uan-mac-cw.cc.

References m_cw.

Time ns3::UanMacCw::GetSlotTime ( void )

virtual

Get the slot time duration.

Returns: Slot time duration.

Definition at line 336 of file uan-mac-cw.cc.

References m_slotTime.

TypeId ns3::UanMacCw::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 78 of file uan-mac-cw.cc.

References m_cw, m_dequeueLogger, m_enqueueLogger, m_rxLogger, m_slotTime, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

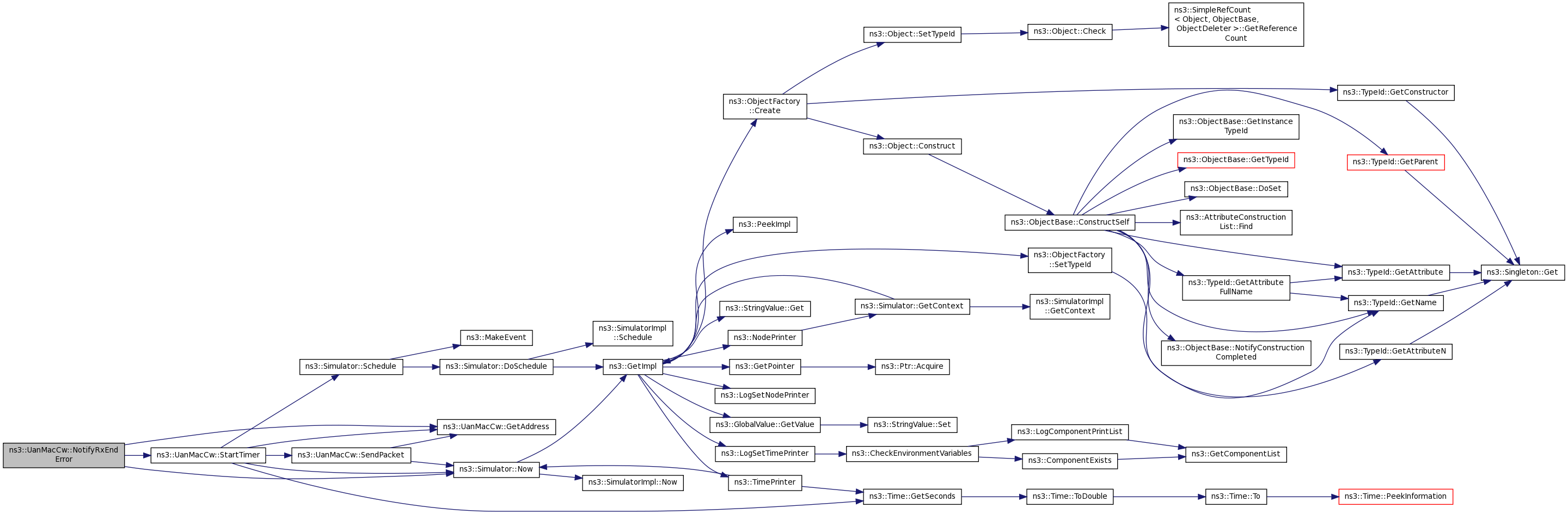

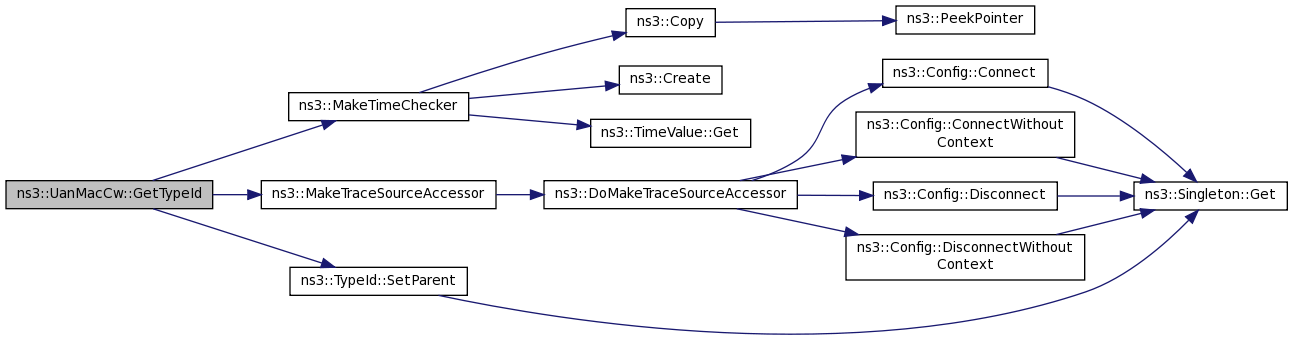

Here is the call graph for this function:

void ns3::UanMacCw::NotifyCcaEnd ( void )

virtual

Called when UanPhy stops sensing channel is busy.

Implements ns3::UanPhyListener.

Definition at line 258 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RUNNING, and StartTimer().

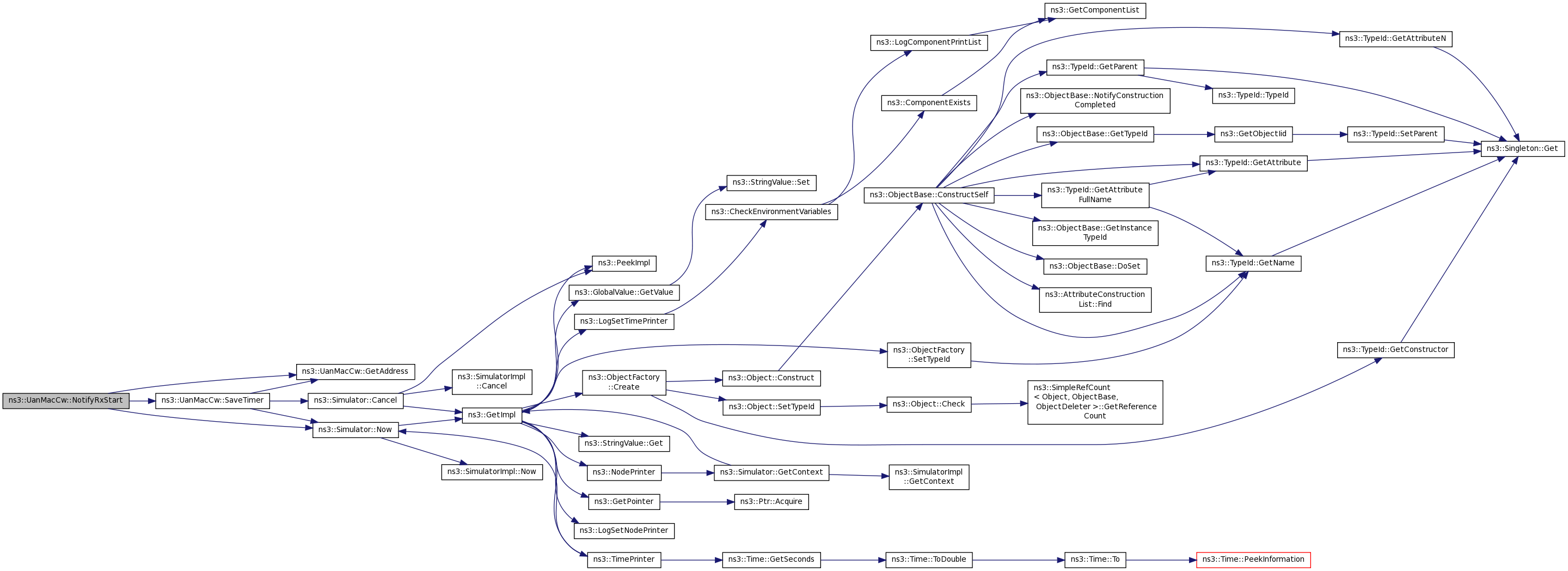

Here is the call graph for this function:

void ns3::UanMacCw::NotifyCcaStart ( void )

virtual

Called when UanPhy begins sensing channel is busy.

Implements ns3::UanPhyListener.

Definition at line 246 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RUNNING, and SaveTimer().

Here is the call graph for this function:

void ns3::UanMacCw::NotifyRxEndError ( void )

virtual

Called when UanPhy finishes receiving packet in error.

Implements ns3::UanPhyListener.

Definition at line 234 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), m_phy, m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RUNNING, and StartTimer().

Here is the call graph for this function:

void ns3::UanMacCw::NotifyRxEndOk ( void )

virtual

Called when UanPhy finishes receiving packet without error.

Implements ns3::UanPhyListener.

Definition at line 222 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), m_phy, m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RUNNING, and StartTimer().

Here is the call graph for this function:

void ns3::UanMacCw::NotifyRxStart ( void )

virtual

Called when UanPhy begins receiving packet.

Implements ns3::UanPhyListener.

Definition at line 210 of file uan-mac-cw.cc.

References CCABUSY, GetAddress(), m_state, ns3::Simulator::Now(), NS_LOG_DEBUG, RUNNING, and SaveTimer().

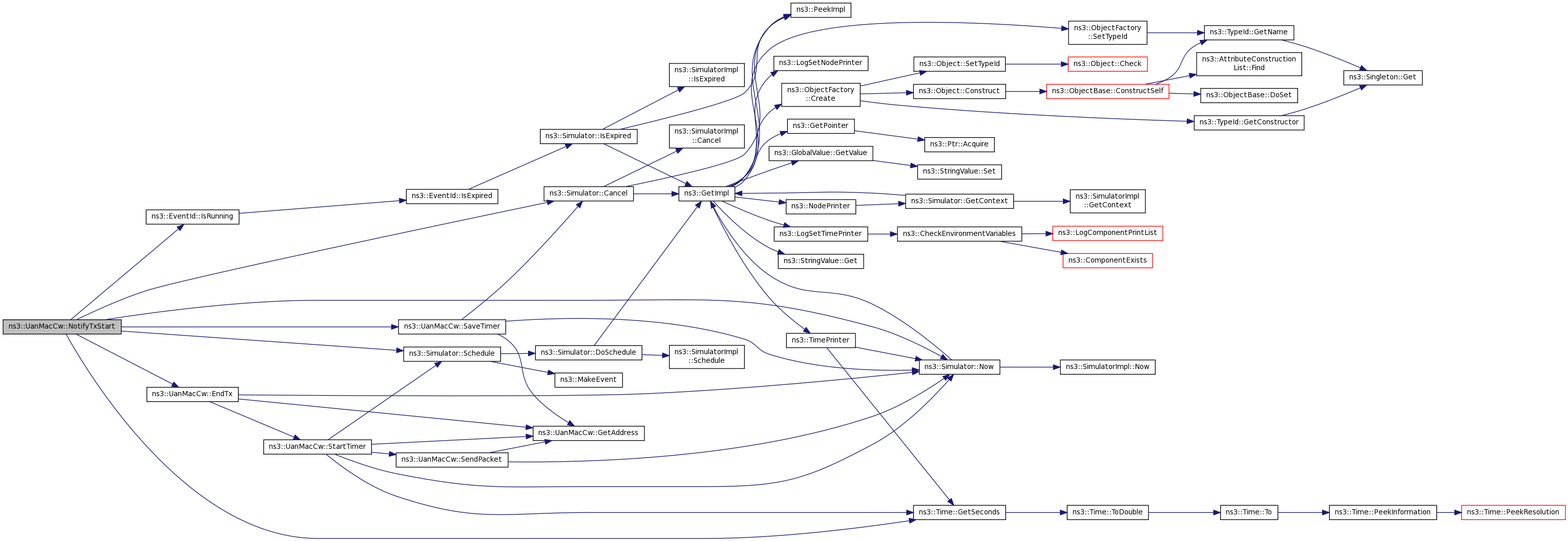

Here is the call graph for this function:

void ns3::UanMacCw::NotifyTxStart ( Time duration )

virtual

Called when transmission starts from Phy object.

Parameters

duration Duration of transmission.

Implements ns3::UanPhyListener.

Definition at line 270 of file uan-mac-cw.cc.

References ns3::Simulator::Cancel(), CCABUSY, EndTx(), ns3::Time::GetSeconds(), ns3::EventId::IsRunning(), m_state, m_txEndEvent, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, RUNNING, SaveTimer(), and ns3::Simulator::Schedule().

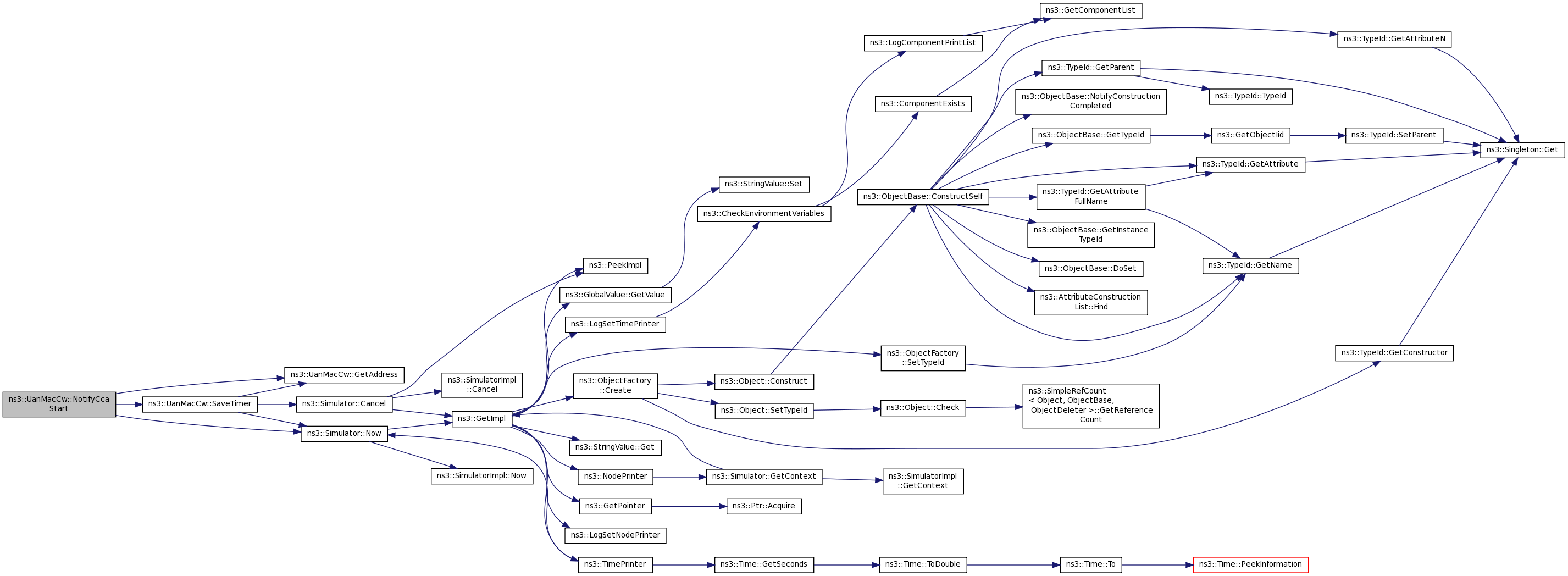

Here is the call graph for this function:

void ns3::UanMacCw::PhyRxPacketError	(	Ptr< Packet >	packet,
		double	sinr
	)

private

Packet received at lower layer in error.

Parameters

packet	Packet received in error.
sinr	SINR of received packet.

Definition at line 352 of file uan-mac-cw.cc.

Referenced by AttachPhy().

Here is the caller graph for this function:

void ns3::UanMacCw::PhyRxPacketGood	(	Ptr< Packet >	packet,
		double	sinr,
		UanTxMode	mode
	)

private

Receive packet from lower layer (passed to PHY as callback).

Parameters

packet	Packet being received.
sinr	SINR of received packet.
mode	Mode of received packet.

Definition at line 341 of file uan-mac-cw.cc.

References ns3::UanAddress::GetBroadcast(), ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderCommon::GetSrc(), m_address, m_forwardUpCb, and ns3::Packet::RemoveHeader().

Referenced by AttachPhy().

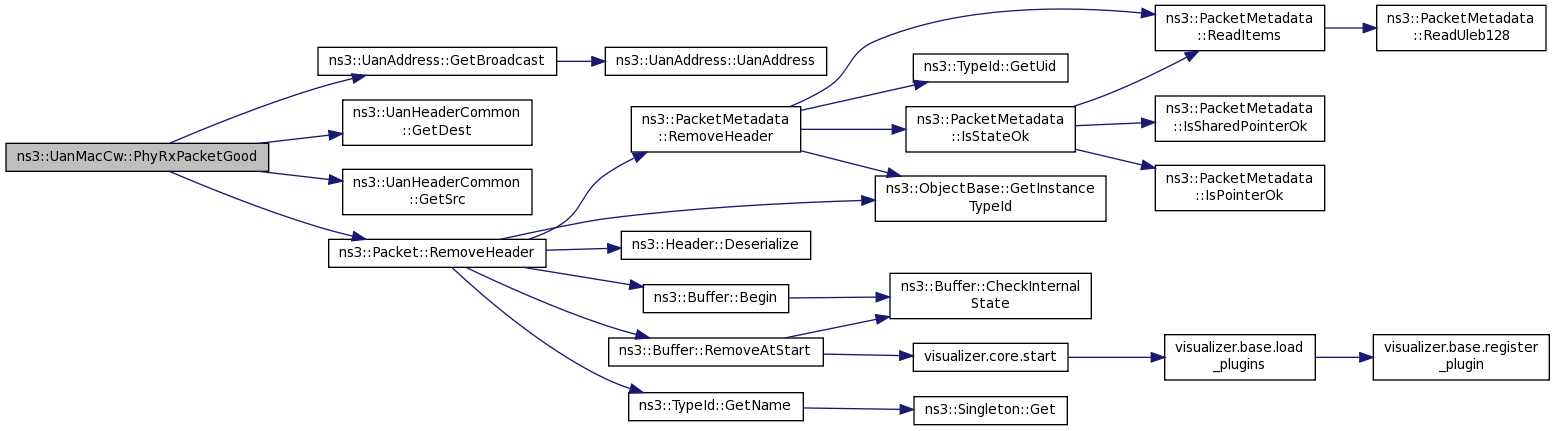

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacCw::SaveTimer ( void )

private

Cancel SendEvent and save remaining delay.

Definition at line 357 of file uan-mac-cw.cc.

References ns3::Simulator::Cancel(), GetAddress(), m_pktTx, m_savedDelayS, m_sendEvent, m_sendTime, ns3::Simulator::Now(), NS_ASSERT, and NS_LOG_DEBUG.

Referenced by NotifyCcaStart(), NotifyRxStart(), and NotifyTxStart().

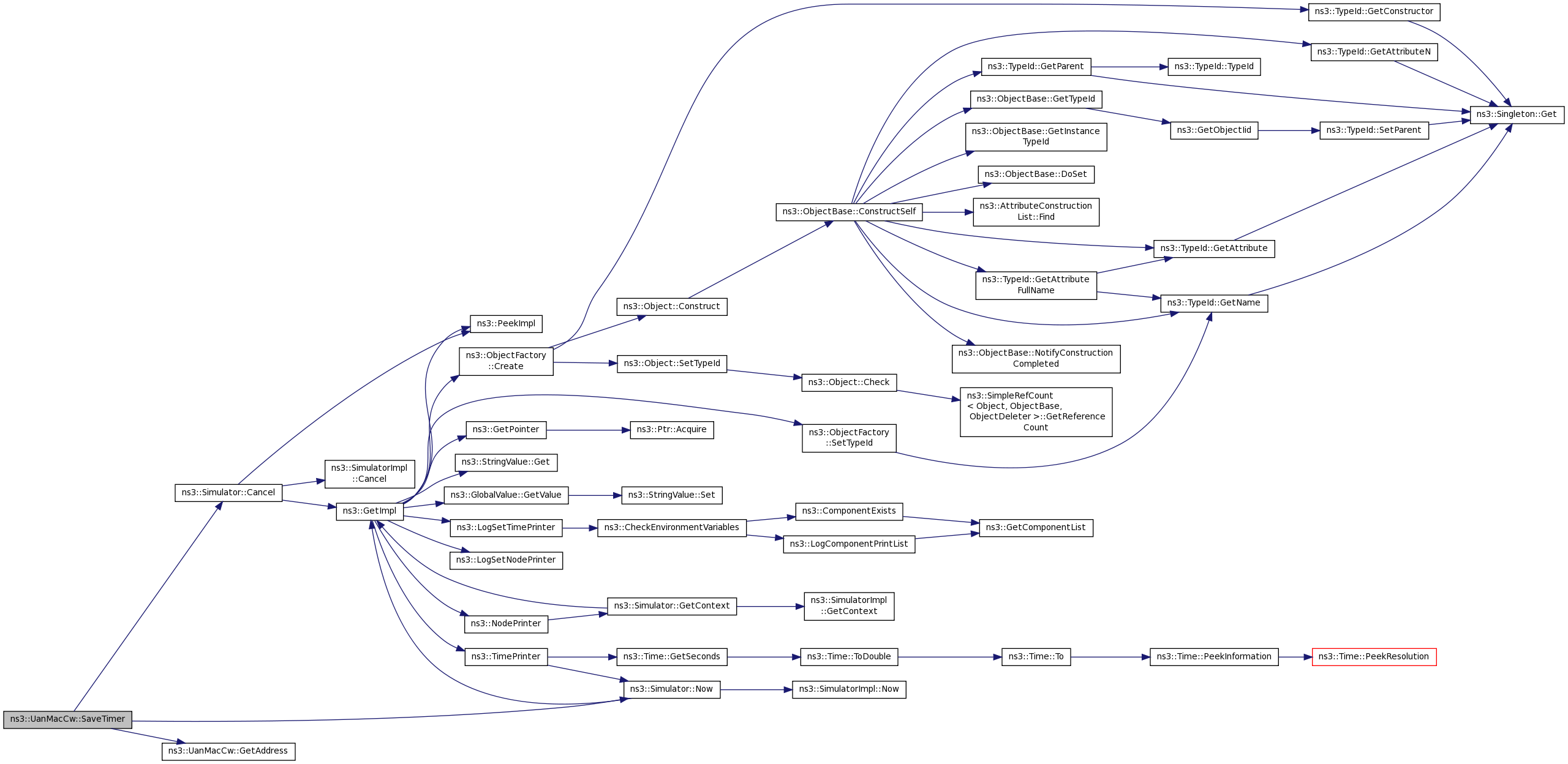

Here is the call graph for this function:

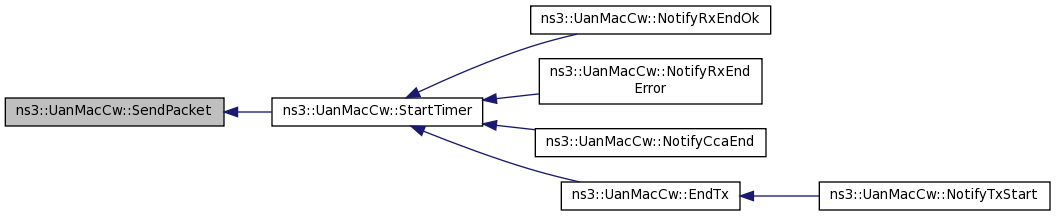

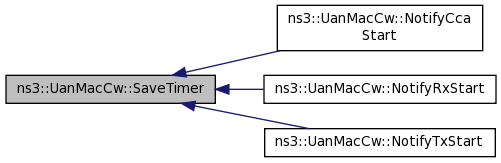

Here is the caller graph for this function:

void ns3::UanMacCw::SendPacket ( void )

private

Send packet on PHY.

Definition at line 384 of file uan-mac-cw.cc.

References GetAddress(), m_phy, m_pktTx, m_pktTxProt, m_savedDelayS, m_sendTime, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, RUNNING, and TX.

Referenced by StartTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacCw::SetAddress ( UanAddress addr )

virtual

Set the address.

Parameters

addr	UanAddress for this MAC.

Implements ns3::UanMac.

Definition at line 114 of file uan-mac-cw.cc.

References m_address.

void ns3::UanMacCw::SetCw ( uint32_t cw )

virtual

Set the contention window size.

Parameters

cw	Contention window size.

Definition at line 321 of file uan-mac-cw.cc.

References m_cw.

void ns3::UanMacCw::SetForwardUpCb ( Callback< void, Ptr< Packet >, const UanAddress & > cb )

virtual

Set the callback to forward packets up to higher layers.

Parameters

cb	The callback. packet The packet. address The source address.

Implements ns3::UanMac.

Definition at line 188 of file uan-mac-cw.cc.

References m_forwardUpCb.

void ns3::UanMacCw::SetSlotTime ( Time duration )

virtual

Set the slot time duration.

Parameters

duration Slot time duration.

Definition at line 326 of file uan-mac-cw.cc.

References m_slotTime.

void ns3::UanMacCw::StartTimer ( void )

private

Schedule SendPacket after delay.

Definition at line 368 of file uan-mac-cw.cc.

References GetAddress(), ns3::Time::GetSeconds(), m_savedDelayS, m_sendEvent, m_sendTime, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), and SendPacket().

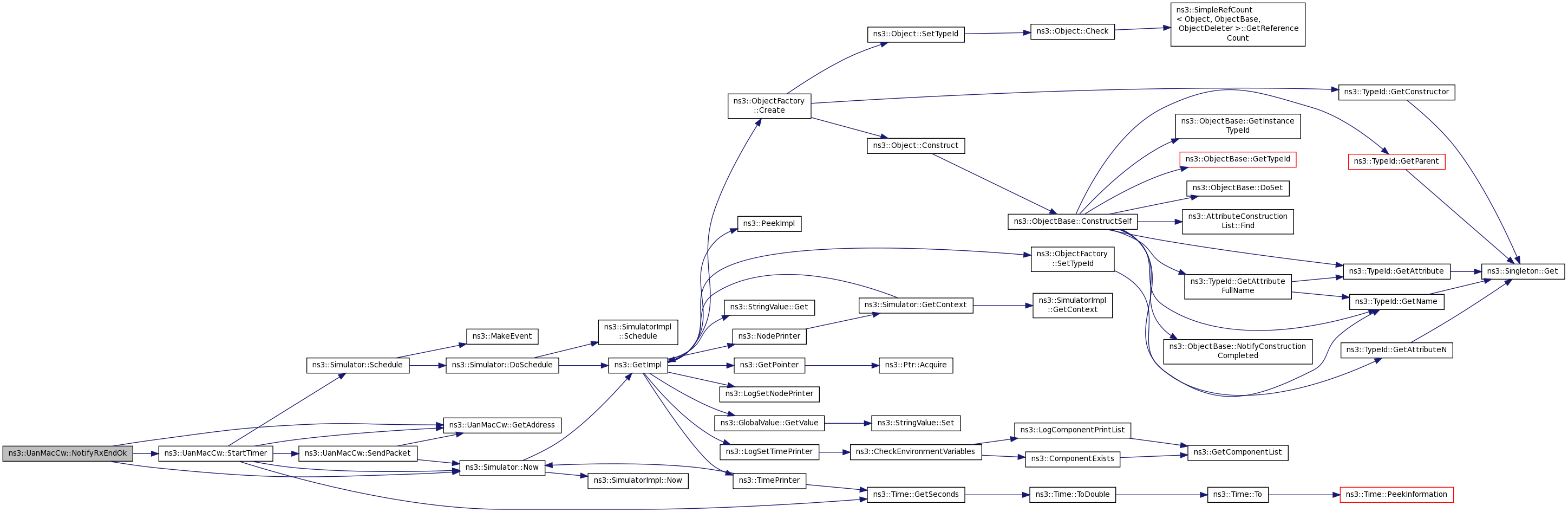

Referenced by EndTx(), NotifyCcaEnd(), NotifyRxEndError(), and NotifyRxEndOk().

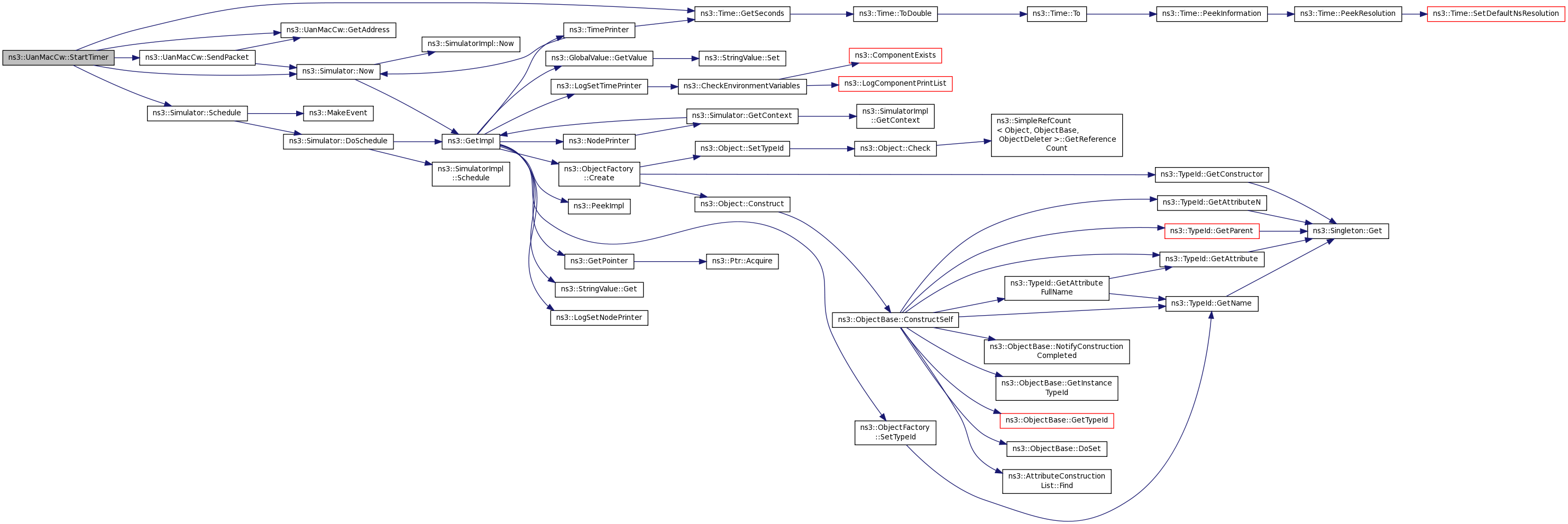

Here is the call graph for this function:

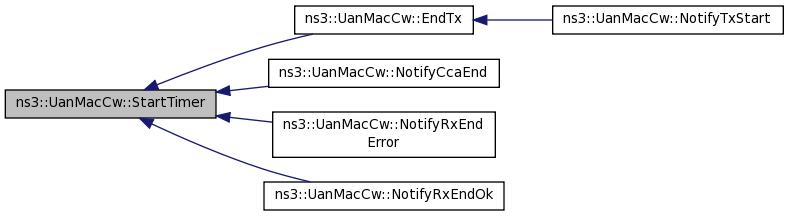

Here is the caller graph for this function:

Member Data Documentation

UanAddress ns3::UanMacCw::m_address

private

The MAC address.

Definition at line 116 of file uan-mac-cw.h.

Referenced by Enqueue(), GetAddress(), PhyRxPacketGood(), and SetAddress().

bool ns3::UanMacCw::m_cleared

private

Flag when we've been cleared.

Definition at line 147 of file uan-mac-cw.h.

Referenced by Clear().

uint32_t ns3::UanMacCw::m_cw

private

Contention window size.

Definition at line 127 of file uan-mac-cw.h.

Referenced by Enqueue(), GetCw(), GetTypeId(), and SetCw().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacCw::m_dequeueLogger

private

A packet was passed down to the PHY from the MAC.

Definition at line 124 of file uan-mac-cw.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacCw::m_enqueueLogger

private

A packet arrived at the MAC for transmission.

Definition at line 122 of file uan-mac-cw.h.

Referenced by Enqueue(), and GetTypeId().

Callback<void, Ptr<Packet>, const UanAddress& > ns3::UanMacCw::m_forwardUpCb

private

Forwarding up callback.

Definition at line 114 of file uan-mac-cw.h.

Referenced by PhyRxPacketGood(), and SetForwardUpCb().

Ptr<UanPhy> ns3::UanMacCw::m_phy

private

PHY layer attached to this MAC.

Definition at line 118 of file uan-mac-cw.h.

Referenced by AttachPhy(), Clear(), EndTx(), Enqueue(), NotifyRxEndError(), NotifyRxEndOk(), and SendPacket().

Ptr<Packet> ns3::UanMacCw::m_pktTx

private

Next packet to send.

Definition at line 136 of file uan-mac-cw.h.

Referenced by Clear(), Enqueue(), SaveTimer(), and SendPacket().

uint16_t ns3::UanMacCw::m_pktTxProt

private

Next packet protocol number (usage varies by MAC).

Definition at line 138 of file uan-mac-cw.h.

Referenced by Enqueue(), and SendPacket().

Ptr<UniformRandomVariable> ns3::UanMacCw::m_rv

private

Provides uniform random variable for contention window.

Definition at line 150 of file uan-mac-cw.h.

Referenced by AssignStreams(), Enqueue(), and UanMacCw().

TracedCallback<Ptr<const Packet>, UanTxMode > ns3::UanMacCw::m_rxLogger

private

A packet destined for this MAC was received.

Definition at line 120 of file uan-mac-cw.h.

Referenced by GetTypeId().

Time ns3::UanMacCw::m_savedDelayS

private

Remaining delay until next send.

Definition at line 134 of file uan-mac-cw.h.

Referenced by Enqueue(), SaveTimer(), SendPacket(), and StartTimer().

EventId ns3::UanMacCw::m_sendEvent

private

Scheduled SendPacket event.

Definition at line 140 of file uan-mac-cw.h.

Referenced by Clear(), SaveTimer(), and StartTimer().

Time ns3::UanMacCw::m_sendTime

private

Time to send next packet.

Definition at line 132 of file uan-mac-cw.h.

Referenced by Enqueue(), SaveTimer(), SendPacket(), and StartTimer().

Time ns3::UanMacCw::m_slotTime

private

Slot time duration.

Definition at line 128 of file uan-mac-cw.h.

Referenced by Enqueue(), GetSlotTime(), GetTypeId(), and SetSlotTime().

State ns3::UanMacCw::m_state

private

Current state.

Definition at line 144 of file uan-mac-cw.h.

Referenced by EndTx(), Enqueue(), NotifyCcaEnd(), NotifyCcaStart(), NotifyRxEndError(), NotifyRxEndOk(), NotifyRxStart(), NotifyTxStart(), and SendPacket().

EventId ns3::UanMacCw::m_txEndEvent

private

Scheduled EndTx event.

Definition at line 142 of file uan-mac-cw.h.

Referenced by Clear(), Enqueue(), and NotifyTxStart().

The documentation for this class was generated from the following files:

src/uan/model/uan-mac-cw.h
src/uan/model/uan-mac-cw.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
