This object implements the MME functionality. More...

#include <epc-mme.h>

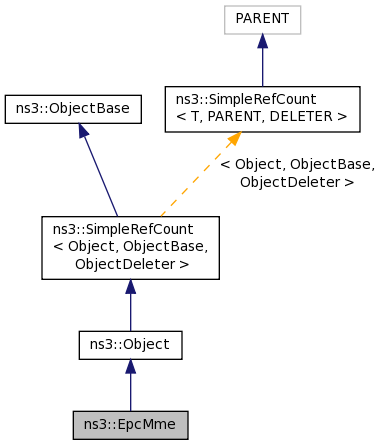

Inheritance diagram for ns3::EpcMme:

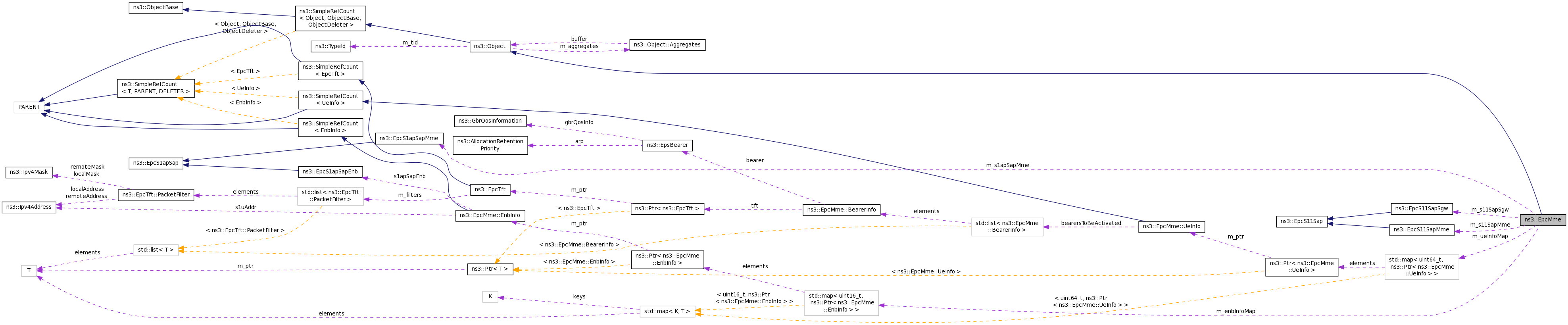

Collaboration diagram for ns3::EpcMme:

Classes
struct	BearerInfo
	Hold info on an EPS bearer to be activated. More...

struct	EnbInfo
	Hold info on a ENB. More...

struct	UeInfo
	Hold info on a UE. More...

Public Member Functions
	EpcMme ()
	Constructor. More...

virtual	~EpcMme ()
	Destructor. More...

void	AddBearer (uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
	Add an EPS bearer to the list of bearers to be activated for this UE. More...

void	AddEnb (uint16_t ecgi, Ipv4Address enbS1UAddr, EpcS1apSapEnb *enbS1apSap)
	Add a new ENB to the MME. More...

void	AddUe (uint64_t imsi)
	Add a new UE to the MME. More...

EpcS11SapMme *	GetS11SapMme ()

EpcS1apSapMme *	GetS1apSapMme ()

void	SetS11SapSgw (EpcS11SapSgw *s)
	Set the SGW side of the S11 SAP. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	DoCreateSessionResponse (EpcS11SapMme::CreateSessionResponseMessage msg)

void	DoInitialContextSetupResponse (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< EpcS1apSapMme::ErabSetupItem > erabSetupList)

void	DoInitialUeMessage (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, uint64_t imsi, uint16_t ecgi)

void	DoModifyBearerResponse (EpcS11SapMme::ModifyBearerResponseMessage msg)

void	DoPathSwitchRequest (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< EpcS1apSapMme::ErabSwitchedInDownlinkItem > erabToBeSwitchedInDownlinkList)

Private Attributes
std::map< uint16_t, Ptr < EnbInfo > >	m_enbInfoMap
	EnbInfo stored by EGCI. More...

EpcS11SapMme *	m_s11SapMme

EpcS11SapSgw *	m_s11SapSgw

EpcS1apSapMme *	m_s1apSapMme

std::map< uint64_t, Ptr< UeInfo > >	m_ueInfoMap
	UeInfo stored by IMSI. More...

Friends
class	MemberEpcS11SapMme< EpcMme >

class	MemberEpcS1apSapMme< EpcMme >

Detailed Description

This object implements the MME functionality.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 40 of file epc-mme.h.

Constructor & Destructor Documentation

ns3::EpcMme::EpcMme ( )

Constructor.

Definition at line 39 of file epc-mme.cc.

References m_s11SapMme, m_s1apSapMme, and NS_LOG_FUNCTION.

ns3::EpcMme::~EpcMme ( )

virtual

Destructor.

Definition at line 48 of file epc-mme.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcMme::AddBearer	(	uint64_t	imsi,
		Ptr< EpcTft >	tft,
		EpsBearer	bearer
	)

Add an EPS bearer to the list of bearers to be activated for this UE.

The bearer will be activated when the UE enters the ECM connected state.

Parameters

imsi	UE identifier
tft	traffic flow template of the bearer
bearer	QoS characteristics of the bearer

Definition at line 112 of file epc-mme.cc.

References ns3::EpcMme::BearerInfo::bearer, ns3::EpcMme::BearerInfo::bearerId, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcMme::BearerInfo::tft.

void ns3::EpcMme::AddEnb	(	uint16_t	ecgi,
		Ipv4Address	enbS1UAddr,
		EpcS1apSapEnb *	enbS1apSap
	)

Add a new ENB to the MME.

Parameters

ecgi	E-UTRAN Cell Global ID, the unique identifier of the eNodeB
enbS1apSap	the ENB side of the S1-AP SAP

Definition at line 90 of file epc-mme.cc.

References ns3::EpcMme::EnbInfo::gci, m_enbInfoMap, NS_LOG_FUNCTION, ns3::EpcMme::EnbInfo::s1apSapEnb, and ns3::EpcMme::EnbInfo::s1uAddr.

void ns3::EpcMme::AddUe ( uint64_t imsi )

Add a new UE to the MME.

This is the equivalent of storing the UE credentials before the UE is ever turned on.

Parameters

imsi	the unique identifier of the UE

Definition at line 101 of file epc-mme.cc.

References ns3::EpcMme::UeInfo::bearerCounter, ns3::EpcMme::UeInfo::imsi, m_ueInfoMap, ns3::EpcMme::UeInfo::mmeUeS1Id, and NS_LOG_FUNCTION.

void ns3::EpcMme::DoCreateSessionResponse ( EpcS11SapMme::CreateSessionResponseMessage msg )

private

Definition at line 181 of file epc-mme.cc.

References ns3::EpcS11SapMme::CreateSessionResponseMessage::bearerContextsCreated, ns3::EpcS1apSapEnb::ErabToBeSetupItem::erabId, ns3::EpcS1apSapEnb::ErabToBeSetupItem::erabLevelQosParameters, m_enbInfoMap, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcS1apSapEnb::ErabToBeSetupItem::sgwTeid, and ns3::EpcS1apSapEnb::ErabToBeSetupItem::transportLayerAddress.

void ns3::EpcMme::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 54 of file epc-mme.cc.

References m_s11SapMme, m_s1apSapMme, and NS_LOG_FUNCTION.

void ns3::EpcMme::DoInitialContextSetupResponse	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		std::list< EpcS1apSapMme::ErabSetupItem >	erabSetupList
	)

private

Definition at line 152 of file epc-mme.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

void ns3::EpcMme::DoInitialUeMessage	(	uint64_t	mmeUeS1Id,
		uint16_t	enbUeS1Id,
		uint64_t	imsi,
		uint16_t	ecgi
	)

private

Definition at line 129 of file epc-mme.cc.

References ns3::EpcS11SapSgw::CreateSessionRequestMessage::bearerContextsToBeCreated, ns3::EpcS11SapSgw::BearerContextToBeCreated::bearerLevelQos, ns3::EpcS11SapSgw::CreateSessionRequest(), ns3::EpcS11SapSgw::BearerContextToBeCreated::epsBearerId, ns3::EpcS11SapSgw::CreateSessionRequestMessage::imsi, m_s11SapSgw, m_ueInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcS11SapSgw::BearerContextToBeCreated::tft.

Here is the call graph for this function:

void ns3::EpcMme::DoModifyBearerResponse ( EpcS11SapMme::ModifyBearerResponseMessage msg )

private

Definition at line 209 of file epc-mme.cc.

References ns3::EpcS11SapMme::ModifyBearerResponseMessage::cause, m_enbInfoMap, m_ueInfoMap, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::EpcS11SapMme::ModifyBearerResponseMessage::REQUEST_ACCEPTED.

void ns3::EpcMme::DoPathSwitchRequest	(	uint64_t	enbUeS1Id,
		uint64_t	mmeUeS1Id,
		uint16_t	cgi,
		std::list< EpcS1apSapMme::ErabSwitchedInDownlinkItem >	erabToBeSwitchedInDownlinkList
	)
