Create an EPC network with PointToPoint links. More...

#include <point-to-point-epc-helper.h>

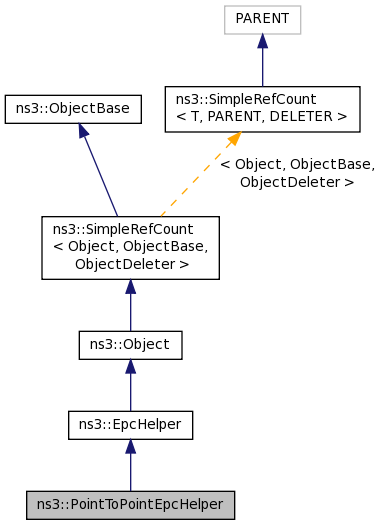

Inheritance diagram for ns3::PointToPointEpcHelper:

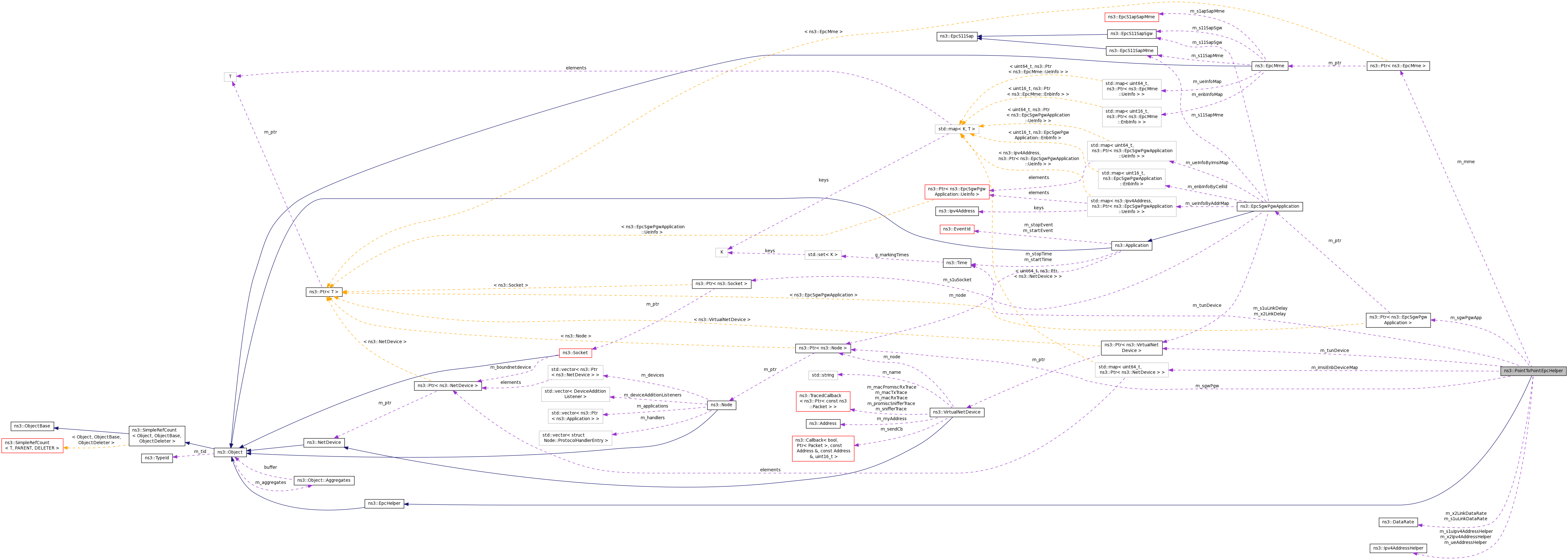

Collaboration diagram for ns3::PointToPointEpcHelper:

Public Member Functions
	PointToPointEpcHelper ()
	Constructor. More...

virtual	~PointToPointEpcHelper ()
	Destructor. More...

virtual void	ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
	Activate an EPS bearer, setting up the corresponding S1-U tunnel. More...

virtual void	AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, uint16_t cellId)
	Add an eNB to the EPC. More...

virtual void	AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi)
	Notify the EPC of the existance of a new UE which might attach at a later time. More...

virtual void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
	Add an X2 interface between two eNB. More...

virtual Ipv4InterfaceContainer	AssignUeIpv4Address (NetDeviceContainer ueDevices)
	Assign IPv4 addresses to UE devices. More...

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual Ptr< Node >	GetPgwNode ()

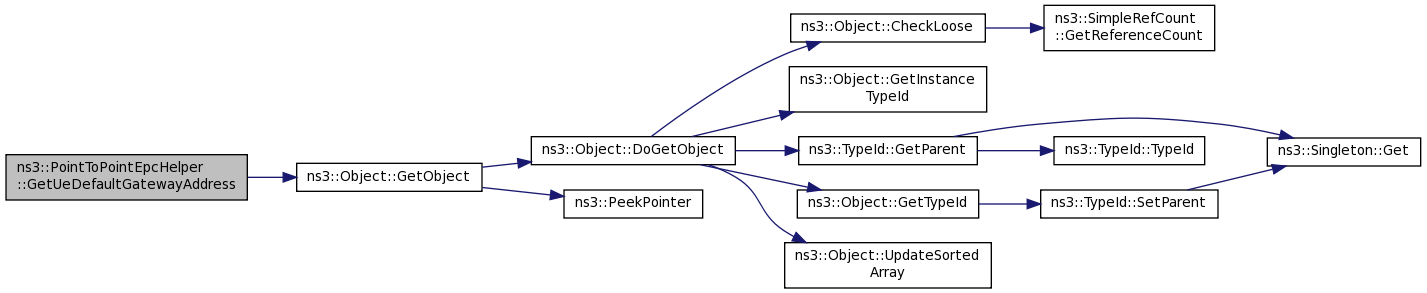

virtual Ipv4Address	GetUeDefaultGatewayAddress ()

Public Member Functions inherited from ns3::EpcHelper
	EpcHelper ()
	Constructor. More...

virtual	~EpcHelper ()
	Destructor. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

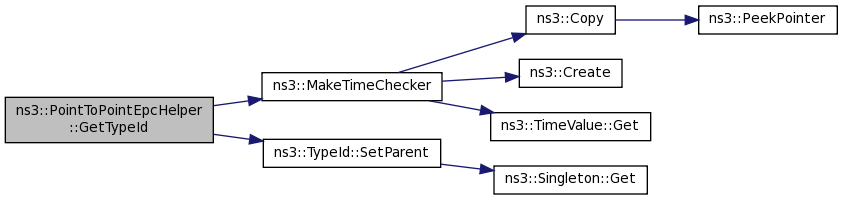

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::EpcHelper
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_gtpuUdpPort
	UDP port where the GTP-U Socket is bound, fixed by the standard as 2152. More...

std::map< uint64_t, Ptr < NetDevice > >	m_imsiEnbDeviceMap
	Map storing for each IMSI the corresponding eNB NetDevice. More...

Ptr< EpcMme >	m_mme

Ipv4AddressHelper	m_s1uIpv4AddressHelper
	S1-U interfaces. More...

DataRate	m_s1uLinkDataRate

Time	m_s1uLinkDelay

uint16_t	m_s1uLinkMtu

Ptr< Node >	m_sgwPgw

Ptr< EpcSgwPgwApplication >	m_sgwPgwApp

Ptr< VirtualNetDevice >	m_tunDevice

Ipv4AddressHelper	m_ueAddressHelper
	SGW-PGW network element. More...

Ipv4AddressHelper	m_x2Ipv4AddressHelper
	helper to assign addresses to X2 NetDevices More...

DataRate	m_x2LinkDataRate

Time	m_x2LinkDelay

uint16_t	m_x2LinkMtu

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Create an EPC network with PointToPoint links.

Doxygen introspection did not find any typical Config paths.

This Helper will create an EPC network topology comprising of a single node that implements both the SGW and PGW functionality, and an MME node. The S1-U, X2-U and X2-C interfaces are realized over PointToPoint links.

Attributes

S1uLinkDataRate: The data rate to be used for the next S1-U link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
S1uLinkDelay: The delay to be used for the next S1-U link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
S1uLinkMtu: The MTU of the next S1-U link to be created. Note that, because of the additional GTP/UDP/IP tunneling overhead, you need a MTU larger than the end-to-end MTU that you want to support.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2000
- Flags: construct write read
X2LinkDataRate: The data rate to be used for the next X2 link to be created
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: construct write read
X2LinkDelay: The delay to be used for the next X2 link to be created
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
X2LinkMtu: The MTU of the next X2 link to be created. Note that, because of some big X2 messages, you need a big MTU.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 3000
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 50 of file point-to-point-epc-helper.h.

Constructor & Destructor Documentation

ns3::PointToPointEpcHelper::PointToPointEpcHelper ( )

Constructor.

Definition at line 52 of file point-to-point-epc-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddApplication(), ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::InternetStackHelper::Install(), ns3::TypeId::LookupByName(), m_gtpuUdpPort, m_mme, m_s1uIpv4AddressHelper, m_sgwPgw, m_sgwPgwApp, m_tunDevice, m_ueAddressHelper, m_x2Ipv4AddressHelper, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, ns3::EpcSgwPgwApplication::RecvFromTunDevice(), ns3::VirtualNetDevice::SetAddress(), ns3::ObjectBase::SetAttribute(), and ns3::Ipv4AddressHelper::SetBase().

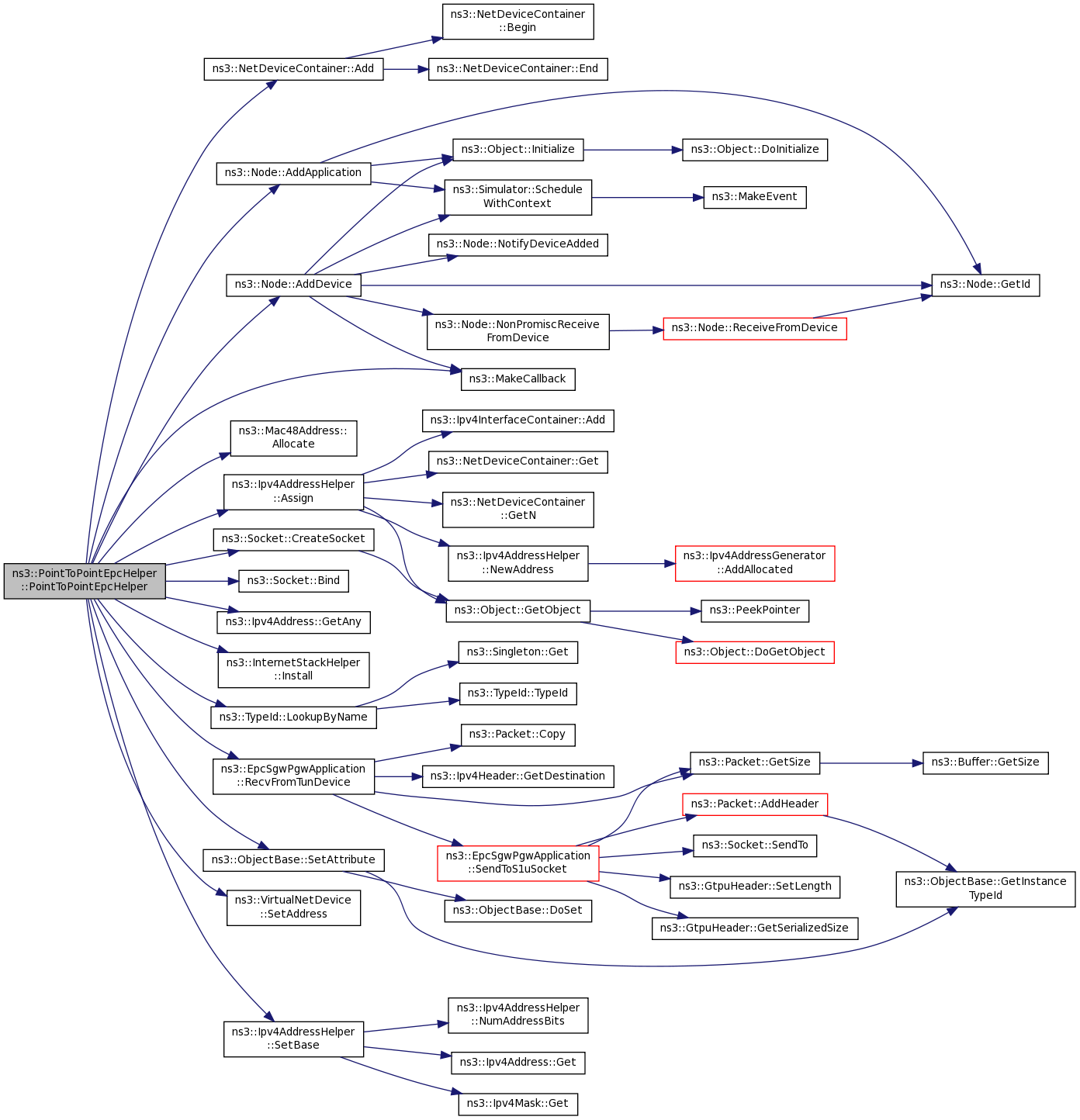

Here is the call graph for this function:

ns3::PointToPointEpcHelper::~PointToPointEpcHelper ( )

virtual

Destructor.

Definition at line 107 of file point-to-point-epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::PointToPointEpcHelper::ActivateEpsBearer	(	Ptr< NetDevice >	ueLteDevice,
		uint64_t	imsi,
		Ptr< EpcTft >	tft,
		EpsBearer	bearer
	)

virtual

Activate an EPS bearer, setting up the corresponding S1-U tunnel.

Parameters

ueLteDevice	the Ipv4-enabled device of the UE, normally connected via the LTE radio interface
imsi	the unique identifier of the UE
tft	the Traffic Flow Template of the new bearer
bearer	struct describing the characteristics of the EPS bearer to be activated

Implements ns3::EpcHelper.

Definition at line 298 of file point-to-point-epc-helper.cc.

References ns3::Object::GetObject(), m_mme, m_sgwPgwApp, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

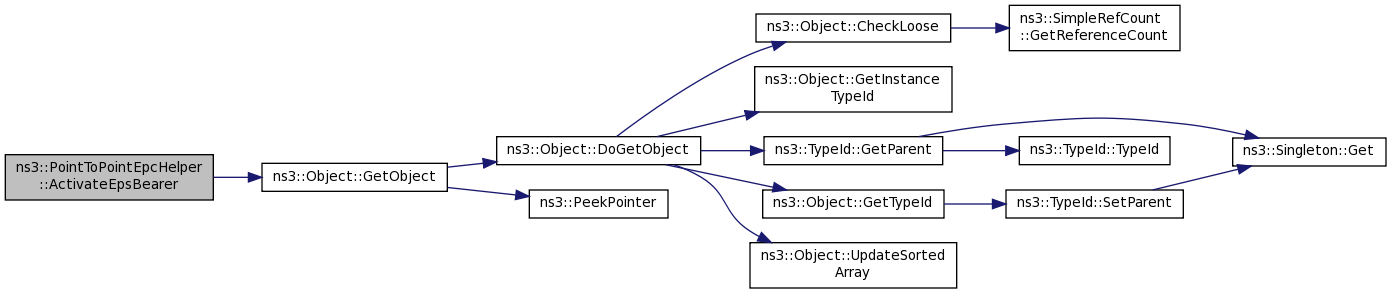

Here is the call graph for this function:

void ns3::PointToPointEpcHelper::AddEnb	(	Ptr< Node >	enbNode,
		Ptr< NetDevice >	lteEnbNetDevice,
		uint16_t	cellId
	)

virtual

Add an eNB to the EPC.

Parameters

enbNode	the previosuly created eNB node which is to be added to the EPC
lteEnbNetDevice	the LteEnbNetDevice of the eNB node
cellId	ID of the eNB

Implements ns3::EpcHelper.

Definition at line 164 of file point-to-point-epc-helper.cc.

References ns3::NodeContainer::Add(), ns3::Node::AddApplication(), ns3::Object::AggregateObject(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), ns3::NetDeviceContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Node::GetApplication(), ns3::Mac48Address::GetBroadcast(), ns3::Node::GetNApplications(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::TypeId::LookupByName(), m_gtpuUdpPort, m_mme, m_s1uIpv4AddressHelper, m_s1uLinkDataRate, m_s1uLinkDelay, m_s1uLinkMtu, m_sgwPgw, m_sgwPgwApp, ns3::Ipv4AddressHelper::NewNetwork(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Ipv4L3Protocol::PROT_NUMBER, ns3::PointToPointHelper::SetChannelAttribute(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), and ns3::PacketSocketAddress::SetSingleDevice().

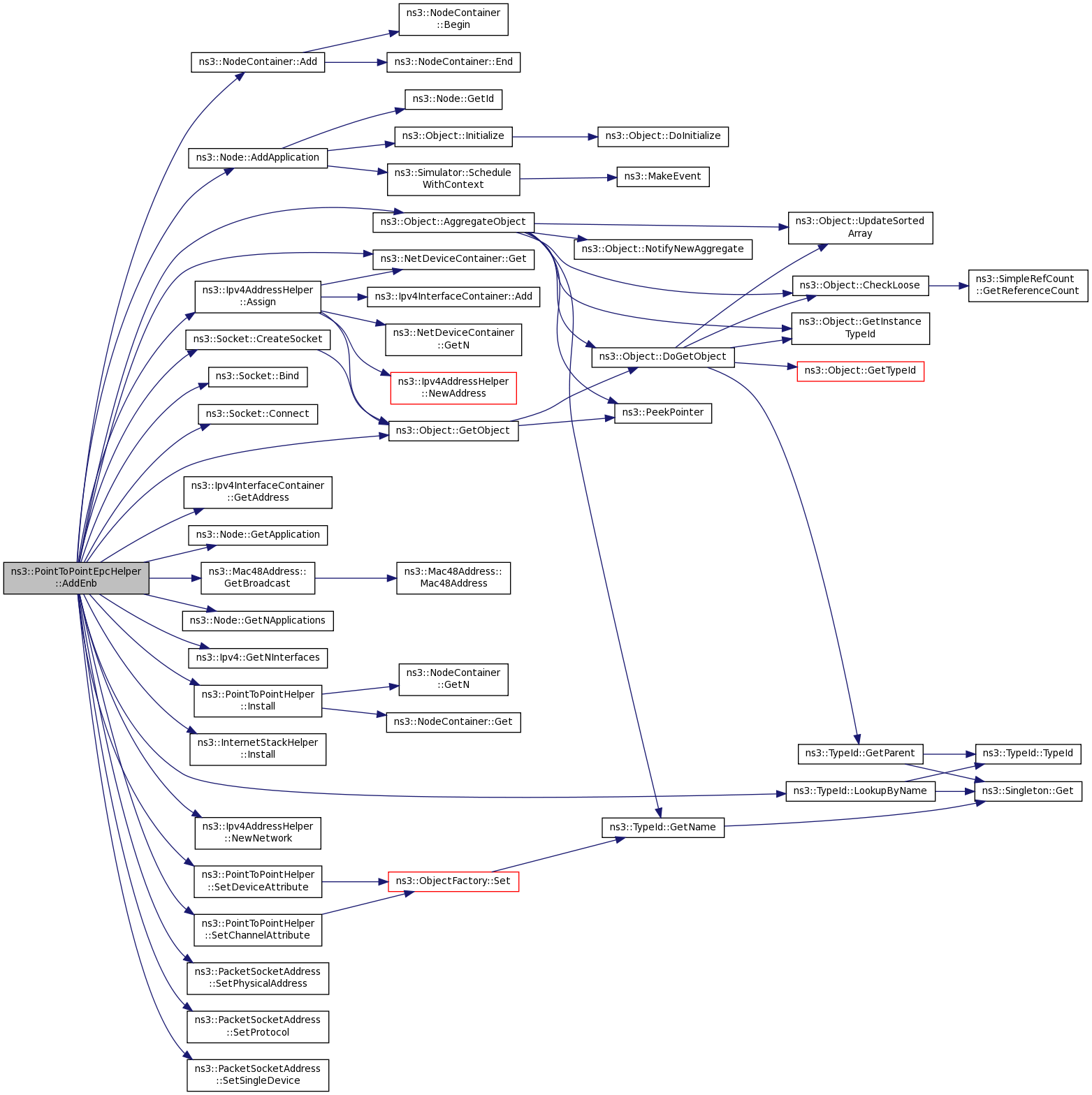

Here is the call graph for this function:

void ns3::PointToPointEpcHelper::AddUe	(	Ptr< NetDevice >	ueLteDevice,
		uint64_t	imsi
	)

virtual

Notify the EPC of the existance of a new UE which might attach at a later time.

Parameters

ueLteDevice	the UE device to be attached
imsi	the unique identifier of the UE

Implements ns3::EpcHelper.

Definition at line 287 of file point-to-point-epc-helper.cc.

References m_mme, m_sgwPgwApp, and NS_LOG_FUNCTION.

void ns3::PointToPointEpcHelper::AddX2Interface	(	Ptr< Node >	enbNode1,
		Ptr< Node >	enbNode2
	)

virtual

Add an X2 interface between two eNB.

Parameters

enbNode1	one eNB peer of the X2 interface
enbNode2	the other eNB peer of the X2 interface

Implements ns3::EpcHelper.

Definition at line 240 of file point-to-point-epc-helper.cc.

References ns3::NodeContainer::Add(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::LteEnbNetDevice::GetCellId(), ns3::Node::GetDevice(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::PointToPointHelper::Install(), m_x2Ipv4AddressHelper, m_x2LinkDataRate, m_x2LinkDelay, m_x2LinkMtu, ns3::Ipv4AddressHelper::NewNetwork(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PointToPointHelper::SetChannelAttribute(), and ns3::PointToPointHelper::SetDeviceAttribute().

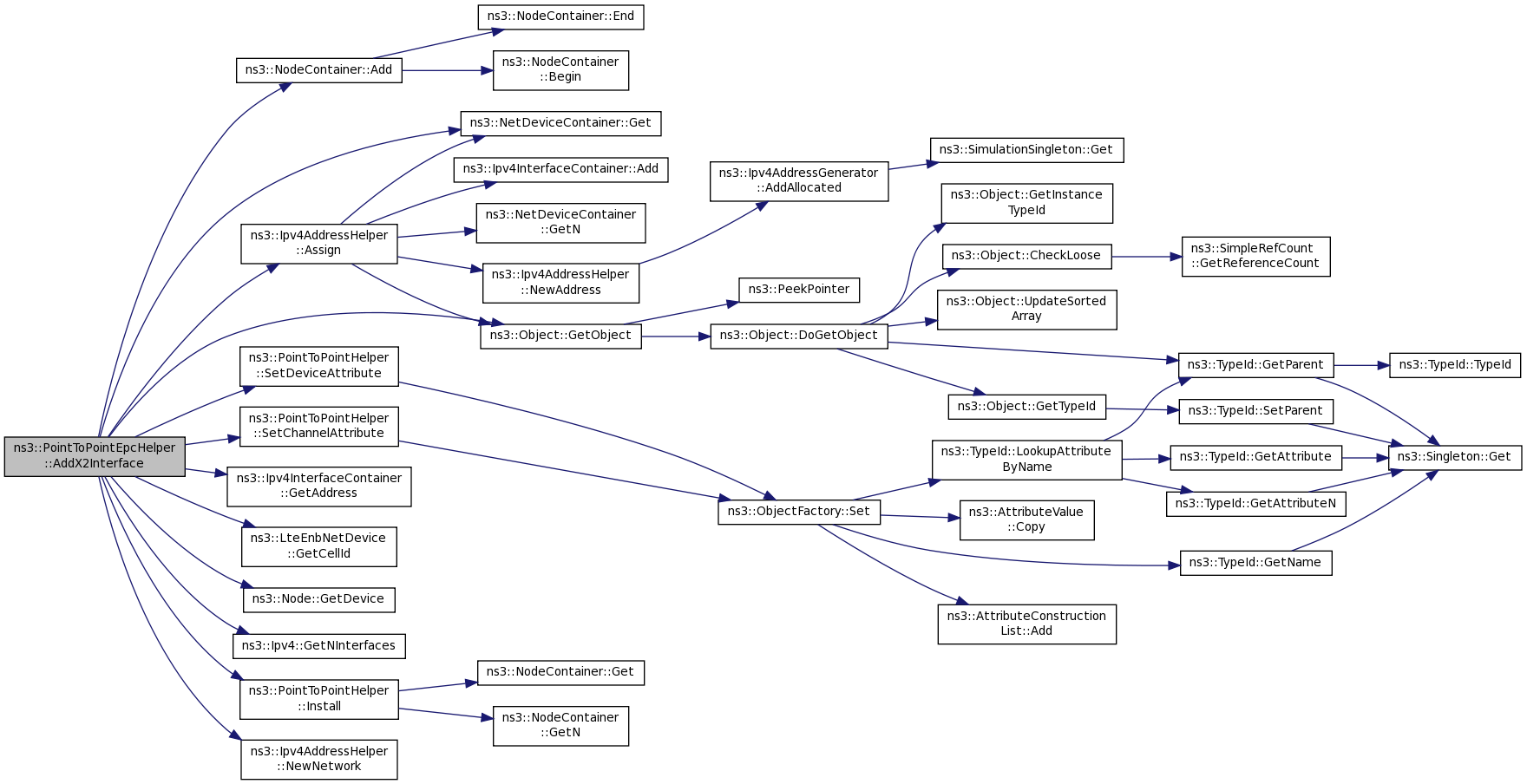

Here is the call graph for this function:

Ipv4InterfaceContainer ns3::PointToPointEpcHelper::AssignUeIpv4Address ( NetDeviceContainer ueDevices )

virtual

Assign IPv4 addresses to UE devices.

Parameters

ueDevices the set of UE devices

Returns: the interface container,

See also: Ipv4AddressHelper::Assign() which has similar semantics

Implements ns3::EpcHelper.

Definition at line 331 of file point-to-point-epc-helper.cc.

References ns3::Ipv4AddressHelper::Assign(), and m_ueAddressHelper.

Referenced by main().

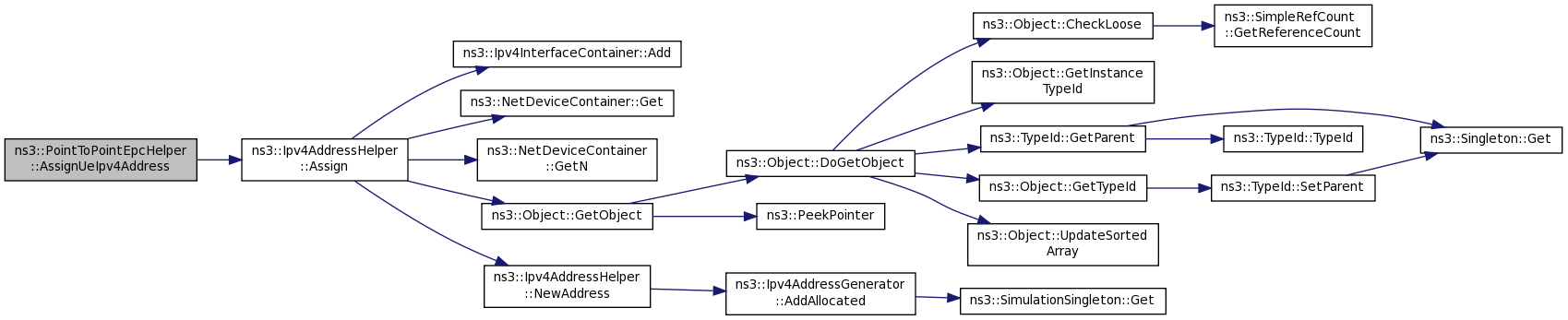

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointEpcHelper::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::EpcHelper.

Definition at line 153 of file point-to-point-epc-helper.cc.

References ns3::Object::Dispose(), m_sgwPgw, m_sgwPgwApp, m_tunDevice, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::VirtualNetDevice::SetSendCallback().

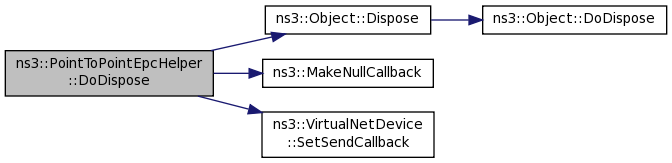

Here is the call graph for this function:

Ptr< Node > ns3::PointToPointEpcHelper::GetPgwNode ( )

virtual

Returns: a pointer to the node implementing PGW functionality. Note that in this particular implementation this node will also hold the SGW functionality. The primary use intended for this method is to allow the user to configure the Gi interface of the PGW, i.e., to connect the PGW to the internet.

Implements ns3::EpcHelper.

Definition at line 324 of file point-to-point-epc-helper.cc.

References m_sgwPgw.

Referenced by main().

Here is the caller graph for this function:
