Doxygen introspection did not find any typical Config paths. More...

#include <dsr-network-queue.h>

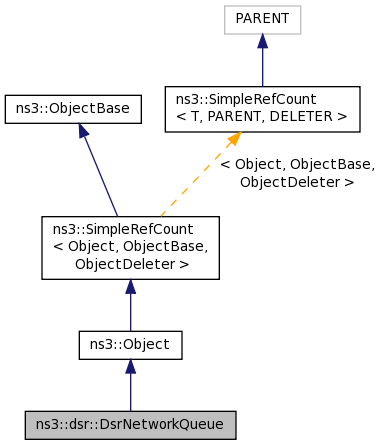

Inheritance diagram for ns3::dsr::DsrNetworkQueue:

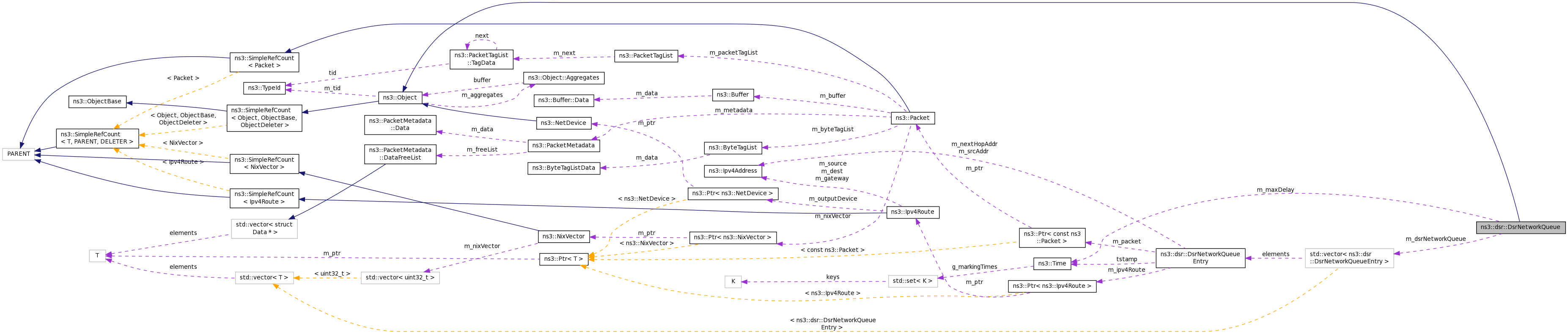

Collaboration diagram for ns3::dsr::DsrNetworkQueue:

Public Member Functions
	DsrNetworkQueue ()

	DsrNetworkQueue (uint32_t maxLen, Time maxDelay)
	Construct a DsrNetworkQueue with the given maximum length and maximum delay. More...

	~DsrNetworkQueue ()

bool	Dequeue (DsrNetworkQueueEntry &entry)
	Return first found (the earliest) entry for given destination. More...

bool	Enqueue (DsrNetworkQueueEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

void	Flush (void)
	Clear the queue. More...

Time	GetMaxNetworkDelay (void) const
	Return the maximum entry lifetime for this queue. More...

uint32_t	GetMaxNetworkSize (void) const
	Return the maximum queue size. More...

std::vector < DsrNetworkQueueEntry > &	GetQueue ()

uint32_t	GetSize ()
	Number of entries. More...

void	SetMaxNetworkDelay (Time delay)
	Set the maximum entry lifetime in the queue. More...

void	SetMaxNetworkSize (uint32_t maxSize)
	Set the maximum queue size. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	Cleanup (void)
	Clean the queue by removing entries that exceeded lifetime. More...

Private Attributes
std::vector< DsrNetworkQueueEntry >	m_dsrNetworkQueue
	Queue (vector) of entries. More...

Time	m_maxDelay
	Maximum entry lifetime. More...

uint32_t	m_maxSize
	Maximum queue size. More...

uint32_t	m_size
	Current queue size. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 138 of file dsr-network-queue.h.

Constructor & Destructor Documentation

ns3::dsr::DsrNetworkQueue::DsrNetworkQueue ( )

Definition at line 67 of file dsr-network-queue.cc.

References NS_LOG_FUNCTION.

ns3::dsr::DsrNetworkQueue::DsrNetworkQueue	(	uint32_t	maxLen,
		Time	maxDelay
	)

Construct a DsrNetworkQueue with the given maximum length and maximum delay.

Parameters

maxLen	Maximum queue size
maxDelay	Maximum entry lifetime in the queue

Definition at line 59 of file dsr-network-queue.cc.

References NS_LOG_FUNCTION.

ns3::dsr::DsrNetworkQueue::~DsrNetworkQueue ( )

Definition at line 72 of file dsr-network-queue.cc.

References Flush(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void ns3::dsr::DsrNetworkQueue::Cleanup ( void )

private

Clean the queue by removing entries that exceeded lifetime.

Definition at line 137 of file dsr-network-queue.cc.

References m_dsrNetworkQueue, m_maxDelay, m_size, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by Dequeue().

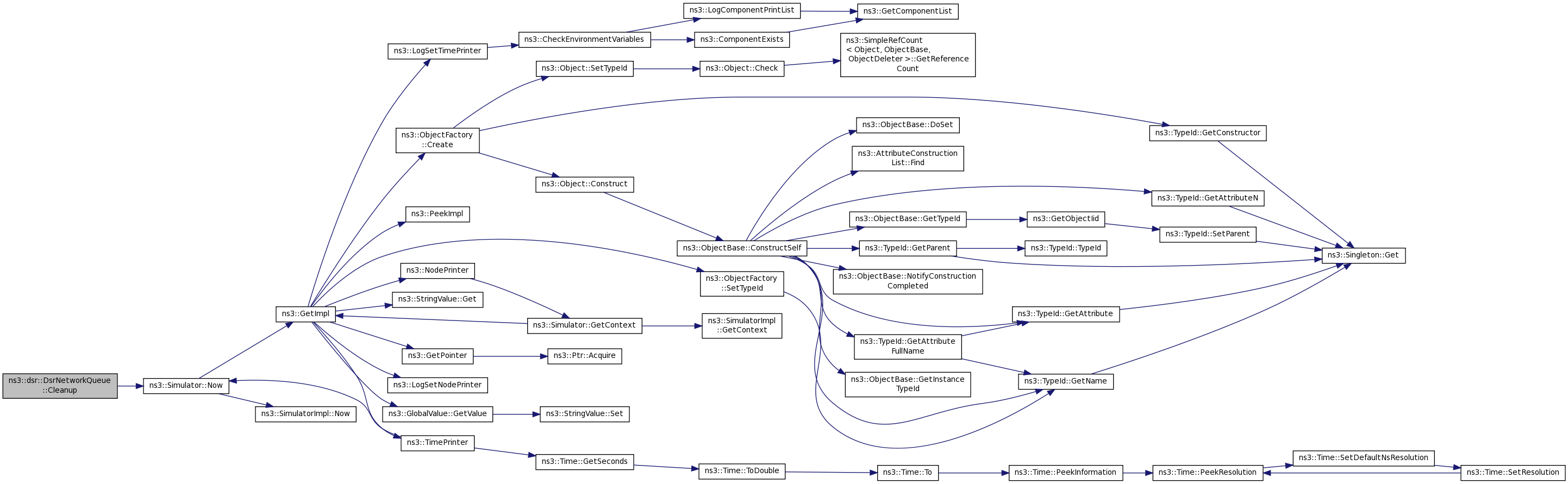

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrNetworkQueue::Dequeue ( DsrNetworkQueueEntry & entry )

Return first found (the earliest) entry for given destination.

Parameters

entry pointer to the return entry

Returns: true if an entry is returned, false otherwise

Definition at line 119 of file dsr-network-queue.cc.

References Cleanup(), m_dsrNetworkQueue, m_size, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

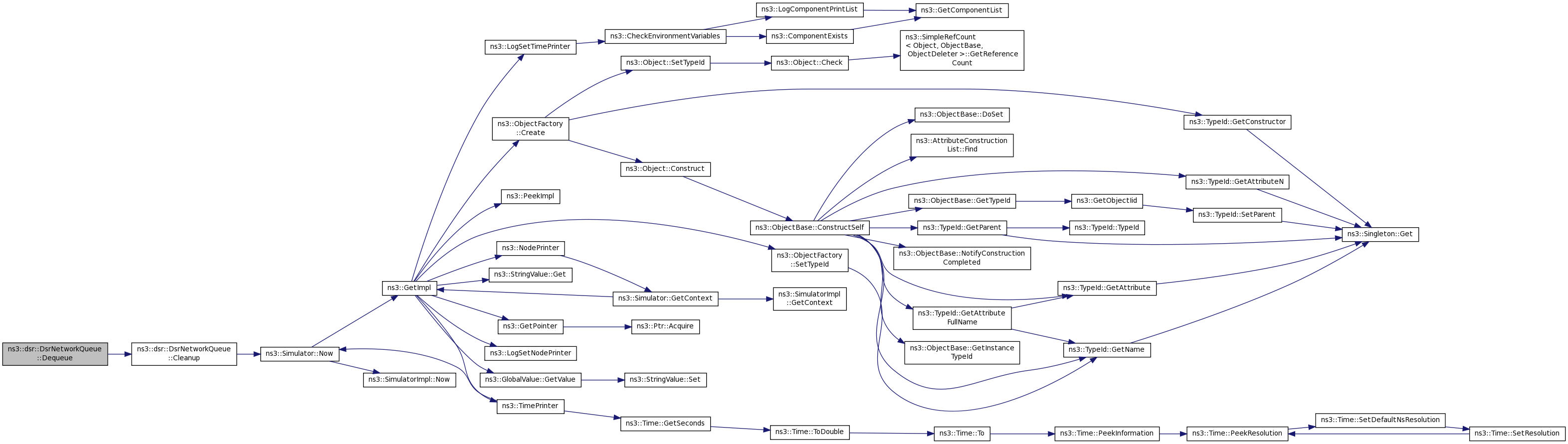

Here is the call graph for this function:

bool ns3::dsr::DsrNetworkQueue::Enqueue ( DsrNetworkQueueEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Parameters

entry packet entry

Returns: true if the given entry was put in the queue, false otherwise

Definition at line 103 of file dsr-network-queue.cc.

References m_dsrNetworkQueue, m_maxSize, m_size, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::dsr::DsrNetworkQueueEntry::SetInsertedTimeStamp().

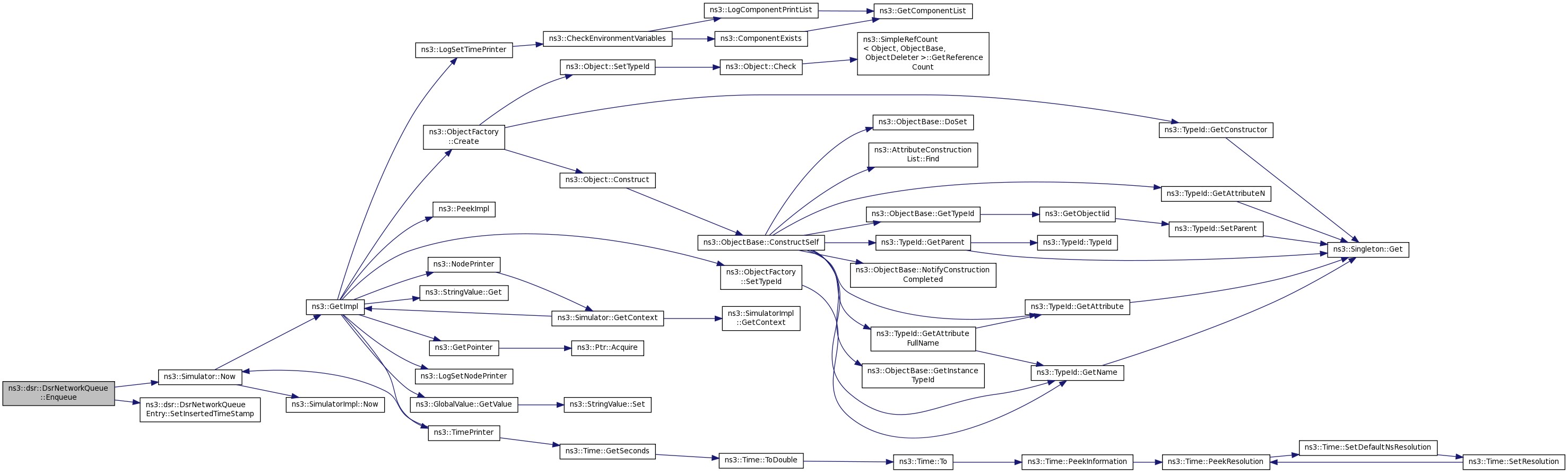

Here is the call graph for this function:

void ns3::dsr::DsrNetworkQueue::Flush ( void )

Clear the queue.

Definition at line 171 of file dsr-network-queue.cc.

References m_dsrNetworkQueue, m_size, and NS_LOG_FUNCTION.

Referenced by ~DsrNetworkQueue().

Here is the caller graph for this function:

Time ns3::dsr::DsrNetworkQueue::GetMaxNetworkDelay ( void ) const

Return the maximum entry lifetime for this queue.

Returns: the maximum entry lifetime for this queue

Definition at line 97 of file dsr-network-queue.cc.

References m_maxDelay.

uint32_t ns3::dsr::DsrNetworkQueue::GetMaxNetworkSize ( void ) const

Return the maximum queue size.

Returns: the maximum queue size

Definition at line 91 of file dsr-network-queue.cc.

References m_maxSize.

std::vector<DsrNetworkQueueEntry>& ns3::dsr::DsrNetworkQueue::GetQueue ( void )

inline

Definition at line 207 of file dsr-network-queue.h.

References m_dsrNetworkQueue.

uint32_t ns3::dsr::DsrNetworkQueue::GetSize ( )

Number of entries.

Returns: the current queue size/length

Definition at line 164 of file dsr-network-queue.cc.

References m_size, and NS_LOG_FUNCTION.

TypeId ns3::dsr::DsrNetworkQueue::GetTypeId ( void )

static

Definition at line 50 of file dsr-network-queue.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::dsr::DsrNetworkQueue::SetMaxNetworkDelay ( Time delay )

Set the maximum entry lifetime in the queue.

Parameters

delay the maximum entry lifetime

Definition at line 85 of file dsr-network-queue.cc.

References m_maxDelay.

void ns3::dsr::DsrNetworkQueue::SetMaxNetworkSize ( uint32_t maxSize )

Set the maximum queue size.

Parameters

maxSize the maximum queue size

Definition at line 79 of file dsr-network-queue.cc.

References m_maxSize.

Member Data Documentation

std::vector<DsrNetworkQueueEntry> ns3::dsr::DsrNetworkQueue::m_dsrNetworkQueue

private

Queue (vector) of entries.

Definition at line 217 of file dsr-network-queue.h.

Referenced by Cleanup(), Dequeue(), Enqueue(), Flush(), and GetQueue().

Time ns3::dsr::DsrNetworkQueue::m_maxDelay

private

Maximum entry lifetime.

Definition at line 220 of file dsr-network-queue.h.

Referenced by Cleanup(), GetMaxNetworkDelay(), and SetMaxNetworkDelay().

uint32_t ns3::dsr::DsrNetworkQueue::m_maxSize

private

Maximum queue size.

Definition at line 219 of file dsr-network-queue.h.

Referenced by Enqueue(), GetMaxNetworkSize(), and SetMaxNetworkSize().

uint32_t ns3::dsr::DsrNetworkQueue::m_size

private

Current queue size.

Definition at line 218 of file dsr-network-queue.h.

Referenced by Cleanup(), Dequeue(), Enqueue(), Flush(), and GetSize().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-network-queue.h
src/dsr/model/dsr-network-queue.cc
