A Device for an Emu Network Link. More...

#include <emu-net-device.h>

Inheritance diagram for ns3::EmuNetDevice:

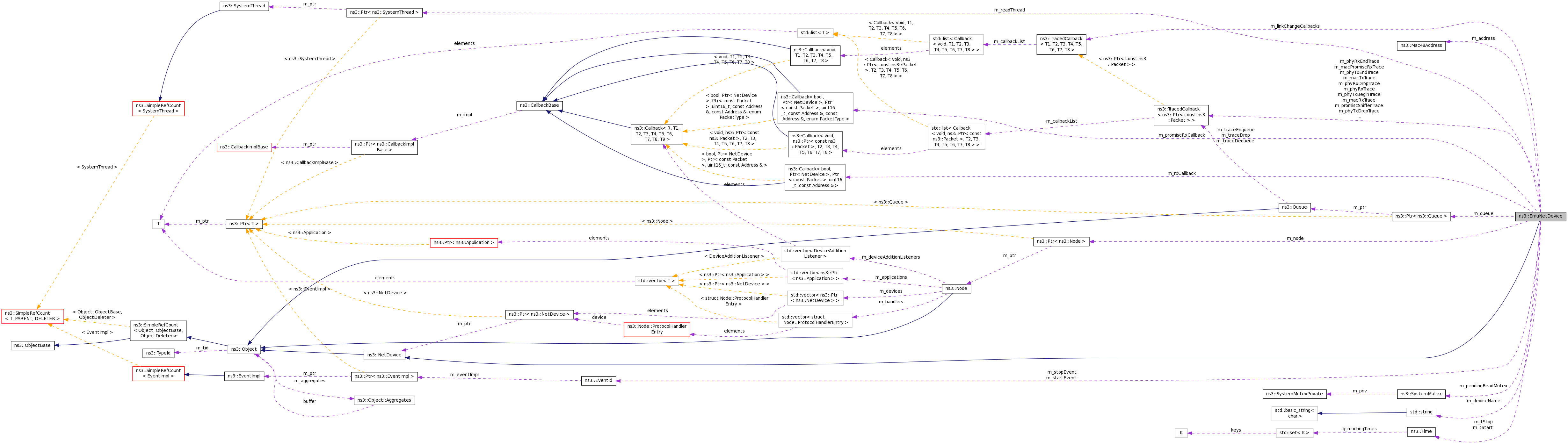

Collaboration diagram for ns3::EmuNetDevice:

Public Types
enum	EncapsulationMode { ILLEGAL, DIX, LLC }
	Enumeration of the types of packets supported in the class. More...

Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	EmuNetDevice ()
	Construct a EmuNetDevice. More...

virtual	~EmuNetDevice ()
	Destroy a EmuNetDevice. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

EmuNetDevice::EncapsulationMode	GetEncapsulationMode (void) const
	Get the encapsulation mode of this device. More...

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

Ptr< Queue >	GetQueue (void) const
	Get a copy of the attached Queue. More...

virtual bool	IsBridge (void) const
	Is this a bridge? More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Is this a point to point link? More...

virtual bool	NeedsArp (void) const

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetDataRate (DataRate bps)
	Set the Data Rate used for transmission of packets. More...

void	SetEncapsulationMode (EmuNetDevice::EncapsulationMode mode)
	Set the encapsulation mode of this device. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetQueue (Ptr< Queue > queue)
	Attach a queue to the EmuNetDevice. More...

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	Start (Time tStart)
	Set a start time for the device. More...

void	Stop (Time tStop)
	Set a stop time for the device. More...

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	EmuNetDevice (const EmuNetDevice &)

void	AddHeader (Ptr< Packet > p, uint16_t protocolNumber)
	Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent. More...

void	CreateSocket (void)
	Call out to a separate process running as suid root in order to get a raw socket. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

std::string	FindCreator (std::string creatorName)
	Figure out where the raw socket creation process lives on the system. More...

void	ForwardUp (uint8_t *buf, uint32_t len)
	Method to handle received packets. More...

void	NotifyLinkUp (void)

EmuNetDevice &	operator= (const EmuNetDevice &)

bool	ProcessHeader (Ptr< Packet > p, uint16_t &param)
	Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent. More...

void	ReadThread (void)
	Loop to read and process packets. More...

void	StartDevice (void)
	Spin up the device. More...

void	StopDevice (void)
	Tear down the device. More...

bool	TransmitStart (Ptr< Packet > p)
	Start Sending a Packet Down the Wire. More...

Private Attributes
Mac48Address	m_address
	The MAC address which has been assigned to this device. More...

std::string	m_deviceName
	The unix/linux name of the underlying device (e.g., eth0) More...

EncapsulationMode	m_encapMode
	The type of packet that should be created by the AddHeader function and that should be processed by the ProcessHeader function. More...

uint32_t	m_ifIndex
	The ns-3 interface index (in the sense of net device index) that has been assigned to this network device. More...

bool	m_isBroadcast
	Flag indicating whether or not the underlying net device supports broadcast. More...

bool	m_isMulticast
	Flag indicating whether or not the underlying net device supports multicast. More...

TracedCallback	m_linkChangeCallbacks
	Callbacks to fire if the link changes state (up or down). More...

bool	m_linkUp
	Flag indicating whether or not the link is up. More...

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired for packets successfully received by the device but which are dropped before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint32_t	m_maxPendingReads

Ptr< Node >	m_node
	The Node to which this device is attached. More...

uint32_t	m_nodeId

uint8_t *	m_packetBuffer
	A 64K buffer to hold packet data while it is being sent. More...

uint32_t	m_pendingReadCount

SystemMutex	m_pendingReadMutex

TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	The trace source fired when a packet begins the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyRxTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet as it tries to transmit it. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

NetDevice::PromiscReceiveCallback	m_promiscRxCallback
	The callback used to notify higher layers that a packet has been received in promiscuous mode. More...

TracedCallback< Ptr< const Packet > >	m_promiscSnifferTrace
	A trace source that emulates a promiscuous mode protocol sniffer connected to the device. More...

Ptr< Queue >	m_queue
	The Queue which this EmuNetDevice uses as a packet source. More...

Ptr< SystemThread >	m_readThread

NetDevice::ReceiveCallback	m_rxCallback
	The callback used to notify higher layers that a packet has been received. More...

int32_t	m_sll_ifindex
	The Unix interface index that we got from the system and which corresponds to the interface (e.g., "eth1") we are using to talk to the network. More...

TracedCallback< Ptr< const Packet > >	m_snifferTrace
	A trace source that emulates a non-promiscuous protocol sniffer connected to the device. More...

int32_t	m_sock

EventId	m_startEvent

EventId	m_stopEvent

Time	m_tStart
	Time to start spinning up the device. More...

Time	m_tStop
	Time to start tearing down the device. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

A Device for an Emu Network Link.

Config Paths

ns3::EmuNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::EmuNetDevice

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read
Address: The ns-3 MAC address of this (virtual) device.
- Set with class: Mac48AddressValue
- Underlying type: Mac48Address
- Initial value: ff:ff:ff:ff:ff:ff
- Flags: construct write read
DeviceName: The name of the underlying real device (e.g. eth1).
- Set with class: StringValue
- Underlying type: std::string
- Initial value: eth1
- Flags: construct write read
Start: The simulation time at which to spin up the device thread.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
Stop: The simulation time at which to tear down the device thread.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
EncapsulationMode: The link-layer encapsulation type to use.
- Set with class: ns3::EnumValue
- Underlying type: Dix|Llc
- Initial value: Dix
- Flags: construct write
TxQueue: A queue to use as the transmit queue in the device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Queue >
- Initial value: 0
- Flags: construct write read
RxQueueSize: Maximum size of the read queue. This value limits number of packets that have been read from the network into a memory buffer but have not yet been processed by the simulator.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read

TraceSources

MacTx: Trace source indicating a packet has arrived for transmission by this device
MacTxDrop: Trace source indicating a packet has been dropped by the device before transmission
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
Sniffer: Trace source simulating a non-promiscuous packet sniffer attached to the device
PromiscSniffer: Trace source simulating a promiscuous packet sniffer attached to the device

Definition at line 52 of file emu-net-device.h.

Member Enumeration Documentation

enum ns3::EmuNetDevice::EncapsulationMode

Enumeration of the types of packets supported in the class.

Enumerator
ILLEGAL	Encapsulation mode not set.
DIX	DIX II / Ethernet II packet.
LLC	802.2 LLC/SNAP Packet

Definition at line 60 of file emu-net-device.h.

Constructor & Destructor Documentation

ns3::EmuNetDevice::EmuNetDevice ( )

Construct a EmuNetDevice.

This is the constructor for the EmuNetDevice. It takes as a

Definition at line 189 of file emu-net-device.cc.

References m_packetBuffer, m_tStart, NS_LOG_FUNCTION, and Start().

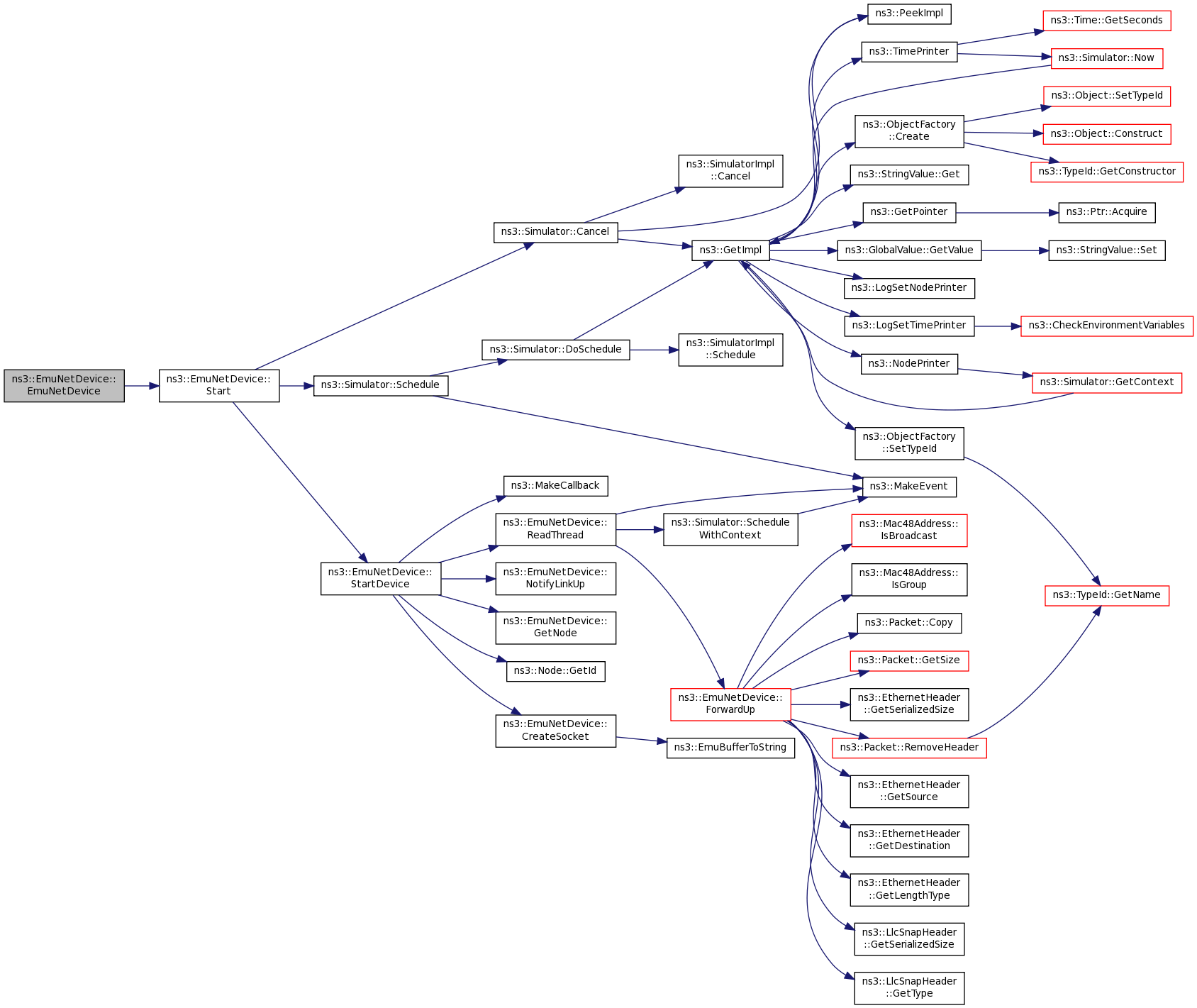

Here is the call graph for this function:

ns3::EmuNetDevice::~EmuNetDevice ( )

virtual

Destroy a EmuNetDevice.

This is the destructor for the EmuNetDevice.

Definition at line 206 of file emu-net-device.cc.

References m_packetBuffer.

ns3::EmuNetDevice::EmuNetDevice ( const EmuNetDevice & )

private

Member Function Documentation

void ns3::EmuNetDevice::AddHeader	(	Ptr< Packet >	p,
		uint16_t	protocolNumber
	)

private

Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent.

Parameters

p	packet
protocolNumber	protocol number

void ns3::EmuNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 1016 of file emu-net-device.cc.

References ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::ConnectWithoutContext(), and m_linkChangeCallbacks.

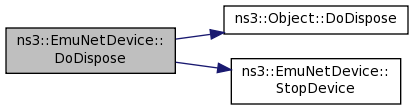

Here is the call graph for this function:

void ns3::EmuNetDevice::CreateSocket ( void )

private

Call out to a separate process running as suid root in order to get a raw socket.

We do this to avoid having the entire simulation running as root. If this method returns, we'll have a raw socket waiting for us in m_sock.

Definition at line 381 of file emu-net-device.cc.

References EMU_MAGIC, ns3::EmuBufferToString(), m_sock, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION_NOARGS, and NS_LOG_INFO.

Referenced by StartDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EmuNetDevice::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 213 of file emu-net-device.cc.

References ns3::Object::DoDispose(), m_node, m_readThread, NS_LOG_FUNCTION_NOARGS, and StopDevice().

Here is the call graph for this function:

std::string ns3::EmuNetDevice::FindCreator ( std::string creatorName )

private

Figure out where the raw socket creation process lives on the system.

void ns3::EmuNetDevice::ForwardUp	(	uint8_t *	buf,
		uint32_t	len
	)

private

Method to handle received packets.

Synchronized with simulator via ScheduleNow from ReadThread.

Definition at line 614 of file emu-net-device.cc.

References ns3::Packet::Copy(), DIX, ns3::EthernetHeader::GetDestination(), ns3::EthernetHeader::GetLengthType(), ns3::LlcSnapHeader::GetSerializedSize(), ns3::EthernetHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::EthernetHeader::GetSource(), ns3::LlcSnapHeader::GetType(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), LLC, m_address, m_encapMode, m_macPromiscRxTrace, m_macRxTrace, m_pendingReadCount, m_pendingReadMutex, m_phyRxDropTrace, m_promiscRxCallback, m_promiscSnifferTrace, m_rxCallback, m_snifferTrace, ns3::NetDevice::NS3_PACKET_BROADCAST, ns3::NetDevice::NS3_PACKET_HOST, ns3::NetDevice::NS3_PACKET_MULTICAST, ns3::NetDevice::NS3_PACKET_OTHERHOST, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Packet::RemoveHeader().

Referenced by ReadThread().

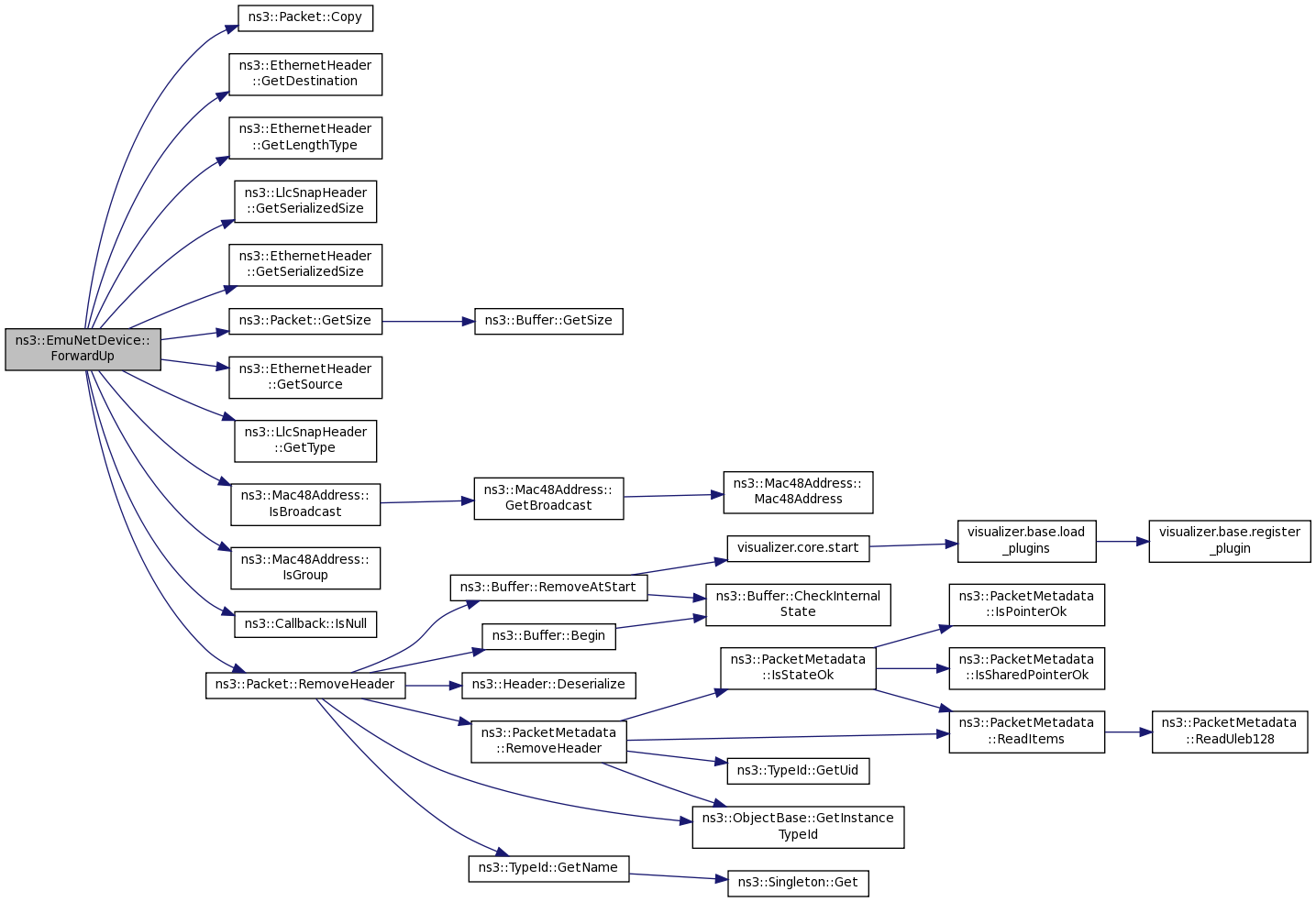

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::EmuNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 975 of file emu-net-device.cc.

References m_address, and NS_LOG_FUNCTION_NOARGS.

Address ns3::EmuNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 1028 of file emu-net-device.cc.

Ptr< Channel > ns3::EmuNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 961 of file emu-net-device.cc.

References NS_FATAL_ERROR.

EmuNetDevice::EncapsulationMode ns3::EmuNetDevice::GetEncapsulationMode ( void ) const

Get the encapsulation mode of this device.

Returns: The encapsulation mode of this device.

Definition at line 233 of file emu-net-device.cc.

References m_encapMode, and NS_LOG_FUNCTION_NOARGS.

uint32_t ns3::EmuNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 955 of file emu-net-device.cc.

References m_ifIndex.

uint16_t ns3::EmuNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 989 of file emu-net-device.cc.

References m_deviceName, and NS_FATAL_ERROR.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::EmuNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex).

This method performs the multicast address creation function appropriate to an EUI-48-based CSMA device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact address format.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

See also: Ipv4Address; Mac48Address; Address

Implements ns3::NetDevice.

Definition at line 1040 of file emu-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

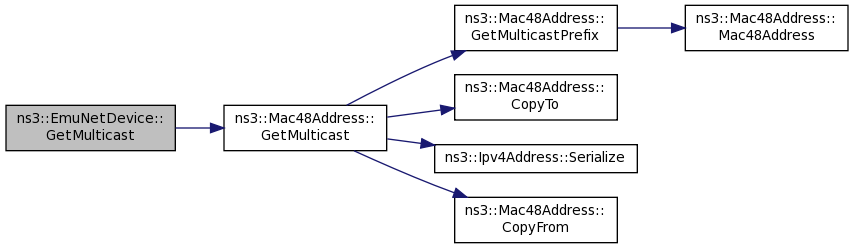

Here is the call graph for this function:

Address ns3::EmuNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 1057 of file emu-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

Ptr< Node > ns3::EmuNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 1094 of file emu-net-device.cc.

References m_node.

Referenced by StartDevice().

Here is the caller graph for this function:

Ptr< Queue > ns3::EmuNetDevice::GetQueue ( void ) const

Get a copy of the attached Queue.

Returns: Ptr to the queue.

Definition at line 935 of file emu-net-device.cc.

References m_queue, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::EmuHelper::EnableAsciiInternal().

Here is the caller graph for this function:

TypeId ns3::EmuNetDevice::GetTypeId ( void )

static

Definition at line 64 of file emu-net-device.cc.

References DIX, GetMtu(), LLC, m_address, m_deviceName, m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_maxPendingReads, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, m_promiscSnifferTrace, m_queue, m_snifferTrace, m_tStart, m_tStop, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), SetEncapsulationMode(), and ns3::TypeId::SetParent().

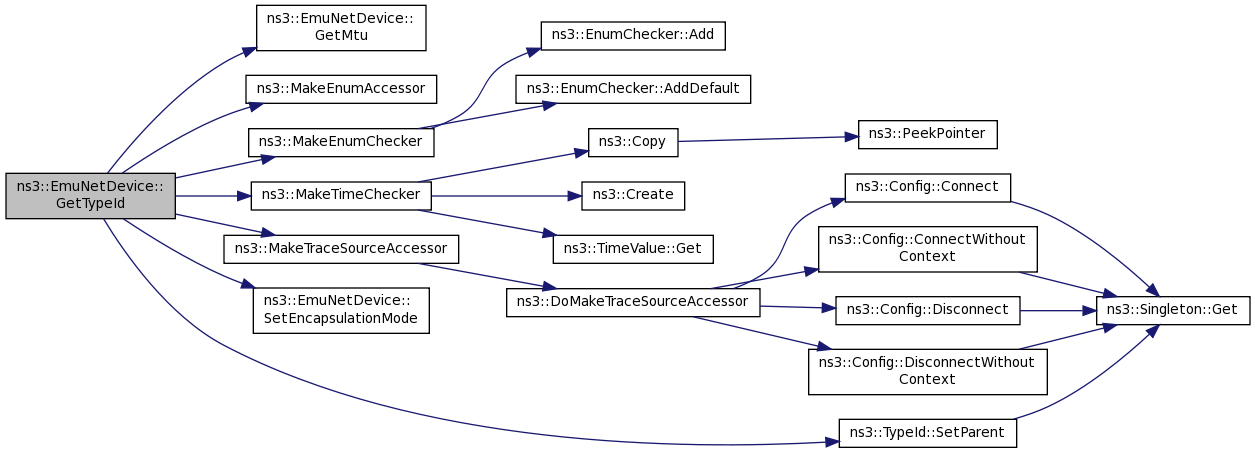

Here is the call graph for this function:

bool ns3::EmuNetDevice::IsBridge ( void ) const

virtual

Is this a bridge?

Returns: false.

Implements ns3::NetDevice.

Definition at line 1074 of file emu-net-device.cc.

bool ns3::EmuNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 1022 of file emu-net-device.cc.

References m_isBroadcast.

bool ns3::EmuNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 1010 of file emu-net-device.cc.

References m_linkUp.

Referenced by SendFrom().

Here is the caller graph for this function:

bool ns3::EmuNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 1034 of file emu-net-device.cc.

References m_isMulticast.

bool ns3::EmuNetDevice::IsPointToPoint ( void ) const

virtual

Is this a point to point link?

Returns: false.

Implements ns3::NetDevice.

Definition at line 1068 of file emu-net-device.cc.

bool ns3::EmuNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 1106 of file emu-net-device.cc.

void ns3::EmuNetDevice::NotifyLinkUp ( void )

private

Definition at line 942 of file emu-net-device.cc.

References m_linkChangeCallbacks, and m_linkUp.

Referenced by StartDevice().

Here is the caller graph for this function:

EmuNetDevice& ns3::EmuNetDevice::operator= ( const EmuNetDevice & )

private

bool ns3::EmuNetDevice::ProcessHeader	(	Ptr< Packet >	p,
		uint16_t &	param
	)

private

Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent.

Parameters

p	Packet whose headers need to be processed
param	An integer parameter that can be set by the function

Returns: Returns true if the packet should be forwarded up the protocol stack.

void ns3::EmuNetDevice::ReadThread ( void )

private

Loop to read and process packets.

Definition at line 744 of file emu-net-device.cc.

References ForwardUp(), m_maxPendingReads, m_nodeId, m_pendingReadCount, m_pendingReadMutex, m_sock, ns3::MakeEvent(), NS_FATAL_ERROR, NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, NS_LOG_LOGIC, and ns3::Simulator::ScheduleWithContext().

Referenced by StartDevice().

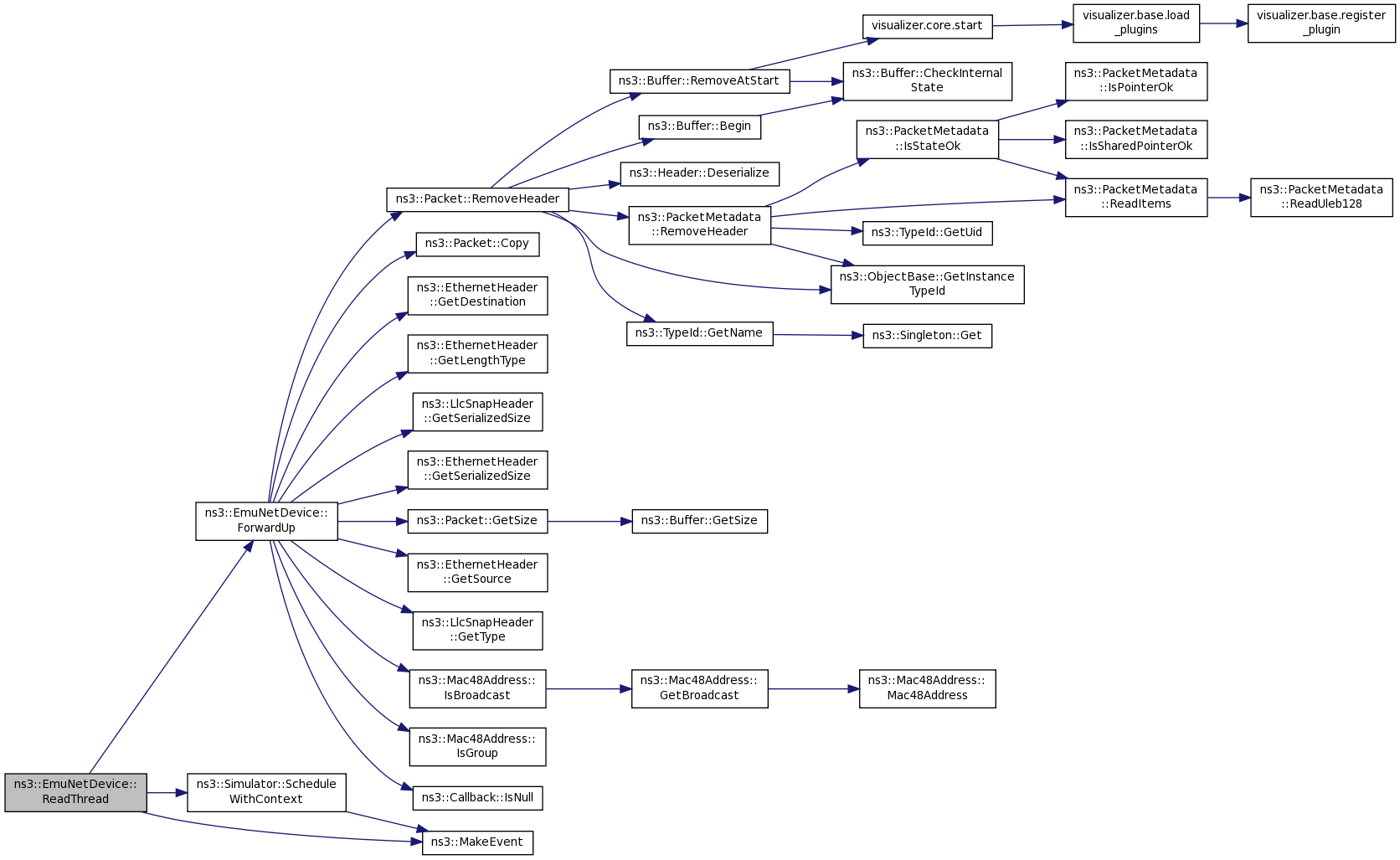

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::EmuNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 814 of file emu-net-device.cc.

References m_address, NS_LOG_FUNCTION, and SendFrom().

Here is the call graph for this function:

bool ns3::EmuNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 840 of file emu-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), ns3::Packet::CopyData(), DIX, ns3::Packet::GetSize(), ns3::Packet::GetUid(), IsLinkUp(), LLC, m_encapMode, m_macTxDropTrace, m_macTxTrace, m_packetBuffer, m_promiscSnifferTrace, m_queue, m_sll_ifindex, m_snifferTrace, m_sock, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EthernetHeader::SetDestination(), ns3::EthernetHeader::SetLengthType(), ns3::EthernetHeader::SetSource(), and ns3::LlcSnapHeader::SetType().

Referenced by Send().

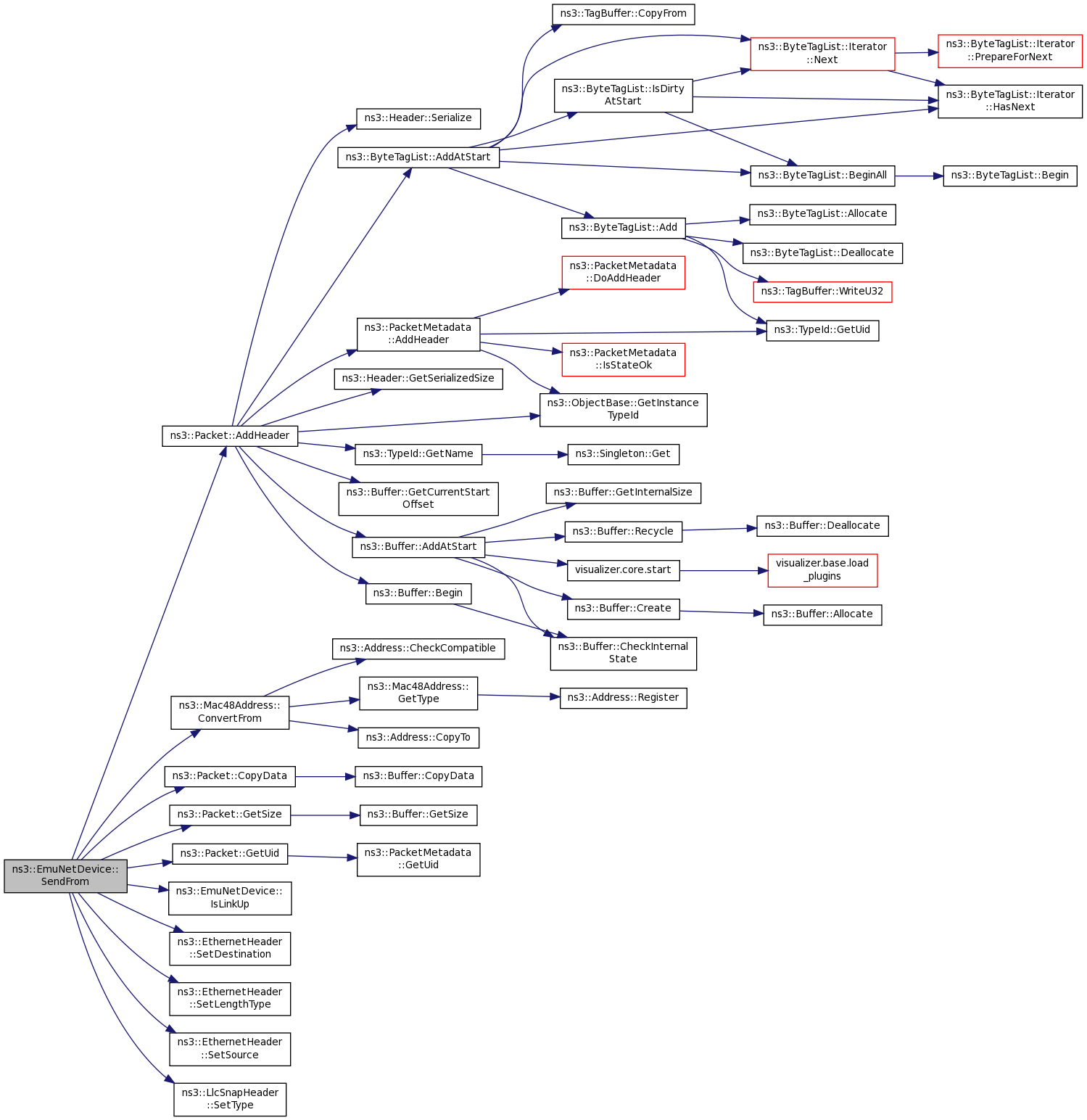

Here is the call graph for this function:

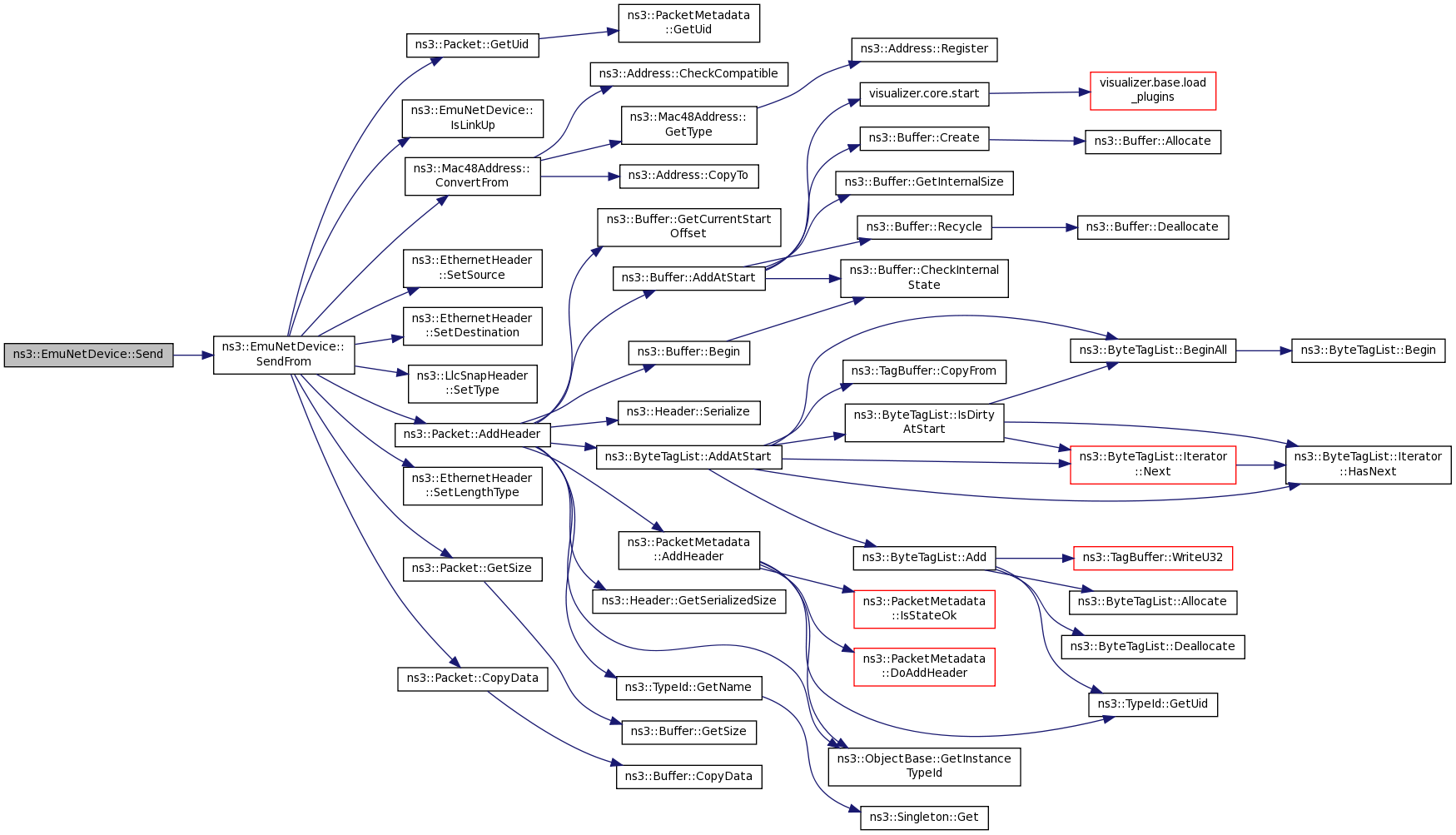

Here is the caller graph for this function:

void ns3::EmuNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 968 of file emu-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

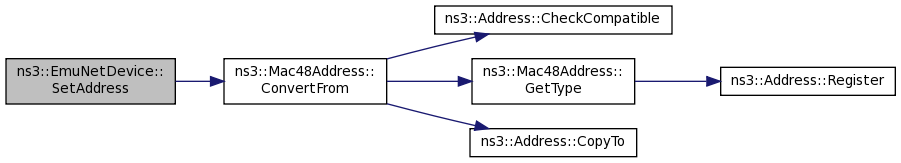

Here is the call graph for this function:

void ns3::EmuNetDevice::SetDataRate ( DataRate bps )

Set the Data Rate used for transmission of packets.

See also: Attach ()

Parameters

bps	the data rate at which this object operates

Definition at line 921 of file emu-net-device.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

void ns3::EmuNetDevice::SetEncapsulationMode ( EmuNetDevice::EncapsulationMode mode )

Set the encapsulation mode of this device.

Parameters

mode	The encapsulation mode of this device.

See also: SetFrameSize

Definition at line 225 of file emu-net-device.cc.

References m_encapMode, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::EmuNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 949 of file emu-net-device.cc.

References m_ifIndex.

bool ns3::EmuNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 982 of file emu-net-device.cc.

References NS_FATAL_ERROR.

void ns3::EmuNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 1100 of file emu-net-device.cc.

References m_node.

void ns3::EmuNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 1080 of file emu-net-device.cc.

References m_promiscRxCallback.

void ns3::EmuNetDevice::SetQueue ( Ptr< Queue > queue )

Attach a queue to the EmuNetDevice.

The EmuNetDevice "owns" a queue that implements a queueing method such as DropTail or RED.

See also: Queue; DropTailQueue

Parameters

queue Ptr to the new queue.

Definition at line 928 of file emu-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by main().

Here is the caller graph for this function:

void ns3::EmuNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

Definition at line 1112 of file emu-net-device.cc.

References m_rxCallback.

void ns3::EmuNetDevice::Start ( Time tStart )

Set a start time for the device.

Parameters

tStart the start time

Definition at line 240 of file emu-net-device.cc.

References ns3::Simulator::Cancel(), m_startEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and StartDevice().

Referenced by EmuNetDevice().

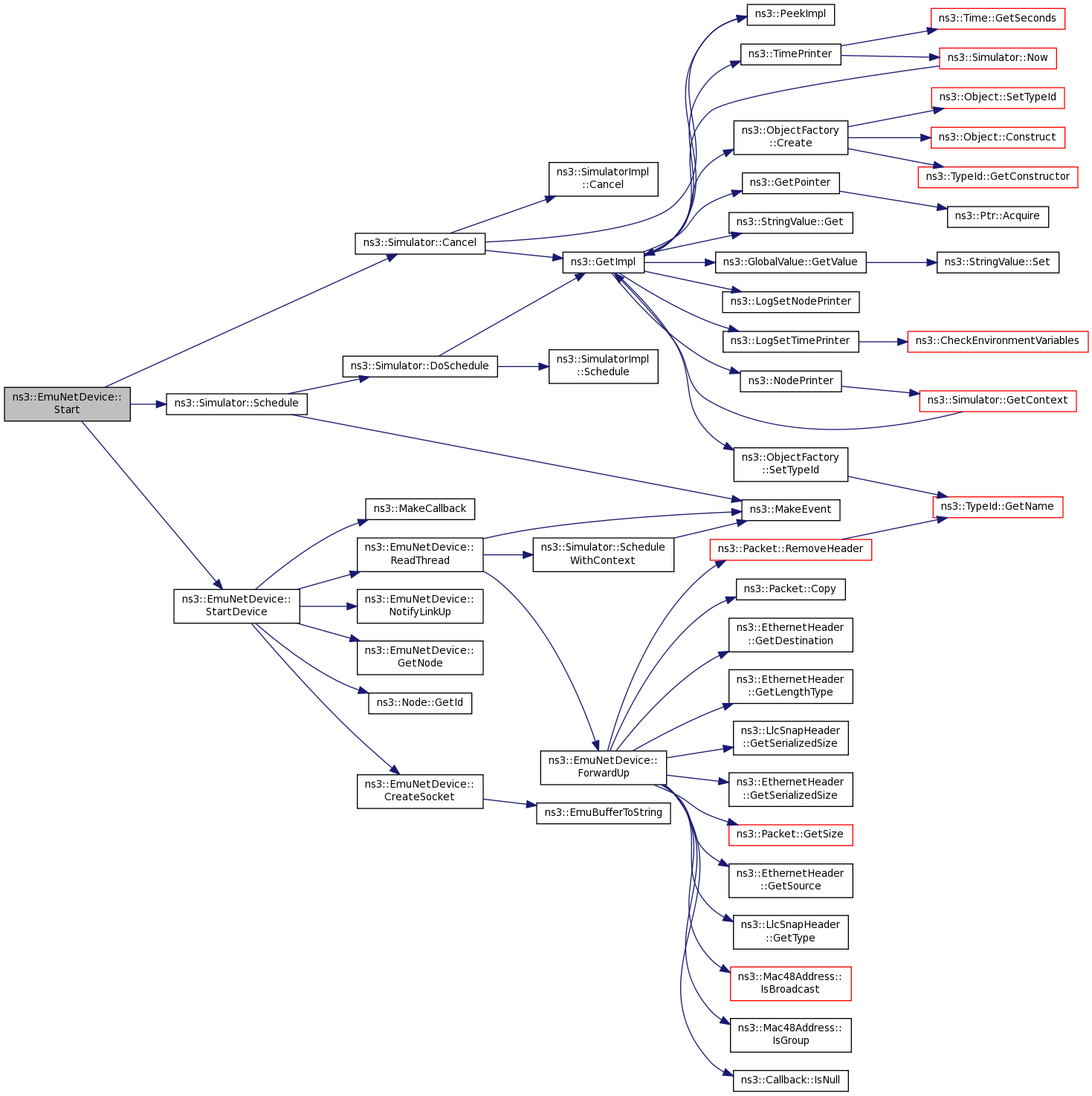

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EmuNetDevice::StartDevice ( void )

private

Spin up the device.

Definition at line 263 of file emu-net-device.cc.

References CreateSocket(), ns3::Node::GetId(), GetNode(), m_deviceName, m_isBroadcast, m_isMulticast, m_nodeId, m_readThread, m_sll_ifindex, m_sock, ns3::MakeCallback(), NotifyLinkUp(), NS_FATAL_ERROR, NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, and ReadThread().

Referenced by Start().

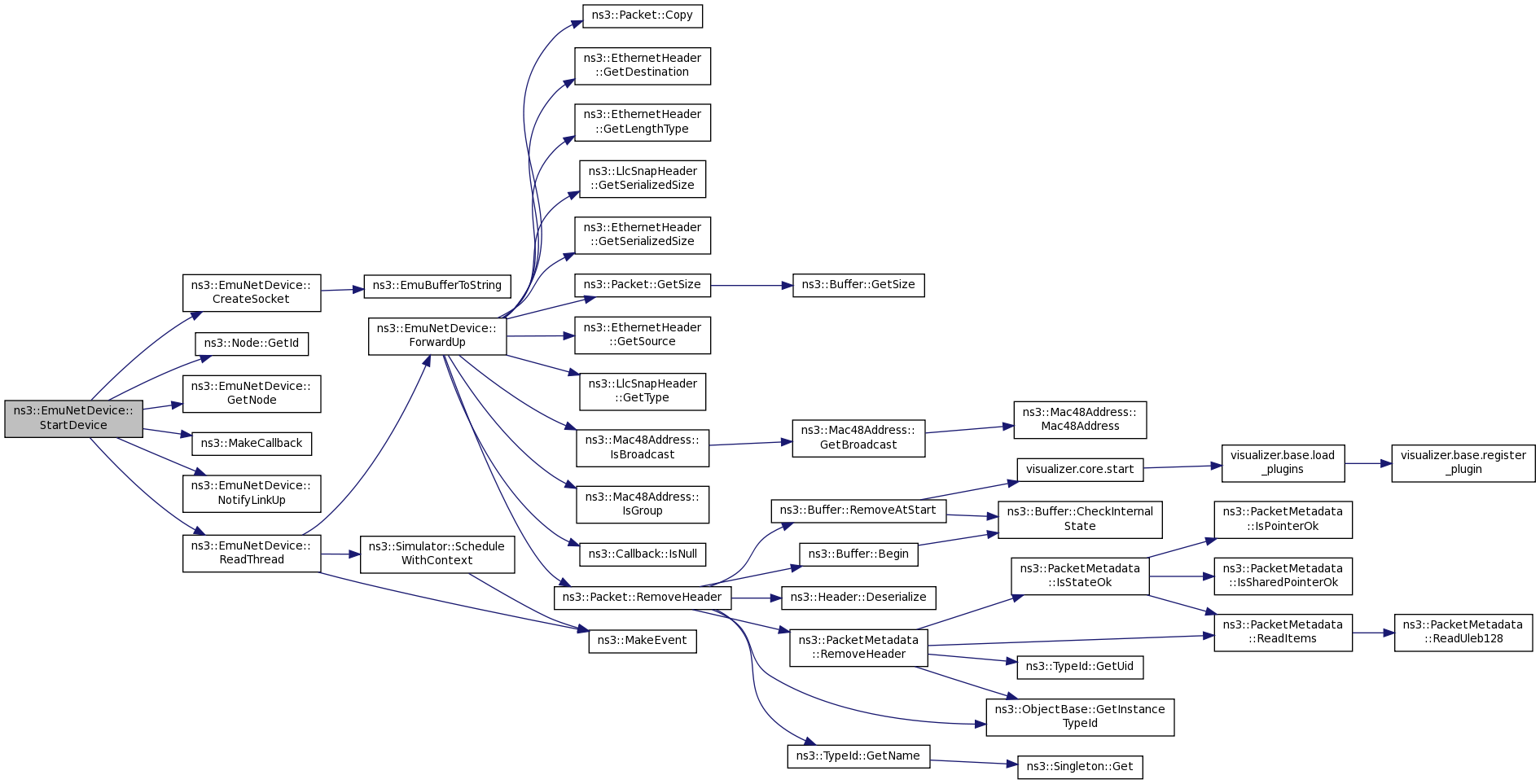

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EmuNetDevice::Stop ( Time tStop )

Set a stop time for the device.

Parameters

tStop the stop time

Definition at line 252 of file emu-net-device.cc.

References ns3::Simulator::Cancel(), m_startEvent, m_stopEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and StopDevice().

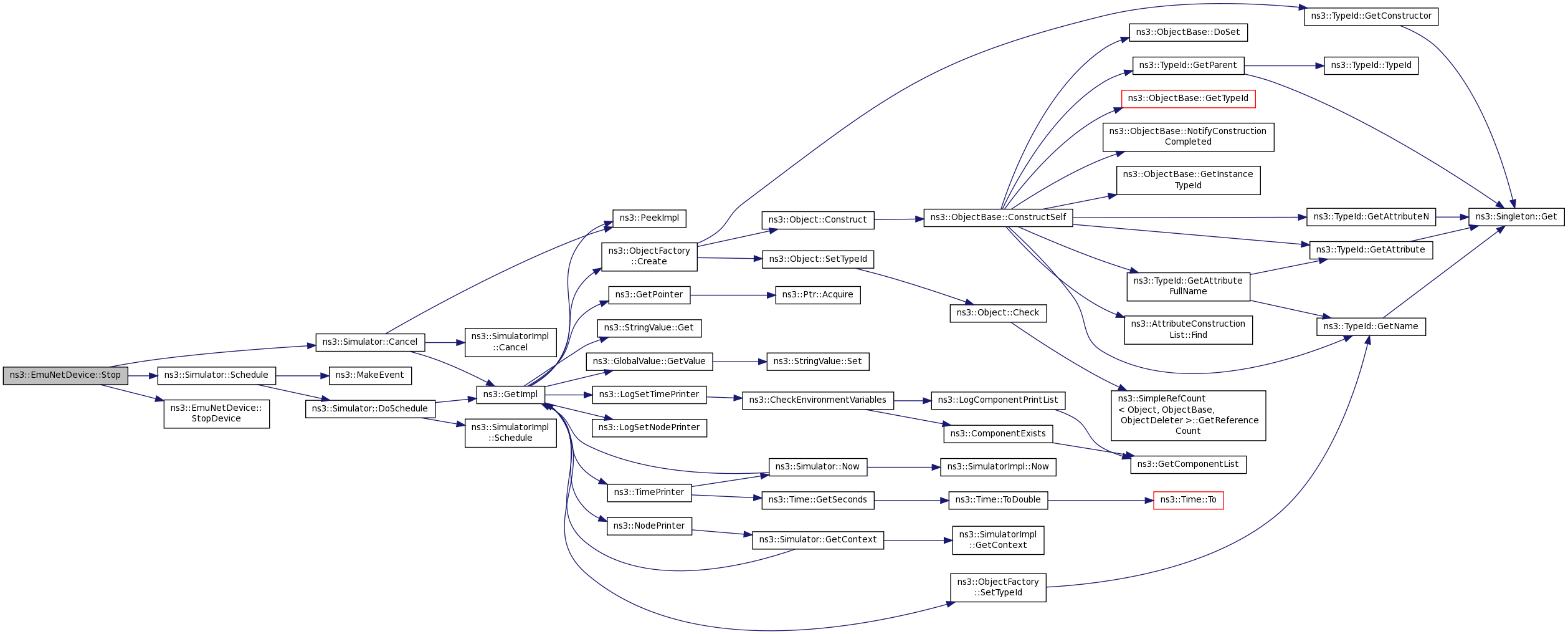

Here is the call graph for this function:

void ns3::EmuNetDevice::StopDevice ( void )

private

Tear down the device.

Definition at line 599 of file emu-net-device.cc.

References m_readThread, m_sock, NS_ASSERT_MSG, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by DoDispose(), and Stop().

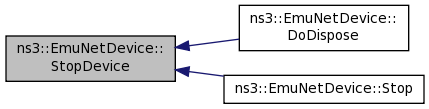

Here is the caller graph for this function:

bool ns3::EmuNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 1086 of file emu-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::EmuNetDevice::TransmitStart ( Ptr< Packet > p )

private

Start Sending a Packet Down the Wire.

Parameters

p	packet to send

Returns: true if success, false on failure

Member Data Documentation

Mac48Address ns3::EmuNetDevice::m_address

private

The MAC address which has been assigned to this device.

Definition at line 457 of file emu-net-device.h.

Referenced by ForwardUp(), GetAddress(), GetTypeId(), Send(), and SetAddress().

std::string ns3::EmuNetDevice::m_deviceName

private

The unix/linux name of the underlying device (e.g., eth0)

Definition at line 513 of file emu-net-device.h.

Referenced by GetMtu(), GetTypeId(), and StartDevice().

EncapsulationMode ns3::EmuNetDevice::m_encapMode

private

The type of packet that should be created by the AddHeader function and that should be processed by the ProcessHeader function.

Definition at line 485 of file emu-net-device.h.

Referenced by ForwardUp(), GetEncapsulationMode(), SendFrom(), and SetEncapsulationMode().

uint32_t ns3::EmuNetDevice::m_ifIndex

private

The ns-3 interface index (in the sense of net device index) that has been assigned to this network device.

Definition at line 472 of file emu-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

bool ns3::EmuNetDevice::m_isBroadcast

private

Flag indicating whether or not the underlying net device supports broadcast.

Definition at line 497 of file emu-net-device.h.

Referenced by IsBroadcast(), and StartDevice().

bool ns3::EmuNetDevice::m_isMulticast

private

Flag indicating whether or not the underlying net device supports multicast.

Definition at line 503 of file emu-net-device.h.

Referenced by IsMulticast(), and StartDevice().

TracedCallback ns3::EmuNetDevice::m_linkChangeCallbacks

private

Callbacks to fire if the link changes state (up or down).

Definition at line 508 of file emu-net-device.h.

Referenced by AddLinkChangeCallback(), and NotifyLinkUp().

bool ns3::EmuNetDevice::m_linkUp

private

Flag indicating whether or not the link is up.

In this case, whether or not the device is connected to a channel.

Definition at line 491 of file emu-net-device.h.

Referenced by IsLinkUp(), and NotifyLinkUp().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 317 of file emu-net-device.h.

Referenced by ForwardUp(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_macRxDropTrace

private

The trace source fired for packets successfully received by the device but which are dropped before being forwarded up to higher layers (at the L2/L3 transition).

See also: class CallBackTraceSource

Definition at line 335 of file emu-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non-promiscuous trace.

See also: class CallBackTraceSource

Definition at line 326 of file emu-net-device.h.

Referenced by ForwardUp(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 308 of file emu-net-device.h.

Referenced by GetTypeId(), and SendFrom().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 300 of file emu-net-device.h.

Referenced by GetTypeId(), and SendFrom().

uint32_t ns3::EmuNetDevice::m_maxPendingReads

private

Definition at line 527 of file emu-net-device.h.

Referenced by GetTypeId(), and ReadThread().

Ptr<Node> ns3::EmuNetDevice::m_node

private

The Node to which this device is attached.

Definition at line 452 of file emu-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

uint32_t ns3::EmuNetDevice::m_nodeId

private

Definition at line 525 of file emu-net-device.h.

Referenced by ReadThread(), and StartDevice().

uint8_t* ns3::EmuNetDevice::m_packetBuffer

private

A 64K buffer to hold packet data while it is being sent.

Definition at line 518 of file emu-net-device.h.

Referenced by EmuNetDevice(), SendFrom(), and ~EmuNetDevice().

uint32_t ns3::EmuNetDevice::m_pendingReadCount

private

Definition at line 528 of file emu-net-device.h.

Referenced by ForwardUp(), and ReadThread().

SystemMutex ns3::EmuNetDevice::m_pendingReadMutex

private

Definition at line 529 of file emu-net-device.h.

Referenced by ForwardUp(), and ReadThread().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 375 of file emu-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See also: class CallBackTraceSource

Definition at line 390 of file emu-net-device.h.

Referenced by ForwardUp(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyRxEndTrace

private

The trace source fired when a packet begins the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 383 of file emu-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyRxTrace

private

The trace source fired when a packet ends the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 367 of file emu-net-device.h.

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 343 of file emu-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See also: class CallBackTraceSource

Definition at line 359 of file emu-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 351 of file emu-net-device.h.

Referenced by GetTypeId().

NetDevice::PromiscReceiveCallback ns3::EmuNetDevice::m_promiscRxCallback

private

The callback used to notify higher layers that a packet has been received in promiscuous mode.

Definition at line 467 of file emu-net-device.h.

Referenced by ForwardUp(), and SetPromiscReceiveCallback().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_promiscSnifferTrace

private

A trace source that emulates a promiscuous mode protocol sniffer connected to the device.

This trace source fire on packets destined for any host just like your average everyday packet sniffer.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

See also: class CallBackTraceSource

Definition at line 430 of file emu-net-device.h.

Referenced by ForwardUp(), GetTypeId(), and SendFrom().

Ptr<Queue> ns3::EmuNetDevice::m_queue

private

The Queue which this EmuNetDevice uses as a packet source.

Management of this Queue has been delegated to the EmuNetDevice and it has the responsibility for deletion.

See also: class Queue; class DropTailQueue

Definition at line 292 of file emu-net-device.h.

Referenced by GetQueue(), GetTypeId(), SendFrom(), and SetQueue().

Ptr<SystemThread> ns3::EmuNetDevice::m_readThread

private

Definition at line 447 of file emu-net-device.h.

Referenced by DoDispose(), StartDevice(), and StopDevice().

NetDevice::ReceiveCallback ns3::EmuNetDevice::m_rxCallback

private

The callback used to notify higher layers that a packet has been received.

Definition at line 462 of file emu-net-device.h.

Referenced by ForwardUp(), and SetReceiveCallback().

int32_t ns3::EmuNetDevice::m_sll_ifindex

private

The Unix interface index that we got from the system and which corresponds to the interface (e.g., "eth1") we are using to talk to the network.

Valid when m_sock is valid.

Definition at line 478 of file emu-net-device.h.

Referenced by SendFrom(), and StartDevice().

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_snifferTrace

private

A trace source that emulates a non-promiscuous protocol sniffer connected to the device.

Unlike your average everyday sniffer, this trace source will not fire on PACKET_OTHERHOST events.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

See also: class CallBackTraceSource

Definition at line 410 of file emu-net-device.h.

Referenced by ForwardUp(), GetTypeId(), and SendFrom().

int32_t ns3::EmuNetDevice::m_sock

private

Definition at line 445 of file emu-net-device.h.

Referenced by CreateSocket(), ReadThread(), SendFrom(), StartDevice(), and StopDevice().

EventId ns3::EmuNetDevice::m_startEvent

private

Definition at line 442 of file emu-net-device.h.

Referenced by Start(), and Stop().

EventId ns3::EmuNetDevice::m_stopEvent

private

Definition at line 443 of file emu-net-device.h.

Referenced by Stop().

Time ns3::EmuNetDevice::m_tStart

private

Time to start spinning up the device.

Definition at line 435 of file emu-net-device.h.

Referenced by EmuNetDevice(), and GetTypeId().

Time ns3::EmuNetDevice::m_tStop

private

Time to start tearing down the device.

Definition at line 440 of file emu-net-device.h.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

src/emu/model/emu-net-device.h
src/emu/model/emu-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
