an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT. More...

#include <v4ping.h>

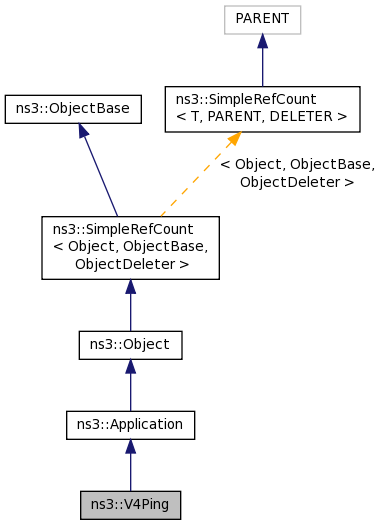

Inheritance diagram for ns3::V4Ping:

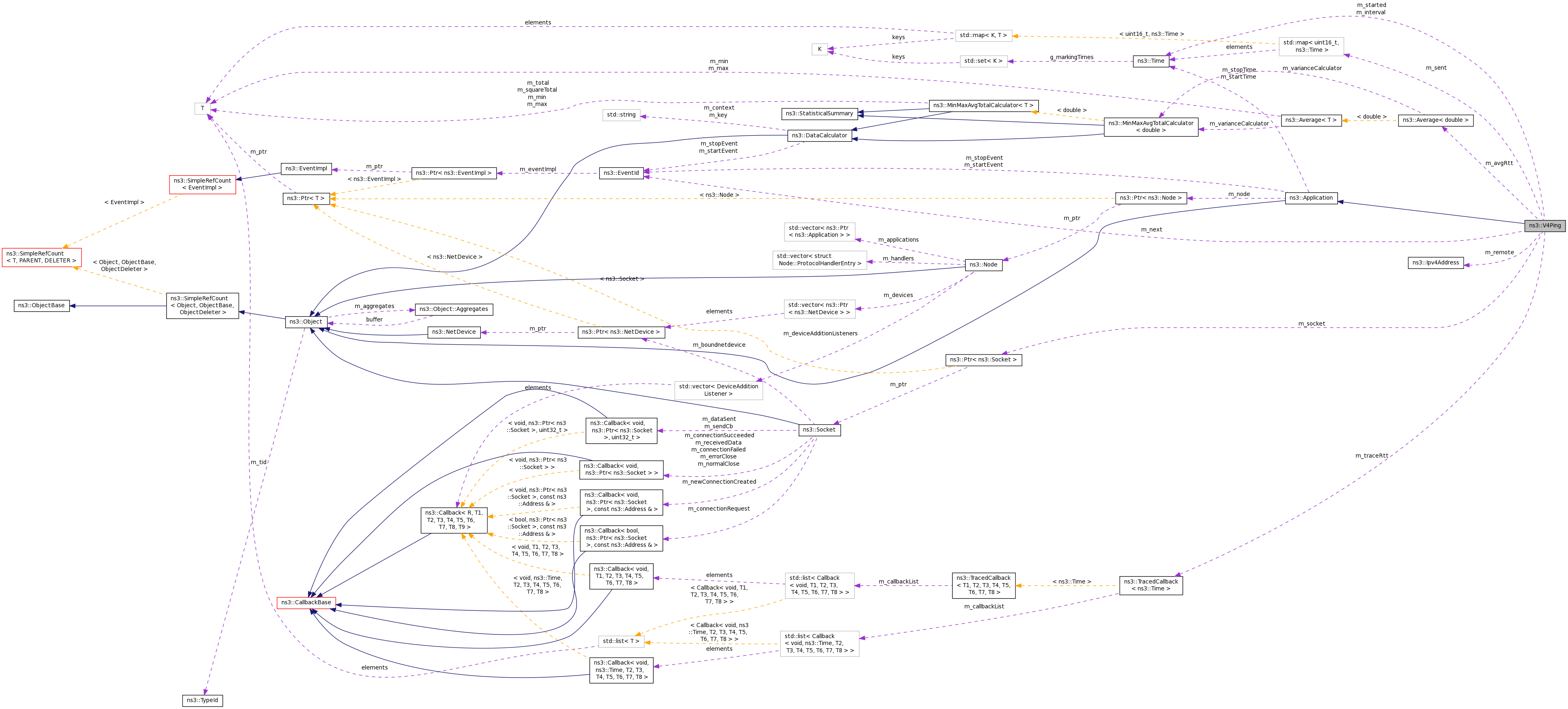

Collaboration diagram for ns3::V4Ping:

Public Member Functions
	V4Ping ()
	create a pinger applications More...

virtual	~V4Ping ()

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

uint32_t	GetApplicationId (void) const
	Return the application ID in the node. More...

void	Read32 (const uint8_t *buffer, uint32_t &data)
	Writes data from a little-endian formatted buffer to data. More...

void	Receive (Ptr< Socket > socket)
	Receive an ICMP Echo. More...

void	Send ()
	Send one Ping (ICMP ECHO) to the destination. More...

virtual void	StartApplication (void)
	Application specific startup code. More...

virtual void	StopApplication (void)
	Application specific shutdown code. More...

void	Write32 (uint8_t *buffer, const uint32_t data)
	Writes data to buffer in little-endian format. More...

Private Attributes
Average< double >	m_avgRtt
	Average rtt is ms. More...

Time	m_interval
	Wait interval seconds between sending each packet. More...

EventId	m_next
	Next packet will be sent. More...

uint32_t	m_recv
	received packets counter More...

Ipv4Address	m_remote
	Remote address. More...

std::map< uint16_t, Time >	m_sent
	All sent but not answered packets. Map icmp seqno -> when sent. More...

uint16_t	m_seq
	ICMP ECHO sequence number. More...

uint32_t	m_size
	Specifies the number of data bytes to be sent. More...

Ptr< Socket >	m_socket
	The socket we send packets from. More...

Time	m_started
	Start time to report total ping time. More...

TracedCallback< Time >	m_traceRtt
	TracedCallback for RTT measured by ICMP ECHOs. More...

bool	m_verbose
	produce ping-style output if true More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node

EventId	m_startEvent
	The simulation time that the appliacation will end. More...

Time	m_startTime
	The node that this application is installed on. More...

EventId	m_stopEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_stopTime
	The simulation time that the appliacation will start. More...

Detailed Description

an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT.

Note: The RTT calculated is reported through a trace source.

Config Paths

ns3::V4Ping is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::V4Ping

Attributes

Remote: The address of the machine we want to ping.
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read
Verbose: Produce usual output.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
Interval: Wait interval seconds between sending each packet.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
Size: The number of data bytes to be sent, real packet will be 8 (ICMP) + 20 (IP) bytes longer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 16:4294967295
- Initial value: 56
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

TraceSources

Rtt: The rtt calculated by the ping.

Definition at line 43 of file v4ping.h.

Constructor & Destructor Documentation

ns3::V4Ping::V4Ping ( )

create a pinger applications

Definition at line 67 of file v4ping.cc.

References NS_LOG_FUNCTION.

ns3::V4Ping::~V4Ping ( )

virtual

Definition at line 77 of file v4ping.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::V4Ping::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 83 of file v4ping.cc.

References ns3::Application::DoDispose(), m_socket, and NS_LOG_FUNCTION.

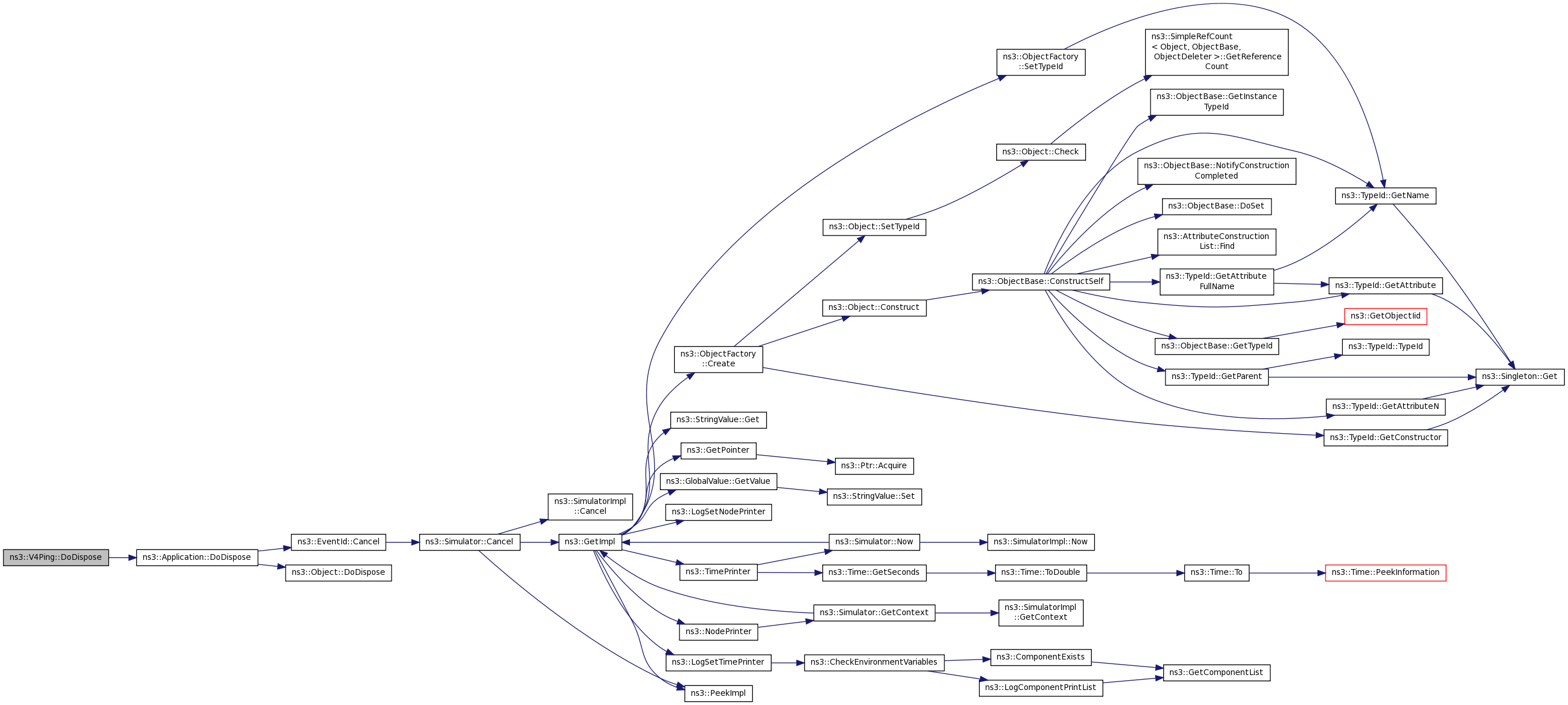

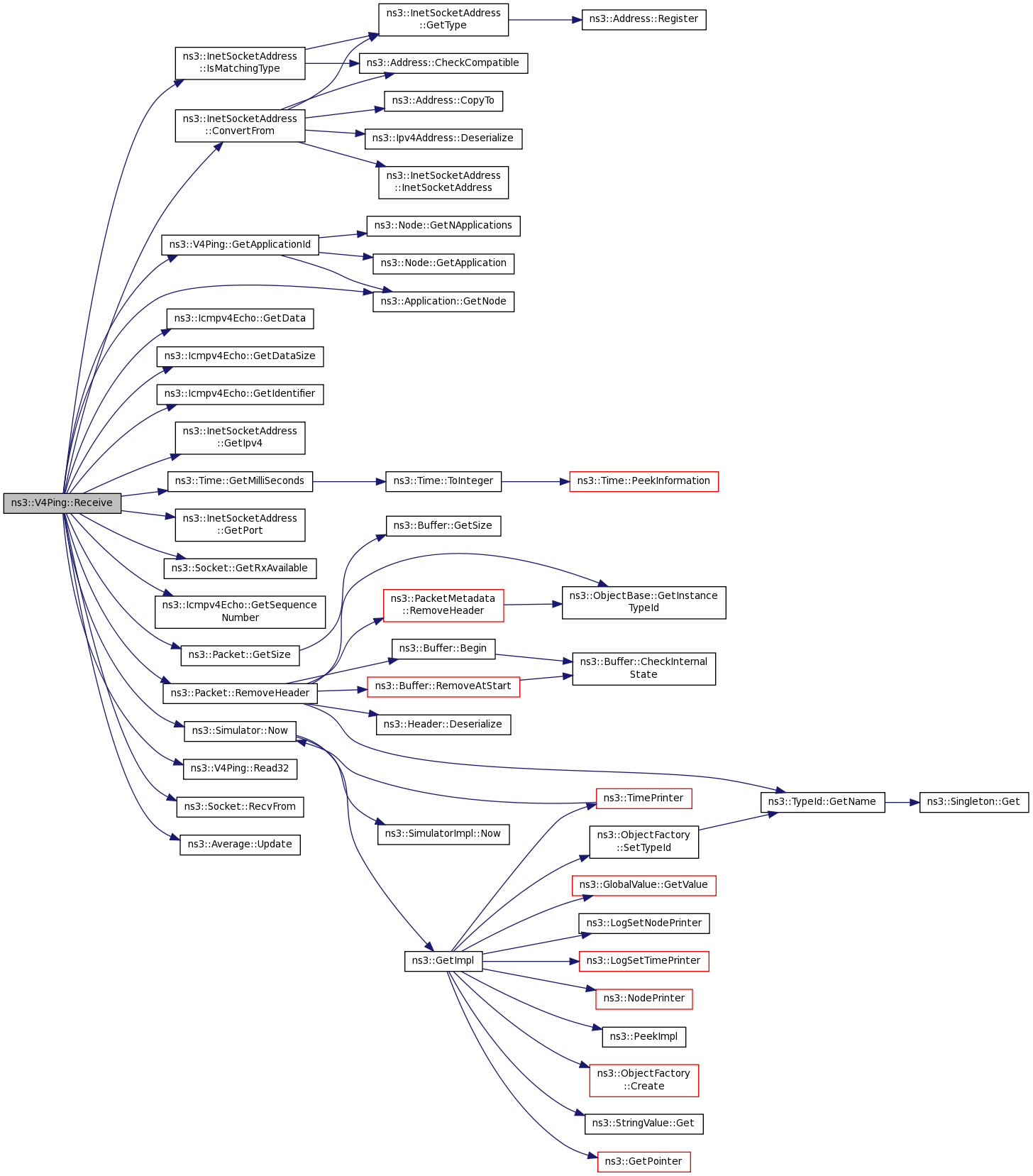

Here is the call graph for this function:

uint32_t ns3::V4Ping::GetApplicationId ( void ) const

private

Return the application ID in the node.

Returns: the application id

Definition at line 91 of file v4ping.cc.

References ns3::Node::GetApplication(), ns3::Node::GetNApplications(), ns3::Application::GetNode(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by Receive(), and Send().

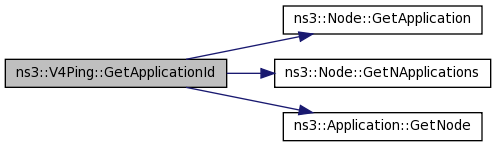

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::V4Ping::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 37 of file v4ping.cc.

References m_interval, m_remote, m_size, m_traceRtt, m_verbose, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

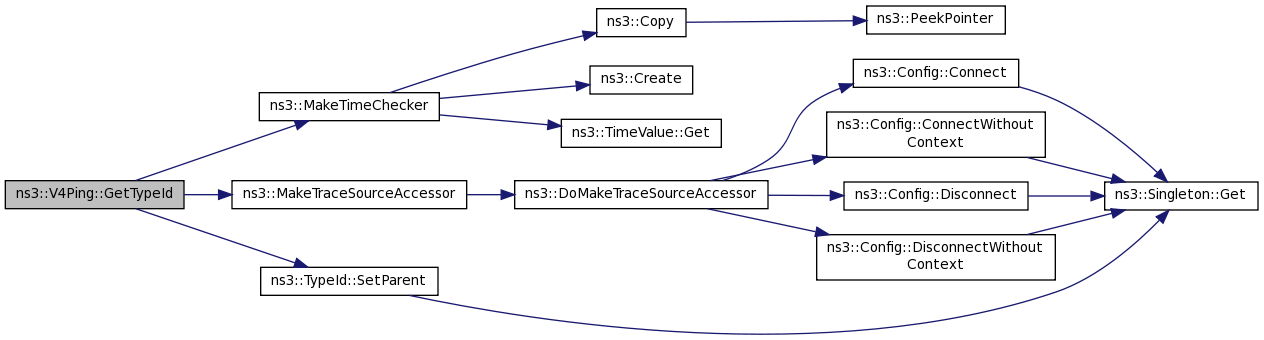

Here is the call graph for this function:

void ns3::V4Ping::Read32	(	const uint8_t *	buffer,
		uint32_t &	data
	)

private

Writes data from a little-endian formatted buffer to data.

Parameters

buffer	the buffer to read from
data	the read data

Definition at line 183 of file v4ping.cc.

References NS_LOG_FUNCTION.

Referenced by Receive().

Here is the caller graph for this function:

void ns3::V4Ping::Receive ( Ptr< Socket > socket )

private

Receive an ICMP Echo.

Parameters

socket the receiving socket

This function is called by lower layers through a callback.

Definition at line 107 of file v4ping.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Icmpv4Header::ECHO_REPLY, GetApplicationId(), ns3::Icmpv4Echo::GetData(), ns3::Icmpv4Echo::GetDataSize(), ns3::Icmpv4Echo::GetIdentifier(), ns3::InetSocketAddress::GetIpv4(), ns3::Time::GetMilliSeconds(), ns3::Application::GetNode(), ns3::InetSocketAddress::GetPort(), ns3::Socket::GetRxAvailable(), ns3::Icmpv4Echo::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::InetSocketAddress::IsMatchingType(), m_avgRtt, m_recv, m_sent, m_size, m_socket, m_traceRtt, m_verbose, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, Read32(), ns3::Socket::RecvFrom(), ns3::Packet::RemoveHeader(), and ns3::Average< T >::Update().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::V4Ping::Send ( void )

private

Send one Ping (ICMP ECHO) to the destination.

Definition at line 190 of file v4ping.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), data, ns3::Icmpv4Header::ECHO, ns3::Icmpv4Header::EnableChecksum(), GetApplicationId(), ns3::Node::GetId(), ns3::Application::GetNode(), m_interval, m_next, m_sent, m_seq, m_size, m_socket, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Simulator::Schedule(), ns3::Socket::Send(), ns3::Icmpv4Header::SetCode(), ns3::Icmpv4Echo::SetSequenceNumber(), ns3::Icmpv4Header::SetType(), and Write32().

Referenced by StartApplication().

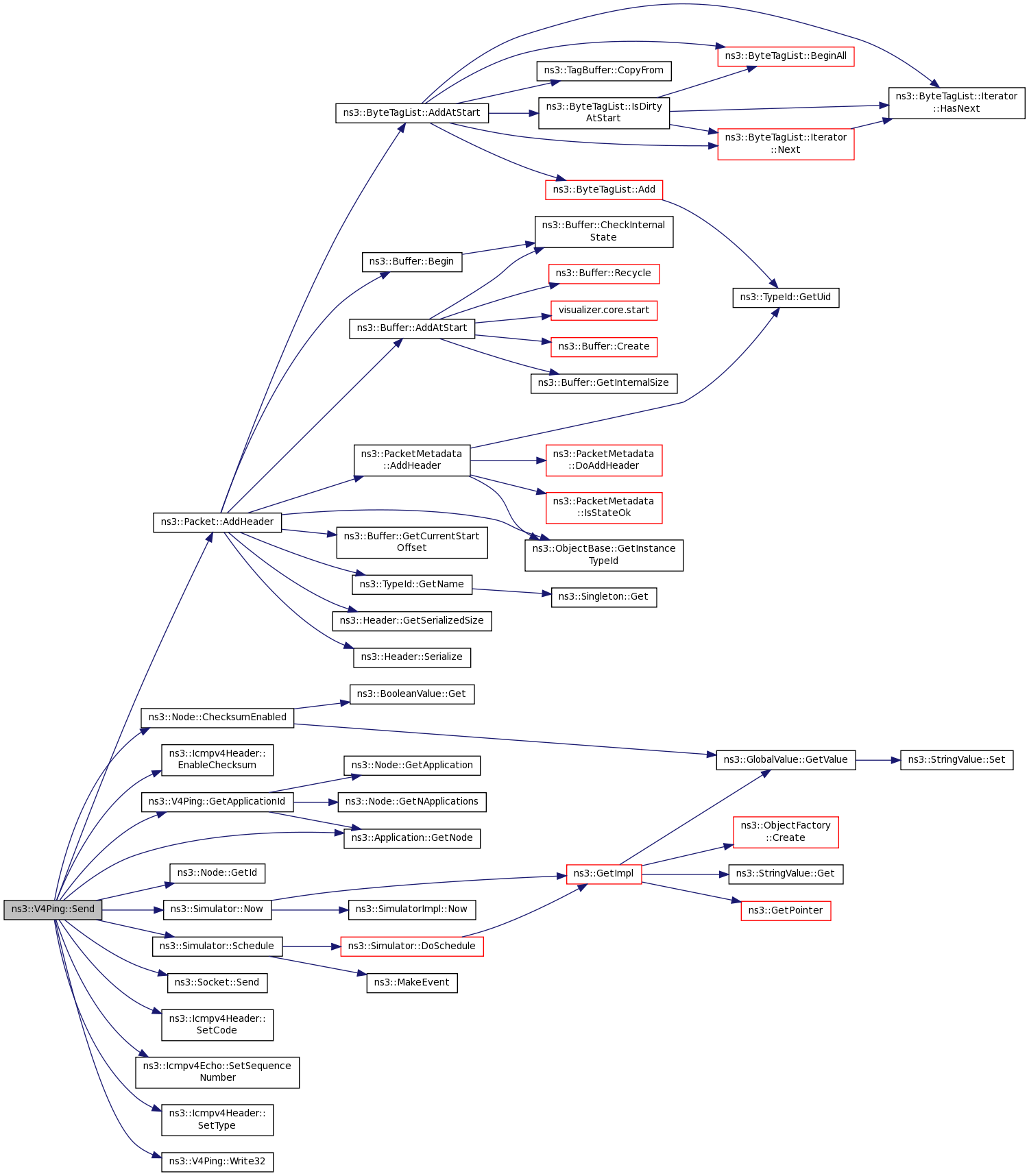

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::V4Ping::StartApplication ( void )

privatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 235 of file v4ping.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::Application::GetNode(), ns3::TypeId::LookupByName(), m_remote, m_socket, m_started, m_verbose, ns3::MakeCallback(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, Receive(), Send(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

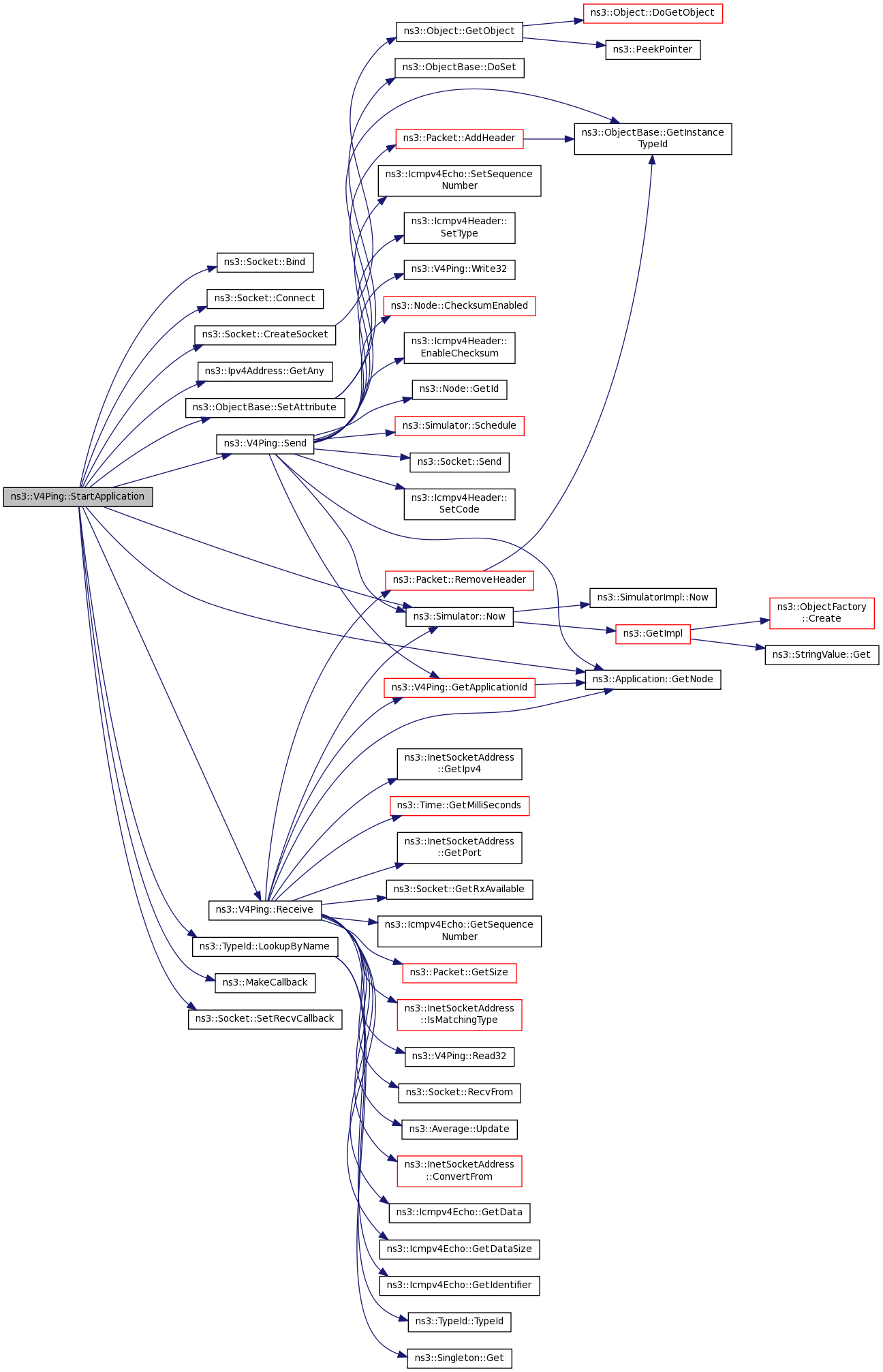

Here is the call graph for this function:

void ns3::V4Ping::StopApplication ( void )

privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 260 of file v4ping.cc.

References ns3::Average< T >::Avg(), ns3::EventId::Cancel(), ns3::Socket::Close(), ns3::Average< T >::Count(), m_avgRtt, m_next, m_recv, m_remote, m_seq, m_socket, m_started, m_verbose, ns3::Average< T >::Max(), ns3::Average< T >::Min(), ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::Average< T >::Stddev().

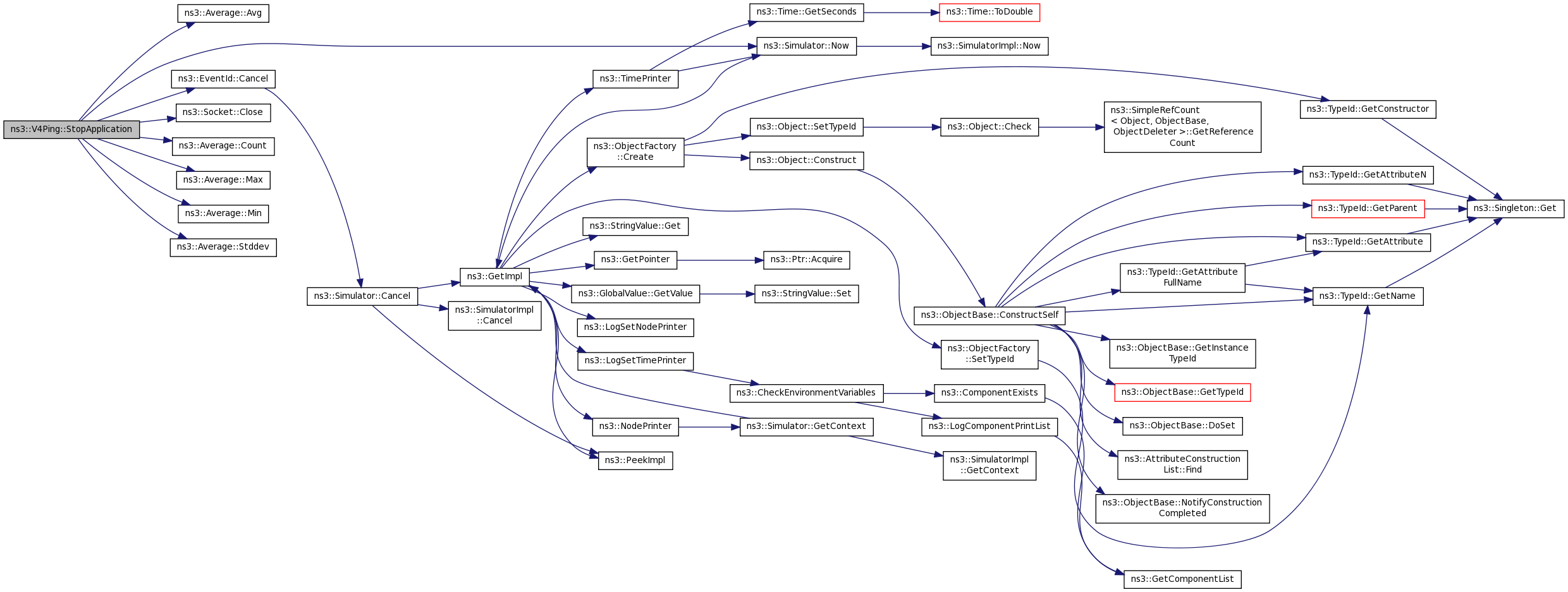

Here is the call graph for this function:

void ns3::V4Ping::Write32	(	uint8_t *	buffer,
		const uint32_t	data
	)

private

Writes data to buffer in little-endian format.

Least significant byte of data is at lowest buffer address

Parameters

buffer	the buffer to write to
data	the data to write

Definition at line 172 of file v4ping.cc.

References NS_LOG_FUNCTION.

Referenced by Send().

Here is the caller graph for this function:

Member Data Documentation

Average<double> ns3::V4Ping::m_avgRtt

private

Average rtt is ms.

Definition at line 119 of file v4ping.h.

Referenced by Receive(), and StopApplication().

Time ns3::V4Ping::m_interval

private

Wait interval seconds between sending each packet.

Definition at line 100 of file v4ping.h.

Referenced by GetTypeId(), and Send().

EventId ns3::V4Ping::m_next

private

Next packet will be sent.

Definition at line 121 of file v4ping.h.

Referenced by Send(), and StopApplication().

uint32_t ns3::V4Ping::m_recv

private

received packets counter

Definition at line 115 of file v4ping.h.

Referenced by Receive(), and StopApplication().

Ipv4Address ns3::V4Ping::m_remote

private

Remote address.

Definition at line 98 of file v4ping.h.

Referenced by GetTypeId(), StartApplication(), and StopApplication().

std::map<uint16_t, Time> ns3::V4Ping::m_sent

private

All sent but not answered packets. Map icmp seqno -> when sent.

Definition at line 123 of file v4ping.h.

Referenced by Receive(), and Send().

uint16_t ns3::V4Ping::m_seq

private

ICMP ECHO sequence number.

Definition at line 109 of file v4ping.h.

Referenced by Send(), and StopApplication().

uint32_t ns3::V4Ping::m_size

private

Specifies the number of data bytes to be sent.

The default is 56, which translates into 64 ICMP data bytes when combined with the 8 bytes of ICMP header data.

Definition at line 105 of file v4ping.h.

Referenced by GetTypeId(), Receive(), and Send().

Ptr<Socket> ns3::V4Ping::m_socket

private

The socket we send packets from.

Definition at line 107 of file v4ping.h.

Referenced by DoDispose(), Receive(), Send(), StartApplication(), and StopApplication().

Time ns3::V4Ping::m_started

private

Start time to report total ping time.

Definition at line 117 of file v4ping.h.

Referenced by StartApplication(), and StopApplication().

TracedCallback<Time> ns3::V4Ping::m_traceRtt

private

TracedCallback for RTT measured by ICMP ECHOs.

Definition at line 111 of file v4ping.h.

Referenced by GetTypeId(), and Receive().

bool ns3::V4Ping::m_verbose

private

produce ping-style output if true

Definition at line 113 of file v4ping.h.

Referenced by GetTypeId(), Receive(), StartApplication(), and StopApplication().

The documentation for this class was generated from the following files:

src/applications/model/v4ping.h
src/applications/model/v4ping.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Application

TraceSources

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
