Doxygen introspection did not find any typical Config paths. More...

#include <simulator-impl.h>

Inheritance diagram for ns3::SimulatorImpl:

Collaboration diagram for ns3::SimulatorImpl:

Public Member Functions
virtual void	Cancel (const EventId &ev)=0
	Set the cancel bit on this event: the event's associated function will not be invoked when it expires. More...

virtual void	Destroy ()=0
	This method is typically invoked at the end of a simulation to avoid false-positive reports by a leak checker. More...

virtual uint32_t	GetContext (void) const =0

virtual Time	GetDelayLeft (const EventId &id) const =0

virtual Time	GetMaximumSimulationTime (void) const =0

virtual uint32_t	GetSystemId () const =0

virtual bool	IsExpired (const EventId &ev) const =0
	This method has O(1) complexity. More...

virtual bool	IsFinished (void) const =0
	If there are no more events lefts to be scheduled, or if simulation time has already reached the "stop time" (see Simulator::Stop()), return true. More...

virtual Time	Now (void) const =0
	Return the "current simulation time". More...

virtual void	Remove (const EventId &ev)=0
	Remove an event from the event list. More...

virtual void	Run (void)=0
	Run the simulation until one of: More...

virtual EventId	Schedule (Time const &time, EventImpl *event)=0

virtual EventId	ScheduleDestroy (EventImpl *event)=0

virtual EventId	ScheduleNow (EventImpl *event)=0

virtual void	ScheduleWithContext (uint32_t context, Time const &time, EventImpl *event)=0

virtual void	SetScheduler (ObjectFactory schedulerFactory)=0

virtual void	Stop (void)=0
	If an event invokes this method, it will be the last event scheduled by the Simulator::Run method before returning to the caller. More...

virtual void	Stop (Time const &time)=0
	Force the Simulator::Run method to return to the caller when the expiration time of the next event to be processed is greater than or equal to the stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 35 of file simulator-impl.h.

Member Function Documentation

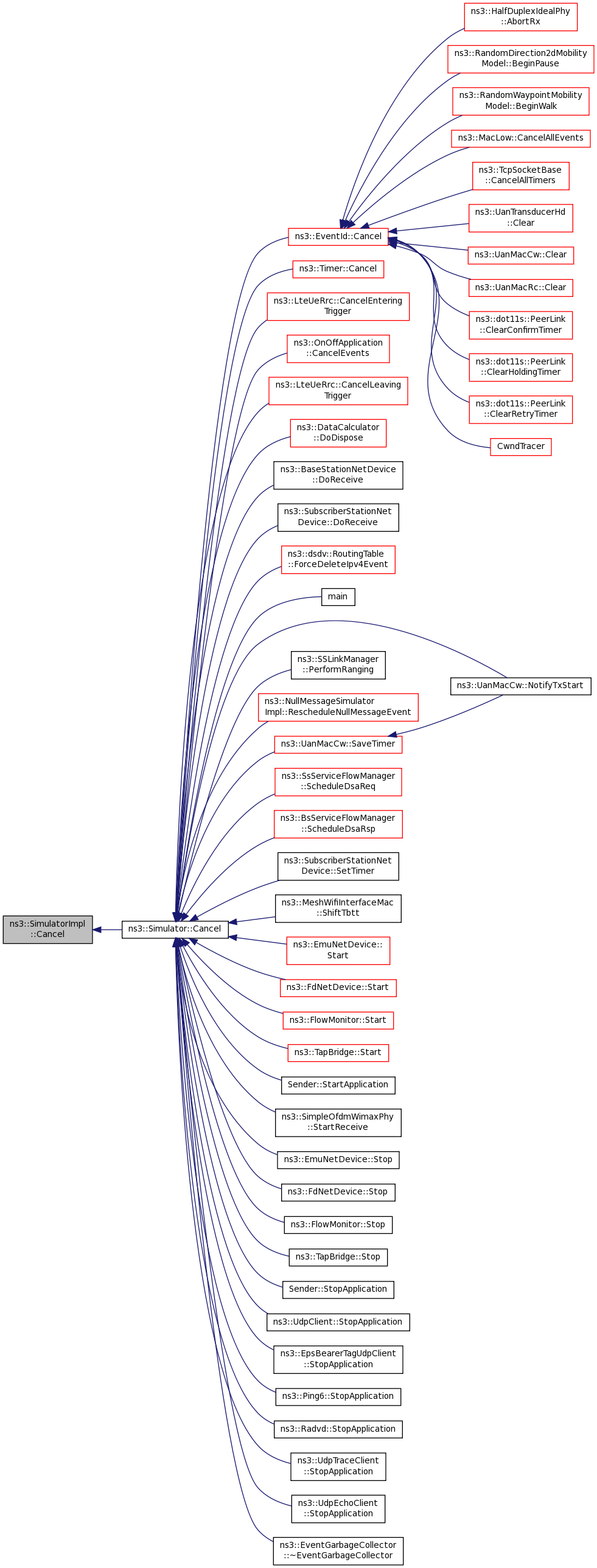

virtual void ns3::SimulatorImpl::Cancel ( const EventId & ev )

pure virtual

Set the cancel bit on this event: the event's associated function will not be invoked when it expires.

This method has the same visible effect as the ns3::Simulator::Remove method but its algorithmic complexity is much lower: it has O(1) complexity. This method has the exact same semantics as ns3::EventId::Cancel. Note that it is not possible to cancel events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

ev	the event to cancel

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::Cancel().

Here is the caller graph for this function:

virtual void ns3::SimulatorImpl::Destroy ( )

pure virtual

This method is typically invoked at the end of a simulation to avoid false-positive reports by a leak checker.

After this method has been invoked, it is actually possible to restart a new simulation with a set of calls to Simulator::Run, Simulator::Schedule and Simulator::ScheduleWithContext.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

virtual uint32_t ns3::SimulatorImpl::GetContext ( void ) const

pure virtual

Returns: the current simulation context

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::GetContext().

Here is the caller graph for this function:

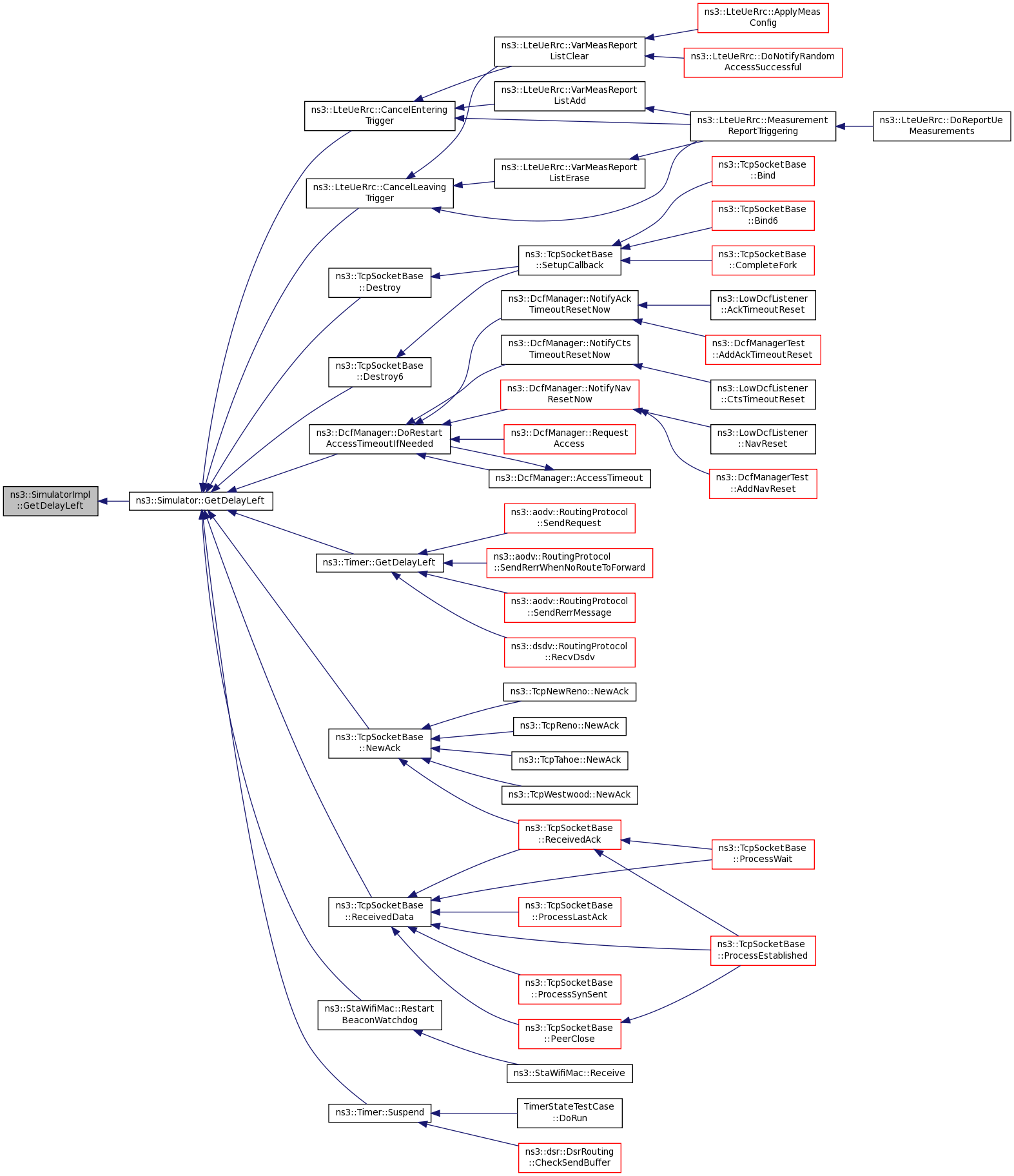

virtual Time ns3::SimulatorImpl::GetDelayLeft ( const EventId & id ) const

pure virtual

Parameters

id	the event id to analyse

Returns: the delay left until the input event id expires. if the event is not running, this method returns zero.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::GetDelayLeft().

Here is the caller graph for this function:

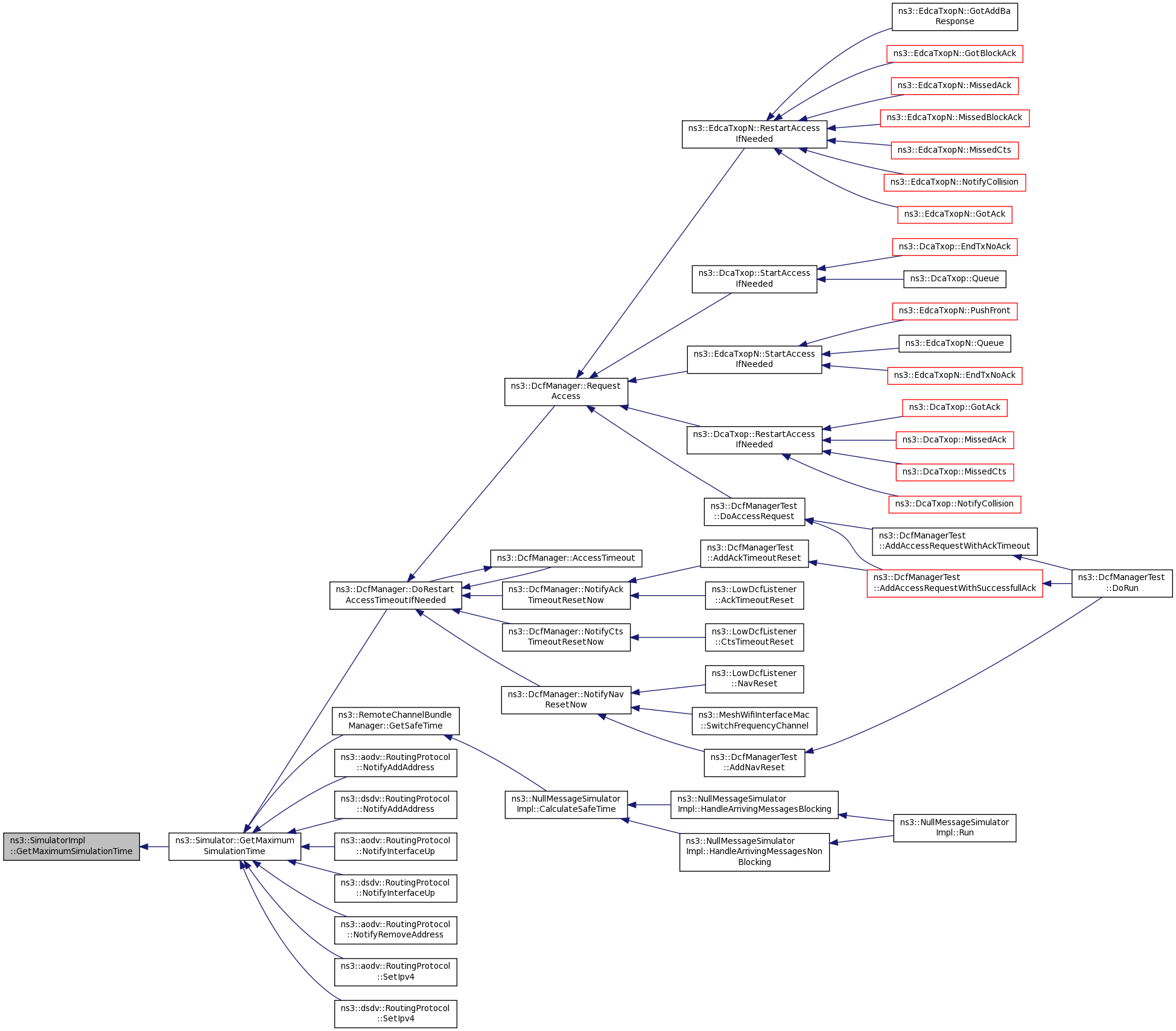

virtual Time ns3::SimulatorImpl::GetMaximumSimulationTime ( void ) const

pure virtual

Returns: the maximum simulation time at which an event can be scheduled.

The returned value will always be bigger than or equal to Simulator::Now.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::GetMaximumSimulationTime().

Here is the caller graph for this function:

virtual uint32_t ns3::SimulatorImpl::GetSystemId ( ) const

pure virtual

Returns: the system id for this simulator; used for MPI or other distributed simulations

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::GetSystemId().

Here is the caller graph for this function:

TypeId ns3::SimulatorImpl::GetTypeId ( void )

static

Definition at line 9 of file simulator-impl.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

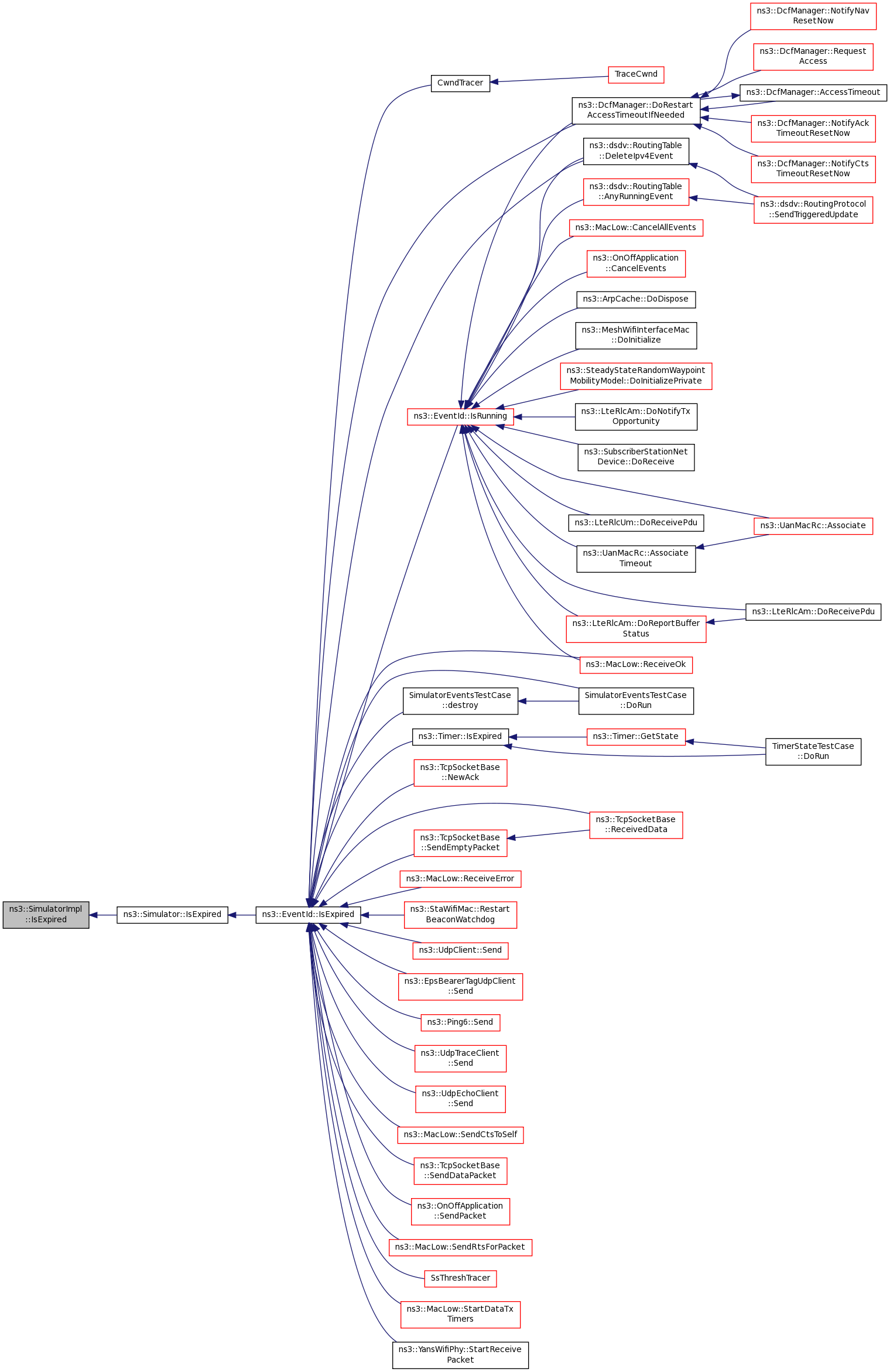

virtual bool ns3::SimulatorImpl::IsExpired ( const EventId & ev ) const

pure virtual

This method has O(1) complexity.

Note that it is not possible to test for the expiration of events which were scheduled for the "destroy" time. Doing so will result in a program error (crash). An event is said to "expire" when it starts being scheduled which means that if the code executed by the event calls this function, it will get true.

Parameters

ev	the event to test for expiration

Returns: true if the event has expired, false otherwise.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::IsExpired().

Here is the caller graph for this function:

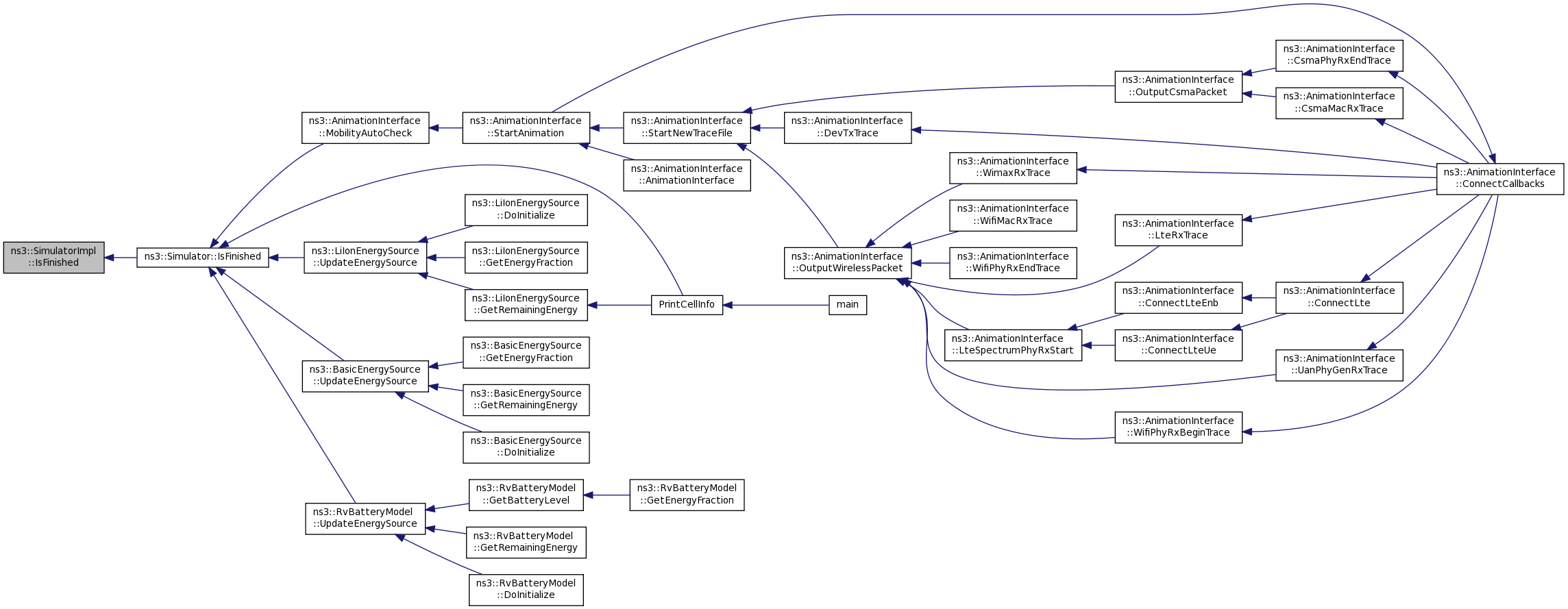

virtual bool ns3::SimulatorImpl::IsFinished ( void ) const

pure virtual

If there are no more events lefts to be scheduled, or if simulation time has already reached the "stop time" (see Simulator::Stop()), return true.

Return false otherwise.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::IsFinished().

Here is the caller graph for this function:

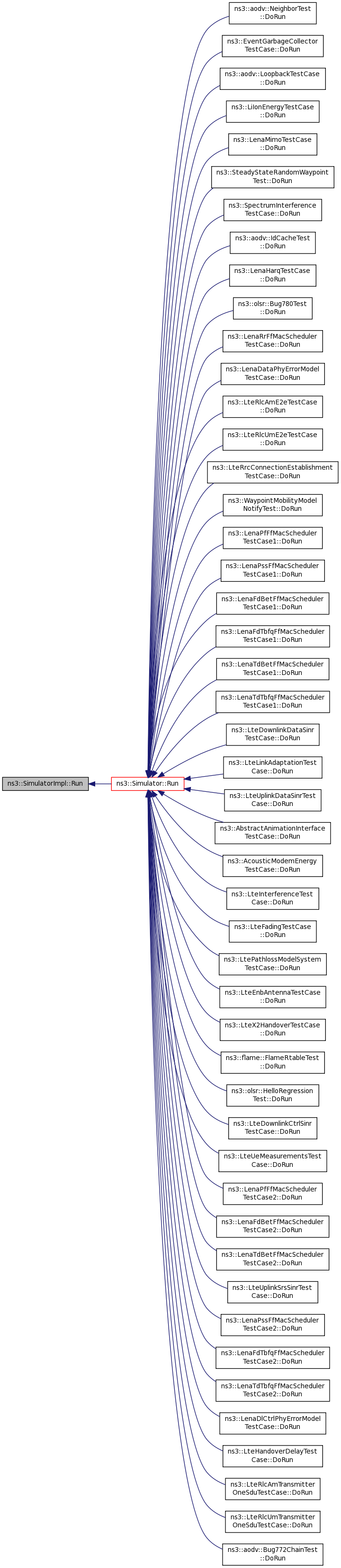

virtual Time ns3::SimulatorImpl::Now ( void ) const

pure virtual

Return the "current simulation time".

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::Now().

Here is the caller graph for this function:

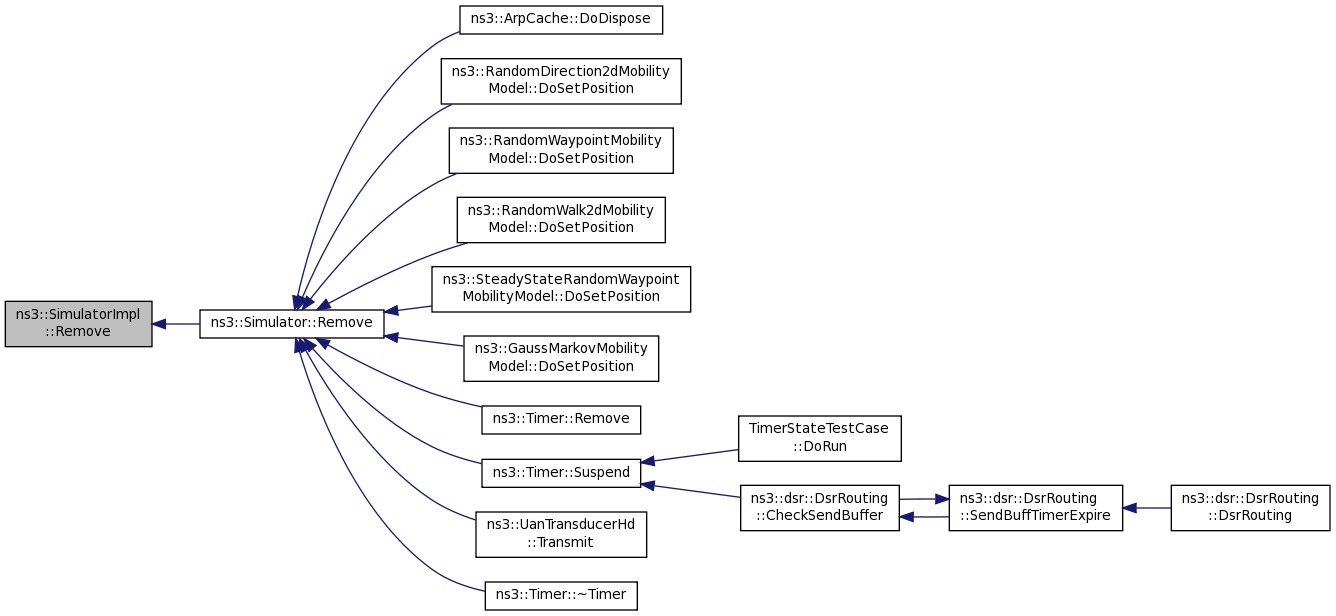

virtual void ns3::SimulatorImpl::Remove ( const EventId & ev )

pure virtual

Remove an event from the event list.

This method has the same visible effect as the ns3::EventId::Cancel method but its algorithmic complexity is much higher: it has often O(log(n)) complexity, sometimes O(n), sometimes worse. Note that it is not possible to remove events which were scheduled for the "destroy" time. Doing so will result in a program error (crash).

Parameters

ev	the event to remove from the list of scheduled events.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::Remove().

Here is the caller graph for this function:

virtual void ns3::SimulatorImpl::Run ( void )

pure virtual

Run the simulation until one of:

no events are present anymore
the user called Simulator::Stop
the user called Simulator::Stop with stop time and the expiration time of the next event to be processed is greater than or equal to the stop time.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::Run().

Here is the caller graph for this function:

virtual EventId ns3::SimulatorImpl::Schedule	(	Time const &	time,
		EventImpl *	event
	)

pure virtual

Parameters

time	delay until the event expires
event	the event to schedule

Returns: a unique identifier for the newly-scheduled event.

This method will be typically used by language bindings to delegate events to their own subclass of the EventImpl base class.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::DoSchedule().

Here is the caller graph for this function:

virtual EventId ns3::SimulatorImpl::ScheduleDestroy ( EventImpl * event )

pure virtual

Parameters

event the event to schedule

Returns: a unique identifier for the newly-scheduled event.

This method will be typically used by language bindings to delegate events to their own subclass of the EventImpl base class.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::DoScheduleDestroy().

Here is the caller graph for this function:

virtual EventId ns3::SimulatorImpl::ScheduleNow ( EventImpl * event )

pure virtual

Parameters

event the event to schedule

Returns: a unique identifier for the newly-scheduled event.

This method will be typically used by language bindings to delegate events to their own subclass of the EventImpl base class.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::DoScheduleNow().

Here is the caller graph for this function:

virtual void ns3::SimulatorImpl::ScheduleWithContext	(	uint32_t	context,
		Time const &	time,
		EventImpl *	event
	)

pure virtual

Parameters

time	delay until the event expires
context	event context
event	the event to schedule

Returns: a unique identifier for the newly-scheduled event.

This method will be typically used by language bindings to delegate events to their own subclass of the EventImpl base class.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::ScheduleWithContext().

Here is the caller graph for this function:

virtual void ns3::SimulatorImpl::SetScheduler ( ObjectFactory schedulerFactory )

pure virtual

Parameters

schedulerFactory a new event scheduler factory

The event scheduler can be set at any time: the events scheduled in the previous scheduler will be transfered to the new scheduler before we start to use it.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::SetScheduler().

Here is the caller graph for this function:

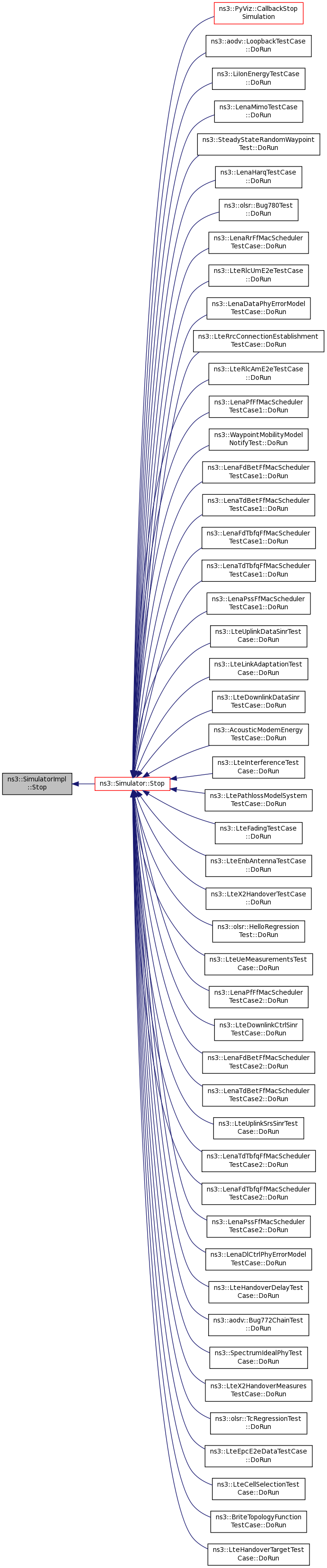

virtual void ns3::SimulatorImpl::Stop ( void )

pure virtual

If an event invokes this method, it will be the last event scheduled by the Simulator::Run method before returning to the caller.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

Referenced by ns3::Simulator::Stop().

Here is the caller graph for this function:

virtual void ns3::SimulatorImpl::Stop ( Time const & time )

pure virtual

Force the Simulator::Run method to return to the caller when the expiration time of the next event to be processed is greater than or equal to the stop time.

The stop time is relative to the current simulation time.

Parameters

time	the stop time, relative to the current time.

Implemented in ns3::DistributedSimulatorImpl, ns3::RealtimeSimulatorImpl, ns3::NullMessageSimulatorImpl, ns3::VisualSimulatorImpl, and ns3::DefaultSimulatorImpl.

The documentation for this class was generated from the following files:

src/core/model/simulator-impl.h
src/core/model/simulator-impl.cc

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
