trace sink for wifi device that mimics madwifi's athstats tool. More...

#include <athstats-helper.h>

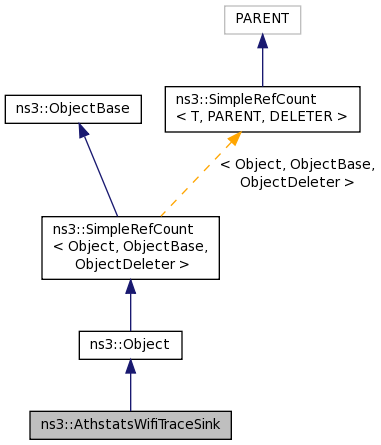

Inheritance diagram for ns3::AthstatsWifiTraceSink:

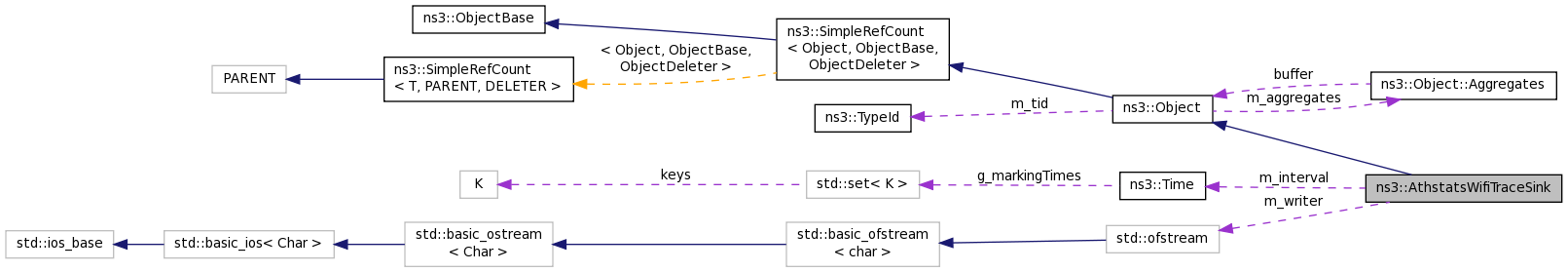

Collaboration diagram for ns3::AthstatsWifiTraceSink:

Public Member Functions
	AthstatsWifiTraceSink ()

virtual	~AthstatsWifiTraceSink ()

void	DevRxTrace (std::string context, Ptr< const Packet > p)
	function to be called when the net device receives a packet More...

void	DevTxTrace (std::string context, Ptr< const Packet > p)
	function to be called when the net device transmits a packet More...

void	Open (std::string const &name)
	Open a file for output. More...

void	PhyRxErrorTrace (std::string context, Ptr< const Packet > packet, double snr)
	Function to be called when a frame reception by the PHY layer of the considered device resulted in an error due to a failure in the CRC check of the frame. More...

void	PhyRxOkTrace (std::string context, Ptr< const Packet > packet, double snr, WifiMode mode, enum WifiPreamble preamble)
	Function to be called when the PHY layer of the considered device receives a frame. More...

void	PhyStateTrace (std::string context, Time start, Time duration, enum WifiPhy::State state)
	Function to be called when the PHY layer of the considered device changes state. More...

void	PhyTxTrace (std::string context, Ptr< const Packet > packet, WifiMode mode, WifiPreamble preamble, uint8_t txPower)
	Function to be called when a frame is being transmitted by the PHY layer of the considered device. More...

void	TxDataFailedTrace (std::string context, Mac48Address address)
	Function to be called when a data frame transmission by the considered device has failed. More...

void	TxFinalDataFailedTrace (std::string context, Mac48Address address)
	Function to be called when the transmission of a data frame has exceeded the retry limit. More...

void	TxFinalRtsFailedTrace (std::string context, Mac48Address address)
	Function to be called when the transmission of a RTS frame has exceeded the retry limit. More...

void	TxRtsFailedTrace (std::string context, Mac48Address address)
	Function to be called when a RTS frame transmission by the considered device has failed. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	ResetCounters ()

void	WriteStats ()

Private Attributes
uint32_t	m_exceededRetryCount

Time	m_interval

uint32_t	m_longRetryCount

uint32_t	m_phyRxErrorCount

uint32_t	m_phyRxOkCount

uint32_t	m_phyTxCount

uint32_t	m_rxCount

uint32_t	m_shortRetryCount

uint32_t	m_txCount

std::ofstream *	m_writer

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

trace sink for wifi device that mimics madwifi's athstats tool.

Doxygen introspection did not find any typical Config paths.

The AthstatsWifiTraceSink class is a trace sink to be connected to several of the traces available within a wifi device. The purpose of AthstatsWifiTraceSink is to mimic the behavior of the athstats tool distributed wih the madwifi driver. In particular, the reproduced behavior is that obtained when executing athstats without parameters: a report written in text format is produced every fixed interval, based on the events observed by the wifi device.

Differences with the "real" athstats:

AthstatsWifiTraceSink is expected to write its output to a file (not to stdout).
only a subset of the metrics supported by athstats is supported by AthstatsWifiTraceSink
AthstatsWifiTraceSink does never produce a cumulative report.

Attributes

Interval: Time interval between reports
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 82 of file athstats-helper.h.

Constructor & Destructor Documentation

ns3::AthstatsWifiTraceSink::AthstatsWifiTraceSink ( )

Definition at line 126 of file athstats-helper.cc.

References ns3::Simulator::ScheduleNow(), and WriteStats().

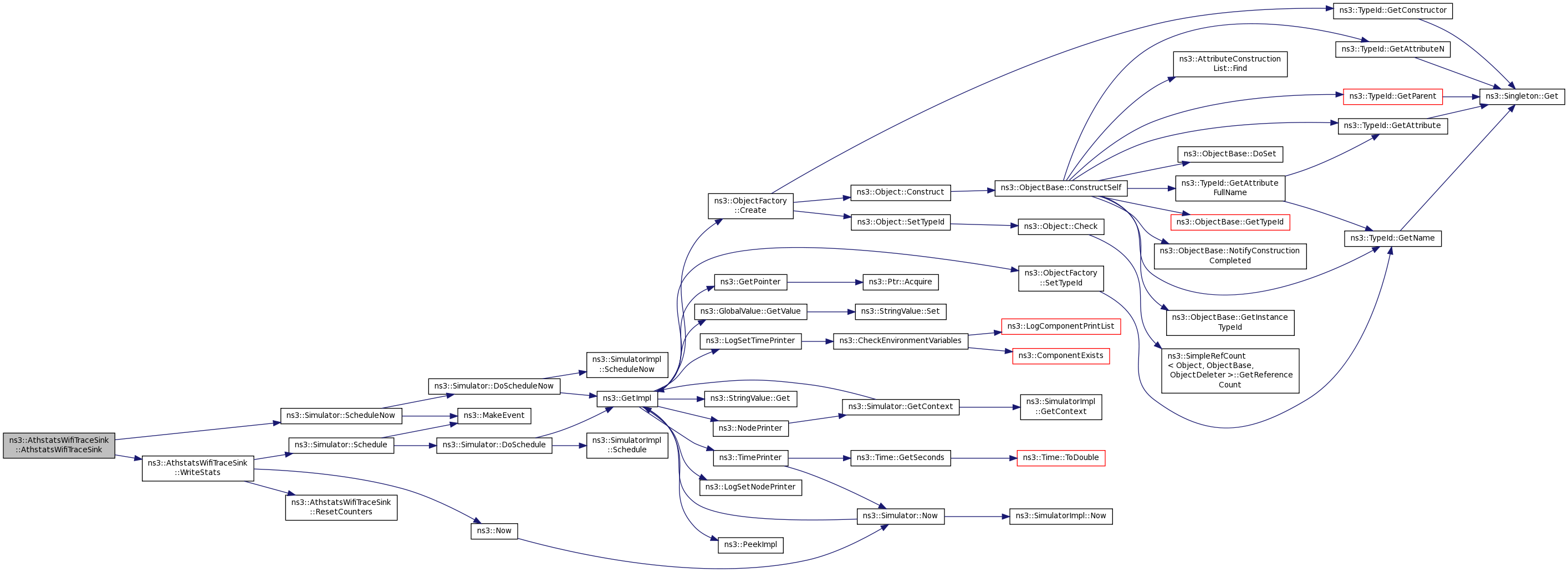

Here is the call graph for this function:

ns3::AthstatsWifiTraceSink::~AthstatsWifiTraceSink ( )

virtual

Definition at line 140 of file athstats-helper.cc.

References m_writer, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Member Function Documentation

void ns3::AthstatsWifiTraceSink::DevRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

function to be called when the net device receives a packet

Parameters

context
p	the packet being received

Definition at line 186 of file athstats-helper.cc.

References m_rxCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

function to be called when the net device transmits a packet

Parameters

context
p	the packet being transmitted

Definition at line 179 of file athstats-helper.cc.

References m_txCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

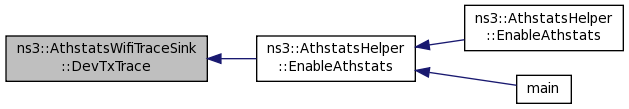

Here is the caller graph for this function:

TypeId ns3::AthstatsWifiTraceSink::GetTypeId ( void )

static

Definition at line 112 of file athstats-helper.cc.

References m_interval, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

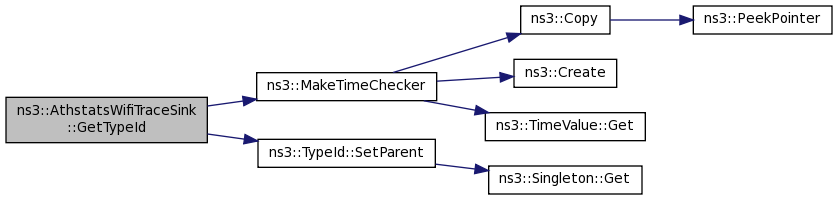

Here is the call graph for this function:

void ns3::AthstatsWifiTraceSink::Open ( std::string const & name )

Open a file for output.

Parameters

name	the name of the file to be opened.

Definition at line 255 of file athstats-helper.cc.

References m_writer, NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::AthstatsWifiTraceSink::PhyRxErrorTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		double	snr
	)

Function to be called when a frame reception by the PHY layer of the considered device resulted in an error due to a failure in the CRC check of the frame.

Parameters

context
packet
snr

Definition at line 231 of file athstats-helper.cc.

References m_phyRxErrorCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

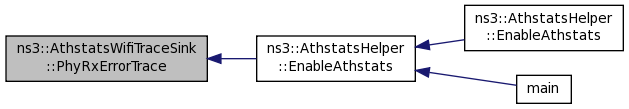

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::PhyRxOkTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		double	snr,
		WifiMode	mode,
		enum WifiPreamble	preamble
	)

Function to be called when the PHY layer of the considered device receives a frame.

Parameters

context
packet
snr
mode
preamble

Definition at line 224 of file athstats-helper.cc.

References m_phyRxOkCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::PhyStateTrace	(	std::string	context,
		Time	start,
		Time	duration,
		enum WifiPhy::State	state
	)

Function to be called when the PHY layer of the considered device changes state.

Parameters

context
start
duration
state

Definition at line 246 of file athstats-helper.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

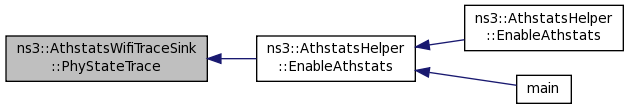

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::PhyTxTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		WifiMode	mode,
		WifiPreamble	preamble,
		uint8_t	txPower
	)

Function to be called when a frame is being transmitted by the PHY layer of the considered device.

Parameters

context
packet
mode
preamble
txPower

Definition at line 238 of file athstats-helper.cc.

References m_phyTxCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::ResetCounters ( )

private

Internal:

Definition at line 166 of file athstats-helper.cc.

References m_exceededRetryCount, m_longRetryCount, m_phyRxErrorCount, m_phyRxOkCount, m_phyTxCount, m_rxCount, m_shortRetryCount, and m_txCount.

Referenced by WriteStats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::TxDataFailedTrace	(	std::string	context,
		Mac48Address	address
	)

Function to be called when a data frame transmission by the considered device has failed.

Parameters

context
address	the MAC address of the remote station

Definition at line 201 of file athstats-helper.cc.

References m_longRetryCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

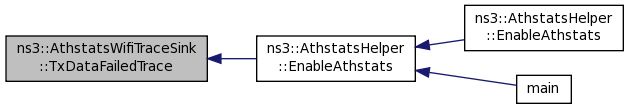

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::TxFinalDataFailedTrace	(	std::string	context,
		Mac48Address	address
	)

Function to be called when the transmission of a data frame has exceeded the retry limit.

Parameters

context
address	the MAC address of the remote station

Definition at line 215 of file athstats-helper.cc.

References m_exceededRetryCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::TxFinalRtsFailedTrace	(	std::string	context,
		Mac48Address	address
	)

Function to be called when the transmission of a RTS frame has exceeded the retry limit.

Parameters

context
address	the MAC address of the remote station

Definition at line 208 of file athstats-helper.cc.

References m_exceededRetryCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

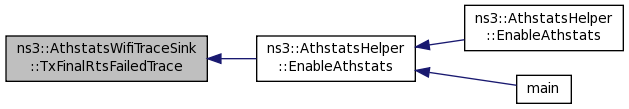

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::TxRtsFailedTrace	(	std::string	context,
		Mac48Address	address
	)

Function to be called when a RTS frame transmission by the considered device has failed.

Parameters

context
address	the MAC address of the remote station

Definition at line 194 of file athstats-helper.cc.

References m_shortRetryCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::WriteStats ( )

private

Internal:

Definition at line 275 of file athstats-helper.cc.

References m_exceededRetryCount, m_interval, m_longRetryCount, m_phyRxErrorCount, m_rxCount, m_shortRetryCount, m_txCount, m_writer, ns3::Now(), NS_ABORT_MSG_UNLESS, ResetCounters(), and ns3::Simulator::Schedule().

Referenced by AthstatsWifiTraceSink().

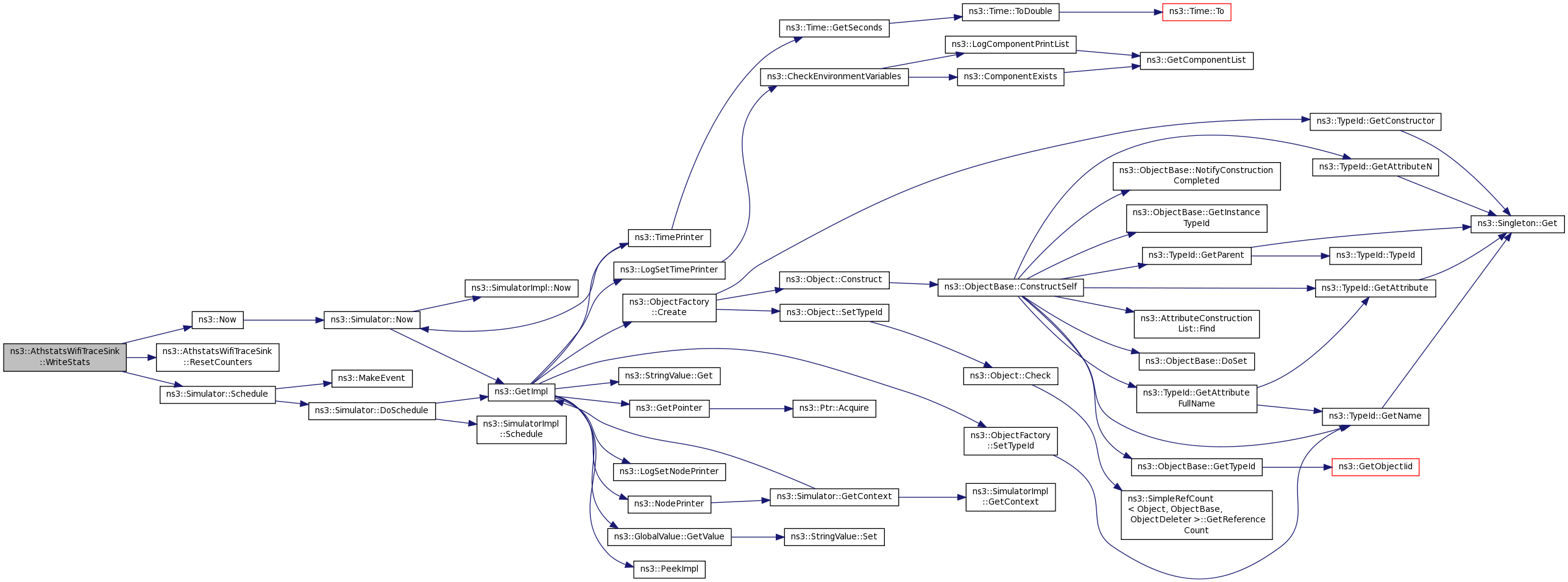

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::AthstatsWifiTraceSink::m_exceededRetryCount

private

Definition at line 210 of file athstats-helper.h.

Referenced by ResetCounters(), TxFinalDataFailedTrace(), TxFinalRtsFailedTrace(), and WriteStats().

Time ns3::AthstatsWifiTraceSink::m_interval

private

Definition at line 217 of file athstats-helper.h.

Referenced by GetTypeId(), and WriteStats().

uint32_t ns3::AthstatsWifiTraceSink::m_longRetryCount

private

Definition at line 209 of file athstats-helper.h.

Referenced by ResetCounters(), TxDataFailedTrace(), and WriteStats().

uint32_t ns3::AthstatsWifiTraceSink::m_phyRxErrorCount

private

Definition at line 212 of file athstats-helper.h.

Referenced by PhyRxErrorTrace(), ResetCounters(), and WriteStats().

uint32_t ns3::AthstatsWifiTraceSink::m_phyRxOkCount

private

Definition at line 211 of file athstats-helper.h.

Referenced by PhyRxOkTrace(), and ResetCounters().

uint32_t ns3::AthstatsWifiTraceSink::m_phyTxCount

private

Definition at line 213 of file athstats-helper.h.

Referenced by PhyTxTrace(), and ResetCounters().

uint32_t ns3::AthstatsWifiTraceSink::m_rxCount

private

Definition at line 207 of file athstats-helper.h.

Referenced by DevRxTrace(), ResetCounters(), and WriteStats().

uint32_t ns3::AthstatsWifiTraceSink::m_shortRetryCount

private

Definition at line 208 of file athstats-helper.h.

Referenced by ResetCounters(), TxRtsFailedTrace(), and WriteStats().

uint32_t ns3::AthstatsWifiTraceSink::m_txCount

private

Definition at line 206 of file athstats-helper.h.

Referenced by DevTxTrace(), ResetCounters(), and WriteStats().

std::ofstream* ns3::AthstatsWifiTraceSink::m_writer

private

Definition at line 215 of file athstats-helper.h.

Referenced by Open(), WriteStats(), and ~AthstatsWifiTraceSink().

The documentation for this class was generated from the following files:

src/wifi/helper/athstats-helper.h
src/wifi/helper/athstats-helper.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
