ALOHA MAC Protocol, the simplest MAC protocol for wireless networks. More...

#include <uan-mac-aloha.h>

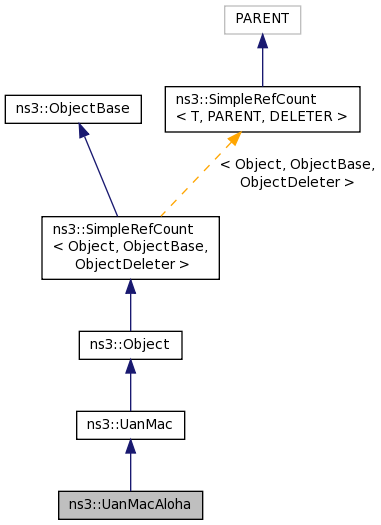

Inheritance diagram for ns3::UanMacAloha:

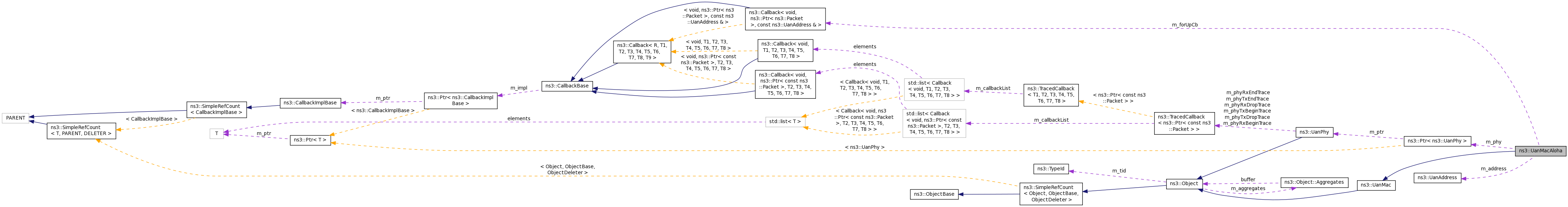

Collaboration diagram for ns3::UanMacAloha:

Public Member Functions
	UanMacAloha ()
	Default constructor. More...

virtual	~UanMacAloha ()
	Dummy destructor, see DoDispose. More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	AttachPhy (Ptr< UanPhy > phy)
	Attach PHY layer to this MAC. More...

virtual void	Clear (void)
	Clears all pointer references. More...

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)
	Enqueue packet to be transmitted. More...

Address	GetAddress (void)
	Get the MAC Address. More...

virtual Address	GetBroadcast (void) const
	Get the broadcast address. More...

virtual void	SetAddress (UanAddress addr)
	Set the address. More...

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)
	Set the callback to forward packets up to higher layers. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	RxPacketError (Ptr< Packet > pkt, double sinr)
	Packet received at lower layer in error. More...

void	RxPacketGood (Ptr< Packet > pkt, double sinr, UanTxMode txMode)
	Receive packet from lower layer (passed to PHY as callback). More...

Private Attributes
UanAddress	m_address
	The MAC address. More...

bool	m_cleared
	Flag when we've been cleared. More...

Callback< void, Ptr< Packet > , const UanAddress & >	m_forUpCb
	Forwarding up callback. More...

Ptr< UanPhy >	m_phy
	PHY layer attached to this MAC. More...

Detailed Description

ALOHA MAC Protocol, the simplest MAC protocol for wireless networks.

Doxygen introspection did not find any typical Config paths.

Packets enqueued are immediately transmitted. This MAC attaches a UanHeaderCommon to outgoing packets for address information. (The type field is not used)

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file uan-mac-aloha.h.

Constructor & Destructor Documentation

ns3::UanMacAloha::UanMacAloha ( )

Default constructor.

Definition at line 38 of file uan-mac-aloha.cc.

ns3::UanMacAloha::~UanMacAloha ( )

virtual

Dummy destructor, see DoDispose.

Definition at line 44 of file uan-mac-aloha.cc.

Member Function Documentation

int64_t ns3::UanMacAloha::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implements ns3::UanMac.

Definition at line 155 of file uan-mac-aloha.cc.

References NS_LOG_FUNCTION.

void ns3::UanMacAloha::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC.

Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC.

Implements ns3::UanMac.

Definition at line 120 of file uan-mac-aloha.cc.

References m_phy, ns3::MakeCallback(), RxPacketError(), and RxPacketGood().

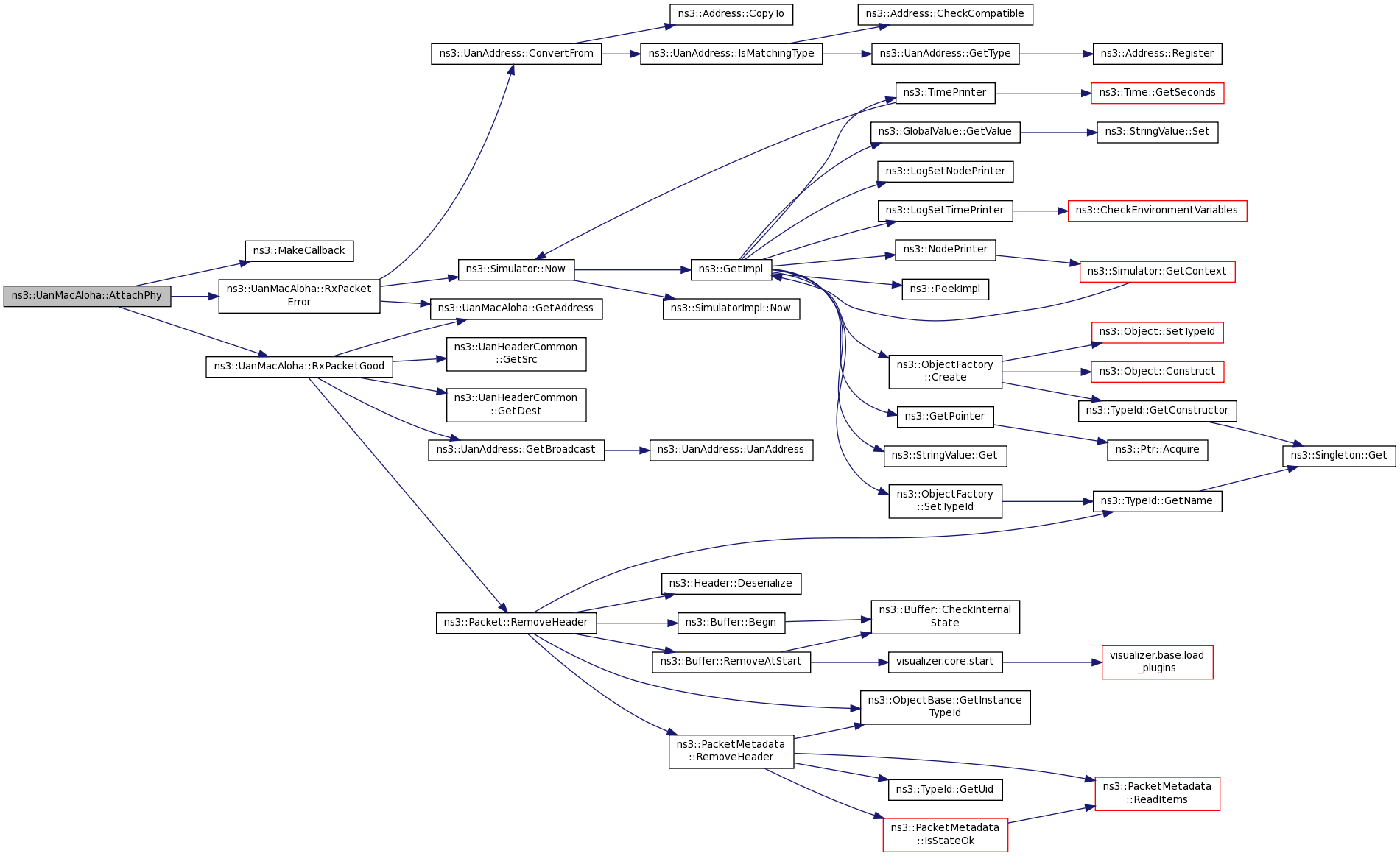

Here is the call graph for this function:

void ns3::UanMacAloha::Clear ( void )

virtual

Clears all pointer references.

Implements ns3::UanMac.

Definition at line 49 of file uan-mac-aloha.cc.

References m_cleared, and m_phy.

Referenced by DoDispose().

Here is the caller graph for this function:

void ns3::UanMacAloha::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 64 of file uan-mac-aloha.cc.

References Clear(), and ns3::Object::DoDispose().

Here is the call graph for this function:
