This object represents the underlying nsc stack, which is aggregated to a Node object, and which provides access to the sysctls of the nsc stack through attributes. More...

#include <nsc-sysctl.h>

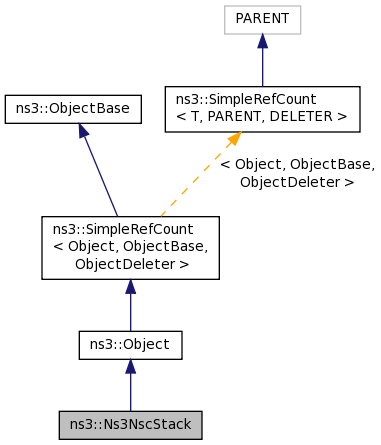

Inheritance diagram for ns3::Ns3NscStack:

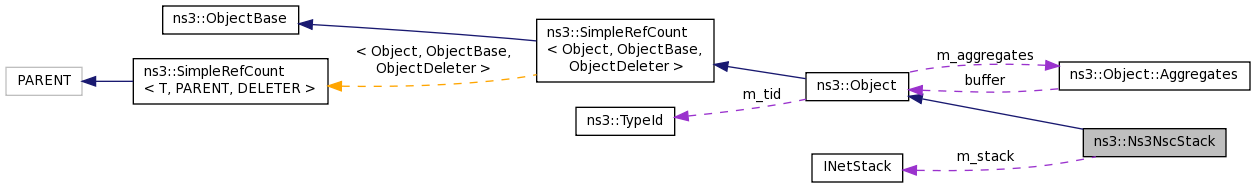

Collaboration diagram for ns3::Ns3NscStack:

Public Member Functions
virtual TypeId	GetInstanceTypeId (void) const

void	SetStack (INetStack *stack)
	Set the underlying stack. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
std::string	Get (std::string name) const
	Get an attribute. More...

void	Set (std::string name, std::string value)
	Set an attribute. More...

Private Attributes
INetStack *	m_stack
	the underlying stack More...

Friends
class	NscStackStringAccessor

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

This object represents the underlying nsc stack, which is aggregated to a Node object, and which provides access to the sysctls of the nsc stack through attributes.

Definition at line 35 of file nsc-sysctl.h.

Member Function Documentation

std::string ns3::Ns3NscStack::Get ( std::string name ) const

private

Get an attribute.

Parameters

name	the attribute name

Returns: the attribute value

Definition at line 135 of file nsc-sysctl.cc.

References m_stack, and INetStack::sysctl_get().

Referenced by ns3::NscStackStringAccessor::Get().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::Ns3NscStack::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

Definition at line 94 of file nsc-sysctl.cc.

References ns3::TypeId::AddAttribute(), INetStack::get_name(), GetTypeId(), ns3::TypeId::LookupByNameFailSafe(), m_stack, ns3::TypeId::SetParent(), INetStack::sysctl_get(), and INetStack::sysctl_getnum().

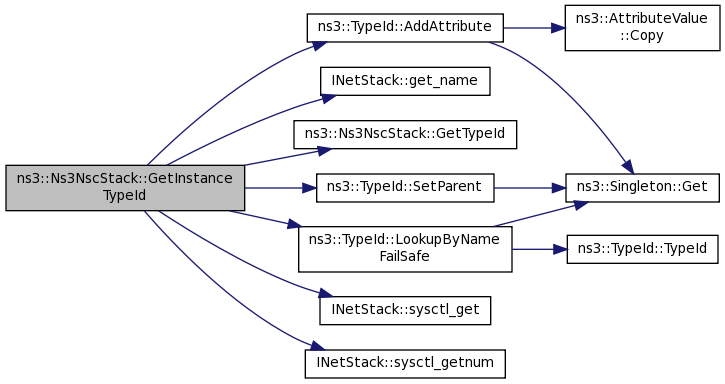

Here is the call graph for this function:
