Base class for implemented underwater propagation models. More...

#include <uan-prop-model.h>

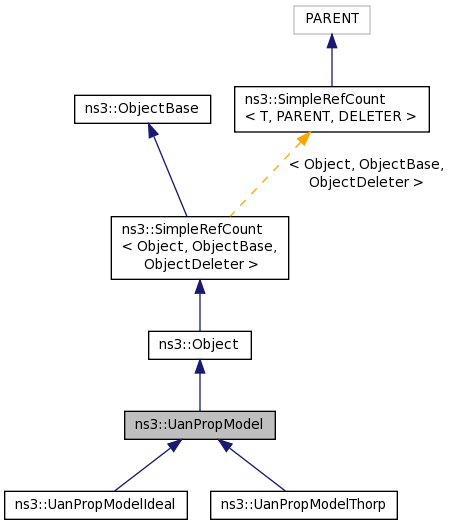

Inheritance diagram for ns3::UanPropModel:

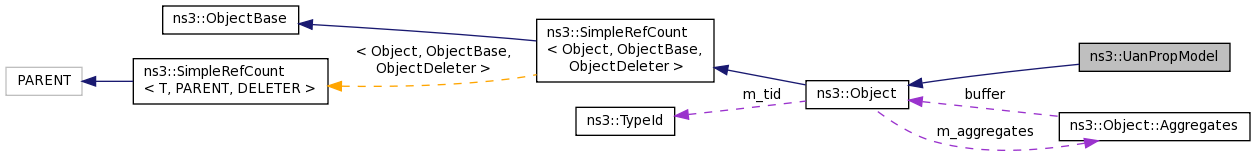

Collaboration diagram for ns3::UanPropModel:

Public Member Functions
virtual void	Clear (void)
	Clear all pointer references. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)=0
	Finds propagation delay between nodes a and b. More...

virtual double	GetPathLossDb (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode txMode)=0
	Computes pathloss between nodes a and b. More...

virtual UanPdp	GetPdp (Ptr< MobilityModel > a, Ptr< MobilityModel > b, UanTxMode mode)=0
	Get the PDP for the path between two nodes. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Base class for implemented underwater propagation models.

Config Paths

ns3::UanPropModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::UanChannel/PropagationModel
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 281 of file uan-prop-model.h.

Member Function Documentation

void ns3::UanPropModel::Clear ( void )

virtual

Clear all pointer references.

Definition at line 350 of file uan-prop-model.cc.

Referenced by DoDispose().

Here is the caller graph for this function:

void ns3::UanPropModel::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 355 of file uan-prop-model.cc.

References Clear(), and ns3::Object::DoDispose().

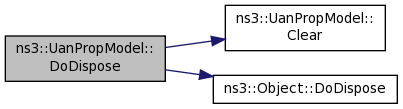

Here is the call graph for this function:
