Generic PHY model. More...

#include <uan-phy-gen.h>

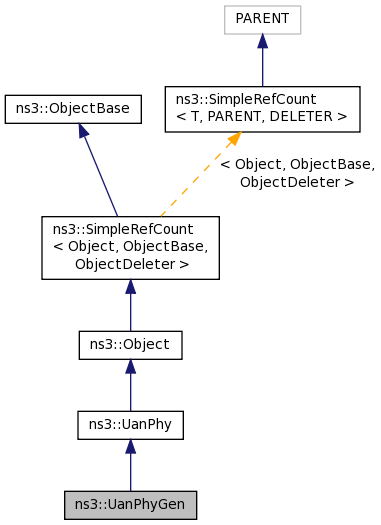

Inheritance diagram for ns3::UanPhyGen:

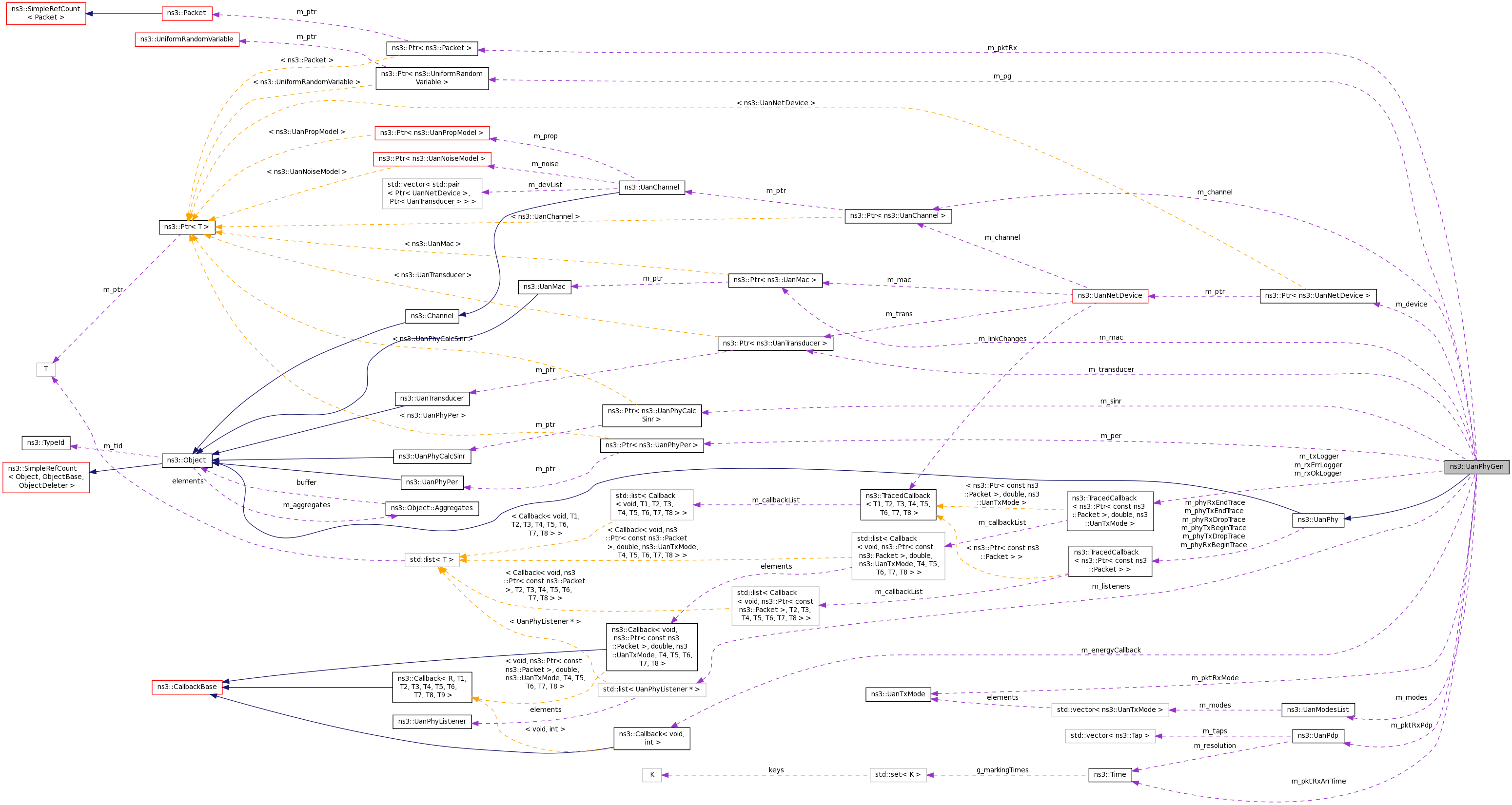

Collaboration diagram for ns3::UanPhyGen:

Public Member Functions
	UanPhyGen ()
	Constructor. More...

virtual	~UanPhyGen ()
	Dummy destructor, see DoDispose. More...

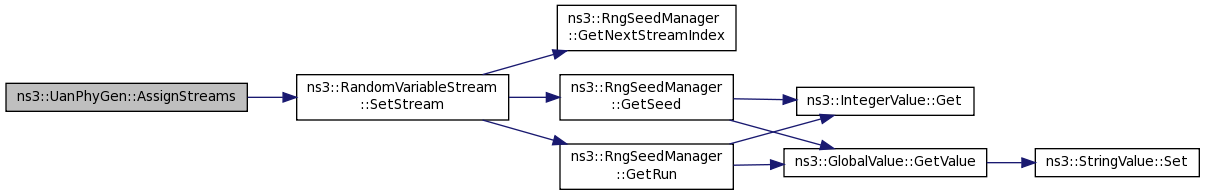

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	Clear (void)
	Clear all pointer references. More...

virtual void	EnergyDepletionHandler (void)
	Handle the energy depletion event. More...

virtual double	GetCcaThresholdDb (void)
	Get the CCA threshold signal strength required to detect channel busy. More...

virtual Ptr< UanChannel >	GetChannel (void) const
	Get the attached channel. More...

virtual Ptr< UanNetDevice >	GetDevice (void)
	Get the device hosting this Phy. More...

virtual UanTxMode	GetMode (uint32_t n)
	Get a specific transmission mode. More...

virtual uint32_t	GetNModes (void)
	Get the number of transmission modes supported by this Phy. More...

virtual Ptr< Packet >	GetPacketRx (void) const
	Get the packet currently being received. More...

virtual double	GetRxGainDb (void)
	Get the receiver gain added to signal at receiver in dB. More...

virtual double	GetRxThresholdDb (void)
	Get the minimum received signal strength required to receive a packet without errors. More...

virtual Ptr< UanTransducer >	GetTransducer (void)
	Get the attached transducer. More...

virtual double	GetTxPowerDb (void)
	Get the current transmit power, in dB. More...

virtual bool	IsStateBusy (void)

virtual bool	IsStateCcaBusy (void)

virtual bool	IsStateIdle (void)

virtual bool	IsStateRx (void)

virtual bool	IsStateSleep (void)

virtual bool	IsStateTx (void)

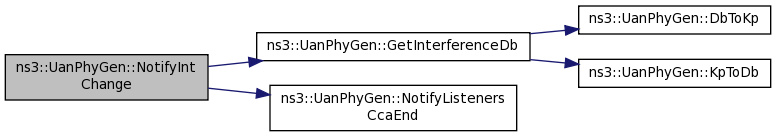

virtual void	NotifyIntChange (void)
	Called when there has been a change in the ammount of interference this node is experiencing from other transmissions. More...

virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
	Called when a transmission is beginning on the attched transducer. More...

virtual void	RegisterListener (UanPhyListener *listener)
	Register a UanPhyListener to be notified of common UanPhy events. More...

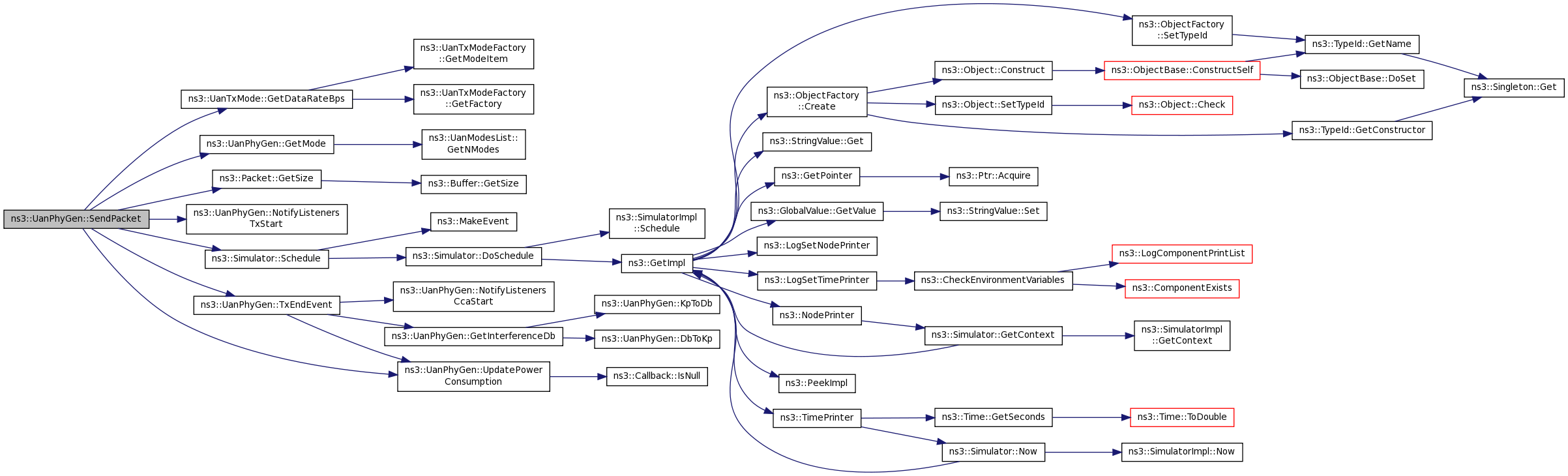

virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)
	Send a packet using a specific transmission mode. More...

virtual void	SetCcaThresholdDb (double thresh)
	Set the threshold for detecting channel busy. More...

virtual void	SetChannel (Ptr< UanChannel > channel)
	Attach to a channel. More...

virtual void	SetDevice (Ptr< UanNetDevice > device)
	Set the device hosting this Phy. More...

virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback cb)
	Set the DeviceEnergyModel callback for UanPhy device. More...

virtual void	SetMac (Ptr< UanMac > mac)
	Set the MAC forwarding messages to this Phy. More...

virtual void	SetReceiveErrorCallback (RxErrCallback cb)
	Set the callback to be used when a packet is received with errors. More...

virtual void	SetReceiveOkCallback (RxOkCallback cb)
	Set the callback to be used when a packet is received without error. More...

virtual void	SetRxGainDb (double gain)
	Set the receiver gain. More...

virtual void	SetRxThresholdDb (double thresh)
	Set the minimum SINR threshold to receive a packet without errors. More...

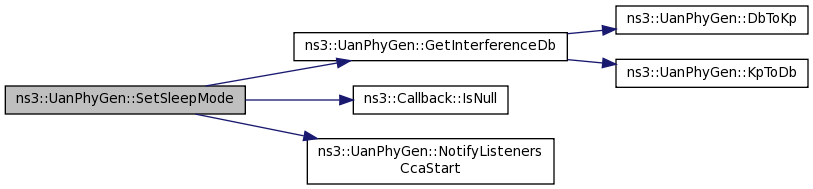

virtual void	SetSleepMode (bool sleep)
	Set the Phy SLEEP mode. More...

virtual void	SetTransducer (Ptr< UanTransducer > trans)
	Attach a transducer to this Phy. More...

virtual void	SetTxPowerDb (double txpwr)
	Set the transmit power. More...

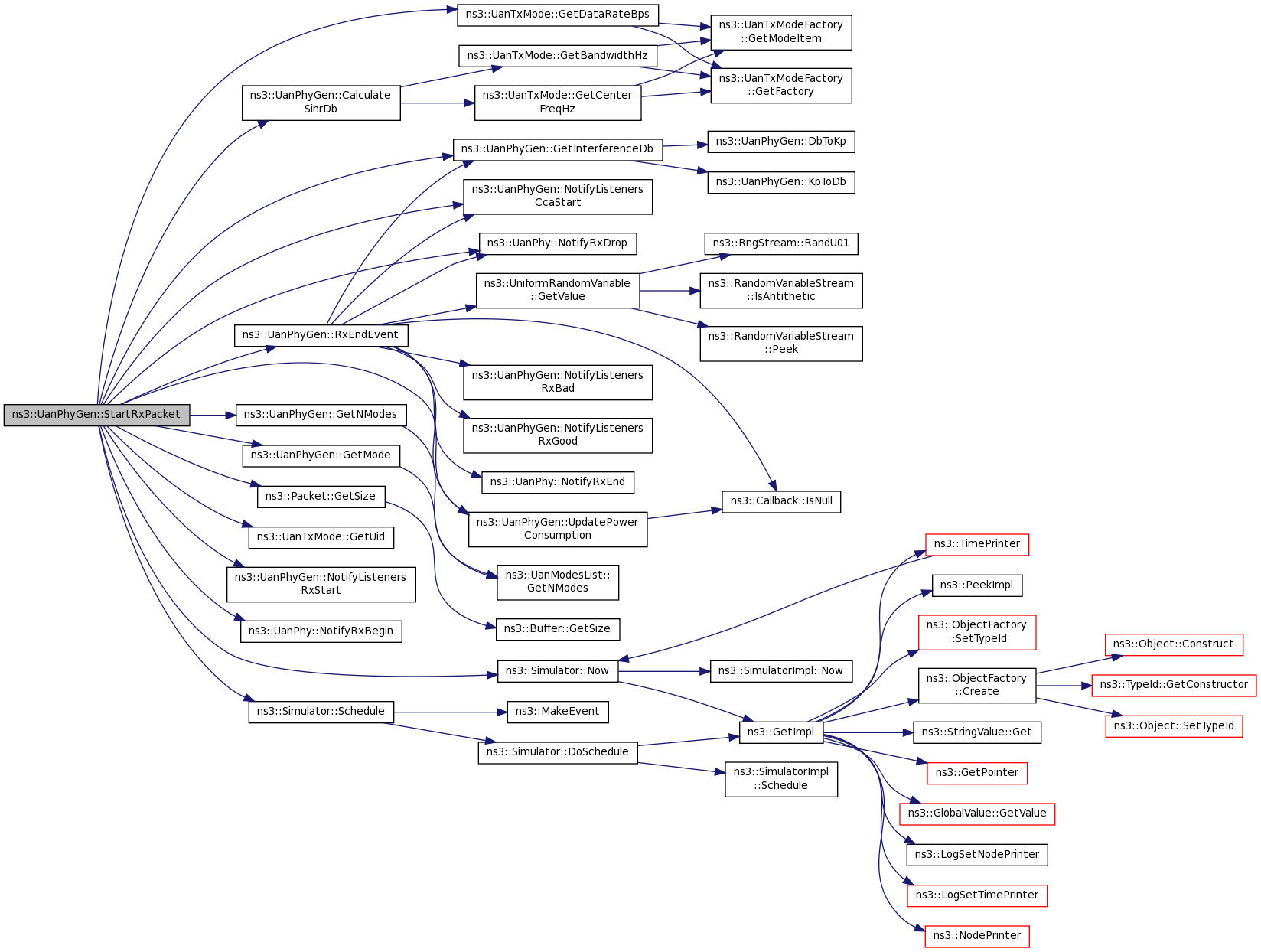

virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Packet arriving from channel: i.e. More...

Public Member Functions inherited from ns3::UanPhy
void	NotifyRxBegin (Ptr< const Packet > packet)
	Called when the Phy begins to receive a packet. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Called when the Phy drops a packet. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Called when a packet is received without error. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Called when the transducer begins transmitting a packet. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Called when the transducer attempts to transmit a new packet while already transmitting a prior packet. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Called when the transducer finishes transmitting a packet. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

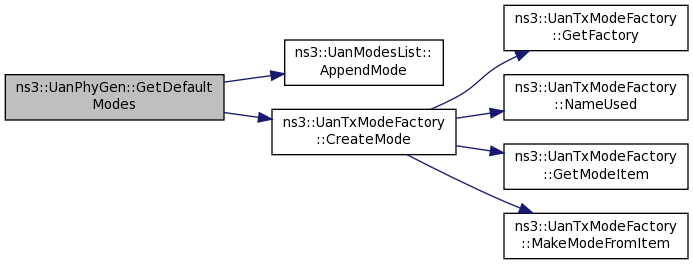

static UanModesList	GetDefaultModes (void)
	Get the default transmission modes. More...

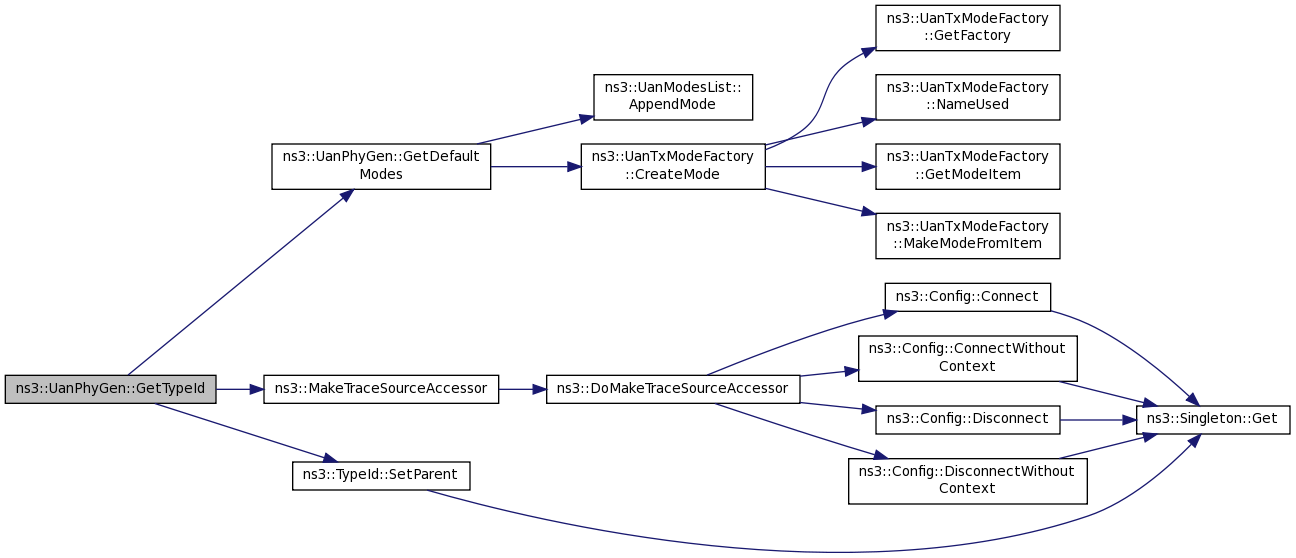

static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhy
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

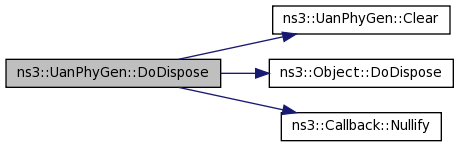

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::list < UanPhyListener * >	ListenerList
	List of Phy Listeners. More...

Private Member Functions

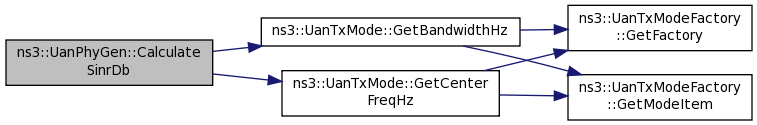

double	CalculateSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, UanTxMode mode, UanPdp pdp)
	Calculate the SINR value for a packet. More...

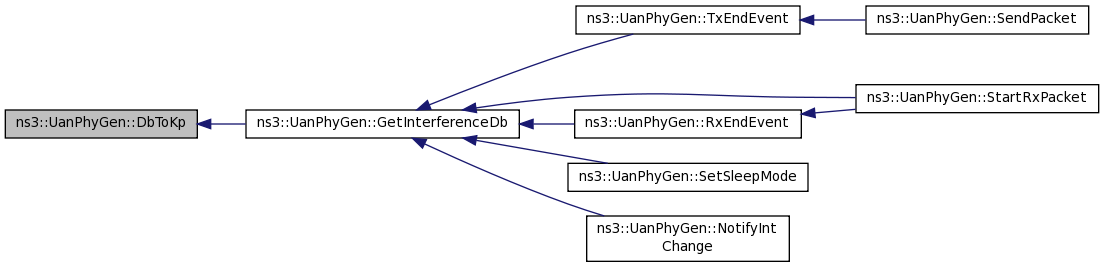

double	DbToKp (double db)
	Convert dB to kilopascals. More...

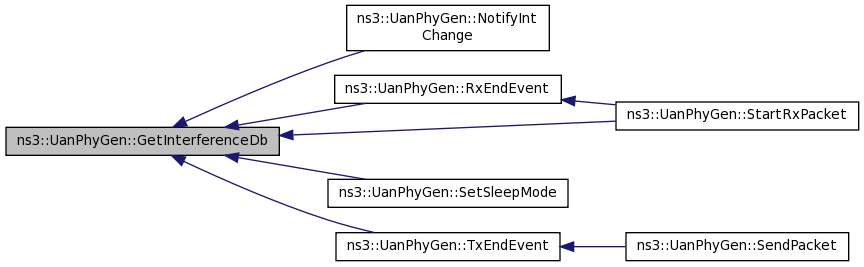

double	GetInterferenceDb (Ptr< Packet > pkt)
	Calculate interference power from overlapping packet arrivals, in dB. More...

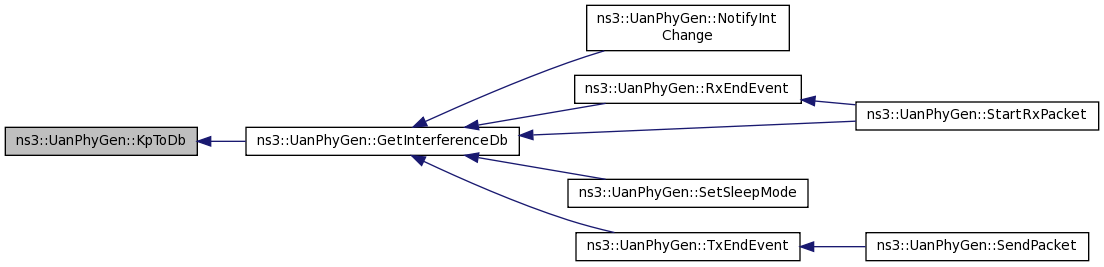

double	KpToDb (double kp)
	Convert kilopascals to dB. More...

void	NotifyListenersCcaEnd (void)
	Call UanListener::NotifyCcaEnd on all listeners. More...

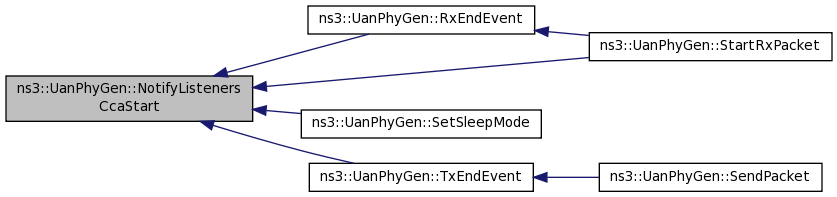

void	NotifyListenersCcaStart (void)
	Call UanListener::NotifyCcaStart on all listeners. More...

void	NotifyListenersRxBad (void)
	Call UanListener::NotifyRxEndError on all listeners. More...

void	NotifyListenersRxGood (void)
	Call UanListener::NotifyRxEndOk on all listeners. More...

void	NotifyListenersRxStart (void)
	Call UanListener::NotifyRxStart on all listeners. More...

void	NotifyListenersTxStart (Time duration)
	Call UanListener::NotifyTxStart on all listeners. More...

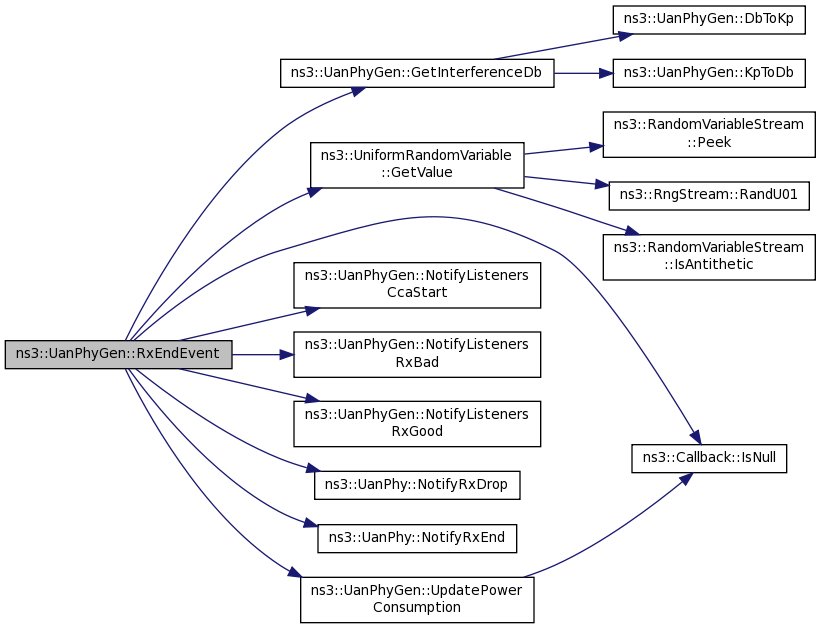

void	RxEndEvent (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode)
	Event to process end of packet reception. More...

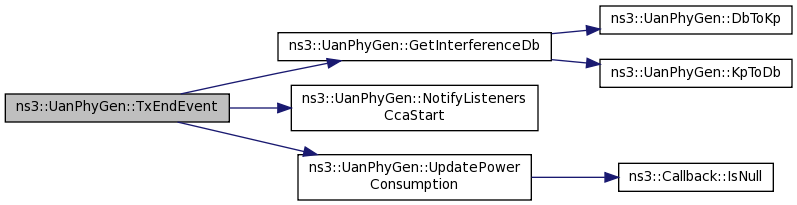

void	TxEndEvent ()
	Event to process end of packet transmission. More...

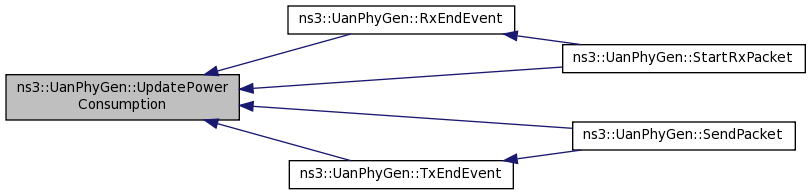

void	UpdatePowerConsumption (const State state)
	Update energy source with new state. More...

Private Attributes
double	m_ccaThreshDb
	CCA busy threshold. More...

Ptr< UanChannel >	m_channel
	Attached channel. More...

bool	m_cleared
	Flag when we've been cleared. More...

Ptr< UanNetDevice >	m_device
	Device hosting this Phy. More...

bool	m_disabled
	Energy depleted. More...

DeviceEnergyModel::ChangeStateCallback	m_energyCallback
	Energy model callback. More...

ListenerList	m_listeners
	List of listeners. More...

Ptr< UanMac >	m_mac
	MAC layer. More...

double	m_minRxSinrDb
	Minimum receive SINR during packet reception. More...

UanModesList	m_modes
	List of modes supported by this PHY. More...

Ptr< UanPhyPer >	m_per
	Error model. More...

Ptr< UniformRandomVariable >	m_pg
	Provides uniform random variables. More...

Ptr< Packet >	m_pktRx
	Received packet. More...

Time	m_pktRxArrTime
	Packet arrival time. More...

UanTxMode	m_pktRxMode
	Packet transmission mode at receiver. More...

UanPdp	m_pktRxPdp
	Power delay profile of pakket. More...

RxErrCallback	m_recErrCb
	Callback for packets received with errors. More...

RxOkCallback	m_recOkCb
	Callback for packets received without error. More...

TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxErrLogger
	A packet destined for this Phy was received with error. More...

double	m_rxGainDb
	Receive gain. More...

TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxOkLogger
	A packet destined for this Phy was received without error. More...

double	m_rxRecvPwrDb
	Receiver power. More...

double	m_rxThreshDb
	Receive SINR threshold. More...

Ptr< UanPhyCalcSinr >	m_sinr
	SINR calculator. More...

State	m_state
	Phy state. More...

Ptr< UanTransducer >	m_transducer
	Associated transducer. More...

TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_txLogger
	A packet was sent from this Phy. More...

double	m_txPwrDb
	Transmit power. More...

Additional Inherited Members
Public Types inherited from ns3::UanPhy
typedef Callback< void, Ptr < Packet >, double >	RxErrCallback
	Packet receive error callback function type. More...

typedef Callback< void, Ptr < Packet >, double, UanTxMode >	RxOkCallback
	Packet received successfully callback function type. More...

enum	State { IDLE, CCABUSY, RX, TX, SLEEP }
	Enum defining possible Phy states. More...

Detailed Description

Generic PHY model.

This is a generic PHY class. SINR and PER information are controlled via attributes. By adapting the SINR and PER models to a specific situation, this PHY should be able to model a wide variety of networks.

Config Paths

ns3::UanPhyGen is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen

Attributes

CcaThreshold: Aggregate energy of incoming signals to move to CCA Busy state dB.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
RxThreshold: Required SNR for signal acquisition in dB.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
TxPower: Transmission output power in dB.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
RxGain: Gain added to incoming signal at receiver.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
SupportedModes: List of modes supported by this PHY.
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 2|0|1|
- Flags: construct write read
PerModel: Functor to calculate PER based on SINR and TxMode.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer >
- Initial value: 0xb31f00
- Flags: construct write read
SinrModel: Functor to calculate SINR based on pkt arrivals and modes.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr >
- Initial value: 0xb31d10
- Flags: construct write read

TraceSources

RxOk: A packet was received successfully.
RxError: A packet was received unsuccessfully.
Tx: Packet transmission beginning.

TraceSources defined in parent class ns3::UanPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium.
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission.
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device.
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device.
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception.

Definition at line 219 of file uan-phy-gen.h.

Member Typedef Documentation

typedef std::list<UanPhyListener *> ns3::UanPhyGen::ListenerList

private

List of Phy Listeners.

Definition at line 280 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyGen::UanPhyGen ( )

Constructor.

Definition at line 349 of file uan-phy-gen.cc.

References m_energyCallback, m_pg, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

ns3::UanPhyGen::~UanPhyGen ( )

virtual

Dummy destructor, see DoDispose.

Definition at line 369 of file uan-phy-gen.cc.

Member Function Documentation

int64_t ns3::UanPhyGen::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream First stream index to use.

Returns: The number of stream indices assigned by this model.

Implements ns3::UanPhy.

Definition at line 874 of file uan-phy-gen.cc.

References m_pg, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

double ns3::UanPhyGen::CalculateSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		UanTxMode	mode,
		UanPdp	pdp
	)

private

Calculate the SINR value for a packet.

Parameters

pkt	Packet to calculate SINR for.
arrTime	Arrival time of pkt.
rxPowerDb	The received signal strength of the packet in dB re 1 uPa.
mode	TX Mode of pkt.
pdp	Power delay profile of pkt.

Returns: The SINR in dB re 1 uPa.

Definition at line 901 of file uan-phy-gen.cc.

References ns3::UanTxMode::GetBandwidthHz(), ns3::UanTxMode::GetCenterFreqHz(), m_channel, m_sinr, and m_transducer.

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyGen::Clear ( void )

virtual

Clear all pointer references.

Implements ns3::UanPhy.

Definition at line 375 of file uan-phy-gen.cc.

References m_channel, m_cleared, m_device, m_listeners, m_mac, m_per, m_pktRx, m_sinr, and m_transducer.

Referenced by DoDispose().

Here is the caller graph for this function:

double ns3::UanPhyGen::DbToKp ( double db )

private

Convert dB to kilopascals.

${\rm{kPa}} = {10^{\frac{{{\rm{dB}}}}{{10}}}}$

Parameters

db	Signal level in dB.

Returns: Sound pressure in kPa.

Definition at line 930 of file uan-phy-gen.cc.

Referenced by GetInterferenceDb().

Here is the caller graph for this function:

void ns3::UanPhyGen::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 417 of file uan-phy-gen.cc.

References Clear(), ns3::Object::DoDispose(), m_energyCallback, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

void ns3::UanPhyGen::EnergyDepletionHandler ( void )

virtual

Handle the energy depletion event.

Implements ns3::UanPhy.

Definition at line 507 of file uan-phy-gen.cc.

References m_device, m_disabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

double ns3::UanPhyGen::GetCcaThresholdDb ( void )

virtual

Get the CCA threshold signal strength required to detect channel busy.

Returns: The CCA threshold signal strength in dB.

Implements ns3::UanPhy.

Definition at line 796 of file uan-phy-gen.cc.

References m_ccaThreshDb.

Ptr< UanChannel > ns3::UanPhyGen::GetChannel ( void ) const

virtual

Get the attached channel.

Returns: The channel.

Implements ns3::UanPhy.

Definition at line 802 of file uan-phy-gen.cc.

References m_channel.

UanModesList ns3::UanPhyGen::GetDefaultModes ( void )

static

Get the default transmission modes.

Returns: The default mode list.

Definition at line 425 of file uan-phy-gen.cc.

References ns3::UanModesList::AppendMode(), ns3::UanTxModeFactory::CreateMode(), ns3::UanTxMode::FSK, and ns3::UanTxMode::PSK.

Referenced by ns3::UanPhyDual::GetTypeId(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< UanNetDevice > ns3::UanPhyGen::GetDevice ( void )

virtual

Get the device hosting this Phy.

Returns: The net device.

Implements ns3::UanPhy.

Definition at line 808 of file uan-phy-gen.cc.

References m_device.

double ns3::UanPhyGen::GetInterferenceDb ( Ptr< Packet > pkt )

private

Calculate interference power from overlapping packet arrivals, in dB.

The "signal" packet power is excluded. Use GetInterferenceDb ( (Ptr<Packet>) 0) to treat all signals as interference, for instance in calculating the CCA busy.

Parameters

pkt	The arriving (signal) packet.

Returns: The total interference power, in dB.

Definition at line 908 of file uan-phy-gen.cc.

References DbToKp(), KpToDb(), and m_transducer.

Referenced by NotifyIntChange(), RxEndEvent(), SetSleepMode(), StartRxPacket(), and TxEndEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

UanTxMode ns3::UanPhyGen::GetMode ( uint32_t n )

virtual

Get a specific transmission mode.

Parameters

n	The mode number.

Returns: The mode.

Implements ns3::UanPhy.

Definition at line 1004 of file uan-phy-gen.cc.

References ns3::UanModesList::GetNModes(), m_modes, and NS_ASSERT.

Referenced by SendPacket(), and StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::UanPhyGen::GetNModes ( void )

virtual

Get the number of transmission modes supported by this Phy.

Returns: The number modes.

Implements ns3::UanPhy.

Definition at line 998 of file uan-phy-gen.cc.

References ns3::UanModesList::GetNModes(), and m_modes.

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::UanPhyGen::GetPacketRx ( void ) const

virtual

Get the packet currently being received.

Warning: Returns non-valid pointer if IsStateRx == false.

Returns: The packet.

Implements ns3::UanPhy.

Definition at line 1012 of file uan-phy-gen.cc.

References m_pktRx.

double ns3::UanPhyGen::GetRxGainDb ( void )

virtual

Get the receiver gain added to signal at receiver in dB.

Returns: The gain.

Implements ns3::UanPhy.

Definition at line 780 of file uan-phy-gen.cc.

References m_rxGainDb.

double ns3::UanPhyGen::GetRxThresholdDb ( void )

virtual

Get the minimum received signal strength required to receive a packet without errors.

Returns: The minimum required signal strength, in dB.

Implements ns3::UanPhy.

Definition at line 791 of file uan-phy-gen.cc.

References m_rxThreshDb.

Ptr< UanTransducer > ns3::UanPhyGen::GetTransducer ( void )

virtual

Get the attached transducer.

Returns: The transducer.

Implements ns3::UanPhy.

Definition at line 814 of file uan-phy-gen.cc.

References m_transducer.

double ns3::UanPhyGen::GetTxPowerDb ( void )

virtual

Get the current transmit power, in dB.

Returns: The transmit power.

Implements ns3::UanPhy.

Definition at line 785 of file uan-phy-gen.cc.

References m_txPwrDb.

TypeId ns3::UanPhyGen::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 433 of file uan-phy-gen.cc.

References GetDefaultModes(), m_ccaThreshDb, m_modes, m_per, m_rxErrLogger, m_rxGainDb, m_rxOkLogger, m_rxThreshDb, m_sinr, m_txLogger, m_txPwrDb, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::UanPhyGen::IsStateBusy ( void )

virtual

Returns: True if Phy is neither IDLE nor SLEEP.

Implements ns3::UanPhy.

Definition at line 736 of file uan-phy-gen.cc.

References IsStateIdle(), and IsStateSleep().

Here is the call graph for this function:

bool ns3::UanPhyGen::IsStateCcaBusy ( void )

virtual

Returns: True if Phy is in CCABUSY state.

Implements ns3::UanPhy.

Definition at line 752 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, and m_state.

bool ns3::UanPhyGen::IsStateIdle ( void )

virtual

Returns: True if Phy is in IDLE state.

Implements ns3::UanPhy.

Definition at line 731 of file uan-phy-gen.cc.

References ns3::UanPhy::IDLE, and m_state.

Referenced by IsStateBusy().

Here is the caller graph for this function:

bool ns3::UanPhyGen::IsStateRx ( void )

virtual

Returns: True if Phy is currently in receive mode.

Implements ns3::UanPhy.

Definition at line 741 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::RX.

bool ns3::UanPhyGen::IsStateSleep ( void )

virtual

Returns: True if Phy is in SLEEP state.

Implements ns3::UanPhy.

Definition at line 726 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::SLEEP.

Referenced by IsStateBusy().

Here is the caller graph for this function:

bool ns3::UanPhyGen::IsStateTx ( void )

virtual

Returns: True if Phy is busy transmitting.

Implements ns3::UanPhy.

Definition at line 746 of file uan-phy-gen.cc.

References m_state, and ns3::UanPhy::TX.

double ns3::UanPhyGen::KpToDb ( double kp )

private

Convert kilopascals to dB.

${\rm{dB}} = 10{\log _{10}}{\rm{kPa}}$

Parameters

kp	Sound pressure in kPa.

Returns: Signal level in dB.

Definition at line 935 of file uan-phy-gen.cc.

Referenced by GetInterferenceDb().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyIntChange ( void )

virtual

Called when there has been a change in the ammount of interference this node is experiencing from other transmissions.

Implements ns3::UanPhy.

Definition at line 891 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UanPhy::IDLE, m_ccaThreshDb, m_state, and NotifyListenersCcaEnd().

Here is the call graph for this function:

void ns3::UanPhyGen::NotifyListenersCcaEnd ( void )

private

Call UanListener::NotifyCcaEnd on all listeners.

Definition at line 978 of file uan-phy-gen.cc.

References m_listeners.

Referenced by NotifyIntChange().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersCcaStart ( void )

private

Call UanListener::NotifyCcaStart on all listeners.

Definition at line 969 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent(), SetSleepMode(), StartRxPacket(), and TxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxBad ( void )

private

Call UanListener::NotifyRxEndError on all listeners.

Definition at line 960 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxGood ( void )

private

Call UanListener::NotifyRxEndOk on all listeners.

Definition at line 951 of file uan-phy-gen.cc.

References m_listeners.

Referenced by RxEndEvent().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersRxStart ( void )

private

Call UanListener::NotifyRxStart on all listeners.

Definition at line 941 of file uan-phy-gen.cc.

References m_listeners.

Referenced by StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyListenersTxStart ( Time duration )

private

Call UanListener::NotifyTxStart on all listeners.

Parameters

duration Duration of transmission.

Definition at line 988 of file uan-phy-gen.cc.

References m_listeners.

Referenced by SendPacket().

Here is the caller graph for this function:

void ns3::UanPhyGen::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

virtual

Called when a transmission is beginning on the attched transducer.

Parameters

packet	Packet that is beginning transmission.
txPowerDb	Transmit power of packet.
txMode	Transmission mode of packet.

Implements ns3::UanPhy.

Definition at line 882 of file uan-phy-gen.cc.

References m_minRxSinrDb, and m_pktRx.

void ns3::UanPhyGen::RegisterListener ( UanPhyListener * listener )

virtual

Register a UanPhyListener to be notified of common UanPhy events.

Parameters

listener New listener to register.

Implements ns3::UanPhy.

Definition at line 578 of file uan-phy-gen.cc.

References m_listeners.

void ns3::UanPhyGen::RxEndEvent	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode
	)

private

Event to process end of packet reception.

Parameters

pkt	The packet.
rxPowerDb	Received signal power.
txMode	Transmission mode.

Definition at line 664 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UniformRandomVariable::GetValue(), ns3::UanPhy::IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ccaThreshDb, m_disabled, m_minRxSinrDb, m_per, m_pg, m_pktRx, m_recErrCb, m_recOkCb, m_rxErrLogger, m_rxOkLogger, m_state, NotifyListenersCcaStart(), NotifyListenersRxBad(), NotifyListenersRxGood(), ns3::UanPhy::NotifyRxDrop(), ns3::UanPhy::NotifyRxEnd(), NS_LOG_DEBUG, ns3::UanPhy::SLEEP, and UpdatePowerConsumption().

Referenced by StartRxPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyGen::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

virtual

Send a packet using a specific transmission mode.

Parameters

pkt	Packet to transmit.
modeNum	Index of mode in SupportedModes list to use for transmission.

Implements ns3::UanPhy.

Definition at line 517 of file uan-phy-gen.cc.

References ns3::UanTxMode::GetDataRateBps(), GetMode(), ns3::Packet::GetSize(), m_disabled, m_mac, m_minRxSinrDb, m_pktRx, m_state, m_transducer, m_txLogger, m_txPwrDb, NotifyListenersTxStart(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), ns3::UanPhy::SLEEP, ns3::UanPhy::TX, TxEndEvent(), and UpdatePowerConsumption().

Here is the call graph for this function:

void ns3::UanPhyGen::SetCcaThresholdDb ( double thresh )

virtual

Set the threshold for detecting channel busy.

Parameters

thresh Signal power threshold at receiver.

Implements ns3::UanPhy.

Definition at line 775 of file uan-phy-gen.cc.

References m_ccaThreshDb.

void ns3::UanPhyGen::SetChannel ( Ptr< UanChannel > channel )

virtual

Attach to a channel.

Parameters

channel The channel to attach to.

Implements ns3::UanPhy.

Definition at line 819 of file uan-phy-gen.cc.

References m_channel.

void ns3::UanPhyGen::SetDevice ( Ptr< UanNetDevice > device )

virtual

Set the device hosting this Phy.

Parameters

device The device.

Implements ns3::UanPhy.

Definition at line 825 of file uan-phy-gen.cc.

References m_device.

void ns3::UanPhyGen::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

virtual

Set the DeviceEnergyModel callback for UanPhy device.

Parameters

callback The DeviceEnergyModel change state callback.

Implements ns3::UanPhy.

Definition at line 489 of file uan-phy-gen.cc.

References m_energyCallback, and NS_LOG_FUNCTION.

void ns3::UanPhyGen::SetMac ( Ptr< UanMac > mac )

virtual

Set the MAC forwarding messages to this Phy.

Parameters

mac The MAC.

Implements ns3::UanPhy.

Definition at line 831 of file uan-phy-gen.cc.

References m_mac.

void ns3::UanPhyGen::SetReceiveErrorCallback ( RxErrCallback cb )

virtual

Set the callback to be used when a packet is received with errors.

Parameters

cb	The callback.

Implements ns3::UanPhy.

Definition at line 721 of file uan-phy-gen.cc.

References m_recErrCb.

void ns3::UanPhyGen::SetReceiveOkCallback ( RxOkCallback cb )

virtual

Set the callback to be used when a packet is received without error.

Parameters

cb	The callback.

Implements ns3::UanPhy.

Definition at line 715 of file uan-phy-gen.cc.

References m_recOkCb.

void ns3::UanPhyGen::SetRxGainDb ( double gain )

virtual

Set the receiver gain.

Parameters

gain	Gain added at receiver, in dB.

Implements ns3::UanPhy.

Definition at line 759 of file uan-phy-gen.cc.

References m_rxGainDb.

void ns3::UanPhyGen::SetRxThresholdDb ( double thresh )

virtual

Set the minimum SINR threshold to receive a packet without errors.

Deprecated:: See UanPhyPer.

Parameters

thresh Threshold SINR for propper reception in dB re 1 uPa.

Implements ns3::UanPhy.

Definition at line 770 of file uan-phy-gen.cc.

References m_rxThreshDb.

void ns3::UanPhyGen::SetSleepMode ( bool sleep )

virtual

Set the Phy SLEEP mode.

Parameters

sleep SLEEP on or off.

Implements ns3::UanPhy.

Definition at line 844 of file uan-phy-gen.cc.

References ns3::UanPhy::CCABUSY, GetInterferenceDb(), ns3::UanPhy::IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ccaThreshDb, m_energyCallback, m_state, NotifyListenersCcaStart(), and ns3::UanPhy::SLEEP.

Here is the call graph for this function:

void ns3::UanPhyGen::SetTransducer ( Ptr< UanTransducer > trans )

virtual

Attach a transducer to this Phy.

Parameters

trans The transducer.

Implements ns3::UanPhy.

Definition at line 837 of file uan-phy-gen.cc.

References m_transducer.

void ns3::UanPhyGen::SetTxPowerDb ( double txpwr )

virtual

Set the transmit power.

Parameters

txpwr Final output transmission power, in dB.

Implements ns3::UanPhy.

Definition at line 765 of file uan-phy-gen.cc.

References m_txPwrDb.

void ns3::UanPhyGen::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

virtual

Packet arriving from channel: i.e.

leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving.
rxPowerDb	Signal power of incoming packet in dB re 1 uPa.
txMode	Transmission mode defining modulation of incoming packet.
pdp	Power delay profile of incoming packet.

Implements ns3::UanPhy.

Definition at line 585 of file uan-phy-gen.cc.

References CalculateSinrDb(), ns3::UanPhy::CCABUSY, ns3::UanTxMode::GetDataRateBps(), GetInterferenceDb(), GetMode(), GetNModes(), ns3::Packet::GetSize(), ns3::UanTxMode::GetUid(), ns3::UanPhy::IDLE, m_ccaThreshDb, m_disabled, m_mac, m_minRxSinrDb, m_pktRx, m_pktRxArrTime, m_pktRxMode, m_pktRxPdp, m_rxRecvPwrDb, m_rxThreshDb, m_state, NotifyListenersCcaStart(), NotifyListenersRxStart(), ns3::UanPhy::NotifyRxBegin(), ns3::UanPhy::NotifyRxDrop(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::UanPhy::RX, RxEndEvent(), ns3::Simulator::Schedule(), ns3::UanPhy::SLEEP, ns3::UanPhy::TX, and UpdatePowerConsumption().
