ns3::AcousticModemEnergyModel Class Reference

WHOI micro-modem energy model. More...

#include <acoustic-modem-energy-model.h>

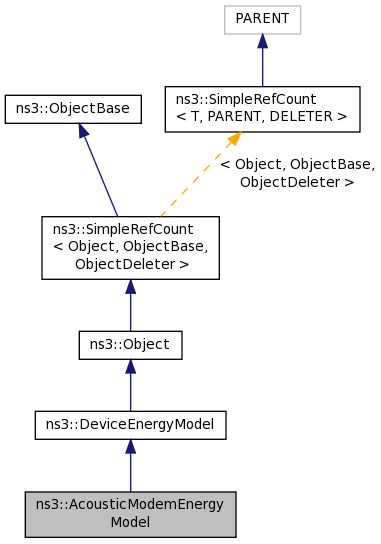

Inheritance diagram for ns3::AcousticModemEnergyModel:

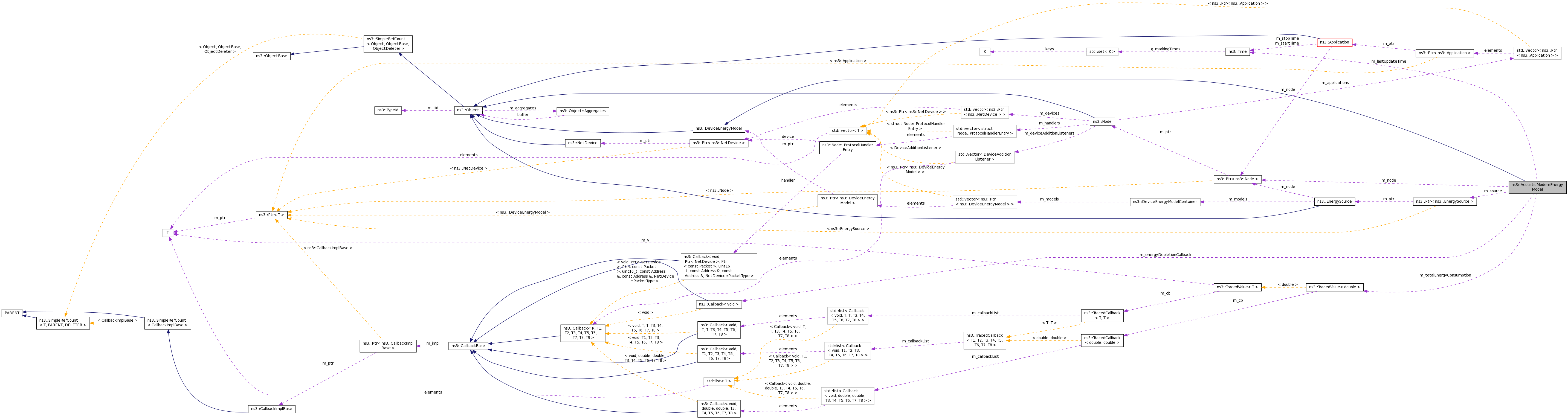

Collaboration diagram for ns3::AcousticModemEnergyModel:

Public Types
typedef Callback< void >	AcousticModemEnergyDepletionCallback
	Callback type for energy depletion handling. More...
Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback
	Callback type for ChangeState function. More...

Public Member Functions
	AcousticModemEnergyModel ()
	Constructor. More...
virtual	~AcousticModemEnergyModel ()
	Dummy destructor, see DoDispose. More...
virtual void	ChangeState (int newState)
	Changes state of the AcousticModemEnergyModel. More...
int	GetCurrentState (void) const
	Get the current state of the modem. More...
double	GetIdlePowerW (void) const
	Get the idle power of the modem. More...
virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node. More...
double	GetRxPowerW (void) const
	Get the recieving power. More...
double	GetSleepPowerW (void) const
	Get the sleep state power of the modem. More...
virtual double	GetTotalEnergyConsumption (void) const
double	GetTxPowerW (void) const
	Get the transmission power of the modem. More...
virtual void	HandleEnergyDepletion (void)
	Handles energy depletion. More...
void	SetEnergyDepletionCallback (AcousticModemEnergyDepletionCallback callback)
virtual void	SetEnergySource (Ptr< EnergySource > source)
void	SetIdlePowerW (double idlePowerW)
	Set the idle state power of the modem. More...
virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node. More...
void	SetRxPowerW (double rxPowerW)
	Set the receiving power of the modem. More...
void	SetSleepPowerW (double sleepPowerW)
	Set the sleep power of the modem. More...
void	SetTxPowerW (double txPowerW)
	Set the transmission power of the modem. More...
Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()
virtual	~DeviceEnergyModel ()
double	GetCurrentA (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::DeviceEnergyModel
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...
virtual double	DoGetCurrentA (void) const
bool	IsStateTransitionValid (const int destState)
void	SetMicroModemState (const int state)

Private Attributes
int	m_currentState
	Current modem state. More...
AcousticModemEnergyDepletionCallback	m_energyDepletionCallback
	Energy depletion callback. More...
double	m_idlePowerW
	The idle power, in watts. More...
Time	m_lastUpdateTime
	Time stamp of previous energy update. More...
Ptr< Node >	m_node
	The node hosting this transducer. More...
double	m_rxPowerW
	The receiver power, in watts. More...
double	m_sleepPowerW
	The sleep power, in watts. More...
Ptr< EnergySource >	m_source
	The energy source. More...
TracedValue< double >	m_totalEnergyConsumption
	The total energy consumed by this model. More...
double	m_txPowerW
	The transmitter power, in watts. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...
virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

WHOI micro-modem energy model.

Doxygen introspection did not find any typical Config paths.

Basing on the Device Energy Model interface, has been implemented a specific energy model for the WHOI micro modem. The class follows pretty closely the RadioEnergyModel class as the transducer behaviour is pretty close to the one of a wifi radio, with identical states (rx, tx, idle, sleep).

The power consumption values implemented into the model are as follows [1]:

Modem State Power Consumption TX 50 W RX 158 mW Idle 158 mW Sleep 5.8 mW

References: [1] Freitag et al., The whoi micro-modem: an acoustic communications and navigation system for multiple platforms, in In Proc. IEEE OCEANS05 Conf, 2005. URL: http://ieeexplore.ieee.org/iel5/10918/34367/01639901.pdf

Attributes

• TxPowerW: The modem Tx power in Watts
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 50
  • Flags: construct write read
• RxPowerW: The modem Rx power in Watts
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.158
  • Flags: construct write read
• IdlePowerW: The modem Idle power in Watts
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.158
  • Flags: construct write read
• SleepPowerW: The modem Sleep power in Watts
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.0058
  • Flags: construct write read

TraceSources

• TotalEnergyConsumption: Total energy consumption of the modem device.

Definition at line 55 of file acoustic-modem-energy-model.h.

Member Typedef Documentation

typedef Callback<void> ns3::AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback

Callback type for energy depletion handling.

Definition at line 59 of file acoustic-modem-energy-model.h.

Constructor & Destructor Documentation

ns3::AcousticModemEnergyModel::AcousticModemEnergyModel

(

)

Constructor.

Definition at line 74 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, m_currentState, m_energyDepletionCallback, m_lastUpdateTime, m_node, m_source, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

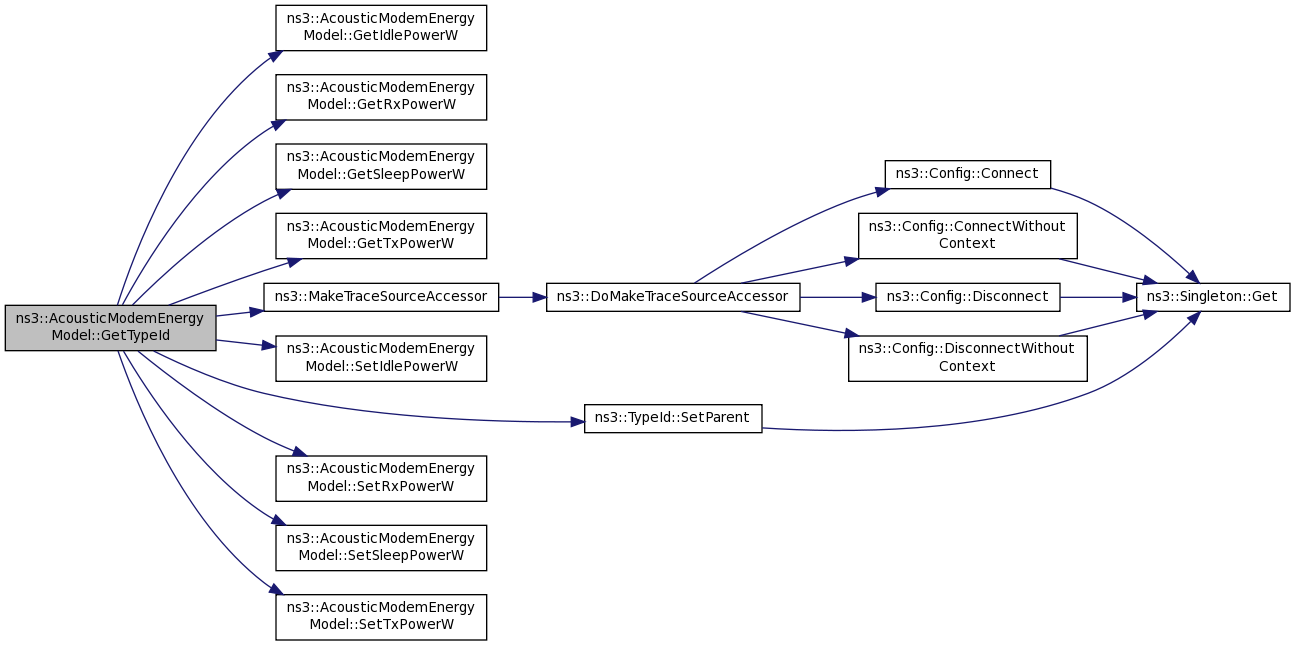

Here is the call graph for this function:

ns3::AcousticModemEnergyModel::~AcousticModemEnergyModel ( )

virtual

Dummy destructor, see DoDispose.

Definition at line 84 of file acoustic-modem-energy-model.cc.

Member Function Documentation

void ns3::AcousticModemEnergyModel::ChangeState ( int  newState )

virtual

Changes state of the AcousticModemEnergyModel.

Parameters

newState

New state the modem is in.

Implements ns3::DeviceEnergyModel.

Definition at line 193 of file acoustic-modem-energy-model.cc.

References ns3::Node::GetId(), ns3::Time::GetNanoSeconds(), ns3::Time::GetSeconds(), ns3::UanPhy::IDLE, m_currentState, m_idlePowerW, m_lastUpdateTime, m_node, m_rxPowerW, m_sleepPowerW, m_source, m_totalEnergyConsumption, m_txPowerW, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UanPhy::RX, SetMicroModemState(), ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

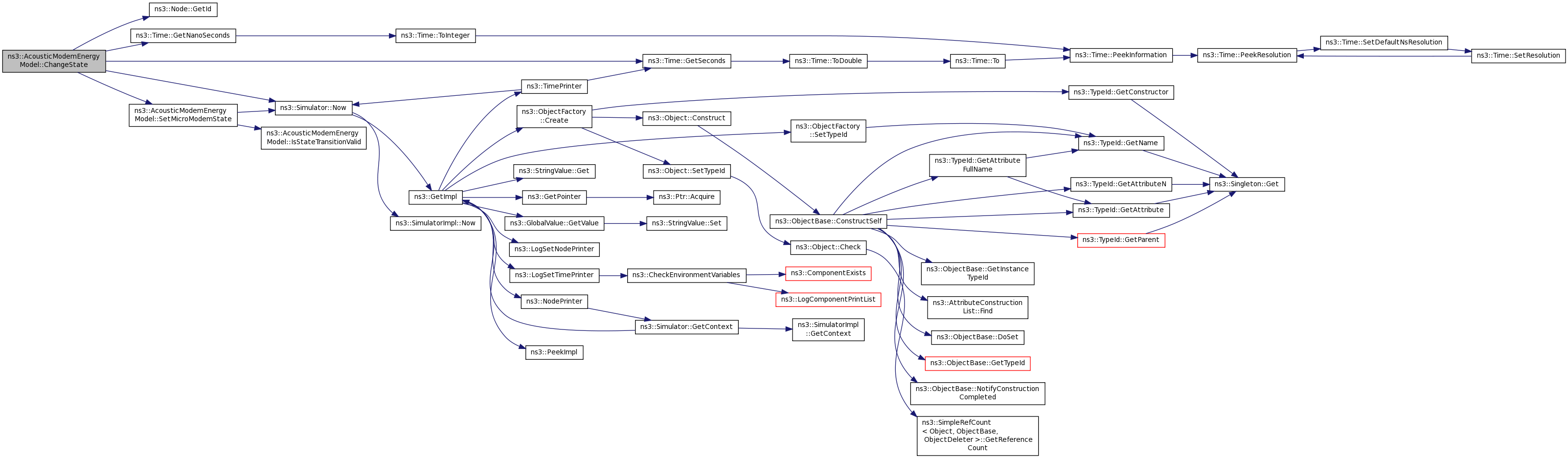

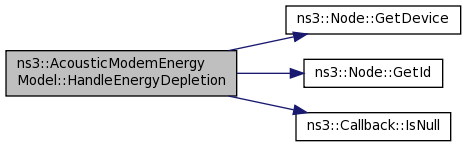

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::DoDispose ( void  )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 260 of file acoustic-modem-energy-model.cc.

References m_energyDepletionCallback, m_node, m_source, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

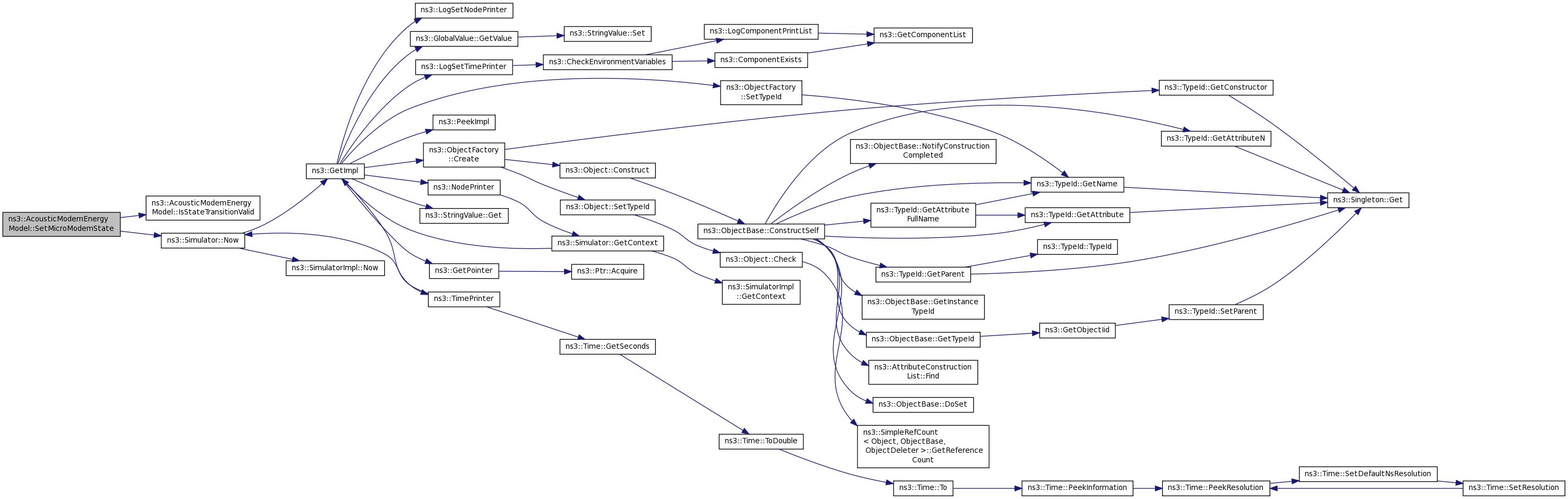

Here is the call graph for this function:

double ns3::AcousticModemEnergyModel::DoGetCurrentA ( void  ) const

privatevirtual

Returns

Current draw of device, at current state.

Reimplemented from ns3::DeviceEnergyModel.

Definition at line 269 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, m_currentState, m_idlePowerW, m_rxPowerW, m_sleepPowerW, m_source, m_txPowerW, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::UanPhy::RX, ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

int ns3::AcousticModemEnergyModel::GetCurrentState

(

void

)

const

Get the current state of the modem.

Returns

Current state.

Definition at line 174 of file acoustic-modem-energy-model.cc.

References m_currentState, and NS_LOG_FUNCTION.

double ns3::AcousticModemEnergyModel::GetIdlePowerW

(

void

)

const

Get the idle power of the modem.

Returns

The idle power in Watts

Definition at line 146 of file acoustic-modem-energy-model.cc.

References m_idlePowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< Node > ns3::AcousticModemEnergyModel::GetNode ( void  ) const

virtual

Gets pointer to node.

Returns

Pointer to node.

Definition at line 97 of file acoustic-modem-energy-model.cc.

References m_node.

double ns3::AcousticModemEnergyModel::GetRxPowerW

(

void

)

const

Get the recieving power.

Returns

The receiving power in Watts

Definition at line 132 of file acoustic-modem-energy-model.cc.

References m_rxPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::AcousticModemEnergyModel::GetSleepPowerW

(

void

)

const

Get the sleep state power of the modem.

Returns

Sleep power of the modem in Watts

Definition at line 160 of file acoustic-modem-energy-model.cc.

References m_sleepPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::AcousticModemEnergyModel::GetTotalEnergyConsumption ( void  ) const

virtual

Returns

Total energy consumption of the device.

DeviceEnergyModel records its own energy consumption during simulation.

Implements ns3::DeviceEnergyModel.

Definition at line 111 of file acoustic-modem-energy-model.cc.

References m_totalEnergyConsumption, and NS_LOG_FUNCTION.

double ns3::AcousticModemEnergyModel::GetTxPowerW

(

void

)

const

Get the transmission power of the modem.

Returns

The transmission power in Watts.

Definition at line 118 of file acoustic-modem-energy-model.cc.

References m_txPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::AcousticModemEnergyModel::GetTypeId ( void  )

static

Register this type.

Returns

The object TypeId.

Definition at line 38 of file acoustic-modem-energy-model.cc.

References GetIdlePowerW(), GetRxPowerW(), GetSleepPowerW(), GetTxPowerW(), m_totalEnergyConsumption, ns3::MakeTraceSourceAccessor(), SetIdlePowerW(), ns3::TypeId::SetParent(), SetRxPowerW(), SetSleepPowerW(), and SetTxPowerW().

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::HandleEnergyDepletion ( void  )

virtual

Handles energy depletion.

Implements ns3::DeviceEnergyModel.

Definition at line 240 of file acoustic-modem-energy-model.cc.

References ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, m_node, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::AcousticModemEnergyModel::IsStateTransitionValid ( const int  destState )

private

Parameters

destState

Modem state to switch to.

Returns

True if the transition is allowed.

This function checks if a given modem state transition is allowed.

Definition at line 298 of file acoustic-modem-energy-model.cc.

References NS_LOG_FUNCTION.

Referenced by SetMicroModemState().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetEnergyDepletionCallback

(

AcousticModemEnergyDepletionCallback

callback

)

Parameters

callback

Callback function.

Sets callback for energy depletion handling.

Definition at line 181 of file acoustic-modem-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::SetEnergySource ( Ptr< EnergySource >  source )

virtual

Parameters

source

Pointer to energy source installed on node.

This function sets the pointer to energy source installed on node. Should be called only by DeviceEnergyModel helper classes.

Implements ns3::DeviceEnergyModel.

Definition at line 103 of file acoustic-modem-energy-model.cc.

References m_source, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::AcousticModemEnergyModel::SetIdlePowerW

(

double

idlePowerW

)

Set the idle state power of the modem.

Parameters

idlePowerW

Idle power of the modem in watts.

Definition at line 153 of file acoustic-modem-energy-model.cc.

References m_idlePowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetMicroModemState ( const int  state )

private

Parameters

state

New state the modem is currently in.

Sets current state. This function is private so that only the energy model can change its own state.

Definition at line 305 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, IsStateTransitionValid(), m_currentState, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UanPhy::RX, ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

Referenced by ChangeState().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetNode ( Ptr< Node >  node )

virtual

Sets pointer to node.

Parameters

node	Pointer to node.

Definition at line 89 of file acoustic-modem-energy-model.cc.

References m_node, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::AcousticModemEnergyModel::SetRxPowerW

(

double

rxPowerW

)

Set the receiving power of the modem.

Parameters

rxPowerW

Receiving power in watts

Definition at line 139 of file acoustic-modem-energy-model.cc.

References m_rxPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetSleepPowerW

(

double

sleepPowerW

)

Set the sleep power of the modem.

Parameters

sleepPowerW

Sleep power of the modem in watts.

Definition at line 167 of file acoustic-modem-energy-model.cc.

References m_sleepPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetTxPowerW

(

double

txPowerW

)

Set the transmission power of the modem.

Parameters

txPowerW

Transmission power in watts.

Definition at line 125 of file acoustic-modem-energy-model.cc.

References m_txPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

int ns3::AcousticModemEnergyModel::m_currentState

private

Current modem state.

Definition at line 211 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoGetCurrentA(), GetCurrentState(), and SetMicroModemState().

AcousticModemEnergyDepletionCallback ns3::AcousticModemEnergyModel::m_energyDepletionCallback

private

Energy depletion callback.

Definition at line 215 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), DoDispose(), HandleEnergyDepletion(), and SetEnergyDepletionCallback().

double ns3::AcousticModemEnergyModel::m_idlePowerW

private

The idle power, in watts.

Definition at line 204 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetIdlePowerW(), and SetIdlePowerW().

Time ns3::AcousticModemEnergyModel::m_lastUpdateTime

private

Time stamp of previous energy update.

Definition at line 212 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), and ChangeState().

Ptr<Node> ns3::AcousticModemEnergyModel::m_node

private

The node hosting this transducer.

Definition at line 198 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoDispose(), GetNode(), HandleEnergyDepletion(), and SetNode().

double ns3::AcousticModemEnergyModel::m_rxPowerW

private

The receiver power, in watts.

Definition at line 203 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetRxPowerW(), and SetRxPowerW().

double ns3::AcousticModemEnergyModel::m_sleepPowerW

private

The sleep power, in watts.

Definition at line 205 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetSleepPowerW(), and SetSleepPowerW().

Ptr<EnergySource> ns3::AcousticModemEnergyModel::m_source

private

The energy source.

Definition at line 199 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoDispose(), DoGetCurrentA(), and SetEnergySource().

TracedValue<double> ns3::AcousticModemEnergyModel::m_totalEnergyConsumption

private

The total energy consumed by this model.

Definition at line 208 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), GetTotalEnergyConsumption(), and GetTypeId().

double ns3::AcousticModemEnergyModel::m_txPowerW

private

The transmitter power, in watts.

Definition at line 202 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetTxPowerW(), and SetTxPowerW().

---

The documentation for this class was generated from the following files:

• src/uan/model/acoustic-modem-energy-model.h
• src/uan/model/acoustic-modem-energy-model.cc
