Helper class to allow easy installation of 802.11s stack. More...

#include <dot11s-installer.h>

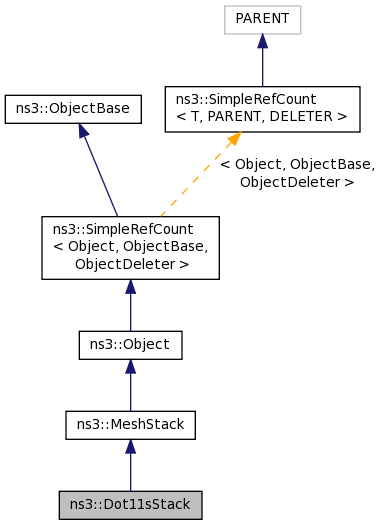

Inheritance diagram for ns3::Dot11sStack:

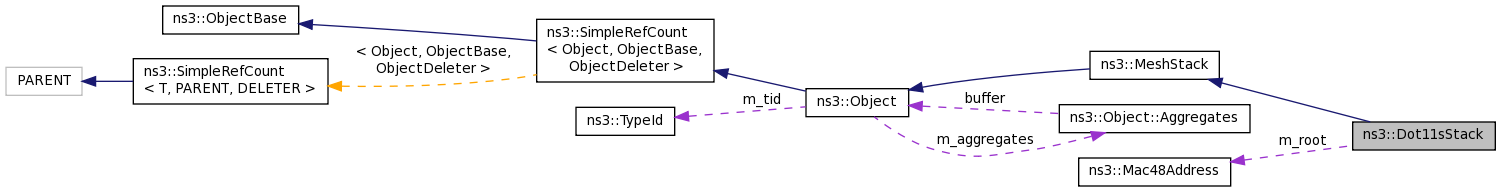

Collaboration diagram for ns3::Dot11sStack:

Public Member Functions
	Dot11sStack ()
	Create a Dot11sStack() installer helper. More...

	~Dot11sStack ()
	Destroy a Dot11sStack() installer helper. More...

void	DoDispose ()
	Break any reference cycles in the installer helper. More...

bool	InstallStack (Ptr< MeshPointDevice > mp)
	Install an 802.11s stack. More...

void	Report (const Ptr< MeshPointDevice > mp, std::ostream &)
	Iterate through the referenced devices and protocols and print their statistics. More...

void	ResetStats (const Ptr< MeshPointDevice > mp)
	Reset the statistics on the referenced devices and protocols. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac48Address	m_root

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Helper class to allow easy installation of 802.11s stack.

Doxygen introspection did not find any typical Config paths.

Attributes

Root: The MAC address of root mesh point.
- Set with class: Mac48AddressValue
- Underlying type: Mac48Address
- Initial value: ff:ff:ff:ff:ff:ff
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 31 of file dot11s-installer.h.

Constructor & Destructor Documentation

ns3::Dot11sStack::Dot11sStack ( )

Create a Dot11sStack() installer helper.

Definition at line 44 of file dot11s-installer.cc.

ns3::Dot11sStack::~Dot11sStack ( )

Destroy a Dot11sStack() installer helper.

Definition at line 48 of file dot11s-installer.cc.

Member Function Documentation

void ns3::Dot11sStack::DoDispose ( void )

virtual

Break any reference cycles in the installer helper.

Required for ns-3 Object support.

Reimplemented from ns3::Object.

Definition at line 52 of file dot11s-installer.cc.

TypeId ns3::Dot11sStack::GetTypeId ( void )

static

Internal:

Definition at line 32 of file dot11s-installer.cc.

References m_root, and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Dot11sStack::InstallStack ( Ptr< MeshPointDevice > mp )

virtual

Install an 802.11s stack.

Parameters

mp	The Ptr<MeshPointDevice> to use when setting up the PMP.

Implements ns3::MeshStack.

Definition at line 56 of file dot11s-installer.cc.

References ns3::dot11s::PeerManagementProtocol::GetPeers(), m_root, ns3::MakeCallback(), ns3::PeekPointer(), and ns3::dot11s::HwmpProtocol::PeerLinkStatus().

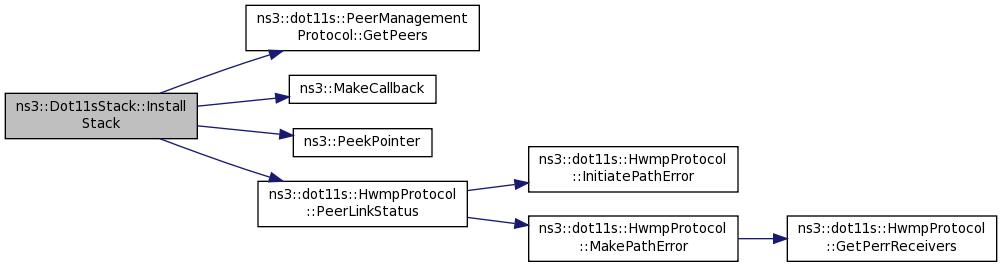

Here is the call graph for this function:

void ns3::Dot11sStack::Report	(	const Ptr< MeshPointDevice >	mp,
		std::ostream &	os
	)

virtual

Iterate through the referenced devices and protocols and print their statistics.

Implements ns3::MeshStack.

Definition at line 84 of file dot11s-installer.cc.

References NS_ASSERT.

void ns3::Dot11sStack::ResetStats ( const Ptr< MeshPointDevice > mp )

virtual

Reset the statistics on the referenced devices and protocols.

Implements ns3::MeshStack.

Definition at line 106 of file dot11s-installer.cc.

References NS_ASSERT.

Member Data Documentation

Mac48Address ns3::Dot11sStack::m_root

private

Definition at line 72 of file dot11s-installer.h.

Referenced by GetTypeId(), and InstallStack().

The documentation for this class was generated from the following files:

src/mesh/helper/dot11s/dot11s-installer.h
src/mesh/helper/dot11s/dot11s-installer.cc
