A Device for a Point to Point Network Link. More...

#include <point-to-point-net-device.h>

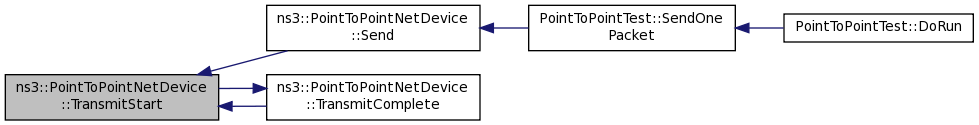

Inheritance diagram for ns3::PointToPointNetDevice:

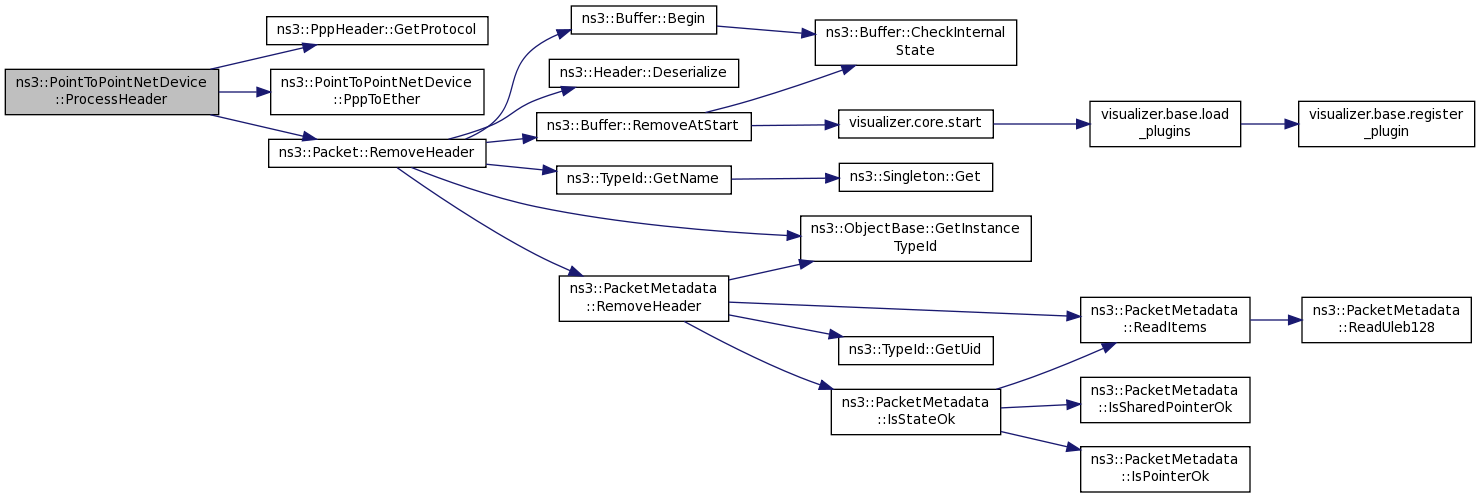

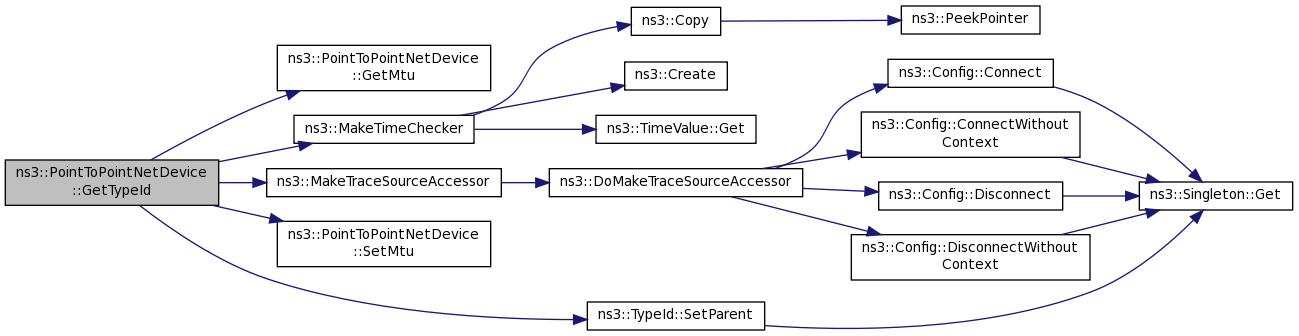

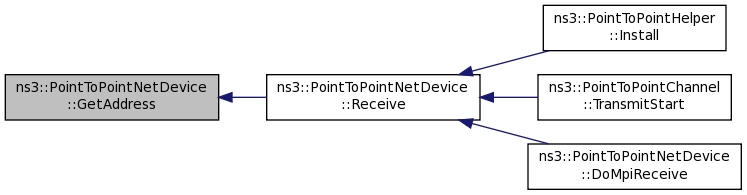

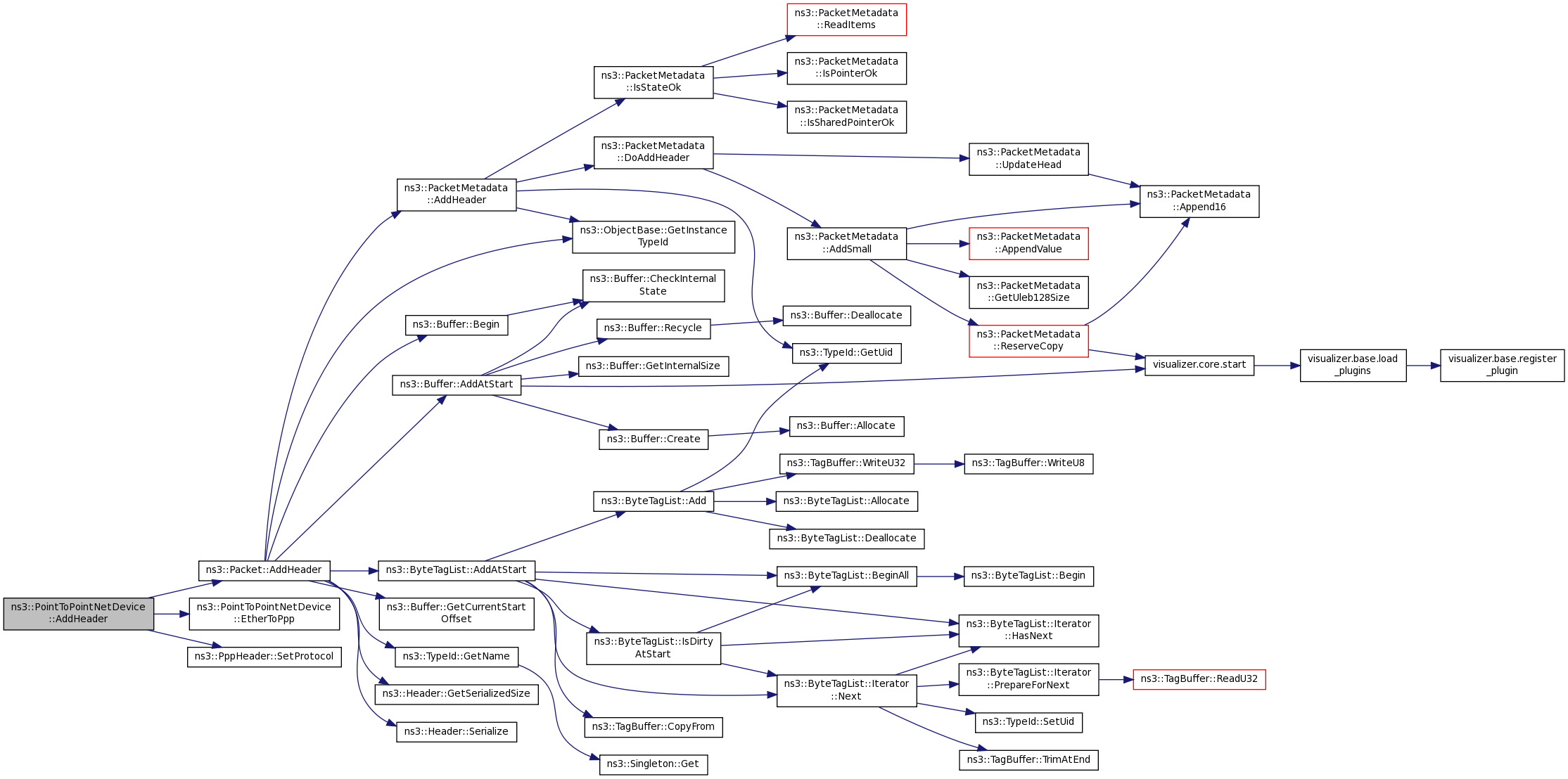

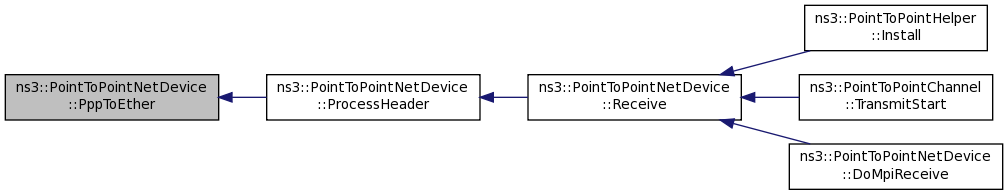

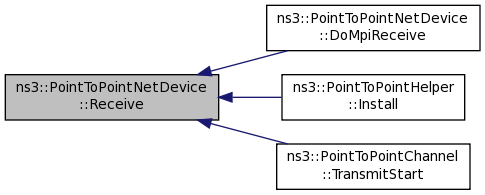

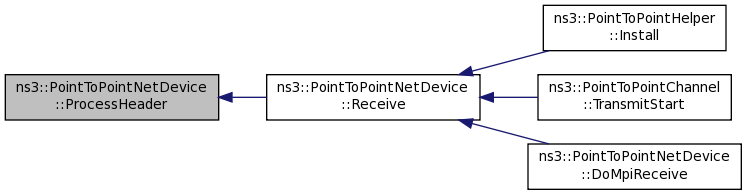

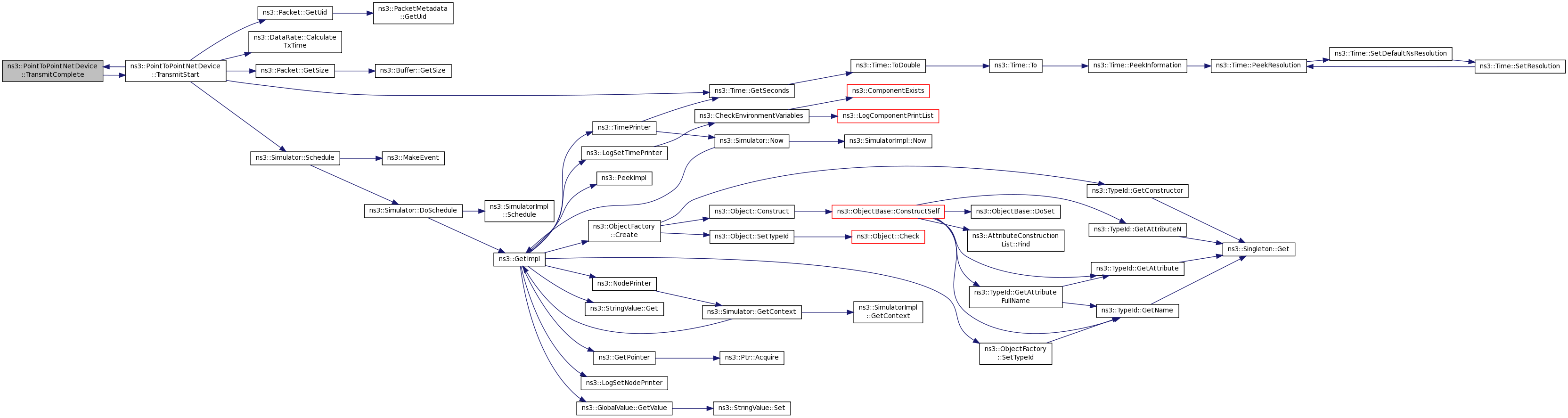

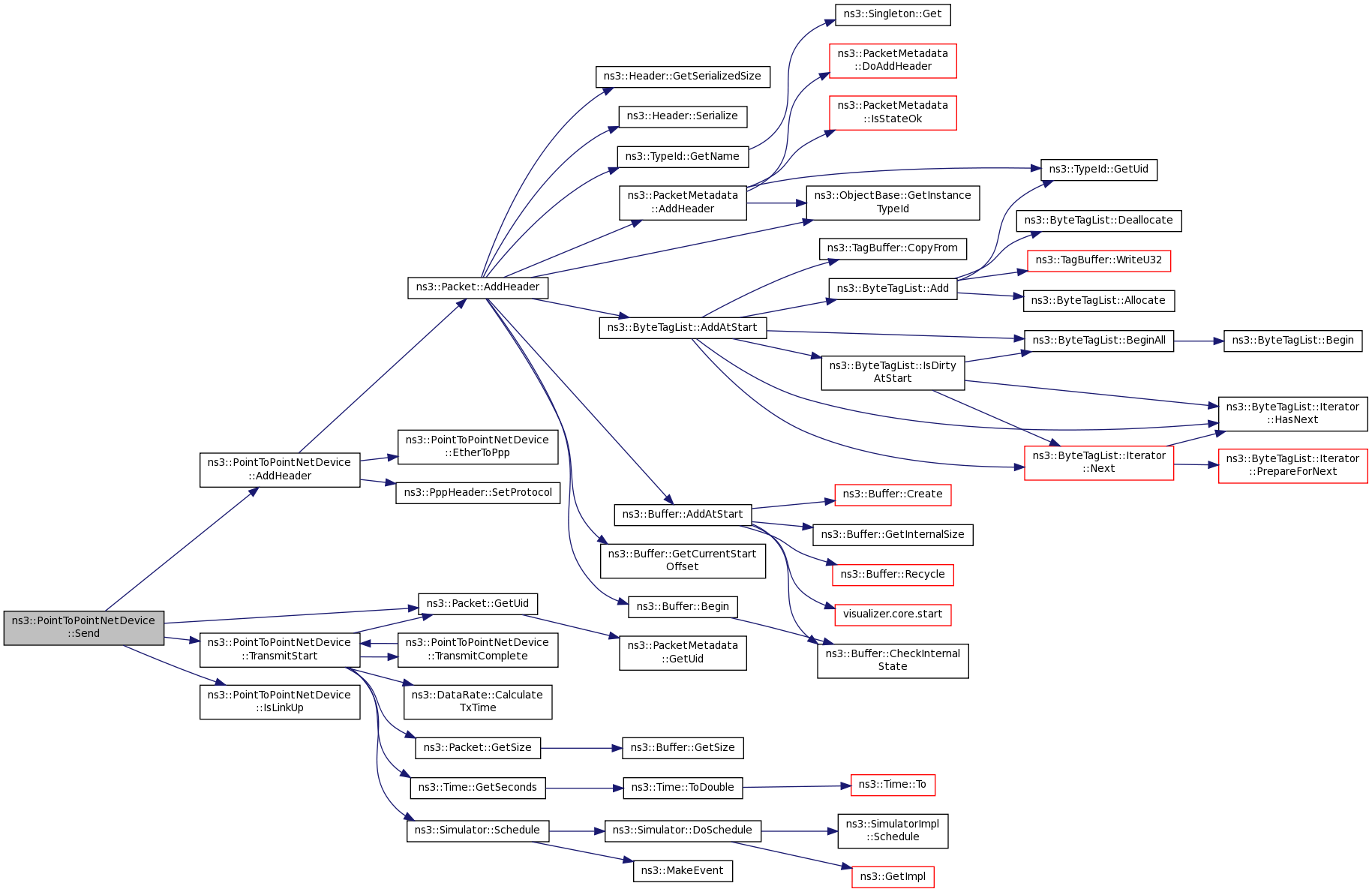

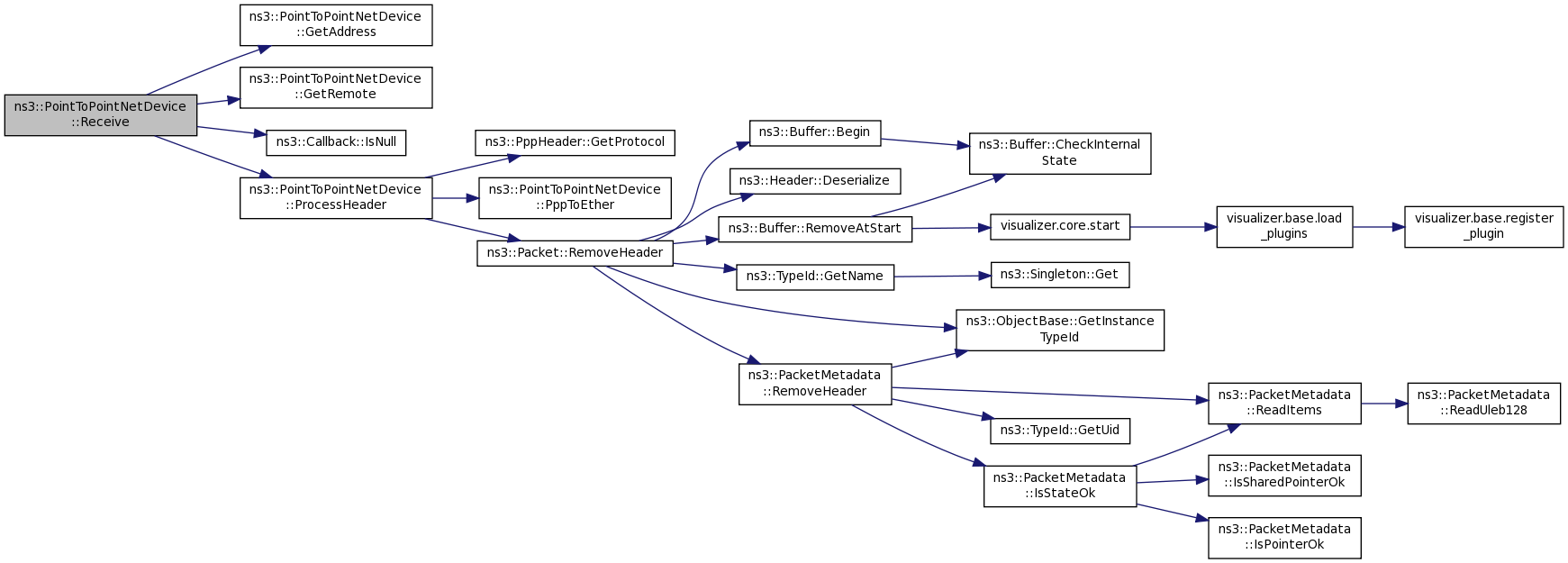

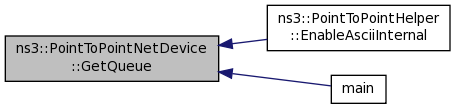

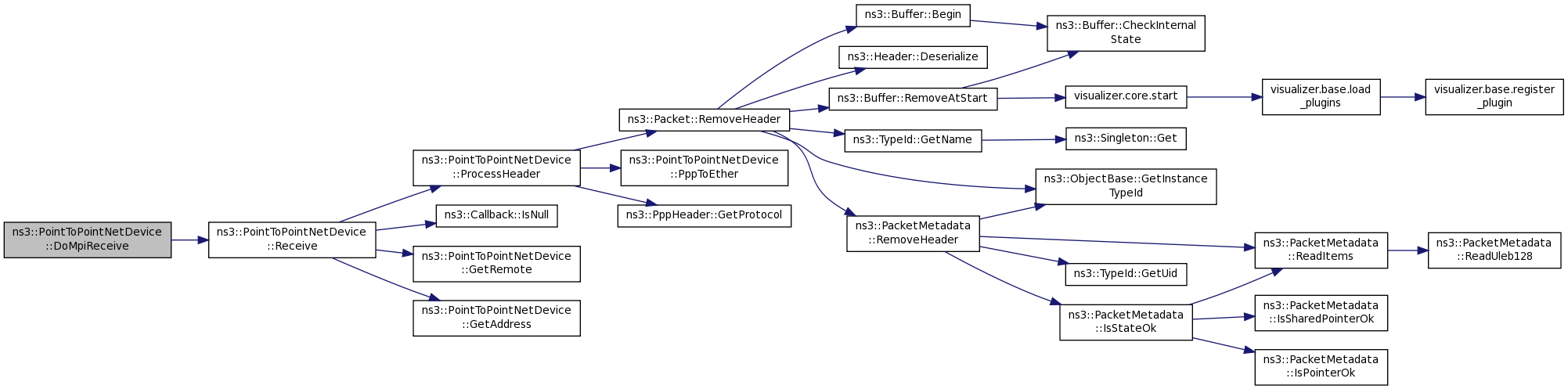

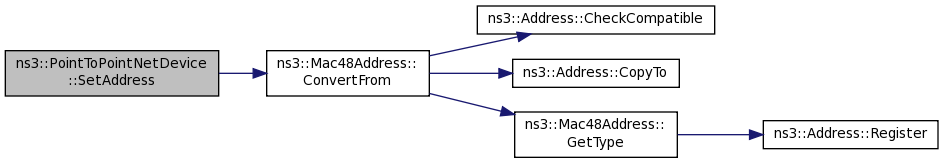

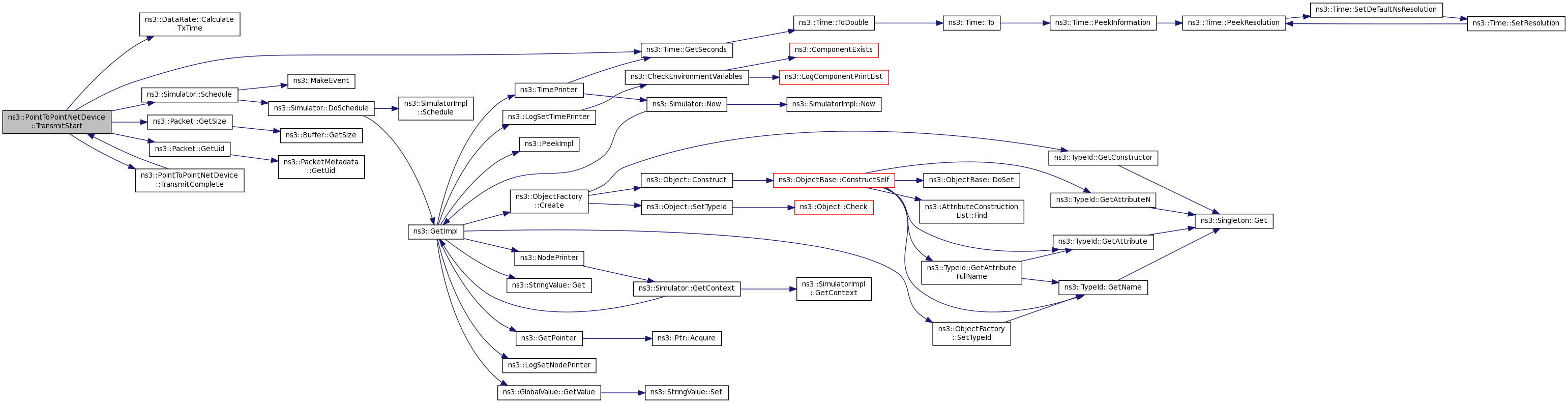

Collaboration diagram for ns3::PointToPointNetDevice:

Public Member Functions
	PointToPointNetDevice ()
	Construct a PointToPointNetDevice. More...

virtual	~PointToPointNetDevice ()
	Destroy a PointToPointNetDevice. More...

virtual void	AddLinkChangeCallback (Callback< void > callback)

bool	Attach (Ptr< PointToPointChannel > ch)
	Attach the device to a channel. More...

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

Ptr< Queue >	GetQueue (void) const
	Get a copy of the attached Queue. More...

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

void	Receive (Ptr< Packet > p)
	Receive a packet from a connected PointToPointChannel. More...

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetDataRate (DataRate bps)
	Set the Data Rate used for transmission of packets. More...

virtual void	SetIfIndex (const uint32_t index)

void	SetInterframeGap (Time t)
	Set the interframe gap used to separate packets. More...

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetQueue (Ptr< Queue > queue)
	Attach a queue to the PointToPointNetDevice. More...

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the PointToPointNetDevice. More...

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	DoMpiReceive (Ptr< Packet > p)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
enum	TxMachineState { READY, BUSY }
	Enumeration of the states of the transmit machine of the net device. More...

Private Member Functions
	PointToPointNetDevice (const PointToPointNetDevice &)

void	AddHeader (Ptr< Packet > p, uint16_t protocolNumber)
	Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent. More...

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Address	GetRemote (void) const

void	NotifyLinkUp (void)

PointToPointNetDevice &	operator= (const PointToPointNetDevice &)

bool	ProcessHeader (Ptr< Packet > p, uint16_t &param)
	Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent. More...

void	TransmitComplete (void)
	Stop Sending a Packet Down the Wire and Begin the Interframe Gap. More...

bool	TransmitStart (Ptr< Packet > p)
	Start Sending a Packet Down the Wire. More...

Static Private Member Functions
static uint16_t	EtherToPpp (uint16_t protocol)
	Ethernet to PPP protocol number mapping. More...

static uint16_t	PppToEther (uint16_t protocol)
	PPP to Ethernet protocol number mapping. More...

Private Attributes
Mac48Address	m_address

DataRate	m_bps
	The data rate that the Net Device uses to simulate packet transmission timing. More...

Ptr< PointToPointChannel >	m_channel
	The PointToPointChannel to which this PointToPointNetDevice has been attached. More...

Ptr< Packet >	m_currentPkt

uint32_t	m_ifIndex

TracedCallback	m_linkChangeCallbacks

bool	m_linkUp

TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxDropTrace
	The trace source fired for packets successfully received by the device but are dropped before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
	The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission. More...

TracedCallback< Ptr< const Packet > >	m_macTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

uint32_t	m_mtu
	The Maximum Transmission Unit. More...

Ptr< Node >	m_node

TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium – when the simulated first bit(s) arrive. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet before it tries to transmit it. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

NetDevice::PromiscReceiveCallback	m_promiscCallback

TracedCallback< Ptr< const Packet > >	m_promiscSnifferTrace
	A trace source that emulates a promiscuous mode protocol sniffer connected to the device. More...

Ptr< Queue >	m_queue
	The Queue which this PointToPointNetDevice uses as a packet source. More...

Ptr< ErrorModel >	m_receiveErrorModel
	Error model for receive packet events. More...

NetDevice::ReceiveCallback	m_rxCallback

TracedCallback< Ptr< const Packet > >	m_snifferTrace
	A trace source that emulates a non-promiscuous protocol sniffer connected to the device. More...

Time	m_tInterframeGap
	The interframe gap that the Net Device uses to throttle packet transmission. More...

TxMachineState	m_txMachineState
	The state of the Net Device transmit state machine. More...

Static Private Attributes
static const uint16_t	DEFAULT_MTU = 1500

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

A Device for a Point to Point Network Link.

Config Paths

ns3::PointToPointNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1500
- Flags: construct write read
Address: The MAC address of this device.
- Set with class: Mac48AddressValue
- Underlying type: Mac48Address
- Initial value: ff:ff:ff:ff:ff:ff
- Flags: construct write read
DataRate: The default data rate for point to point links
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 32768bps
- Flags: construct write read
ReceiveErrorModel: The receiver error model used to simulate packet loss
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ErrorModel >
- Initial value: 0
- Flags: construct write read
InterframeGap: The time to wait between packet (frame) transmissions
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
TxQueue: A queue to use as the transmit queue in the device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Queue >
- Initial value: 0
- Flags: construct write read

TraceSources

MacTx: Trace source indicating a packet has arrived for transmission by this device
MacTxDrop: Trace source indicating a packet has been dropped by the device before transmission
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxEnd: Trace source indicating a packet has been completely received by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Sniffer: Trace source simulating a non-promiscuous packet sniffer attached to the device
PromiscSniffer: Trace source simulating a promiscuous packet sniffer attached to the device

This PointToPointNetDevice class specializes the NetDevice abstract base class. Together with a PointToPointChannel (and a peer PointToPointNetDevice), the class models, with some level of abstraction, a generic point-to-point or serial link. Key parameters or objects that can be specified for this device include a queue, data rate, and interframe transmission gap (the propagation delay is set in the PointToPointChannel).

Definition at line 58 of file point-to-point-net-device.h.

Member Enumeration Documentation

enum ns3::PointToPointNetDevice::TxMachineState

private

Enumeration of the states of the transmit machine of the net device.

Enumerator
READY	The transmitter is ready to begin transmission of a packet.
BUSY	The transmitter is busy transmitting a packet.

Definition at line 254 of file point-to-point-net-device.h.

Constructor & Destructor Documentation

ns3::PointToPointNetDevice::PointToPointNetDevice ( )

Construct a PointToPointNetDevice.

This is the constructor for the PointToPointNetDevice. It takes as a parameter a pointer to the Node to which this device is connected, as well as an optional DataRate object.

Definition at line 147 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

ns3::PointToPointNetDevice::~PointToPointNetDevice ( )

virtual

Destroy a PointToPointNetDevice.

This is the destructor for the PointToPointNetDevice.

Definition at line 157 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::PointToPointNetDevice::PointToPointNetDevice ( const PointToPointNetDevice & )

private

Member Function Documentation

void ns3::PointToPointNetDevice::AddHeader	(	Ptr< Packet >	p,
		uint16_t	protocolNumber
	)

private

Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent.

Parameters

p	packet
protocolNumber	protocol number

Definition at line 163 of file point-to-point-net-device.cc.

References ns3::Packet::AddHeader(), EtherToPpp(), NS_LOG_FUNCTION_NOARGS, and ns3::PppHeader::SetProtocol().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 405 of file point-to-point-net-device.cc.

References ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::ConnectWithoutContext(), and m_linkChangeCallbacks.

Here is the call graph for this function:

bool ns3::PointToPointNetDevice::Attach ( Ptr< PointToPointChannel > ch )

Attach the device to a channel.

Parameters

ch	Ptr to the channel to which this object is being attached.

Definition at line 273 of file point-to-point-net-device.cc.

References m_channel, NotifyLinkUp(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PointToPointNetDevice::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 182 of file point-to-point-net-device.cc.

References ns3::Object::DoDispose(), m_channel, m_currentPkt, m_node, m_receiveErrorModel, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::PointToPointNetDevice::DoMpiReceive ( Ptr< Packet > p )

protected

Definition at line 566 of file point-to-point-net-device.cc.

References Receive().

Here is the call graph for this function:

uint16_t ns3::PointToPointNetDevice::EtherToPpp ( uint16_t protocol )

staticprivate

Ethernet to PPP protocol number mapping.

Parameters

protocol An Ethernet protocol number

Returns: The corresponding PPP protocol number

Definition at line 616 of file point-to-point-net-device.cc.

References NS_ASSERT_MSG.

Referenced by AddHeader().

Here is the caller graph for this function:

Address ns3::PointToPointNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 393 of file point-to-point-net-device.cc.

References m_address.

Referenced by Receive().

Here is the caller graph for this function:

Address ns3::PointToPointNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 426 of file point-to-point-net-device.cc.

Referenced by PointToPointTest::SendOnePacket().

Here is the caller graph for this function:

Ptr< Channel > ns3::PointToPointNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 375 of file point-to-point-net-device.cc.

References m_channel.

uint32_t ns3::PointToPointNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 369 of file point-to-point-net-device.cc.

References m_ifIndex.

uint16_t ns3::PointToPointNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 597 of file point-to-point-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION_NOARGS.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::PointToPointNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: Ipv4Address; Address; NetDevice::IsMulticast

Implements ns3::NetDevice.

Definition at line 438 of file point-to-point-net-device.cc.

Address ns3::PointToPointNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 444 of file point-to-point-net-device.cc.

References NS_LOG_FUNCTION.

Ptr< Node > ns3::PointToPointNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 530 of file point-to-point-net-device.cc.

References m_node.

Ptr< Queue > ns3::PointToPointNetDevice::GetQueue ( void ) const

Get a copy of the attached Queue.

Returns: Ptr to the queue.

Definition at line 349 of file point-to-point-net-device.cc.

References m_queue, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::PointToPointHelper::EnableAsciiInternal(), and main().

Here is the caller graph for this function:

Address ns3::PointToPointNetDevice::GetRemote ( void ) const

private

Returns: the address of the remote device connected to this device through the point to point channel.

Definition at line 572 of file point-to-point-net-device.cc.

References m_channel, and NS_ASSERT.

Referenced by Receive().

Here is the caller graph for this function:

TypeId ns3::PointToPointNetDevice::GetTypeId ( void )

static

Definition at line 40 of file point-to-point-net-device.cc.

References DEFAULT_MTU, GetMtu(), m_address, m_bps, m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, m_promiscSnifferTrace, m_queue, m_receiveErrorModel, m_snifferTrace, m_tInterframeGap, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), SetMtu(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::PointToPointNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 457 of file point-to-point-net-device.cc.

bool ns3::PointToPointNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 415 of file point-to-point-net-device.cc.

bool ns3::PointToPointNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 399 of file point-to-point-net-device.cc.

References m_linkUp.

Referenced by Send().

Here is the caller graph for this function:

bool ns3::PointToPointNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 432 of file point-to-point-net-device.cc.

bool ns3::PointToPointNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 451 of file point-to-point-net-device.cc.

bool ns3::PointToPointNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 542 of file point-to-point-net-device.cc.

void ns3::PointToPointNetDevice::NotifyLinkUp ( void )

private

Definition at line 356 of file point-to-point-net-device.cc.

References m_linkChangeCallbacks, and m_linkUp.

Referenced by Attach().

Here is the caller graph for this function:

PointToPointNetDevice& ns3::PointToPointNetDevice::operator= ( const PointToPointNetDevice & )

private

uint16_t ns3::PointToPointNetDevice::PppToEther ( uint16_t protocol )

staticprivate

PPP to Ethernet protocol number mapping.

Parameters

protocol A PPP protocol number

Returns: The corresponding Ethernet protocol number

Definition at line 604 of file point-to-point-net-device.cc.

References NS_ASSERT_MSG.

Referenced by ProcessHeader().

Here is the caller graph for this function:

bool ns3::PointToPointNetDevice::ProcessHeader	(	Ptr< Packet >	p,
		uint16_t &	param
	)

private

Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent.

Parameters

p	Packet whose headers need to be processed
param	An integer parameter that can be set by the function

Returns: Returns true if the packet should be forwarded up the protocol stack.

Definition at line 172 of file point-to-point-net-device.cc.

References ns3::PppHeader::GetProtocol(), NS_LOG_FUNCTION_NOARGS, PppToEther(), and ns3::Packet::RemoveHeader().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PointToPointNetDevice::Receive ( Ptr< Packet > p )

Receive a packet from a connected PointToPointChannel.

The PointToPointNetDevice receives packets from its connected channel and forwards them up the protocol stack. This is the public method used by the channel to indicate that the last bit of a packet has arrived at the device.

See also: PointToPointChannel

Parameters

p	Ptr to the received packet.

Definition at line 305 of file point-to-point-net-device.cc.

References GetAddress(), GetRemote(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_macPromiscRxTrace, m_macRxTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_promiscCallback, m_promiscSnifferTrace, m_receiveErrorModel, m_rxCallback, m_snifferTrace, NS_LOG_FUNCTION, ns3::NetDevice::PACKET_HOST, and ProcessHeader().

Referenced by DoMpiReceive(), ns3::PointToPointHelper::Install(), and ns3::PointToPointChannel::TransmitStart().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PointToPointNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 463 of file point-to-point-net-device.cc.

References AddHeader(), ns3::Packet::GetUid(), IsLinkUp(), m_macTxDropTrace, m_macTxTrace, m_promiscSnifferTrace, m_queue, m_snifferTrace, m_txMachineState, NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, READY, and TransmitStart().

Referenced by PointToPointTest::SendOnePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PointToPointNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 521 of file point-to-point-net-device.cc.

void ns3::PointToPointNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 387 of file point-to-point-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), and m_address.

Here is the call graph for this function:

void ns3::PointToPointNetDevice::SetDataRate ( DataRate bps )

Set the Data Rate used for transmission of packets.

The data rate is set in the Attach () method from the corresponding field in the channel to which the device is attached. It can be overridden using this method.

See also: Attach ()

Parameters

bps	the data rate at which this object operates

Definition at line 193 of file point-to-point-net-device.cc.

References m_bps, and NS_LOG_FUNCTION_NOARGS.

void ns3::PointToPointNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 363 of file point-to-point-net-device.cc.

References m_ifIndex.

void ns3::PointToPointNetDevice::SetInterframeGap ( Time t )

Set the interframe gap used to separate packets.

The interframe gap defines the minimum space required between packets sent by this device.

Parameters

t	the interframe gap time

Definition at line 200 of file point-to-point-net-device.cc.

References m_tInterframeGap, and NS_LOG_FUNCTION_NOARGS.

bool ns3::PointToPointNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 589 of file point-to-point-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::PointToPointNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 536 of file point-to-point-net-device.cc.

References m_node.

void ns3::PointToPointNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 554 of file point-to-point-net-device.cc.

References m_promiscCallback.

void ns3::PointToPointNetDevice::SetQueue ( Ptr< Queue > queue )

Attach a queue to the PointToPointNetDevice.

The PointToPointNetDevice "owns" a queue that implements a queueing method such as DropTail or RED.

See also: Queue; DropTailQueue

Parameters

queue Ptr to the new queue.

Definition at line 291 of file point-to-point-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

void ns3::PointToPointNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

Definition at line 548 of file point-to-point-net-device.cc.

References m_rxCallback.

void ns3::PointToPointNetDevice::SetReceiveErrorModel ( Ptr< ErrorModel > em )

Attach a receive ErrorModel to the PointToPointNetDevice.

The PointToPointNetDevice may optionally include an ErrorModel in the packet receive chain.

See also: ErrorModel

Parameters

em	Ptr to the ErrorModel.

Definition at line 298 of file point-to-point-net-device.cc.

References m_receiveErrorModel, and NS_LOG_FUNCTION.

bool ns3::PointToPointNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 560 of file point-to-point-net-device.cc.

void ns3::PointToPointNetDevice::TransmitComplete ( void )

private

Stop Sending a Packet Down the Wire and Begin the Interframe Gap.

The TransmitComplete method is used internally to finish the process of sending a packet out on the channel.

Definition at line 237 of file point-to-point-net-device.cc.

References BUSY, m_currentPkt, m_phyTxEndTrace, m_promiscSnifferTrace, m_queue, m_snifferTrace, m_txMachineState, NS_ASSERT_MSG, NS_LOG_FUNCTION_NOARGS, READY, and TransmitStart().

Referenced by TransmitStart().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PointToPointNetDevice::TransmitStart ( Ptr< Packet > p )

private

Start Sending a Packet Down the Wire.

The TransmitStart method is the method that is used internally in the PointToPointNetDevice to begin the process of sending a packet out on the channel. The corresponding method is called on the channel to let it know that the physical device this class represents has virtually started sending signals. An event is scheduled for the time at which the bits have been completely transmitted.

See also: PointToPointChannel::TransmitStart (); TransmitCompleteEvent ()

Parameters

p	a reference to the packet to send

Returns: true if success, false on failure

Definition at line 207 of file point-to-point-net-device.cc.

References BUSY, ns3::DataRate::CalculateTxTime(), ns3::Time::GetSeconds(), ns3::Packet::GetSize(), ns3::Packet::GetUid(), m_bps, m_channel, m_currentPkt, m_phyTxBeginTrace, m_phyTxDropTrace, m_tInterframeGap, m_txMachineState, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, READY, ns3::Simulator::Schedule(), and TransmitComplete().

Referenced by Send(), and TransmitComplete().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

const uint16_t ns3::PointToPointNetDevice::DEFAULT_MTU = 1500

staticprivate

Definition at line 442 of file point-to-point-net-device.h.

Referenced by GetTypeId().

Mac48Address ns3::PointToPointNetDevice::m_address

private

Definition at line 435 of file point-to-point-net-device.h.

Referenced by GetAddress(), GetTypeId(), and SetAddress().

DataRate ns3::PointToPointNetDevice::m_bps

private

The data rate that the Net Device uses to simulate packet transmission timing.

See also: class DataRate

Definition at line 270 of file point-to-point-net-device.h.

Referenced by GetTypeId(), SetDataRate(), and TransmitStart().

Ptr<PointToPointChannel> ns3::PointToPointNetDevice::m_channel

private

The PointToPointChannel to which this PointToPointNetDevice has been attached.

See also: class PointToPointChannel

Definition at line 284 of file point-to-point-net-device.h.

Referenced by Attach(), DoDispose(), GetChannel(), GetRemote(), and TransmitStart().

Ptr<Packet> ns3::PointToPointNetDevice::m_currentPkt

private

Definition at line 452 of file point-to-point-net-device.h.

Referenced by DoDispose(), TransmitComplete(), and TransmitStart().

uint32_t ns3::PointToPointNetDevice::m_ifIndex

private

Definition at line 438 of file point-to-point-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

TracedCallback ns3::PointToPointNetDevice::m_linkChangeCallbacks

private

Definition at line 440 of file point-to-point-net-device.h.

Referenced by AddLinkChangeCallback(), and NotifyLinkUp().

bool ns3::PointToPointNetDevice::m_linkUp

private

Definition at line 439 of file point-to-point-net-device.h.

Referenced by IsLinkUp(), and NotifyLinkUp().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace (which doesn't mean a lot here in the point-to-point device).

See also: class CallBackTraceSource

Definition at line 324 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macRxDropTrace

private

The trace source fired for packets successfully received by the device but are dropped before being forwarded up to higher layers (at the L2/L3 transition).

See also: class CallBackTraceSource

Definition at line 343 of file point-to-point-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non-promiscuous trace (which doesn't mean a lot here in the point-to-point device).

See also: class CallBackTraceSource

Definition at line 334 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macTxDropTrace

private

The trace source fired when packets coming into the "top" of the device at the L3/L2 transition are dropped before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 314 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Send().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_macTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 306 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Send().

uint32_t ns3::PointToPointNetDevice::m_mtu

private

The Maximum Transmission Unit.

This corresponds to the maximum number of bytes that can be transmitted as seen from higher layers. This corresponds to the 1500 byte MTU size often seen on IP over Ethernet.

Definition at line 450 of file point-to-point-net-device.h.

Referenced by GetMtu(), and SetMtu().

Ptr<Node> ns3::PointToPointNetDevice::m_node

private

Definition at line 434 of file point-to-point-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium – when the simulated first bit(s) arrive.

See also: class CallBackTraceSource

Definition at line 375 of file point-to-point-net-device.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

This happens if the receiver is not enabled or the error model is active and indicates that the packet is corrupt.

See also: class CallBackTraceSource

Definition at line 392 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 383 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and Receive().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 351 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitStart().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet before it tries to transmit it.

See also: class CallBackTraceSource

Definition at line 367 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitStart().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 359 of file point-to-point-net-device.h.

Referenced by GetTypeId(), and TransmitComplete().

NetDevice::PromiscReceiveCallback ns3::PointToPointNetDevice::m_promiscCallback

private

Definition at line 437 of file point-to-point-net-device.h.

Referenced by Receive(), and SetPromiscReceiveCallback().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_promiscSnifferTrace

private

A trace source that emulates a promiscuous mode protocol sniffer connected to the device.

This trace source fire on packets destined for any host just like your average everyday packet sniffer.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

See also: class CallBackTraceSource

Definition at line 432 of file point-to-point-net-device.h.

Referenced by GetTypeId(), Receive(), Send(), and TransmitComplete().

Ptr<Queue> ns3::PointToPointNetDevice::m_queue

private

The Queue which this PointToPointNetDevice uses as a packet source.

Management of this Queue has been delegated to the PointToPointNetDevice and it has the responsibility for deletion.

See also: class Queue; class DropTailQueue

Definition at line 293 of file point-to-point-net-device.h.

Referenced by GetQueue(), GetTypeId(), Send(), SetQueue(), and TransmitComplete().

Ptr<ErrorModel> ns3::PointToPointNetDevice::m_receiveErrorModel

private

Error model for receive packet events.

Definition at line 298 of file point-to-point-net-device.h.

Referenced by DoDispose(), GetTypeId(), Receive(), and SetReceiveErrorModel().

NetDevice::ReceiveCallback ns3::PointToPointNetDevice::m_rxCallback

private

Definition at line 436 of file point-to-point-net-device.h.

Referenced by Receive(), and SetReceiveCallback().

TracedCallback<Ptr<const Packet> > ns3::PointToPointNetDevice::m_snifferTrace

private

A trace source that emulates a non-promiscuous protocol sniffer connected to the device.

Unlike your average everyday sniffer, this trace source will not fire on PACKET_OTHERHOST events.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.
