ns3::UeManager Class Reference

Manages all the radio bearer information possessed by the ENB RRC for a single UE. More...

#include <lte-enb-rrc.h>

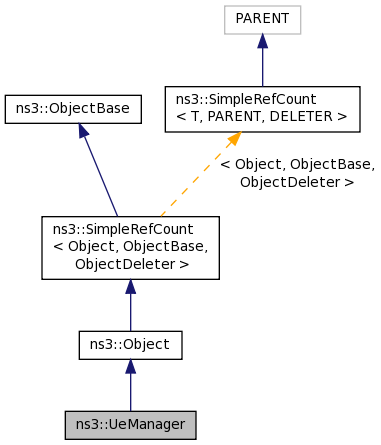

+ Inheritance diagram for ns3::UeManager:

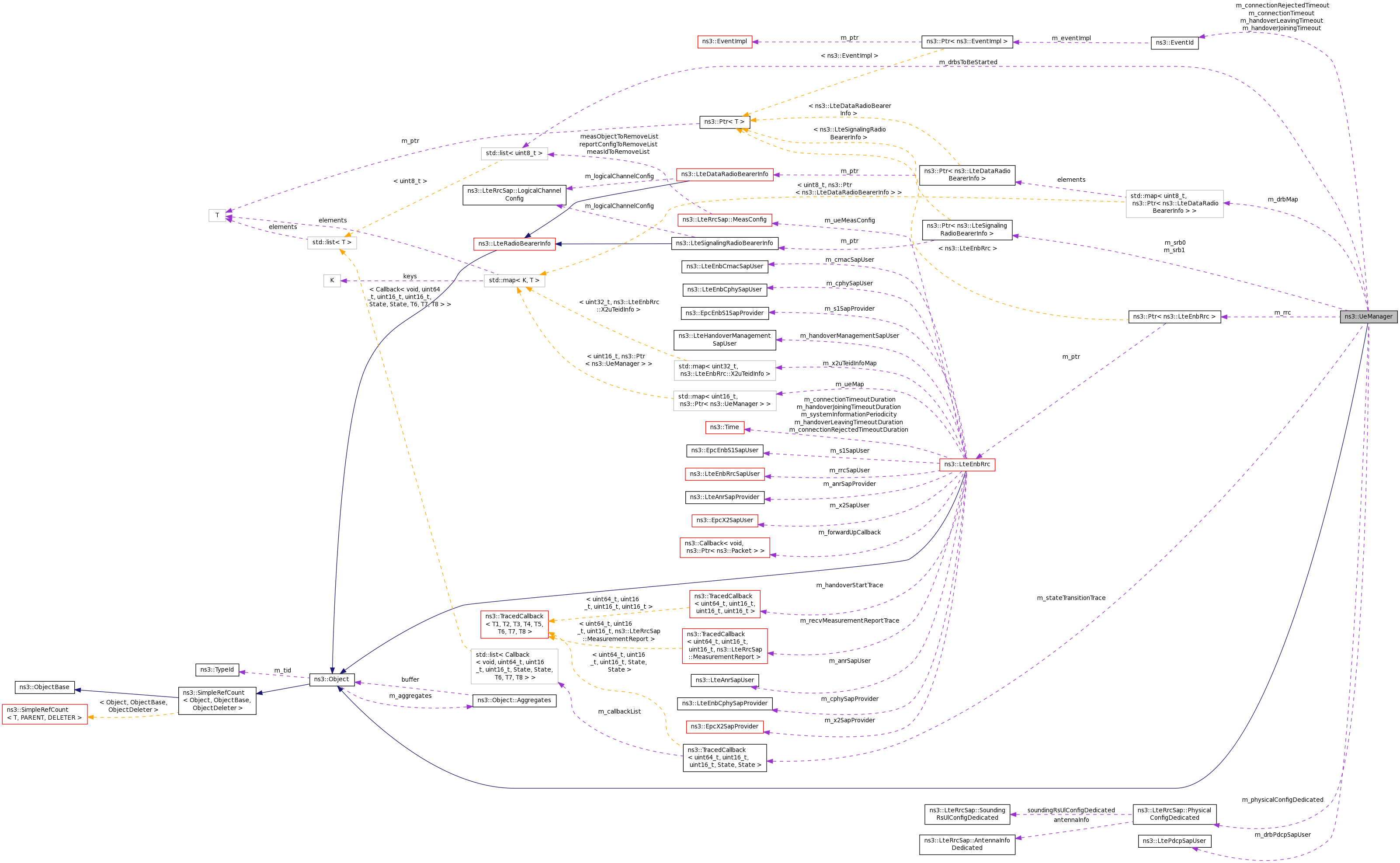

+ Collaboration diagram for ns3::UeManager:

Public Types

enum  State {
  INITIAL_RANDOM_ACCESS = 0, CONNECTION_SETUP, CONNECTION_REJECTED, CONNECTED_NORMALLY,
  CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, HANDOVER_PREPARATION, HANDOVER_JOINING,
  HANDOVER_PATH_SWITCH, HANDOVER_LEAVING, NUM_STATES
}
 The state of the UeManager at the eNB RRC. More...


Public Member Functions

 UeManager ()

 UeManager (Ptr< LteEnbRrc > rrc, uint16_t rnti, State s)
 UeManager constructor. More...

virtual ~UeManager (void)

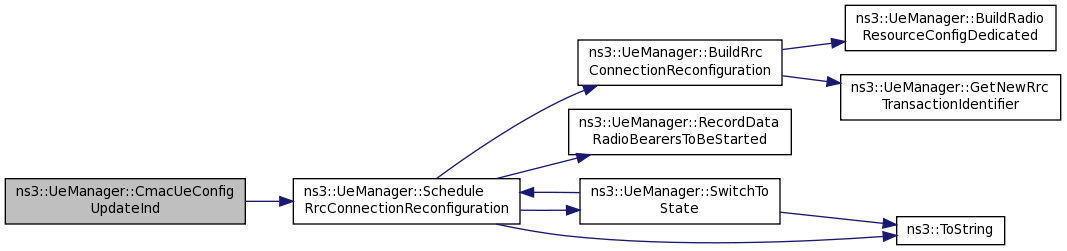

void CmacUeConfigUpdateInd (LteEnbCmacSapUser::UeConfig cmacParams)

void CompleteSetupUe (LteEnbRrcSapProvider::CompleteSetupUeParameters params)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::CompleteSetupUe interface. More...

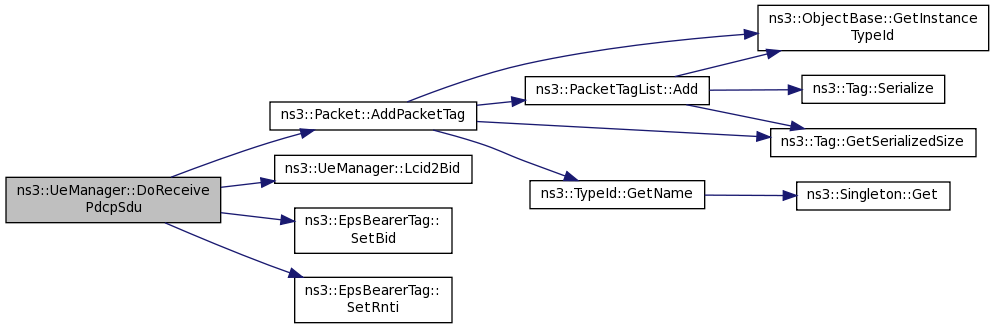

void DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

std::vector
< EpcX2Sap::ErabToBeSetupItem
GetErabList ()

uint64_t GetImsi (void) const

LteRrcSap::RadioResourceConfigDedicated GetRadioResourceConfigForHandoverPreparationInfo ()

uint16_t GetRnti (void) const

LteRrcSap::RrcConnectionReconfiguration GetRrcConnectionReconfigurationForHandover ()

uint16_t GetSrsConfigurationIndex (void) const

State GetState () const

void PrepareHandover (uint16_t cellId)
 Start the handover preparation and send the handover request. More...

void RecordDataRadioBearersToBeStarted ()
 Start all configured data radio bearers. More...

void RecvHandoverPreparationFailure (uint16_t cellId)
 Take the necessary actions in response to the reception of an X2 HO preparation failure message. More...

void RecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)
 take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message More...

void RecvMeasurementReport (LteRrcSap::MeasurementReport msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvMeasurementReport interface. More...

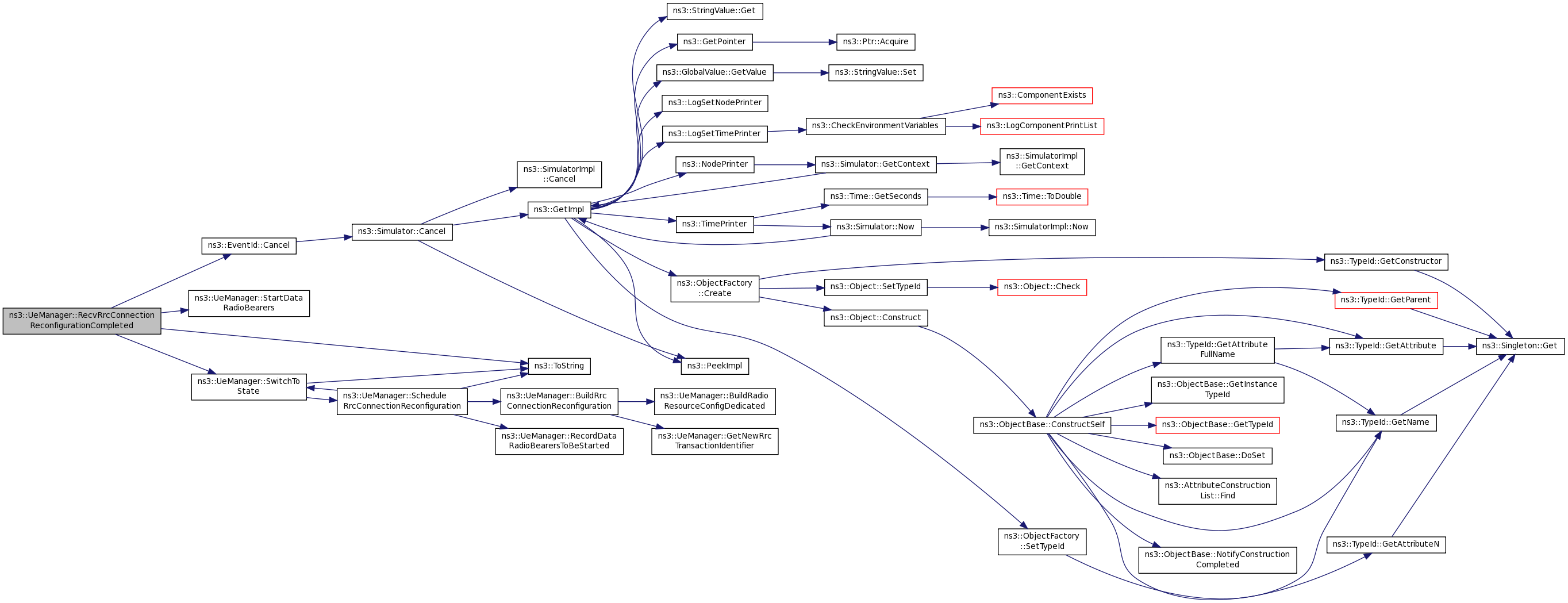

void RecvRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface. More...

void RecvRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface. More...

void RecvRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface. More...

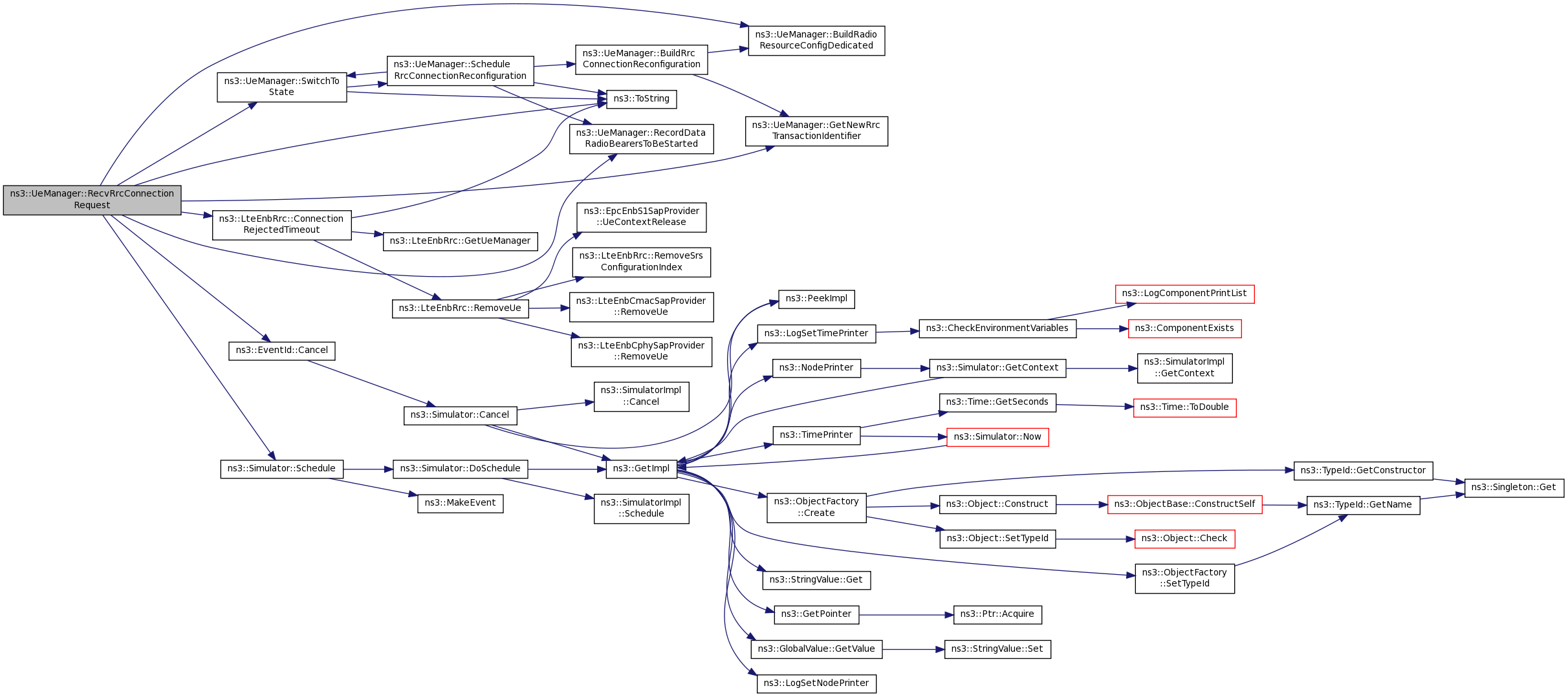

void RecvRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionRequest interface. More...

void RecvRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
 Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface. More...

void RecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)
 Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message. More...

void RecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)
 Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message. More...

void ReleaseDataRadioBearer (uint8_t drbid)
 Release a given radio bearer. More...

void ScheduleRrcConnectionReconfiguration ()
 schedule an RRC Connection Reconfiguration procedure with the UE More...

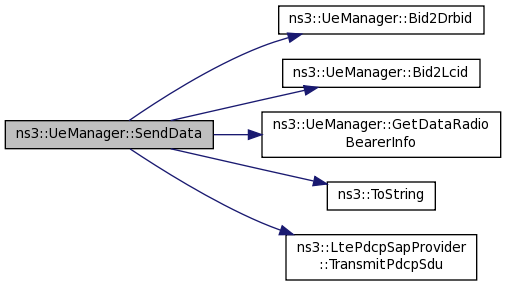

void SendData (uint8_t bid, Ptr< Packet > p)
 Send a data packet over the appropriate Data Radio Bearer. More...

void SendUeContextRelease ()
 send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure More...

void SetImsi (uint64_t imsi)
 Set the IMSI. More...

void SetSource (uint16_t sourceCellId, uint16_t sourceX2apId)
 Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure. More...

void SetSrsConfigurationIndex (uint16_t srsConfIndex)
 Set the SRS configuration index and do the necessary reconfiguration. More...

void SetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint32_t gtpTeid, Ipv4Address transportLayerAddress)
 Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE. More...

void StartDataRadioBearers ()
 Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted() More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize ()
 This method is called only once by Object::Initialize. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Member Functions

uint8_t AddDataRadioBearerInfo (Ptr< LteDataRadioBearerInfo > radioBearerInfo)
 Add a new LteDataRadioBearerInfo structure to the UeManager. More...

uint8_t Bid2Drbid (uint8_t bid)

uint8_t Bid2Lcid (uint8_t bid)

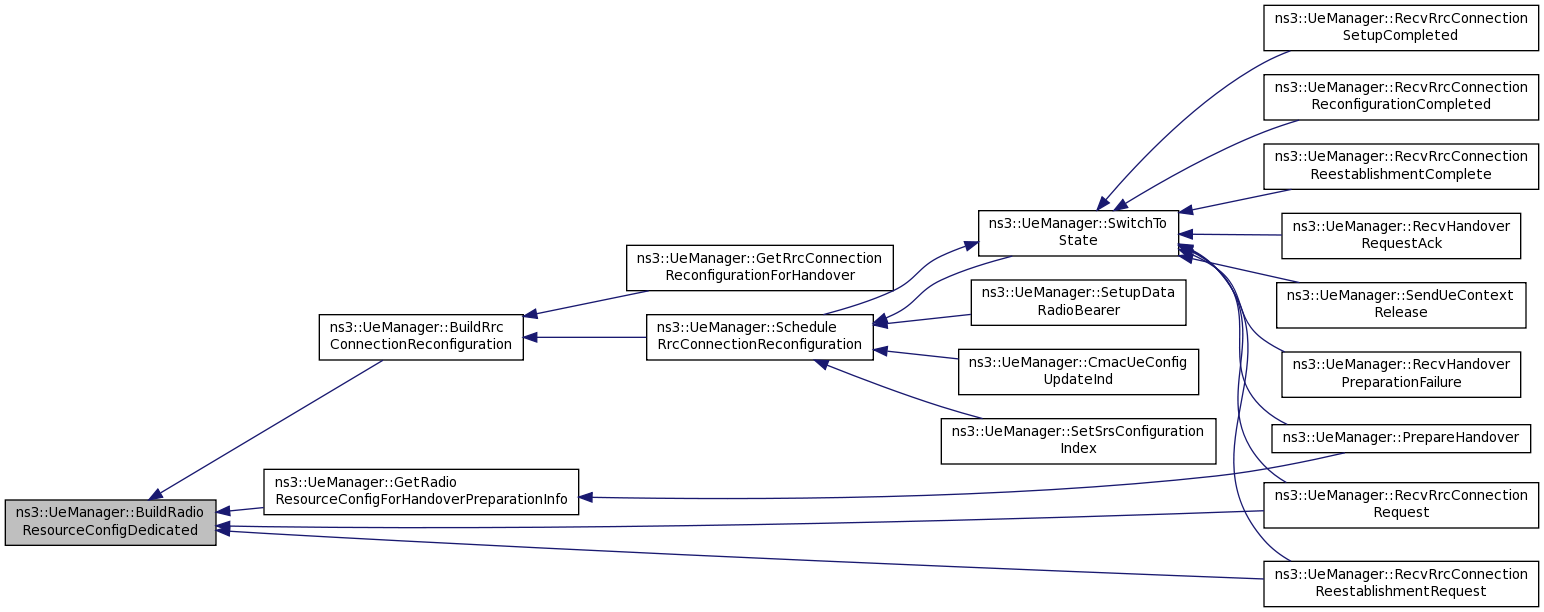

LteRrcSap::RadioResourceConfigDedicated BuildRadioResourceConfigDedicated ()

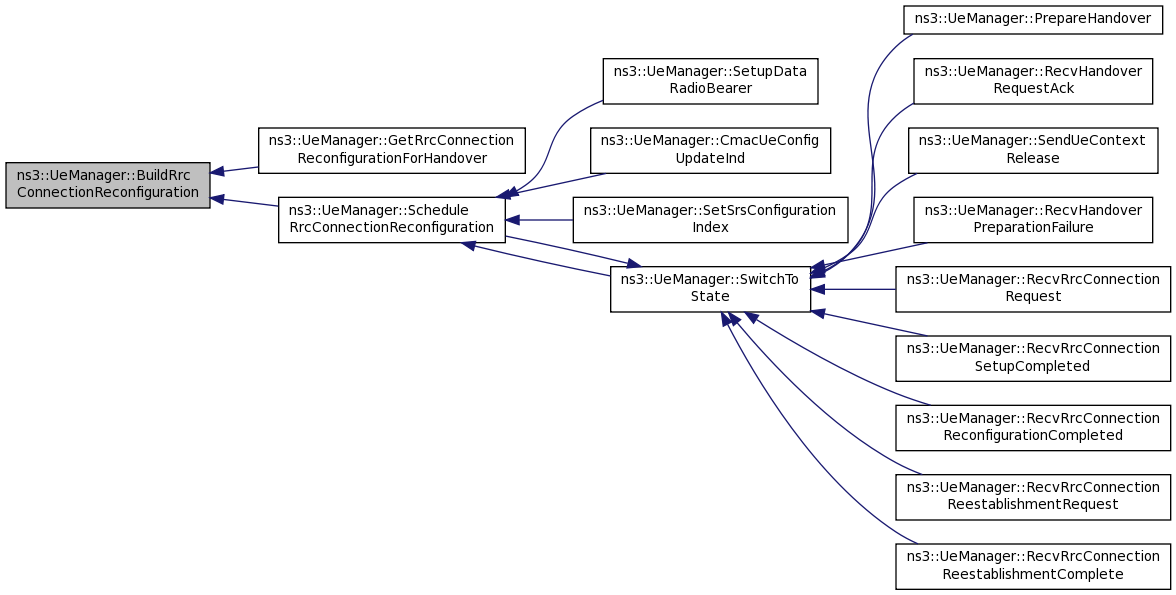

LteRrcSap::RrcConnectionReconfiguration BuildRrcConnectionReconfiguration ()

uint8_t Drbid2Bid (uint8_t drbid)

uint8_t Drbid2Lcid (uint8_t drbid)

Ptr< LteDataRadioBearerInfoGetDataRadioBearerInfo (uint8_t drbid)

uint8_t GetNewRrcTransactionIdentifier ()

uint8_t Lcid2Bid (uint8_t lcid)

uint8_t Lcid2Drbid (uint8_t lcid)

void RemoveDataRadioBearerInfo (uint8_t drbid)
 remove the LteDataRadioBearerInfo corresponding to a bearer being released More...

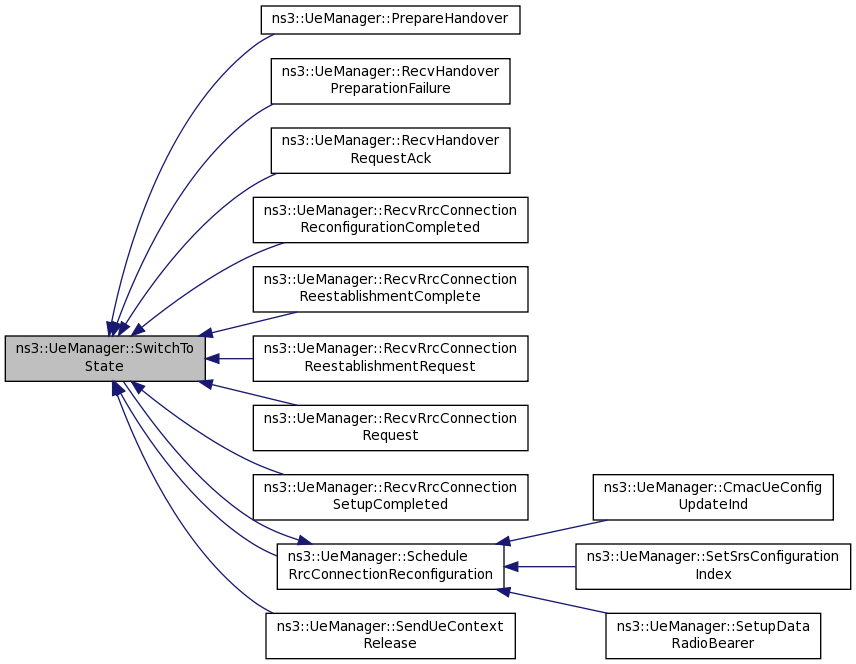

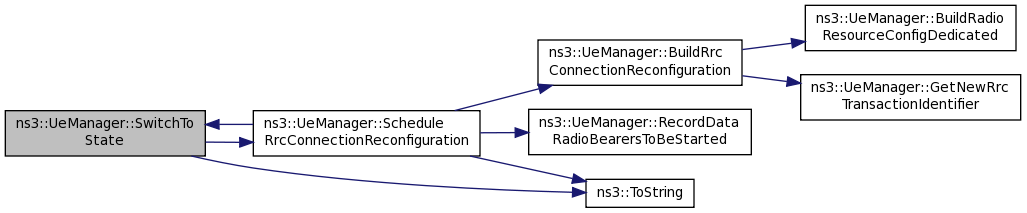

void SwitchToState (State s)
 Switch the UeManager to the given state. More...


Private Attributes

EventId m_connectionRejectedTimeout

EventId m_connectionTimeout

std::map< uint8_t, Ptr
< LteDataRadioBearerInfo > >
m_drbMap

LtePdcpSapUserm_drbPdcpSapUser

std::list< uint8_t > m_drbsToBeStarted

EventId m_handoverJoiningTimeout

EventId m_handoverLeavingTimeout

uint64_t m_imsi

uint8_t m_lastAllocatedDrbid

uint8_t m_lastRrcTransactionIdentifier

bool m_needTransmissionModeConfiguration

bool m_pendingRrcConnectionReconfiguration

LteRrcSap::PhysicalConfigDedicated m_physicalConfigDedicated

uint16_t m_rnti

Ptr< LteEnbRrcm_rrc

uint16_t m_sourceCellId

uint16_t m_sourceX2apId

Ptr< LteSignalingRadioBearerInfom_srb0

Ptr< LteSignalingRadioBearerInfom_srb1

State m_state

TracedCallback< uint64_t,
uint16_t, uint16_t, State,
State
m_stateTransitionTrace

uint16_t m_targetCellId


Friends

class LtePdcpSpecificLtePdcpSapUser< UeManager >


Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE.

Config Paths

ns3::UeManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]

Attributes

  • DataRadioBearerMap: List of UE DataRadioBearerInfo by DRBID.
  • Srb0: SignalingRadioBearerInfo for SRB0
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
    • Initial value: 0
    • Flags: construct write read
  • Srb1: SignalingRadioBearerInfo for SRB1
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
    • Initial value: 0
    • Flags: construct write read
  • C-RNTI: Cell Radio Network Temporary Identifier

TraceSources

  • StateTransition: fired upon every UE state transition seen by the UeManager at the eNB RRC

Definition at line 60 of file lte-enb-rrc.h.

Member Enumeration Documentation

The state of the UeManager at the eNB RRC.

Enumerator
INITIAL_RANDOM_ACCESS
CONNECTION_SETUP
CONNECTION_REJECTED
CONNECTED_NORMALLY
CONNECTION_RECONFIGURATION
CONNECTION_REESTABLISHMENT
HANDOVER_PREPARATION
HANDOVER_JOINING
HANDOVER_PATH_SWITCH
HANDOVER_LEAVING
NUM_STATES

Definition at line 71 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::UeManager::UeManager ( )

Definition at line 127 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR.

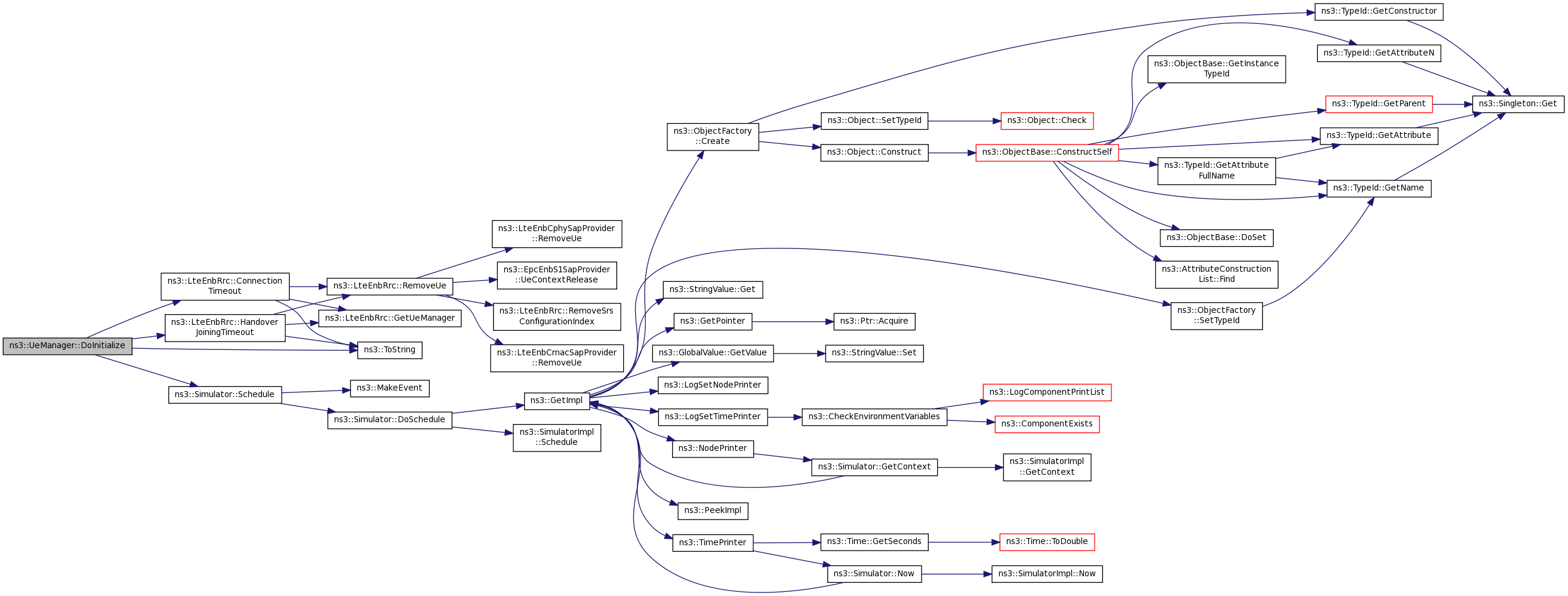

ns3::UeManager::UeManager ( Ptr< LteEnbRrc rrc,
uint16_t  rnti,
State  s
)

UeManager constructor.

Parameters
rrcpointer to the LteEnbRrc holding this UeManager
rntiRNTI of the UE
sinitial state of the UeManager
Returns

Definition at line 133 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

ns3::UeManager::~UeManager ( void  )
virtual

Definition at line 263 of file lte-enb-rrc.cc.

Member Function Documentation

uint8_t ns3::UeManager::AddDataRadioBearerInfo ( Ptr< LteDataRadioBearerInfo radioBearerInfo)
private

Add a new LteDataRadioBearerInfo structure to the UeManager.

Parameters
radioBearerInfo
Returns
the id of the newly added data radio bearer structure

Definition at line 1041 of file lte-enb-rrc.cc.

References m_drbMap, m_lastAllocatedDrbid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by SetupDataRadioBearer().

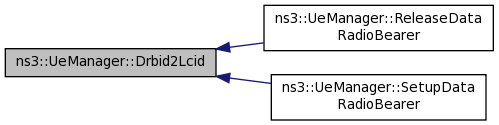

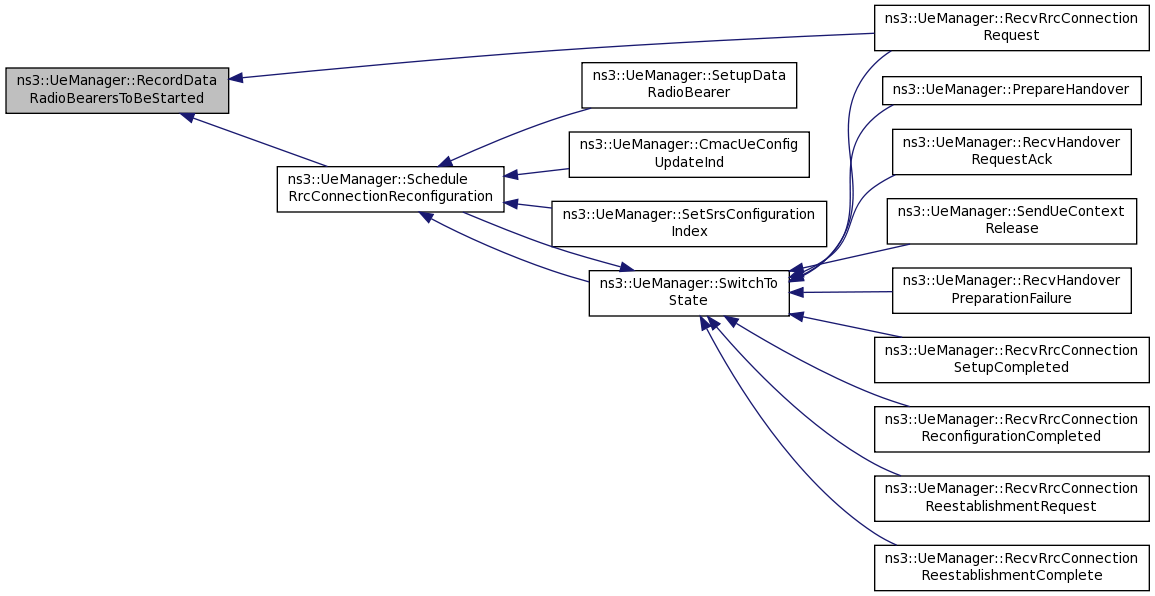

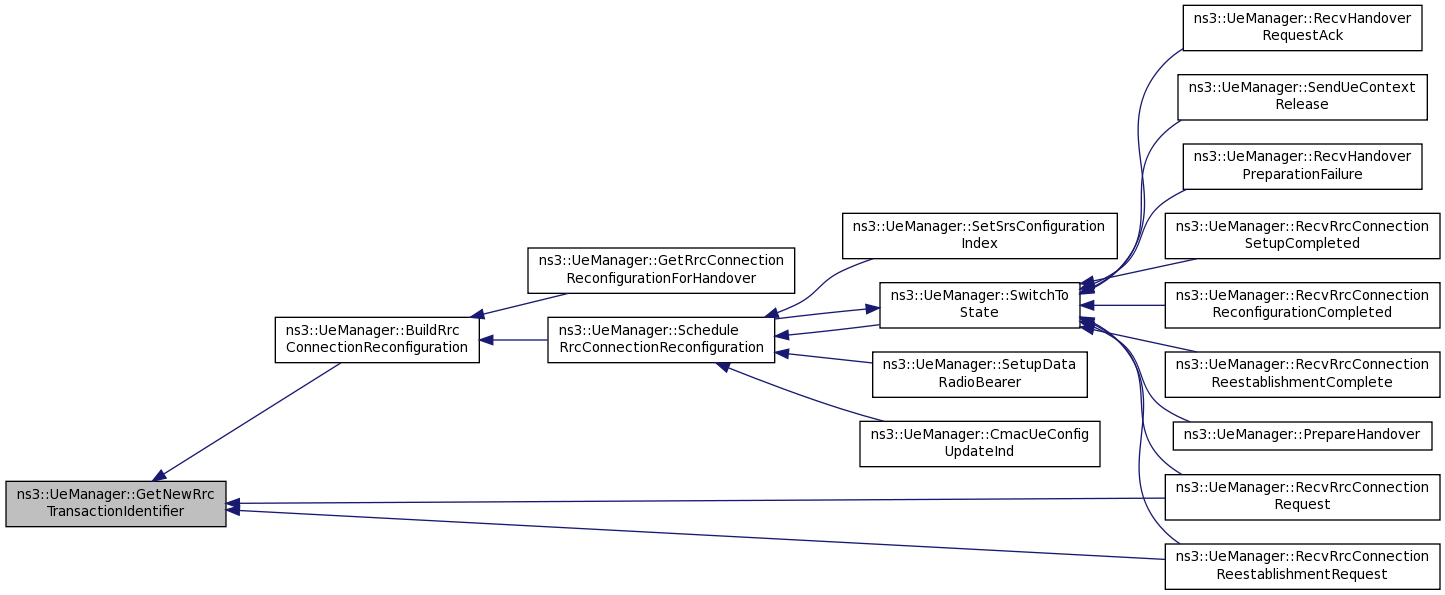

+ Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Drbid ( uint8_t  bid)
private
Parameters
bidan EPS Bearer Identifier
Returns
the corresponding Data Radio Bearer Id

Definition at line 1168 of file lte-enb-rrc.cc.

Referenced by SendData().

+ Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Lcid ( uint8_t  bid)
private
Parameters
bidan EPS Bearer Identifier
Returns
the corresponding Logical Channel Identifier

Definition at line 1156 of file lte-enb-rrc.cc.

Referenced by SendData().

+ Here is the caller graph for this function:

void ns3::UeManager::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 268 of file lte-enb-rrc.cc.

References m_drbMap, m_drbPdcpSapUser, and m_rrc.

void ns3::UeManager::DoInitialize ( void  )
protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 149 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteEnbRrc::ConnectionTimeout(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::LteEnbCmacSapProvider::LcInfo::gbrDl, ns3::LteEnbCmacSapProvider::LcInfo::gbrUl, HANDOVER_JOINING, ns3::LteEnbRrc::HandoverJoiningTimeout(), ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, INITIAL_RANDOM_ACCESS, ns3::LteEnbCmacSapProvider::LcInfo::isGbr, ns3::LteEnbCmacSapProvider::LcInfo::lcGroup, ns3::LteEnbCmacSapProvider::LcInfo::lcId, m_connectionTimeout, m_drbPdcpSapUser, m_handoverJoiningTimeout, m_physicalConfigDedicated, ns3::LteEnbCmacSapProvider::UeConfig::m_rnti, m_rnti, m_rrc, m_srb0, m_srb1, m_state, ns3::LteEnbCmacSapProvider::UeConfig::m_transmissionMode, ns3::LteEnbCmacSapProvider::LcInfo::mbrDl, ns3::LteEnbCmacSapProvider::LcInfo::mbrUl, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteEnbCmacSapProvider::LcInfo::qci, ns3::LteEnbCmacSapProvider::LcInfo::rnti, ns3::Simulator::Schedule(), ns3::LteRrcSap::SoundingRsUlConfigDedicated::SETUP, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteEnbRrcSapUser::SetupUeParameters::srb0SapProvider, ns3::LteEnbRrcSapUser::SetupUeParameters::srb1SapProvider, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsBandwidth, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::ToString(), ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::type.

+ Here is the call graph for this function:

uint8_t ns3::UeManager::Drbid2Bid ( uint8_t  drbid)
private
Parameters
drbidData Radio Bearer Id
Returns
the corresponding EPS Bearer Identifier

Definition at line 1162 of file lte-enb-rrc.cc.

Referenced by SetupDataRadioBearer().

+ Here is the caller graph for this function:

uint8_t ns3::UeManager::Drbid2Lcid ( uint8_t  drbid)
private
Parameters
drbida Data Radio Bearer Id
Returns
the corresponding Logical Channel Identifier

Definition at line 1144 of file lte-enb-rrc.cc.

Referenced by ReleaseDataRadioBearer(), and SetupDataRadioBearer().

+ Here is the caller graph for this function:

Ptr< LteDataRadioBearerInfo > ns3::UeManager::GetDataRadioBearerInfo ( uint8_t  drbid)
private
Parameters
drbidthe Data Radio Bearer id
Returns
the corresponding LteDataRadioBearerInfo

Definition at line 1065 of file lte-enb-rrc.cc.

References m_drbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SendData().

+ Here is the caller graph for this function:

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::UeManager::GetErabList ( )
uint64_t ns3::UeManager::GetImsi ( void  ) const
Returns
the IMSI, i.e., a globally unique UE identifier

Definition at line 1004 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::LteStatsCalculator::FindImsiFromEnbRlcPath().

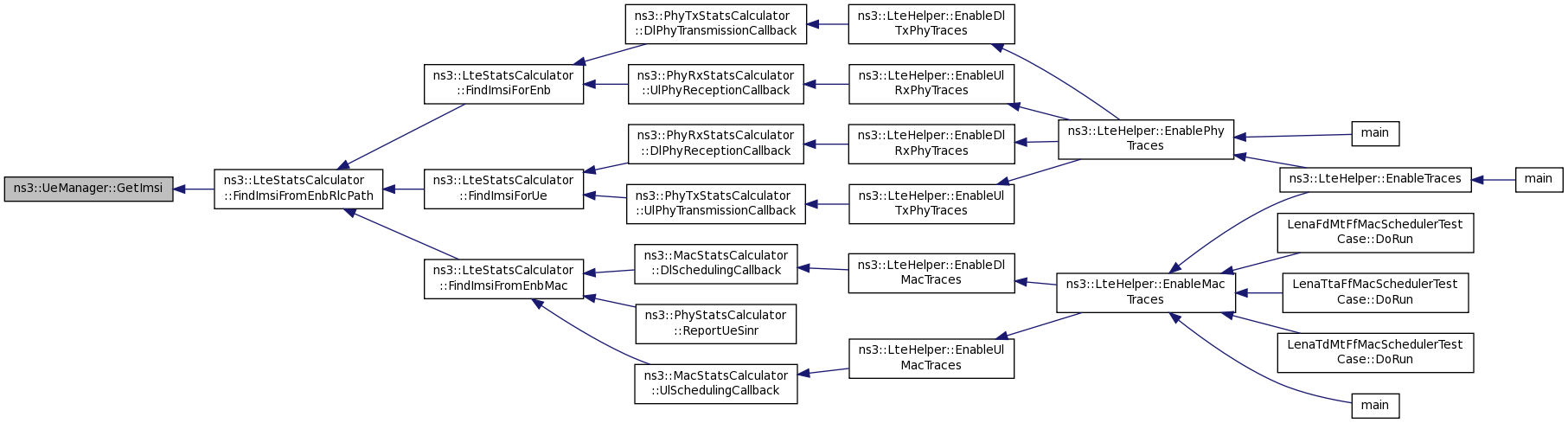

+ Here is the caller graph for this function:

uint8_t ns3::UeManager::GetNewRrcTransactionIdentifier ( )
private
Returns
a newly allocated identifier for a new RRC transaction

Definition at line 1131 of file lte-enb-rrc.cc.

References m_lastRrcTransactionIdentifier.

Referenced by BuildRrcConnectionReconfiguration(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

+ Here is the caller graph for this function:

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::GetRadioResourceConfigForHandoverPreparationInfo ( )
Returns
the HandoverPreparationInfo sent by the source eNB to the target eNB in the X2-based handover procedure

Definition at line 608 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), and NS_LOG_FUNCTION.

Referenced by PrepareHandover().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::UeManager::GetRnti ( void  ) const
Returns
the RNTI, i.e., an UE identifier that is unique within the cell

Definition at line 998 of file lte-enb-rrc.cc.

References m_rnti.

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::GetRrcConnectionReconfigurationForHandover ( )
Returns
retrieve the data that the target eNB needs to send to the source eNB as the Handover Command in the X2-based handover procedure.
Note
mobility control info is not expected to be filled in (shall be filled in by the caller).

Definition at line 615 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), and NS_LOG_FUNCTION.

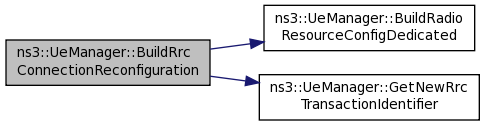

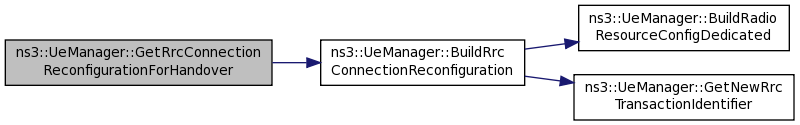

+ Here is the call graph for this function:

uint16_t ns3::UeManager::GetSrsConfigurationIndex ( void  ) const
UeManager::State ns3::UeManager::GetState ( void  ) const
Returns
the current state

Definition at line 1035 of file lte-enb-rrc.cc.

References m_state.

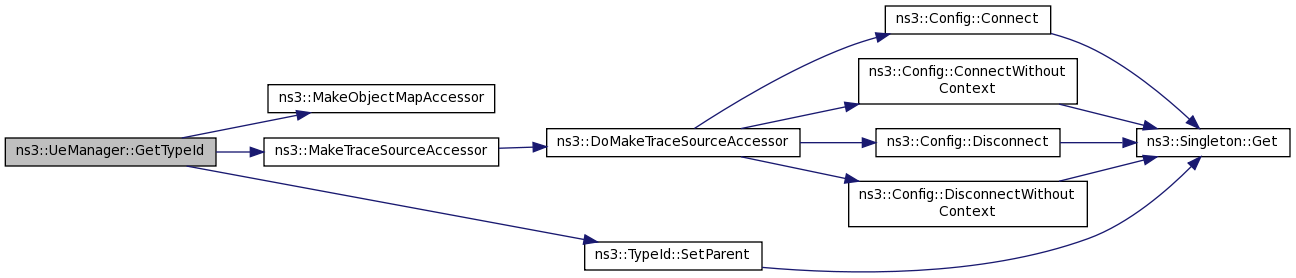

TypeId ns3::UeManager::GetTypeId ( void  )
static
uint8_t ns3::UeManager::Lcid2Bid ( uint8_t  lcid)
private
Parameters
lcida Logical Channel Identifier
Returns
the corresponding EPS Bearer Identifier

Definition at line 1149 of file lte-enb-rrc.cc.

References NS_ASSERT.

Referenced by DoReceivePdcpSdu().

+ Here is the caller graph for this function:

uint8_t ns3::UeManager::Lcid2Drbid ( uint8_t  lcid)
private
Parameters
lcida Logical Channel Identifier
Returns
the corresponding Data Radio Bearer Id

Definition at line 1137 of file lte-enb-rrc.cc.

References NS_ASSERT.

void ns3::UeManager::PrepareHandover ( uint16_t  cellId)

Start the handover preparation and send the handover request.

Parameters
cellIdid of the target cell

Definition at line 505 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::HandoverPreparationInfo::asConfig, ns3::EpcX2Sap::HandoverRequestParams::bearers, ns3::EpcX2Sap::HandoverRequestParams::cause, ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::cellIdentity, CONNECTED_NORMALLY, ns3::LteRrcSap::CellAccessRelatedInfo::csgIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::csgIndication, ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, GetErabList(), GetRadioResourceConfigForHandoverPreparationInfo(), HANDOVER_PREPARATION, ns3::EpcX2Sap::HandoverDesirableForRadioReason, m_imsi, m_rnti, m_rrc, m_state, m_targetCellId, ns3::EpcX2Sap::HandoverRequestParams::mmeUeS1apId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteEnbCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::EpcX2Sap::HandoverRequestParams::oldEnbUeX2apId, ns3::LteRrcSap::PlmnIdentityInfo::plmnIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::plmnIdentityInfo, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteEnbCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::EpcX2Sap::HandoverRequestParams::rrcContext, ns3::EpcX2Sap::HandoverRequestParams::sourceCellId, ns3::LteRrcSap::AsConfig::sourceDlCarrierFreq, ns3::LteRrcSap::AsConfig::sourceMasterInformationBlock, ns3::LteRrcSap::AsConfig::sourceMeasConfig, ns3::LteRrcSap::AsConfig::sourceRadioResourceConfig, ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType1, ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType2, ns3::LteRrcSap::AsConfig::sourceUeIdentity, SwitchToState(), ns3::LteRrcSap::MasterInformationBlock::systemFrameNumber, ns3::EpcX2Sap::HandoverRequestParams::targetCellId, ns3::ToString(), ns3::EpcX2Sap::HandoverRequestParams::ueAggregateMaxBitRateDownlink, ns3::EpcX2Sap::HandoverRequestParams::ueAggregateMaxBitRateUplink, ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

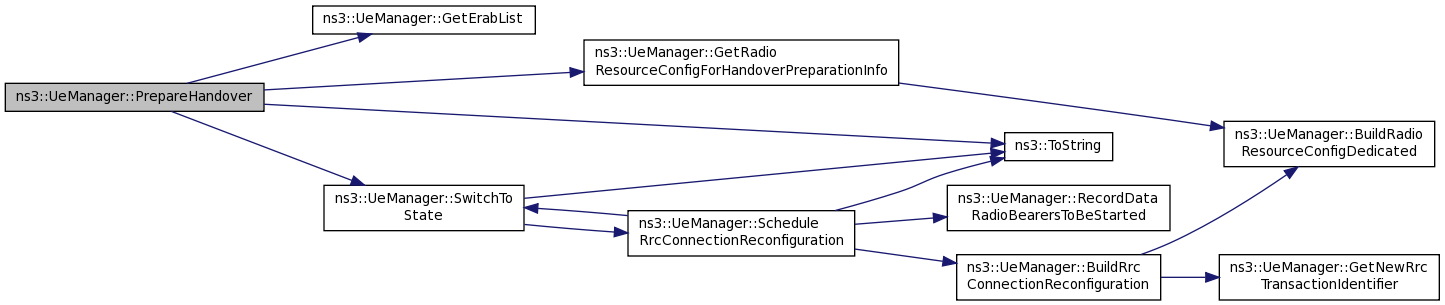

+ Here is the call graph for this function:

void ns3::UeManager::RecordDataRadioBearersToBeStarted ( )

Start all configured data radio bearers.

It is safe to call this method if any bearer had been already started previously.

Definition at line 414 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionRequest(), and ScheduleRrcConnectionReconfiguration().

+ Here is the caller graph for this function:

void ns3::UeManager::RecvHandoverPreparationFailure ( uint16_t  cellId)

Take the necessary actions in response to the reception of an X2 HO preparation failure message.

Parameters
cellIdid of the target cell

Definition at line 714 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PREPARATION, m_state, m_targetCellId, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

+ Here is the call graph for this function:

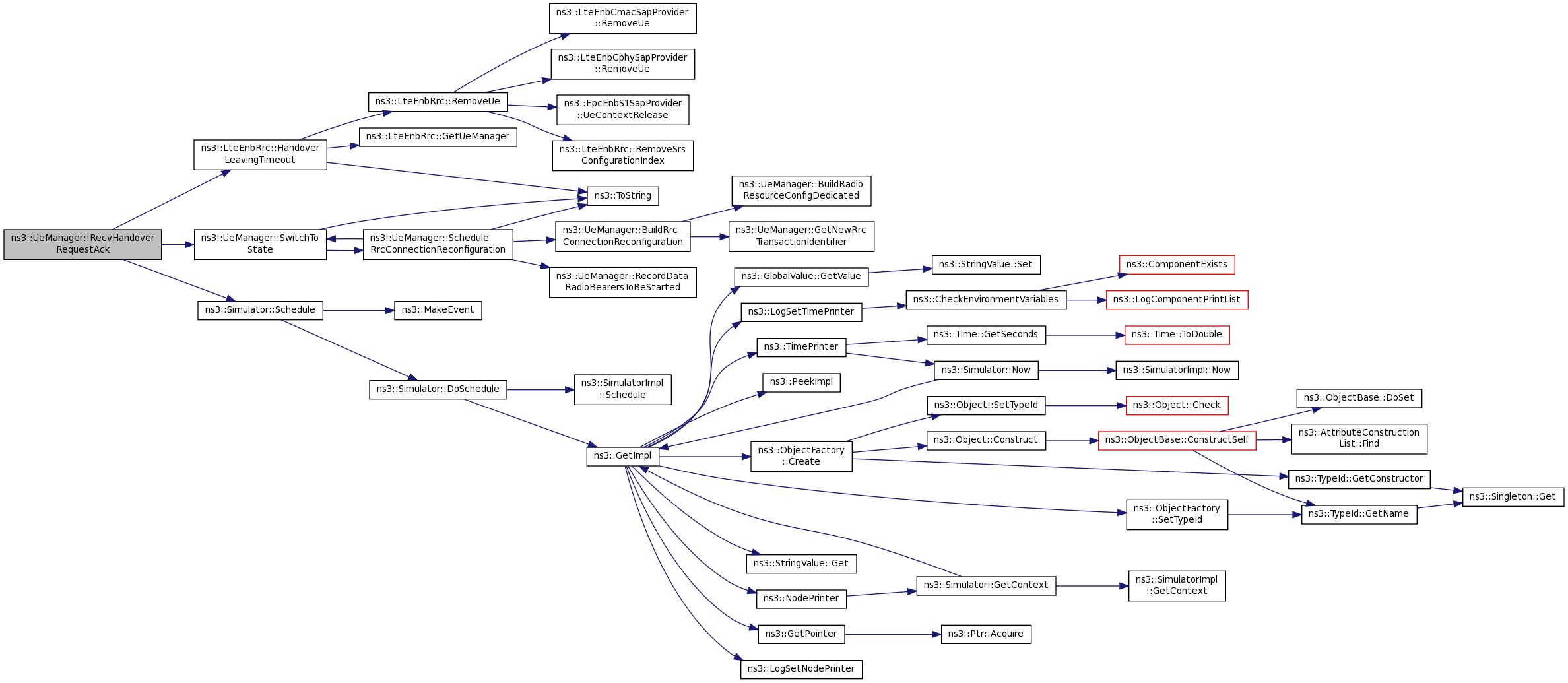

void ns3::UeManager::RecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams  params)

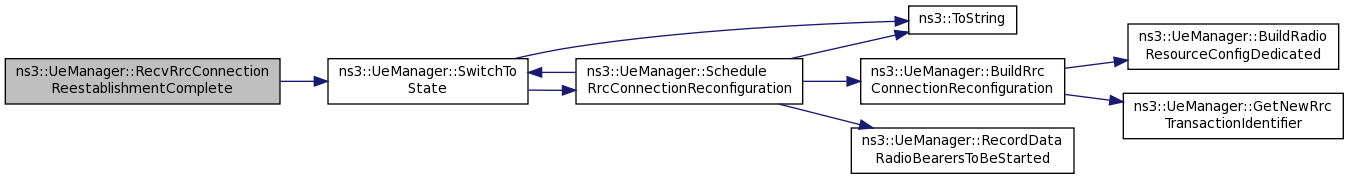

void ns3::UeManager::RecvRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete  msg)

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface.

Definition at line 914 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, NS_LOG_FUNCTION, and SwitchToState().

+ Here is the call graph for this function:

void ns3::UeManager::RecvRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted  msg)

Part of the RRC protocol. Implement the LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface.

Definition at line 814 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, CONNECTION_SETUP, m_imsi, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, StartDataRadioBearers(), SwitchToState(), and ns3::ToString().

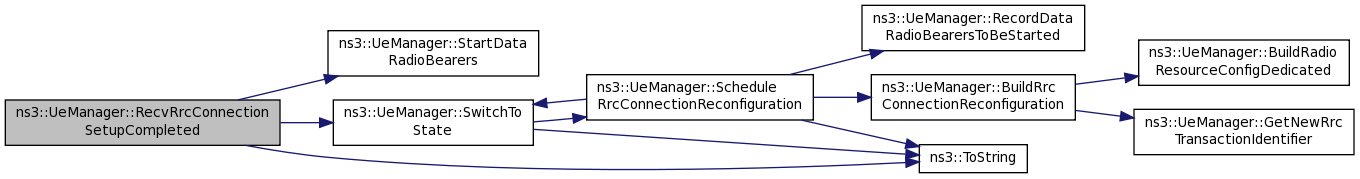

+ Here is the call graph for this function:

void ns3::UeManager::RecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams  params)

Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message.

Parameters
paramsthe SN STATUS

Definition at line 732 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, and NS_LOG_FUNCTION.

void ns3::UeManager::RecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams  params)

Take the necessary actions in response to the reception of an X2 UE CONTEXT RELEASE message.

Parameters
paramsthe SN STATUS

Definition at line 751 of file lte-enb-rrc.cc.

References ns3::EventId::Cancel(), HANDOVER_LEAVING, m_handoverLeavingTimeout, m_state, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::ToString().

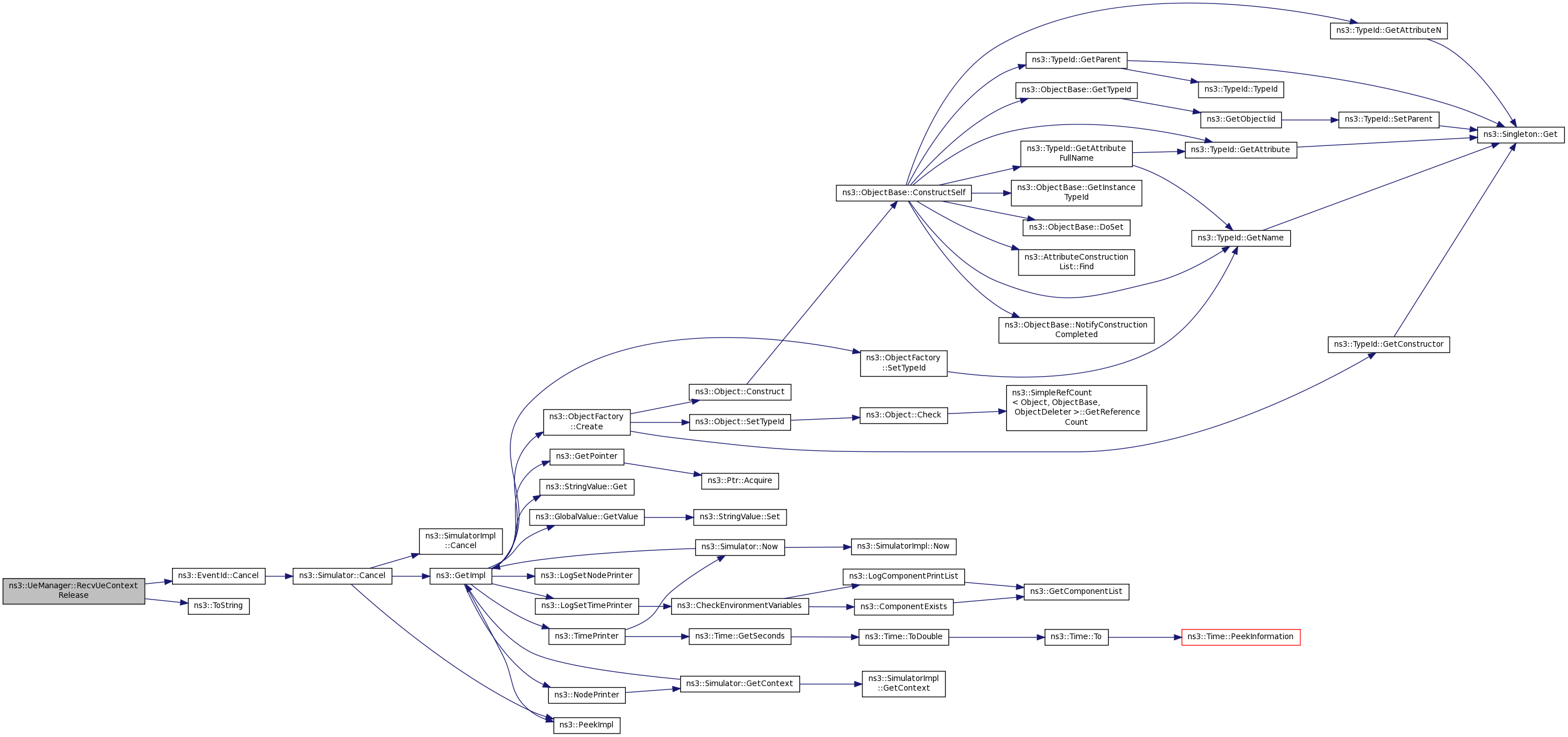

+ Here is the call graph for this function:

void ns3::UeManager::ReleaseDataRadioBearer ( uint8_t  drbid)
void ns3::UeManager::RemoveDataRadioBearerInfo ( uint8_t  drbid)
private

remove the LteDataRadioBearerInfo corresponding to a bearer being released

Parameters
drbidthe Data Radio Bearer id

Definition at line 1076 of file lte-enb-rrc.cc.

References m_drbMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

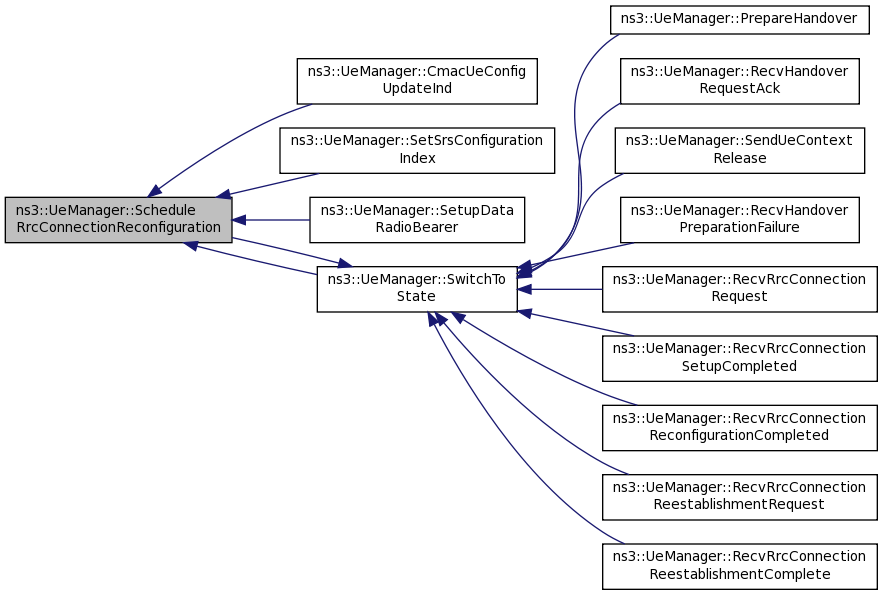

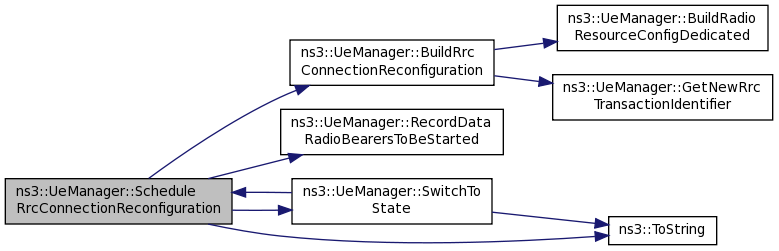

void ns3::UeManager::ScheduleRrcConnectionReconfiguration ( )
void ns3::UeManager::SendUeContextRelease ( )

send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure

Definition at line 691 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PATH_SWITCH, m_imsi, m_rnti, m_rrc, m_sourceCellId, m_sourceX2apId, m_state, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, SwitchToState(), and ns3::ToString().

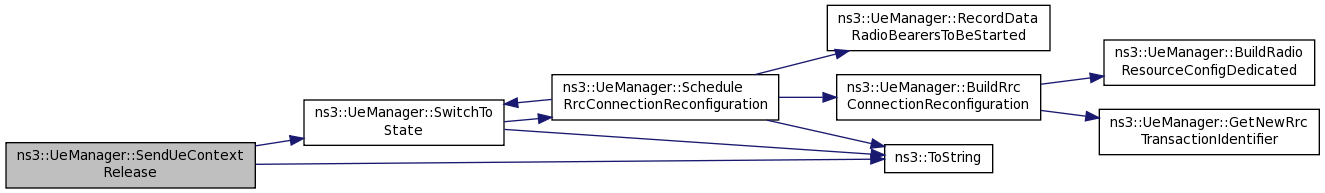

+ Here is the call graph for this function:

void ns3::UeManager::SetImsi ( uint64_t  imsi)

Set the IMSI.

Parameters
imsithe IMSI

Definition at line 319 of file lte-enb-rrc.cc.

References m_imsi.

void ns3::UeManager::SetSource ( uint16_t  sourceCellId,
uint16_t  sourceX2apId
)

Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure.

Parameters
sourceCellId
sourceX2apId

Definition at line 312 of file lte-enb-rrc.cc.

References m_sourceCellId, and m_sourceX2apId.

void ns3::UeManager::SetSrsConfigurationIndex ( uint16_t  srsConfIndex)

Set the SRS configuration index and do the necessary reconfiguration.

Parameters
srsConfIndex

Definition at line 1016 of file lte-enb-rrc.cc.

References INITIAL_RANDOM_ACCESS, m_physicalConfigDedicated, m_rnti, m_rrc, m_state, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

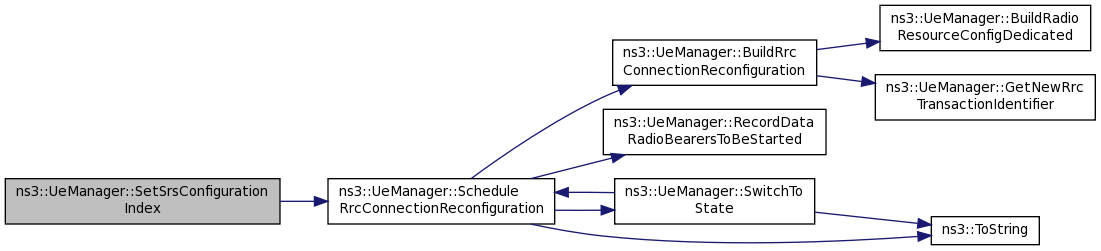

+ Here is the call graph for this function:

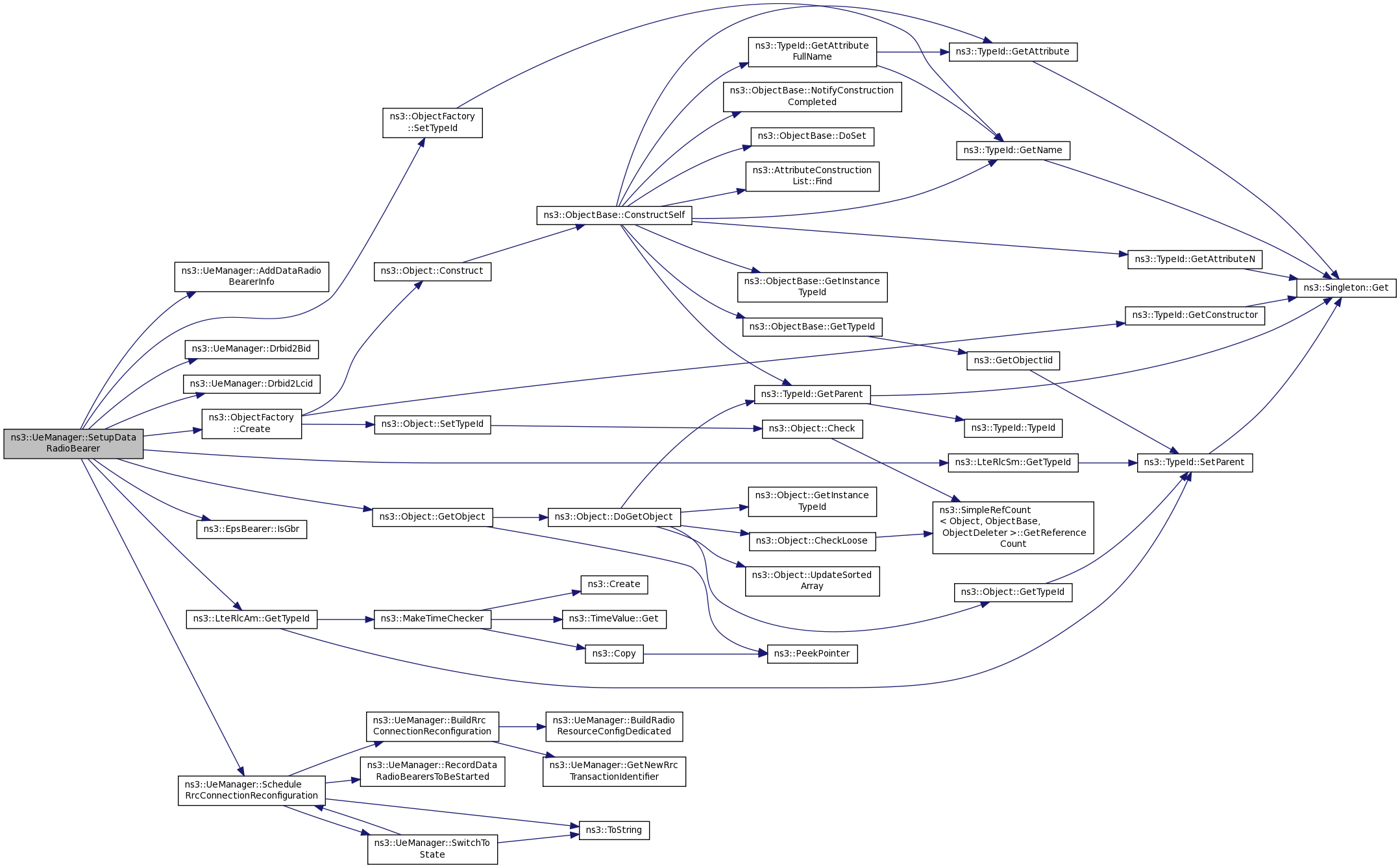

void ns3::UeManager::SetupDataRadioBearer ( EpsBearer  bearer,
uint8_t  bearerId,
uint32_t  gtpTeid,
Ipv4Address  transportLayerAddress
)

Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE.

Parameters
bearerthe QoS characteristics of the bearer
bearerIdthe EPS bearer identifier
gtpTeidS1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1
transportLayerAddressIP Address of the SGW, see 36.423 9.2.1

Definition at line 325 of file lte-enb-rrc.cc.

References AddDataRadioBearerInfo(), ns3::LteRrcSap::RlcConfig::AM, ns3::ObjectFactory::Create(), ns3::LteEnbRrc::X2uTeidInfo::drbid, Drbid2Bid(), Drbid2Lcid(), ns3::GbrQosInformation::gbrDl, ns3::LteEnbCmacSapProvider::LcInfo::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, ns3::LteEnbCmacSapProvider::LcInfo::gbrUl, ns3::Object::GetObject(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), HANDOVER_JOINING, ns3::LteEnbCmacSapProvider::LcInfo::isGbr, ns3::EpsBearer::IsGbr(), ns3::LteEnbCmacSapProvider::LcInfo::lcGroup, ns3::LteEnbCmacSapProvider::LcInfo::lcId, m_drbPdcpSapUser, m_rnti, m_rrc, m_state, ns3::GbrQosInformation::mbrDl, ns3::LteEnbCmacSapProvider::LcInfo::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::LteEnbCmacSapProvider::LcInfo::mbrUl, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteEnbCmacSapProvider::LcInfo::qci, ns3::EpsBearer::qci, ns3::LteEnbCmacSapProvider::LcInfo::rnti, ns3::LteEnbRrc::X2uTeidInfo::rnti, ScheduleRrcConnectionReconfiguration(), ns3::ObjectFactory::SetTypeId(), and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.

+ Here is the call graph for this function:

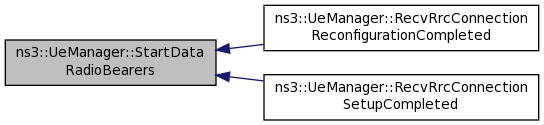

void ns3::UeManager::StartDataRadioBearers ( )

Start the data radio bearers that have been previously recorded to be started using RecordDataRadioBearersToBeStarted()

Definition at line 426 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionReconfigurationCompleted(), and RecvRrcConnectionSetupCompleted().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< UeManager >
friend

Definition at line 62 of file lte-enb-rrc.h.

Member Data Documentation

EventId ns3::UeManager::m_connectionRejectedTimeout
private

Definition at line 414 of file lte-enb-rrc.h.

Referenced by RecvRrcConnectionRequest().

EventId ns3::UeManager::m_connectionTimeout
private

Definition at line 413 of file lte-enb-rrc.h.

Referenced by DoInitialize(), and RecvRrcConnectionRequest().

LtePdcpSapUser* ns3::UeManager::m_drbPdcpSapUser
private

Definition at line 403 of file lte-enb-rrc.h.

Referenced by DoDispose(), DoInitialize(), and SetupDataRadioBearer().

std::list<uint8_t> ns3::UeManager::m_drbsToBeStarted
private

Definition at line 410 of file lte-enb-rrc.h.

Referenced by RecordDataRadioBearersToBeStarted(), and StartDataRadioBearers().

EventId ns3::UeManager::m_handoverJoiningTimeout
private

Definition at line 415 of file lte-enb-rrc.h.

Referenced by DoInitialize(), and RecvRrcConnectionReconfigurationCompleted().

EventId ns3::UeManager::m_handoverLeavingTimeout
private
uint8_t ns3::UeManager::m_lastAllocatedDrbid
private

Definition at line 396 of file lte-enb-rrc.h.

Referenced by AddDataRadioBearerInfo().

uint8_t ns3::UeManager::m_lastRrcTransactionIdentifier
private

Definition at line 399 of file lte-enb-rrc.h.

Referenced by GetNewRrcTransactionIdentifier().

bool ns3::UeManager::m_needTransmissionModeConfiguration
private
bool ns3::UeManager::m_pendingRrcConnectionReconfiguration
private

Definition at line 404 of file lte-enb-rrc.h.

Referenced by ScheduleRrcConnectionReconfiguration(), and SwitchToState().

uint16_t ns3::UeManager::m_sourceCellId
private

Definition at line 408 of file lte-enb-rrc.h.

Referenced by SendUeContextRelease(), and SetSource().

uint16_t ns3::UeManager::m_sourceX2apId
private

Definition at line 407 of file lte-enb-rrc.h.

Referenced by SendUeContextRelease(), and SetSource().

Ptr<LteSignalingRadioBearerInfo> ns3::UeManager::m_srb0
private

Definition at line 394 of file lte-enb-rrc.h.

Referenced by CompleteSetupUe(), DoInitialize(), and GetTypeId().

Ptr<LteSignalingRadioBearerInfo> ns3::UeManager::m_srb1
private
TracedCallback<uint64_t, uint16_t, uint16_t, State, State> ns3::UeManager::m_stateTransitionTrace
private

Definition at line 406 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SwitchToState().

uint16_t ns3::UeManager::m_targetCellId
private

Definition at line 409 of file lte-enb-rrc.h.

Referenced by PrepareHandover(), RecvHandoverPreparationFailure(), and SendData().


The documentation for this class was generated from the following files:
