ns3::EpcX2Sap::ErabToBeSetupItem Struct Reference

E-RABs to be setup item as it is used in the HANDOVER REQUEST message. More...

#include <epc-x2-sap.h>

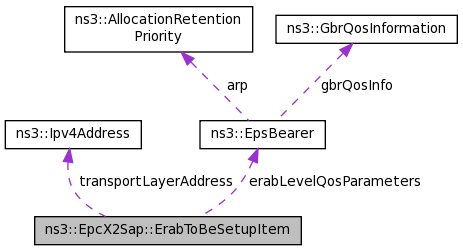

Collaboration diagram for ns3::EpcX2Sap::ErabToBeSetupItem:

Public Member Functions
	ErabToBeSetupItem ()

Public Attributes
bool	dlForwarding
uint16_t	erabId
EpsBearer	erabLevelQosParameters
uint32_t	gtpTeid
Ipv4Address	transportLayerAddress

Detailed Description

E-RABs to be setup item as it is used in the HANDOVER REQUEST message.

See section 9.1.1.1 for further info about the parameters

Definition at line 59 of file epc-x2-sap.h.

Constructor & Destructor Documentation

ns3::EpcX2Sap::ErabToBeSetupItem::ErabToBeSetupItem

(

)

Definition at line 30 of file epc-x2-sap.cc.

Member Data Documentation

bool ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding

Definition at line 63 of file epc-x2-sap.h.

Referenced by ns3::EpcX2HandoverRequestHeader::Deserialize(), and ns3::UeManager::GetErabList().

uint16_t ns3::EpcX2Sap::ErabToBeSetupItem::erabId

Definition at line 61 of file epc-x2-sap.h.

Referenced by ns3::EpcX2HandoverRequestHeader::Deserialize(), and ns3::UeManager::GetErabList().

EpsBearer ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters

Definition at line 62 of file epc-x2-sap.h.

Referenced by ns3::EpcX2HandoverRequestHeader::Deserialize(), and ns3::UeManager::GetErabList().

uint32_t ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid

Definition at line 65 of file epc-x2-sap.h.

Referenced by ns3::EpcX2HandoverRequestHeader::Deserialize(), and ns3::UeManager::GetErabList().

Ipv4Address ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress

Definition at line 64 of file epc-x2-sap.h.

Referenced by ns3::EpcX2HandoverRequestHeader::Deserialize(), and ns3::UeManager::GetErabList().

---

The documentation for this struct was generated from the following files:

• src/lte/model/epc-x2-sap.h
• src/lte/model/epc-x2-sap.cc
