OLSR routing protocol for IPv4. More...

#include <olsr-routing-protocol.h>

Inheritance diagram for ns3::olsr::RoutingProtocol:

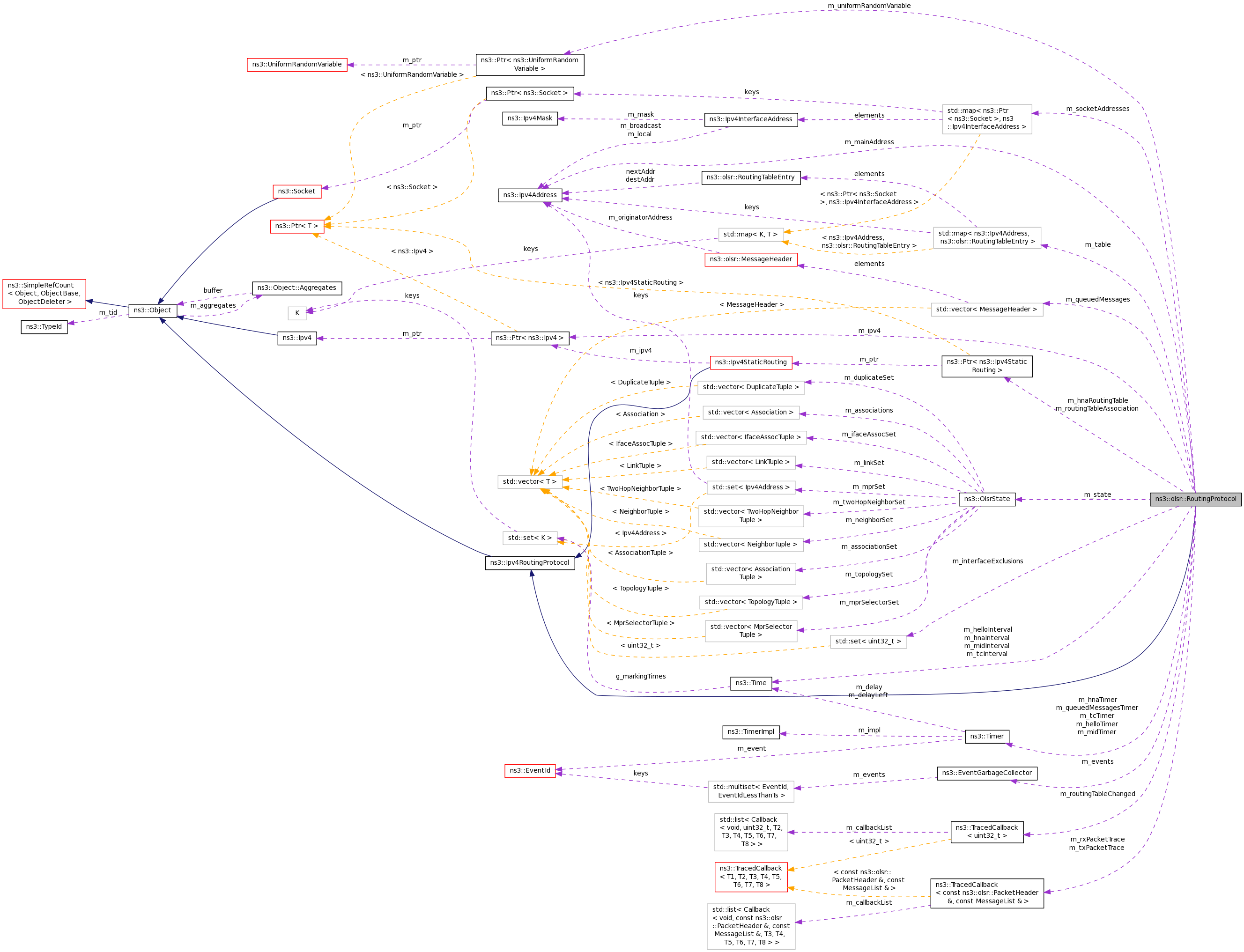

Collaboration diagram for ns3::olsr::RoutingProtocol:

Public Member Functions
	RoutingProtocol ()

virtual	~RoutingProtocol ()

void	AddHostNetworkAssociation (Ipv4Address networkAddr, Ipv4Mask netmask)
	Inject Association to be sent in HNA message. More...

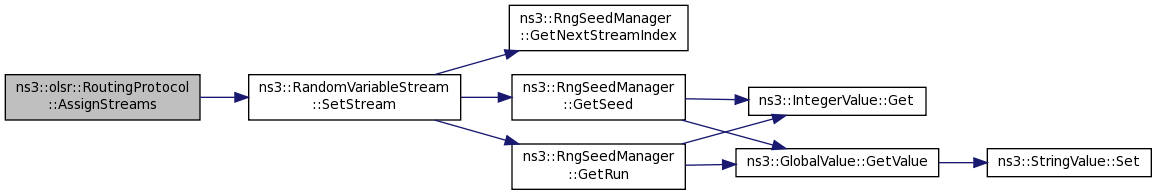

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

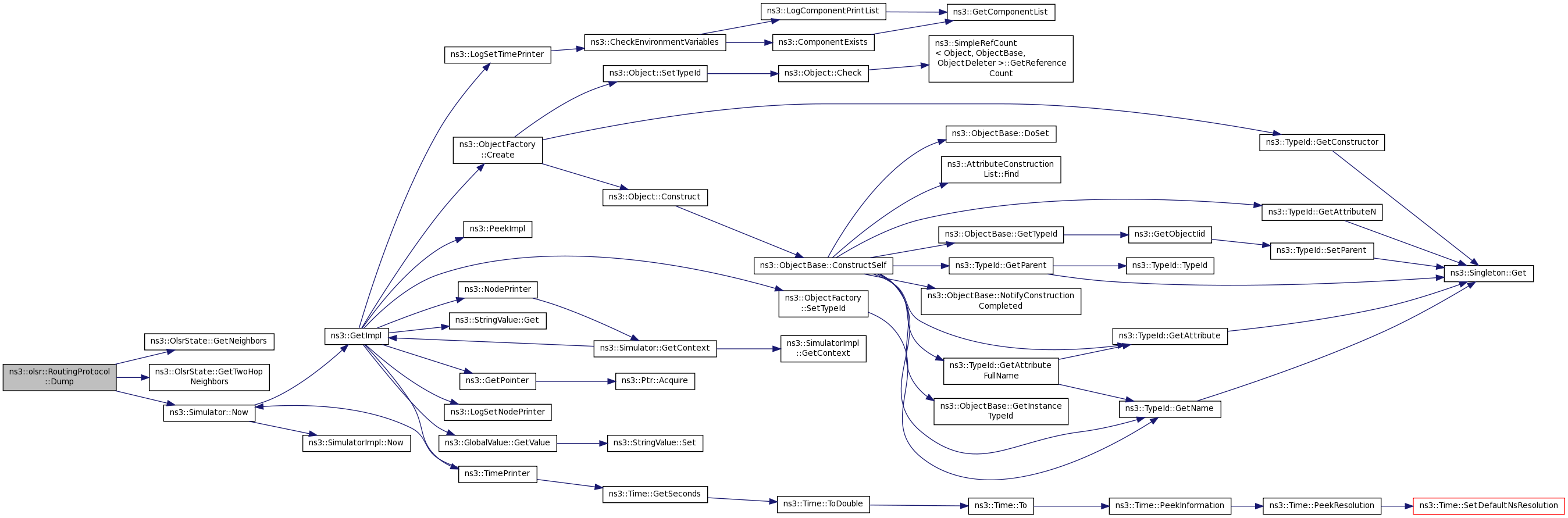

void	Dump (void)
	Dump the neighbor table, two-hop neighbor table, and routing table to logging output (NS_LOG_DEBUG log level). More...

std::set< uint32_t >	GetInterfaceExclusions () const

std::vector< RoutingTableEntry >	GetRoutingTableEntries () const
	Return the list of routing table entries discovered by OLSR. More...

void	RemoveHostNetworkAssociation (Ipv4Address networkAddr, Ipv4Mask netmask)
	Removes Association sent in HNA message. More...

void	SetInterfaceExclusions (std::set< uint32_t > exceptions)

void	SetMainInterface (uint32_t interface)
	Set the OLSR main address to the first address on the indicated interface. More...

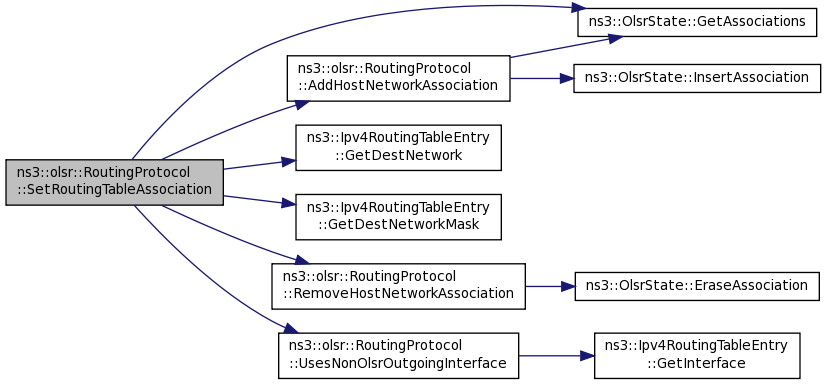

void	SetRoutingTableAssociation (Ptr< Ipv4StaticRouting > routingTable)
	Inject Associations from an Ipv4StaticRouting instance. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

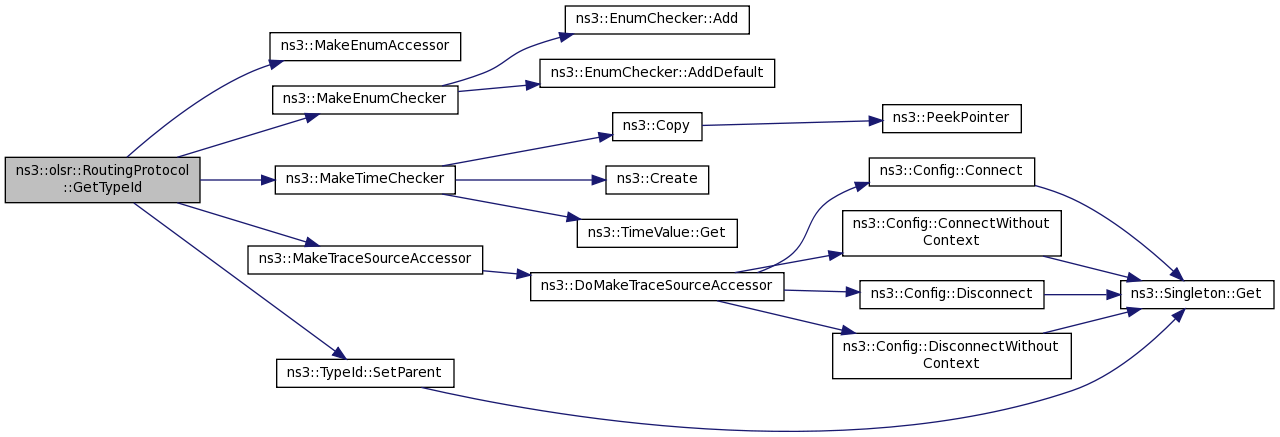

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Ipv4RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

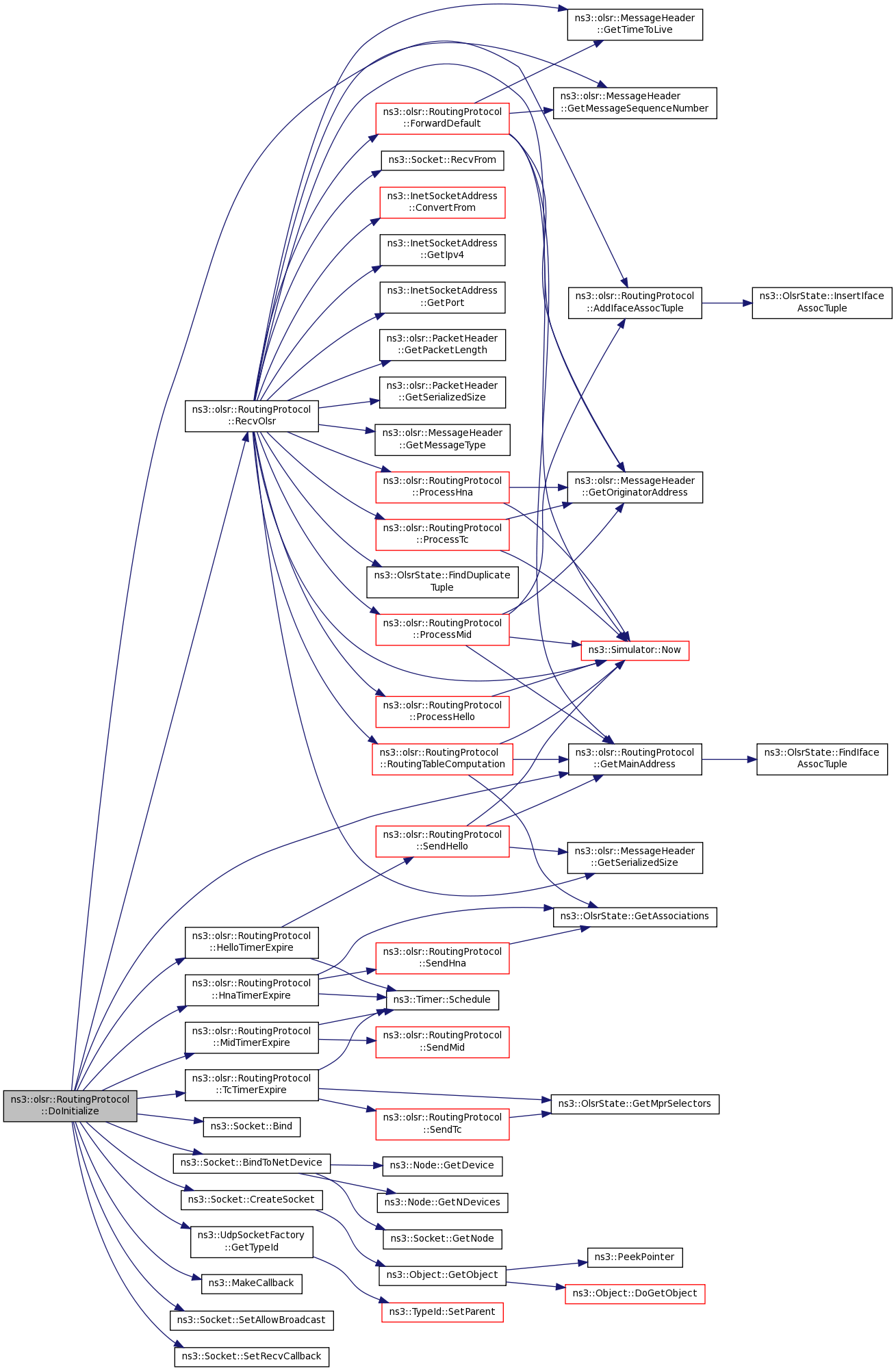

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	AddAssociationTuple (const AssociationTuple &tuple)
	Adds a host network association tuple to the Association Set. More...

void	AddDuplicateTuple (const DuplicateTuple &tuple)
	Adds a duplicate tuple to the Duplicate Set. More...

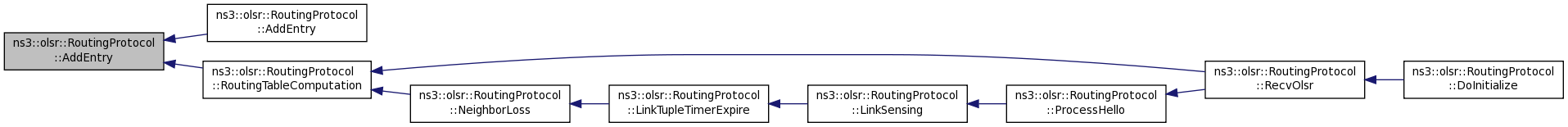

void	AddEntry (const Ipv4Address &dest, const Ipv4Address &next, uint32_t interface, uint32_t distance)
	Adds a new entry into the routing table. More...

void	AddEntry (const Ipv4Address &dest, const Ipv4Address &next, const Ipv4Address &interfaceAddress, uint32_t distance)

void	AddIfaceAssocTuple (const IfaceAssocTuple &tuple)
	Adds an interface association tuple to the Interface Association Set. More...

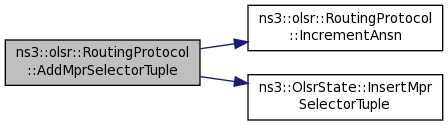

void	AddMprSelectorTuple (const MprSelectorTuple &tuple)
	Adds an MPR selector tuple to the MPR Selector Set. More...

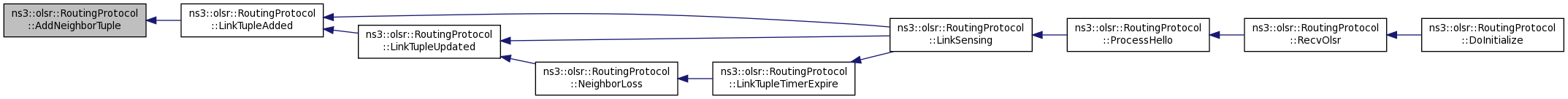

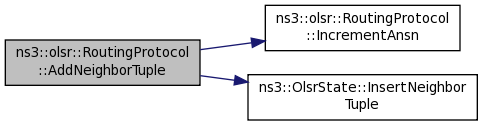

void	AddNeighborTuple (const NeighborTuple &tuple)
	Adds a neighbor tuple to the Neighbor Set. More...

void	AddTopologyTuple (const TopologyTuple &tuple)
	Adds a topology tuple to the Topology Set. More...

void	AddTwoHopNeighborTuple (const TwoHopNeighborTuple &tuple)
	Adds a 2-hop neighbor tuple to the 2-hop Neighbor Set. More...

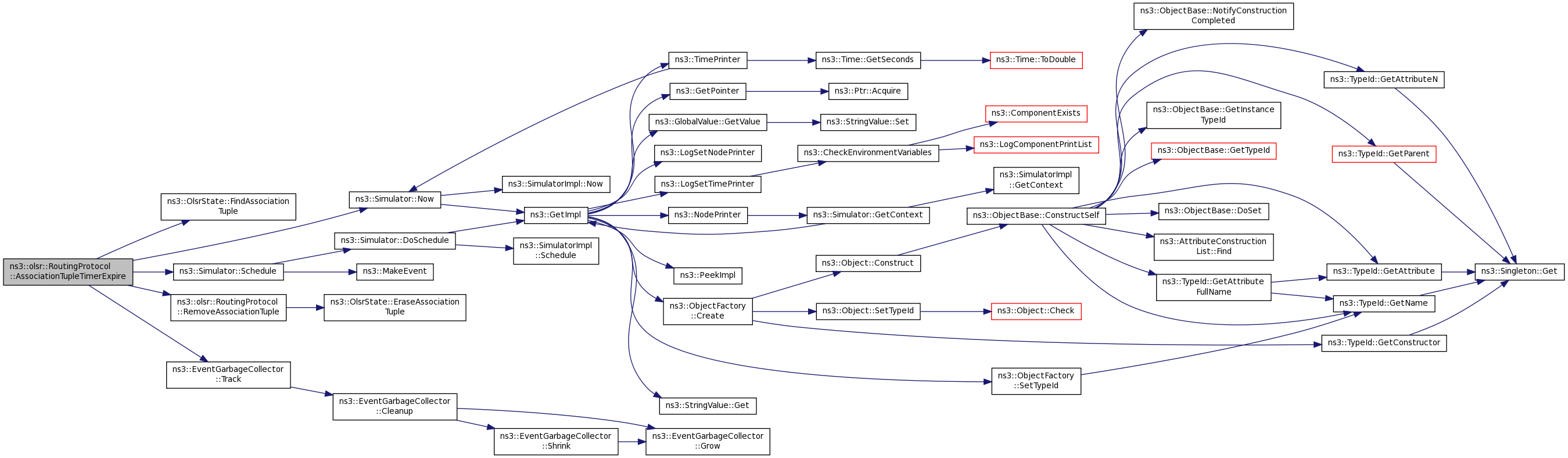

void	AssociationTupleTimerExpire (Ipv4Address gatewayAddr, Ipv4Address networkAddr, Ipv4Mask netmask)
	Removes tuple_ if expired. More...

void	Clear ()
	Clears the routing table and frees the memory assigned to each one of its entries. More...

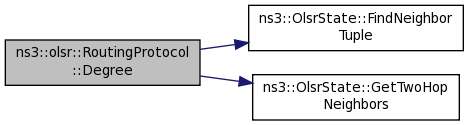

int	Degree (NeighborTuple const &tuple)
	This auxiliary function (defined in RFC 3626) is used for calculating the MPR Set. More...

void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

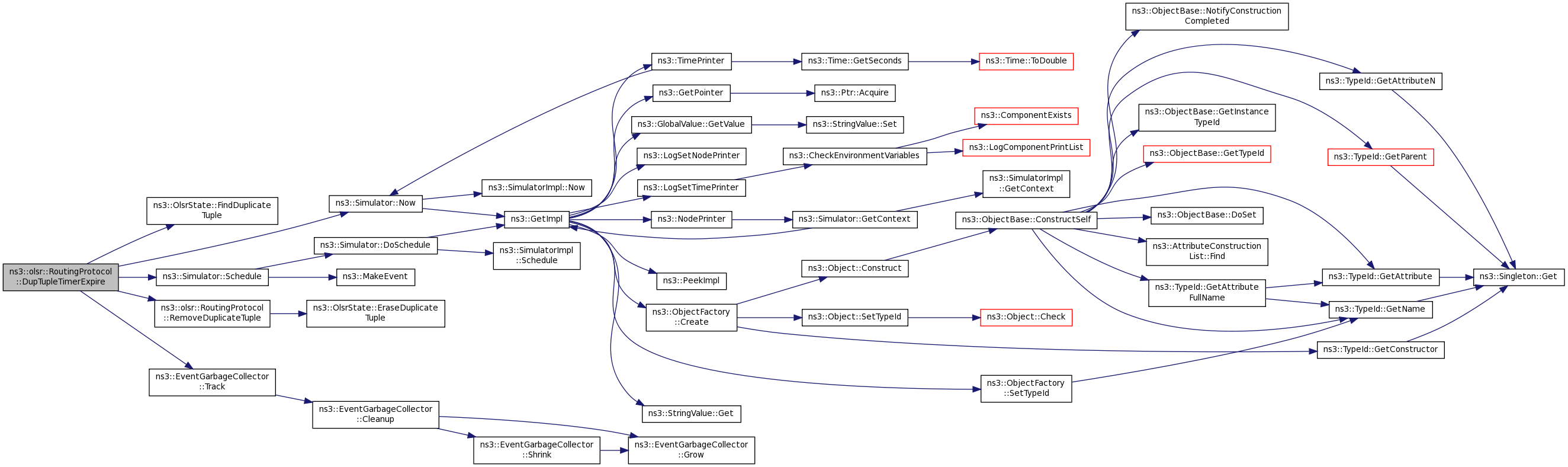

void	DupTupleTimerExpire (Ipv4Address address, uint16_t sequenceNumber)
	Removes tuple if expired. More...

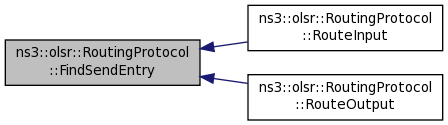

bool	FindSendEntry (const RoutingTableEntry &entry, RoutingTableEntry &outEntry) const
	Finds the appropiate entry which must be used in order to forward a data packet to a next hop (given a destination). More...

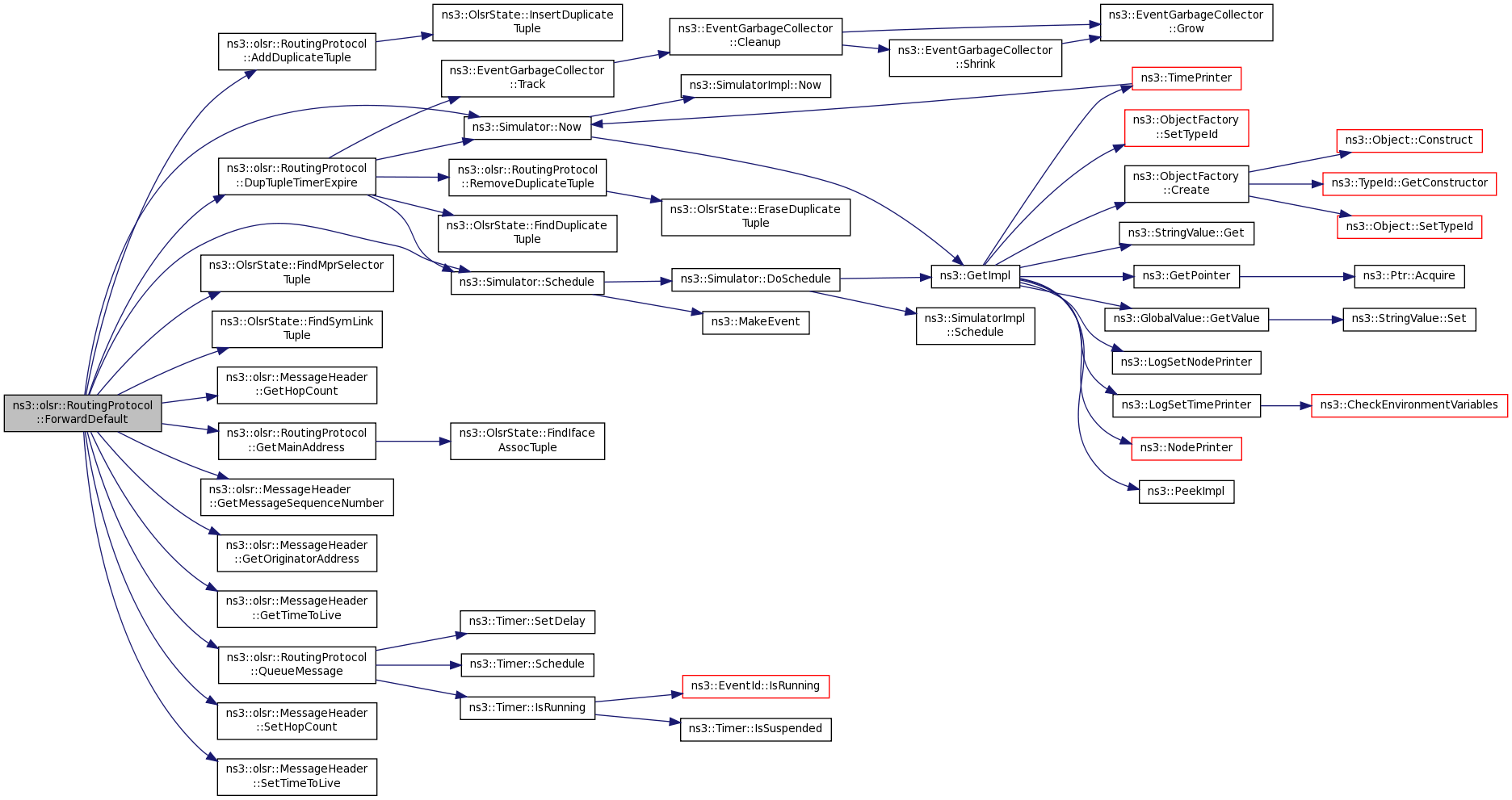

void	ForwardDefault (olsr::MessageHeader olsrMessage, DuplicateTuple *duplicated, const Ipv4Address &localIface, const Ipv4Address &senderAddress)
	OLSR's default forwarding algorithm. More...

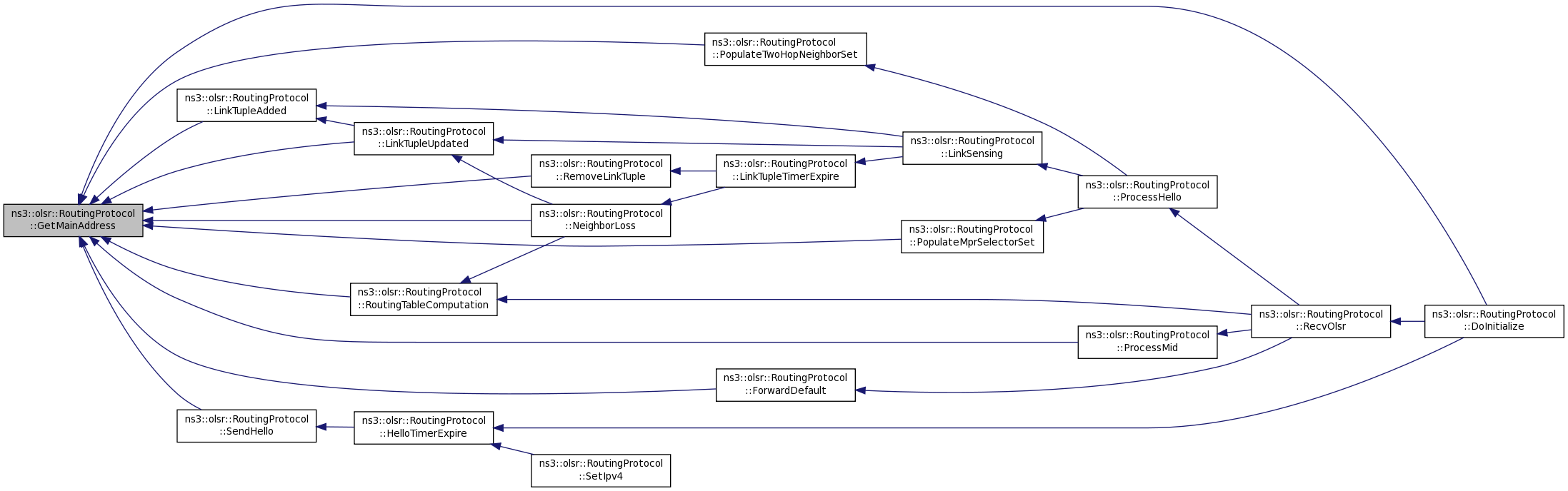

Ipv4Address	GetMainAddress (Ipv4Address iface_addr) const
	Gets the main address associated with a given interface address. More...

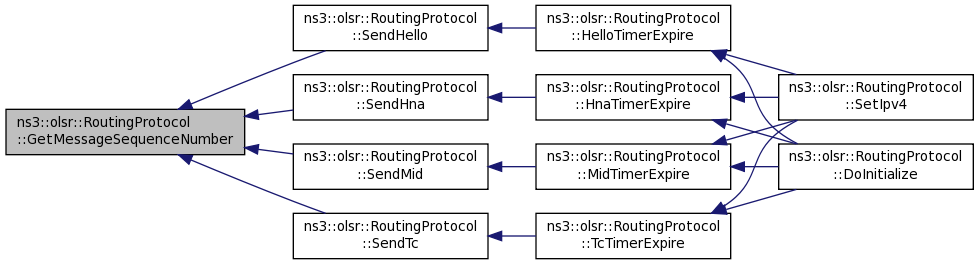

uint16_t	GetMessageSequenceNumber ()
	Increments message sequence number and returns the new value. More...

uint16_t	GetPacketSequenceNumber ()
	Increments packet sequence number and returns the new value. More...

uint32_t	GetSize () const

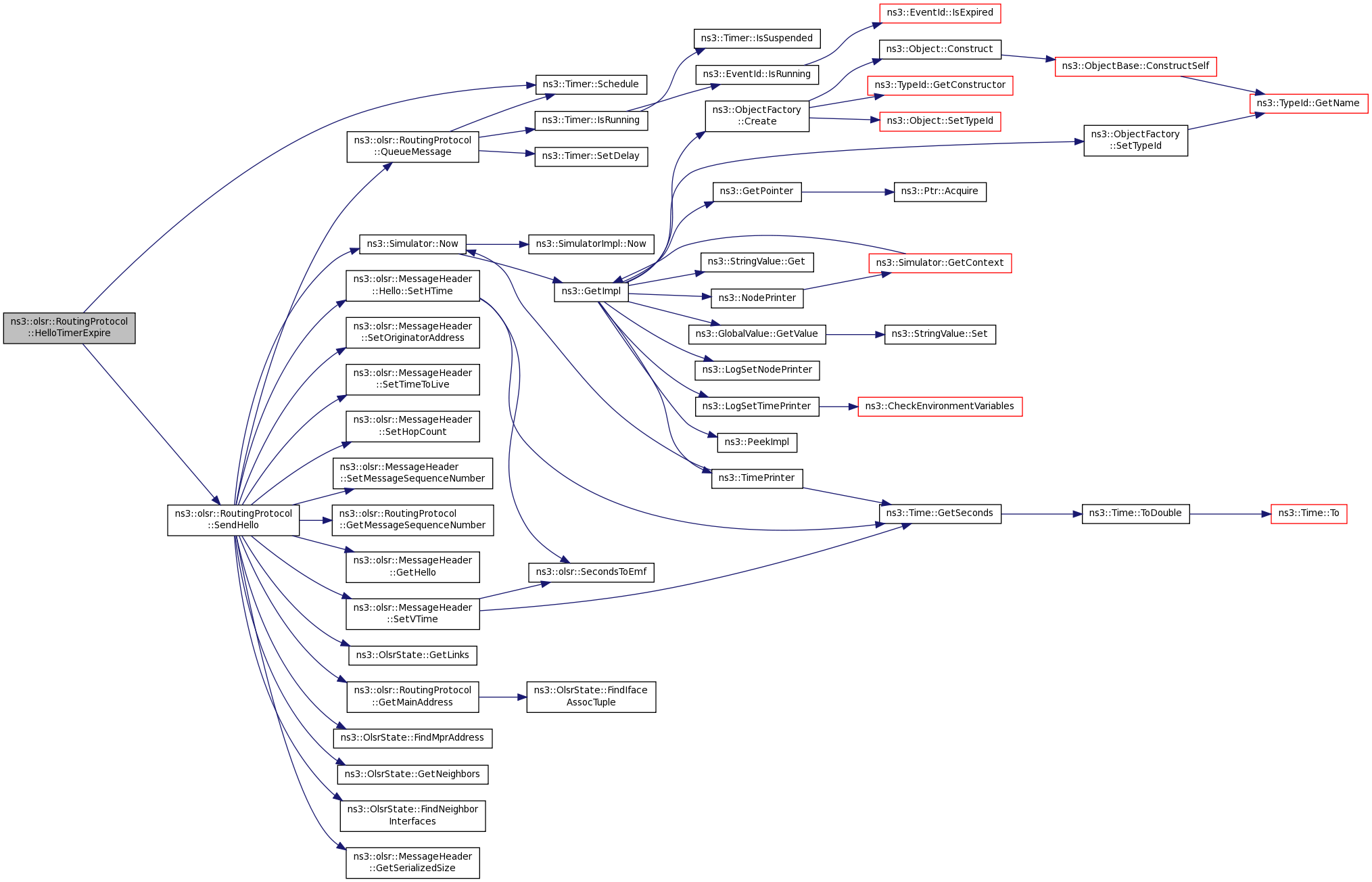

void	HelloTimerExpire ()
	Sends a HELLO message and reschedules the HELLO timer. More...

void	HnaTimerExpire ()
	Sends an HNA message (if the node has associated hosts/networks) and reschedules the HNA timer. More...

void	IfaceAssocTupleTimerExpire (Ipv4Address ifaceAddr)
	Removes tuple_ if expired. More...

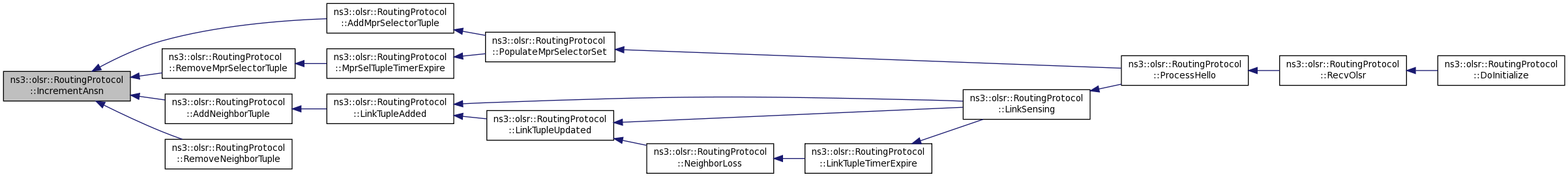

void	IncrementAnsn ()

bool	IsMyOwnAddress (const Ipv4Address &a) const
	Check that address is one of my interfaces. More...

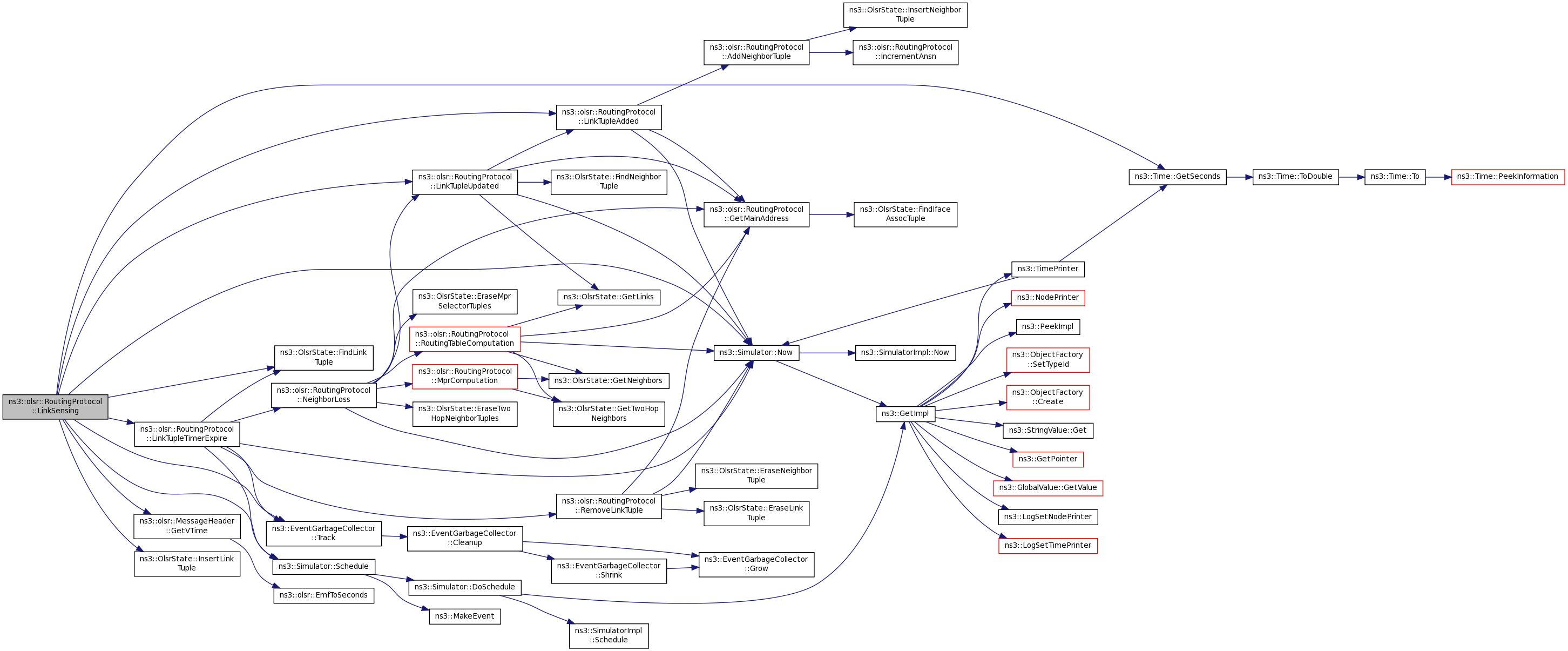

void	LinkSensing (const olsr::MessageHeader &msg, const olsr::MessageHeader::Hello &hello, const Ipv4Address &receiverIface, const Ipv4Address &sender_iface)
	Updates Link Set according to a new received HELLO message (following RFC 3626 specification). More...

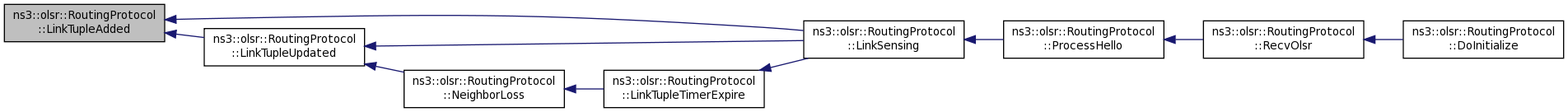

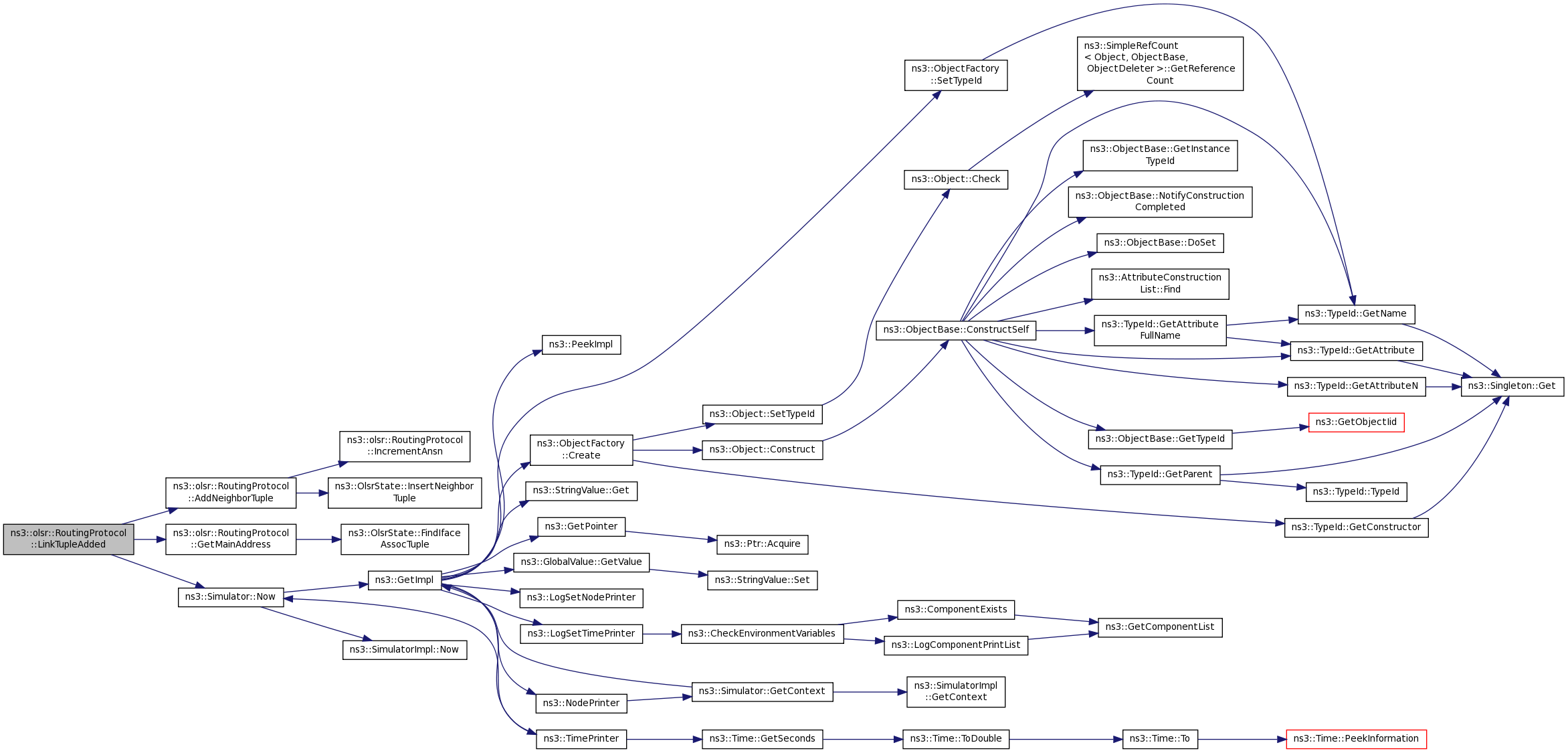

void	LinkTupleAdded (const LinkTuple &tuple, uint8_t willingness)

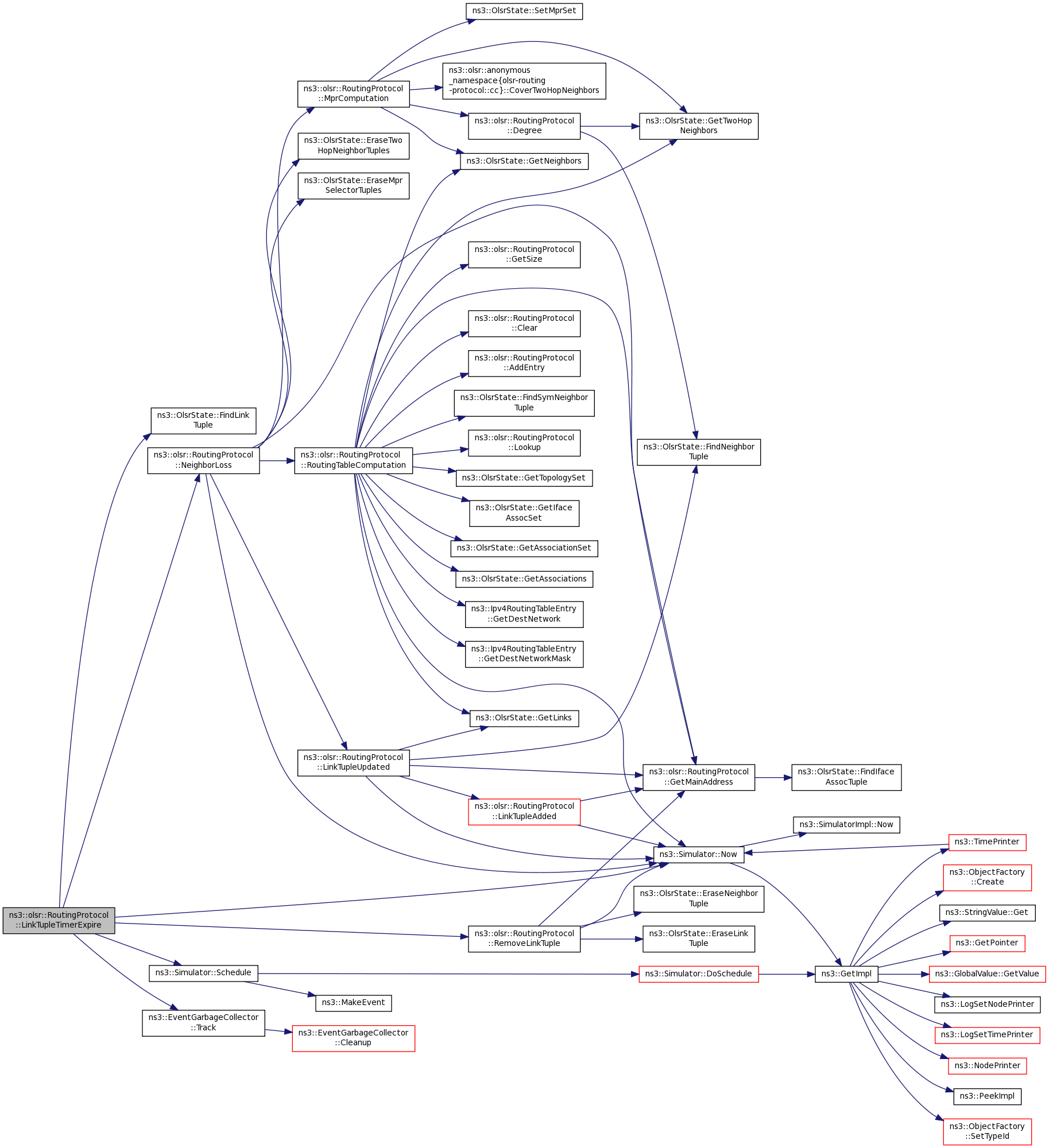

void	LinkTupleTimerExpire (Ipv4Address neighborIfaceAddr)
	Removes tuple_ if expired. More...

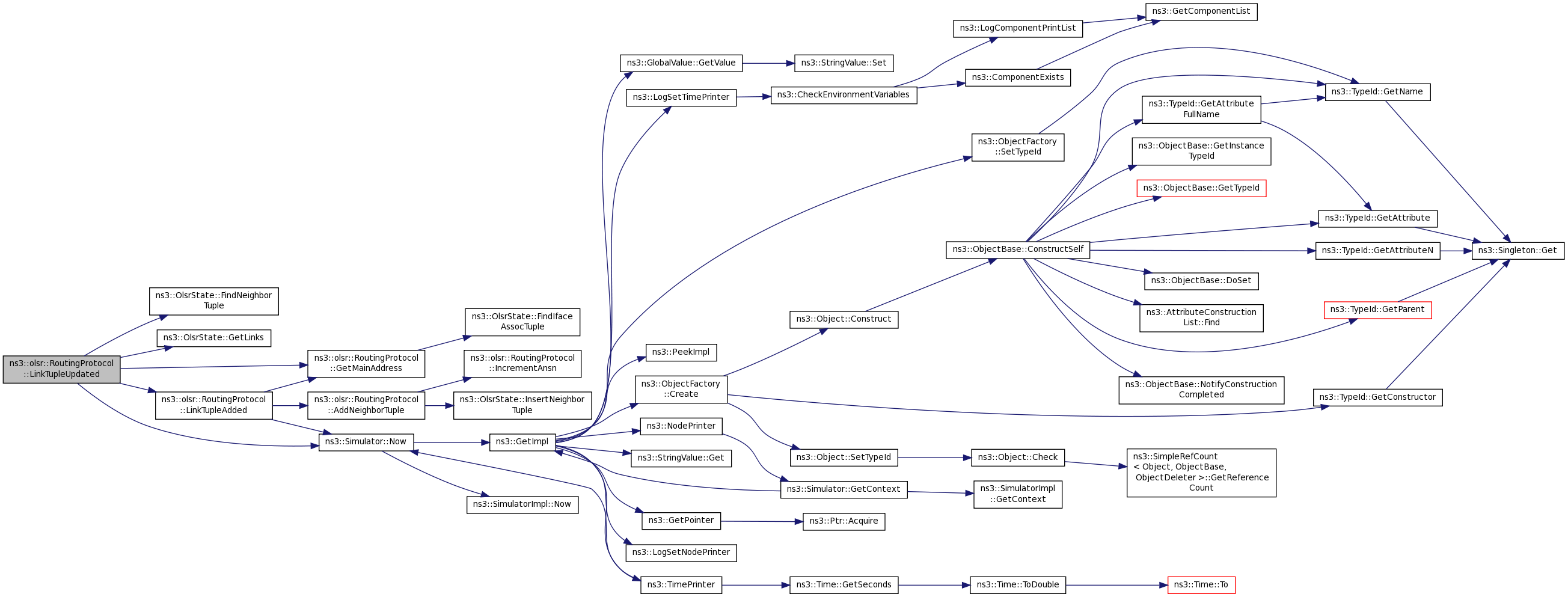

void	LinkTupleUpdated (const LinkTuple &tuple, uint8_t willingness)
	This function is invoked when a link tuple is updated. More...

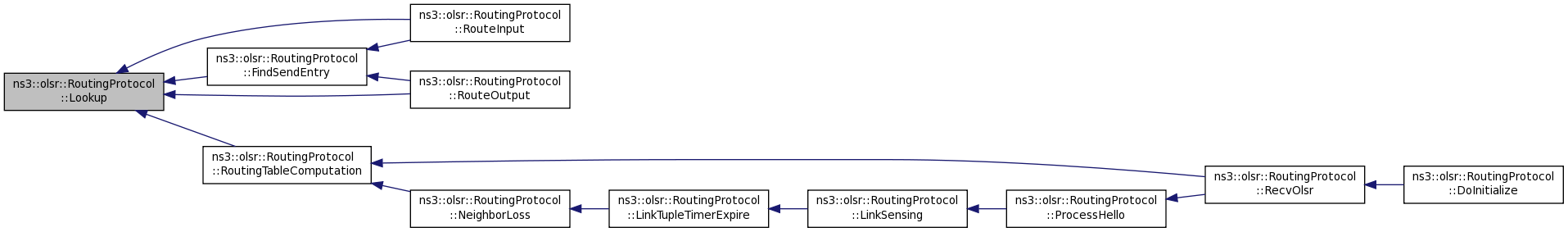

bool	Lookup (const Ipv4Address &dest, RoutingTableEntry &outEntry) const
	Looks up an entry for the specified destination address. More...

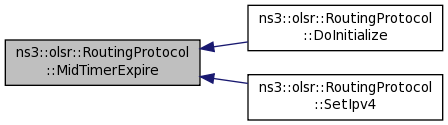

void	MidTimerExpire ()
	Sends a MID message (if the node has more than one interface) and resets the MID timer. More...

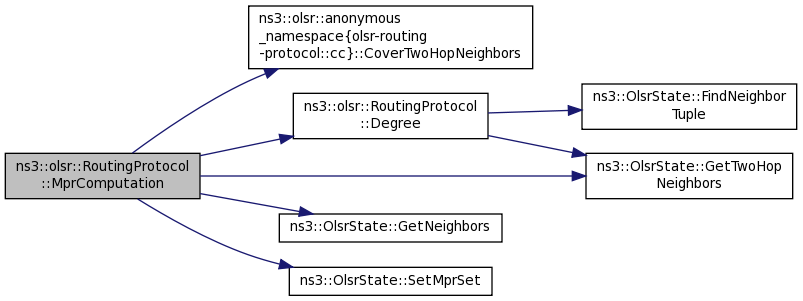

void	MprComputation ()
	Computates MPR set of a node following RFC 3626 hints. More...

void	MprSelTupleTimerExpire (Ipv4Address mainAddr)
	Removes tuple_ if expired. More...

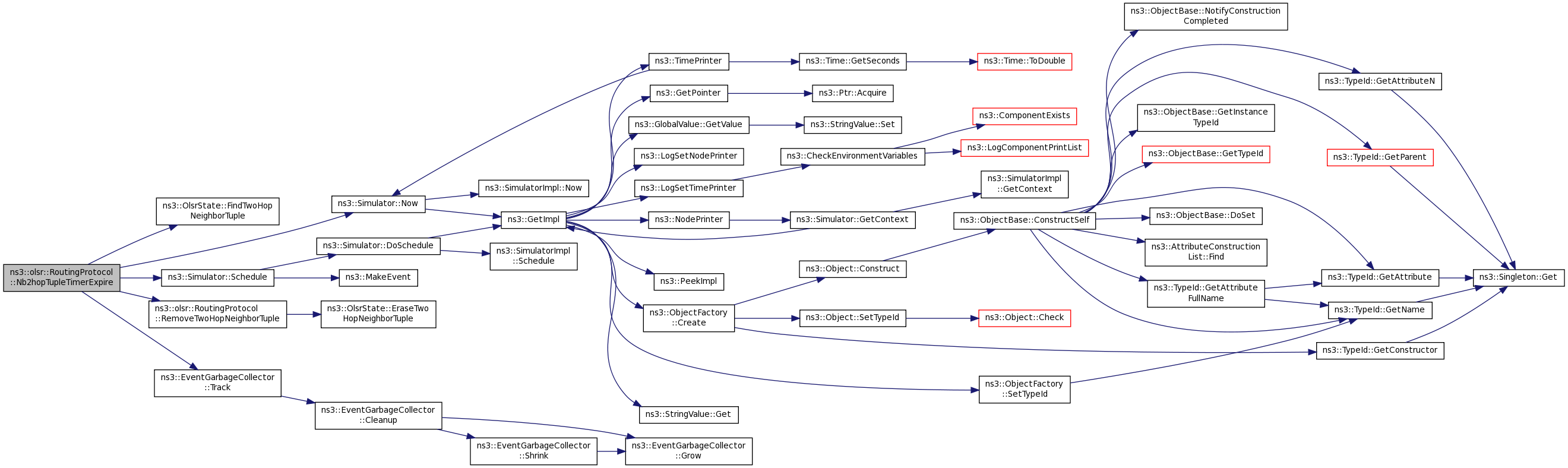

void	Nb2hopTupleTimerExpire (Ipv4Address neighborMainAddr, Ipv4Address twoHopNeighborAddr)
	Removes tuple_ if expired. More...

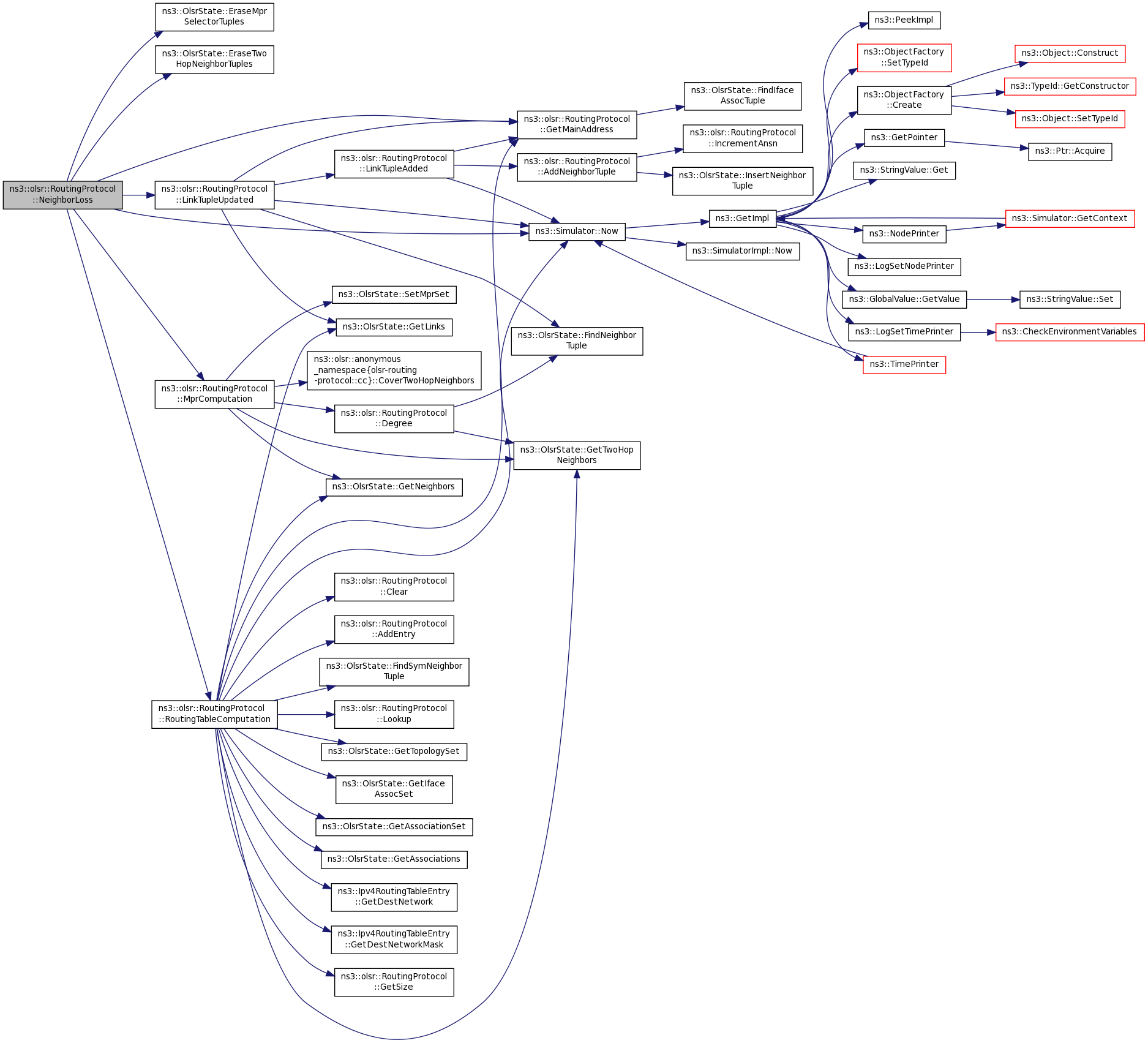

void	NeighborLoss (const LinkTuple &tuple)
	Performs all actions needed when a neighbor loss occurs. More...

virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)

virtual void	NotifyInterfaceDown (uint32_t interface)

virtual void	NotifyInterfaceUp (uint32_t interface)

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)

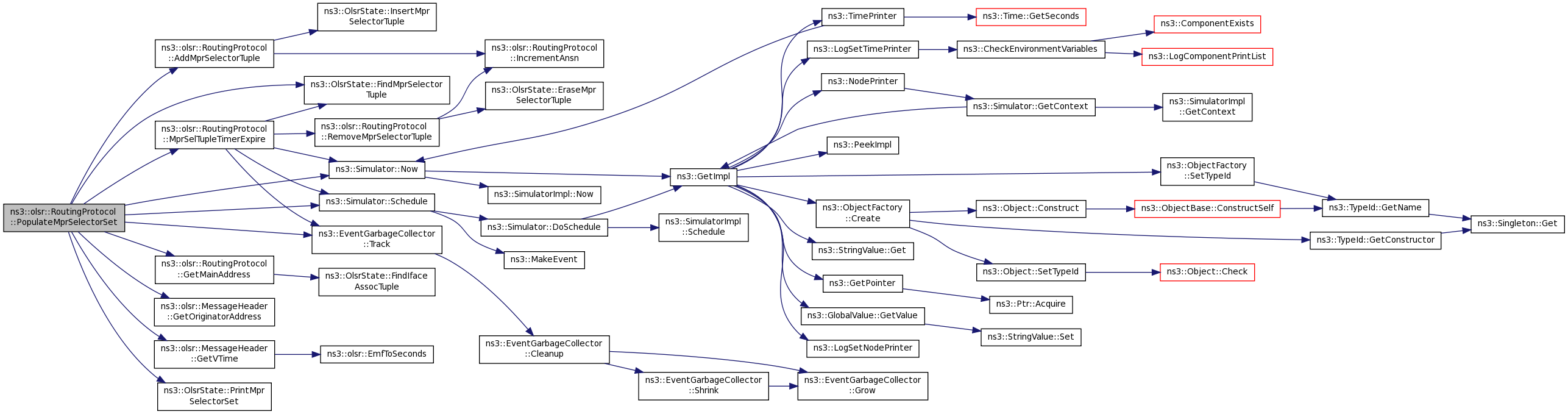

void	PopulateMprSelectorSet (const olsr::MessageHeader &msg, const olsr::MessageHeader::Hello &hello)
	Updates the MPR Selector Set according to the information contained in a new received HELLO message (following RFC 3626). More...

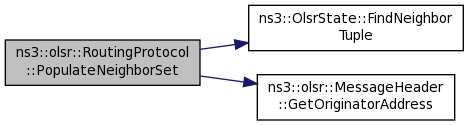

void	PopulateNeighborSet (const olsr::MessageHeader &msg, const olsr::MessageHeader::Hello &hello)
	Updates the Neighbor Set according to the information contained in a new received HELLO message (following RFC 3626). More...

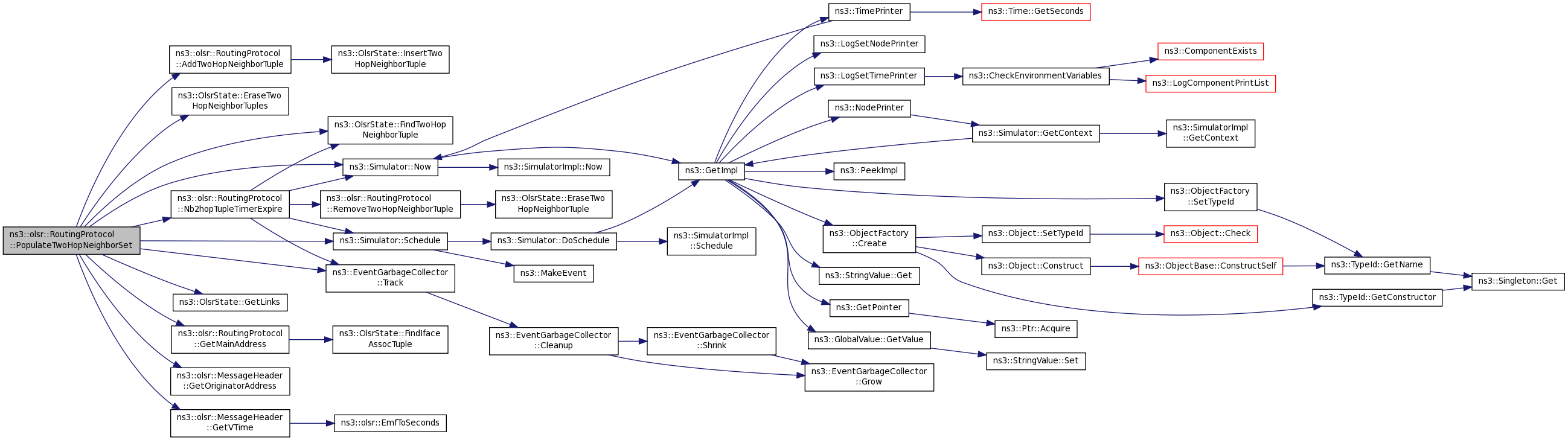

void	PopulateTwoHopNeighborSet (const olsr::MessageHeader &msg, const olsr::MessageHeader::Hello &hello)
	Updates the 2-hop Neighbor Set according to the information contained in a new received HELLO message (following RFC 3626). More...

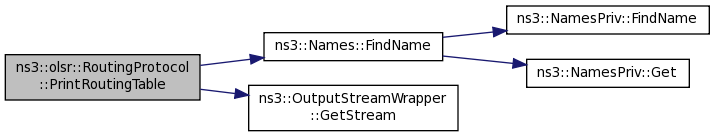

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries. More...

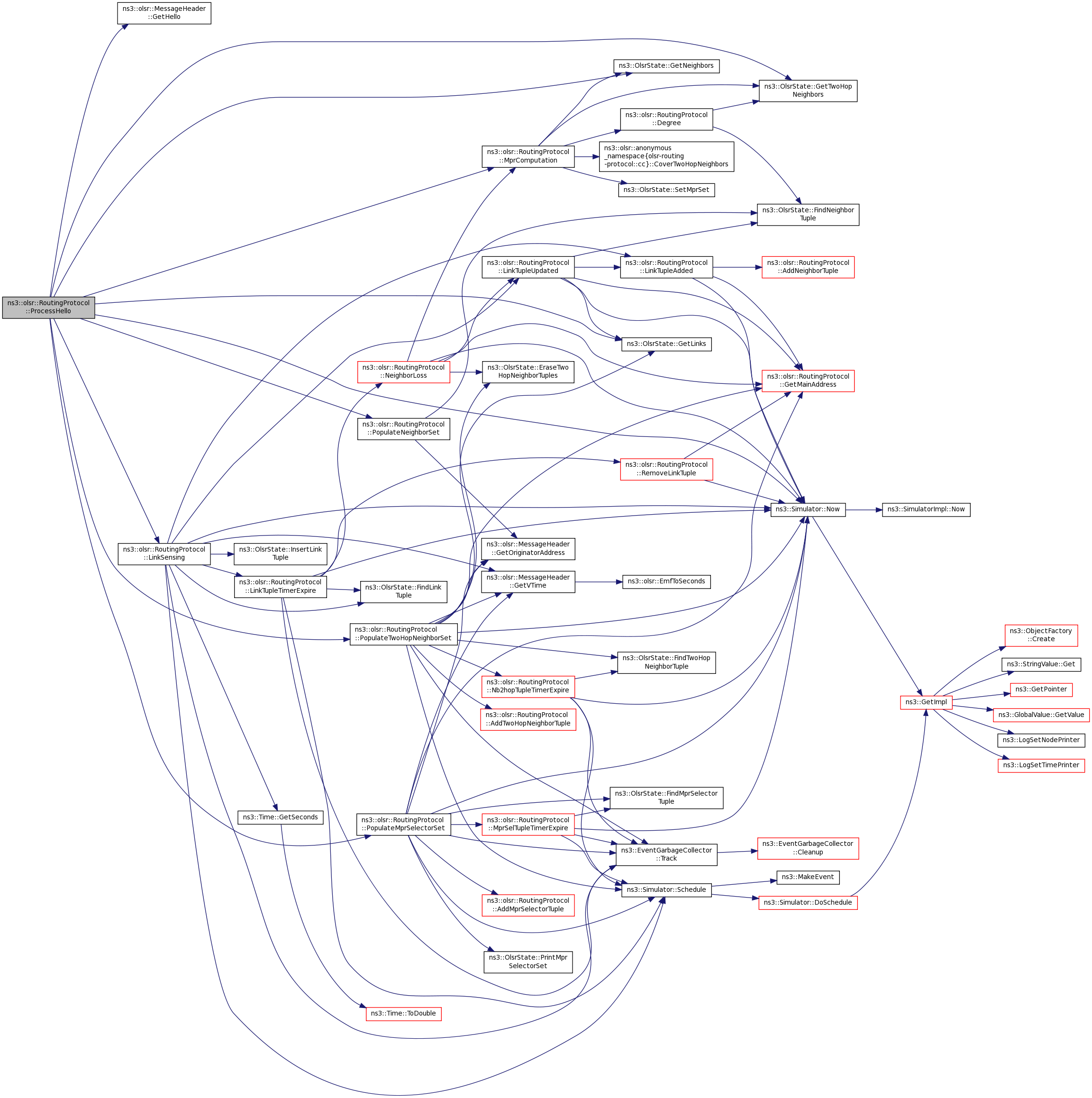

void	ProcessHello (const olsr::MessageHeader &msg, const Ipv4Address &receiverIface, const Ipv4Address &senderIface)
	Processes a HELLO message following RFC 3626 specification. More...

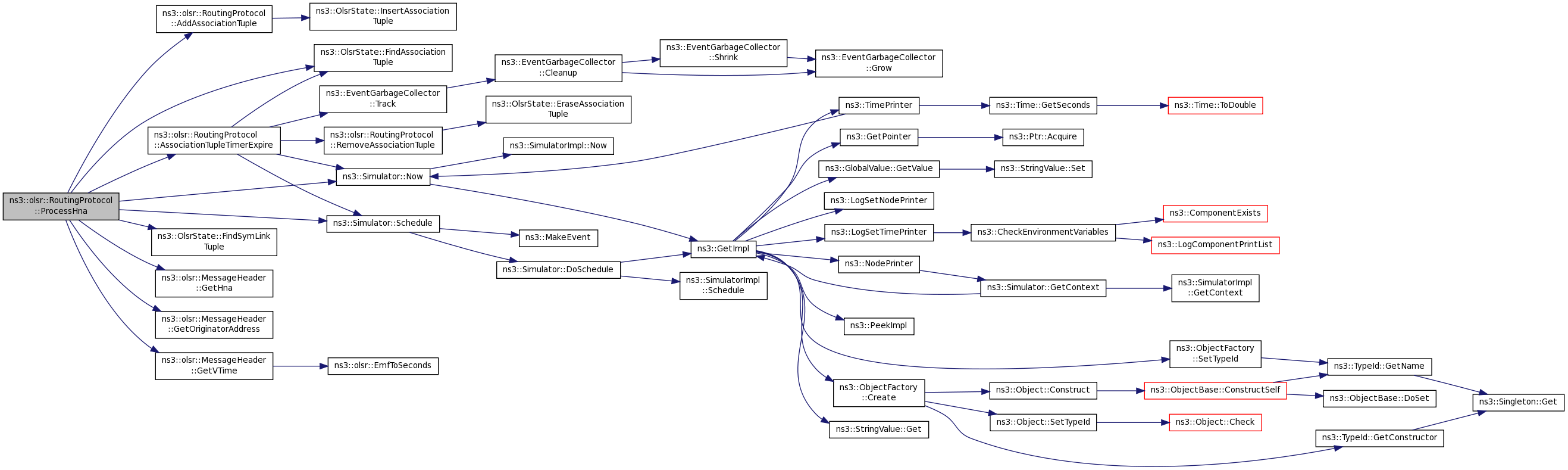

void	ProcessHna (const olsr::MessageHeader &msg, const Ipv4Address &senderIface)
	Processes a HNA message following RFC 3626 specification. More...

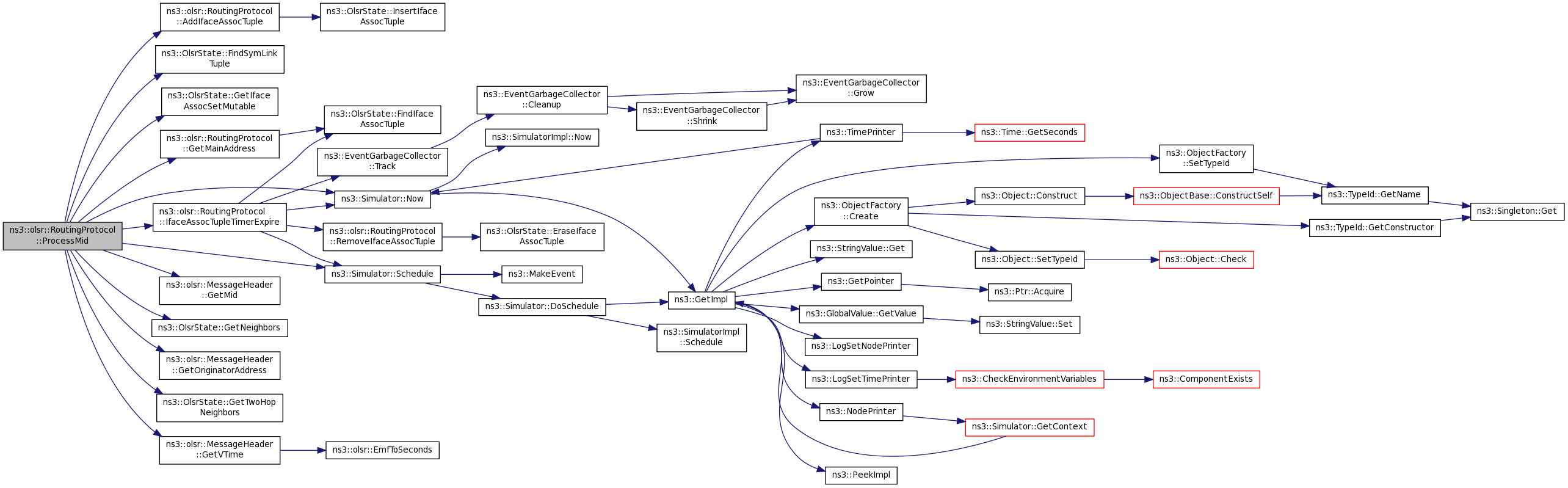

void	ProcessMid (const olsr::MessageHeader &msg, const Ipv4Address &senderIface)
	Processes a MID message following RFC 3626 specification. More...

void	ProcessTc (const olsr::MessageHeader &msg, const Ipv4Address &senderIface)
	Processes a TC message following RFC 3626 specification. More...

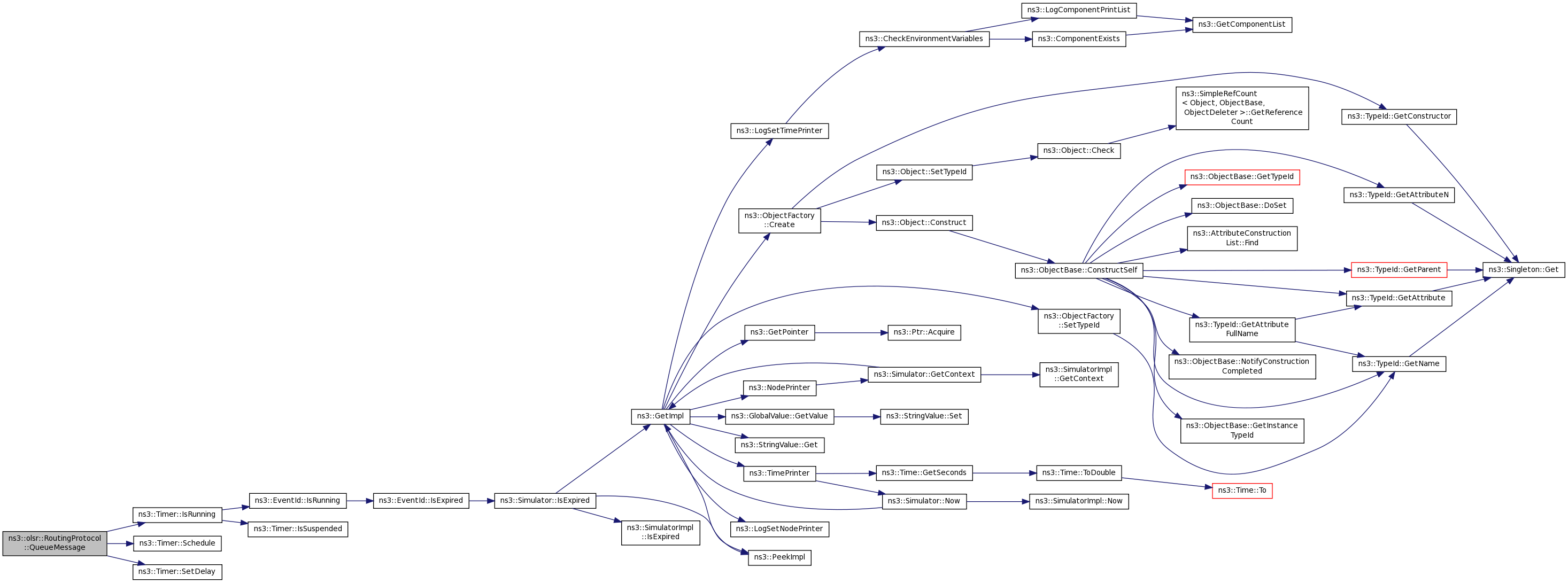

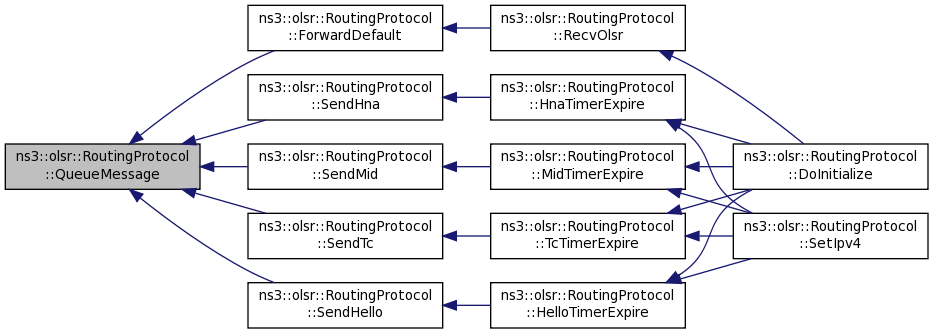

void	QueueMessage (const olsr::MessageHeader &message, Time delay)
	Enques an OLSR message which will be sent with a delay of (0, delay]. More...

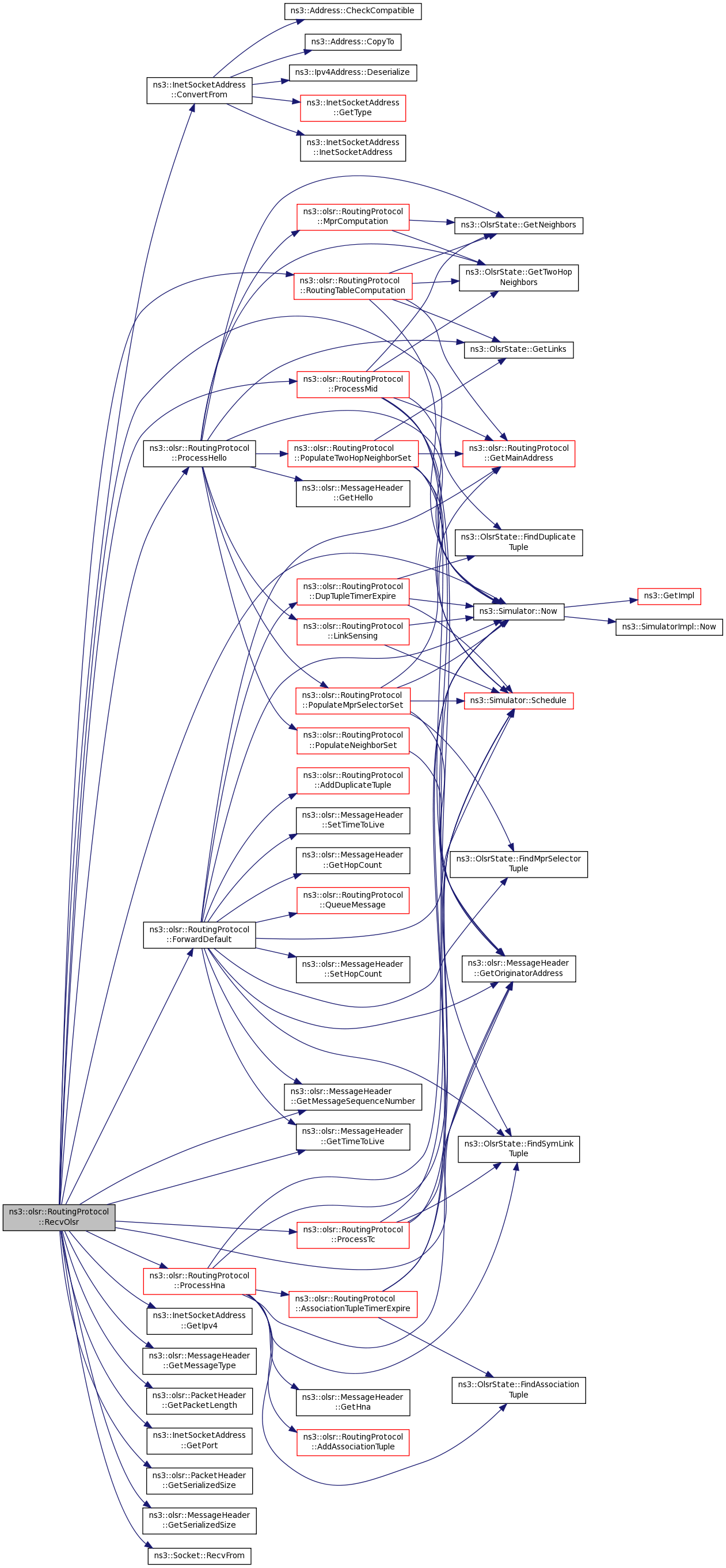

void	RecvOlsr (Ptr< Socket > socket)

void	RemoveAssociationTuple (const AssociationTuple &tuple)
	Removes a host network association tuple from the Association Set. More...

void	RemoveDuplicateTuple (const DuplicateTuple &tuple)
	Removes a duplicate tuple from the Duplicate Set. More...

void	RemoveEntry (const Ipv4Address &dest)
	Deletes the entry whose destination address is given. More...

void	RemoveIfaceAssocTuple (const IfaceAssocTuple &tuple)
	Removes an interface association tuple from the Interface Association Set. More...

void	RemoveLinkTuple (const LinkTuple &tuple)
	Removes a link tuple from the Link Set. More...

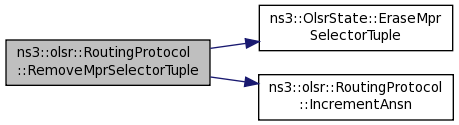

void	RemoveMprSelectorTuple (const MprSelectorTuple &tuple)
	Removes an MPR selector tuple from the MPR Selector Set. More...

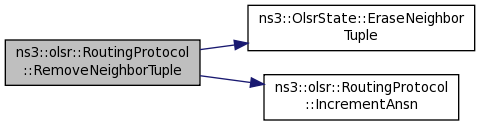

void	RemoveNeighborTuple (const NeighborTuple &tuple)
	Removes a neighbor tuple from the Neighbor Set. More...

void	RemoveTopologyTuple (const TopologyTuple &tuple)
	Removes a topology tuple from the Topology Set. More...

void	RemoveTwoHopNeighborTuple (const TwoHopNeighborTuple &tuple)
	Removes a 2-hop neighbor tuple from the 2-hop Neighbor Set. More...

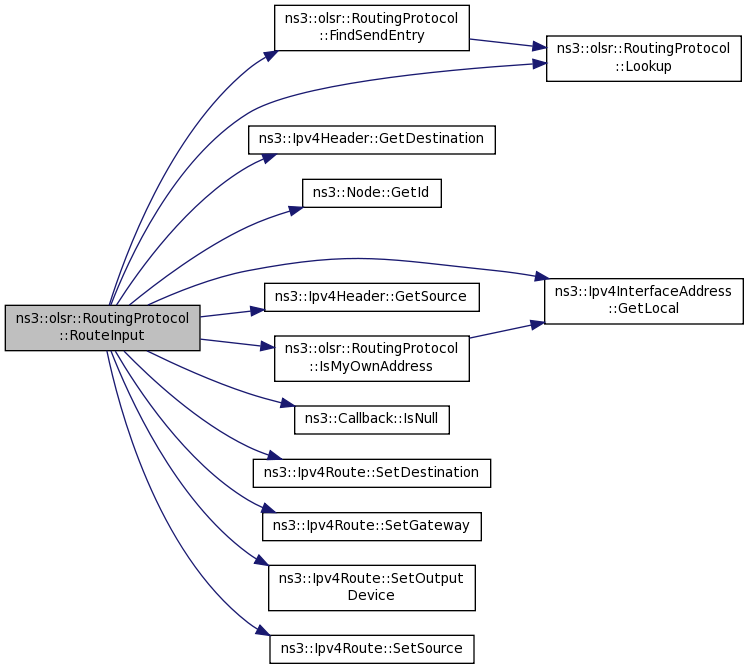

virtual bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

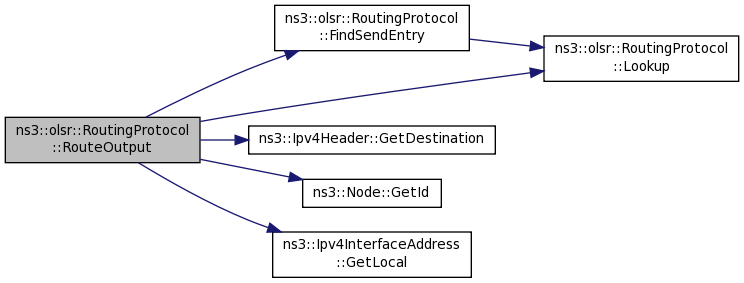

virtual Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

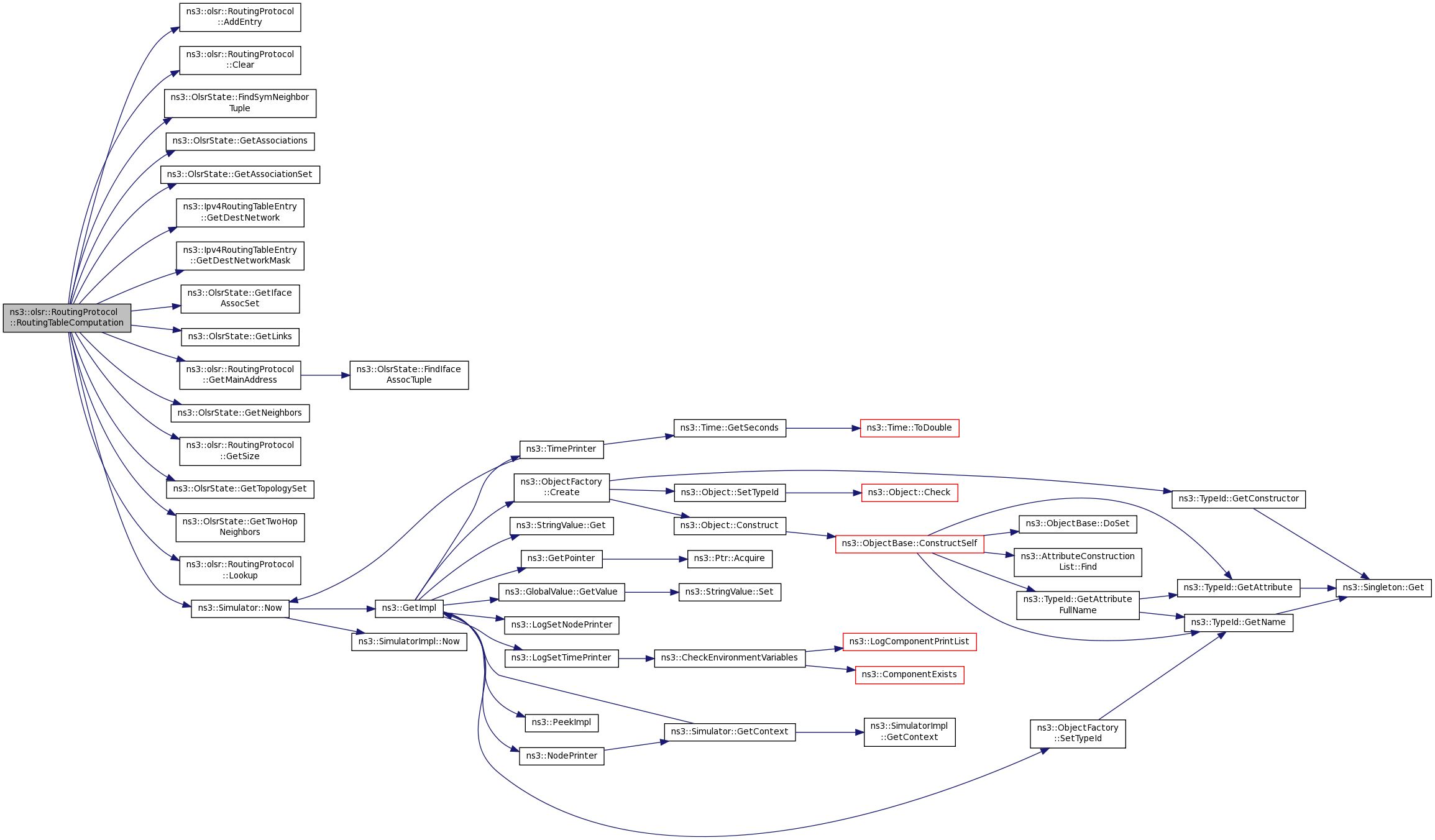

void	RoutingTableComputation ()
	Creates the routing table of the node following RFC 3626 hints. More...

void	SendHello ()
	Creates a new OLSR HELLO message which is buffered for being sent later on. More...

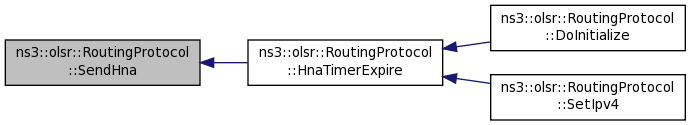

void	SendHna ()
	Creates a new OLSR HNA message which is buffered for being sent later on. More...

void	SendMid ()
	Creates a new OLSR MID message which is buffered for being sent later on. More...

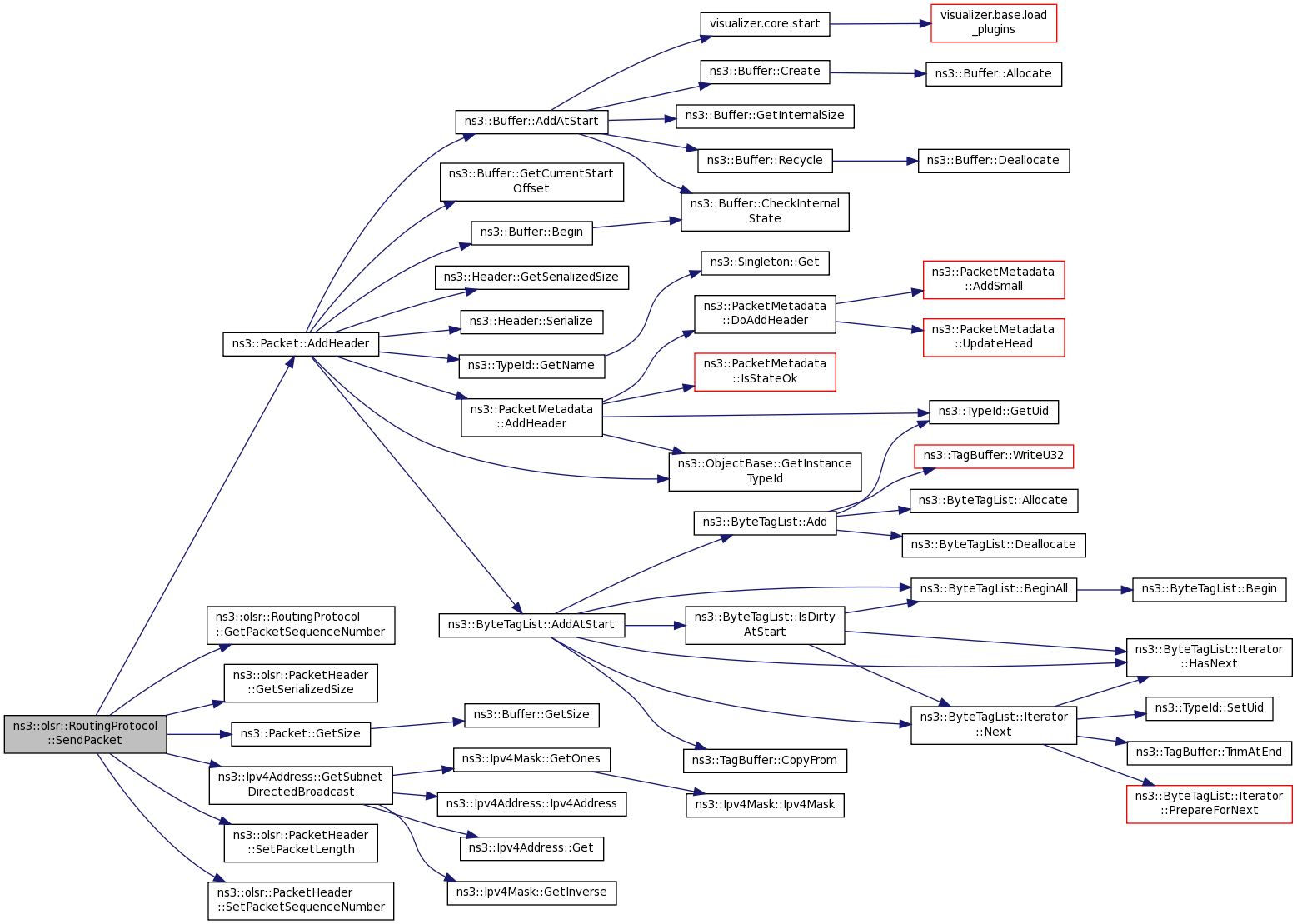

void	SendPacket (Ptr< Packet > packet, const MessageList &containedMessages)

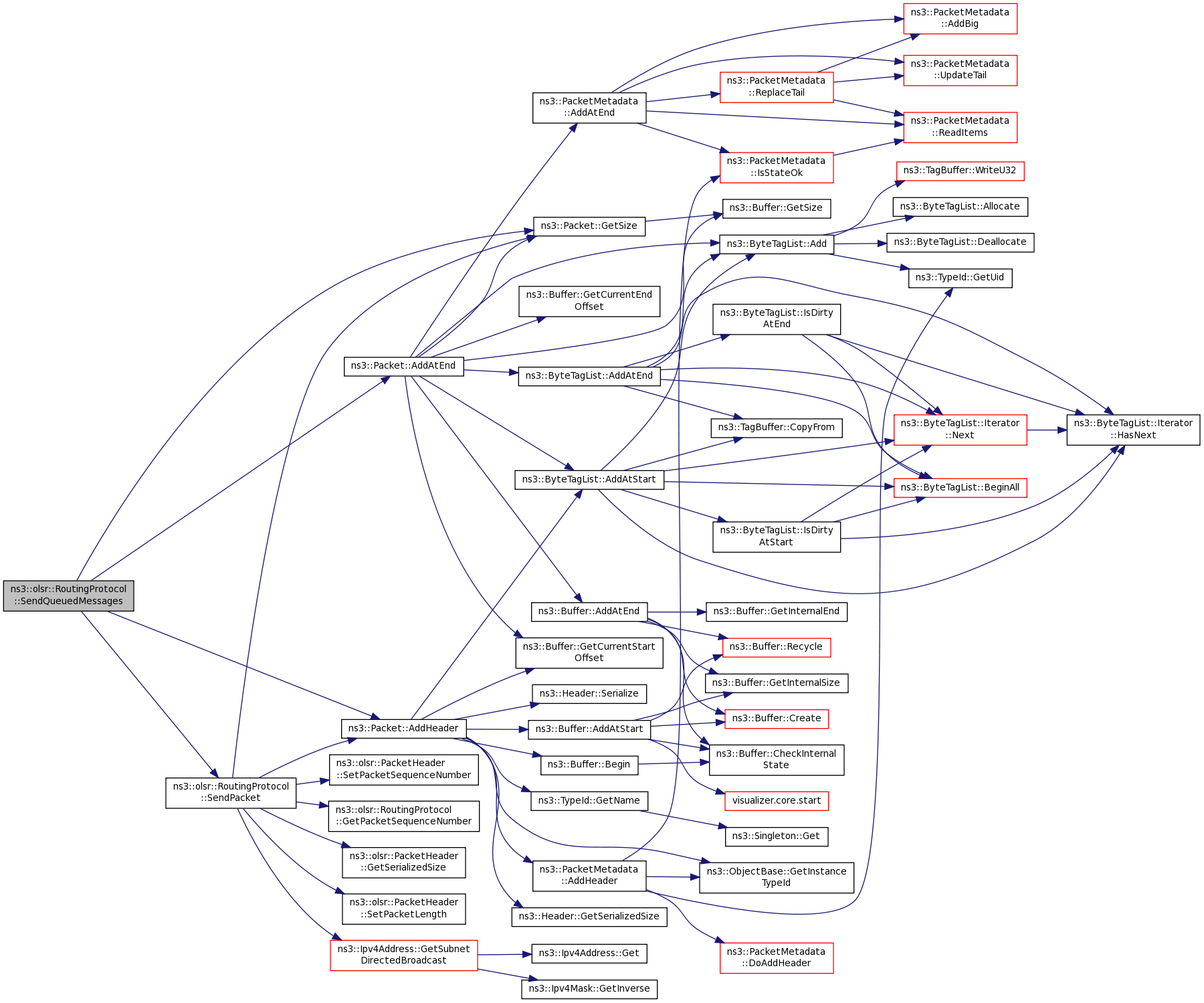

void	SendQueuedMessages ()
	Creates as many OLSR packets as needed in order to send all buffered OLSR messages. More...

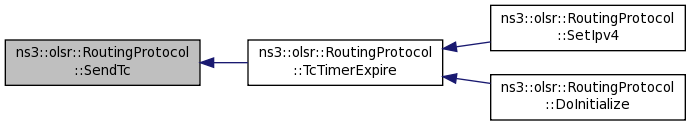

void	SendTc ()
	Creates a new OLSR TC message which is buffered for being sent later on. More...

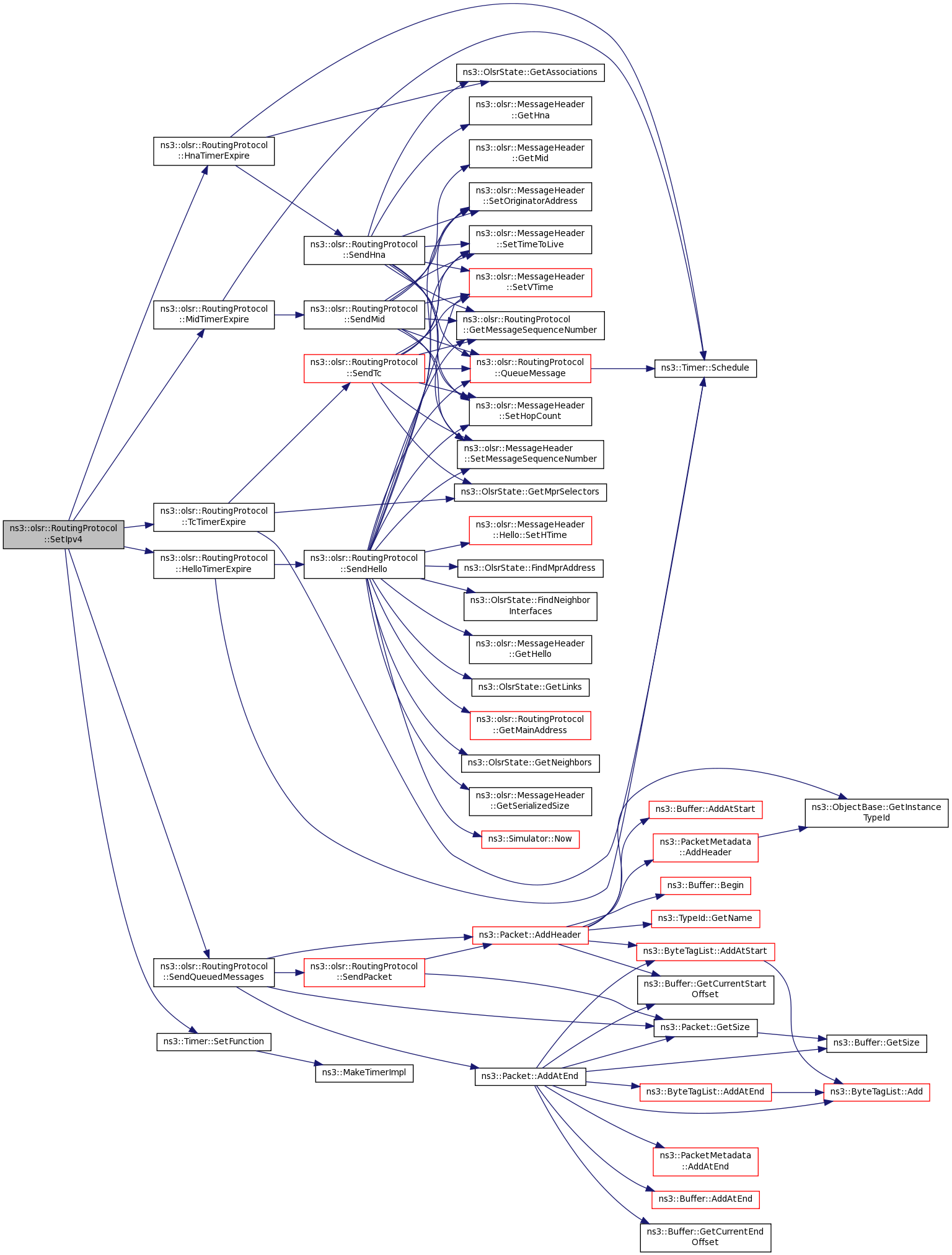

virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)

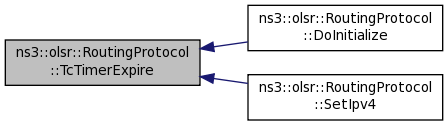

void	TcTimerExpire ()
	Sends a TC message (if there exists any MPR selector) and reschedules the TC timer. More...

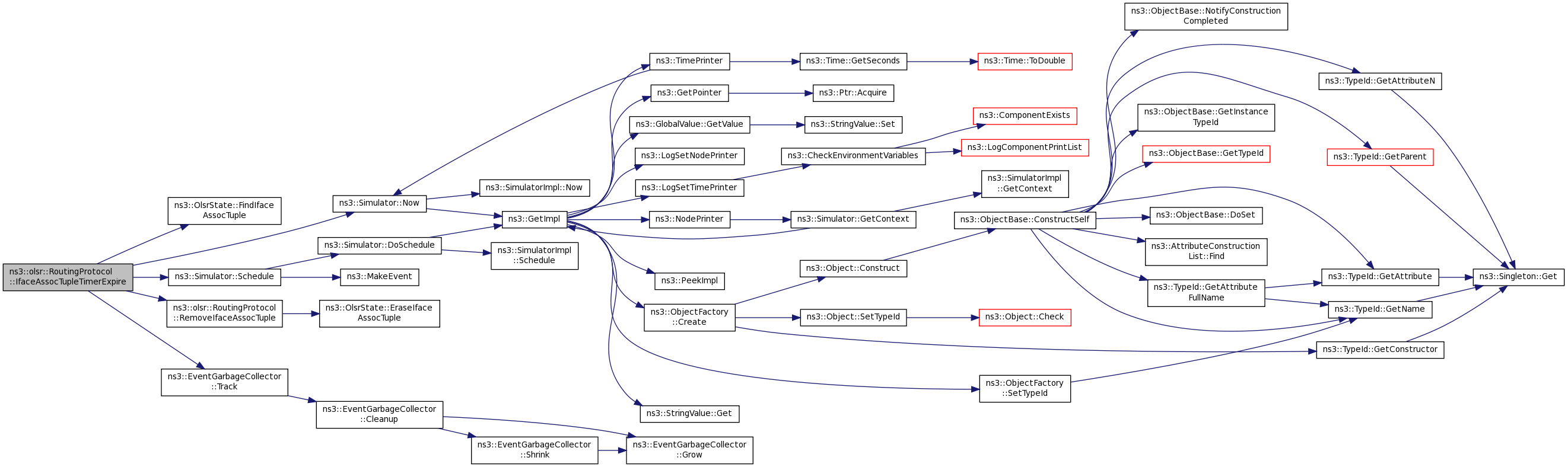

void	TopologyTupleTimerExpire (Ipv4Address destAddr, Ipv4Address lastAddr)
	Removes tuple_ if expired. More...

bool	UsesNonOlsrOutgoingInterface (const Ipv4RoutingTableEntry &route)
	Tests whether or not the specified route uses a non-OLSR outgoing interface. More...

Private Attributes
uint16_t	m_ansn
	Advertised Neighbor Set sequence number. More...

EventGarbageCollector	m_events

Time	m_helloInterval
	HELLO messages' emission interval. More...

Timer	m_helloTimer

Time	m_hnaInterval
	HNA messages' emission interval. More...

Ptr< Ipv4StaticRouting >	m_hnaRoutingTable

Timer	m_hnaTimer

std::set< uint32_t >	m_interfaceExclusions

Ptr< Ipv4 >	m_ipv4

bool	m_linkTupleTimerFirstTime

Ipv4Address	m_mainAddress

uint16_t	m_messageSequenceNumber
	Messages sequence number counter. More...

Time	m_midInterval
	MID messages' emission interval. More...

Timer	m_midTimer

uint16_t	m_packetSequenceNumber
	Packets sequence number counter. More...

olsr::MessageList	m_queuedMessages
	A list of pending messages which are buffered awaiting for being sent. More...

Timer	m_queuedMessagesTimer

Ptr< Ipv4StaticRouting >	m_routingTableAssociation

TracedCallback< uint32_t >	m_routingTableChanged

TracedCallback< const PacketHeader &, const MessageList & >	m_rxPacketTrace

std::map< Ptr< Socket > , Ipv4InterfaceAddress >	m_socketAddresses

OlsrState	m_state
	Internal state with all needed data structs. More...

std::map< Ipv4Address, RoutingTableEntry >	m_table
	Data structure for the routing table. More...

Time	m_tcInterval
	TC messages' emission interval. More...

Timer	m_tcTimer

TracedCallback< const PacketHeader &, const MessageList & >	m_txPacketTrace

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

uint8_t	m_willingness
	Willingness for forwarding packets on behalf of other nodes. More...

Friends
class	OlsrMprTestCase

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr < Ipv4MulticastRoute >, Ptr < const Packet >, const Ipv4Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr < Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Detailed Description

OLSR routing protocol for IPv4.

Config Paths

ns3::olsr::RoutingProtocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::olsr::RoutingProtocol

Attributes

HelloInterval: HELLO messages emission interval.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000000000.0ns
- Flags: construct write read
TcInterval: TC messages emission interval.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read
MidInterval: MID messages emission interval. Normally it is equal to TcInterval.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read
HnaInterval: HNA messages emission interval. Normally it is equal to TcInterval.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read
Willingness: Willingness of a node to carry and forward traffic for other nodes.
- Set with class: ns3::EnumValue
- Underlying type: never|low|default|high|always
- Initial value: default
- Flags: construct write read

TraceSources

Rx: Receive OLSR packet.
Tx: Send OLSR packet.
RoutingTableChanged: The OLSR routing table has changed.

Definition at line 78 of file olsr-routing-protocol.h.

Constructor & Destructor Documentation

ns3::olsr::RoutingProtocol::RoutingProtocol ( )

Definition at line 193 of file olsr-routing-protocol.cc.

References m_hnaRoutingTable, and m_uniformRandomVariable.

ns3::olsr::RoutingProtocol::~RoutingProtocol ( )

virtual

Definition at line 207 of file olsr-routing-protocol.cc.

Member Function Documentation

void ns3::olsr::RoutingProtocol::AddAssociationTuple ( const AssociationTuple & tuple )

private

Adds a host network association tuple to the Association Set.

Parameters

tuple the host network association tuple to be added.

Definition at line 2688 of file olsr-routing-protocol.cc.

References ns3::OlsrState::InsertAssociationTuple(), and m_state.

Referenced by ProcessHna().

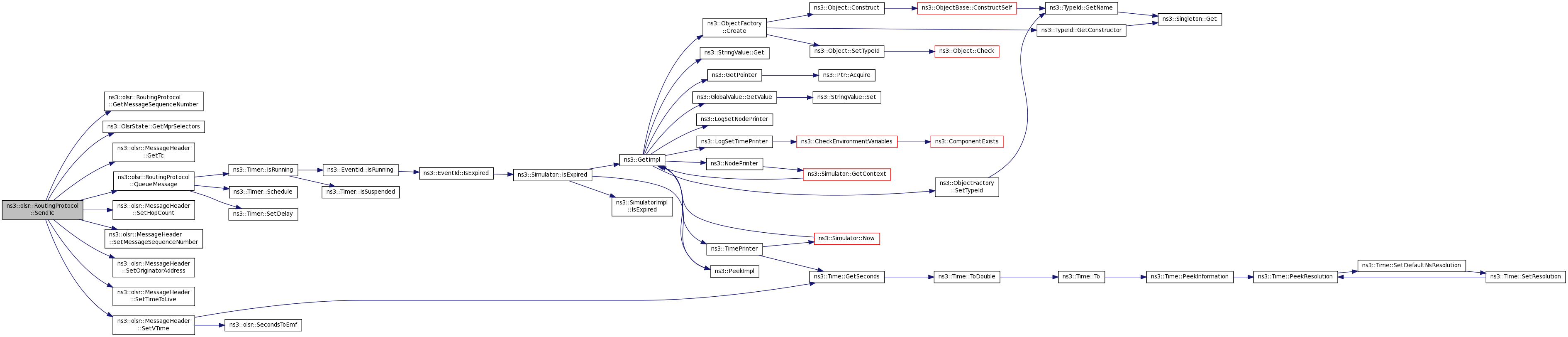

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddDuplicateTuple ( const DuplicateTuple & tuple )

private

Adds a duplicate tuple to the Duplicate Set.

Parameters

tuple the duplicate tuple to be added.

Definition at line 2371 of file olsr-routing-protocol.cc.

References ns3::OlsrState::InsertDuplicateTuple(), and m_state.

Referenced by ForwardDefault().

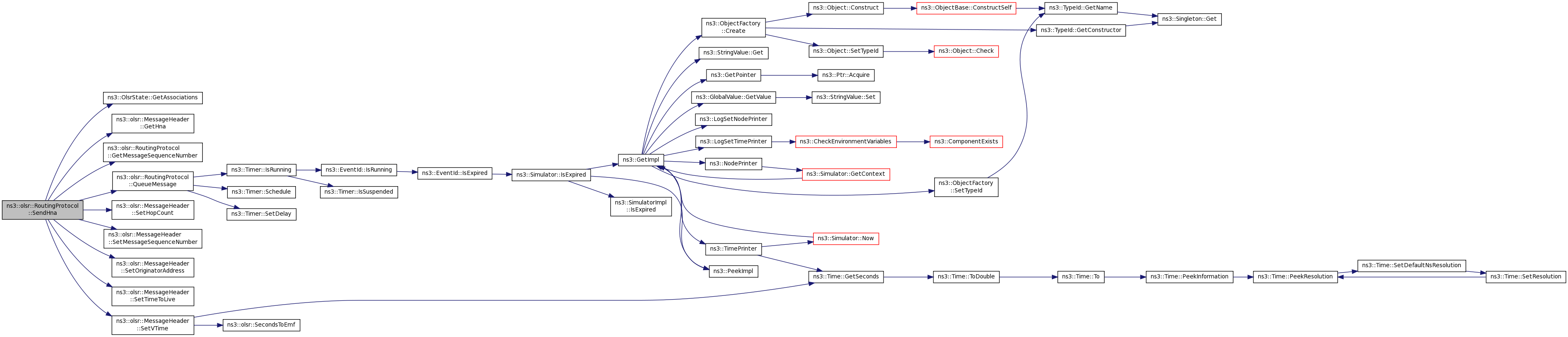

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddEntry	(	const Ipv4Address &	dest,
		const Ipv4Address &	next,
		uint32_t	interface,
		uint32_t	distance
	)

private

Adds a new entry into the routing table.

If an entry for the given destination existed, it is deleted and freed.

Parameters

dest	address of the destination node.
next	address of the next hop node.
iface	address of the local interface.
dist	distance to the destination node.

Definition at line 3251 of file olsr-routing-protocol.cc.

References ns3::olsr::RoutingTableEntry::destAddr, ns3::olsr::RoutingTableEntry::distance, ns3::olsr::RoutingTableEntry::interface, m_mainAddress, m_table, ns3::olsr::RoutingTableEntry::nextAddr, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by AddEntry(), and RoutingTableComputation().

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddEntry	(	const Ipv4Address &	dest,
		const Ipv4Address &	next,
		const Ipv4Address &	interfaceAddress,
		uint32_t	distance
	)

private

Definition at line 3270 of file olsr-routing-protocol.cc.

References AddEntry(), m_ipv4, m_mainAddress, NS_ASSERT, and NS_LOG_FUNCTION.

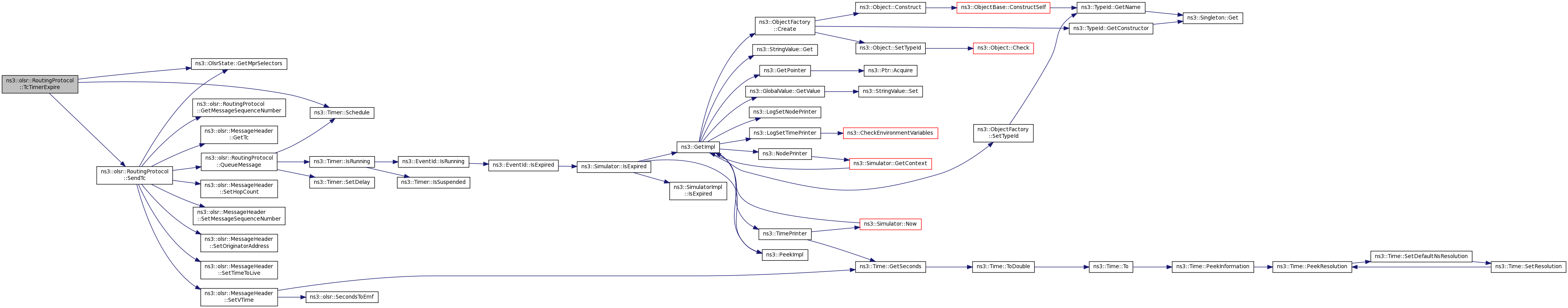

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::AddHostNetworkAssociation	(	Ipv4Address	networkAddr,
		Ipv4Mask	netmask
	)

Inject Association to be sent in HNA message.

Injects the specified (networkAddr, netmask) tuple in the list of local HNA associations to be sent by the node via HNA messages.

If this tuple already exists, nothing is done.

Definition at line 1883 of file olsr-routing-protocol.cc.

References ns3::OlsrState::GetAssociations(), ns3::OlsrState::InsertAssociation(), m_state, ns3::olsr::Association::netmask, ns3::olsr::Association::networkAddr, and NS_LOG_INFO.

Referenced by SetRoutingTableAssociation().

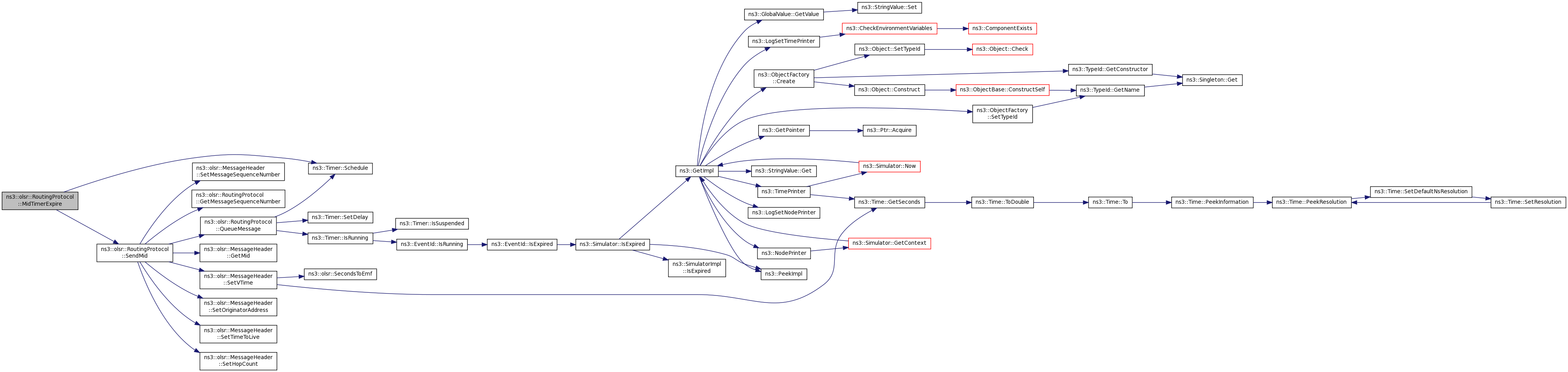

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddIfaceAssocTuple ( const IfaceAssocTuple & tuple )

private

Adds an interface association tuple to the Interface Association Set.

Parameters

tuple the interface association tuple to be added.

Definition at line 2654 of file olsr-routing-protocol.cc.

References ns3::OlsrState::InsertIfaceAssocTuple(), and m_state.

Referenced by DoInitialize(), and ProcessMid().

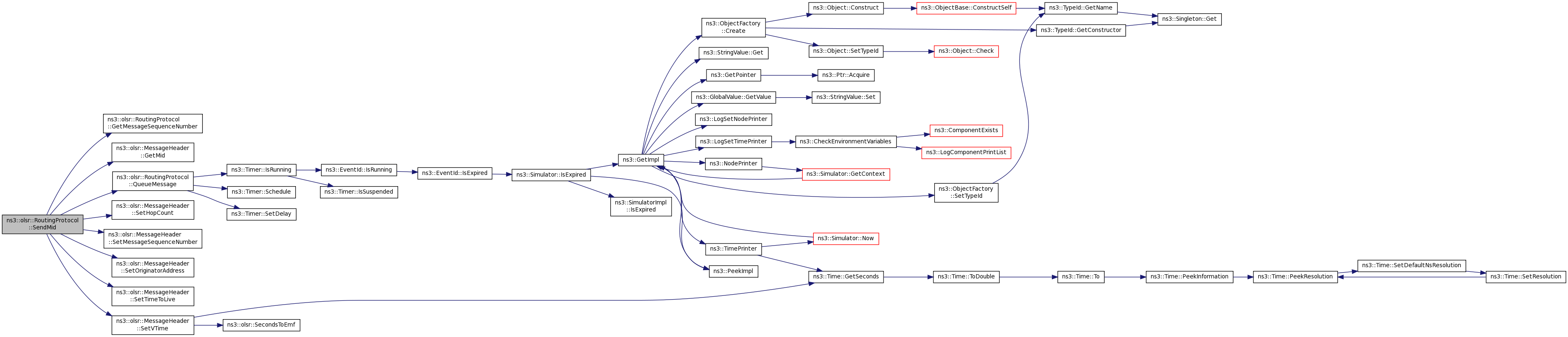

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddMprSelectorTuple ( const MprSelectorTuple & tuple )

private

Adds an MPR selector tuple to the MPR Selector Set.

Advertised Neighbor Sequence Number (ANSN) is also updated.

Parameters

tuple the MPR selector tuple to be added.

Definition at line 2582 of file olsr-routing-protocol.cc.

References IncrementAnsn(), ns3::OlsrState::InsertMprSelectorTuple(), and m_state.

Referenced by PopulateMprSelectorSet().

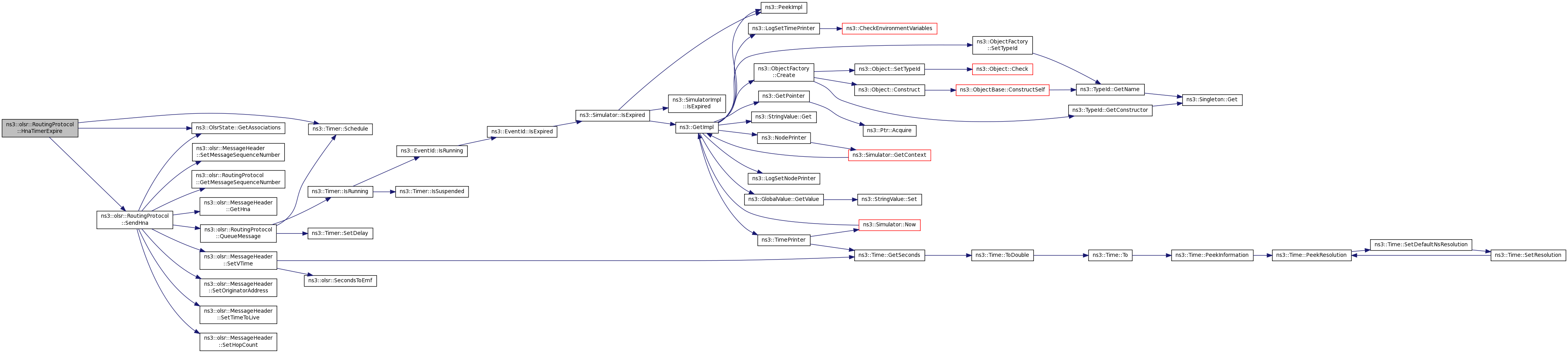

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddNeighborTuple ( const NeighborTuple & tuple )

private

Adds a neighbor tuple to the Neighbor Set.

Parameters

tuple the neighbor tuple to be added.

Definition at line 2504 of file olsr-routing-protocol.cc.

References IncrementAnsn(), ns3::OlsrState::InsertNeighborTuple(), and m_state.

Referenced by LinkTupleAdded().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddTopologyTuple ( const TopologyTuple & tuple )

private

Adds a topology tuple to the Topology Set.

Parameters

tuple the topology tuple to be added.

Definition at line 2618 of file olsr-routing-protocol.cc.

References ns3::OlsrState::InsertTopologyTuple(), and m_state.

Referenced by ProcessTc().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::AddTwoHopNeighborTuple ( const TwoHopNeighborTuple & tuple )

private

Adds a 2-hop neighbor tuple to the 2-hop Neighbor Set.

Parameters

tuple the 2-hop neighbor tuple to be added.

Definition at line 2540 of file olsr-routing-protocol.cc.

References ns3::OlsrState::InsertTwoHopNeighborTuple(), and m_state.

Referenced by PopulateTwoHopNeighborSet().

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::olsr::RoutingProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 3310 of file olsr-routing-protocol.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::AssociationTupleTimerExpire	(	Ipv4Address	gatewayAddr,
		Ipv4Address	networkAddr,
		Ipv4Mask	netmask
	)

private

Removes tuple_ if expired.

Else timer is rescheduled to expire at tuple_->time().

Parameters

e	The event which has expired.

Definition at line 2960 of file olsr-routing-protocol.cc.

References DELAY, ns3::olsr::AssociationTuple::expirationTime, ns3::OlsrState::FindAssociationTuple(), m_events, m_state, ns3::Simulator::Now(), RemoveAssociationTuple(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by ProcessHna().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::Clear ( void )

private

Clears the routing table and frees the memory assigned to each one of its entries.

Definition at line 2983 of file olsr-routing-protocol.cc.

References m_table, and NS_LOG_FUNCTION_NOARGS.

Referenced by RoutingTableComputation().

Here is the caller graph for this function:

int ns3::olsr::RoutingProtocol::Degree ( NeighborTuple const & tuple )

private

This auxiliary function (defined in RFC 3626) is used for calculating the MPR Set.

Parameters

tuple the neighbor tuple which has the main address of the node we are going to calculate its degree to.

Returns: the degree of the node.

Definition at line 516 of file olsr-routing-protocol.cc.

References ns3::OlsrState::FindNeighborTuple(), ns3::OlsrState::GetTwoHopNeighbors(), m_state, ns3::olsr::NeighborTuple::neighborMainAddr, and ns3::olsr::TwoHopNeighborTuple::neighborMainAddr.

Referenced by MprComputation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 234 of file olsr-routing-protocol.cc.

References ns3::Object::DoDispose(), m_hnaRoutingTable, m_ipv4, m_routingTableAssociation, and m_socketAddresses.

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 277 of file olsr-routing-protocol.cc.

References AddIfaceAssocTuple(), ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::CreateSocket(), GetMainAddress(), ns3::UdpSocketFactory::GetTypeId(), HelloTimerExpire(), HnaTimerExpire(), ns3::olsr::IfaceAssocTuple::ifaceAddr, m_interfaceExclusions, m_ipv4, m_mainAddress, m_socketAddresses, ns3::olsr::IfaceAssocTuple::mainAddr, ns3::MakeCallback(), MidTimerExpire(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, OLSR_PORT_NUMBER, RecvOlsr(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetRecvCallback(), and TcTimerExpire().

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::Dump ( void )

Dump the neighbor table, two-hop neighbor table, and routing table to logging output (NS_LOG_DEBUG log level).

If logging is disabled, this function does nothing.

Definition at line 3333 of file olsr-routing-protocol.cc.

References ns3::OlsrState::GetNeighbors(), ns3::OlsrState::GetTwoHopNeighbors(), m_mainAddress, m_state, m_table, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::DupTupleTimerExpire	(	Ipv4Address	address,
		uint16_t	sequenceNumber
	)

private

Removes tuple if expired.

Else timer is rescheduled to expire at tuple.expirationTime.

The task of actually removing the tuple is left to the OLSR agent.

Parameters

tuple The tuple which has expired.

Definition at line 2785 of file olsr-routing-protocol.cc.

References DELAY, ns3::olsr::DuplicateTuple::expirationTime, ns3::OlsrState::FindDuplicateTuple(), m_events, m_state, ns3::Simulator::Now(), RemoveDuplicateTuple(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by ForwardDefault().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::olsr::RoutingProtocol::FindSendEntry	(	const RoutingTableEntry &	entry,
		RoutingTableEntry &	outEntry
	)		const

private

Finds the appropiate entry which must be used in order to forward a data packet to a next hop (given a destination).

Imagine a routing table like this: [A,B] [B,C] [C,C]; being each pair of the form [dest addr,next-hop addr]. In this case, if this function is invoked with [A,B] then pair [C,C] is returned because C is the next hop that must be used to forward a data packet destined to A. That is, C is a neighbor of this node, but B isn't. This function finds the appropiate neighbor for forwarding a packet.

Parameters

entry the routing table entry which indicates the destination node we are interested in.

Returns: the appropiate routing table entry which indicates the next hop which must be used for forwarding a data packet, or NULL if there is no such entry.

Definition at line 3036 of file olsr-routing-protocol.cc.

References ns3::olsr::RoutingTableEntry::destAddr, Lookup(), and ns3::olsr::RoutingTableEntry::nextAddr.

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::ForwardDefault	(	olsr::MessageHeader	olsrMessage,
		DuplicateTuple *	duplicated,
		const Ipv4Address &	localIface,
		const Ipv4Address &	senderAddress
	)

private

OLSR's default forwarding algorithm.

See RFC 3626 for details.

Parameters

p	the OLSR packet which has been received.
msg	the OLSR message which must be forwarded.
dup_tuple	NULL if the message has never been considered for forwarding, or a duplicate tuple in other case.
local_iface	the address of the interface where the message was received from.

Definition at line 1507 of file olsr-routing-protocol.cc.

References AddDuplicateTuple(), ns3::olsr::DuplicateTuple::address, DupTupleTimerExpire(), ns3::olsr::DuplicateTuple::expirationTime, ns3::OlsrState::FindMprSelectorTuple(), ns3::OlsrState::FindSymLinkTuple(), ns3::olsr::MessageHeader::GetHopCount(), GetMainAddress(), ns3::olsr::MessageHeader::GetMessageSequenceNumber(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::MessageHeader::GetTimeToLive(), ns3::olsr::DuplicateTuple::ifaceList, JITTER, m_mainAddress, m_state, ns3::Simulator::Now(), NS_LOG_LOGIC, OLSR_DUP_HOLD_TIME, QueueMessage(), ns3::olsr::DuplicateTuple::retransmitted, ns3::Simulator::Schedule(), ns3::olsr::DuplicateTuple::sequenceNumber, ns3::olsr::MessageHeader::SetHopCount(), and ns3::olsr::MessageHeader::SetTimeToLive().

Referenced by RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

std::set<uint32_t> ns3::olsr::RoutingProtocol::GetInterfaceExclusions ( ) const

inline

Definition at line 121 of file olsr-routing-protocol.h.

References m_interfaceExclusions.

Ipv4Address ns3::olsr::RoutingProtocol::GetMainAddress ( Ipv4Address iface_addr ) const

private

Gets the main address associated with a given interface address.

Parameters

iface_addr the interface address.

Returns: the corresponding main address.

Definition at line 862 of file olsr-routing-protocol.cc.

References ns3::OlsrState::FindIfaceAssocTuple(), m_state, and ns3::olsr::IfaceAssocTuple::mainAddr.

Referenced by DoInitialize(), ForwardDefault(), LinkTupleAdded(), LinkTupleUpdated(), NeighborLoss(), PopulateMprSelectorSet(), PopulateTwoHopNeighborSet(), ProcessMid(), RemoveLinkTuple(), RoutingTableComputation(), and SendHello().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::olsr::RoutingProtocol::GetMessageSequenceNumber ( )

inlineprivate

Increments message sequence number and returns the new value.

Definition at line 2713 of file olsr-routing-protocol.cc.

References m_messageSequenceNumber, and OLSR_MAX_SEQ_NUM.

Referenced by SendHello(), SendHna(), SendMid(), and SendTc().

Here is the caller graph for this function:

uint16_t ns3::olsr::RoutingProtocol::GetPacketSequenceNumber ( )

inlineprivate

Increments packet sequence number and returns the new value.

Definition at line 2706 of file olsr-routing-protocol.cc.

References m_packetSequenceNumber, and OLSR_MAX_SEQ_NUM.

Referenced by SendPacket().

Here is the caller graph for this function:

std::vector< RoutingTableEntry > ns3::olsr::RoutingProtocol::GetRoutingTableEntries ( ) const

Return the list of routing table entries discovered by OLSR.

Definition at line 3298 of file olsr-routing-protocol.cc.

References m_table.

uint32_t ns3::olsr::RoutingProtocol::GetSize ( void ) const

inlineprivate

Definition at line 168 of file olsr-routing-protocol.h.

References m_table.

Referenced by RoutingTableComputation().

Here is the caller graph for this function:

TypeId ns3::olsr::RoutingProtocol::GetTypeId ( void )

static

Definition at line 153 of file olsr-routing-protocol.cc.

References m_helloInterval, m_hnaInterval, m_midInterval, m_routingTableChanged, m_rxPacketTrace, m_tcInterval, m_txPacketTrace, m_willingness, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), OLSR_WILL_ALWAYS, OLSR_WILL_DEFAULT, OLSR_WILL_HIGH, OLSR_WILL_LOW, OLSR_WILL_NEVER, and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::HelloTimerExpire ( )

private

Sends a HELLO message and reschedules the HELLO timer.

Parameters

e	The event which has expired.

Definition at line 2725 of file olsr-routing-protocol.cc.

References m_helloInterval, m_helloTimer, ns3::Timer::Schedule(), and SendHello().

Referenced by DoInitialize(), and SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::HnaTimerExpire ( )

private

Sends an HNA message (if the node has associated hosts/networks) and reschedules the HNA timer.

Definition at line 2764 of file olsr-routing-protocol.cc.

References ns3::OlsrState::GetAssociations(), m_hnaInterval, m_hnaTimer, m_state, NS_LOG_DEBUG, ns3::Timer::Schedule(), and SendHna().

Referenced by DoInitialize(), and SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::IfaceAssocTupleTimerExpire ( Ipv4Address ifaceAddr )

private

Removes tuple_ if expired.

Else timer is rescheduled to expire at tuple_->time().

Parameters

e	The event which has expired.

Definition at line 2937 of file olsr-routing-protocol.cc.

References DELAY, ns3::OlsrState::FindIfaceAssocTuple(), m_events, m_state, ns3::Simulator::Now(), RemoveIfaceAssocTuple(), ns3::Simulator::Schedule(), ns3::olsr::IfaceAssocTuple::time, and ns3::EventGarbageCollector::Track().

Referenced by ProcessMid().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::IncrementAnsn ( )

private

Definition at line 2569 of file olsr-routing-protocol.cc.

References m_ansn, and OLSR_MAX_SEQ_NUM.

Referenced by AddMprSelectorTuple(), AddNeighborTuple(), RemoveMprSelectorTuple(), and RemoveNeighborTuple().

Here is the caller graph for this function:

bool ns3::olsr::RoutingProtocol::IsMyOwnAddress ( const Ipv4Address & a ) const

private

Check that address is one of my interfaces.

Definition at line 3318 of file olsr-routing-protocol.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), and m_socketAddresses.

Referenced by RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::LinkSensing	(	const olsr::MessageHeader &	msg,
		const olsr::MessageHeader::Hello &	hello,
		const Ipv4Address &	receiverIface,
		const Ipv4Address &	senderIface
	)

private

Updates Link Set according to a new received HELLO message (following RFC 3626 specification).

Neighbor Set is also updated if needed.

Definition at line 1988 of file olsr-routing-protocol.cc.

References DELAY, ns3::OlsrState::FindLinkTuple(), ns3::Time::GetSeconds(), ns3::olsr::MessageHeader::GetVTime(), ns3::OlsrState::InsertLinkTuple(), ns3::olsr::MessageHeader::Hello::linkMessages, LinkTupleAdded(), LinkTupleTimerExpire(), LinkTupleUpdated(), ns3::olsr::LinkTuple::localIfaceAddr, m_events, m_mainAddress, m_state, ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_LOGIC, OLSR_ASYM_LINK, OLSR_LOST_LINK, OLSR_MPR_NEIGH, OLSR_NEIGHB_HOLD_TIME, OLSR_NOT_NEIGH, OLSR_SYM_LINK, OLSR_SYM_NEIGH, OLSR_UNSPEC_LINK, ns3::Simulator::Schedule(), ns3::olsr::LinkTuple::symTime, ns3::olsr::LinkTuple::time, ns3::EventGarbageCollector::Track(), and ns3::olsr::MessageHeader::Hello::willingness.

Referenced by ProcessHello().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::LinkTupleAdded	(	const LinkTuple &	tuple,
		uint8_t	willingness
	)

private

Definition at line 2398 of file olsr-routing-protocol.cc.

References AddNeighborTuple(), GetMainAddress(), ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::olsr::NeighborTuple::neighborMainAddr, ns3::Simulator::Now(), ns3::olsr::NeighborTuple::status, ns3::olsr::NeighborTuple::STATUS_NOT_SYM, ns3::olsr::NeighborTuple::STATUS_SYM, ns3::olsr::LinkTuple::symTime, and ns3::olsr::NeighborTuple::willingness.

Referenced by LinkSensing(), and LinkTupleUpdated().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::LinkTupleTimerExpire ( Ipv4Address neighborIfaceAddr )

private

Removes tuple_ if expired.

Else if symmetric time has expired then it is assumed a neighbor loss and agent_->nb_loss() is called. In this case the timer is rescheduled to expire at tuple_->time(). Otherwise the timer is rescheduled to expire at the minimum between tuple_->time() and tuple_->sym_time().

The task of actually removing the tuple is left to the OLSR agent.

Parameters

e	The event which has expired.

Definition at line 2817 of file olsr-routing-protocol.cc.

References DELAY, ns3::OlsrState::FindLinkTuple(), m_events, m_linkTupleTimerFirstTime, m_state, NeighborLoss(), ns3::Simulator::Now(), RemoveLinkTuple(), ns3::Simulator::Schedule(), ns3::olsr::LinkTuple::symTime, ns3::olsr::LinkTuple::time, and ns3::EventGarbageCollector::Track().

Referenced by LinkSensing().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::LinkTupleUpdated	(	const LinkTuple &	tuple,
		uint8_t	willingness
	)

private

This function is invoked when a link tuple is updated.

Its aim is to also update the corresponding neighbor tuple if it is needed.

Parameters

tuple the link tuple which has been updated.

Definition at line 2441 of file olsr-routing-protocol.cc.

References ns3::OlsrState::FindNeighborTuple(), ns3::OlsrState::GetLinks(), GetMainAddress(), LinkTupleAdded(), m_mainAddress, m_state, ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::olsr::NeighborTuple::neighborMainAddr, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_WARN, ns3::olsr::NeighborTuple::status, ns3::olsr::NeighborTuple::STATUS_NOT_SYM, ns3::olsr::NeighborTuple::STATUS_SYM, and ns3::olsr::LinkTuple::symTime.

Referenced by LinkSensing(), and NeighborLoss().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::olsr::RoutingProtocol::Lookup	(	const Ipv4Address &	dest,
		RoutingTableEntry &	outEntry
	)		const

private

Looks up an entry for the specified destination address.

Parameters

dest	destination address.
outEntry	output parameter to hold the routing entry result, if fuond

Returns: true if found, false if not found

Definition at line 3006 of file olsr-routing-protocol.cc.

References m_table.

Referenced by FindSendEntry(), RouteInput(), RouteOutput(), and RoutingTableComputation().

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::MidTimerExpire ( )

private

Sends a MID message (if the node has more than one interface) and resets the MID timer.

Parameters

e	The event which has expired.

Definition at line 2754 of file olsr-routing-protocol.cc.

References m_midInterval, m_midTimer, ns3::Timer::Schedule(), and SendMid().

Referenced by DoInitialize(), and SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::MprComputation ( )

private

Computates MPR set of a node following RFC 3626 hints.

Definition at line 569 of file olsr-routing-protocol.cc.

References ns3::olsr::anonymous_namespace{olsr-routing-protocol.cc}::CoverTwoHopNeighbors(), Degree(), ns3::OlsrState::GetNeighbors(), ns3::OlsrState::GetTwoHopNeighbors(), m_mainAddress, m_state, ns3::olsr::NeighborTuple::neighborMainAddr, ns3::olsr::TwoHopNeighborTuple::neighborMainAddr, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, OLSR_WILL_ALWAYS, OLSR_WILL_NEVER, ns3::OlsrState::SetMprSet(), ns3::olsr::NeighborTuple::STATUS_SYM, and ns3::olsr::NeighborTuple::willingness.

Referenced by NeighborLoss(), and ProcessHello().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::MprSelTupleTimerExpire ( Ipv4Address mainAddr )

private

Removes tuple_ if expired.

Else the timer is rescheduled to expire at tuple_->time().

The task of actually removing the tuple is left to the OLSR agent.

Parameters

e	The event which has expired.

Definition at line 2886 of file olsr-routing-protocol.cc.

References DELAY, ns3::olsr::MprSelectorTuple::expirationTime, ns3::OlsrState::FindMprSelectorTuple(), m_events, m_state, ns3::Simulator::Now(), RemoveMprSelectorTuple(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by PopulateMprSelectorSet().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::Nb2hopTupleTimerExpire	(	Ipv4Address	neighborMainAddr,
		Ipv4Address	twoHopNeighborAddr
	)

private

Removes tuple_ if expired.

Else the timer is rescheduled to expire at tuple_->time().

The task of actually removing the tuple is left to the OLSR agent.

Parameters

e	The event which has expired.

Definition at line 2858 of file olsr-routing-protocol.cc.

References DELAY, ns3::olsr::TwoHopNeighborTuple::expirationTime, ns3::OlsrState::FindTwoHopNeighborTuple(), m_events, m_state, ns3::Simulator::Now(), RemoveTwoHopNeighborTuple(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by PopulateTwoHopNeighborSet().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::NeighborLoss ( const LinkTuple & tuple )

private

Performs all actions needed when a neighbor loss occurs.

Neighbor Set, 2-hop Neighbor Set, MPR Set and MPR Selector Set are updated.

Parameters

tuple link tuple with the information of the link to the neighbor which has been lost.

Definition at line 2352 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseMprSelectorTuples(), ns3::OlsrState::EraseTwoHopNeighborTuples(), GetMainAddress(), LinkTupleUpdated(), m_mainAddress, m_state, MprComputation(), ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::Simulator::Now(), NS_LOG_DEBUG, OLSR_WILL_DEFAULT, and RoutingTableComputation().

Referenced by LinkTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

privatevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3233 of file olsr-routing-protocol.cc.

void ns3::olsr::RoutingProtocol::NotifyInterfaceDown ( uint32_t interface )

privatevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3230 of file olsr-routing-protocol.cc.

void ns3::olsr::RoutingProtocol::NotifyInterfaceUp ( uint32_t interface )

privatevirtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3227 of file olsr-routing-protocol.cc.

void ns3::olsr::RoutingProtocol::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

privatevirtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3236 of file olsr-routing-protocol.cc.

void ns3::olsr::RoutingProtocol::PopulateMprSelectorSet	(	const olsr::MessageHeader &	msg,
		const olsr::MessageHeader::Hello &	hello
	)

private

Updates the MPR Selector Set according to the information contained in a new received HELLO message (following RFC 3626).

Definition at line 2252 of file olsr-routing-protocol.cc.

References AddMprSelectorTuple(), DELAY, ns3::olsr::MprSelectorTuple::expirationTime, ns3::OlsrState::FindMprSelectorTuple(), GetMainAddress(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::MessageHeader::GetVTime(), ns3::olsr::MessageHeader::Hello::linkMessages, m_events, m_mainAddress, m_state, ns3::olsr::MprSelectorTuple::mainAddr, MprSelTupleTimerExpire(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, OLSR_MPR_NEIGH, ns3::OlsrState::PrintMprSelectorSet(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by ProcessHello().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::PopulateNeighborSet	(	const olsr::MessageHeader &	msg,
		const olsr::MessageHeader::Hello &	hello
	)

private

Updates the Neighbor Set according to the information contained in a new received HELLO message (following RFC 3626).

Definition at line 2125 of file olsr-routing-protocol.cc.

References ns3::OlsrState::FindNeighborTuple(), ns3::olsr::MessageHeader::GetOriginatorAddress(), m_state, ns3::olsr::NeighborTuple::willingness, and ns3::olsr::MessageHeader::Hello::willingness.

Referenced by ProcessHello().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet	(	const olsr::MessageHeader &	msg,
		const olsr::MessageHeader::Hello &	hello
	)

private

Updates the 2-hop Neighbor Set according to the information contained in a new received HELLO message (following RFC 3626).

Definition at line 2140 of file olsr-routing-protocol.cc.

References AddTwoHopNeighborTuple(), DELAY, ns3::OlsrState::EraseTwoHopNeighborTuples(), ns3::olsr::TwoHopNeighborTuple::expirationTime, ns3::OlsrState::FindTwoHopNeighborTuple(), ns3::OlsrState::GetLinks(), GetMainAddress(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::MessageHeader::GetVTime(), ns3::olsr::MessageHeader::Hello::linkMessages, m_events, m_mainAddress, m_state, Nb2hopTupleTimerExpire(), ns3::olsr::TwoHopNeighborTuple::neighborMainAddr, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_LOGIC, OLSR_MPR_NEIGH, OLSR_NOT_NEIGH, OLSR_SYM_NEIGH, ns3::Simulator::Schedule(), ns3::EventGarbageCollector::Track(), and ns3::olsr::TwoHopNeighborTuple::twoHopNeighborAddr.

Referenced by ProcessHello().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

privatevirtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Implements ns3::Ipv4RoutingProtocol.

Definition at line 251 of file olsr-routing-protocol.cc.

References ns3::Names::FindName(), ns3::OutputStreamWrapper::GetStream(), m_hnaRoutingTable, m_ipv4, and m_table.

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::ProcessHello	(	const olsr::MessageHeader &	msg,
		const Ipv4Address &	receiverIface,
		const Ipv4Address &	senderIface
	)

private

Processes a HELLO message following RFC 3626 specification.

Link sensing and population of the Neighbor Set, 2-hop Neighbor Set and MPR Selector Set are performed.

Parameters

msg	the OLSR message which contains the HELLO message.
receiver_iface	the address of the interface where the message was received from.
sender_iface	the address of the interface where the message was sent from.

Definition at line 1202 of file olsr-routing-protocol.cc.

References ns3::olsr::MessageHeader::GetHello(), ns3::OlsrState::GetLinks(), ns3::OlsrState::GetNeighbors(), ns3::OlsrState::GetTwoHopNeighbors(), LinkSensing(), m_mainAddress, m_state, MprComputation(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, PopulateMprSelectorSet(), PopulateNeighborSet(), and PopulateTwoHopNeighborSet().

Referenced by RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::ProcessHna	(	const olsr::MessageHeader &	msg,
		const Ipv4Address &	senderIface
	)

private

Processes a HNA message following RFC 3626 specification.

The Host Network Association Set is updated (if needed) with the information of the received HNA message.

Parameters

msg	the OLSR message which contains the HNA message.
sender_iface	the address of the interface where the message was sent from.

Definition at line 1439 of file olsr-routing-protocol.cc.

References AddAssociationTuple(), ns3::olsr::MessageHeader::Hna::associations, AssociationTupleTimerExpire(), DELAY, ns3::olsr::AssociationTuple::expirationTime, ns3::OlsrState::FindAssociationTuple(), ns3::OlsrState::FindSymLinkTuple(), ns3::olsr::AssociationTuple::gatewayAddr, ns3::olsr::MessageHeader::GetHna(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::MessageHeader::GetVTime(), m_state, ns3::olsr::AssociationTuple::netmask, ns3::olsr::AssociationTuple::networkAddr, ns3::Simulator::Now(), and ns3::Simulator::Schedule().

Referenced by RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::ProcessMid	(	const olsr::MessageHeader &	msg,
		const Ipv4Address &	senderIface
	)

private

Processes a MID message following RFC 3626 specification.

The Interface Association Set is updated (if needed) with the information of the received MID message.

Parameters

msg	the OLSR message which contains the MID message.
sender_iface	the address of the interface where the message was sent from.

Definition at line 1360 of file olsr-routing-protocol.cc.

References AddIfaceAssocTuple(), DELAY, ns3::OlsrState::FindSymLinkTuple(), ns3::OlsrState::GetIfaceAssocSetMutable(), GetMainAddress(), ns3::olsr::MessageHeader::GetMid(), ns3::OlsrState::GetNeighbors(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::OlsrState::GetTwoHopNeighbors(), ns3::olsr::MessageHeader::GetVTime(), ns3::olsr::IfaceAssocTuple::ifaceAddr, IfaceAssocTupleTimerExpire(), ns3::olsr::MessageHeader::Mid::interfaceAddresses, m_mainAddress, m_state, ns3::olsr::IfaceAssocTuple::mainAddr, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and ns3::olsr::IfaceAssocTuple::time.

Referenced by RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::ProcessTc	(	const olsr::MessageHeader &	msg,
		const Ipv4Address &	senderIface
	)

private

Processes a TC message following RFC 3626 specification.

The Topology Set is updated (if needed) with the information of the received TC message.

Parameters

msg	the OLSR message which contains the TC message.
sender_iface	the address of the interface where the message was sent from.

Definition at line 1265 of file olsr-routing-protocol.cc.

References AddTopologyTuple(), ns3::olsr::MessageHeader::Tc::ansn, DELAY, ns3::olsr::TopologyTuple::destAddr, ns3::OlsrState::EraseOlderTopologyTuples(), ns3::olsr::TopologyTuple::expirationTime, ns3::OlsrState::FindNewerTopologyTuple(), ns3::OlsrState::FindSymLinkTuple(), ns3::OlsrState::FindTopologyTuple(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::MessageHeader::GetTc(), ns3::OlsrState::GetTopologySet(), ns3::olsr::MessageHeader::GetVTime(), ns3::olsr::TopologyTuple::lastAddr, m_events, m_mainAddress, m_state, ns3::olsr::MessageHeader::Tc::neighborAddresses, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), ns3::olsr::TopologyTuple::sequenceNumber, TopologyTupleTimerExpire(), and ns3::EventGarbageCollector::Track().

Referenced by RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::QueueMessage	(	const olsr::MessageHeader &	message,
		Time	delay
	)

private

Enques an OLSR message which will be sent with a delay of (0, delay].

This buffering system is used in order to piggyback several OLSR messages in a same OLSR packet.

Parameters

msg	the OLSR message which must be sent.
delay	maximum delay the OLSR message is going to be buffered.

Definition at line 1582 of file olsr-routing-protocol.cc.

References ns3::Timer::IsRunning(), m_queuedMessages, m_queuedMessagesTimer, ns3::Timer::Schedule(), and ns3::Timer::SetDelay().

Referenced by ForwardDefault(), SendHello(), SendHna(), SendMid(), and SendTc().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RecvOlsr ( Ptr< Socket > socket )

private

Definition at line 362 of file olsr-routing-protocol.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::OlsrState::FindDuplicateTuple(), ForwardDefault(), ns3::InetSocketAddress::GetIpv4(), ns3::olsr::MessageHeader::GetMessageSequenceNumber(), ns3::olsr::MessageHeader::GetMessageType(), ns3::olsr::MessageHeader::GetOriginatorAddress(), ns3::olsr::PacketHeader::GetPacketLength(), ns3::InetSocketAddress::GetPort(), ns3::olsr::PacketHeader::GetSerializedSize(), ns3::olsr::MessageHeader::GetSerializedSize(), ns3::olsr::MessageHeader::GetTimeToLive(), ns3::olsr::MessageHeader::HELLO_MESSAGE, ns3::olsr::MessageHeader::HNA_MESSAGE, ns3::olsr::DuplicateTuple::ifaceList, m_mainAddress, m_rxPacketTrace, m_socketAddresses, m_state, ns3::olsr::MessageHeader::MID_MESSAGE, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, OLSR_PORT_NUMBER, ProcessHello(), ProcessHna(), ProcessMid(), ProcessTc(), ns3::Socket::RecvFrom(), RoutingTableComputation(), and ns3::olsr::MessageHeader::TC_MESSAGE.

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveAssociationTuple ( const AssociationTuple & tuple )

private

Removes a host network association tuple from the Association Set.

Parameters

tuple the host network association tuple to be removed.

Definition at line 2699 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseAssociationTuple(), and m_state.

Referenced by AssociationTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveDuplicateTuple ( const DuplicateTuple & tuple )

private

Removes a duplicate tuple from the Duplicate Set.

Parameters

tuple the duplicate tuple to be removed.

Definition at line 2387 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseDuplicateTuple(), and m_state.

Referenced by DupTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveEntry ( const Ipv4Address & dest )

private

Deletes the entry whose destination address is given.

Parameters

dest	address of the destination node.

Definition at line 2994 of file olsr-routing-protocol.cc.

References m_table.

void ns3::olsr::RoutingProtocol::RemoveHostNetworkAssociation	(	Ipv4Address	networkAddr,
		Ipv4Mask	netmask
	)

Removes Association sent in HNA message.

Removes the specified (networkAddr, netmask) tuple from the list of local HNA associations to be sent by the node via HNA messages.

If this tuple does not exist, nothing is done (see "OlsrState::EraseAssociation()").

Definition at line 1909 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseAssociation(), m_state, and NS_LOG_INFO.

Referenced by SetRoutingTableAssociation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveIfaceAssocTuple ( const IfaceAssocTuple & tuple )

private

Removes an interface association tuple from the Interface Association Set.

Parameters

tuple the interface association tuple to be removed.

Definition at line 2671 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseIfaceAssocTuple(), and m_state.

Referenced by IfaceAssocTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveLinkTuple ( const LinkTuple & tuple )

private

Removes a link tuple from the Link Set.

Parameters

tuple the link tuple to be removed.

Definition at line 2423 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseLinkTuple(), ns3::OlsrState::EraseNeighborTuple(), GetMainAddress(), m_mainAddress, m_state, ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by LinkTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveMprSelectorTuple ( const MprSelectorTuple & tuple )

private

Removes an MPR selector tuple from the MPR Selector Set.

Advertised Neighbor Sequence Number (ANSN) is also updated.

Parameters

tuple the MPR selector tuple to be removed.

Definition at line 2601 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseMprSelectorTuple(), IncrementAnsn(), and m_state.

Referenced by MprSelTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveNeighborTuple ( const NeighborTuple & tuple )

private

Removes a neighbor tuple from the Neighbor Set.

Parameters

tuple the neighbor tuple to be removed.

Definition at line 2522 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseNeighborTuple(), IncrementAnsn(), and m_state.

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::RemoveTopologyTuple ( const TopologyTuple & tuple )

private

Removes a topology tuple from the Topology Set.

Parameters

tuple the topology tuple to be removed.

Definition at line 2636 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseTopologyTuple(), and m_state.

Referenced by TopologyTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::RemoveTwoHopNeighborTuple ( const TwoHopNeighborTuple & tuple )

private

Removes a 2-hop neighbor tuple from the 2-hop Neighbor Set.

Parameters

tuple the 2-hop neighbor tuple to be removed.

Definition at line 2557 of file olsr-routing-protocol.cc.

References ns3::OlsrState::EraseTwoHopNeighborTuple(), and m_state.

Referenced by Nb2hopTupleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::olsr::RoutingProtocol::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

privatevirtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Todo:: Implment IP aliasing and OLSR

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3124 of file olsr-routing-protocol.cc.

References FindSendEntry(), ns3::Ipv4Header::GetDestination(), ns3::Node::GetId(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4Header::GetSource(), ns3::olsr::RoutingTableEntry::interface, IsMyOwnAddress(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), Lookup(), m_hnaRoutingTable, m_ipv4, m_mainAddress, m_table, ns3::olsr::RoutingTableEntry::nextAddr, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

Here is the call graph for this function:

Ptr< Ipv4Route > ns3::olsr::RoutingProtocol::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

privatevirtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Todo:: Implment IP aliasing and OLSR

Implements ns3::Ipv4RoutingProtocol.

Definition at line 3049 of file olsr-routing-protocol.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, FindSendEntry(), ns3::Ipv4Header::GetDestination(), ns3::Node::GetId(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::olsr::RoutingTableEntry::interface, Lookup(), m_hnaRoutingTable, m_ipv4, m_mainAddress, ns3::olsr::RoutingTableEntry::nextAddr, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::RoutingTableComputation ( )

private

Creates the routing table of the node following RFC 3626 hints.

Definition at line 877 of file olsr-routing-protocol.cc.

References AddEntry(), Clear(), ns3::olsr::TopologyTuple::destAddr, ns3::olsr::RoutingTableEntry::distance, ns3::OlsrState::FindSymNeighborTuple(), ns3::olsr::AssociationTuple::gatewayAddr, ns3::OlsrState::GetAssociations(), ns3::OlsrState::GetAssociationSet(), ns3::Ipv4RoutingTableEntry::GetDestNetwork(), ns3::Ipv4RoutingTableEntry::GetDestNetworkMask(), ns3::OlsrState::GetIfaceAssocSet(), ns3::OlsrState::GetLinks(), GetMainAddress(), ns3::OlsrState::GetNeighbors(), GetSize(), ns3::OlsrState::GetTopologySet(), ns3::OlsrState::GetTwoHopNeighbors(), ns3::olsr::IfaceAssocTuple::ifaceAddr, ns3::olsr::RoutingTableEntry::interface, ns3::olsr::TopologyTuple::lastAddr, ns3::olsr::LinkTuple::localIfaceAddr, Lookup(), m_hnaRoutingTable, m_mainAddress, m_routingTableChanged, m_state, ns3::olsr::IfaceAssocTuple::mainAddr, ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::olsr::NeighborTuple::neighborMainAddr, ns3::olsr::TwoHopNeighborTuple::neighborMainAddr, ns3::olsr::Association::netmask, ns3::olsr::AssociationTuple::netmask, ns3::olsr::Association::networkAddr, ns3::olsr::AssociationTuple::networkAddr, ns3::olsr::RoutingTableEntry::nextAddr, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_LOGIC, OLSR_WILL_NEVER, ns3::olsr::NeighborTuple::status, ns3::olsr::NeighborTuple::STATUS_SYM, ns3::olsr::LinkTuple::time, and ns3::olsr::TwoHopNeighborTuple::twoHopNeighborAddr.

Referenced by NeighborLoss(), and RecvOlsr().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendHello ( )

private

Creates a new OLSR HELLO message which is buffered for being sent later on.

Definition at line 1663 of file olsr-routing-protocol.cc.

Referenced by HelloTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendHna ( )

private

Creates a new OLSR HNA message which is buffered for being sent later on.

Definition at line 1845 of file olsr-routing-protocol.cc.

References ns3::olsr::MessageHeader::Hna::associations, ns3::OlsrState::GetAssociations(), ns3::olsr::MessageHeader::GetHna(), GetMessageSequenceNumber(), JITTER, m_mainAddress, m_state, OLSR_HNA_HOLD_TIME, QueueMessage(), ns3::olsr::MessageHeader::SetHopCount(), ns3::olsr::MessageHeader::SetMessageSequenceNumber(), ns3::olsr::MessageHeader::SetOriginatorAddress(), ns3::olsr::MessageHeader::SetTimeToLive(), and ns3::olsr::MessageHeader::SetVTime().

Referenced by HnaTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendMid ( )

private

Creates a new OLSR MID message which is buffered for being sent later on.

Definition at line 1801 of file olsr-routing-protocol.cc.

References GetMessageSequenceNumber(), ns3::olsr::MessageHeader::GetMid(), ns3::olsr::MessageHeader::Mid::interfaceAddresses, JITTER, m_interfaceExclusions, m_ipv4, m_mainAddress, OLSR_MID_HOLD_TIME, QueueMessage(), ns3::olsr::MessageHeader::SetHopCount(), ns3::olsr::MessageHeader::SetMessageSequenceNumber(), ns3::olsr::MessageHeader::SetOriginatorAddress(), ns3::olsr::MessageHeader::SetTimeToLive(), and ns3::olsr::MessageHeader::SetVTime().

Referenced by MidTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendPacket	(	Ptr< Packet >	packet,
		const MessageList &	containedMessages
	)

private

Definition at line 1593 of file olsr-routing-protocol.cc.

References ns3::Packet::AddHeader(), GetPacketSequenceNumber(), ns3::olsr::PacketHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Ipv4Address::GetSubnetDirectedBroadcast(), m_mainAddress, m_socketAddresses, m_txPacketTrace, NS_LOG_DEBUG, OLSR_PORT_NUMBER, ns3::olsr::PacketHeader::SetPacketLength(), and ns3::olsr::PacketHeader::SetPacketSequenceNumber().

Referenced by SendQueuedMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendQueuedMessages ( )

private

Creates as many OLSR packets as needed in order to send all buffered OLSR messages.

Maximum number of messages which can be contained in an OLSR packet is dictated by OLSR_MAX_MSGS constant.

Definition at line 1624 of file olsr-routing-protocol.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::Packet::GetSize(), m_mainAddress, m_queuedMessages, NS_LOG_DEBUG, OLSR_MAX_MSGS, and SendPacket().

Referenced by SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SendTc ( )

private

Creates a new OLSR TC message which is buffered for being sent later on.

Definition at line 1774 of file olsr-routing-protocol.cc.

References ns3::olsr::MessageHeader::Tc::ansn, GetMessageSequenceNumber(), ns3::OlsrState::GetMprSelectors(), ns3::olsr::MessageHeader::GetTc(), JITTER, m_ansn, m_mainAddress, m_state, ns3::olsr::MessageHeader::Tc::neighborAddresses, NS_LOG_FUNCTION, OLSR_TOP_HOLD_TIME, QueueMessage(), ns3::olsr::MessageHeader::SetHopCount(), ns3::olsr::MessageHeader::SetMessageSequenceNumber(), ns3::olsr::MessageHeader::SetOriginatorAddress(), ns3::olsr::MessageHeader::SetTimeToLive(), and ns3::olsr::MessageHeader::SetVTime().

Referenced by TcTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::SetInterfaceExclusions ( std::set< uint32_t > exceptions )

Definition at line 354 of file olsr-routing-protocol.cc.

References m_interfaceExclusions.

void ns3::olsr::RoutingProtocol::SetIpv4 ( Ptr< Ipv4 > ipv4 )

privatevirtual

Parameters

ipv4	the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implements ns3::Ipv4RoutingProtocol.

Definition at line 212 of file olsr-routing-protocol.cc.

References HelloTimerExpire(), HnaTimerExpire(), m_ansn, m_helloTimer, m_hnaRoutingTable, m_hnaTimer, m_ipv4, m_linkTupleTimerFirstTime, m_messageSequenceNumber, m_midTimer, m_packetSequenceNumber, m_queuedMessagesTimer, m_tcTimer, MidTimerExpire(), NS_ASSERT, NS_LOG_DEBUG, OLSR_MAX_SEQ_NUM, SendQueuedMessages(), ns3::Timer::SetFunction(), and TcTimerExpire().

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::SetMainInterface ( uint32_t interface )

Set the OLSR main address to the first address on the indicated interface.

Parameters

interface IPv4 interface index

Definition at line 349 of file olsr-routing-protocol.cc.

References m_ipv4, and m_mainAddress.

void ns3::olsr::RoutingProtocol::SetRoutingTableAssociation ( Ptr< Ipv4StaticRouting > routingTable )

Inject Associations from an Ipv4StaticRouting instance.

Associates the specified Ipv4StaticRouting routing table to the OLSR routing protocol.

Entries from this associated routing table that use non-olsr outgoing interfaces are added to the list of local HNA associations so that they are included in HNA messages sent by the node. If this method is called more than once, entries from the old association are deleted before entries from the new one are added.

Parameters

routingTable the Ipv4StaticRouting routing table to be associated.

Definition at line 1926 of file olsr-routing-protocol.cc.

References AddHostNetworkAssociation(), ns3::OlsrState::GetAssociations(), ns3::Ipv4RoutingTableEntry::GetDestNetwork(), ns3::Ipv4RoutingTableEntry::GetDestNetworkMask(), m_routingTableAssociation, m_state, NS_LOG_DEBUG, NS_LOG_INFO, RemoveHostNetworkAssociation(), and UsesNonOlsrOutgoingInterface().

Here is the call graph for this function:

void ns3::olsr::RoutingProtocol::TcTimerExpire ( )

private

Sends a TC message (if there exists any MPR selector) and reschedules the TC timer.

Parameters

e	The event which has expired.

Definition at line 2736 of file olsr-routing-protocol.cc.

References ns3::OlsrState::GetMprSelectors(), m_state, m_tcInterval, m_tcTimer, NS_LOG_DEBUG, ns3::Timer::Schedule(), and SendTc().

Referenced by DoInitialize(), and SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::RoutingProtocol::TopologyTupleTimerExpire	(	Ipv4Address	destAddr,
		Ipv4Address	lastAddr
	)

private

Removes tuple_ if expired.

Else the timer is rescheduled to expire at tuple_->time().

The task of actually removing the tuple is left to the OLSR agent.

Parameters

e	The event which has expired.

Definition at line 2913 of file olsr-routing-protocol.cc.

References DELAY, ns3::olsr::TopologyTuple::destAddr, ns3::olsr::TopologyTuple::expirationTime, ns3::OlsrState::FindTopologyTuple(), ns3::olsr::TopologyTuple::lastAddr, m_events, m_state, ns3::Simulator::Now(), RemoveTopologyTuple(), ns3::Simulator::Schedule(), and ns3::EventGarbageCollector::Track().

Referenced by ProcessTc().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::olsr::RoutingProtocol::UsesNonOlsrOutgoingInterface ( const Ipv4RoutingTableEntry & route )

private

Tests whether or not the specified route uses a non-OLSR outgoing interface.

Returns true if the outgoing interface of the specified route is a non-OLSR interface. Returns false otherwise.

Definition at line 1976 of file olsr-routing-protocol.cc.

References ns3::Ipv4RoutingTableEntry::GetInterface(), and m_interfaceExclusions.

Referenced by SetRoutingTableAssociation().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class OlsrMprTestCase

friend

Definition at line 81 of file olsr-routing-protocol.h.

Member Data Documentation

uint16_t ns3::olsr::RoutingProtocol::m_ansn

private

Advertised Neighbor Set sequence number.

Definition at line 149 of file olsr-routing-protocol.h.

Referenced by IncrementAnsn(), SendTc(), and SetIpv4().

EventGarbageCollector ns3::olsr::RoutingProtocol::m_events

private

Definition at line 142 of file olsr-routing-protocol.h.

Referenced by AssociationTupleTimerExpire(), DupTupleTimerExpire(), IfaceAssocTupleTimerExpire(), LinkSensing(), LinkTupleTimerExpire(), MprSelTupleTimerExpire(), Nb2hopTupleTimerExpire(), PopulateMprSelectorSet(), PopulateTwoHopNeighborSet(), ProcessTc(), and TopologyTupleTimerExpire().

Time ns3::olsr::RoutingProtocol::m_helloInterval

private

HELLO messages' emission interval.

Definition at line 152 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), HelloTimerExpire(), and SendHello().

Timer ns3::olsr::RoutingProtocol::m_helloTimer

private

Definition at line 219 of file olsr-routing-protocol.h.

Referenced by HelloTimerExpire(), and SetIpv4().

Time ns3::olsr::RoutingProtocol::m_hnaInterval

private

HNA messages' emission interval.

Definition at line 158 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and HnaTimerExpire().

Ptr<Ipv4StaticRouting> ns3::olsr::RoutingProtocol::m_hnaRoutingTable

private

Definition at line 140 of file olsr-routing-protocol.h.

Referenced by DoDispose(), PrintRoutingTable(), RouteInput(), RouteOutput(), RoutingProtocol(), RoutingTableComputation(), and SetIpv4().

Timer ns3::olsr::RoutingProtocol::m_hnaTimer

private

Definition at line 228 of file olsr-routing-protocol.h.

Referenced by HnaTimerExpire(), and SetIpv4().

std::set<uint32_t> ns3::olsr::RoutingProtocol::m_interfaceExclusions

private

Definition at line 117 of file olsr-routing-protocol.h.

Referenced by DoInitialize(), GetInterfaceExclusions(), SendMid(), SetInterfaceExclusions(), and UsesNonOlsrOutgoingInterface().

Ptr<Ipv4> ns3::olsr::RoutingProtocol::m_ipv4

private

Definition at line 165 of file olsr-routing-protocol.h.

Referenced by AddEntry(), DoDispose(), DoInitialize(), PrintRoutingTable(), RouteInput(), RouteOutput(), SendMid(), SetIpv4(), and SetMainInterface().

bool ns3::olsr::RoutingProtocol::m_linkTupleTimerFirstTime

private

Definition at line 232 of file olsr-routing-protocol.h.

Referenced by LinkTupleTimerExpire(), and SetIpv4().

Ipv4Address ns3::olsr::RoutingProtocol::m_mainAddress

private

Definition at line 301 of file olsr-routing-protocol.h.

Referenced by AddEntry(), DoInitialize(), Dump(), ForwardDefault(), LinkSensing(), LinkTupleUpdated(), MprComputation(), NeighborLoss(), PopulateMprSelectorSet(), PopulateTwoHopNeighborSet(), ProcessHello(), ProcessMid(), ProcessTc(), RecvOlsr(), RemoveLinkTuple(), RouteInput(), RouteOutput(), RoutingTableComputation(), SendHello(), SendHna(), SendMid(), SendPacket(), SendQueuedMessages(), SendTc(), and SetMainInterface().

uint16_t ns3::olsr::RoutingProtocol::m_messageSequenceNumber

private

Messages sequence number counter.

Definition at line 147 of file olsr-routing-protocol.h.

Referenced by GetMessageSequenceNumber(), and SetIpv4().

Time ns3::olsr::RoutingProtocol::m_midInterval

private

MID messages' emission interval.

Definition at line 156 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and MidTimerExpire().

Timer ns3::olsr::RoutingProtocol::m_midTimer

private

Definition at line 225 of file olsr-routing-protocol.h.

Referenced by MidTimerExpire(), and SetIpv4().

uint16_t ns3::olsr::RoutingProtocol::m_packetSequenceNumber

private

Packets sequence number counter.

Definition at line 145 of file olsr-routing-protocol.h.

Referenced by GetPacketSequenceNumber(), and SetIpv4().

olsr::MessageList ns3::olsr::RoutingProtocol::m_queuedMessages

private

A list of pending messages which are buffered awaiting for being sent.

Definition at line 243 of file olsr-routing-protocol.h.

Referenced by QueueMessage(), and SendQueuedMessages().

Timer ns3::olsr::RoutingProtocol::m_queuedMessagesTimer

private

Definition at line 244 of file olsr-routing-protocol.h.

Referenced by QueueMessage(), and SetIpv4().

Ptr<Ipv4StaticRouting> ns3::olsr::RoutingProtocol::m_routingTableAssociation

private

Definition at line 118 of file olsr-routing-protocol.h.

Referenced by DoDispose(), and SetRoutingTableAssociation().

TracedCallback<uint32_t> ns3::olsr::RoutingProtocol::m_routingTableChanged

private

Definition at line 312 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and RoutingTableComputation().

TracedCallback<const PacketHeader &, const MessageList &> ns3::olsr::RoutingProtocol::m_rxPacketTrace

private

Definition at line 309 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and RecvOlsr().

std::map< Ptr<Socket>, Ipv4InterfaceAddress > ns3::olsr::RoutingProtocol::m_socketAddresses

private

Definition at line 306 of file olsr-routing-protocol.h.

Referenced by DoDispose(), DoInitialize(), IsMyOwnAddress(), RecvOlsr(), and SendPacket().

OlsrState ns3::olsr::RoutingProtocol::m_state

private

Internal state with all needed data structs.

Definition at line 163 of file olsr-routing-protocol.h.

Referenced by AddAssociationTuple(), AddDuplicateTuple(), AddHostNetworkAssociation(), AddIfaceAssocTuple(), AddMprSelectorTuple(), AddNeighborTuple(), AddTopologyTuple(), AddTwoHopNeighborTuple(), AssociationTupleTimerExpire(), Degree(), Dump(), DupTupleTimerExpire(), ForwardDefault(), GetMainAddress(), HnaTimerExpire(), IfaceAssocTupleTimerExpire(), LinkSensing(), LinkTupleTimerExpire(), LinkTupleUpdated(), MprComputation(), MprSelTupleTimerExpire(), Nb2hopTupleTimerExpire(), NeighborLoss(), PopulateMprSelectorSet(), PopulateNeighborSet(), PopulateTwoHopNeighborSet(), ProcessHello(), ProcessHna(), ProcessMid(), ProcessTc(), RecvOlsr(), RemoveAssociationTuple(), RemoveDuplicateTuple(), RemoveHostNetworkAssociation(), RemoveIfaceAssocTuple(), RemoveLinkTuple(), RemoveMprSelectorTuple(), RemoveNeighborTuple(), RemoveTopologyTuple(), RemoveTwoHopNeighborTuple(), RoutingTableComputation(), SendHello(), SendHna(), SendTc(), SetRoutingTableAssociation(), TcTimerExpire(), and TopologyTupleTimerExpire().

std::map<Ipv4Address, RoutingTableEntry> ns3::olsr::RoutingProtocol::m_table

private

Data structure for the routing table.

Definition at line 138 of file olsr-routing-protocol.h.

Referenced by AddEntry(), Clear(), Dump(), GetRoutingTableEntries(), GetSize(), Lookup(), PrintRoutingTable(), RemoveEntry(), and RouteInput().

Time ns3::olsr::RoutingProtocol::m_tcInterval

private

TC messages' emission interval.

Definition at line 154 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and TcTimerExpire().

Timer ns3::olsr::RoutingProtocol::m_tcTimer

private

Definition at line 222 of file olsr-routing-protocol.h.

Referenced by SetIpv4(), and TcTimerExpire().

TracedCallback<const PacketHeader &, const MessageList &> ns3::olsr::RoutingProtocol::m_txPacketTrace

private

Definition at line 311 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and SendPacket().

Ptr<UniformRandomVariable> ns3::olsr::RoutingProtocol::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 315 of file olsr-routing-protocol.h.

Referenced by AssignStreams(), and RoutingProtocol().

uint8_t ns3::olsr::RoutingProtocol::m_willingness

private

Willingness for forwarding packets on behalf of other nodes.

Definition at line 160 of file olsr-routing-protocol.h.

Referenced by GetTypeId(), and SendHello().

The documentation for this class was generated from the following files:

src/olsr/model/olsr-routing-protocol.h
src/olsr/model/olsr-routing-protocol.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
