Doxygen introspection did not find any typical Config paths. More...

#include <olsr-header.h>

Inheritance diagram for ns3::olsr::MessageHeader:

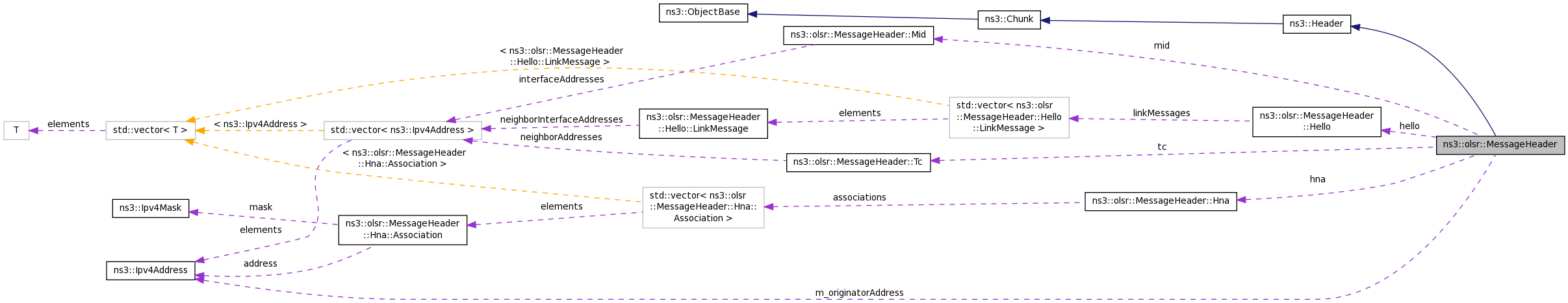

Collaboration diagram for ns3::olsr::MessageHeader:

Classes
struct	Hello

struct	Hna

struct	Mid

struct	Tc

Public Types
enum	MessageType { HELLO_MESSAGE = 1, TC_MESSAGE = 2, MID_MESSAGE = 3, HNA_MESSAGE = 4 }

Public Member Functions
	MessageHeader ()

virtual	~MessageHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

Hello &	GetHello ()

const Hello &	GetHello () const

Hna &	GetHna ()

const Hna &	GetHna () const

uint8_t	GetHopCount () const

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetMessageSequenceNumber () const

MessageType	GetMessageType () const

Mid &	GetMid ()

const Mid &	GetMid () const

Ipv4Address	GetOriginatorAddress () const

virtual uint32_t	GetSerializedSize (void) const

Tc &	GetTc ()

const Tc &	GetTc () const

uint8_t	GetTimeToLive () const

Time	GetVTime () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetHopCount (uint8_t hopCount)

void	SetMessageSequenceNumber (uint16_t messageSequenceNumber)

void	SetMessageType (MessageType messageType)

void	SetOriginatorAddress (Ipv4Address originatorAddress)

void	SetTimeToLive (uint8_t timeToLive)

void	SetVTime (Time time)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_hopCount

struct {
Hello hello

Hna hna

Mid mid

Tc tc

}	m_message

uint16_t	m_messageSequenceNumber

uint16_t	m_messageSize

MessageType	m_messageType

Ipv4Address	m_originatorAddress

uint8_t	m_timeToLive

uint8_t	m_vTime

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 116 of file olsr-header.h.

Member Enumeration Documentation

enum ns3::olsr::MessageHeader::MessageType

Enumerator
HELLO_MESSAGE
TC_MESSAGE
MID_MESSAGE
HNA_MESSAGE

Definition at line 120 of file olsr-header.h.

Constructor & Destructor Documentation

ns3::olsr::MessageHeader::MessageHeader ( )

Definition at line 160 of file olsr-header.cc.

ns3::olsr::MessageHeader::~MessageHeader ( )

virtual

Definition at line 165 of file olsr-header.cc.

Member Function Documentation

uint32_t ns3::olsr::MessageHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 248 of file olsr-header.cc.

References HELLO_MESSAGE, HNA_MESSAGE, m_hopCount, m_message, m_messageSequenceNumber, m_messageSize, m_messageType, m_originatorAddress, m_timeToLive, m_vTime, MID_MESSAGE, NS_ASSERT, OLSR_MSG_HEADER_SIZE, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and TC_MESSAGE.

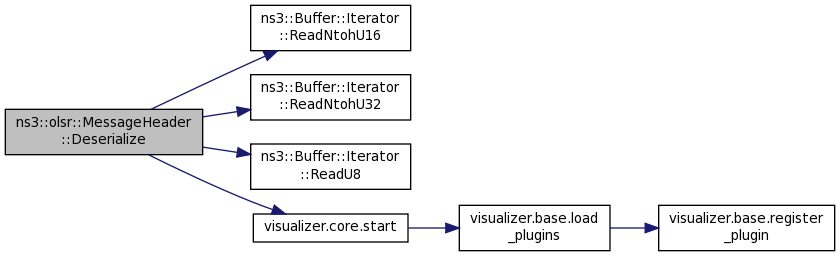

Here is the call graph for this function:

Hello& ns3::olsr::MessageHeader::GetHello ( )

inline

Definition at line 370 of file olsr-header.h.

References HELLO_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Referenced by ns3::OlsrHelloTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessHello(), and ns3::olsr::RoutingProtocol::SendHello().

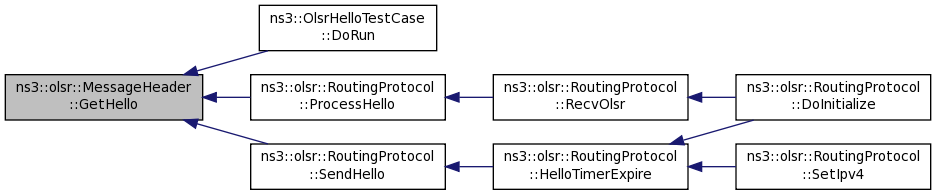

Here is the caller graph for this function:

const Hello& ns3::olsr::MessageHeader::GetHello ( ) const

inline

Definition at line 416 of file olsr-header.h.

References HELLO_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Hna& ns3::olsr::MessageHeader::GetHna ( )

inline

Definition at line 396 of file olsr-header.h.

References HNA_MESSAGE, m_message, m_messageType, and NS_ASSERT.

Referenced by ns3::OlsrHnaTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessHna(), and ns3::olsr::RoutingProtocol::SendHna().

Here is the caller graph for this function:

const Hna& ns3::olsr::MessageHeader::GetHna ( ) const

inline

Definition at line 428 of file olsr-header.h.

References HNA_MESSAGE, m_message, m_messageType, and NS_ASSERT.

uint8_t ns3::olsr::MessageHeader::GetHopCount ( void ) const

inline

Definition at line 170 of file olsr-header.h.

References m_hopCount.

Referenced by ns3::olsr::RoutingProtocol::ForwardDefault().

Here is the caller graph for this function:

TypeId ns3::olsr::MessageHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 179 of file olsr-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::olsr::MessageHeader::GetMessageSequenceNumber ( ) const

inline

Definition at line 179 of file olsr-header.h.

References m_messageSequenceNumber.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), and ns3::olsr::RoutingProtocol::RecvOlsr().

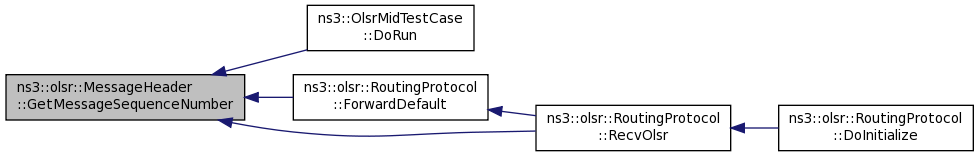

Here is the caller graph for this function:

MessageType ns3::olsr::MessageHeader::GetMessageType ( void ) const

inline

Definition at line 134 of file olsr-header.h.

References m_messageType.

Referenced by ns3::OlsrMidTestCase::DoRun(), and ns3::olsr::RoutingProtocol::RecvOlsr().

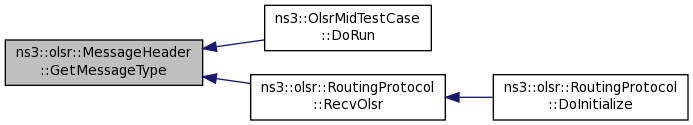

Here is the caller graph for this function:

Mid& ns3::olsr::MessageHeader::GetMid ( )

inline

Definition at line 357 of file olsr-header.h.

References m_message, m_messageType, MID_MESSAGE, and NS_ASSERT.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::SendMid().

Here is the caller graph for this function:

const Mid& ns3::olsr::MessageHeader::GetMid ( ) const

inline

Definition at line 410 of file olsr-header.h.

References m_message, m_messageType, MID_MESSAGE, and NS_ASSERT.

Ipv4Address ns3::olsr::MessageHeader::GetOriginatorAddress ( void ) const

inline

Definition at line 152 of file olsr-header.h.

References m_originatorAddress.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateNeighborSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::RecvOlsr().

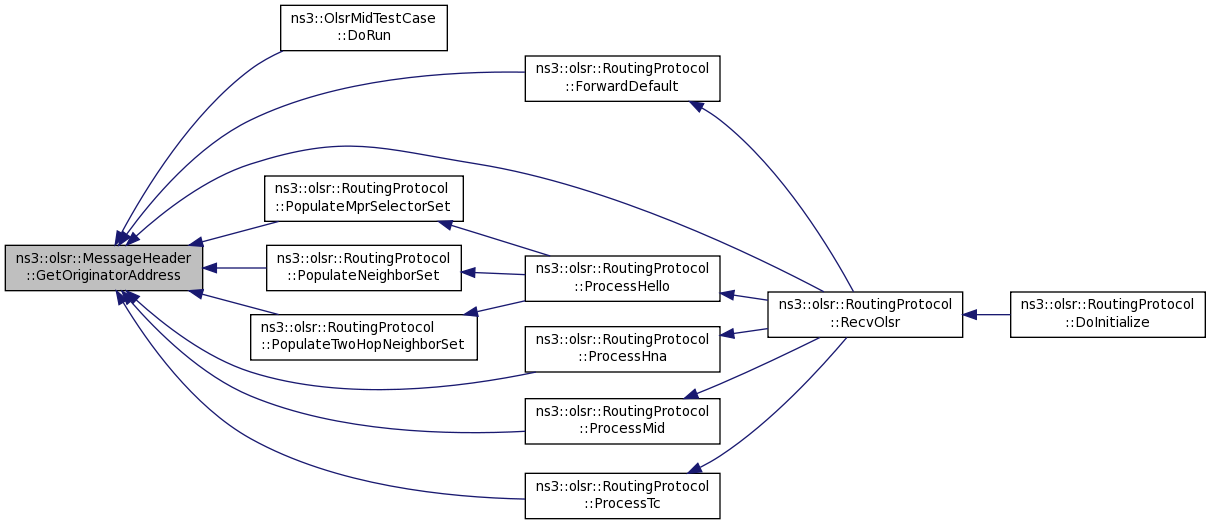

Here is the caller graph for this function:

uint32_t ns3::olsr::MessageHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 185 of file olsr-header.cc.

References HELLO_MESSAGE, HNA_MESSAGE, m_message, m_messageType, MID_MESSAGE, NS_ASSERT, NS_LOG_DEBUG, OLSR_MSG_HEADER_SIZE, and TC_MESSAGE.

Referenced by ns3::olsr::MessageHeader::Mid::Deserialize(), ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::olsr::RoutingProtocol::SendHello(), and Serialize().

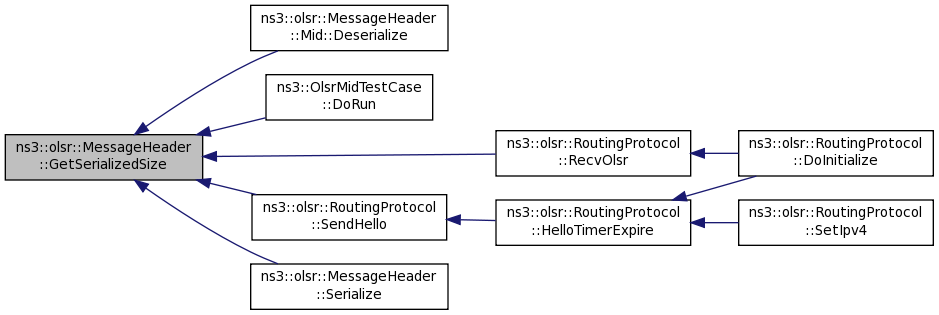

Here is the caller graph for this function:

Tc& ns3::olsr::MessageHeader::GetTc ( )

inline

Definition at line 383 of file olsr-header.h.

References m_message, m_messageType, NS_ASSERT, and TC_MESSAGE.

Referenced by ns3::OlsrTcTestCase::DoRun(), ns3::olsr::RoutingProtocol::ProcessTc(), and ns3::olsr::RoutingProtocol::SendTc().

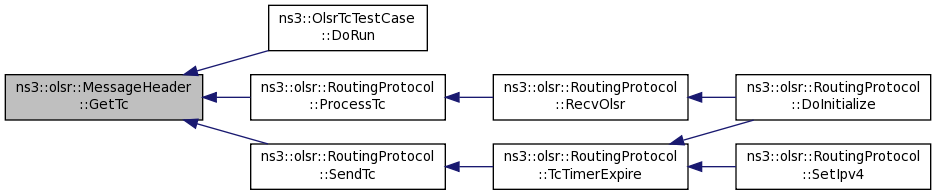

Here is the caller graph for this function:

const Tc& ns3::olsr::MessageHeader::GetTc ( ) const

inline

Definition at line 422 of file olsr-header.h.

References m_message, m_messageType, NS_ASSERT, and TC_MESSAGE.

uint8_t ns3::olsr::MessageHeader::GetTimeToLive ( ) const

inline

Definition at line 161 of file olsr-header.h.

References m_timeToLive.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::ForwardDefault(), and ns3::olsr::RoutingProtocol::RecvOlsr().

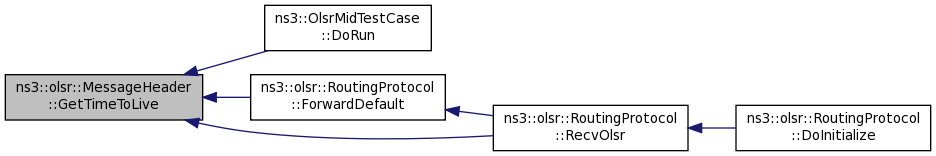

Here is the caller graph for this function:

TypeId ns3::olsr::MessageHeader::GetTypeId ( void )

static

Definition at line 170 of file olsr-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::olsr::MessageHeader::GetVTime ( ) const

inline

Definition at line 143 of file olsr-header.h.

References ns3::olsr::EmfToSeconds(), and m_vTime.

Referenced by ns3::OlsrMidTestCase::DoRun(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), ns3::olsr::RoutingProtocol::ProcessHna(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::ProcessTc().

Here is the call graph for this function:

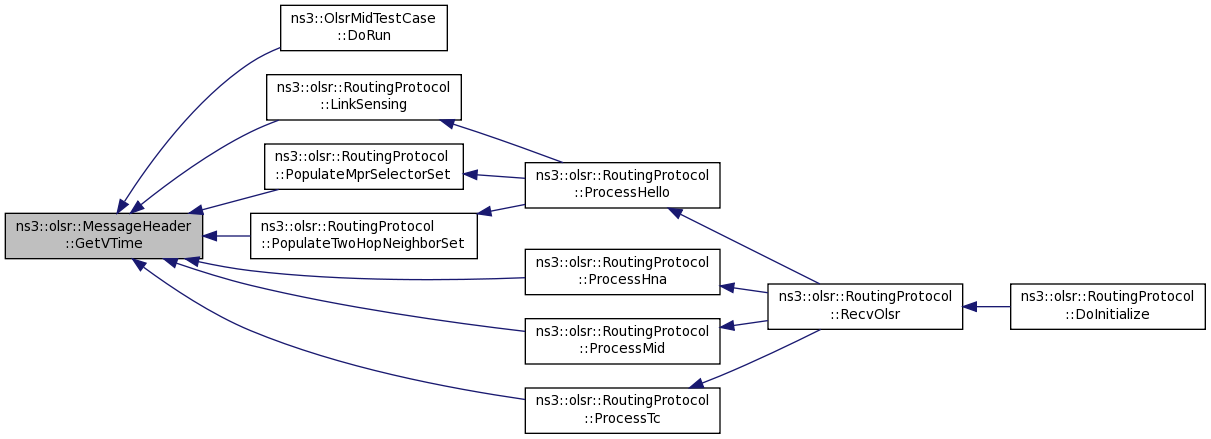

Here is the caller graph for this function:

void ns3::olsr::MessageHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Todo:

Implements ns3::Header.

Definition at line 210 of file olsr-header.cc.

Referenced by ns3::olsr::operator<<().

Here is the caller graph for this function:

void ns3::olsr::MessageHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 216 of file olsr-header.cc.

References ns3::Ipv4Address::Get(), GetSerializedSize(), HELLO_MESSAGE, HNA_MESSAGE, m_hopCount, m_message, m_messageSequenceNumber, m_messageType, m_originatorAddress, m_timeToLive, m_vTime, MID_MESSAGE, NS_ASSERT, visualizer.core::start(), TC_MESSAGE, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().
