ns3::Ping6 Class Reference
Ping6

A ping6 application. More...

#include <ping6.h>

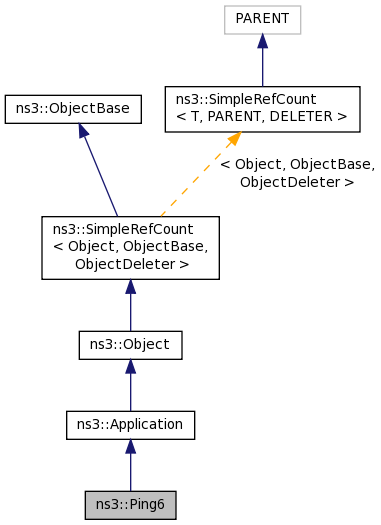

+ Inheritance diagram for ns3::Ping6:

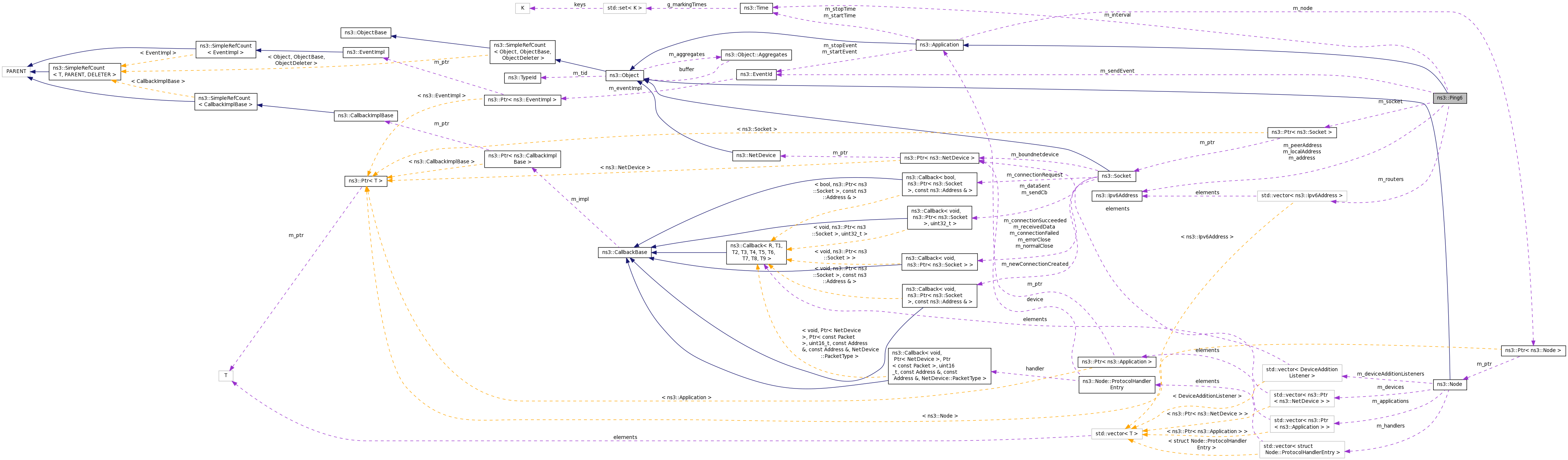

+ Collaboration diagram for ns3::Ping6:

Public Member Functions

 Ping6 ()
 Constructor. More...

virtual ~Ping6 ()
 Destructor. More...

void SetIfIndex (uint32_t ifIndex)
 Set the out interface index. More...

void SetLocal (Ipv6Address ipv6)
 Set the local address. More...

void SetRemote (Ipv6Address ipv6)
 Set the remote peer. More...

void SetRouters (std::vector< Ipv6Address > routers)
 Set routers for routing type 0 (loose routing). More...

- Public Member Functions inherited from ns3::Application
 Application ()

virtual ~Application ()

Ptr< Node > GetNode () const

void SetNode (Ptr< Node > node)

void SetStartTime (Time start)
 Specify application start time. More...

void SetStopTime (Time stop)
 Specify application stop time. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Application
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 Dispose this object;. More...

- Protected Member Functions inherited from ns3::Application
virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Private Member Functions

void HandleRead (Ptr< Socket > socket)
 Receive method. More...

void ScheduleTransmit (Time dt)
 Schedule sending a packet. More...

void Send ()
 Send a packet. More...

virtual void StartApplication ()
 Start the application. More...

virtual void StopApplication ()
 Stop the application. More...


Private Attributes

Ipv6Address m_address
 Peer IPv6 address. More...

uint32_t m_count
 Number of "Echo request" packets that will be sent. More...

uint32_t m_ifIndex
 Out interface (i.e. More...

Time m_interval
 Intervall between packets sent. More...

Ipv6Address m_localAddress
 Local address. More...

Ipv6Address m_peerAddress
 Peer address. More...

std::vector< Ipv6Address > m_routers
 Routers addresses for routing type 0. More...

EventId m_sendEvent
 Event ID. More...

uint32_t m_sent
 Number of packets sent. More...

uint16_t m_seq
 Sequence number. More...

uint32_t m_size
 Size of the packet. More...

Ptr< Socket > m_socket
 Local socket. More...


Additional Inherited Members

- Protected Attributes inherited from ns3::Application
Ptr< Node > m_node

EventId m_startEvent
 The simulation time that the appliacation will end. More...

Time m_startTime
 The node that this application is installed on. More...

EventId m_stopEvent
 The event that will fire at m_startTime to start the application. More...

Time m_stopTime
 The simulation time that the appliacation will start. More...


Detailed Description

A ping6 application.

Config Paths

ns3::Ping6 is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/ApplicationList/[i]/$ns3::Ping6

Attributes

  • MaxPackets: The maximum number of packets the application will send
  • Interval: The time to wait between packets
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +1000000000.0ns
    • Flags: construct write read
  • RemoteIpv6: The Ipv6Address of the outbound packets
  • LocalIpv6: Local Ipv6Address of the sender
  • PacketSize: Size of packets generated

Attributes defined in parent class ns3::Application

  • StartTime: Time at which the application will start
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +0.0ns
    • Flags: construct write read
  • StopTime: Time at which the application will stop
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +0.0ns
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 45 of file ping6.h.

Constructor & Destructor Documentation

ns3::Ping6::Ping6 ( )

Constructor.

Definition at line 81 of file ping6.cc.

References m_sendEvent, m_sent, m_seq, m_socket, and NS_LOG_FUNCTION_NOARGS.

ns3::Ping6::~Ping6 ( )
virtual

Destructor.

Definition at line 90 of file ping6.cc.

References m_socket, and NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::Ping6::DoDispose ( void  )
protectedvirtual

Dispose this object;.

Reimplemented from ns3::Application.

Definition at line 96 of file ping6.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION_NOARGS.

+ Here is the call graph for this function:

TypeId ns3::Ping6::GetTypeId ( void  )
static

Get the type ID.

Returns
type ID

Definition at line 47 of file ping6.cc.

References m_count, m_interval, m_localAddress, m_peerAddress, m_size, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

Referenced by ns3::Ping6Helper::Ping6Helper().

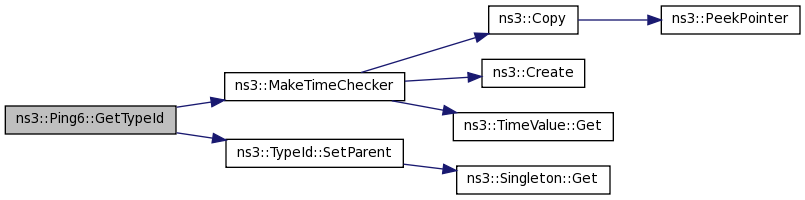

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ping6::HandleRead ( Ptr< Socket >  socket)
private

Receive method.

Parameters
socketsocket that receive a packet

Definition at line 239 of file ping6.cc.

References first::address, ns3::Inet6SocketAddress::ConvertFrom(), ns3::Packet::CopyData(), ns3::Icmpv6Echo::GetId(), ns3::Inet6SocketAddress::GetIpv6(), ns3::Icmpv6Echo::GetSeq(), ns3::Packet::GetSize(), ns3::Icmpv6Header::ICMPV6_ECHO_REPLY, ns3::Inet6SocketAddress::IsMatchingType(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Socket::RecvFrom(), and ns3::Packet::RemoveHeader().

Referenced by StartApplication().

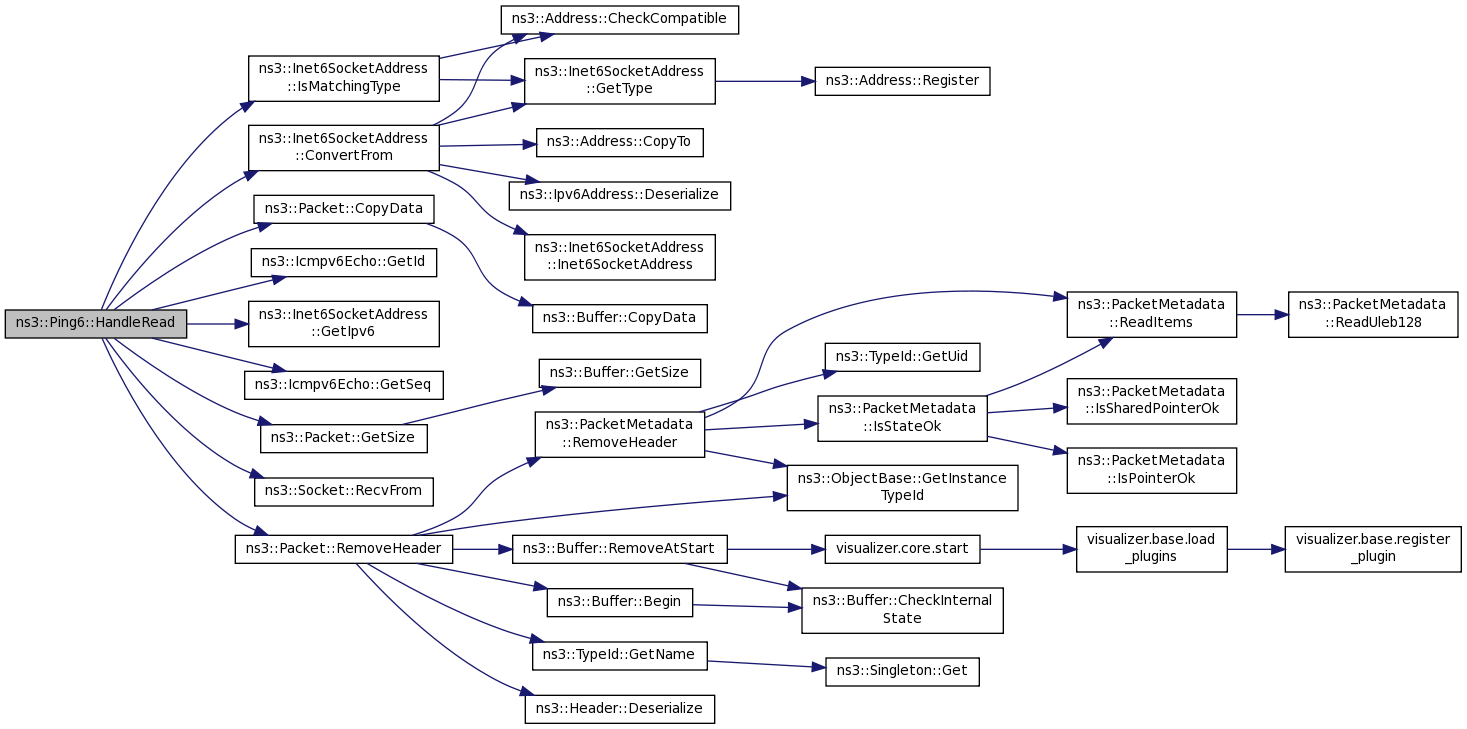

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ping6::ScheduleTransmit ( Time  dt)
private

Schedule sending a packet.

Parameters
dtinterval between packet

Definition at line 151 of file ping6.cc.

References m_sendEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

Referenced by Send(), and StartApplication().

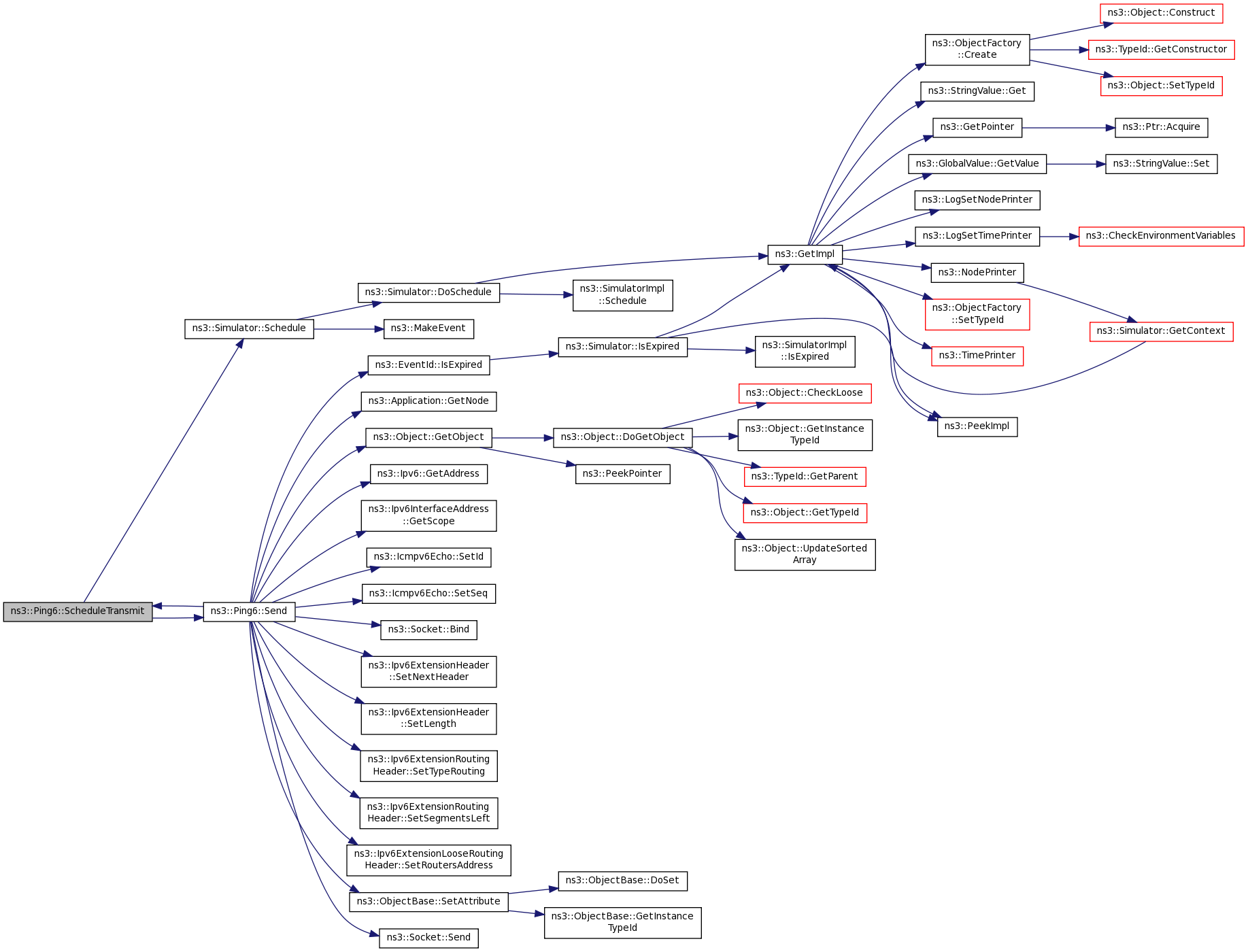

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ping6::Send ( )
private

Send a packet.

Definition at line 162 of file ping6.cc.

References ns3::Socket::Bind(), data, ns3::Ipv6::GetAddress(), ns3::Application::GetNode(), ns3::Object::GetObject(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::Ipv6Header::IPV6_EXT_ROUTING, ns3::Ipv6Header::IPV6_ICMPV6, ns3::EventId::IsExpired(), m_count, m_ifIndex, m_interval, m_localAddress, m_peerAddress, m_routers, m_sendEvent, m_sent, m_seq, m_size, m_socket, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ScheduleTransmit(), ns3::Socket::Send(), ns3::ObjectBase::SetAttribute(), ns3::Icmpv6Echo::SetId(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), ns3::Ipv6ExtensionLooseRoutingHeader::SetRoutersAddress(), ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft(), ns3::Icmpv6Echo::SetSeq(), and ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting().

Referenced by ScheduleTransmit().

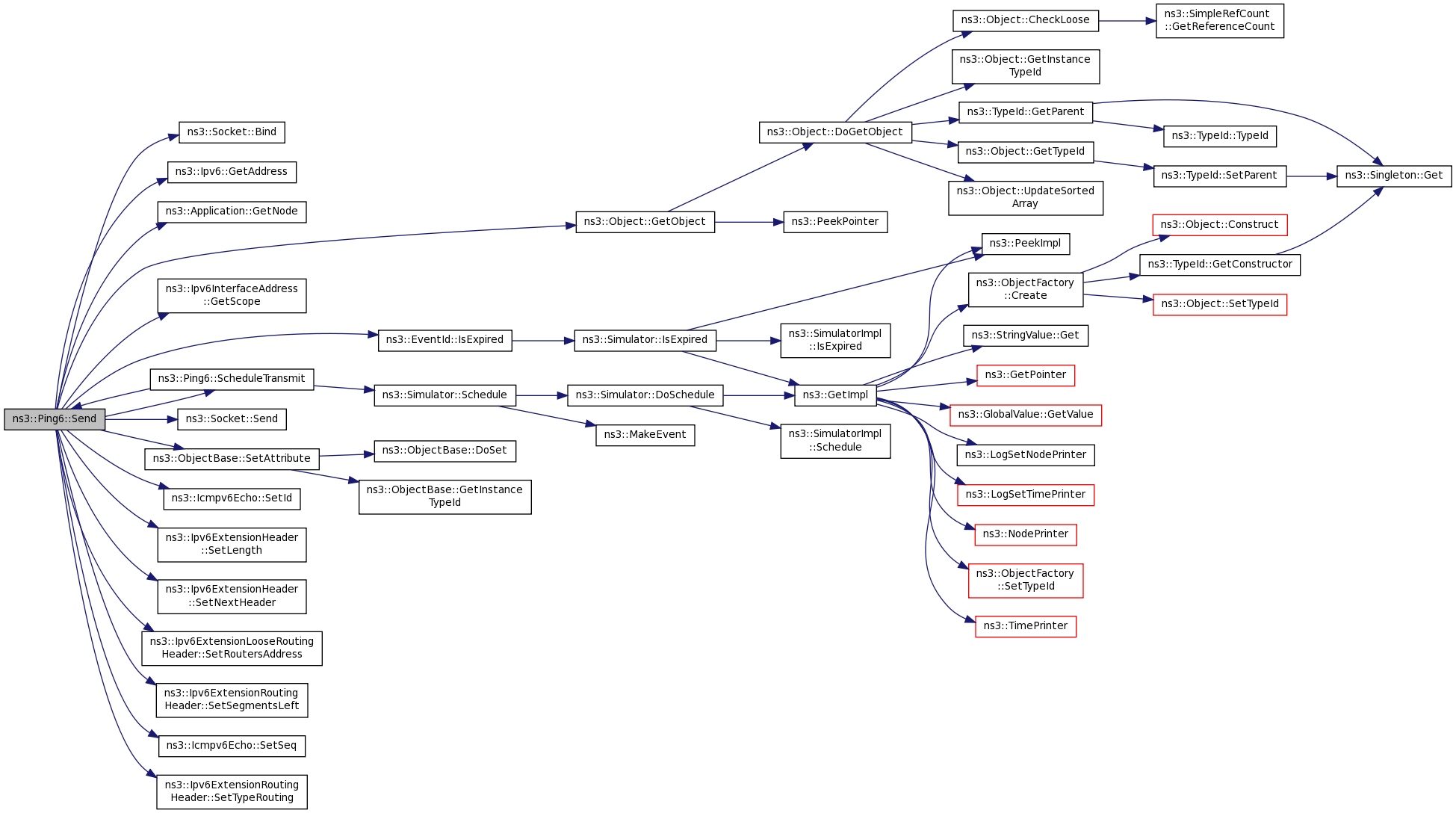

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ping6::SetIfIndex ( uint32_t  ifIndex)

Set the out interface index.

This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters
ifIndexinterface index

Definition at line 146 of file ping6.cc.

References m_ifIndex.

void ns3::Ping6::SetLocal ( Ipv6Address  ipv6)

Set the local address.

Parameters
ipv6the local IPv6 address

Definition at line 122 of file ping6.cc.

References m_localAddress, and NS_LOG_FUNCTION.

void ns3::Ping6::SetRemote ( Ipv6Address  ipv6)

Set the remote peer.

Parameters
ipv6IPv6 address of the peer

Definition at line 128 of file ping6.cc.

References m_peerAddress, and NS_LOG_FUNCTION.

void ns3::Ping6::SetRouters ( std::vector< Ipv6Address >  routers)

Set routers for routing type 0 (loose routing).

Parameters
routersrouters addresses

Definition at line 157 of file ping6.cc.

References m_routers.

void ns3::Ping6::StartApplication ( void  )
privatevirtual

Start the application.

Reimplemented from ns3::Application.

Definition at line 102 of file ping6.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), ns3::Application::GetNode(), HandleRead(), ns3::Ipv6Header::IPV6_ICMPV6, ns3::TypeId::LookupByName(), m_localAddress, m_peerAddress, m_socket, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION_NOARGS, ScheduleTransmit(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

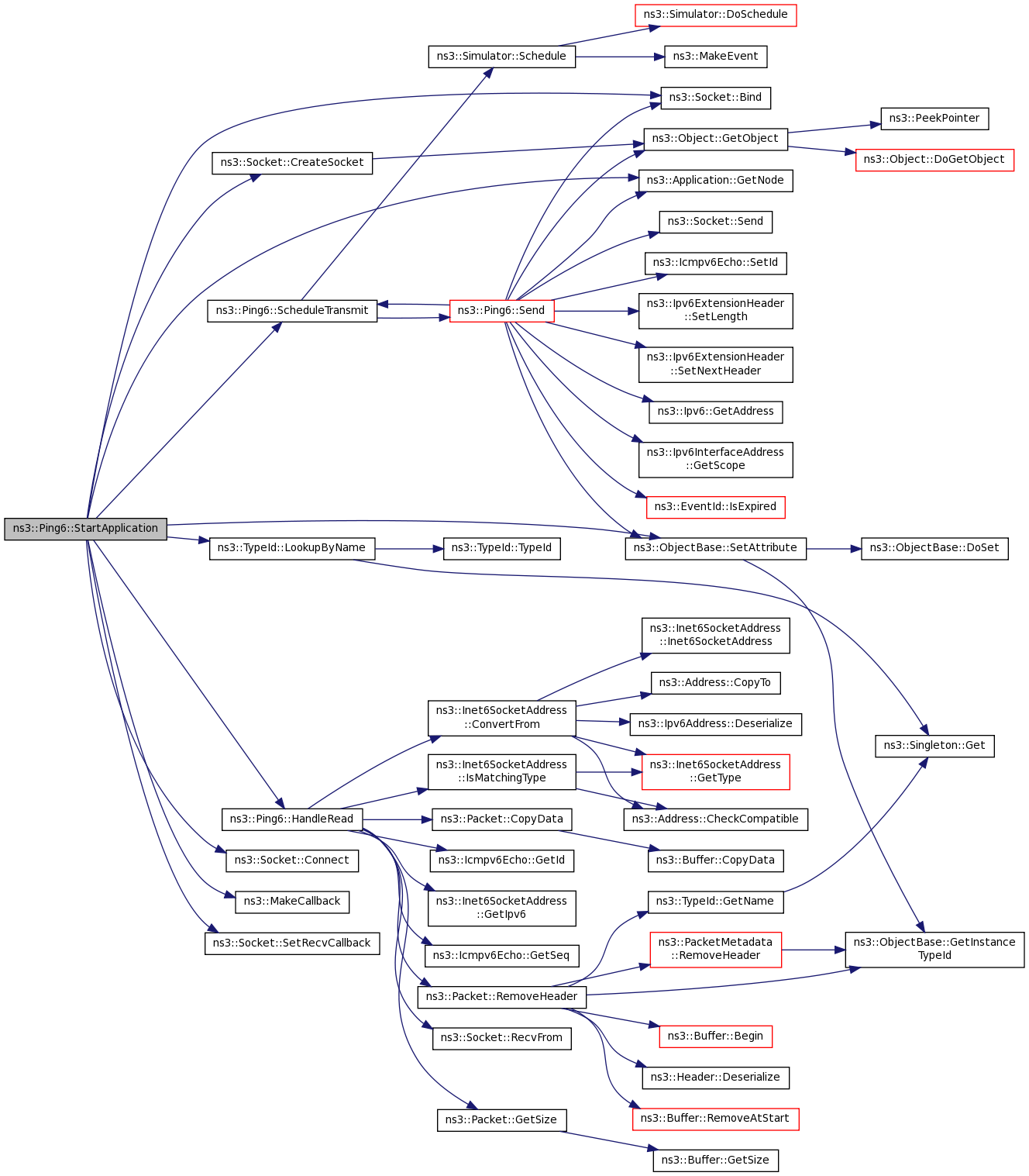

+ Here is the call graph for this function:

void ns3::Ping6::StopApplication ( void  )
privatevirtual

Stop the application.

Reimplemented from ns3::Application.

Definition at line 134 of file ping6.cc.

References ns3::Simulator::Cancel(), m_sendEvent, m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::Socket::SetRecvCallback().

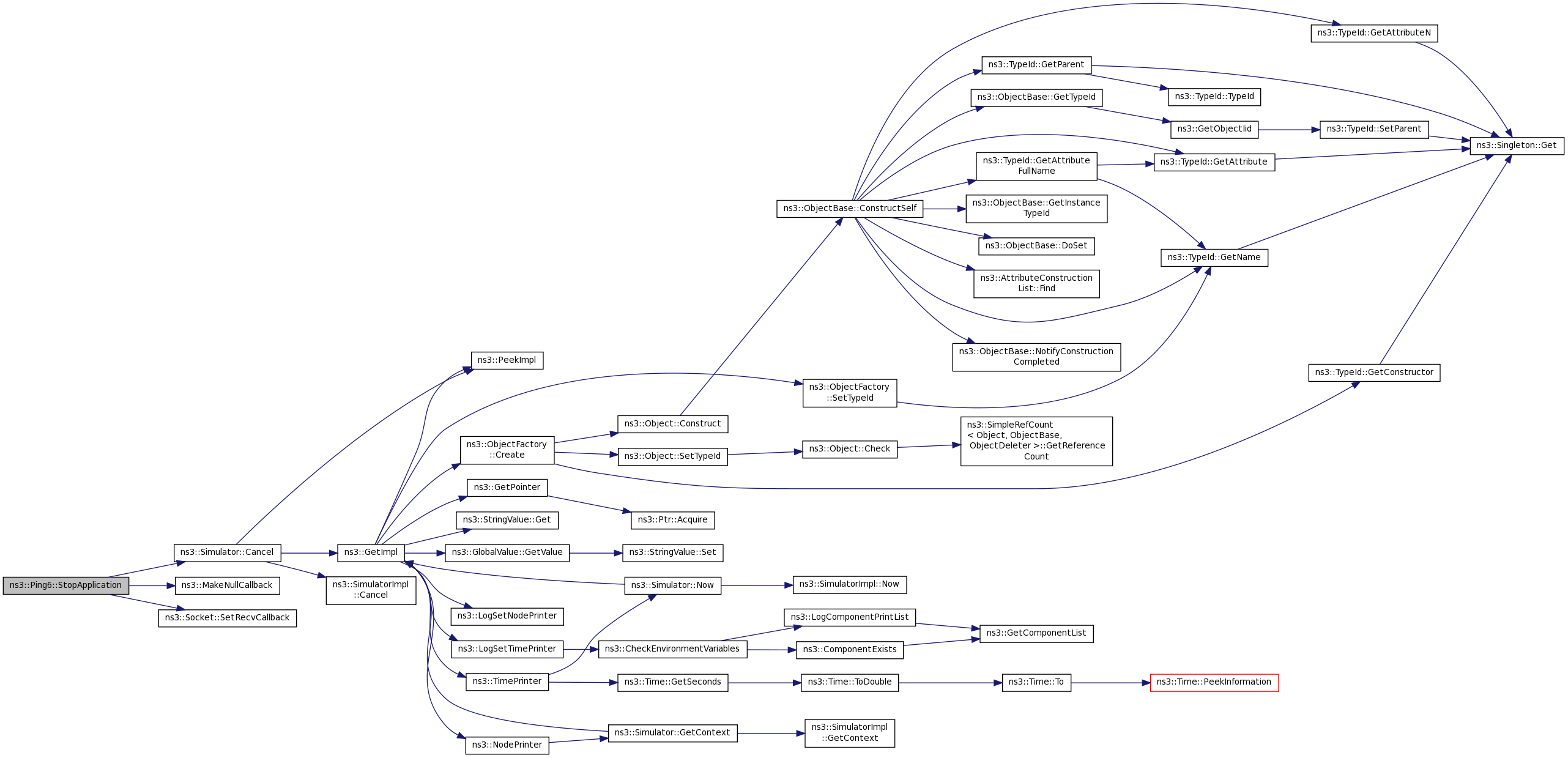

+ Here is the call graph for this function:

Member Data Documentation

Ipv6Address ns3::Ping6::m_address
private

Peer IPv6 address.

Definition at line 127 of file ping6.h.

uint32_t ns3::Ping6::m_count
private

Number of "Echo request" packets that will be sent.

Definition at line 132 of file ping6.h.

Referenced by GetTypeId(), and Send().

uint32_t ns3::Ping6::m_ifIndex
private

Out interface (i.e.

for link-local communication).

Definition at line 177 of file ping6.h.

Referenced by Send(), and SetIfIndex().

Time ns3::Ping6::m_interval
private

Intervall between packets sent.

Definition at line 147 of file ping6.h.

Referenced by GetTypeId(), and Send().

Ipv6Address ns3::Ping6::m_localAddress
private

Local address.

Definition at line 152 of file ping6.h.

Referenced by GetTypeId(), Send(), SetLocal(), and StartApplication().

Ipv6Address ns3::Ping6::m_peerAddress
private

Peer address.

Definition at line 157 of file ping6.h.

Referenced by GetTypeId(), Send(), SetRemote(), and StartApplication().

std::vector<Ipv6Address> ns3::Ping6::m_routers
private

Routers addresses for routing type 0.

Definition at line 182 of file ping6.h.

Referenced by Send(), and SetRouters().

EventId ns3::Ping6::m_sendEvent
private

Event ID.

Definition at line 172 of file ping6.h.

Referenced by Ping6(), ScheduleTransmit(), Send(), and StopApplication().

uint32_t ns3::Ping6::m_sent
private

Number of packets sent.

Definition at line 137 of file ping6.h.

Referenced by Ping6(), and Send().

uint16_t ns3::Ping6::m_seq
private

Sequence number.

Definition at line 167 of file ping6.h.

Referenced by Ping6(), and Send().

uint32_t ns3::Ping6::m_size
private

Size of the packet.

Definition at line 142 of file ping6.h.

Referenced by GetTypeId(), and Send().

Ptr<Socket> ns3::Ping6::m_socket
private

Local socket.

Definition at line 162 of file ping6.h.

Referenced by Ping6(), Send(), StartApplication(), StopApplication(), and ~Ping6().

The documentation for this class was generated from the following files:
