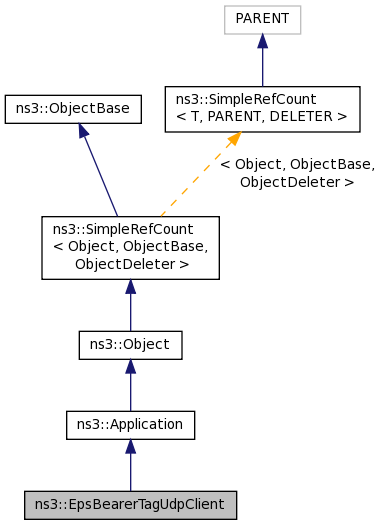

Inheritance diagram for ns3::EpsBearerTagUdpClient:

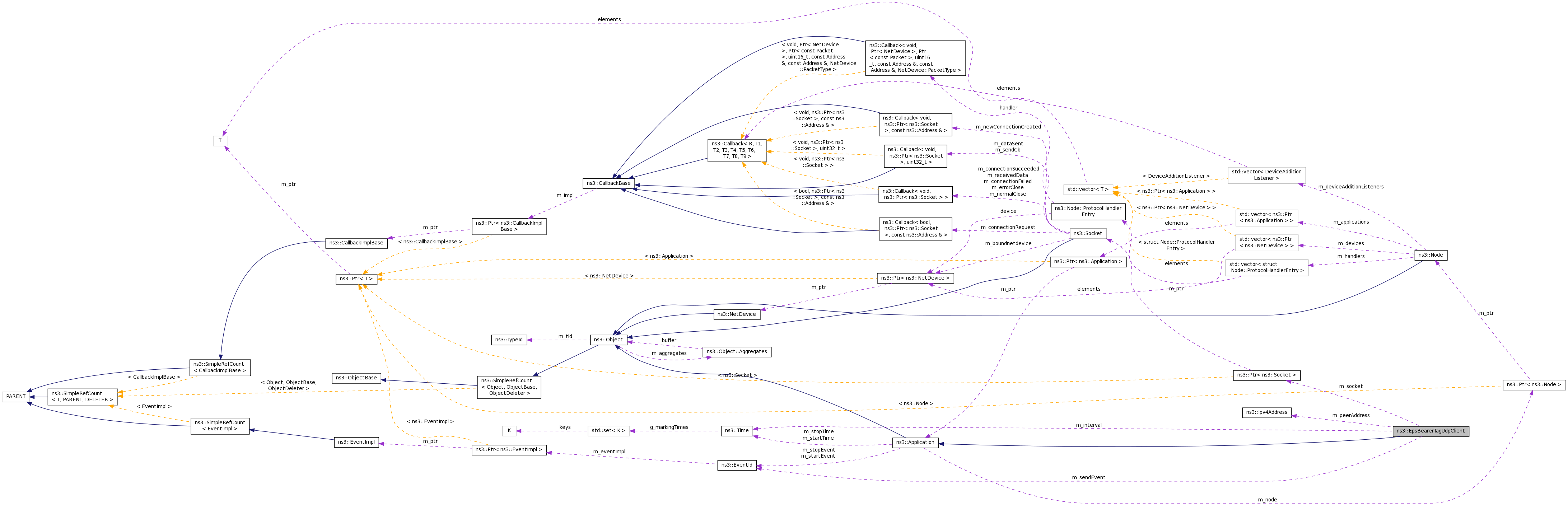

Collaboration diagram for ns3::EpsBearerTagUdpClient:

Public Member Functions
	EpsBearerTagUdpClient ()

	EpsBearerTagUdpClient (uint16_t rnti, uint8_t bid)

virtual	~EpsBearerTagUdpClient ()

void	SetRemote (Ipv4Address ip, uint16_t port)
	set the remote address and port More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	ScheduleTransmit (Time dt)

void	Send (void)

virtual void	StartApplication (void)
	Application specific startup code. More...

virtual void	StopApplication (void)
	Application specific shutdown code. More...

Private Attributes
uint8_t	m_bid

uint32_t	m_count

Time	m_interval

Ipv4Address	m_peerAddress

uint16_t	m_peerPort

uint16_t	m_rnti

EventId	m_sendEvent

uint32_t	m_sent

uint32_t	m_size

Ptr< Socket >	m_socket

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node

EventId	m_startEvent
	The simulation time that the appliacation will end. More...

Time	m_startTime
	The node that this application is installed on. More...

EventId	m_stopEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_stopTime
	The simulation time that the appliacation will start. More...

Detailed Description

Definition at line 67 of file epc-test-s1u-uplink.cc.

Constructor & Destructor Documentation

ns3::EpsBearerTagUdpClient::EpsBearerTagUdpClient ( )

Definition at line 147 of file epc-test-s1u-uplink.cc.

References m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION_NOARGS.

ns3::EpsBearerTagUdpClient::EpsBearerTagUdpClient	(	uint16_t	rnti,
		uint8_t	bid
	)

Definition at line 157 of file epc-test-s1u-uplink.cc.

References m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION_NOARGS.

ns3::EpsBearerTagUdpClient::~EpsBearerTagUdpClient ( )

virtual

Definition at line 167 of file epc-test-s1u-uplink.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::EpsBearerTagUdpClient::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 180 of file epc-test-s1u-uplink.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION_NOARGS.

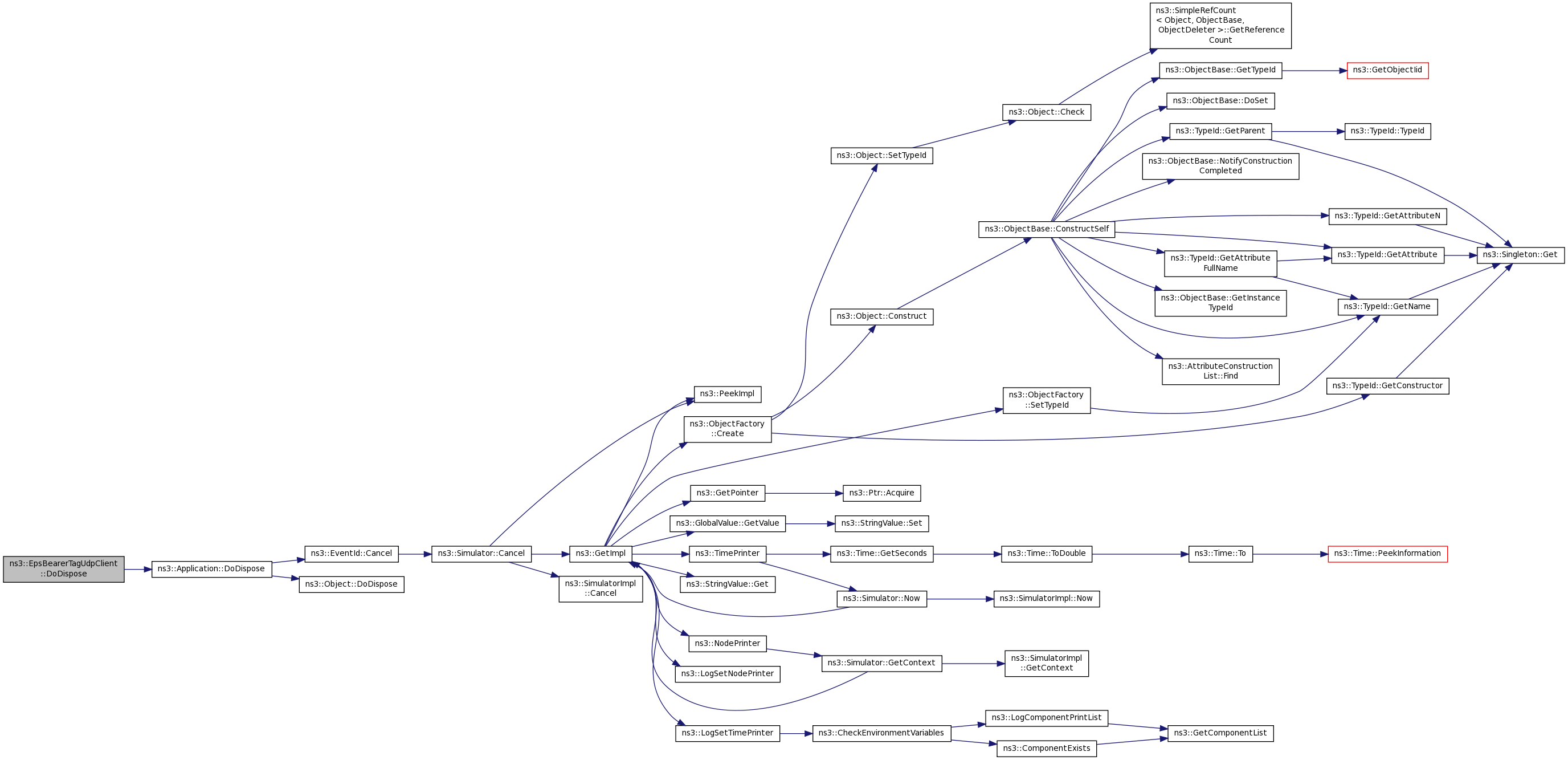

Here is the call graph for this function:
