ns3::WaveformGenerator Class Reference

Simple SpectrumPhy implementation that sends customizable waveform. More...

#include <waveform-generator.h>

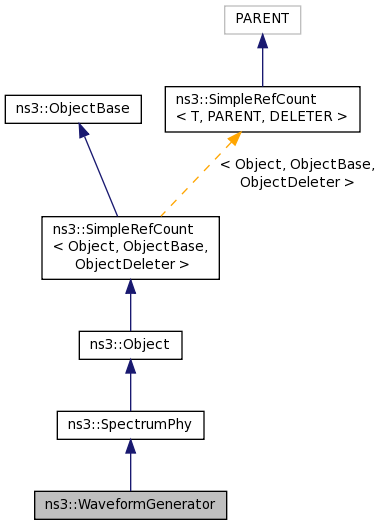

+ Inheritance diagram for ns3::WaveformGenerator:

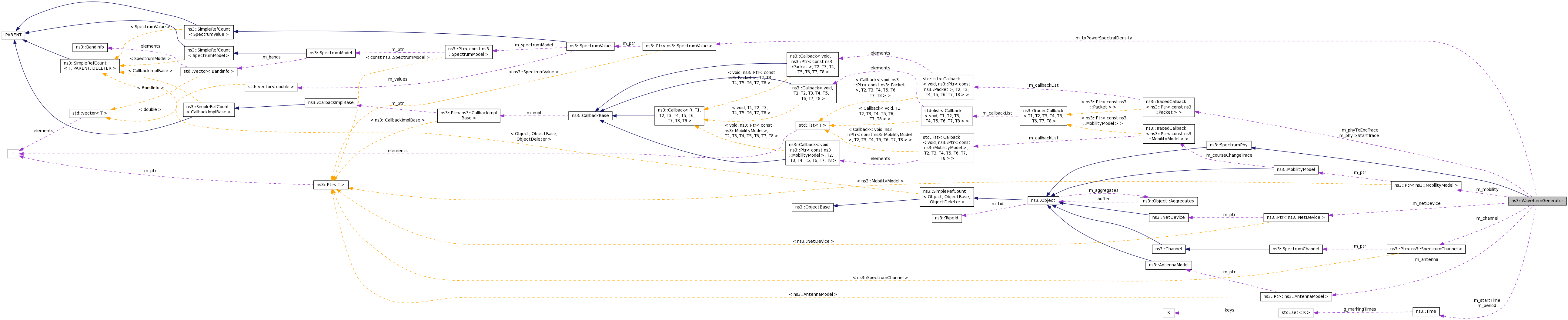

+ Collaboration diagram for ns3::WaveformGenerator:

Public Member Functions

 WaveformGenerator ()

virtual ~WaveformGenerator ()

Ptr< NetDeviceGetDevice ()
 get the associated NetDevice instance More...

double GetDutyCycle () const

Ptr< MobilityModelGetMobility ()
 get the associated MobilityModel instance More...

Time GetPeriod () const

Ptr< AntennaModelGetRxAntenna ()
 get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModelGetRxSpectrumModel () const

void SetAntenna (Ptr< AntennaModel > a)
 set the AntennaModel to be used More...

void SetChannel (Ptr< SpectrumChannel > c)
 Set the channel attached to this device. More...

void SetDevice (Ptr< NetDevice > d)
 set the associated NetDevice instance More...

void SetDutyCycle (double value)

void SetMobility (Ptr< MobilityModel > m)
 Set the mobility model associated with this device. More...

void SetPeriod (Time period)
 Set the period according to which the WaveformGenerator switches on and off. More...

void SetTxPowerSpectralDensity (Ptr< SpectrumValue > txs)
 Set the Power Spectral Density used for outgoing waveforms. More...

virtual void Start ()
 Start the waveform generator. More...

void StartRx (Ptr< SpectrumSignalParameters > params)
 Notify the SpectrumPhy instance of an incoming signal. More...

virtual void Stop ()
 Stop the waveform generator. More...

- Public Member Functions inherited from ns3::SpectrumPhy
 SpectrumPhy ()

virtual ~SpectrumPhy ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void GenerateWaveform ()


Private Attributes

bool m_active

Ptr< AntennaModelm_antenna

Ptr< SpectrumChannelm_channel

double m_dutyCycle

Ptr< MobilityModelm_mobility

Ptr< NetDevicem_netDevice

Time m_period

TracedCallback< Ptr< const
Packet > >
m_phyTxEndTrace

TracedCallback< Ptr< const
Packet > >
m_phyTxStartTrace

Time m_startTime

Ptr< SpectrumValuem_txPowerSpectralDensity


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Simple SpectrumPhy implementation that sends customizable waveform.

Doxygen introspection did not find any typical Config paths.

The generated waveforms have a given Spectrum Power Density and duration (set with the SetResolution()) . The generator activates and deactivates periodically with a given period and with a duty cycle of 1/2.

This PHY model supports a single antenna model instance which is used for both transmission and reception (though received signals are discarded by this PHY).


Attributes

  • Period: the period (=1/frequency)
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +1000000000.0ns
    • Flags: construct write read
  • DutyCycle: the duty cycle of the generator, i.e., the fraction of the period that is occupied by a signal
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.5
    • Flags: construct write read

TraceSources

  • TxStart: Trace fired when a new transmission is started
  • TxEnd: Trace fired when a previosuly started transmission is finished

Definition at line 52 of file waveform-generator.h.

Constructor & Destructor Documentation

ns3::WaveformGenerator::WaveformGenerator ( )

Definition at line 38 of file waveform-generator.cc.

ns3::WaveformGenerator::~WaveformGenerator ( )
virtual

Definition at line 50 of file waveform-generator.cc.

Member Function Documentation

void ns3::WaveformGenerator::DoDispose ( void  )
privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file waveform-generator.cc.

References m_channel, m_mobility, m_netDevice, and NS_LOG_FUNCTION.

void ns3::WaveformGenerator::GenerateWaveform ( )
privatevirtual

Definition at line 193 of file waveform-generator.cc.

References m_active, m_antenna, m_channel, m_dutyCycle, m_period, m_phyTxStartTrace, m_txPowerSpectralDensity, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by Start().

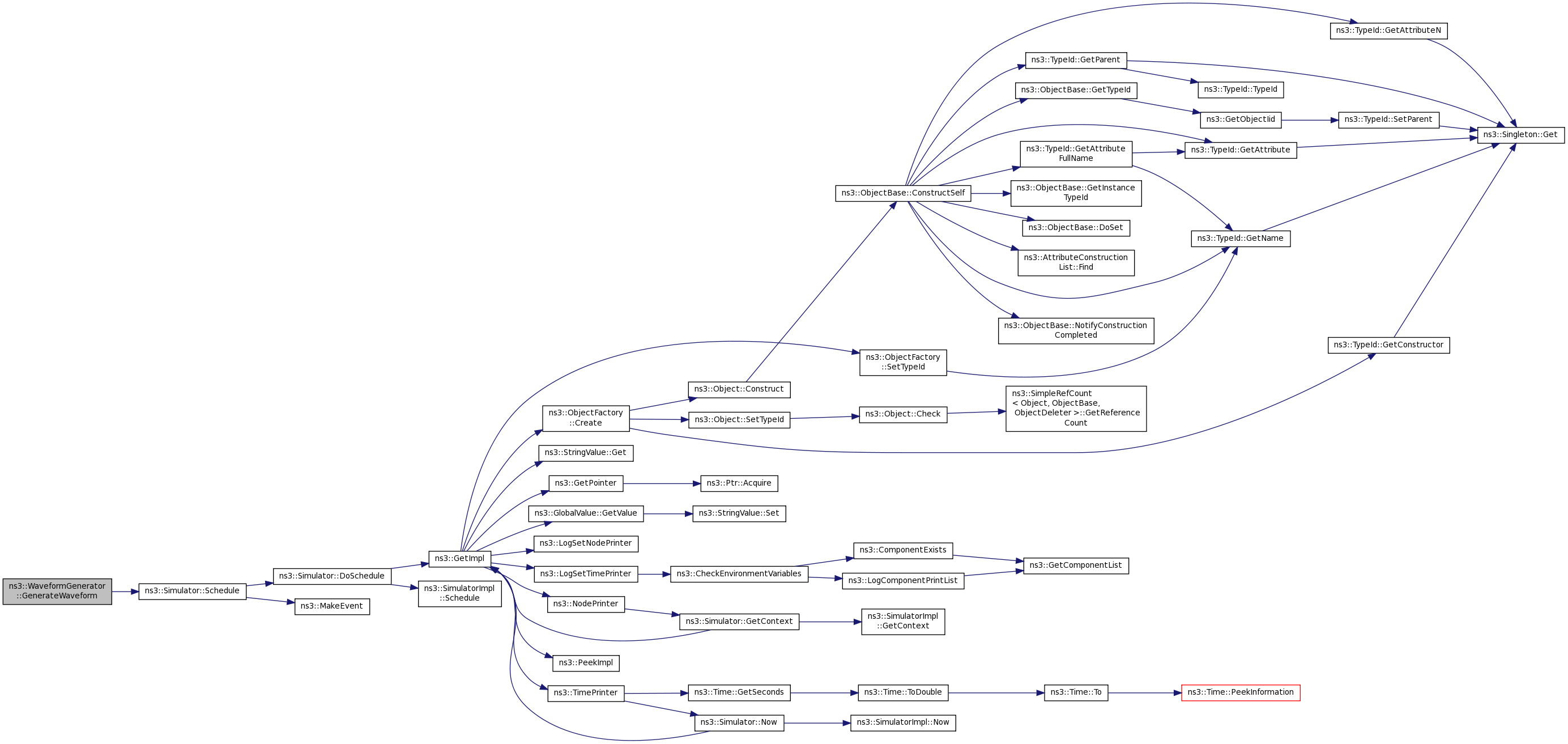

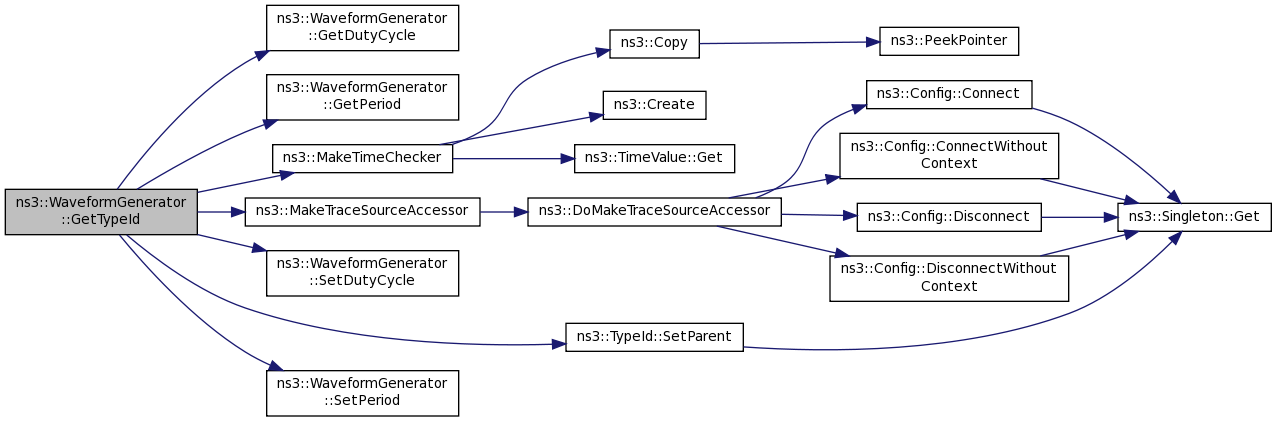

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::WaveformGenerator::GetDevice ( )
virtual

get the associated NetDevice instance

Returns
a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 96 of file waveform-generator.cc.

References m_netDevice.

double ns3::WaveformGenerator::GetDutyCycle ( ) const
Returns
the value of the duty cycle

Definition at line 185 of file waveform-generator.cc.

References m_dutyCycle.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Ptr< MobilityModel > ns3::WaveformGenerator::GetMobility ( )
virtual

get the associated MobilityModel instance

Returns
a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 103 of file waveform-generator.cc.

References m_mobility.

Time ns3::WaveformGenerator::GetPeriod ( ) const
Returns
the value of the period according to which the WaveformGenerator switches on and off

Definition at line 172 of file waveform-generator.cc.

References m_period.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Ptr< AntennaModel > ns3::WaveformGenerator::GetRxAntenna ( )
virtual

get the AntennaModel used by the NetDevice for reception

Returns
a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 153 of file waveform-generator.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::WaveformGenerator::GetRxSpectrumModel ( ) const
virtual
Returns
returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 110 of file waveform-generator.cc.

TypeId ns3::WaveformGenerator::GetTypeId ( void  )
static
void ns3::WaveformGenerator::SetAntenna ( Ptr< AntennaModel a)

set the AntennaModel to be used

Parameters
athe Antenna Model

Definition at line 159 of file waveform-generator.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::WaveformGenerator::SetChannel ( Ptr< SpectrumChannel c)
virtual

Set the channel attached to this device.

Parameters
cthe channel

Implements ns3::SpectrumPhy.

Definition at line 131 of file waveform-generator.cc.

References m_channel, and NS_LOG_FUNCTION_NOARGS.

void ns3::WaveformGenerator::SetDevice ( Ptr< NetDevice d)
virtual

set the associated NetDevice instance

Parameters
dthe NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 117 of file waveform-generator.cc.

References m_netDevice.

void ns3::WaveformGenerator::SetDutyCycle ( double  value)
Parameters
valuethe value of the duty cycle

Definition at line 180 of file waveform-generator.cc.

References m_dutyCycle.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::WaveformGenerator::SetMobility ( Ptr< MobilityModel m)
virtual

Set the mobility model associated with this device.

Parameters
mthe mobility model

Implements ns3::SpectrumPhy.

Definition at line 124 of file waveform-generator.cc.

References m_mobility.

void ns3::WaveformGenerator::SetPeriod ( Time  period)

Set the period according to which the WaveformGenerator switches on and off.

Parameters
period

Definition at line 166 of file waveform-generator.cc.

References m_period.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::WaveformGenerator::SetTxPowerSpectralDensity ( Ptr< SpectrumValue txs)

Set the Power Spectral Density used for outgoing waveforms.

Parameters
txsthe Power Spectral Density

Definition at line 146 of file waveform-generator.cc.

References m_txPowerSpectralDensity, and NS_LOG_FUNCTION.

void ns3::WaveformGenerator::Start ( void  )
virtual

Start the waveform generator.

Definition at line 216 of file waveform-generator.cc.

References GenerateWaveform(), m_active, m_startTime, ns3::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::ScheduleNow().

Referenced by main().

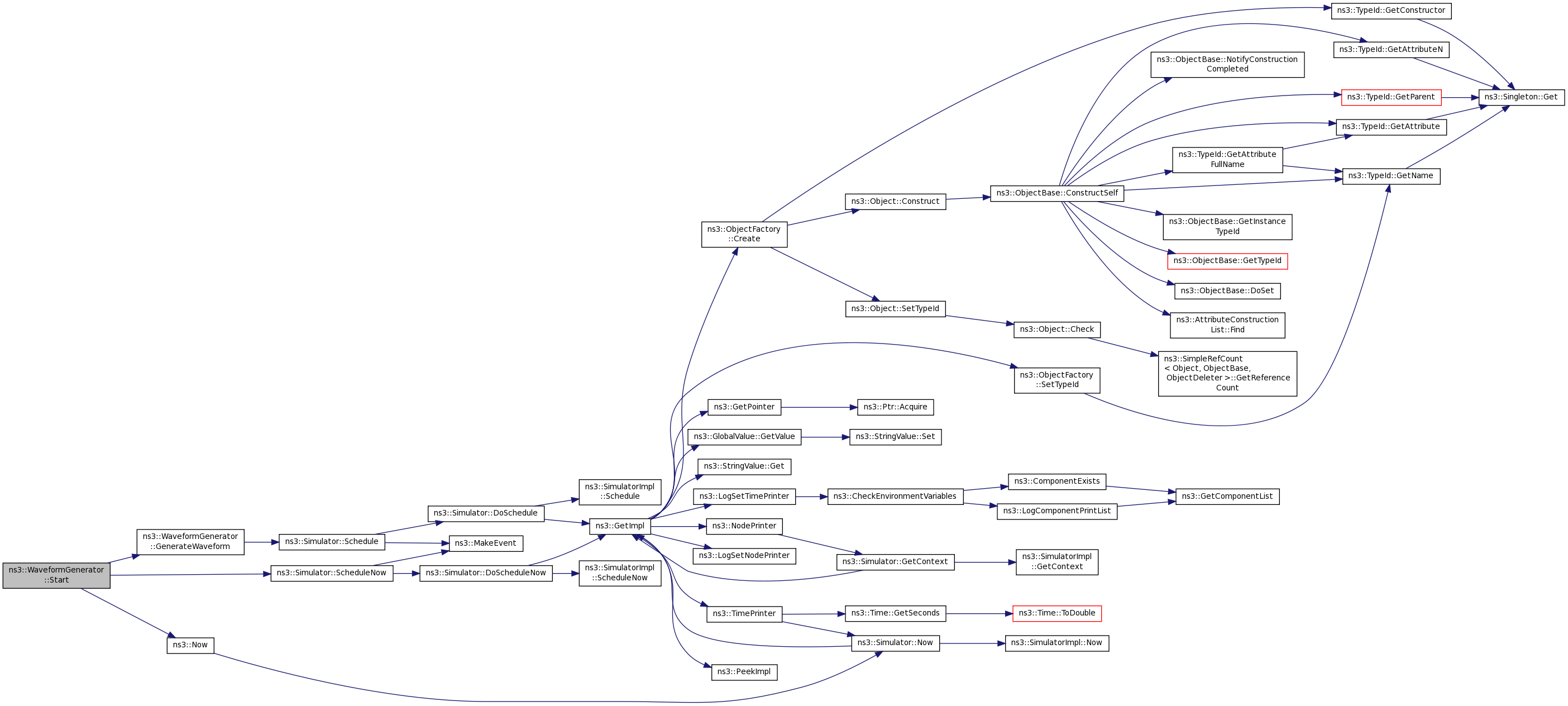

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WaveformGenerator::StartRx ( Ptr< SpectrumSignalParameters params)
virtual

Notify the SpectrumPhy instance of an incoming signal.

Parameters
paramsthe parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 140 of file waveform-generator.cc.

References NS_LOG_FUNCTION.

void ns3::WaveformGenerator::Stop ( void  )
virtual

Stop the waveform generator.

Definition at line 230 of file waveform-generator.cc.

References m_active, and NS_LOG_FUNCTION.

Member Data Documentation

bool ns3::WaveformGenerator::m_active
private

Definition at line 142 of file waveform-generator.h.

Referenced by GenerateWaveform(), Start(), and Stop().

Ptr<AntennaModel> ns3::WaveformGenerator::m_antenna
private

Definition at line 132 of file waveform-generator.h.

Referenced by GenerateWaveform(), GetRxAntenna(), and SetAntenna().

Ptr<SpectrumChannel> ns3::WaveformGenerator::m_channel
private

Definition at line 134 of file waveform-generator.h.

Referenced by DoDispose(), GenerateWaveform(), and SetChannel().

double ns3::WaveformGenerator::m_dutyCycle
private

Definition at line 140 of file waveform-generator.h.

Referenced by GenerateWaveform(), GetDutyCycle(), and SetDutyCycle().

Ptr<MobilityModel> ns3::WaveformGenerator::m_mobility
private

Definition at line 131 of file waveform-generator.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

Ptr<NetDevice> ns3::WaveformGenerator::m_netDevice
private

Definition at line 133 of file waveform-generator.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

Time ns3::WaveformGenerator::m_period
private

Definition at line 139 of file waveform-generator.h.

Referenced by GenerateWaveform(), GetPeriod(), and SetPeriod().

TracedCallback<Ptr<const Packet> > ns3::WaveformGenerator::m_phyTxEndTrace
private

Definition at line 145 of file waveform-generator.h.

Referenced by GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::WaveformGenerator::m_phyTxStartTrace
private

Definition at line 144 of file waveform-generator.h.

Referenced by GenerateWaveform(), and GetTypeId().

Time ns3::WaveformGenerator::m_startTime
private

Definition at line 141 of file waveform-generator.h.

Referenced by Start().

Ptr<SpectrumValue> ns3::WaveformGenerator::m_txPowerSpectralDensity
private

Definition at line 138 of file waveform-generator.h.

Referenced by GenerateWaveform(), and SetTxPowerSpectralDensity().


The documentation for this class was generated from the following files:
