#include <lte-test-ue-phy.h>

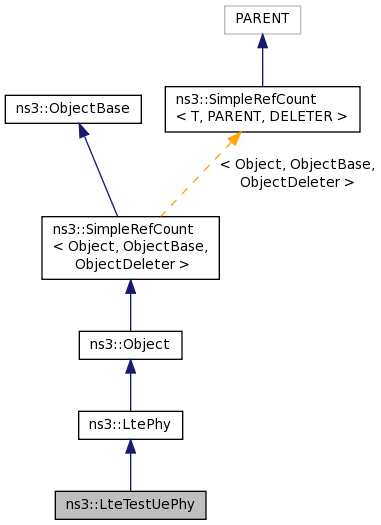

Inheritance diagram for ns3::LteTestUePhy:

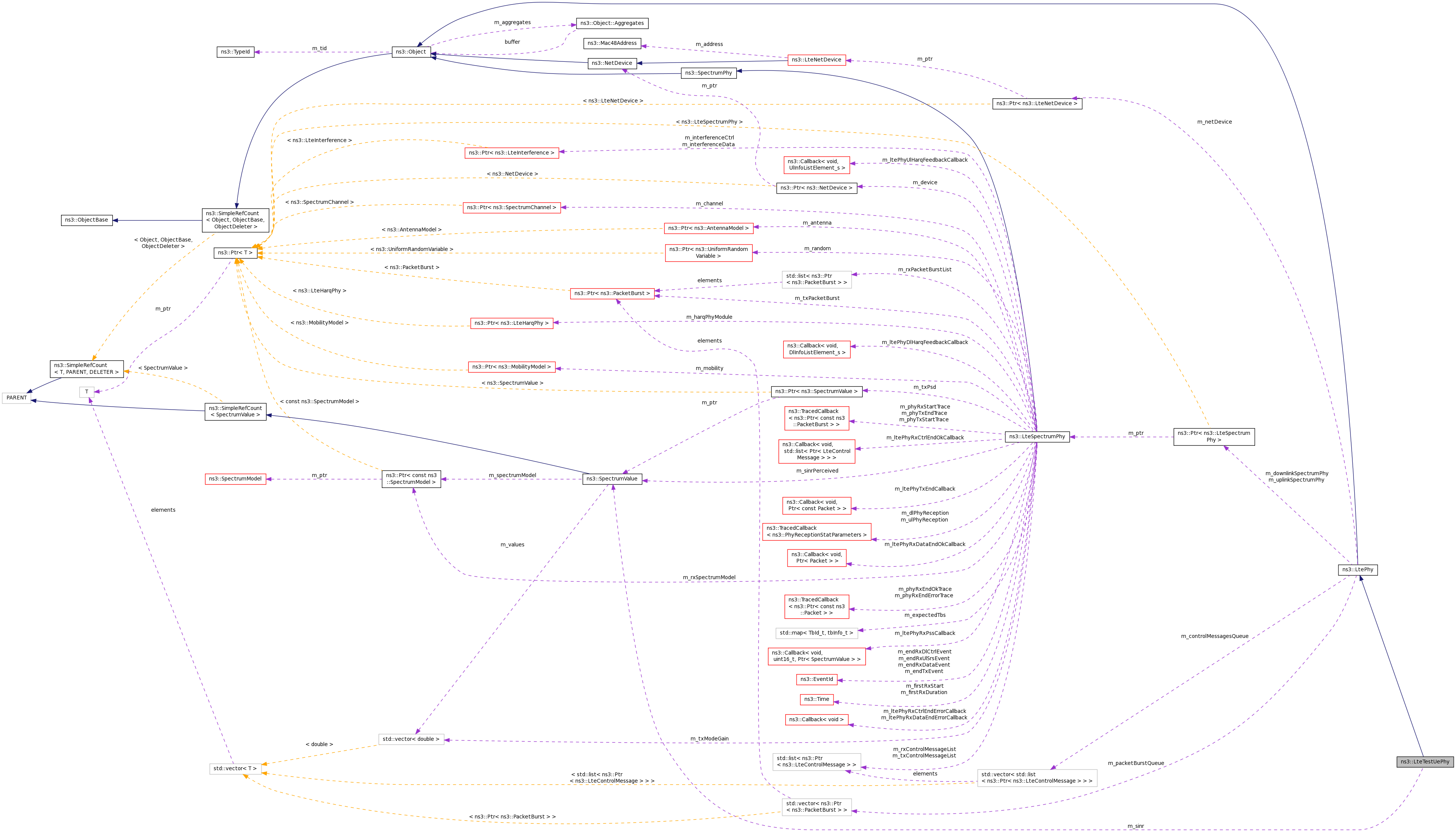

Collaboration diagram for ns3::LteTestUePhy:

Public Member Functions
	LteTestUePhy ()

	LteTestUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LteTestUePhy ()

virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX. More...

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent. More...

virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Ctrl frame More...

virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs) More...

SpectrumValue	GetSinr ()

virtual void	ReceiveLteControlMessage (Ptr< LteControlMessage > msg)

virtual void	ReportInterference (const SpectrumValue &interf)
	generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB More...

virtual void	ReportRsReceivedPower (const SpectrumValue &power)
	generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP More...

Public Member Functions inherited from ns3::LtePhy
	LtePhy ()

	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LtePhy ()

void	DoSetCellId (uint16_t cellId)

std::list< Ptr < LteControlMessage > >	GetControlMessages (void)

Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached. More...

Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()

Ptr< PacketBurst >	GetPacketBurst (void)

uint8_t	GetRbgSize (void) const

uint16_t	GetSrsPeriodicity (uint16_t srcCi) const

uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const

double	GetTti (void) const

Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()

void	SetControlMessages (Ptr< LteControlMessage > m)

void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached. More...

void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
	Set the downlink channel. More...

void	SetMacPdu (Ptr< Packet > p)

void	SetTti (double tti)

void	SetUplinkChannel (Ptr< SpectrumChannel > c)
	Set the uplink channel. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LtePhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
SpectrumValue	m_sinr

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId

std::vector< std::list< Ptr < LteControlMessage > > >	m_controlMessagesQueue

uint8_t	m_dlBandwidth

uint16_t	m_dlEarfcn

Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy

uint8_t	m_macChTtiDelay

Ptr< LteNetDevice >	m_netDevice

double	m_noiseFigure

std::vector< Ptr< PacketBurst > >	m_packetBurstQueue

uint8_t	m_rbgSize

double	m_tti

double	m_txPower

uint8_t	m_ulBandwidth

uint16_t	m_ulEarfcn

Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

Definition at line 30 of file lte-test-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteTestUePhy::LteTestUePhy ( )

Warning: the default constructor should not be used

Definition at line 32 of file lte-test-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteTestUePhy::LteTestUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 38 of file lte-test-ue-phy.cc.

References NS_LOG_FUNCTION.

ns3::LteTestUePhy::~LteTestUePhy ( )

virtual

Definition at line 44 of file lte-test-ue-phy.cc.

Member Function Documentation

Ptr< SpectrumValue > ns3::LteTestUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns: the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 73 of file lte-test-ue-phy.cc.

References NS_LOG_FUNCTION.

void ns3::LteTestUePhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 49 of file lte-test-ue-phy.cc.

References ns3::LtePhy::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:
