The LteSimpleNetDevice class implements the LTE simple net device. More...

#include <lte-simple-net-device.h>

Inheritance diagram for ns3::LteSimpleNetDevice:

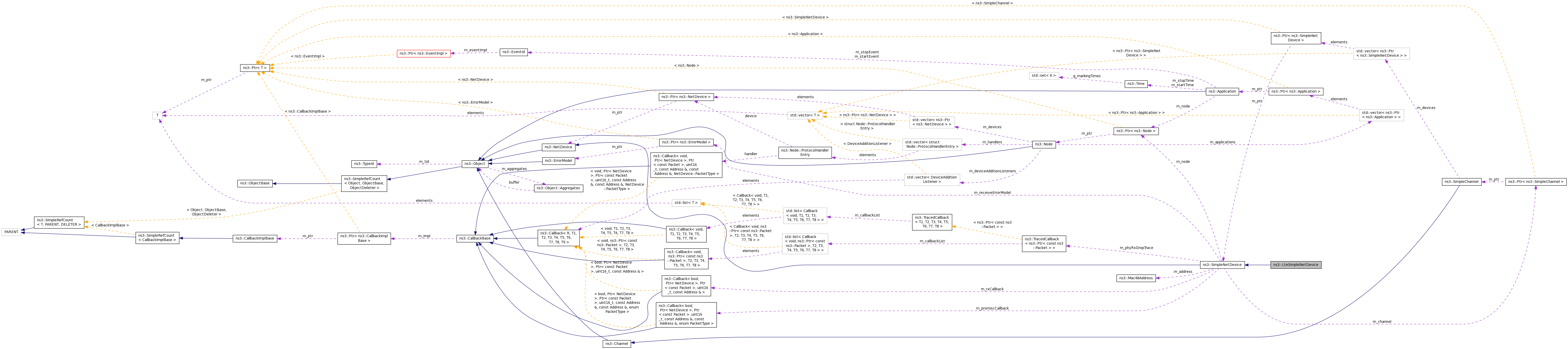

Collaboration diagram for ns3::LteSimpleNetDevice:

Public Member Functions
	LteSimpleNetDevice (void)

	LteSimpleNetDevice (Ptr< Node > node)

virtual	~LteSimpleNetDevice (void)

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

Public Member Functions inherited from ns3::SimpleNetDevice
	SimpleNetDevice ()

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

void	Receive (Ptr< Packet > packet, uint16_t protocol, Mac48Address to, Mac48Address from)
	Receive a packet from a connected SimpleChannel. More...

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetChannel (Ptr< SimpleChannel > channel)
	Attach a channel to this net device. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetReceiveErrorModel (Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the SimpleNetDevice. More...

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleNetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

The LteSimpleNetDevice class implements the LTE simple net device.

Definition at line 38 of file lte-simple-net-device.h.

Constructor & Destructor Documentation

ns3::LteSimpleNetDevice::LteSimpleNetDevice ( void )

Definition at line 48 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

ns3::LteSimpleNetDevice::LteSimpleNetDevice ( Ptr< Node > node )

Definition at line 54 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION, and ns3::SimpleNetDevice::SetNode().

Here is the call graph for this function:

ns3::LteSimpleNetDevice::~LteSimpleNetDevice ( void )

virtual

Definition at line 60 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSimpleNetDevice::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::SimpleNetDevice.

Definition at line 66 of file lte-simple-net-device.cc.

References ns3::SimpleNetDevice::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteSimpleNetDevice::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 74 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION.

TypeId ns3::LteSimpleNetDevice::GetTypeId ( void )

static

Definition at line 35 of file lte-simple-net-device.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::LteSimpleHelper::LteSimpleHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteSimpleNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Reimplemented from ns3::SimpleNetDevice.

Definition at line 80 of file lte-simple-net-device.cc.

References NS_LOG_FUNCTION, and ns3::SimpleNetDevice::Send().

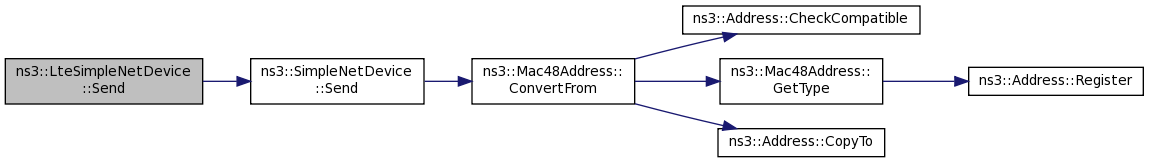

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lte/test/lte-simple-net-device.h
src/lte/test/lte-simple-net-device.cc
