Routing table for FLAME. More...

#include <flame-rtable.h>

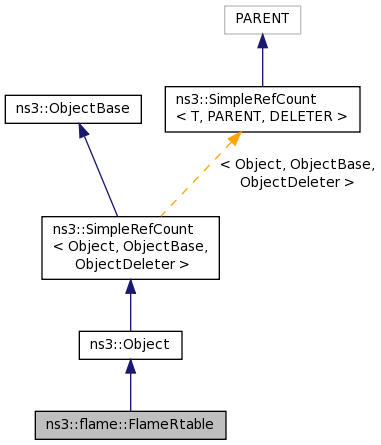

Inheritance diagram for ns3::flame::FlameRtable:

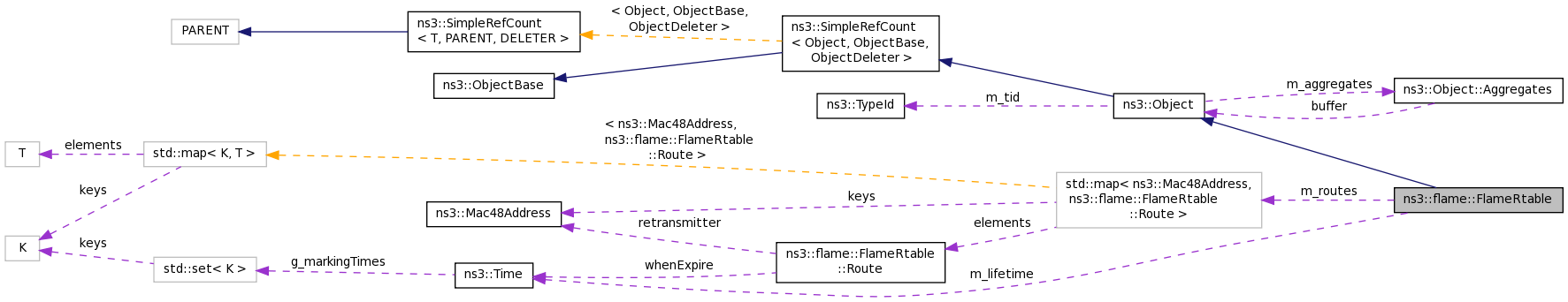

Collaboration diagram for ns3::flame::FlameRtable:

Classes
struct	LookupResult
	Route lookup result, return type of LookupXXX methods. More...

struct	Route
	Routing table entry. More...

Public Member Functions
	FlameRtable ()

	~FlameRtable ()

void	AddPath (const Mac48Address destination, const Mac48Address retransmitter, const uint32_t interface, const uint8_t cost, const uint16_t seqnum)
	Add path. More...

void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LookupResult	Lookup (Mac48Address destination)
	Lookup path to destination. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint32_t	INTERFACE_ANY = 0xffffffff
	Means all interfaces. More...

static const uint32_t	MAX_COST = 0xff
	Maximum (the best?) path cost. More...

Private Member Functions
	FlameRtable (const FlameRtable &)

FlameRtable &	operator= (const FlameRtable &)

Private Attributes
Time	m_lifetime
	Lifetime parameter. More...

std::map< Mac48Address, Route >	m_routes
	List of routes. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Routing table for FLAME.

Doxygen introspection did not find any typical Config paths.

Attributes

Lifetime: The lifetime of the routing enrty
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 36 of file flame-rtable.h.

Constructor & Destructor Documentation

ns3::flame::FlameRtable::FlameRtable ( )

Definition at line 49 of file flame-rtable.cc.

ns3::flame::FlameRtable::~FlameRtable ( )

Definition at line 53 of file flame-rtable.cc.

ns3::flame::FlameRtable::FlameRtable ( const FlameRtable & )

private

Member Function Documentation

void ns3::flame::FlameRtable::AddPath	(	const Mac48Address	destination,
		const Mac48Address	retransmitter,
		const uint32_t	interface,
		const uint8_t	cost,
		const uint16_t	seqnum
	)

Add path.

Definition at line 62 of file flame-rtable.cc.

References ns3::flame::FlameRtable::Route::cost, ns3::flame::FlameRtable::Route::interface, m_lifetime, m_routes, ns3::Simulator::Now(), NS_ASSERT, ns3::flame::FlameRtable::Route::retransmitter, ns3::flame::FlameRtable::Route::seqnum, and ns3::flame::FlameRtable::Route::whenExpire.

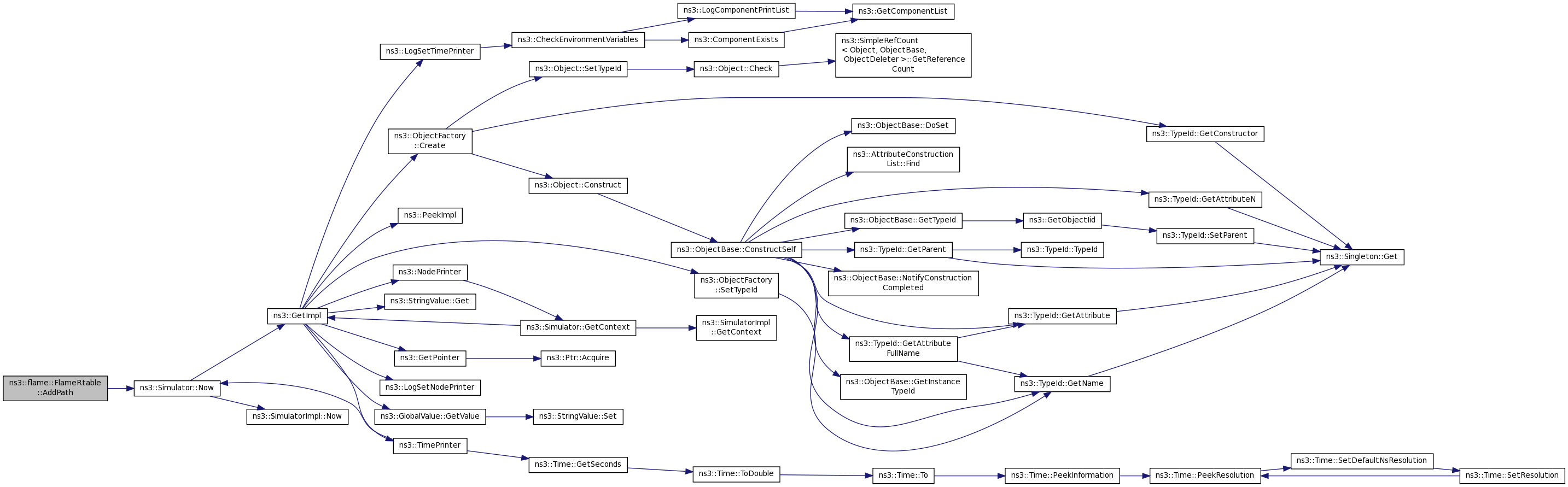

Here is the call graph for this function:

void ns3::flame::FlameRtable::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file flame-rtable.cc.

References m_routes.

TypeId ns3::flame::FlameRtable::GetTypeId ( void )

static

Definition at line 35 of file flame-rtable.cc.

References m_lifetime, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

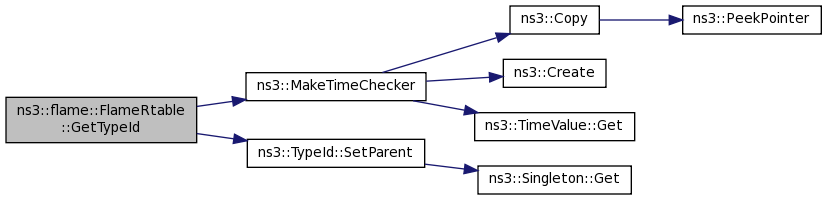

Here is the call graph for this function:

FlameRtable::LookupResult ns3::flame::FlameRtable::Lookup ( Mac48Address destination )

Lookup path to destination.

Returns: Broadcast if not found

Definition at line 85 of file flame-rtable.cc.

References m_routes, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Here is the call graph for this function:

FlameRtable& ns3::flame::FlameRtable::operator= ( const FlameRtable & )

private

Member Data Documentation

const uint32_t ns3::flame::FlameRtable::INTERFACE_ANY = 0xffffffff

static

Means all interfaces.

Definition at line 40 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid(), and ns3::flame::FlameProtocol::RequestRoute().

Time ns3::flame::FlameRtable::m_lifetime

private

Lifetime parameter.

Definition at line 99 of file flame-rtable.h.

Referenced by AddPath(), and GetTypeId().

std::map<Mac48Address, Route> ns3::flame::FlameRtable::m_routes

private

List of routes.

Definition at line 101 of file flame-rtable.h.

Referenced by AddPath(), DoDispose(), and Lookup().

const uint32_t ns3::flame::FlameRtable::MAX_COST = 0xff

static

Maximum (the best?) path cost.

Definition at line 42 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid().

The documentation for this class was generated from the following files:

src/mesh/model/flame/flame-rtable.h
src/mesh/model/flame/flame-rtable.cc
