Implementation of Minstrel Rate Control AlgorithmPorting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel. More...

#include <minstrel-wifi-manager.h>

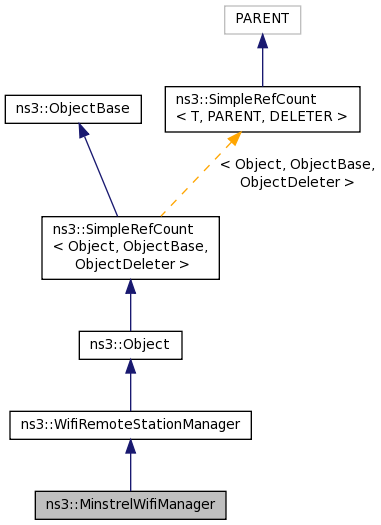

Inheritance diagram for ns3::MinstrelWifiManager:

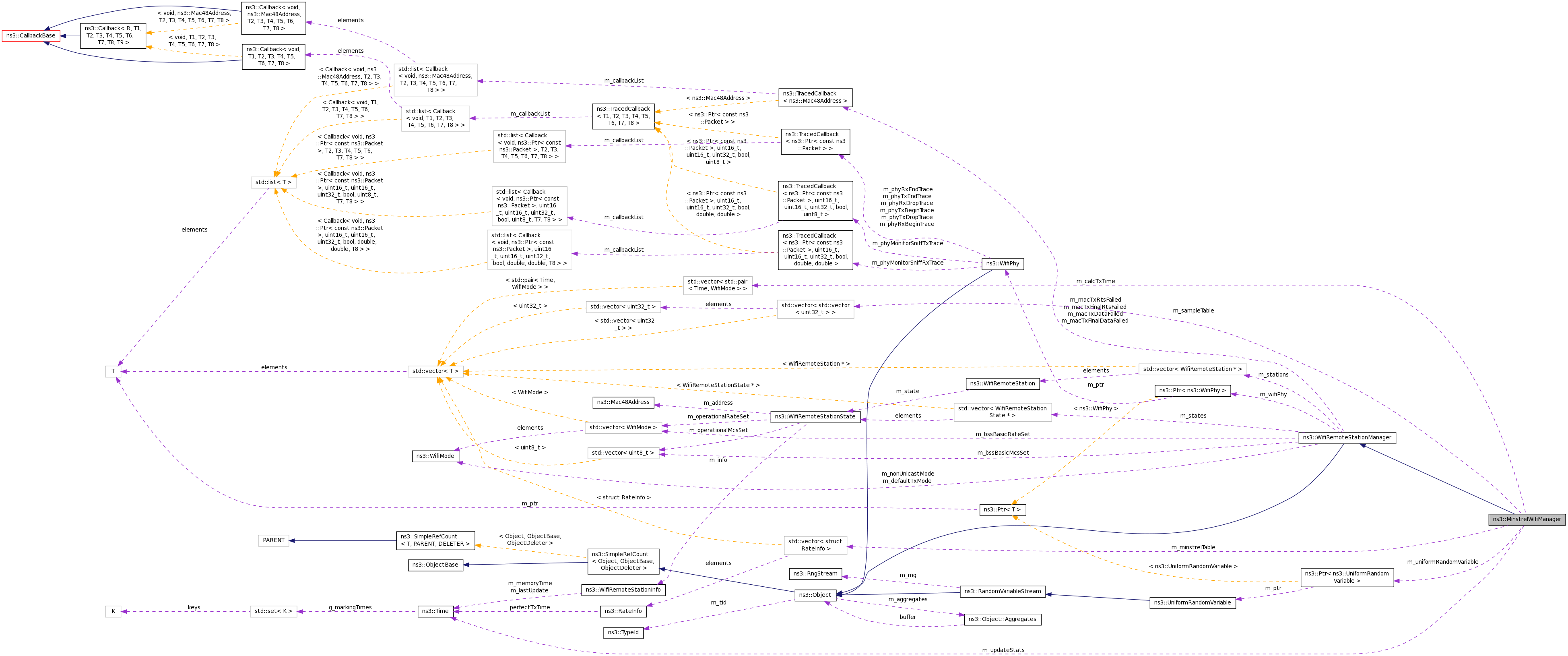

Collaboration diagram for ns3::MinstrelWifiManager:

Public Member Functions
	MinstrelWifiManager ()

virtual	~MinstrelWifiManager ()

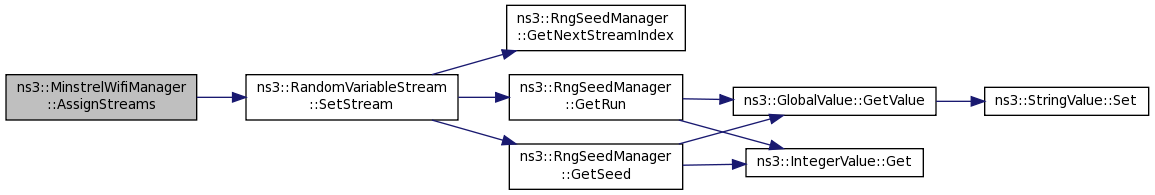

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	SetupPhy (Ptr< WifiPhy > phy)
	Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported. More...

Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()

virtual	~WifiRemoteStationManager ()

void	AddBasicMcs (uint8_t mcs)
	Add a given Modulation and Coding Scheme (MCS) index to the set of basic MCS. More...

void	AddBasicMode (WifiMode mode)
	Invoked in a STA upon association to store the set of rates which belong to the BSSBasicRateSet of the associated AP and which are supported locally. More...

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
	Records HT capabilities of the remote station. More...

void	AddSupportedMcs (Mac48Address address, uint8_t mcs)
	Record the MCS index supported by the station. More...

void	AddSupportedMode (Mac48Address address, WifiMode mode)
	Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. More...

WifiTxVector	DoGetCtsToSelfTxVector (void)
	Since CTS-to-self parameters are not dependent on the station, it is implemented in wifiremote station manager. More...

WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t	GetBasicMcs (uint32_t i) const
	Return the MCS at the given list index. More...

WifiMode	GetBasicMode (uint32_t i) const
	Return a basic mode from the set of basic modes. More...

WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

uint8_t	GetDefaultMcs (void) const
	Return the default Modulation and Coding Scheme (MCS) index. More...

WifiMode	GetDefaultMode (void) const
	Return the default transmission mode. More...

uint8_t	GetDefaultTxPowerLevel (void) const

uint32_t	GetFragmentationThreshold (void) const
	Return the fragmentation threshold. More...

uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	GetGreenfieldSupported (Mac48Address address) const
	Return whether the station supports Greenfield or not. More...

WifiRemoteStationInfo	GetInfo (Mac48Address address)

uint32_t	GetMaxSlrc (void) const
	Return the maximum STA long retry count (SLRC). More...

uint32_t	GetMaxSsrc (void) const
	Return the maximum STA short retry count (SSRC). More...

uint32_t	GetNBasicMcs (void) const
	Return the number of basic MCS index. More...

uint32_t	GetNBasicModes (void) const
	Return the number of basic modes we support. More...

WifiMode	GetNonUnicastMode (void) const
	Return a mode for non-unicast packets. More...

uint32_t	GetNumberOfTransmitAntennas (void)

uint32_t	GetRtsCtsThreshold (void) const
	Return the RTS threshold. More...

WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	HasHtSupported (void) const
	Return whether the device has HT capability support enabled. More...

bool	IsAssociated (Mac48Address address) const
	Return whether the station associated. More...

bool	IsBrandNew (Mac48Address address) const
	Return whether the station state is brand new. More...

bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	IsWaitAssocTxOk (Mac48Address address) const
	Return whether we are waiting for an ACK for the association response we sent. More...

bool	NeedCtsToSelf (WifiTxVector txVector)
	Return if we need to do Cts-to-self before sending a DATA. More...

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

void	RecordDisassociated (Mac48Address address)
	Records that the STA was disassociated. More...

void	RecordGotAssocTxFailed (Mac48Address address)
	Records that we missed an ACK for the association response we sent. More...

void	RecordGotAssocTxOk (Mac48Address address)
	Records that we got an ACK for the association response we sent. More...

void	RecordWaitAssocTxOk (Mac48Address address)
	Records that we are waiting for an ACK for the association response we sent. More...

void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the AckTimeout associated to a transmission attempt expires. More...

void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
	Should be invoked whenever we receive the Ack associated to a data packet we just sent. More...

void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false. More...

void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false. More...

void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
	Should be invoked whenever the RtsTimeout associated to a transmission attempt expires. More...

void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	Should be invoked whenever we receive the Cts associated to an RTS we just sent. More...

void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

void	Reset (void)
	Reset the station, invoked in a STA upon dis-association or in an AP upon reboot. More...

void	Reset (Mac48Address address)
	Invoked in an AP upon disassociation of a specific STA. More...

void	SetDefaultTxPowerLevel (uint8_t txPower)
	Set the default transmission power level. More...

void	SetFragmentationThreshold (uint32_t threshold)
	Sets a fragmentation threshold. More...

void	SetHtSupported (bool enable)
	Enable or disable HT capability support. More...

void	SetMaxSlrc (uint32_t maxSlrc)
	Sets the maximum STA long retry count (SLRC). More...

void	SetMaxSsrc (uint32_t maxSsrc)
	Sets the maximum STA short retry count (SSRC). More...

void	SetRtsCtsThreshold (uint32_t threshold)
	Sets the RTS threshold. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< std::pair < Time, WifiMode > >	TxTime
	typedef for a vector of a pair of Time, WifiMode. More...

Private Member Functions
void	AddCalcTxTime (WifiMode mode, Time t)
	Add transmission time for the given mode to an internal list. More...

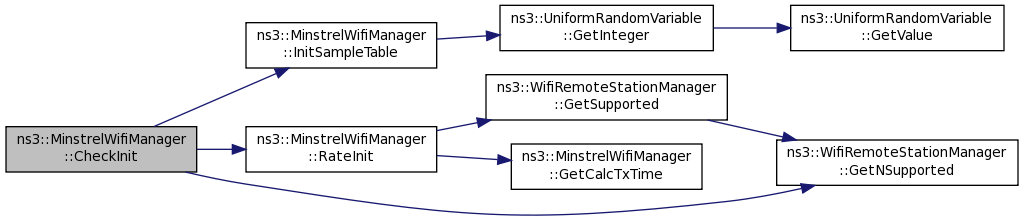

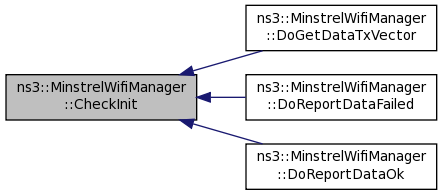

void	CheckInit (MinstrelWifiRemoteStation *station)
	check for initializations More...

virtual WifiRemoteStation *	DoCreateStation (void) const

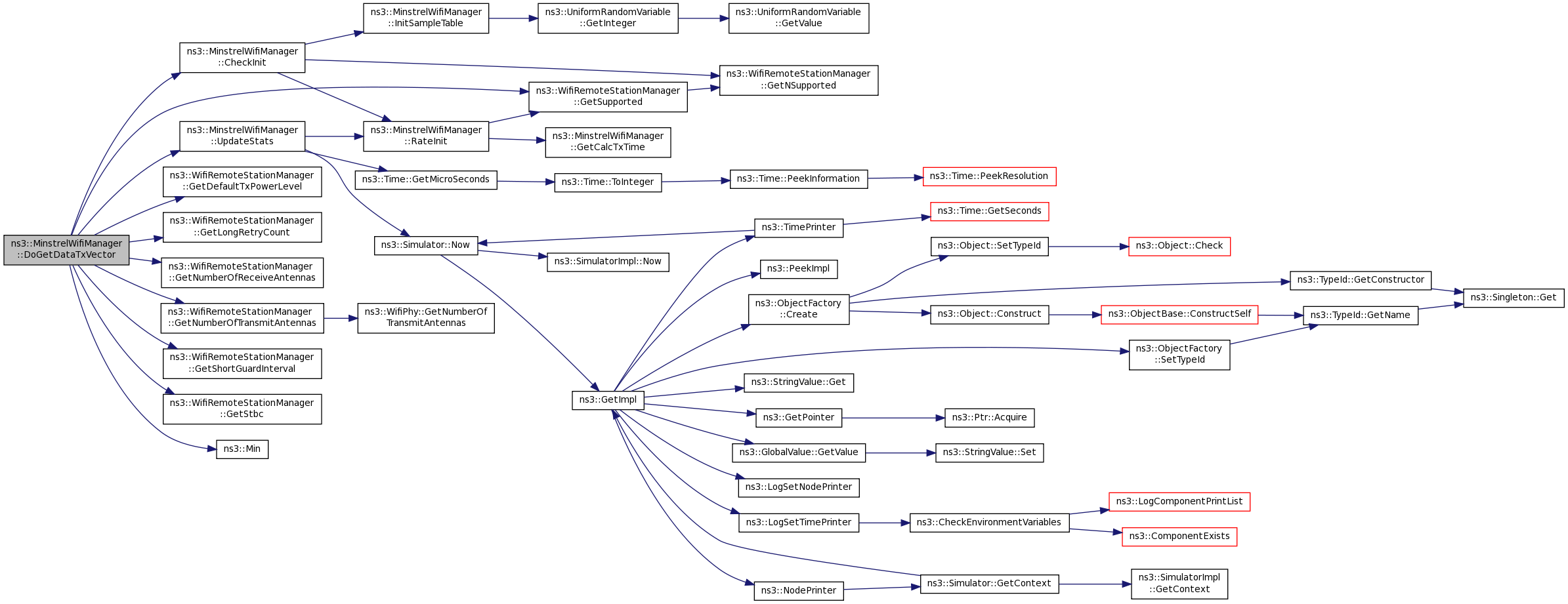

virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)

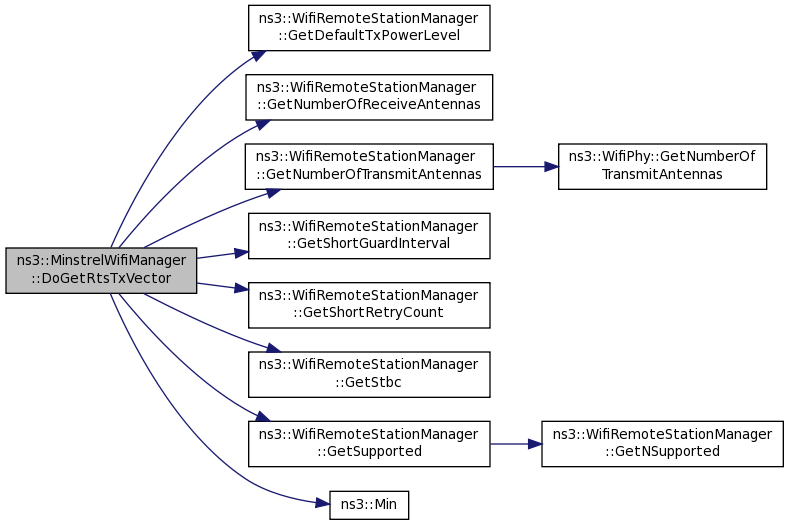

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)

virtual void	DoReportDataFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

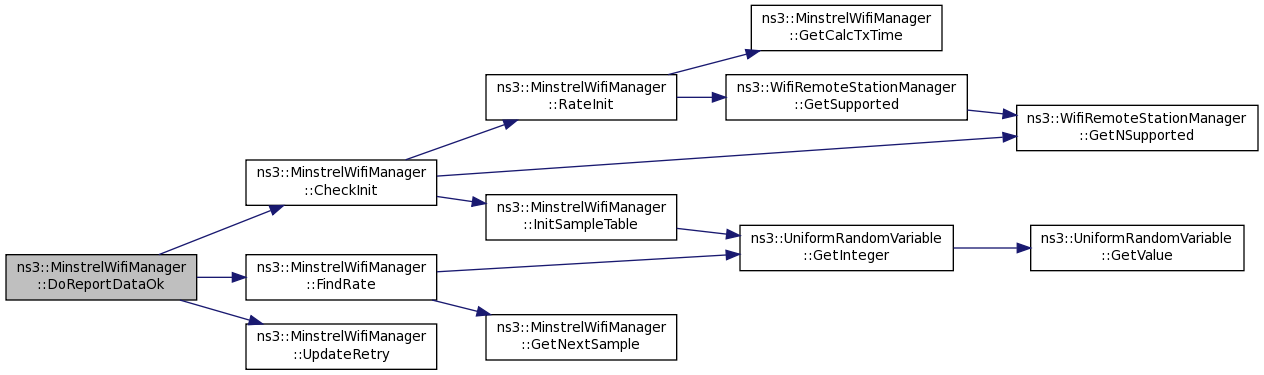

virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
	This method is a pure virtual method that must be implemented by the sub-class. More...

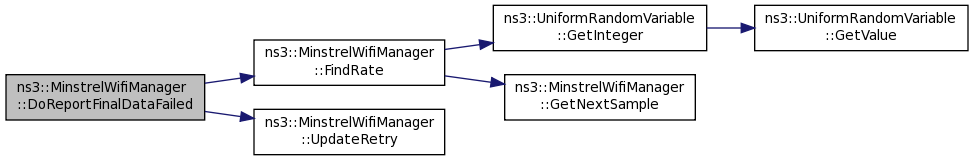

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRtsFailed (WifiRemoteStation *station)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
	This method is a pure virtual method that must be implemented by the sub-class. More...

virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
	This method is a pure virtual method that must be implemented by the sub-class. More...

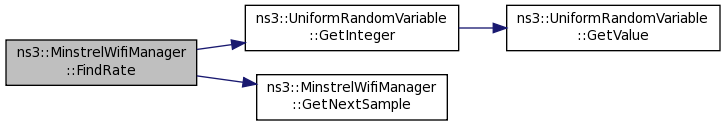

uint32_t	FindRate (MinstrelWifiRemoteStation *station)
	find a rate to use from Minstrel Table More...

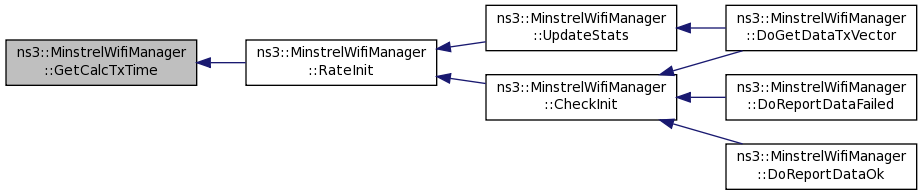

Time	GetCalcTxTime (WifiMode mode) const
	for estimating the TxTime of a packet with a given mode More...

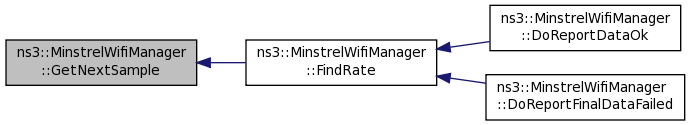

uint32_t	GetNextSample (MinstrelWifiRemoteStation *station)
	getting the next sample from Sample Table More...

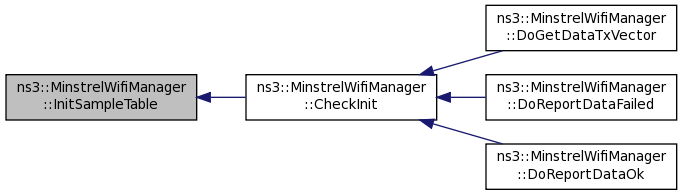

void	InitSampleTable (MinstrelWifiRemoteStation *station)
	initialize Sample Table More...

virtual bool	IsLowLatency (void) const

void	PrintSampleTable (MinstrelWifiRemoteStation *station)
	printing Sample Table More...

void	PrintTable (MinstrelWifiRemoteStation *station)
	printing Minstrel Table More...

void	RateInit (MinstrelWifiRemoteStation *station)
	initialize Minstrel Table More...

void	UpdateRetry (MinstrelWifiRemoteStation *station)
	update the number of retries and reset accordingly More...

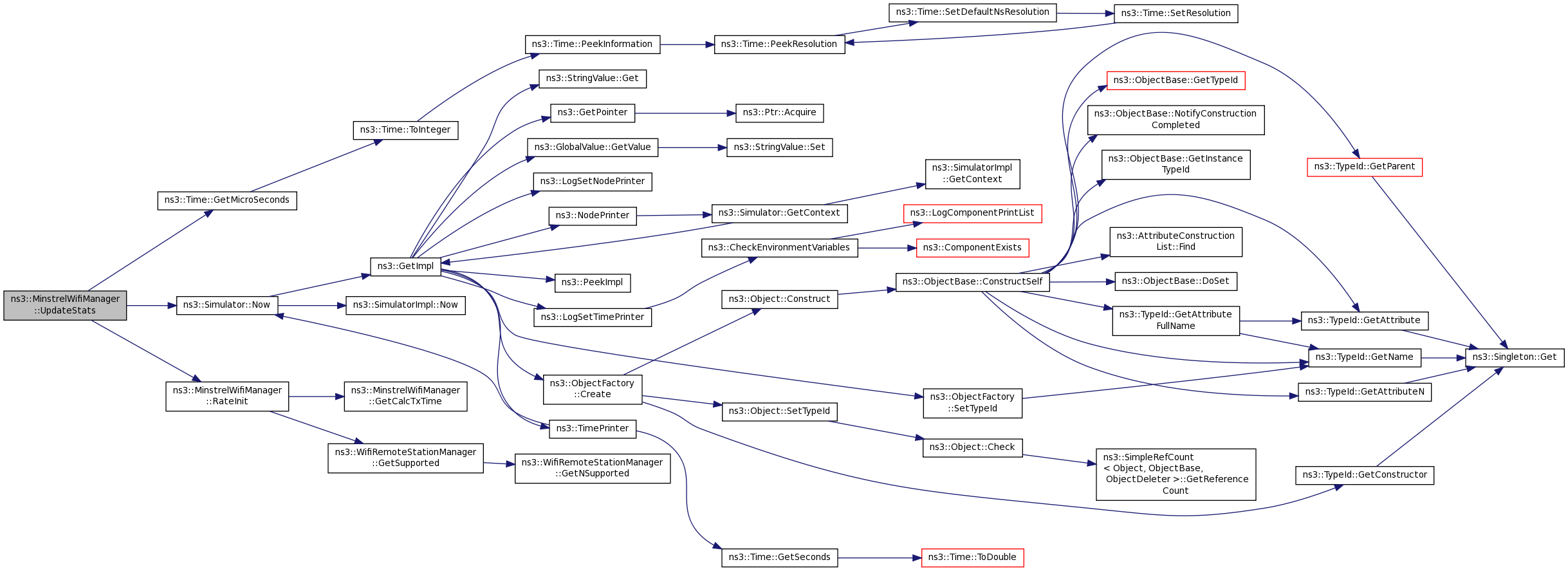

void	UpdateStats (MinstrelWifiRemoteStation *station)
	updating the Minstrel Table every 1/10 seconds More...

Private Attributes
TxTime	m_calcTxTime
	to hold all the calculated TxTime for all modes More...

double	m_ewmaLevel
	exponential weighted moving average More...

double	m_lookAroundRate
	the % to try other rates than our current rate More...

MinstrelRate	m_minstrelTable
	minstrel table More...

uint32_t	m_nsupported
	modes supported More...

uint32_t	m_pktLen
	packet length used for calculate mode TxTime More...

uint32_t	m_sampleCol
	number of sample columns More...

SampleRate	m_sampleTable
	sample table More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

Time	m_updateStats
	how frequent do we calculate the stats(1/10 seconds) More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

bool	GetGreenfield (const WifiRemoteStation *station) const
	Return whether the station supports Greenfield or not. More...

uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const
	Return the long retry limit of the given station. More...

uint8_t	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
	Return the MCS index supported by the specified station at the specified index. More...

uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const
	Return the number of MCS supported by the given station. More...

uint32_t	GetNSupported (const WifiRemoteStation *station) const
	Return the number of modes supported by the given station. More...

uint32_t	GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const
	Return the number of receive antenna the station has. More...

uint32_t	GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const
	Return the number of transmit antenna the station has. More...

bool	GetShortGuardInterval (const WifiRemoteStation *station) const
	Return whether the given station supports short guard interval. More...

uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const
	Return the short retry limit of the given station. More...

bool	GetStbc (const WifiRemoteStation *station) const
	Return whether the given station supports space-time block coding (STBC). More...

WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const
	Return whether mode associated with the specified station at the specified index. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Implementation of Minstrel Rate Control Algorithm

Porting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel.

Author: Duy Nguyen

Config Paths

ns3::MinstrelWifiManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::MinstrelWifiManager

Attributes

UpdateStatistics: The interval between updating statistics table
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
LookAroundRate: the percentage to try other rates
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
EWMA: EWMA level
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 75
- Flags: construct write read
SampleColumn: The number of columns used for sampling
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
PacketLength: The packet length used for calculating mode TxTime
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1200
- Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read
DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 87 of file minstrel-wifi-manager.h.

Member Typedef Documentation

typedef std::vector<std::pair<Time,WifiMode> > ns3::MinstrelWifiManager::TxTime

private

typedef for a vector of a pair of Time, WifiMode.

(Essentially a list for WifiMode and its corresponding transmission time to transmit a reference packet.

Definition at line 165 of file minstrel-wifi-manager.h.

Constructor & Destructor Documentation

ns3::MinstrelWifiManager::MinstrelWifiManager ( )

Definition at line 124 of file minstrel-wifi-manager.cc.

References m_nsupported, and m_uniformRandomVariable.

ns3::MinstrelWifiManager::~MinstrelWifiManager ( )

virtual

Definition at line 131 of file minstrel-wifi-manager.cc.

Member Function Documentation

void ns3::MinstrelWifiManager::AddCalcTxTime	(	WifiMode	mode,
		Time	t
	)

private

Add transmission time for the given mode to an internal list.

Parameters

mode	Wi-Fi mode
t	transmission time

Definition at line 173 of file minstrel-wifi-manager.cc.

References m_calcTxTime.

Referenced by SetupPhy().

Here is the caller graph for this function:

int64_t ns3::MinstrelWifiManager::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 150 of file minstrel-wifi-manager.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

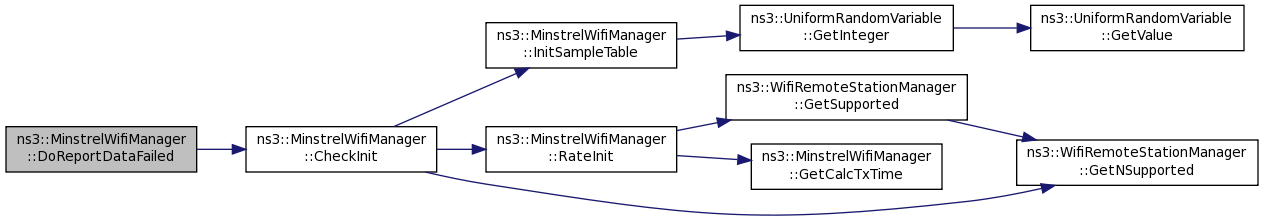

Here is the call graph for this function:

void ns3::MinstrelWifiManager::CheckInit ( MinstrelWifiRemoteStation * station )

private

check for initializations

Definition at line 206 of file minstrel-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported(), InitSampleTable(), ns3::MinstrelWifiRemoteStation::m_initialized, m_minstrelTable, m_nsupported, m_sampleCol, m_sampleTable, and RateInit().

Referenced by DoGetDataTxVector(), DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::MinstrelWifiManager::DoCreateStation ( void ) const

privatevirtual

Returns: a new station data structure

Implements ns3::WifiRemoteStationManager.

Definition at line 179 of file minstrel-wifi-manager.cc.

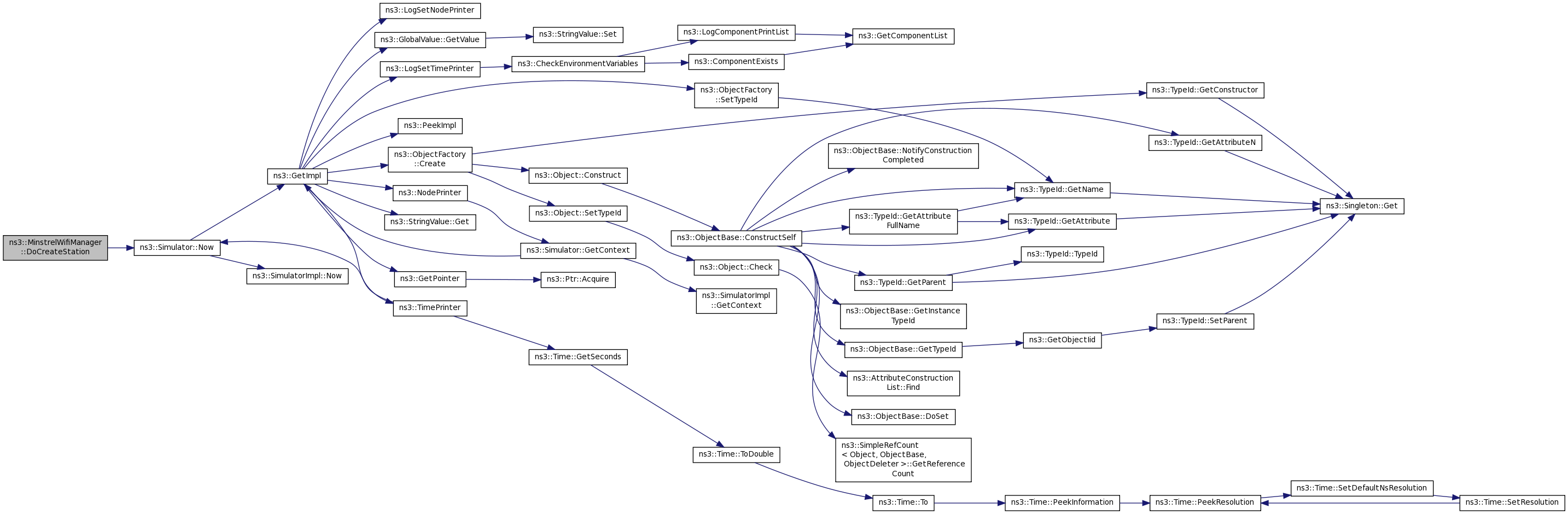

Here is the call graph for this function:

WifiTxVector ns3::MinstrelWifiManager::DoGetDataTxVector	(	WifiRemoteStation *	station,
		uint32_t	size
	)

privatevirtual

Parameters

station	the station that we need to communicate
size	size of the packet or fragment we want to send

Returns: the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

start the rate at half way

Implements ns3::WifiRemoteStationManager.

Definition at line 444 of file minstrel-wifi-manager.cc.

References CheckInit(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetLongRetryCount(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::MinstrelWifiRemoteStation::m_initialized, m_nsupported, ns3::MinstrelWifiRemoteStation::m_txrate, ns3::Min(), and UpdateStats().

Here is the call graph for this function:

WifiTxVector ns3::MinstrelWifiManager::DoGetRtsTxVector ( WifiRemoteStation * station )

privatevirtual

Parameters

station the station that we need to communicate

Returns: the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implements ns3::WifiRemoteStationManager.

Definition at line 460 of file minstrel-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortRetryCount(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::MinstrelWifiRemoteStation::m_txrate, ns3::Min(), and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportDataFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Retry Chain table is implemented here

Try | LOOKAROUND RATE | NORMAL RATE

| random < best | random > best |

Note: For clarity, multiple blocks of if's and else's are used After a failing 7 times, DoReportFinalDataFailed will be called

for normal rate, we're not currently sampling random rates

use best throughput rate

< there's still a few retries left

use second best throughput rate

use best probability rate

use lowest base rate

for look-around rate, we're currently sampling random rates

current sampling rate is slower than the current best rate

use best throughput rate

< there are a few retries left

use random rate

use max probability rate

use lowest base rate

current sampling rate is better than current best rate

use random rate

< keep using it

use the best rate

use the best probability rate

use the lowest base rate

Implements ns3::WifiRemoteStationManager.

Definition at line 253 of file minstrel-wifi-manager.cc.

References CheckInit(), ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, m_minstrelTable, ns3::MinstrelWifiRemoteStation::m_sampleRate, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ackSnr	the SNR of the ACK we received
ackMode	the WifiMode the receiver used to send the ACK
dataSnr	the SNR of the DATA we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 387 of file minstrel-wifi-manager.cc.

References CheckInit(), FindRate(), ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_isSampling, m_minstrelTable, m_nsupported, ns3::MinstrelWifiRemoteStation::m_packetCount, ns3::MinstrelWifiRemoteStation::m_retry, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 416 of file minstrel-wifi-manager.cc.

References FindRate(), ns3::MinstrelWifiRemoteStation::m_err, ns3::MinstrelWifiRemoteStation::m_isSampling, m_minstrelTable, m_nsupported, ns3::MinstrelWifiRemoteStation::m_retry, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, NS_LOG_DEBUG, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 245 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_err, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station the station that we failed to send RTS

Implements ns3::WifiRemoteStationManager.

Definition at line 230 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_shortRetry, ns3::MinstrelWifiRemoteStation::m_txrate, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that we successfully sent RTS
ctsSnr	the SNR of the CTS we received
ctsMode	the WifiMode the receiver used to send the CTS
rtsSnr	the SNR of the RTS we sent

Implements ns3::WifiRemoteStationManager.

Definition at line 239 of file minstrel-wifi-manager.cc.

References NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatevirtual

This method is a pure virtual method that must be implemented by the sub-class.

This allows different types of WifiRemoteStationManager to respond differently,

Parameters

station	the station that sent the DATA to us
rxSnr	the SNR of the DATA we received
txMode	the WifiMode the sender used to send the DATA

Implements ns3::WifiRemoteStationManager.

Definition at line 223 of file minstrel-wifi-manager.cc.

References NS_LOG_DEBUG.

uint32_t ns3::MinstrelWifiManager::FindRate ( MinstrelWifiRemoteStation * station )

private

find a rate to use from Minstrel Table

for determining when to try a sample rate

if we are below the target of look around rate percentage, look around note: do it randomly by flipping a coin instead sampling all at once until it reaches the look around rate

now go through the table and find an index rate

This if condition is used to make sure that we don't need to use the sample rate it is the same as our current rate

start sample count

set flag that we are currently sampling

bookeeping for resetting stuff

error check

set the rate that we're currently sampling

is this rate slower than the current best rate

using the best rate instead

continue using the best rate

Definition at line 494 of file minstrel-wifi-manager.cc.

Referenced by DoReportDataOk(), and DoReportFinalDataFailed().

Here is the call graph for this function:

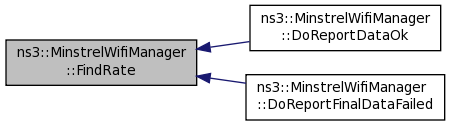

Here is the caller graph for this function:

Time ns3::MinstrelWifiManager::GetCalcTxTime ( WifiMode mode ) const

private

for estimating the TxTime of a packet with a given mode

Definition at line 158 of file minstrel-wifi-manager.cc.

References m_calcTxTime, and NS_ASSERT.

Referenced by RateInit().

Here is the caller graph for this function:

uint32_t ns3::MinstrelWifiManager::GetNextSample ( MinstrelWifiRemoteStation * station )

private

getting the next sample from Sample Table

bookeeping for m_index and m_col variables

Definition at line 474 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_col, ns3::MinstrelWifiRemoteStation::m_index, m_nsupported, m_sampleCol, and m_sampleTable.

Referenced by FindRate().

Here is the caller graph for this function:

TypeId ns3::MinstrelWifiManager::GetTypeId ( void )

static

Definition at line 90 of file minstrel-wifi-manager.cc.

References m_ewmaLevel, m_lookAroundRate, m_pktLen, m_sampleCol, m_updateStats, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

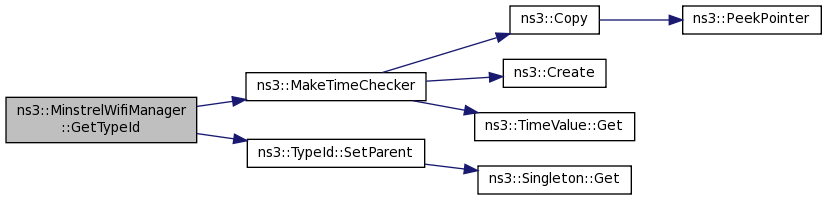

Here is the call graph for this function:

void ns3::MinstrelWifiManager::InitSampleTable ( MinstrelWifiRemoteStation * station )

private

initialize Sample Table

for off-seting to make rates fall between 0 and numrates

The next two lines basically tries to generate a random number between 0 and the number of available rates

this loop is used for filling in other uninitilized places

Definition at line 744 of file minstrel-wifi-manager.cc.

References ns3::UniformRandomVariable::GetInteger(), ns3::MinstrelWifiRemoteStation::m_col, ns3::MinstrelWifiRemoteStation::m_index, m_nsupported, m_sampleCol, m_sampleTable, m_uniformRandomVariable, and NS_LOG_DEBUG.

Referenced by CheckInit().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MinstrelWifiManager::IsLowLatency ( void ) const

privatevirtual

Returns: whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implements ns3::WifiRemoteStationManager.

Definition at line 469 of file minstrel-wifi-manager.cc.

void ns3::MinstrelWifiManager::PrintSampleTable ( MinstrelWifiRemoteStation * station )

private

printing Sample Table

Definition at line 778 of file minstrel-wifi-manager.cc.

References m_nsupported, m_sampleCol, m_sampleTable, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::PrintTable ( MinstrelWifiRemoteStation * station )

private

printing Minstrel Table

Definition at line 794 of file minstrel-wifi-manager.cc.

References m_minstrelTable, m_nsupported, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::RateInit ( MinstrelWifiRemoteStation * station )

private

initialize Minstrel Table

Definition at line 722 of file minstrel-wifi-manager.cc.

References GetCalcTxTime(), ns3::WifiRemoteStationManager::GetSupported(), m_minstrelTable, m_nsupported, and NS_LOG_DEBUG.

Referenced by CheckInit(), and UpdateStats().

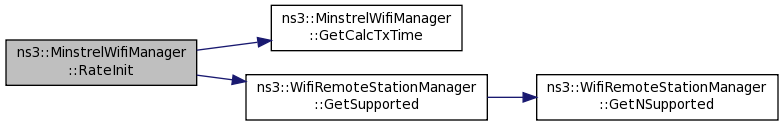

Here is the call graph for this function:

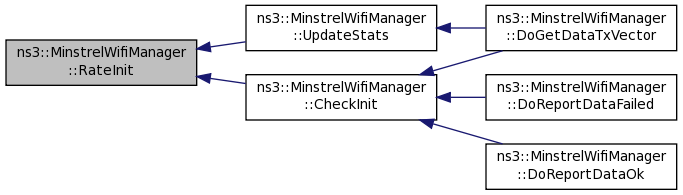

Here is the caller graph for this function:

void ns3::MinstrelWifiManager::SetupPhy ( Ptr< WifiPhy > phy )

virtual

Set up PHY associated with this device since it is the object that knows the full set of transmit rates that are supported.

Parameters

phy	the PHY of this device

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 136 of file minstrel-wifi-manager.cc.

References AddCalcTxTime(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), m_pktLen, ns3::WifiTxVector::SetMode(), ns3::WifiRemoteStationManager::SetupPhy(), and ns3::WIFI_PREAMBLE_LONG.

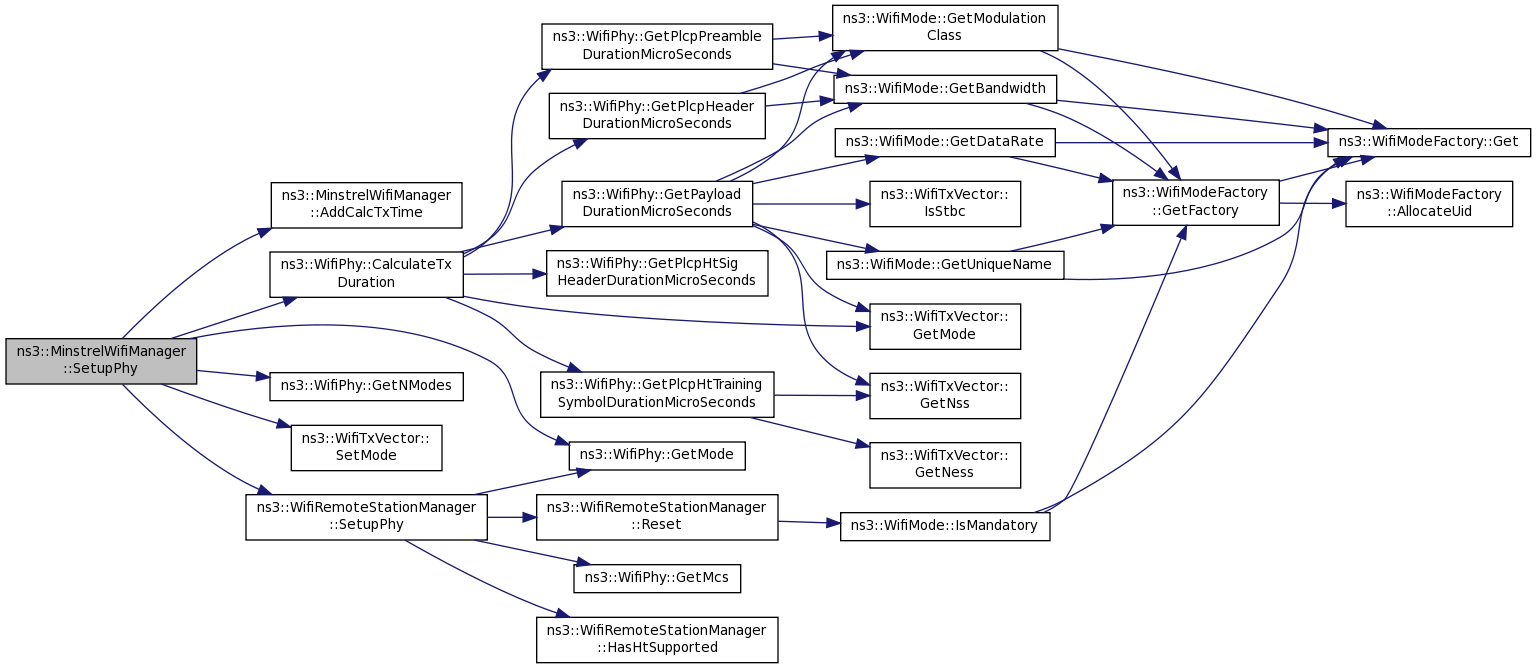

Here is the call graph for this function:

void ns3::MinstrelWifiManager::UpdateRetry ( MinstrelWifiRemoteStation * station )

private

update the number of retries and reset accordingly

Definition at line 436 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_retry, and ns3::MinstrelWifiRemoteStation::m_shortRetry.

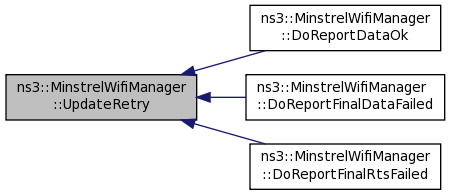

Referenced by DoReportDataOk(), DoReportFinalDataFailed(), and DoReportFinalRtsFailed().

Here is the caller graph for this function:

void ns3::MinstrelWifiManager::UpdateStats ( MinstrelWifiRemoteStation * station )

private

updating the Minstrel Table every 1/10 seconds

calculate the perfect tx time for this rate

just for initialization

if we've attempted something

calculate the probability of success assume probability scales from 0 to 18000

bookeeping

ewma probability (cast for gcc 3.4 compatibility)

calculating throughput

bookeeping

Sample less often below 10% and above 95% of success

retry count denotes the number of retries permitted for each rate

retry_count/2

if it's 0 allow one retry limit

go find max throughput, second maximum throughput, high probability succ

find the second highest max

reset it

Definition at line 582 of file minstrel-wifi-manager.cc.

References ns3::Time::GetMicroSeconds(), ns3::MinstrelWifiRemoteStation::m_currentRate, m_ewmaLevel, ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, m_minstrelTable, ns3::MinstrelWifiRemoteStation::m_nextStatsUpdate, m_nsupported, ns3::MinstrelWifiRemoteStation::m_txrate, m_updateStats, ns3::Simulator::Now(), NS_LOG_DEBUG, RateInit(), and throughput.

Referenced by DoGetDataTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

TxTime ns3::MinstrelWifiManager::m_calcTxTime

private

to hold all the calculated TxTime for all modes

Definition at line 170 of file minstrel-wifi-manager.h.

Referenced by AddCalcTxTime(), and GetCalcTxTime().

double ns3::MinstrelWifiManager::m_ewmaLevel

private

exponential weighted moving average

Definition at line 173 of file minstrel-wifi-manager.h.

Referenced by GetTypeId(), and UpdateStats().

double ns3::MinstrelWifiManager::m_lookAroundRate

private

the % to try other rates than our current rate

Definition at line 172 of file minstrel-wifi-manager.h.

Referenced by FindRate(), and GetTypeId().

MinstrelRate ns3::MinstrelWifiManager::m_minstrelTable

private

minstrel table

Definition at line 166 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), DoReportDataFailed(), DoReportDataOk(), DoReportFinalDataFailed(), FindRate(), PrintTable(), RateInit(), and UpdateStats().

uint32_t ns3::MinstrelWifiManager::m_nsupported

private

modes supported

Definition at line 176 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), DoGetDataTxVector(), DoReportDataOk(), DoReportFinalDataFailed(), FindRate(), GetNextSample(), InitSampleTable(), MinstrelWifiManager(), PrintSampleTable(), PrintTable(), RateInit(), and UpdateStats().

uint32_t ns3::MinstrelWifiManager::m_pktLen

private

packet length used for calculate mode TxTime

Definition at line 175 of file minstrel-wifi-manager.h.

Referenced by GetTypeId(), and SetupPhy().

uint32_t ns3::MinstrelWifiManager::m_sampleCol

private

number of sample columns

Definition at line 174 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), GetNextSample(), GetTypeId(), InitSampleTable(), and PrintSampleTable().

SampleRate ns3::MinstrelWifiManager::m_sampleTable

private

sample table

Definition at line 167 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), GetNextSample(), InitSampleTable(), and PrintSampleTable().

Ptr<UniformRandomVariable> ns3::MinstrelWifiManager::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 179 of file minstrel-wifi-manager.h.

Referenced by AssignStreams(), FindRate(), InitSampleTable(), and MinstrelWifiManager().

Time ns3::MinstrelWifiManager::m_updateStats

private

how frequent do we calculate the stats(1/10 seconds)

Definition at line 171 of file minstrel-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and UpdateStats().

The documentation for this class was generated from the following files:

src/wifi/model/minstrel-wifi-manager.h
src/wifi/model/minstrel-wifi-manager.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiRemoteStationManager

TraceSources defined in parent class ns3::WifiRemoteStationManager

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

| random < best | random > best |

retry_count/2

Member Data Documentation
