This class handles duplicate detection and recomposition of fragments. More...

#include <mac-rx-middle.h>

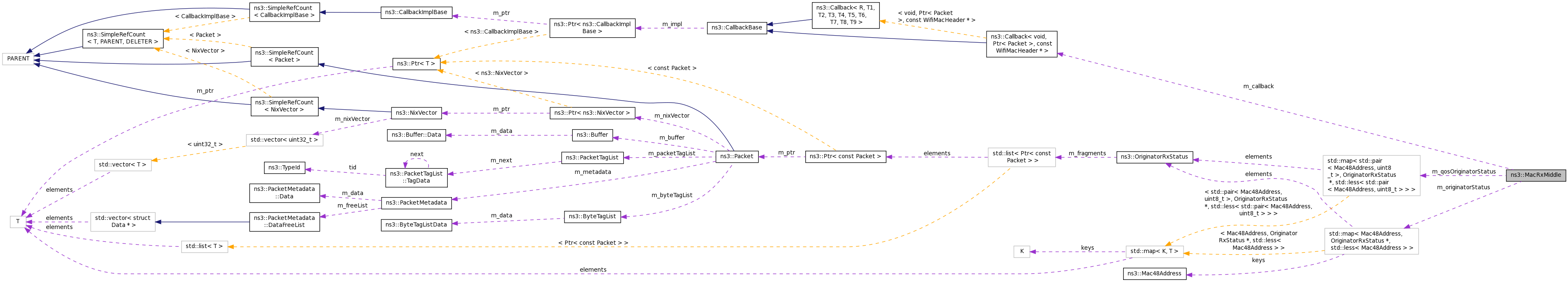

Collaboration diagram for ns3::MacRxMiddle:

Public Types
typedef Callback< void, Ptr < Packet >, const WifiMacHeader * >	ForwardUpCallback
	typedef for callback More...

Public Member Functions
	MacRxMiddle ()

	~MacRxMiddle ()

void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)

void	SetForwardCallback (ForwardUpCallback callback)
	Set a callback to forward the packet up. More...

Private Types
typedef std::map< Mac48Address, OriginatorRxStatus *, std::less< Mac48Address > >	Originators
	typedef for a map between address and OriginatorRxStatus More...

typedef std::map< Mac48Address, OriginatorRxStatus *, std::less< Mac48Address > >::iterator	OriginatorsI
	typedef for an interator for Originators More...

typedef std::map< std::pair < Mac48Address, uint8_t > , OriginatorRxStatus *, std::less< std::pair < Mac48Address, uint8_t > > >	QosOriginators
	typedef for a map between address, OriginatorRxStatus, and Traffic ID More...

typedef std::map< std::pair < Mac48Address, uint8_t > , OriginatorRxStatus *, std::less< std::pair < Mac48Address, uint8_t > > >::iterator	QosOriginatorsI
	typedef for an interator for QosOriginators More...

Private Member Functions
Ptr< Packet >	HandleFragments (Ptr< Packet > packet, const WifiMacHeader hdr, OriginatorRxStatus originator)
	Check if the received packet is a fragment and handle it appropriately. More...

bool	IsDuplicate (const WifiMacHeader hdr, OriginatorRxStatus originator) const
	Check if we have already received the packet from the sender before (by looking at the sequence control field). More...

OriginatorRxStatus *	Lookup (const WifiMacHeader *hdr)
	Look up for OriginatorRxStatus associated with the sender address (by looking at ADDR2 field in the header). More...

Private Attributes
ForwardUpCallback	m_callback

Originators	m_originatorStatus

QosOriginators	m_qosOriginatorStatus

Friends
class	MacRxMiddleTest

Detailed Description

This class handles duplicate detection and recomposition of fragments.

Definition at line 40 of file mac-rx-middle.h.

Member Typedef Documentation

typedef Callback<void, Ptr<Packet>, const WifiMacHeader*> ns3::MacRxMiddle::ForwardUpCallback

typedef for callback

Definition at line 46 of file mac-rx-middle.h.

typedef std::map<Mac48Address, OriginatorRxStatus *, std::less<Mac48Address> > ns3::MacRxMiddle::Originators

private

typedef for a map between address and OriginatorRxStatus

Definition at line 100 of file mac-rx-middle.h.

typedef std::map<Mac48Address, OriginatorRxStatus *, std::less<Mac48Address> >::iterator ns3::MacRxMiddle::OriginatorsI

private

typedef for an interator for Originators

Definition at line 108 of file mac-rx-middle.h.

typedef std::map<std::pair<Mac48Address, uint8_t>, OriginatorRxStatus *, std::less<std::pair<Mac48Address,uint8_t> > > ns3::MacRxMiddle::QosOriginators

private

typedef for a map between address, OriginatorRxStatus, and Traffic ID

Definition at line 104 of file mac-rx-middle.h.

typedef std::map<std::pair<Mac48Address, uint8_t>, OriginatorRxStatus *, std::less<std::pair<Mac48Address,uint8_t> > >::iterator ns3::MacRxMiddle::QosOriginatorsI

private

typedef for an interator for QosOriginators

Definition at line 112 of file mac-rx-middle.h.

Constructor & Destructor Documentation

ns3::MacRxMiddle::MacRxMiddle ( )

Definition at line 163 of file mac-rx-middle.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::MacRxMiddle::~MacRxMiddle ( )

Definition at line 168 of file mac-rx-middle.cc.

References m_originatorStatus, m_qosOriginatorStatus, and NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

Ptr< Packet > ns3::MacRxMiddle::HandleFragments	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr,
		OriginatorRxStatus *	originator
	)

private

Check if the received packet is a fragment and handle it appropriately.

If the packet is not a fragment, the method returns the packet. If the packet is a fragment (not the last fragment), the method initiates de-fragmentation process and return 0. If the packet is the last fragment, the method tries to re-construct the full packet and return the packet if success.

Parameters

packet
hdr
originator

Returns: a packet if the packet is successfully reassembled (or not a fragment), 0 if we failed to reassemble the packet (e.g. missing fragments/out-of-order).

Definition at line 242 of file mac-rx-middle.cc.

References ns3::OriginatorRxStatus::AccumulateFirstFragment(), ns3::OriginatorRxStatus::AccumulateFragment(), ns3::OriginatorRxStatus::AccumulateLastFragment(), ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacHeader::GetSequenceControl(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetSize(), ns3::OriginatorRxStatus::IsDeFragmenting(), ns3::WifiMacHeader::IsMoreFragments(), ns3::OriginatorRxStatus::IsNextFragment(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::OriginatorRxStatus::SetSequenceControl().

Referenced by Receive().

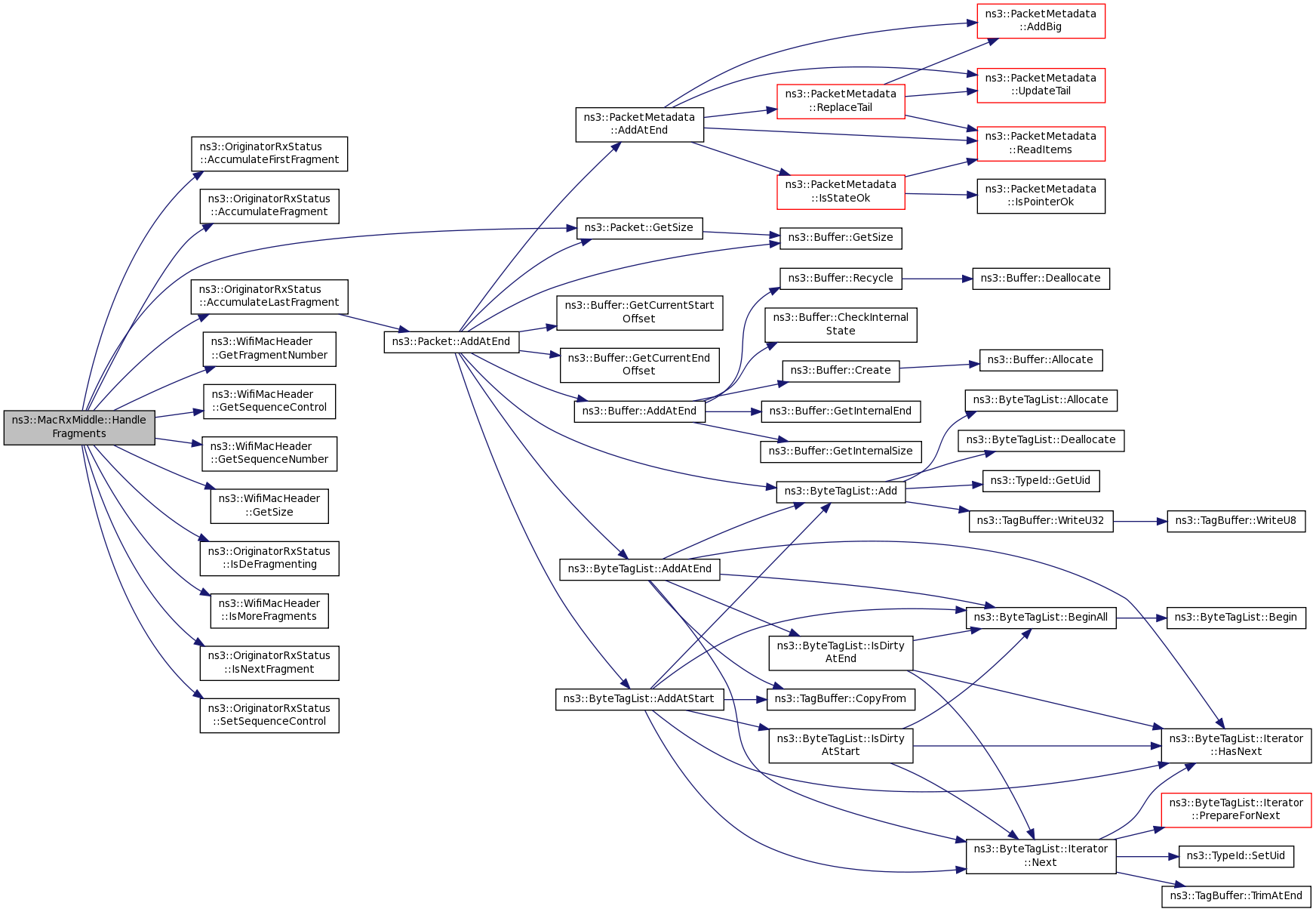

Here is the call graph for this function:

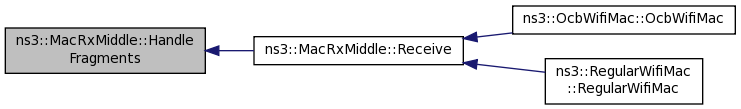

Here is the caller graph for this function:

bool ns3::MacRxMiddle::IsDuplicate	(	const WifiMacHeader *	hdr,
		OriginatorRxStatus *	originator
	)		const

private

Check if we have already received the packet from the sender before (by looking at the sequence control field).

Parameters

hdr
originator

Returns: true if we already received the packet previously, false otherwise

Definition at line 229 of file mac-rx-middle.cc.

References ns3::OriginatorRxStatus::GetLastSequenceControl(), ns3::WifiMacHeader::GetSequenceControl(), ns3::WifiMacHeader::IsRetry(), and NS_LOG_FUNCTION.

Referenced by Receive().

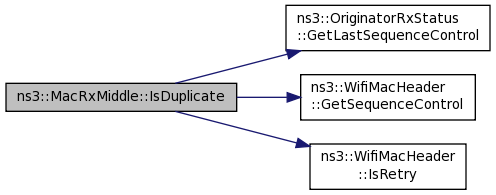

Here is the call graph for this function:

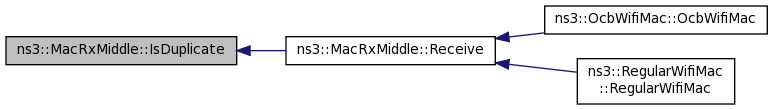

Here is the caller graph for this function:

OriginatorRxStatus * ns3::MacRxMiddle::Lookup ( const WifiMacHeader * hdr )

private

Look up for OriginatorRxStatus associated with the sender address (by looking at ADDR2 field in the header).

The method creates a new OriginatorRxStatus if one is not already presented.

Parameters

hdr

Returns: OriginatorRxStatus

Definition at line 195 of file mac-rx-middle.cc.

References ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetQosTid(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsQosData(), m_originatorStatus, m_qosOriginatorStatus, and NS_LOG_FUNCTION.

Referenced by Receive().

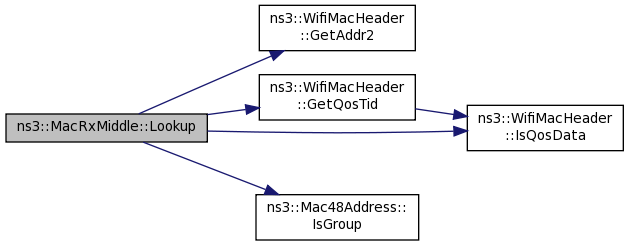

Here is the call graph for this function:

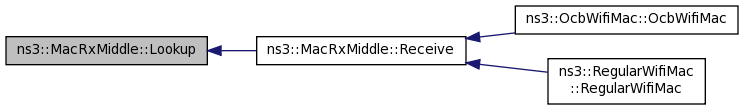

Here is the caller graph for this function:

void ns3::MacRxMiddle::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

The check below is really uneeded because it can fail in a lot of normal cases. Specifically, it is possible for sequence numbers to loop back to zero once they reach 0xfff0 and to go up to 0xf7f0 in which case the check below will report the two sequence numbers to not have the correct order relationship. So, this check cannot be used to discard old duplicate frames. It is thus here only for documentation purposes.

Definition at line 301 of file mac-rx-middle.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacHeader::GetSequenceControl(), ns3::WifiMacHeader::GetSequenceNumber(), HandleFragments(), ns3::WifiMacHeader::IsData(), IsDuplicate(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), Lookup(), m_callback, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
