ns3::OriginatorRxStatus Class Reference

A class to keep track of the packet originator status. More...

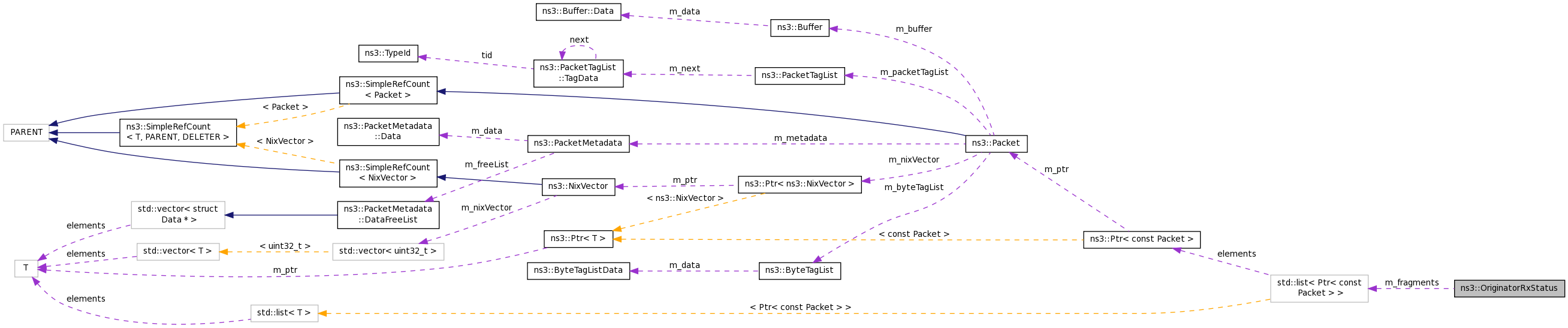

Collaboration diagram for ns3::OriginatorRxStatus:

Public Member Functions
	OriginatorRxStatus ()
	~OriginatorRxStatus ()
void	AccumulateFirstFragment (Ptr< const Packet > packet)
	We have received a first fragmented packet. More...
void	AccumulateFragment (Ptr< const Packet > packet)
	We received a fragmented packet (not first and not last). More...
Ptr< Packet >	AccumulateLastFragment (Ptr< const Packet > packet)
	We have received a last fragment of the fragmented packets (indicated by the no more fragment field). More...
uint16_t	GetLastSequenceControl (void)
	Return the last sequence control we received. More...
bool	IsDeFragmenting (void)
	Check if we are de-fragmenting packets. More...
bool	IsNextFragment (uint16_t sequenceControl)
	Check if the sequence control (i.e. More...
void	SetSequenceControl (uint16_t sequenceControl)
	Set the last sequence control we received. More...

Private Types
typedef std::list< Ptr< const Packet > >	Fragments
	typedef for a list of fragments (i.e. More...
typedef std::list< Ptr< const Packet > >::const_iterator	FragmentsCI
	typedef for a const iterator for Fragments More...

Private Attributes
bool	m_defragmenting
Fragments	m_fragments
uint16_t	m_lastSequenceControl

Detailed Description

A class to keep track of the packet originator status.

It recomposes the packet from multiple fragments.

Definition at line 40 of file mac-rx-middle.cc.

Member Typedef Documentation

typedef std::list<Ptr<const Packet> > ns3::OriginatorRxStatus::Fragments

private

typedef for a list of fragments (i.e.

incomplete Packet).

Definition at line 46 of file mac-rx-middle.cc.

typedef std::list<Ptr<const Packet> >::const_iterator ns3::OriginatorRxStatus::FragmentsCI

private

typedef for a const iterator for Fragments

Definition at line 50 of file mac-rx-middle.cc.

Constructor & Destructor Documentation

ns3::OriginatorRxStatus::OriginatorRxStatus ( )

inline

Definition at line 56 of file mac-rx-middle.cc.

References m_defragmenting, and m_lastSequenceControl.

ns3::OriginatorRxStatus::~OriginatorRxStatus ( )

inline

Definition at line 62 of file mac-rx-middle.cc.

References m_fragments.

Member Function Documentation

void ns3::OriginatorRxStatus::AccumulateFirstFragment ( Ptr< const Packet >  packet )

inline

We have received a first fragmented packet.

We start the deframentation by saving the first fragment.

Parameters

packet

the first fragmented packet

Definition at line 82 of file mac-rx-middle.cc.

References m_defragmenting, m_fragments, and NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

void ns3::OriginatorRxStatus::AccumulateFragment ( Ptr< const Packet >  packet )

inline

We received a fragmented packet (not first and not last).

We simply save it into our internal list.

Parameters

packet

the received fragment

Definition at line 116 of file mac-rx-middle.cc.

References m_defragmenting, m_fragments, and NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

Ptr<Packet> ns3::OriginatorRxStatus::AccumulateLastFragment ( Ptr< const Packet >  packet )

inline

We have received a last fragment of the fragmented packets (indicated by the no more fragment field).

We re-construct the packet from the fragments we saved and return the full packet.

Parameters

packet

the last fragment

Returns

the fully reconstructed packet

Definition at line 97 of file mac-rx-middle.cc.

References ns3::Packet::AddAtEnd(), m_defragmenting, m_fragments, and NS_ASSERT.

Referenced by ns3::MacRxMiddle::HandleFragments().

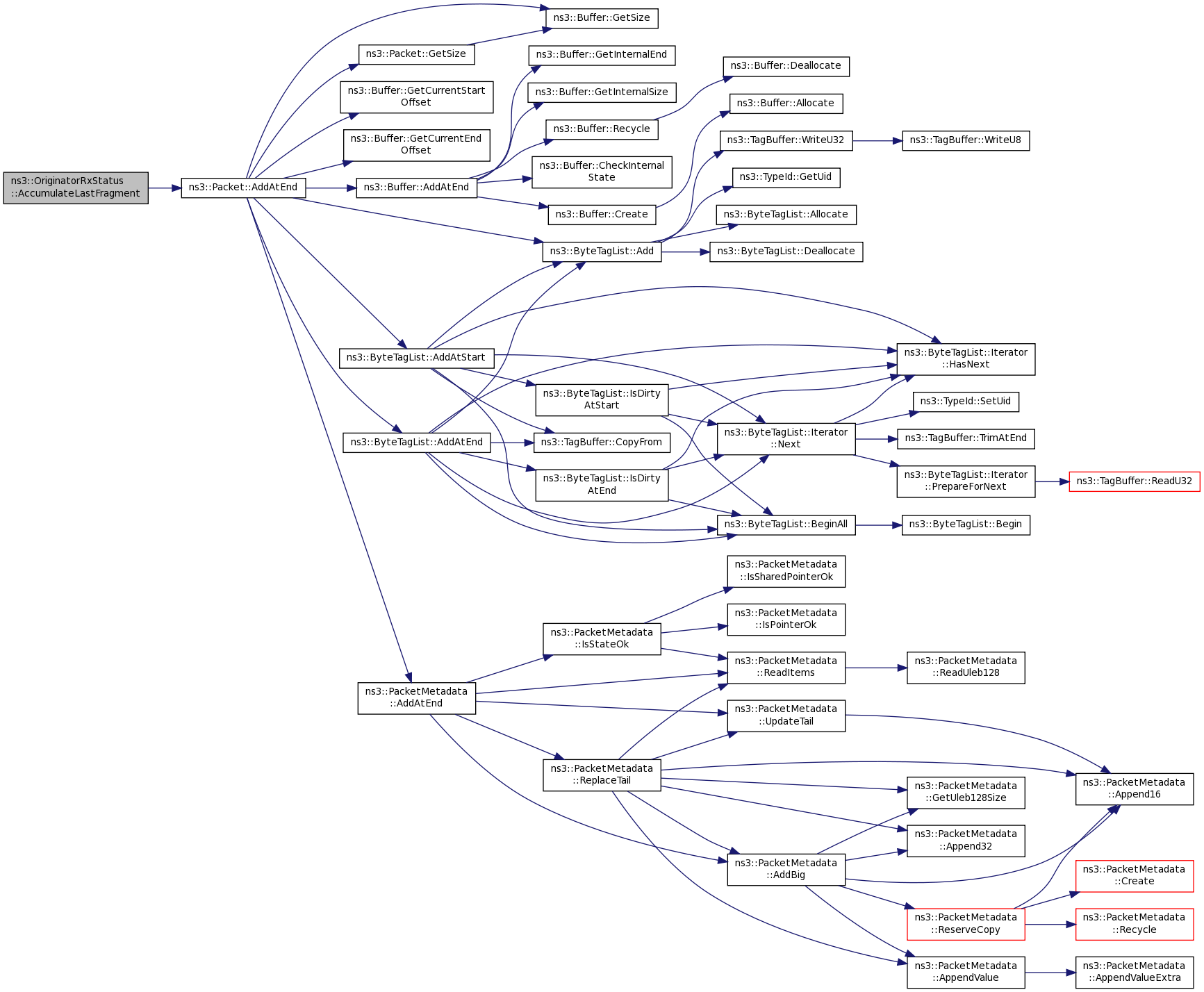

Here is the call graph for this function:

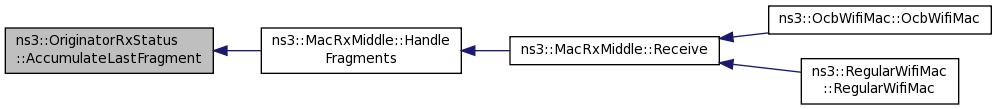

Here is the caller graph for this function:

uint16_t ns3::OriginatorRxStatus::GetLastSequenceControl ( void  )

inline

Return the last sequence control we received.

Returns

the last sequence control

Definition at line 146 of file mac-rx-middle.cc.

References m_lastSequenceControl.

Referenced by ns3::MacRxMiddle::IsDuplicate().

Here is the caller graph for this function:

bool ns3::OriginatorRxStatus::IsDeFragmenting ( void  )

inline

Check if we are de-fragmenting packets.

Returns

true if we are de-fragmenting packets, false otherwise

Definition at line 72 of file mac-rx-middle.cc.

References m_defragmenting.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

bool ns3::OriginatorRxStatus::IsNextFragment ( uint16_t  sequenceControl )

inline

Check if the sequence control (i.e.

fragment number) is in order.

Parameters

sequenceControl

the raw sequence control

Returns

true if the sequence control is in order, false otherwise

Definition at line 129 of file mac-rx-middle.cc.

References m_lastSequenceControl.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

void ns3::OriginatorRxStatus::SetSequenceControl ( uint16_t  sequenceControl )

inline

Set the last sequence control we received.

Parameters

sequenceControl

the last sequence control we received

Definition at line 155 of file mac-rx-middle.cc.

References m_lastSequenceControl.

Referenced by ns3::MacRxMiddle::HandleFragments().

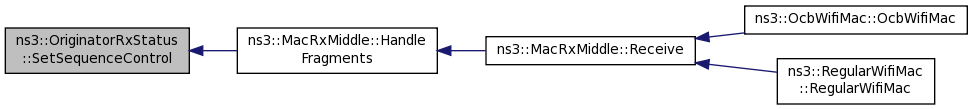

Here is the caller graph for this function:

Member Data Documentation

bool ns3::OriginatorRxStatus::m_defragmenting

private

Definition at line 52 of file mac-rx-middle.cc.

Referenced by AccumulateFirstFragment(), AccumulateFragment(), AccumulateLastFragment(), IsDeFragmenting(), and OriginatorRxStatus().

Fragments ns3::OriginatorRxStatus::m_fragments

private

Definition at line 54 of file mac-rx-middle.cc.

Referenced by AccumulateFirstFragment(), AccumulateFragment(), AccumulateLastFragment(), and ~OriginatorRxStatus().

uint16_t ns3::OriginatorRxStatus::m_lastSequenceControl

private

Definition at line 53 of file mac-rx-middle.cc.

Referenced by GetLastSequenceControl(), IsNextFragment(), OriginatorRxStatus(), and SetSequenceControl().

---

The documentation for this class was generated from the following file:

• src/wifi/model/mac-rx-middle.cc
