ns3::OfdmDownlinkFramePrefix Class Reference

#include <ofdm-downlink-frame-prefix.h>

+ Inheritance diagram for ns3::OfdmDownlinkFramePrefix:

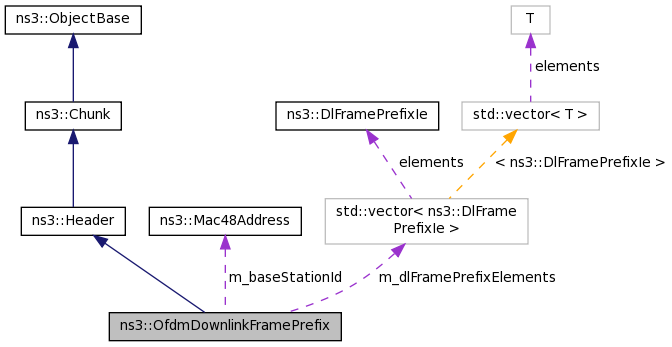

+ Collaboration diagram for ns3::OfdmDownlinkFramePrefix:

Public Member Functions

 OfdmDownlinkFramePrefix ()

 ~OfdmDownlinkFramePrefix ()

void AddDlFramePrefixElement (DlFramePrefixIe dlFramePrefixElement)

uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetBaseStationId (void) const

uint8_t GetConfigurationChangeCount (void) const

std::vector< DlFramePrefixIeGetDlFramePrefixElements (void) const

uint32_t GetFrameNumber (void) const

uint8_t GetHcs (void) const

std::string GetName (void) const

uint32_t GetSerializedSize (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetBaseStationId (Mac48Address baseStationId)

void SetConfigurationChangeCount (uint8_t configurationChangeCount)

void SetFrameNumber (uint32_t frameNumber)

void SetHcs (uint8_t hcs)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

virtual TypeId GetInstanceTypeId (void) const =0

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Private Attributes

Mac48Address m_baseStationId

uint8_t m_configurationChangeCount

std::vector< DlFramePrefixIem_dlFramePrefixElements

uint32_t m_frameNumber

uint8_t m_hcs


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Definition at line 80 of file ofdm-downlink-frame-prefix.h.

Constructor & Destructor Documentation

ns3::OfdmDownlinkFramePrefix::OfdmDownlinkFramePrefix ( )

Definition at line 131 of file ofdm-downlink-frame-prefix.cc.

ns3::OfdmDownlinkFramePrefix::~OfdmDownlinkFramePrefix ( )

Definition at line 139 of file ofdm-downlink-frame-prefix.cc.

Member Function Documentation

void ns3::OfdmDownlinkFramePrefix::AddDlFramePrefixElement ( DlFramePrefixIe  dlFramePrefixElement)

Definition at line 163 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

Referenced by Deserialize().

+ Here is the caller graph for this function:

uint32_t ns3::OfdmDownlinkFramePrefix::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 255 of file ofdm-downlink-frame-prefix.cc.

References AddDlFramePrefixElement(), ns3::DlFramePrefixIe::GetDiuc(), GetSerializedSize(), m_baseStationId, m_configurationChangeCount, m_frameNumber, m_hcs, ns3::DlFramePrefixIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

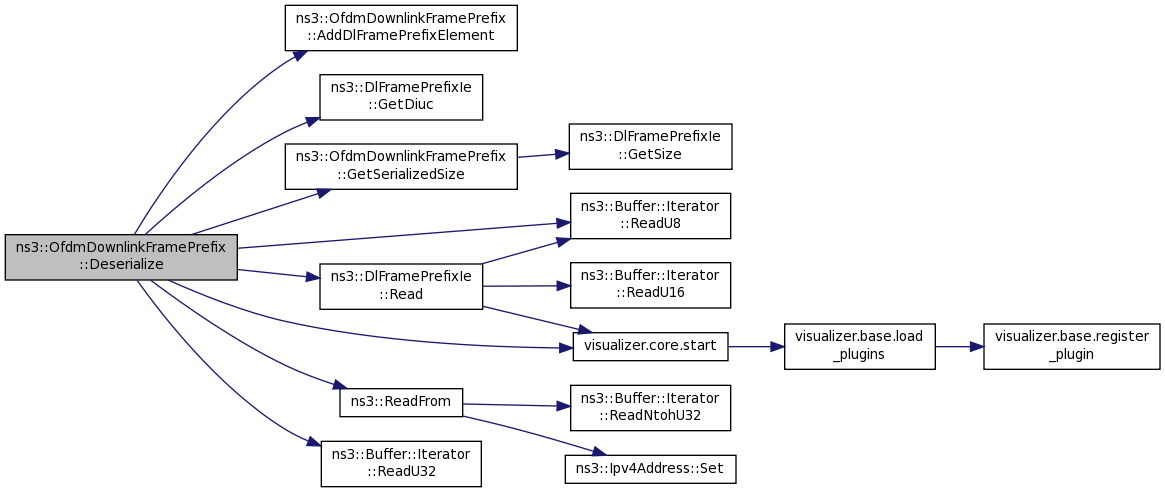

+ Here is the call graph for this function:

Mac48Address ns3::OfdmDownlinkFramePrefix::GetBaseStationId ( void  ) const

Definition at line 176 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId.

uint8_t ns3::OfdmDownlinkFramePrefix::GetConfigurationChangeCount ( void  ) const

Definition at line 188 of file ofdm-downlink-frame-prefix.cc.

References m_configurationChangeCount.

std::vector< DlFramePrefixIe > ns3::OfdmDownlinkFramePrefix::GetDlFramePrefixElements ( void  ) const

Definition at line 194 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

uint32_t ns3::OfdmDownlinkFramePrefix::GetFrameNumber ( void  ) const

Definition at line 182 of file ofdm-downlink-frame-prefix.cc.

References m_frameNumber.

uint8_t ns3::OfdmDownlinkFramePrefix::GetHcs ( void  ) const

Definition at line 200 of file ofdm-downlink-frame-prefix.cc.

References m_hcs.

std::string ns3::OfdmDownlinkFramePrefix::GetName ( void  ) const

Definition at line 206 of file ofdm-downlink-frame-prefix.cc.

uint32_t ns3::OfdmDownlinkFramePrefix::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 222 of file ofdm-downlink-frame-prefix.cc.

References ns3::DlFramePrefixIe::GetSize(), and m_dlFramePrefixElements.

Referenced by Deserialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::OfdmDownlinkFramePrefix::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 212 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, and m_hcs.

void ns3::OfdmDownlinkFramePrefix::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 237 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, m_hcs, visualizer.core::start(), ns3::DlFramePrefixIe::Write(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

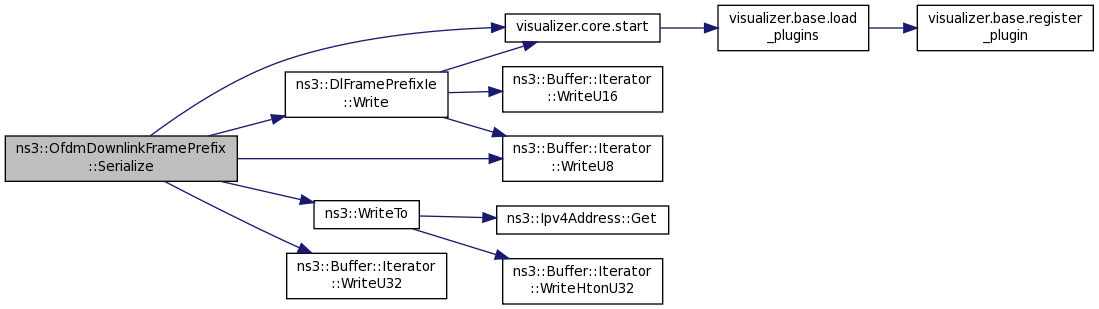

+ Here is the call graph for this function:

void ns3::OfdmDownlinkFramePrefix::SetBaseStationId ( Mac48Address  baseStationId)

Definition at line 144 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId.

void ns3::OfdmDownlinkFramePrefix::SetConfigurationChangeCount ( uint8_t  configurationChangeCount)

Definition at line 156 of file ofdm-downlink-frame-prefix.cc.

References m_configurationChangeCount.

void ns3::OfdmDownlinkFramePrefix::SetFrameNumber ( uint32_t  frameNumber)

Definition at line 150 of file ofdm-downlink-frame-prefix.cc.

References m_frameNumber.

void ns3::OfdmDownlinkFramePrefix::SetHcs ( uint8_t  hcs)

Definition at line 170 of file ofdm-downlink-frame-prefix.cc.

References m_hcs.

Member Data Documentation

Mac48Address ns3::OfdmDownlinkFramePrefix::m_baseStationId
private
uint8_t ns3::OfdmDownlinkFramePrefix::m_configurationChangeCount
private
std::vector<DlFramePrefixIe> ns3::OfdmDownlinkFramePrefix::m_dlFramePrefixElements
private
uint32_t ns3::OfdmDownlinkFramePrefix::m_frameNumber
private
uint8_t ns3::OfdmDownlinkFramePrefix::m_hcs
private

Definition at line 108 of file ofdm-downlink-frame-prefix.h.

Referenced by Deserialize(), GetHcs(), Print(), Serialize(), and SetHcs().


The documentation for this class was generated from the following files:
