A block of Address TLVs (PbbAddressTlv). More...

#include <packetbb.h>

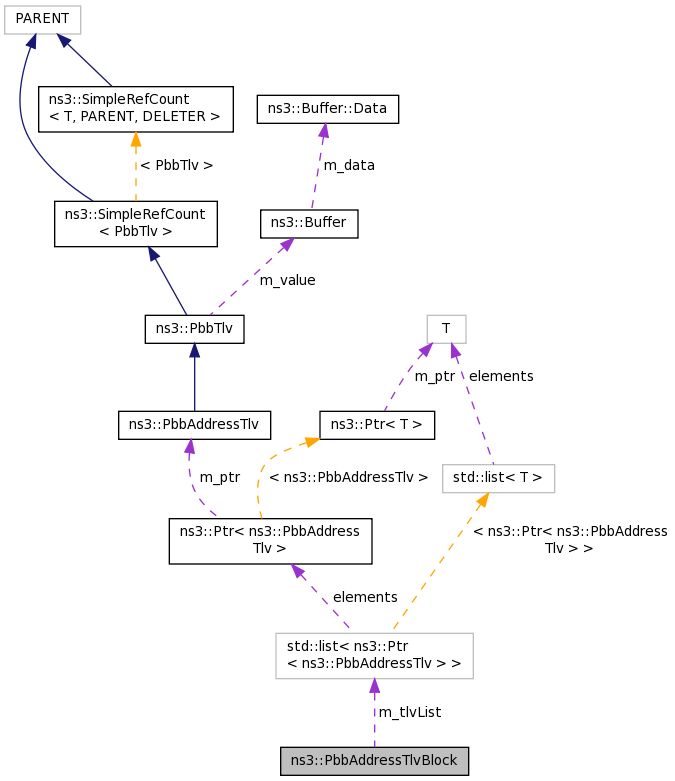

Collaboration diagram for ns3::PbbAddressTlvBlock:

Public Types
typedef std::list< Ptr < PbbAddressTlv > >::const_iterator	ConstIterator
	This is a PbbAddressTlv iterator for PbbAddressTlvBlock. More...

typedef std::list< Ptr < PbbAddressTlv > >::iterator	Iterator

Public Member Functions
	PbbAddressTlvBlock (void)
	This is a const PbbAddressTlv iterator for PbbAddressTlvBlock. More...

	~PbbAddressTlvBlock (void)

Ptr< PbbAddressTlv >	Back (void) const

Iterator	Begin (void)

ConstIterator	Begin (void) const

void	Clear (void)
	Removes all Address TLVs from this block. More...

void	Deserialize (Buffer::Iterator &start)
	Deserializes a block from the specified buffer. More...

bool	Empty (void) const

Iterator	End (void)

ConstIterator	End (void) const

Iterator	Erase (Iterator position)
	Removes the Address TLV at the specified position. More...

Iterator	Erase (Iterator first, Iterator last)
	Removes all Address TLVs from [first, last) (includes first, not includes last). More...

Ptr< PbbAddressTlv >	Front (void) const

uint32_t	GetSerializedSize (void) const

Iterator	Insert (Iterator position, const Ptr< PbbAddressTlv > tlv)
	Inserts an Address TLV at the specified position in this block. More...

bool	operator!= (const PbbAddressTlvBlock &other) const
	Inequality operator for PbbAddressTlvBlock. More...

bool	operator== (const PbbAddressTlvBlock &other) const
	Equality operator for PbbAddressTlvBlock. More...

void	PopBack (void)
	Removes an Address TLV from the back of this block. More...

void	PopFront (void)
	Removes an AddressTLV from the front of this block. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this block. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this block, with specified indentation. More...

void	PushBack (Ptr< PbbAddressTlv > tlv)
	Appends an Address TLV to the back of this block. More...

void	PushFront (Ptr< PbbAddressTlv > tlv)
	Prepends an Address TLV to the front of this block. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this block into the specified buffer. More...

int	Size (void) const

Private Attributes
std::list< Ptr< PbbAddressTlv > >	m_tlvList

Detailed Description

A block of Address TLVs (PbbAddressTlv).

Acts similar to a C++ STL container.

Definition at line 217 of file packetbb.h.

Member Typedef Documentation

typedef std::list< Ptr<PbbAddressTlv> >::const_iterator ns3::PbbAddressTlvBlock::ConstIterator

This is a PbbAddressTlv iterator for PbbAddressTlvBlock.

Definition at line 221 of file packetbb.h.

typedef std::list< Ptr<PbbAddressTlv> >::iterator ns3::PbbAddressTlvBlock::Iterator

Definition at line 220 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbAddressTlvBlock::PbbAddressTlvBlock ( void )

This is a const PbbAddressTlv iterator for PbbAddressTlvBlock.

Definition at line 305 of file packetbb.cc.

References NS_LOG_FUNCTION.

ns3::PbbAddressTlvBlock::~PbbAddressTlvBlock ( void )

Definition at line 311 of file packetbb.cc.

References Clear(), and NS_LOG_FUNCTION.

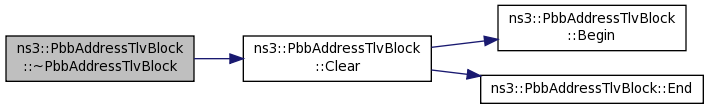

Here is the call graph for this function:

Member Function Documentation

Ptr< PbbAddressTlv > ns3::PbbAddressTlvBlock::Back ( void ) const

Returns: the last AddressTLV in this block.

Definition at line 367 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvBack().

Here is the caller graph for this function:

PbbAddressTlvBlock::Iterator ns3::PbbAddressTlvBlock::Begin ( void )

Returns: an iterator to the first Address TLV in this block.

Definition at line 318 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by Clear(), GetSerializedSize(), operator==(), Print(), Serialize(), and ns3::PbbAddressBlock::TlvBegin().

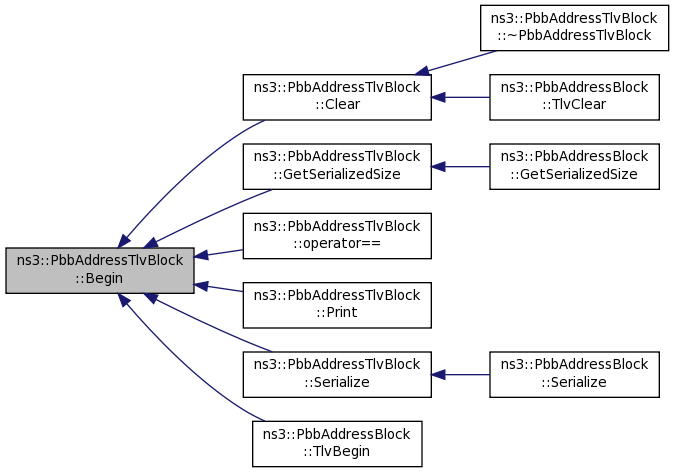

Here is the caller graph for this function:

PbbAddressTlvBlock::ConstIterator ns3::PbbAddressTlvBlock::Begin ( void ) const

Returns: a const iterator to the first Address TLV in this block.

Definition at line 325 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

void ns3::PbbAddressTlvBlock::Clear ( void )

Removes all Address TLVs from this block.

Definition at line 423 of file packetbb.cc.

References Begin(), End(), m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvClear(), and ~PbbAddressTlvBlock().

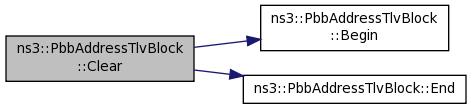

Here is the call graph for this function:

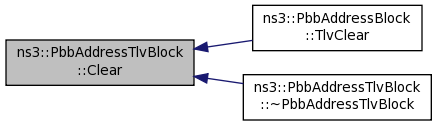

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::Deserialize ( Buffer::Iterator & start )

Deserializes a block from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 470 of file packetbb.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), NS_LOG_FUNCTION, PushBack(), ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

Referenced by ns3::PbbAddressBlock::Deserialize().

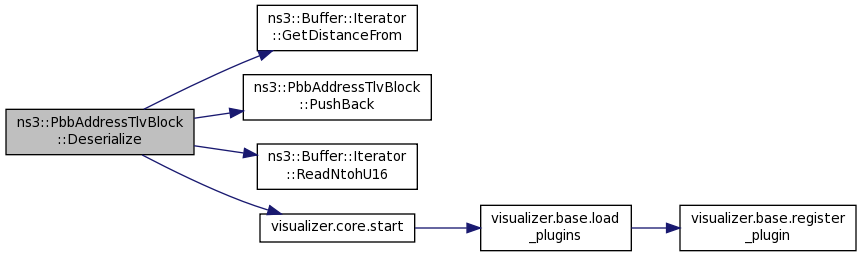

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PbbAddressTlvBlock::Empty ( void ) const

Returns: true if there are no Address TLVs in this block, false otherwise.

Definition at line 353 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by Serialize(), and ns3::PbbAddressBlock::TlvEmpty().

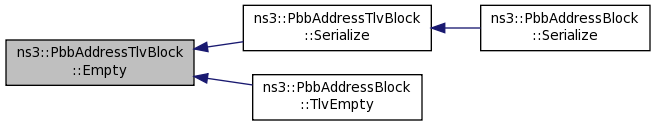

Here is the caller graph for this function:

PbbAddressTlvBlock::Iterator ns3::PbbAddressTlvBlock::End ( void )

Returns: an iterator to the past-the-end element in this block.

Definition at line 332 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by Clear(), GetSerializedSize(), operator==(), Print(), Serialize(), and ns3::PbbAddressBlock::TlvEnd().

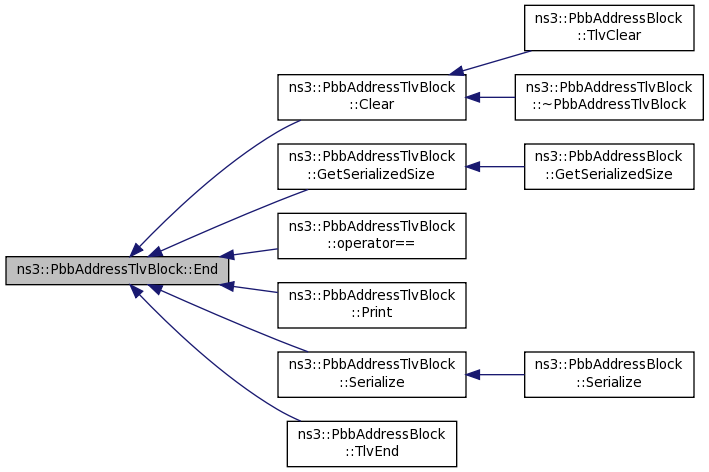

Here is the caller graph for this function:

PbbAddressTlvBlock::ConstIterator ns3::PbbAddressTlvBlock::End ( void ) const

Returns: a const iterator to the past-the-end element in this block.

Definition at line 339 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

PbbAddressTlvBlock::Iterator ns3::PbbAddressTlvBlock::Erase ( PbbAddressTlvBlock::Iterator position )

Removes the Address TLV at the specified position.

Parameters

position an Iterator pointing to the Address TLV to erase.

Returns: an iterator pointing to the next Address TLV in the block.

Definition at line 409 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvErase().

Here is the caller graph for this function:

PbbAddressTlvBlock::Iterator ns3::PbbAddressTlvBlock::Erase	(	PbbAddressTlvBlock::Iterator	first,
		PbbAddressTlvBlock::Iterator	last
	)

Removes all Address TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first Address TLV to erase (inclusive).
last	an Iterator pointing to the element past the last Address TLV to erase.

Returns: an iterator pointing to the next Address TLV in the block.

Definition at line 416 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Ptr< PbbAddressTlv > ns3::PbbAddressTlvBlock::Front ( void ) const

Returns: the first Address TLV in this block.

Definition at line 360 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvFront().

Here is the caller graph for this function:

uint32_t ns3::PbbAddressTlvBlock::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this block.

Definition at line 434 of file packetbb.cc.

References Begin(), End(), and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::GetSerializedSize().

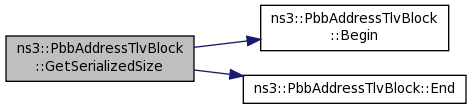

Here is the call graph for this function:

Here is the caller graph for this function:

PbbAddressTlvBlock::Iterator ns3::PbbAddressTlvBlock::Insert	(	PbbAddressTlvBlock::Iterator	position,
		const Ptr< PbbAddressTlv >	tlv
	)

Inserts an Address TLV at the specified position in this block.

Parameters

position	an Iterator pointing to the position in this block to insert the Address TLV.
tlv	a smart pointer to the Address TLV to insert.

Returns: An iterator pointing to the newly inserted Address TLV.

Definition at line 402 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

bool ns3::PbbAddressTlvBlock::operator!= ( const PbbAddressTlvBlock & other ) const

Inequality operator for PbbAddressTlvBlock.

Parameters

other PbbAddressTlvBlock to compare to this one

Returns: true if PbbAddressTlvBlock are not equal

Definition at line 539 of file packetbb.cc.

bool ns3::PbbAddressTlvBlock::operator== ( const PbbAddressTlvBlock & other ) const

Equality operator for PbbAddressTlvBlock.

Parameters

other PbbAddressTlvBlock to compare to this one

Returns: true if PbbAddressTlvBlock are equal

Definition at line 518 of file packetbb.cc.

References Begin(), End(), and Size().

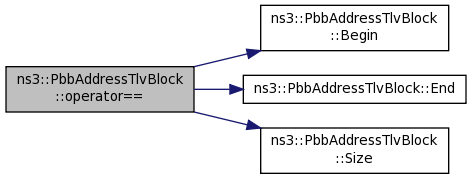

Here is the call graph for this function:

void ns3::PbbAddressTlvBlock::PopBack ( void )

Removes an Address TLV from the back of this block.

Definition at line 395 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvPopBack().

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::PopFront ( void )

Removes an AddressTLV from the front of this block.

Definition at line 381 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvPopFront().

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::Print ( std::ostream & os ) const

Pretty-prints the contents of this block.

Parameters

os	a stream object to print to.

Definition at line 488 of file packetbb.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::Print().

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this block, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 495 of file packetbb.cc.

References Begin(), End(), NS_LOG_FUNCTION, and Size().

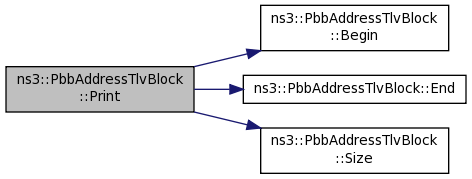

Here is the call graph for this function:

void ns3::PbbAddressTlvBlock::PushBack ( Ptr< PbbAddressTlv > tlv )

Appends an Address TLV to the back of this block.

Parameters

tlv	a smart pointer to the Address TLV to append.

Definition at line 388 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::PbbAddressBlock::TlvPushBack().

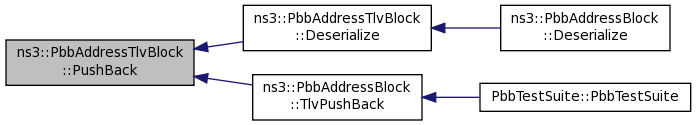

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::PushFront ( Ptr< PbbAddressTlv > tlv )

Prepends an Address TLV to the front of this block.

Parameters

tlv	a smart pointer to the Address TLV to prepend.

Definition at line 374 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressBlock::TlvPushFront().

Here is the caller graph for this function:

void ns3::PbbAddressTlvBlock::Serialize ( Buffer::Iterator & start ) const

Serializes this block into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be serialized by their containing packet.

Definition at line 447 of file packetbb.cc.

References Begin(), Empty(), End(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU16().

Referenced by ns3::PbbAddressBlock::Serialize().

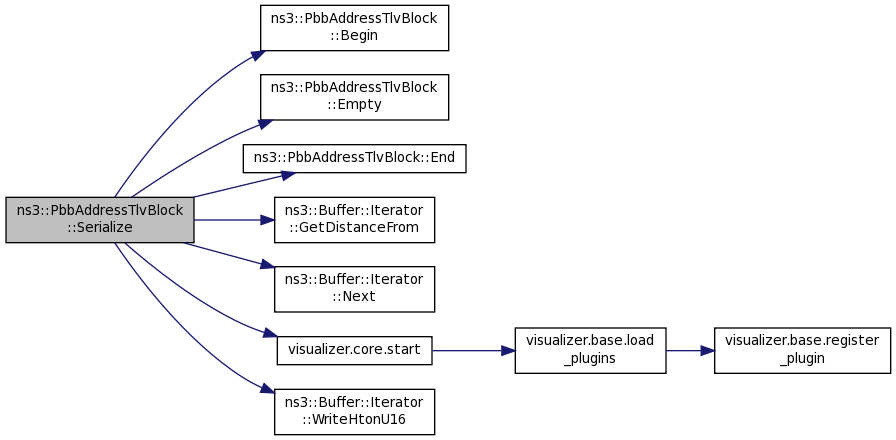

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::PbbAddressTlvBlock::Size ( void ) const

Returns: the number of Address TLVs in this block.

Definition at line 346 of file packetbb.cc.

References m_tlvList, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and ns3::PbbAddressBlock::TlvSize().

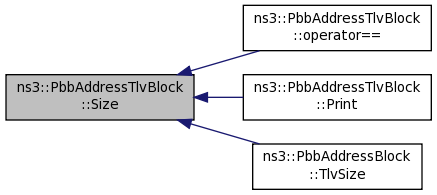

Here is the caller graph for this function:

Member Data Documentation

std::list< Ptr<PbbAddressTlv> > ns3::PbbAddressTlvBlock::m_tlvList

private

Definition at line 374 of file packetbb.h.

Referenced by Back(), Begin(), Clear(), Empty(), End(), Erase(), Front(), Insert(), PopBack(), PopFront(), PushBack(), PushFront(), and Size().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
